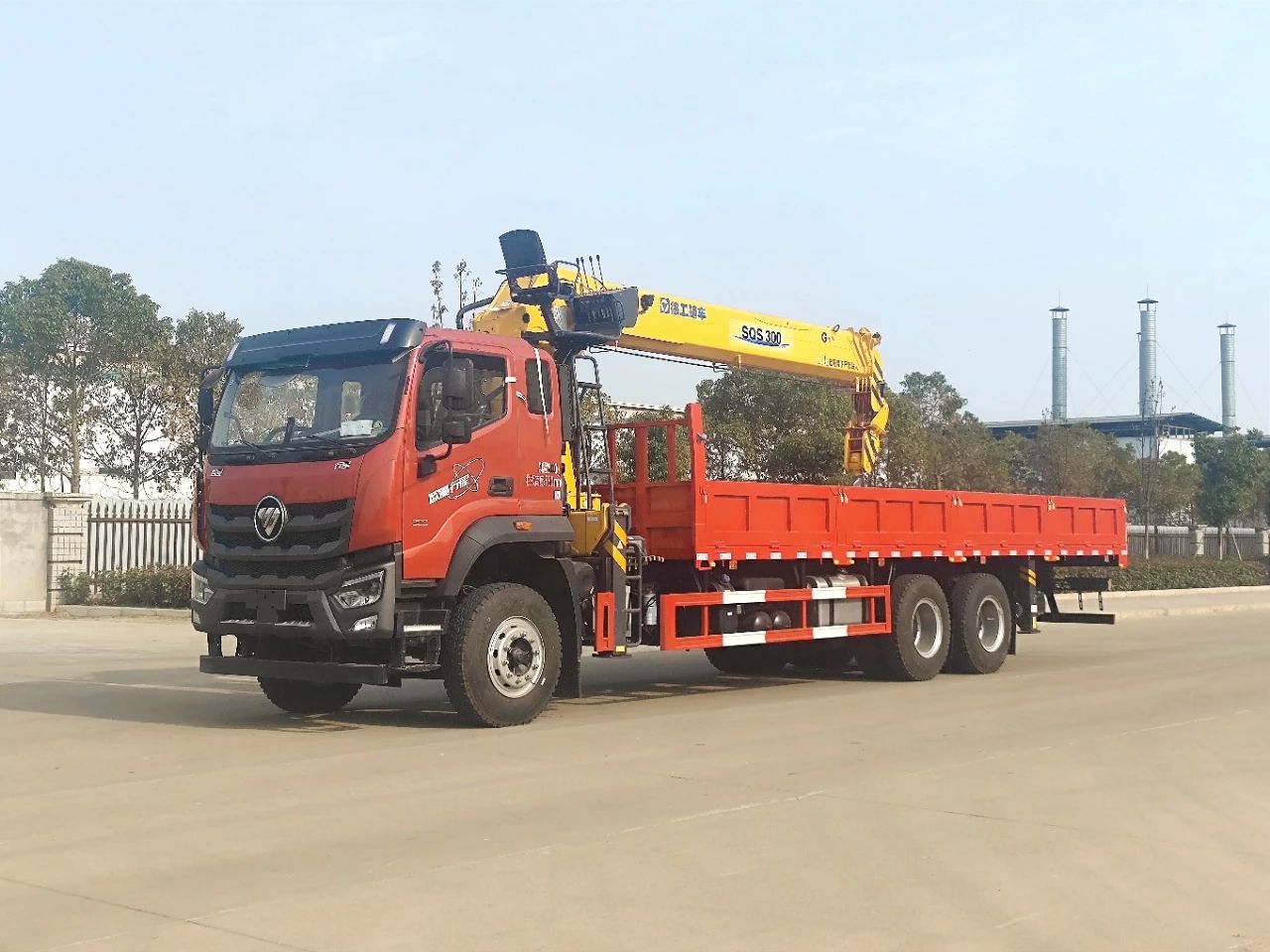

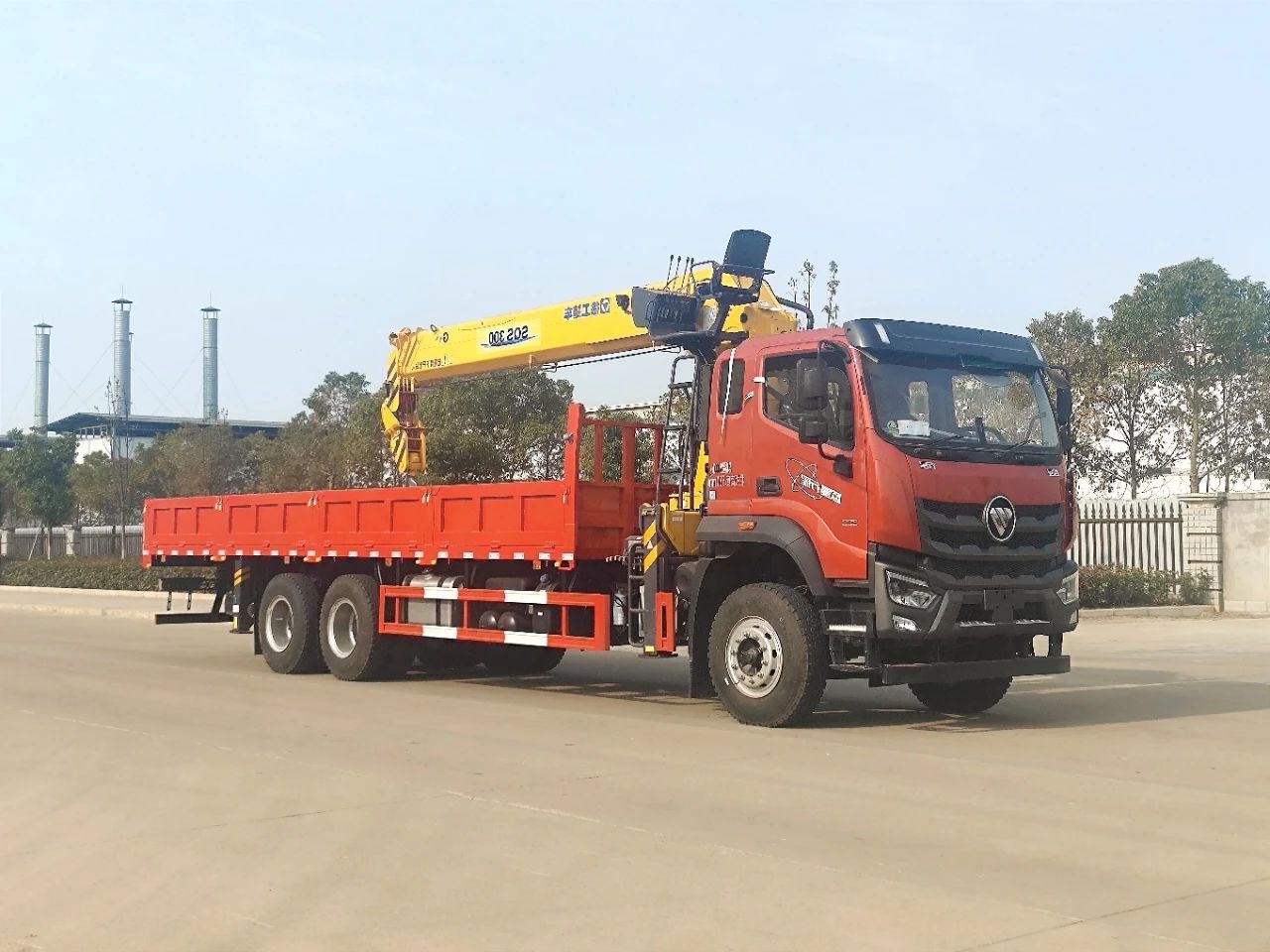

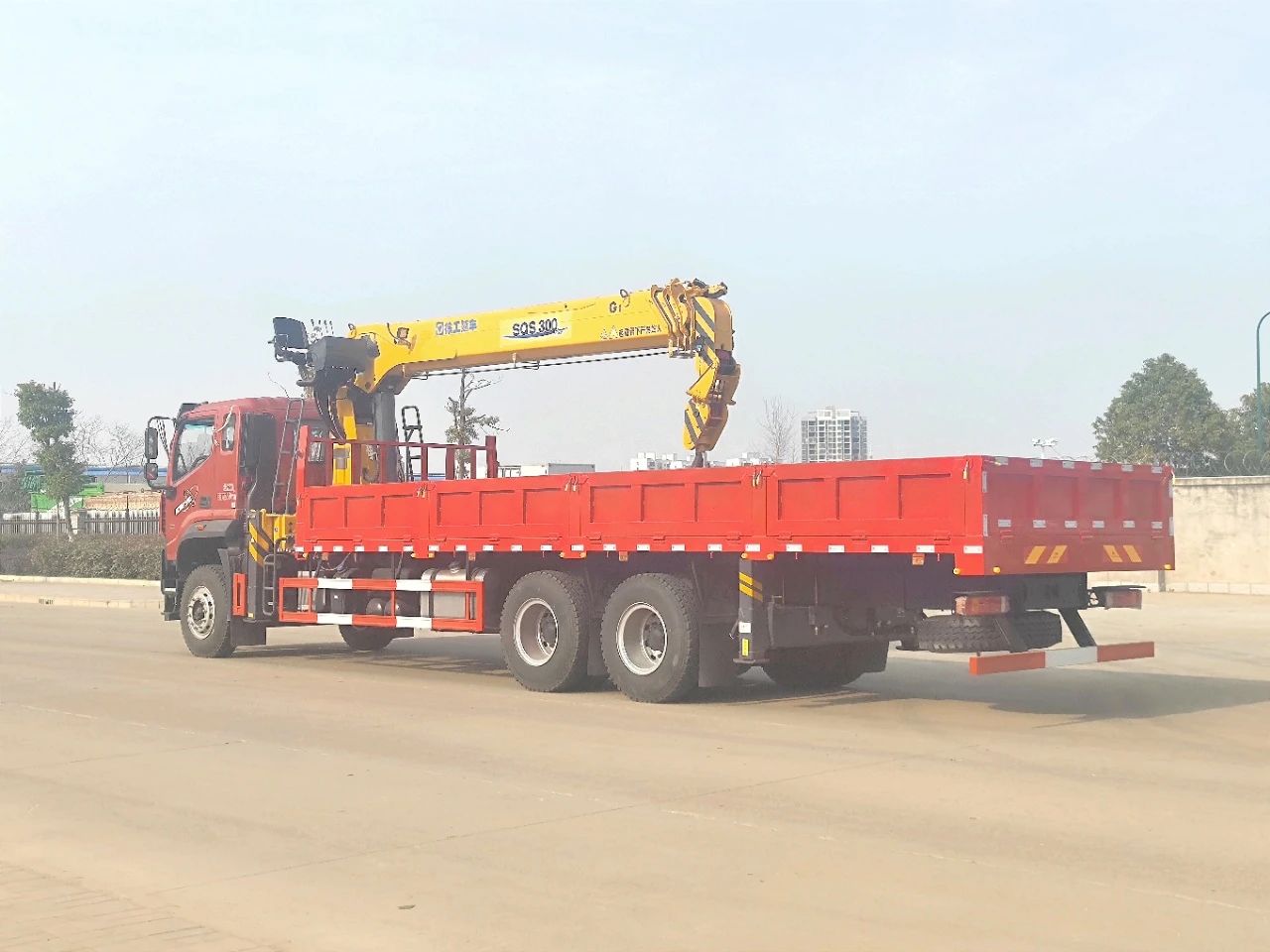

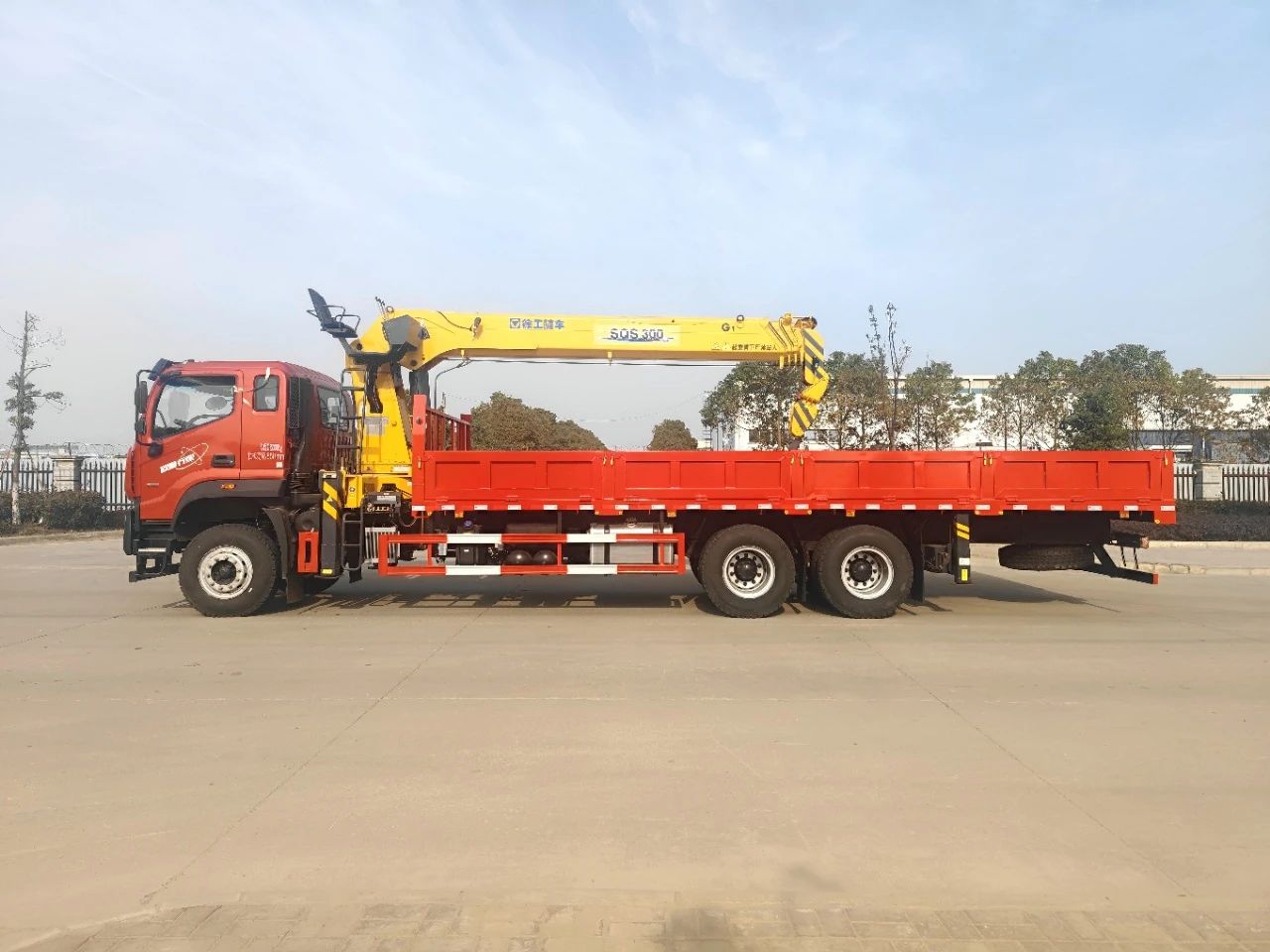

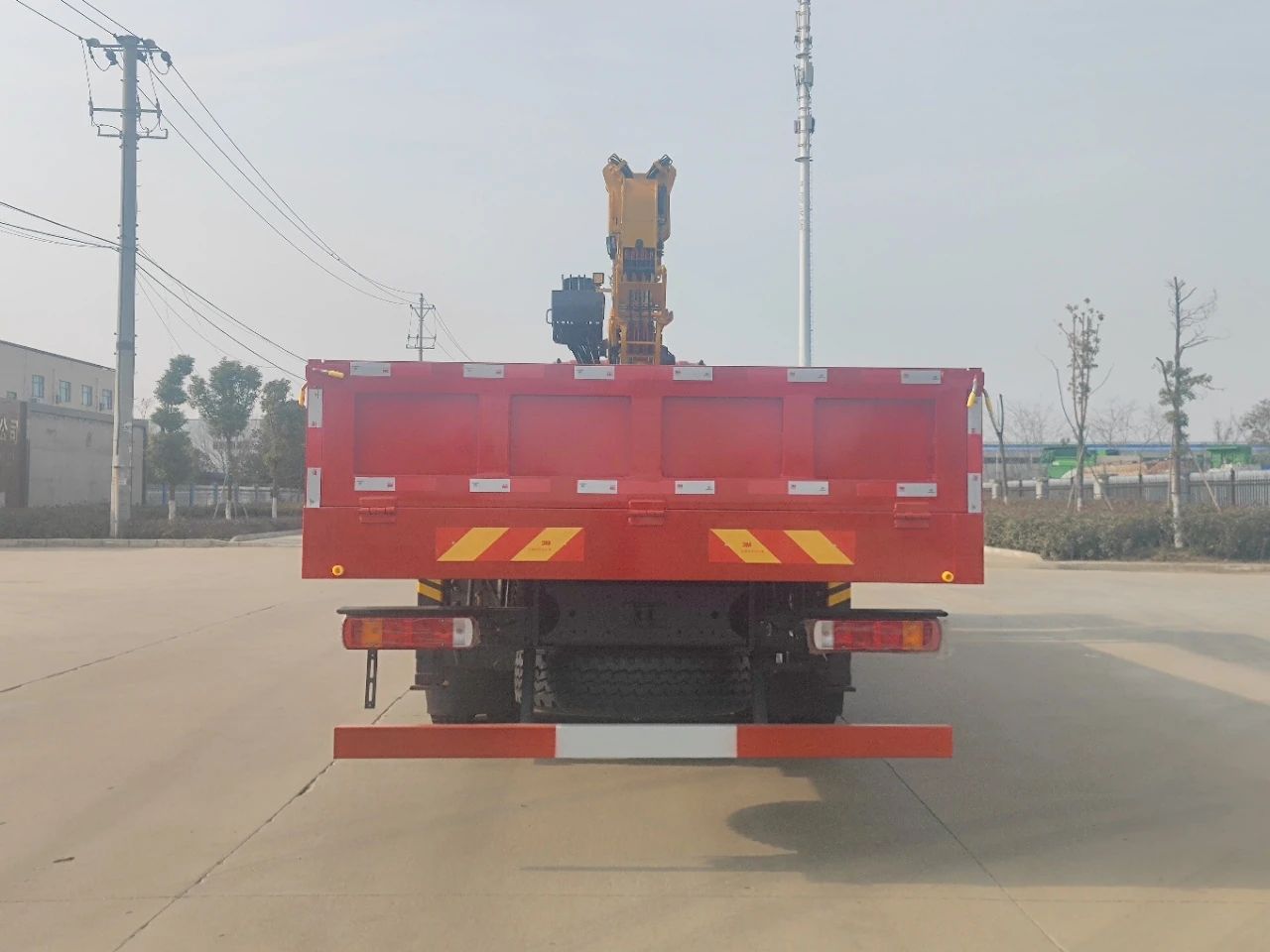

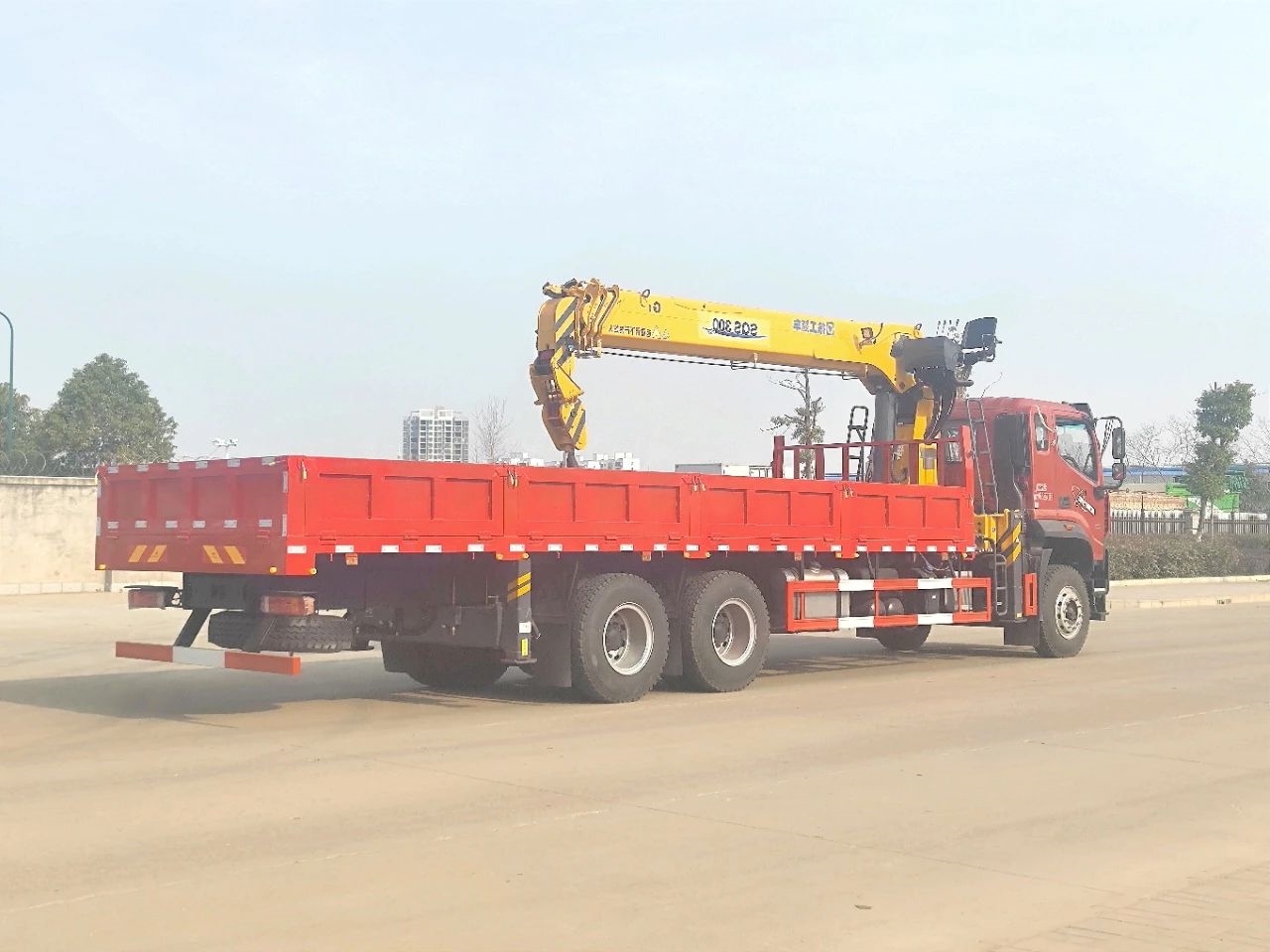

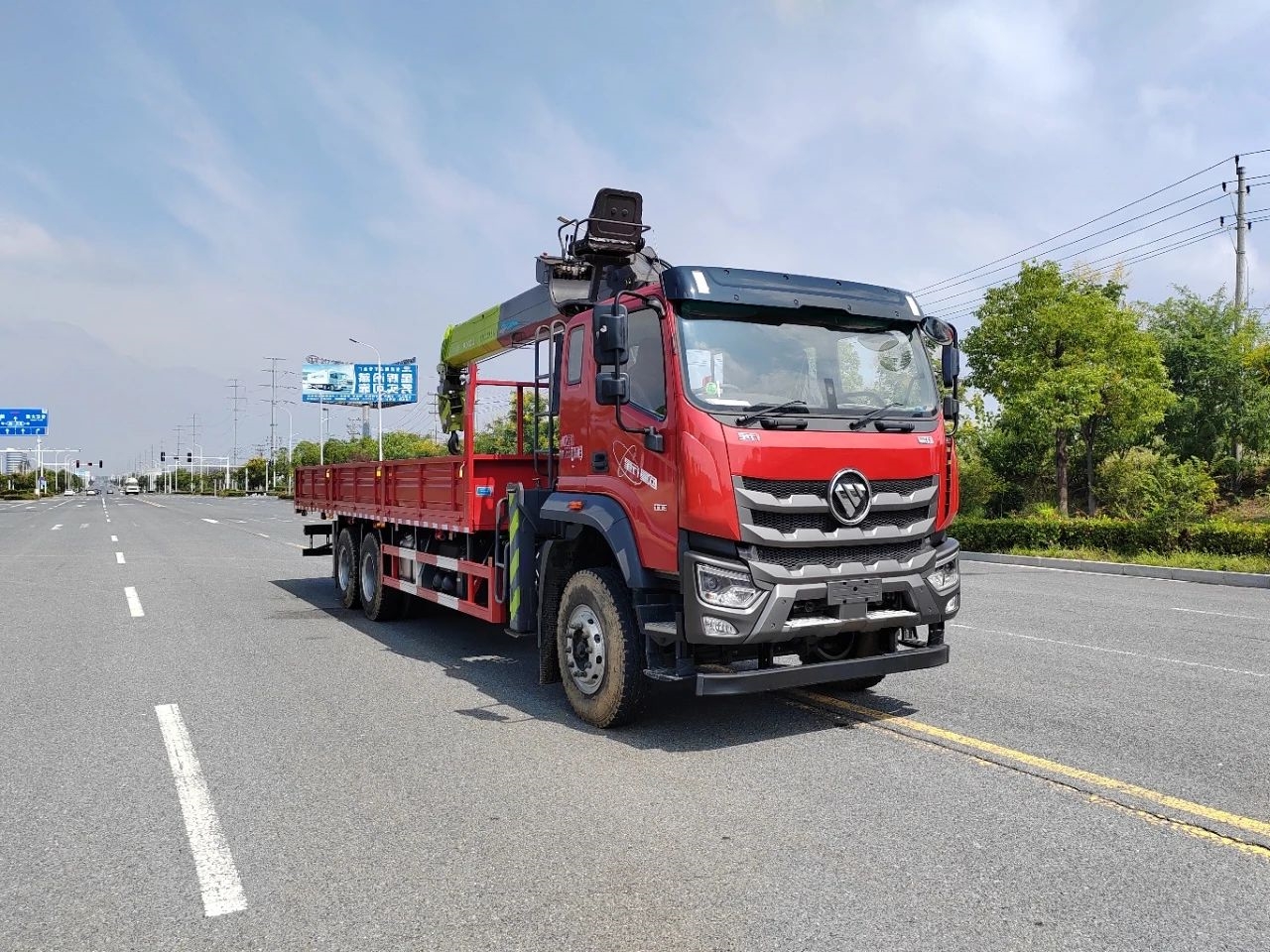

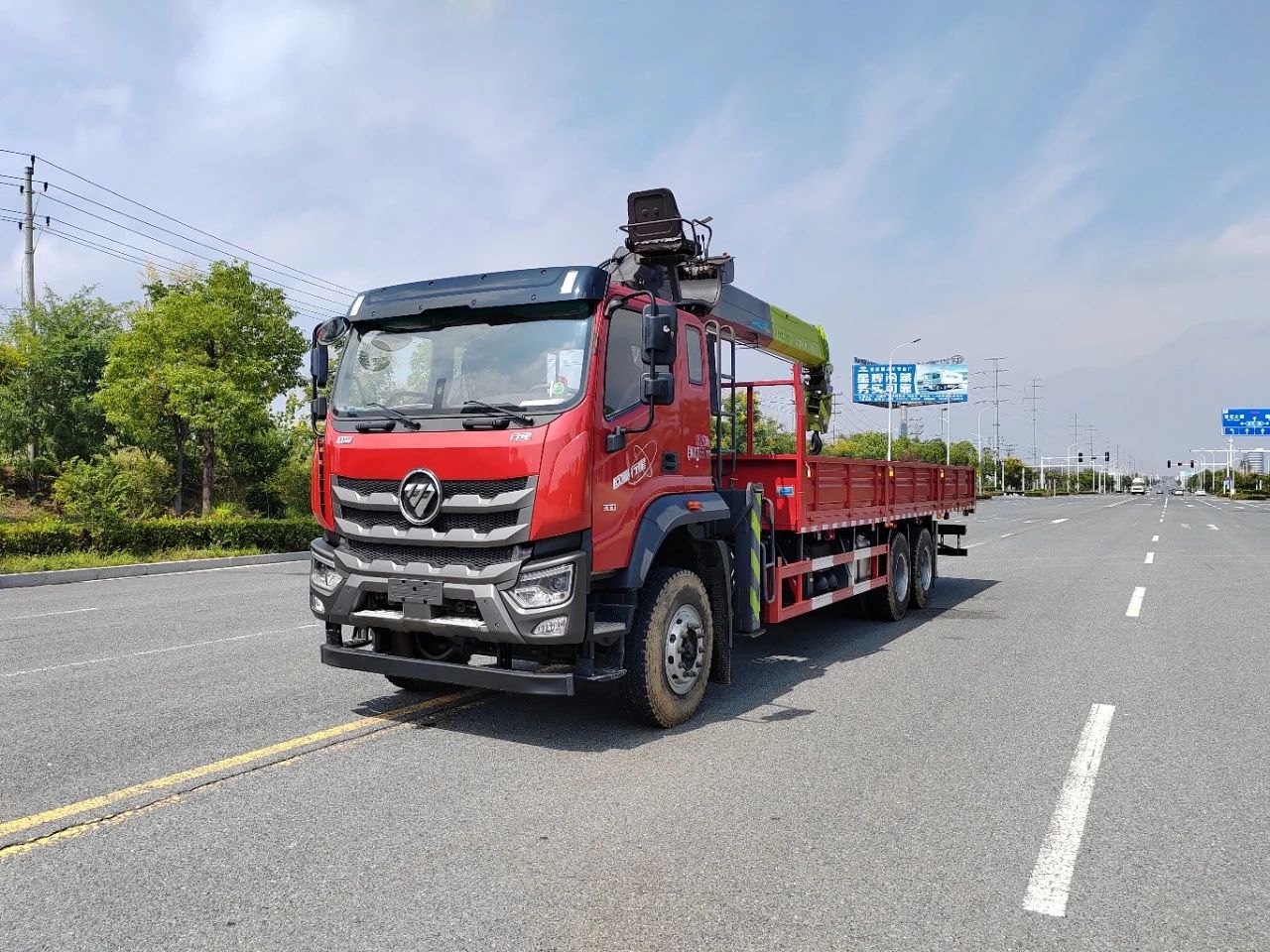

Auman 6X4 Truck With Crane
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
1.Engine: YCS06300-60,Yuchai 300 hp, optional Yuchai 270hp
2.Transmission type: Fast 9-speed with flange power take-off and remote throttle
3.Wheelbase: 5850+1350,4800+1350(mm)
4.Tyre:11.00R20 steel wire tire, 10+1 spare
5 Other: Dongfeng cab
Installation configuration:
Crane options: 12 ton 4-arm or 5-arm crane, 14 ton 4-arm or 5-arm crane. Optional single chamber hydraulic rear leg and dual chamber hydraulic rear leg.
| Product Name |
Auman 6X4 Truck With Crane |
| Driving Type |
6X4 |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(kg) |
16140,17660(Kg) |
| Rated weight(kg) |
8730,8665,7210,7145(Kg) |
| Wheel base(mm) |
5850+1350,4800+1350(mm) |
| Overall dimension(mm) |
12000×2500,2550×3815,3895,3975(mm) |
| Cargo box dimension(mm) |
8300,8400,8500,8600,7600,7800,8000,8200×2420,2450×550,600,800(mm) |
| Engine |
YCS06300-60,Yuchai 300 hp, optional Yuchai 270hp |
| Axle Quantity |
3 |
| Transmission Type |
Fast 9-speed with flange power take-off and remote throttle |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
11.00R20 steel wire tire, 10+1 spare |
| Cab |
Auman cab |
| Crane configuration |
Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material |
Channel steel, square tube, corrugated board |
| Optional |
1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Auman 6X4 Truck With Crane
A
truck with crane is a type of transport vehicle that combines a crane with a
chassis. It is composed of a crane arm, a turntable, a frame, legs, and other
parts. The mechanical action of the crane is achieved through the actions of
mechanisms such as amplitude, expansion, rotation, and hoisting, and the
lifting operation is achieved through the combination of different actions.
Crane:It can accommodate cranes of different brands and tonnages. 12 ton 4-arm or 5-arm crane, 14 ton 4-arm or 5-arm crane.
Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.
Product parameters
