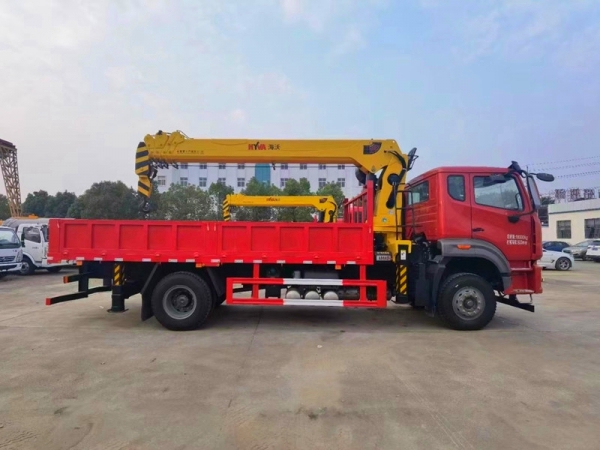

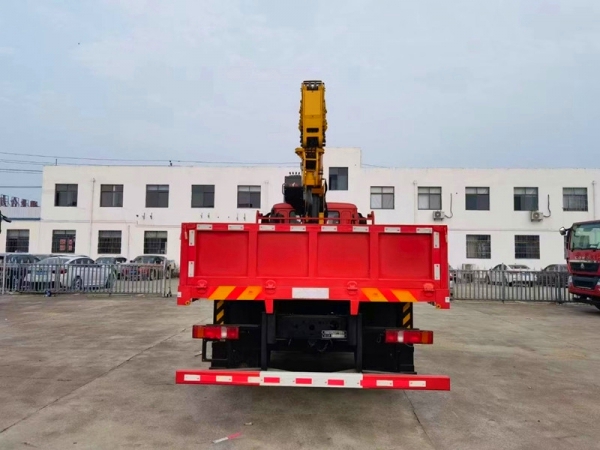

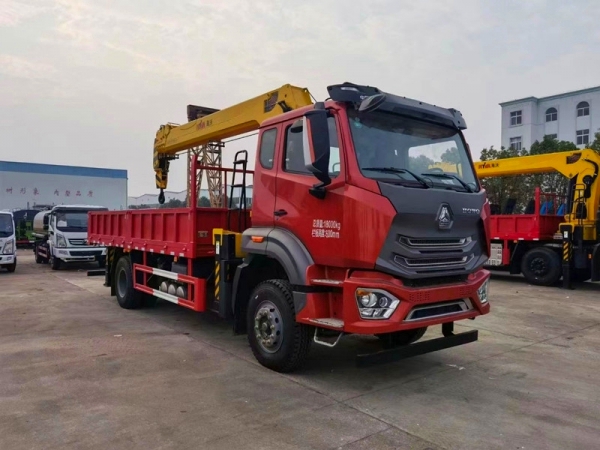

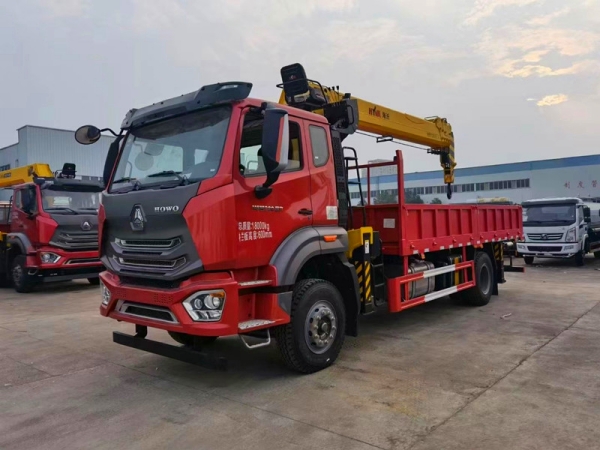

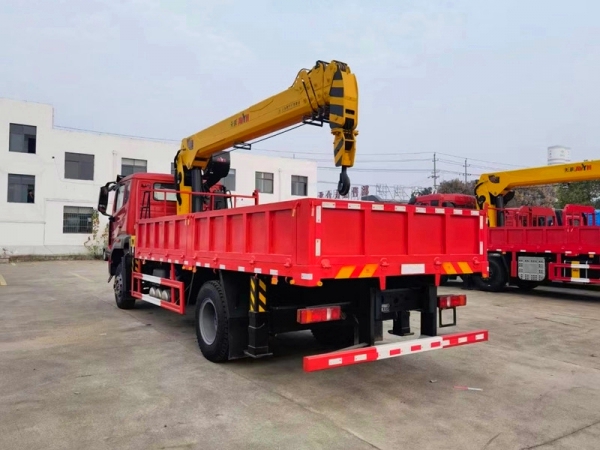

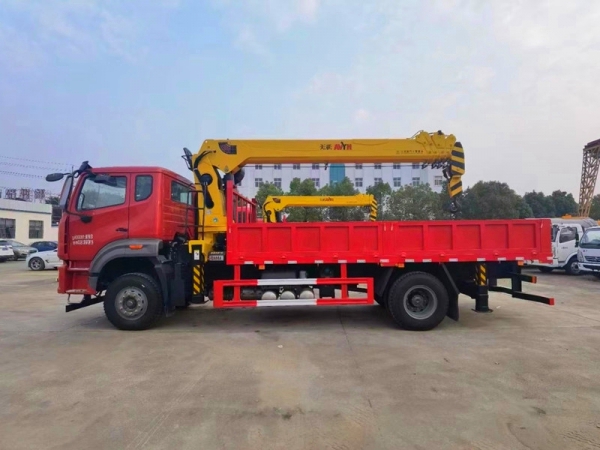

Sinotruk Howo 4X2 truck with 8-ton crane
Chassis configuration: Equipped with a HOWO H77 cab, HOWO 8-speed gearbox, 5150mm wheelbase, MAN 11 ton rear axle, 10R20 steel wire tires, and a cargo box that can reach 5.6 meters.
Installation configuration: Multiple types of cranes are available, including XCMG, Haiwo, Shimei, Sany, etc,.
| Product Name | Sinotruk Howo 4X2 truck with 8-ton crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 18000(Kg) |
| Curb weight(kg) | 12090,11500(Kg) |
| Rated weight(kg) | 5715,5780,6305,6370(Kg) |
| Wheel base(mm) | 5150(mm) |
| Overall dimension(mm) | 9000×2550,2500×3850,3750(mm) |
| Cargo box dimension(mm) | 5600,5400,5000,6200,6100,6000,5900,5800×2450,2400×550,600(mm) |
| Engine brand & model | WP4.6NQ220E61 |
| Axle Quantity | 2 |
| Transmission Type | Howo 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 10.00R20 18PR, 6+1 spare |
| Cab | Howo H77 cab |
| Crane configuration | Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Sinotruk Howo 4X2 truck with 8-ton crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Product parameters
