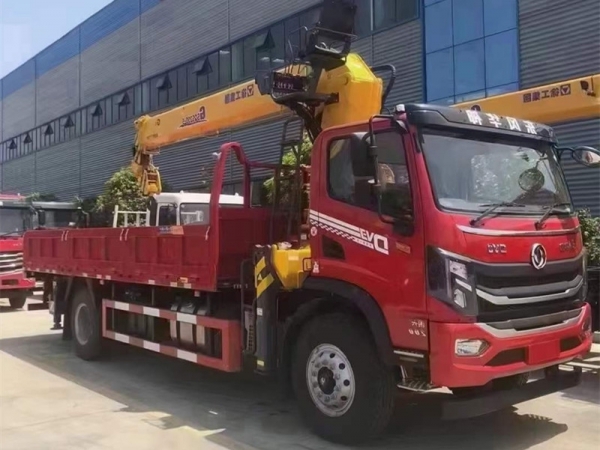

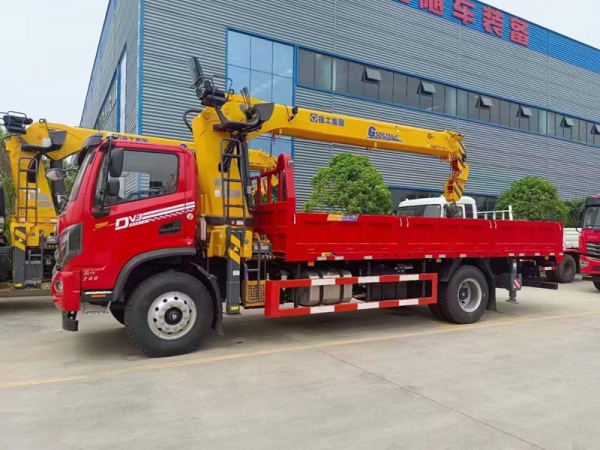

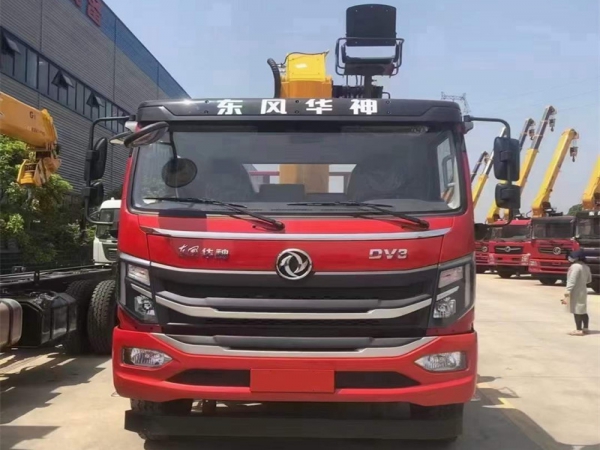

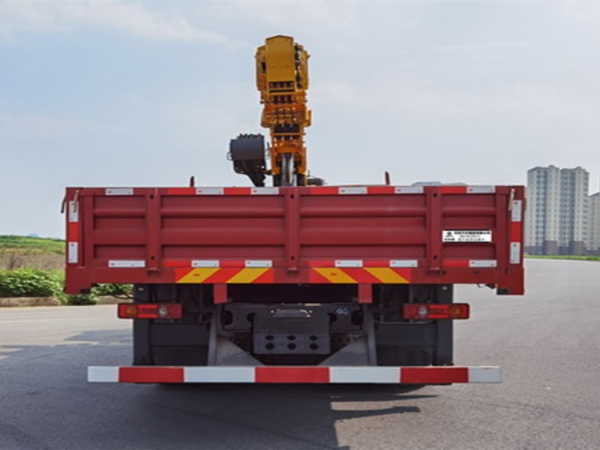

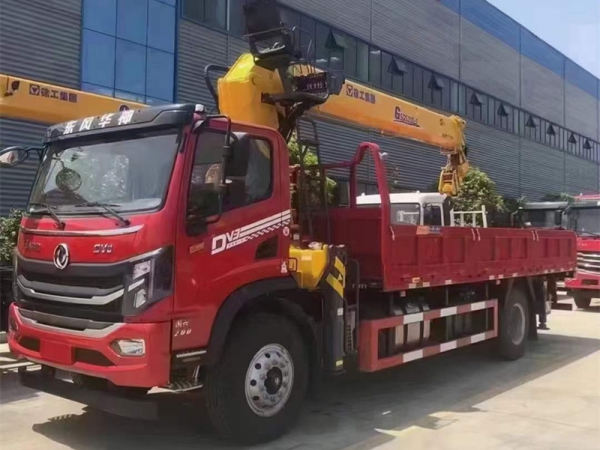

4X2 Dongfeng D3V truck with XCMG 8-ton crane
Chassis configuration:
Dongfeng D3V 4X2 8-ton on-board crane, a new National VI model, with a wheelbase of 4500/5100mm, Yuchai 160/180 horsepower, 250mm straight beam, 8-speed gearbox, 9-ton shortened axle, 9.00 steel wire tires, cargo compartment of 5.8 meters, suitable for use in multiple places.
Installation configuration:
The crane can be equipped with 6.3 ton, 7 ton, 8 ton, 10 ton, 12 ton straight arm crane or folding arm crane.
| Product Name | 4X2 Dongfeng D3V truck with XCMG 8-ton crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 16200(Kg) |
| Curb weight(kg) | 8980,9380,10290(Kg) |
| Rated weight(kg) | 7090,7025,6690,6625,5780,5715(Kg) |
| Wheel base(mm) | 4500,5100(mm) |
| Overall dimension(mm) | 7405,7795,8260,9000,8460,6865,7175×2450,2500,2550×3560,3700,3650,3750,3800,3850(mm) |
| Cargo box dimension(mm) | 4300,4800,5200,5800,5400,4100,4200,4500,4600,4700,5000,6050,6100×2300,2400,2450×550,600(mm) |
| Engine brand & model | YCS04180-68,YCS04160-68 |
| Axle Quantity | 2 |
| Transmission Type | 8-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | air brake |
| Tire Spec. & size | 9.00R20 16PR,6+1 spare |
| Cab | Dongfeng D3V cab |
| Crane configuration | The crane can be equipped with 6.3 ton, 7 ton, 8 ton, 10 ton, 12 ton straight arm crane or folding arm crane. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 Dongfeng D3V truck with XCMG 8-ton crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Product parameters
