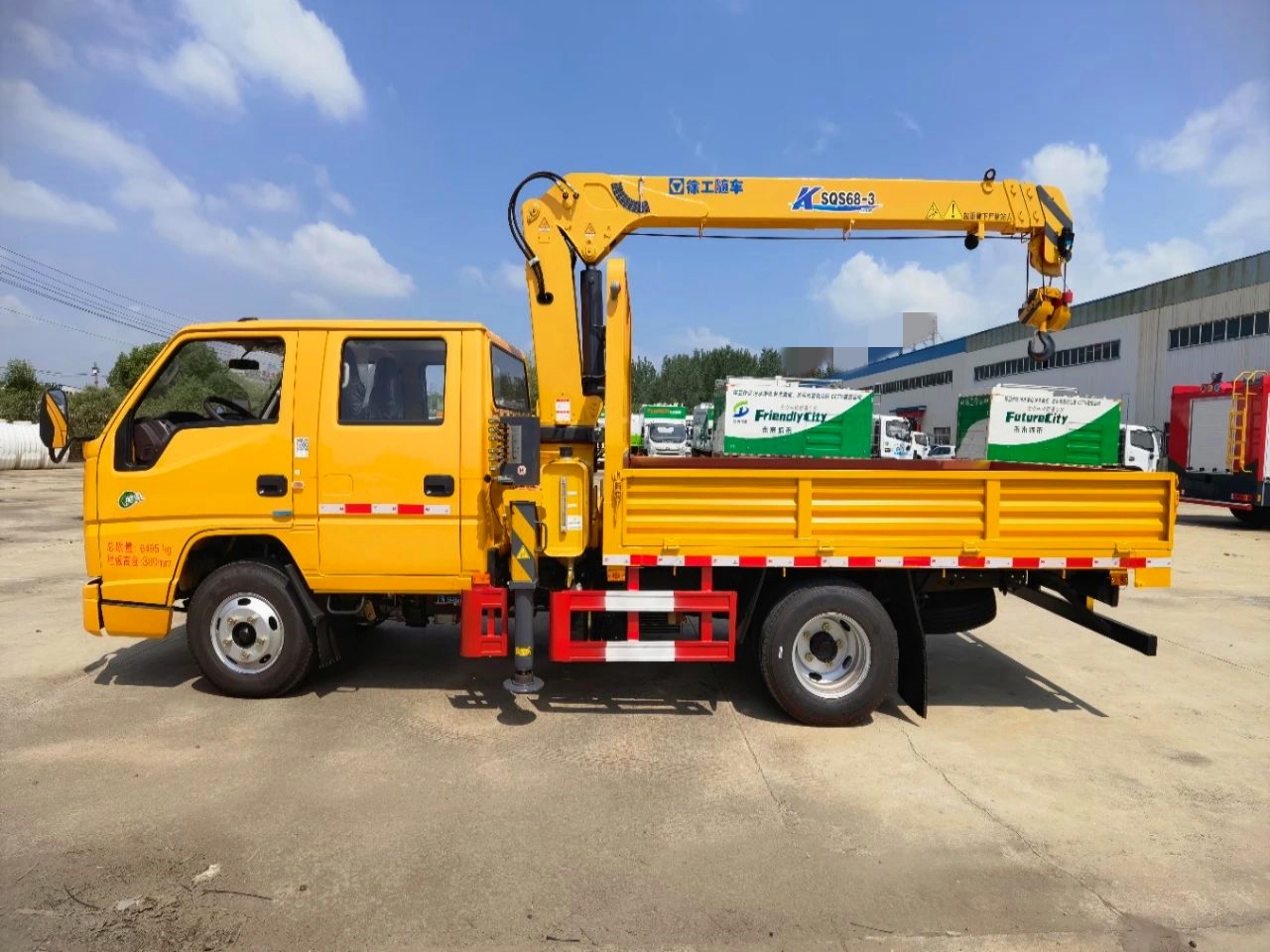

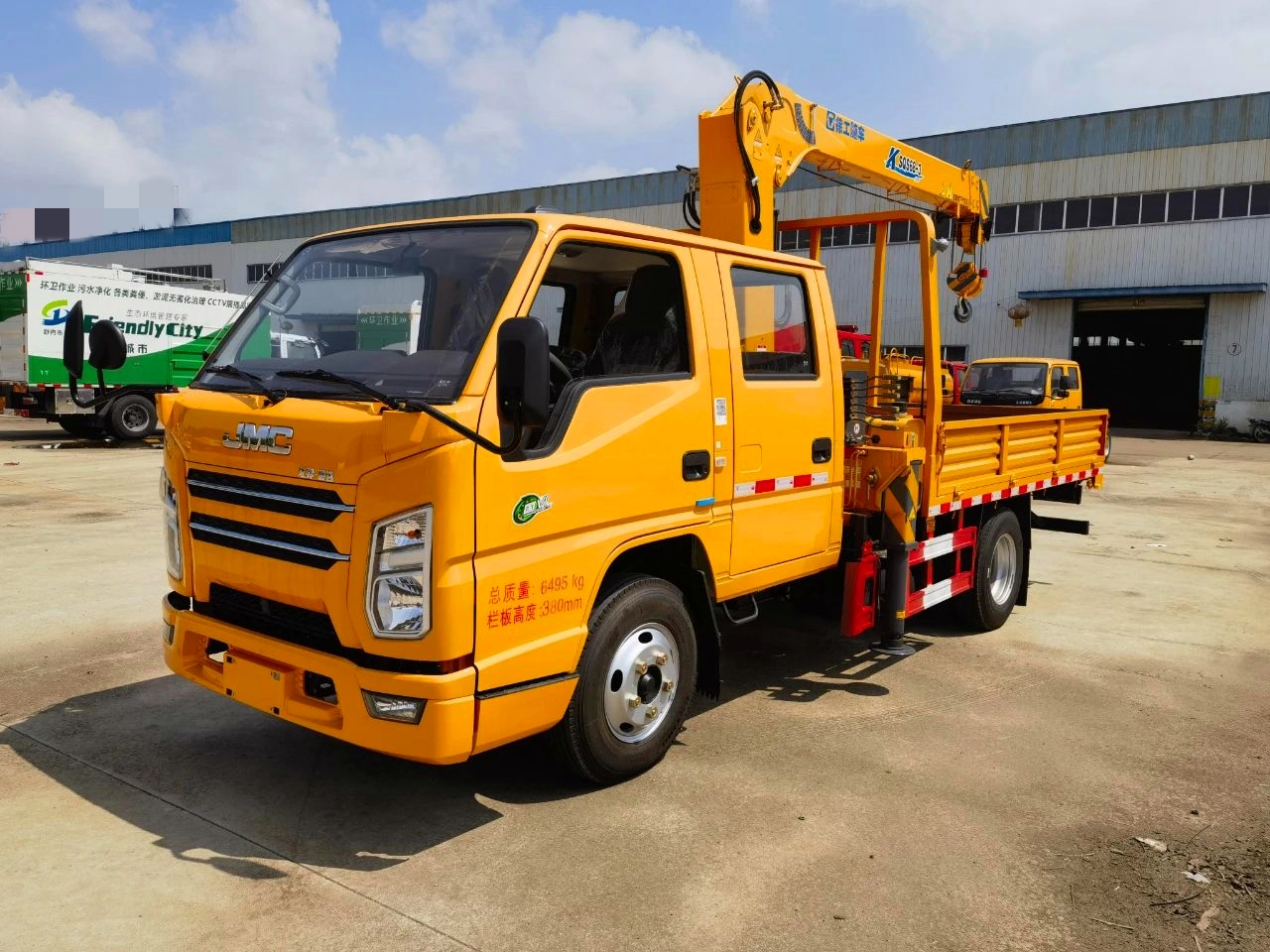

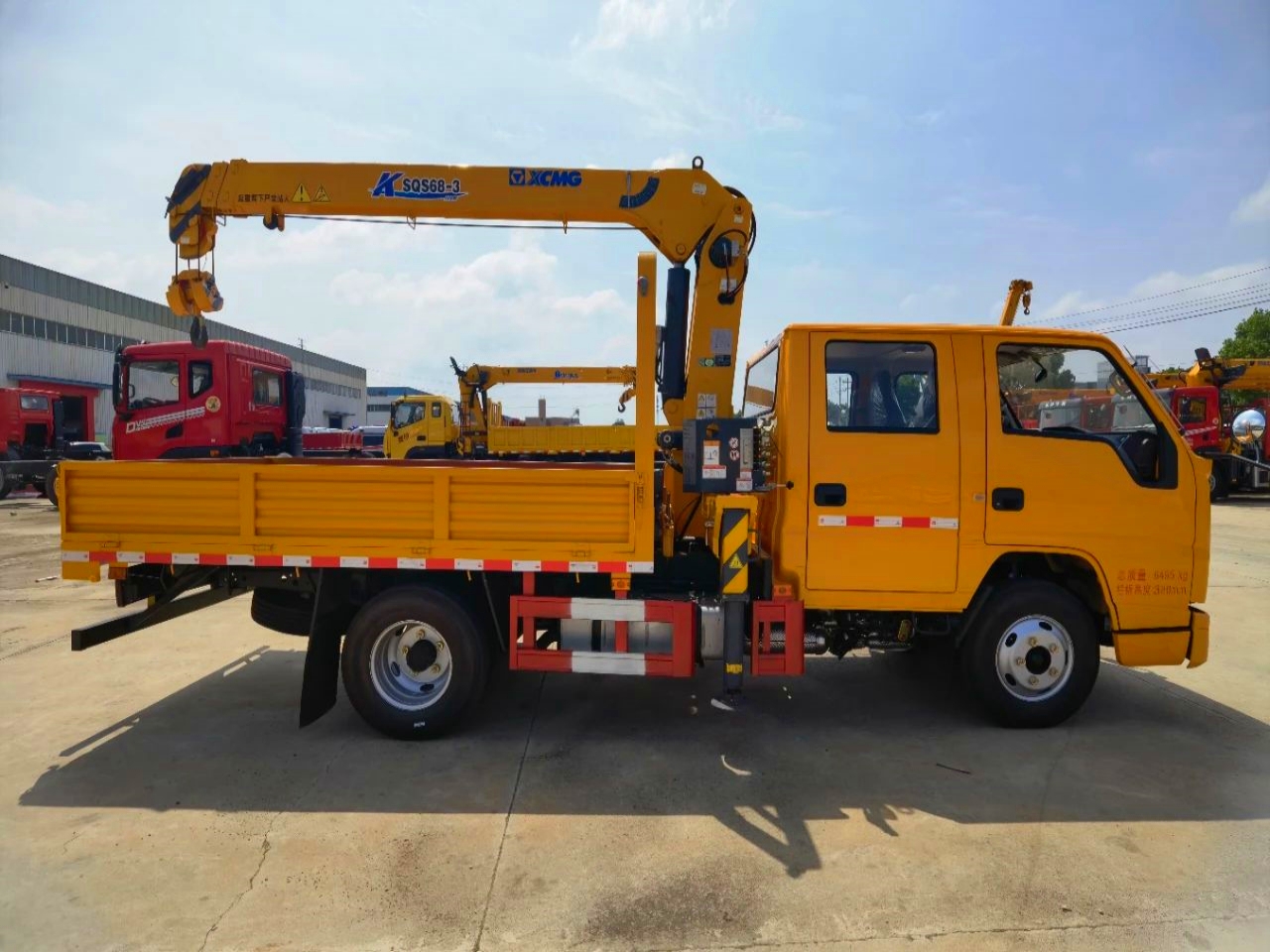

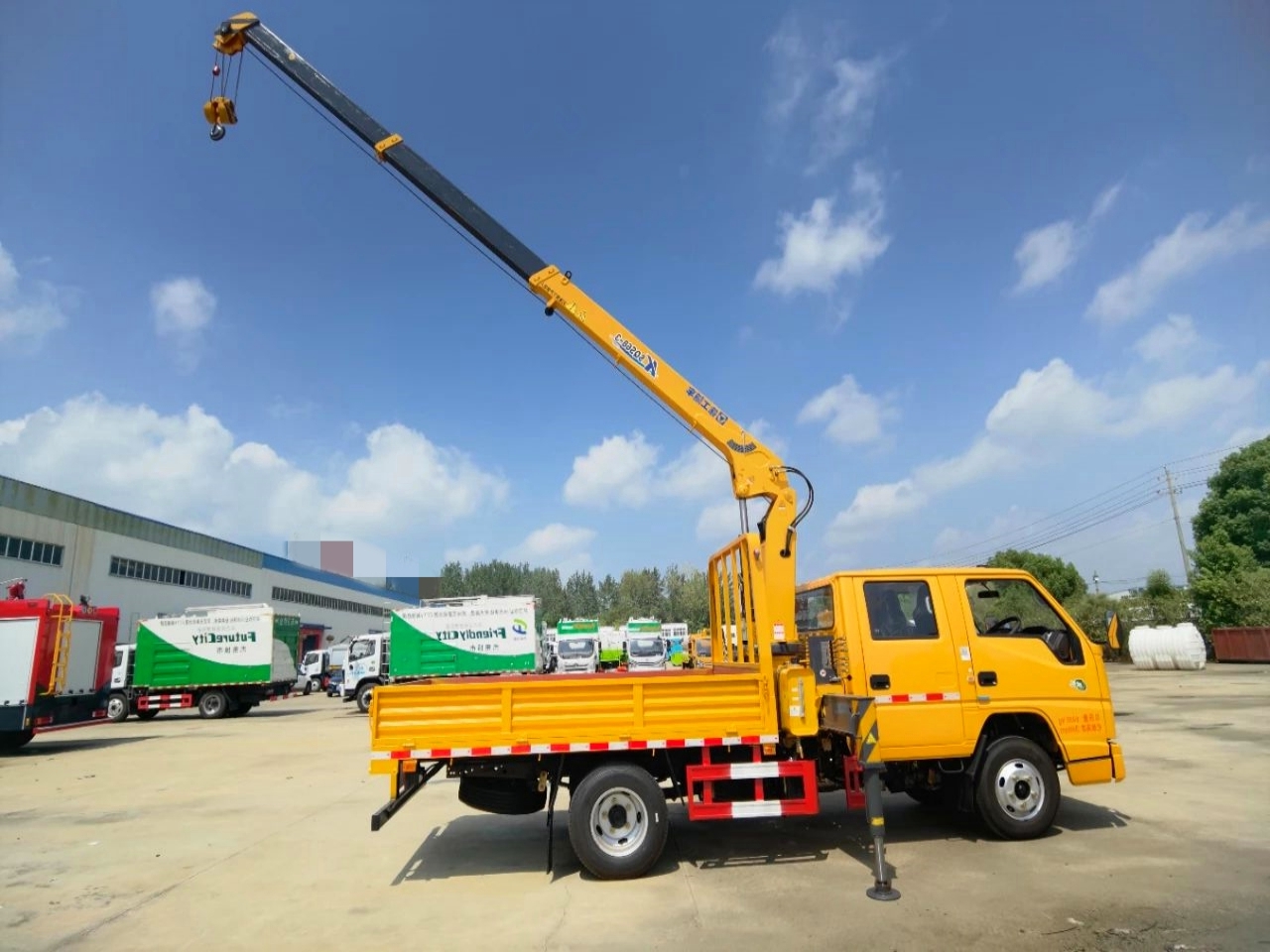

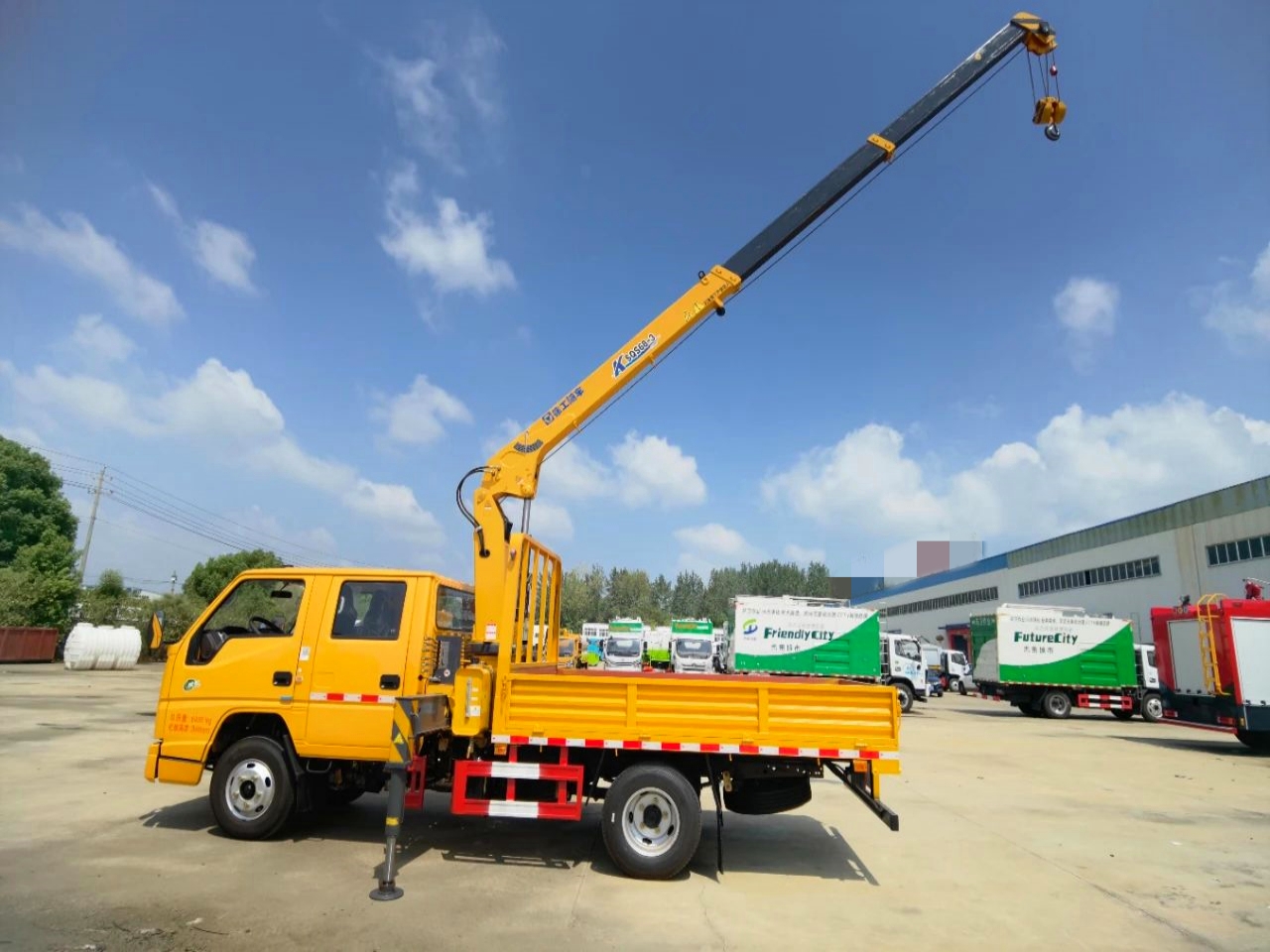

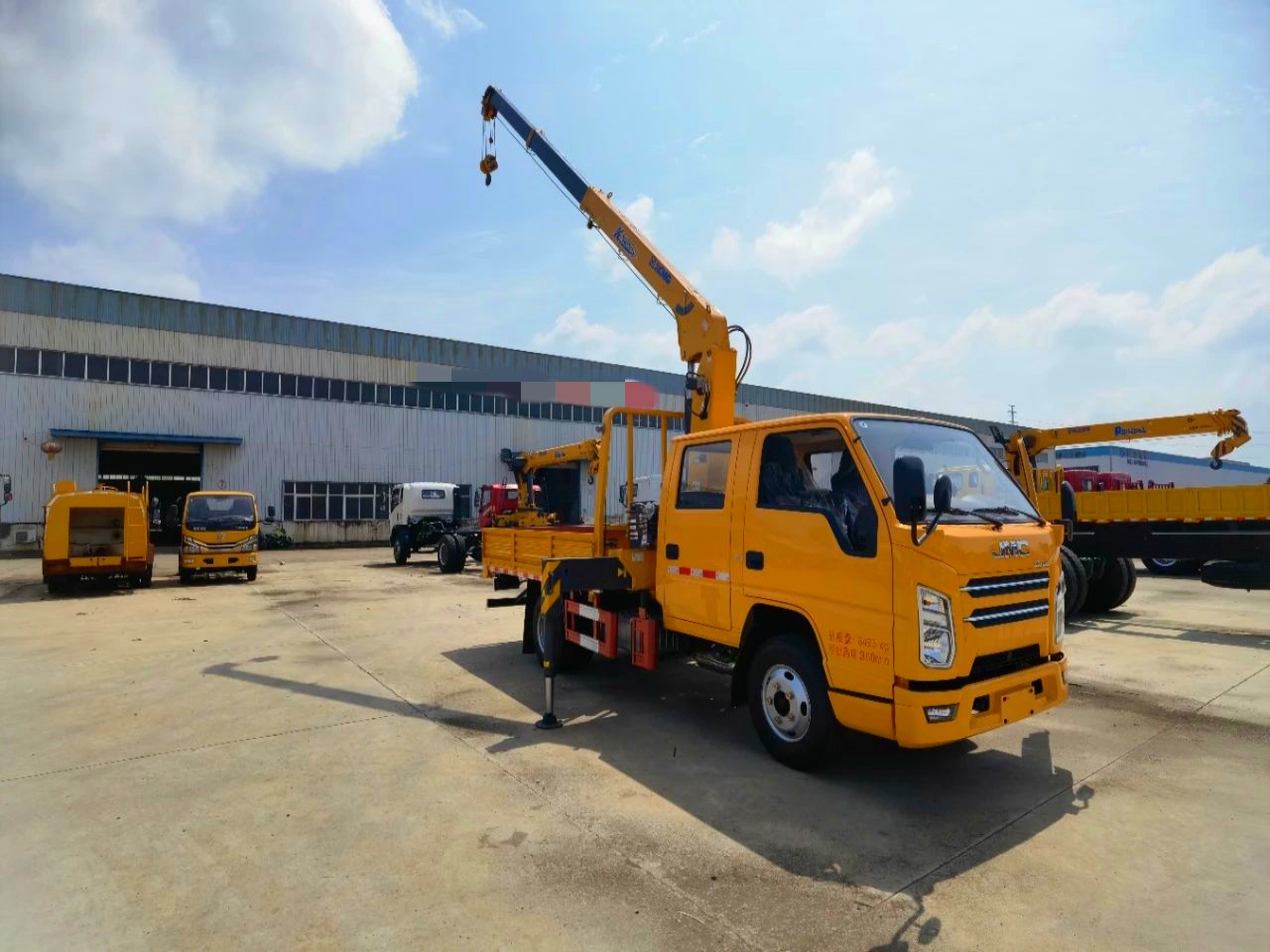

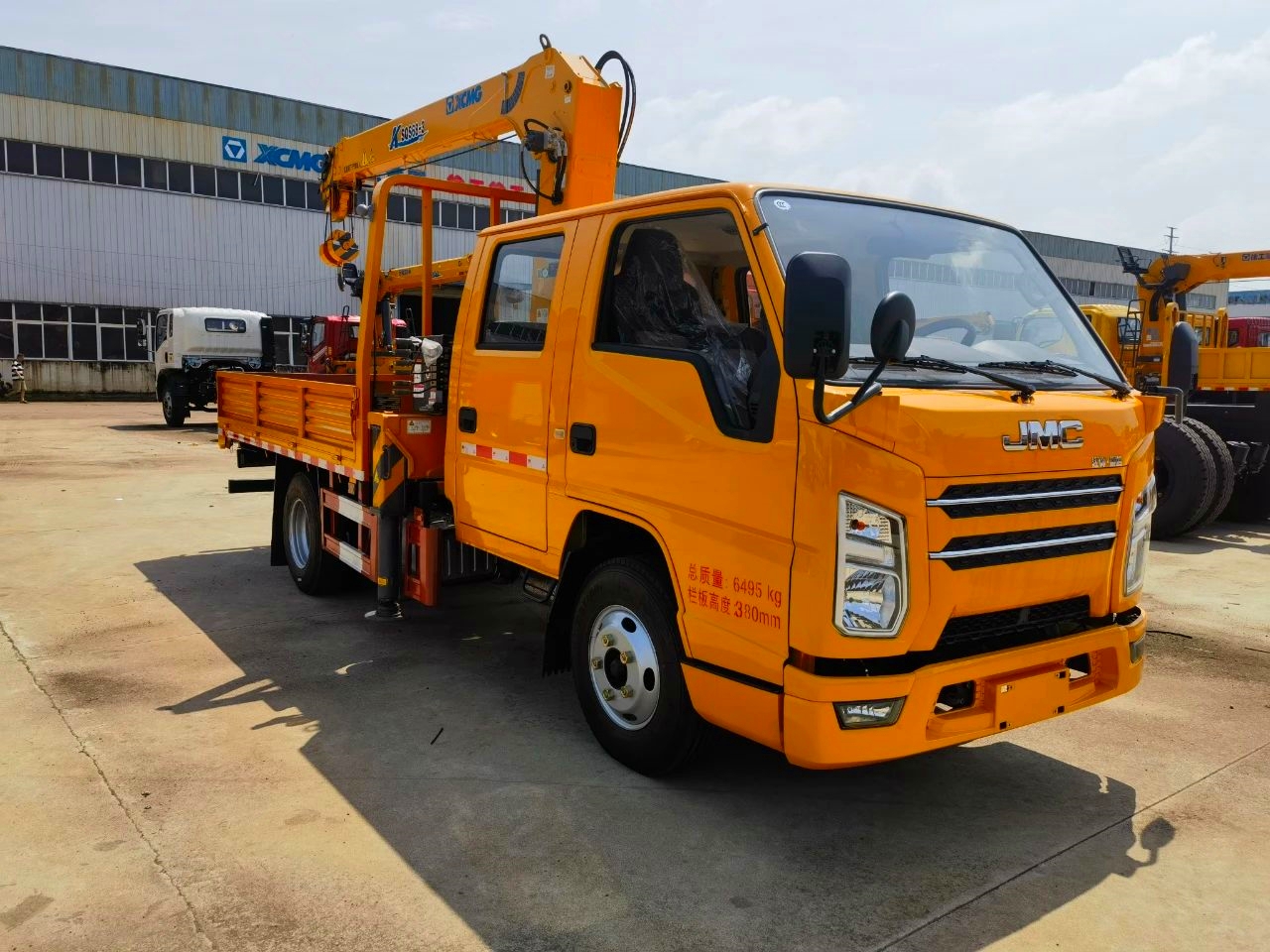

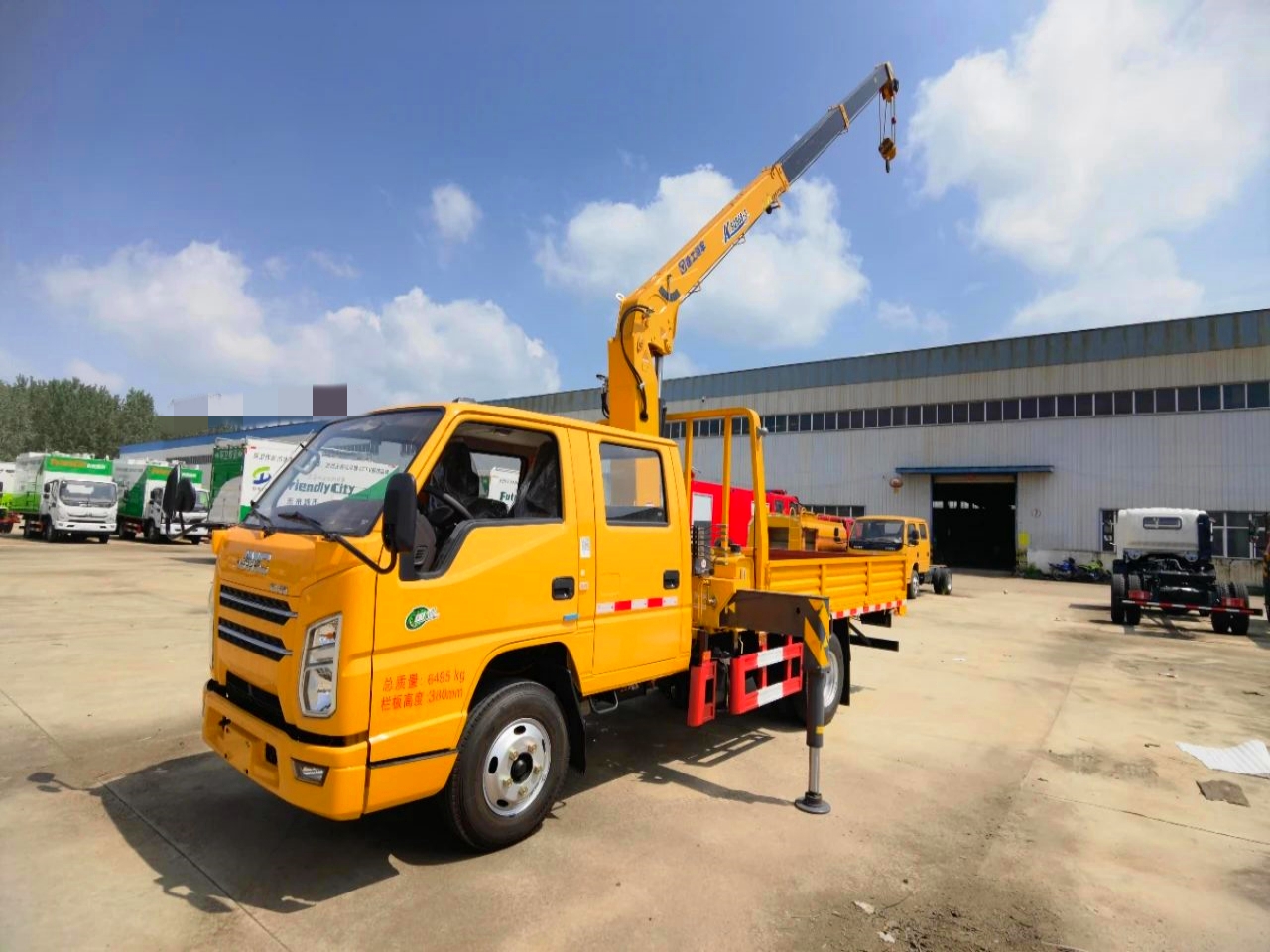

JMC Double Row 3.2-ton Truck Mounted Crane
JMC Shunda doublerow cab, equipped with Jiangling JX4D30B6H engine, 85kw, 115 horsepower, Getrag 5-speed gearbox, original air conditioning, steering assistance, central locking system, electric windows, multifunctional steering wheel, 7.00R16 steel tires, and oil brake. XCMG 3.2-ton three section straight arm crane KSQS68-3, with a working radius of 7.7 meters, a lifting height of 9.5 meters, and full rotation; Container size: 2980X1850X380mm, container material edge plate thickness 2mm, bottom plate thickness 3mm
| Product Name | JMC Double Row 3.2-ton Truck Mounted Crane |
| Driving Type | 4X2 |
| Gross vehicle weight(Kg) | 6495(Kg) |
| Curb weight(kg) | 4150(Kg) |
| Rated weight(kg) | 2020(Kg) |
| Wheel base(mm) | 3360(mm) |
| Overall dimension(mm) | 6300,6280×2200,2100,2000,1950,2400×3200,3100,3000,2900,2800,2600(mm) |
| Cargo box dimension(mm) | 2980X1850X380(mm) |
| Engine brand & model | JX4D30B6H, 115HP |
| Axle Quantity | 2 |
| Transmission Type | 5-speed gearbox |
| Steering Type | LHD or RHD with power steering |
| Brake system | oil brake |
| Tire Spec. & size | 7.00R16LT 12PR,7.00R16LT 14PR, 6+1 spare |
| Cab | JMC shunda double row cab |
| Crane configuration | Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc. |
| Cargo box material | Channel steel, square tube, corrugated board |
| Optional | 1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
JMC Double Row 3.2-ton Truck Mounted Crane
A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Product parameters
