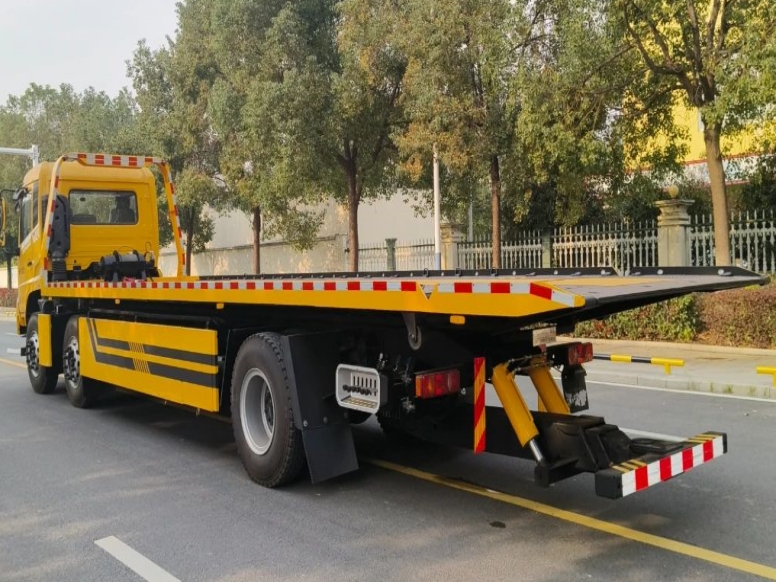

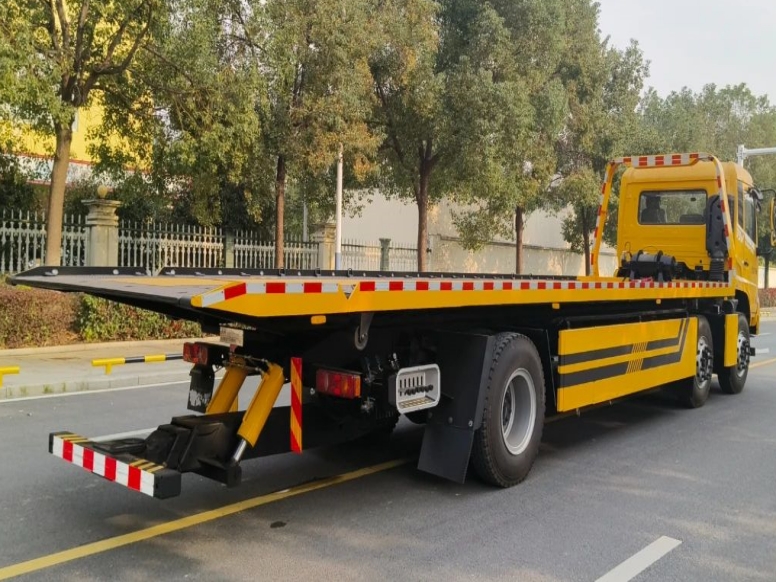

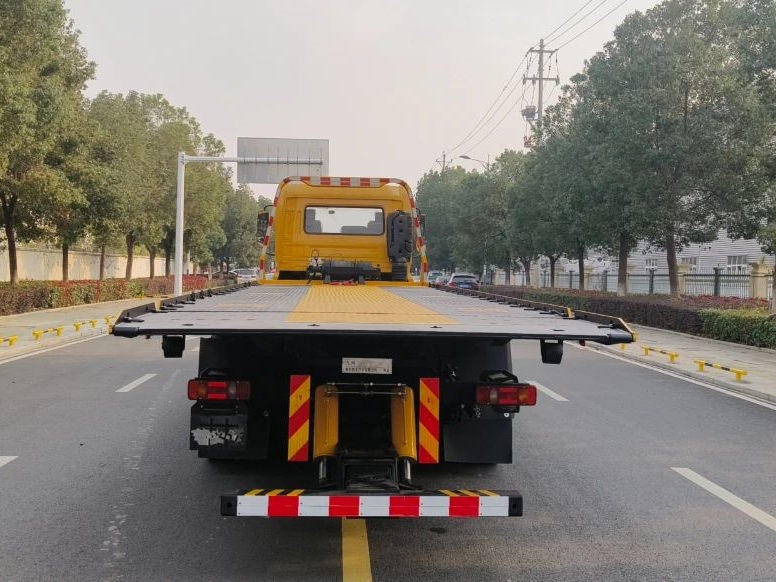

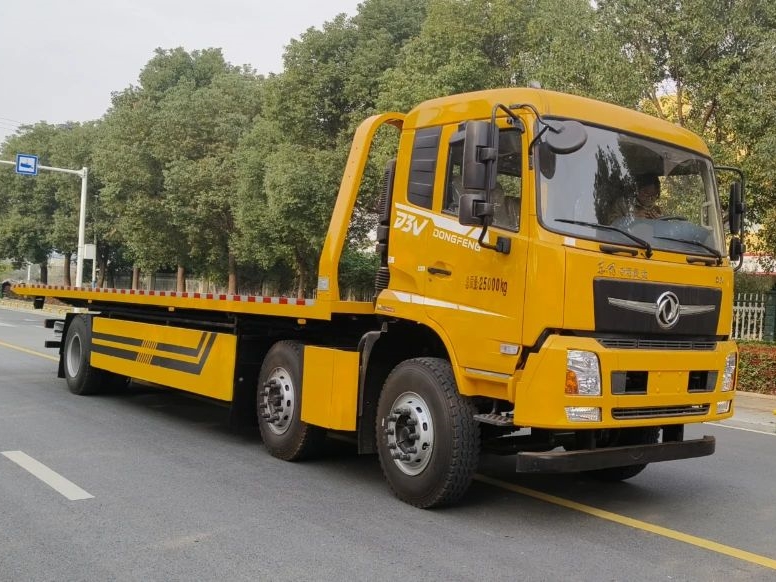

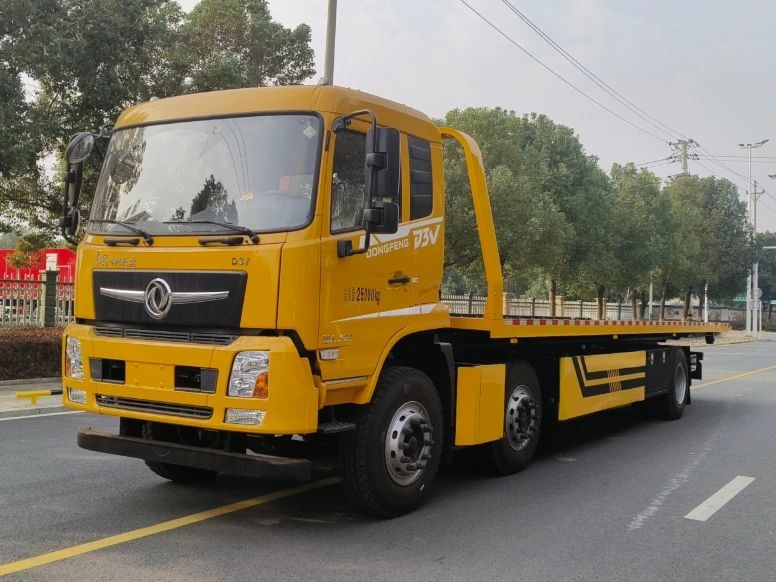

Dongfeng D3V 6x2 12T one tow two wrecker truck
2024-10-07 09:54:11 Source：chusheng
Dongfeng D3V 6x2 12T one tow two wrecker truck
Chassis configuration:
1. Engine: YCS06270-60, Yuchai 270ph
2.Transmission type: 9-speed gearbox
3.Tyre: 11.00R20 18PR, 8+1 spare
4.Wheelbase: 1995+5450

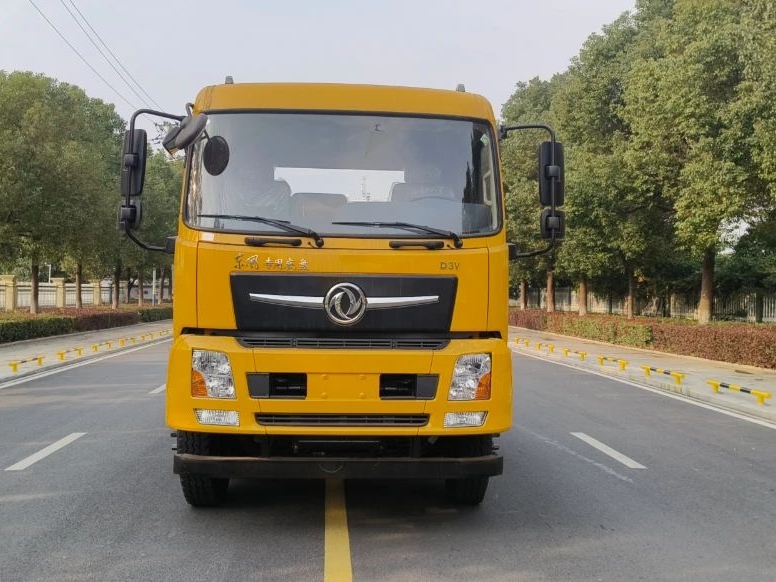

5 Other:D3V cab, air conditioning, airbag seats
Installation configuration:
① One to two type, double-sided linkage operation device, using flat sinking process, 12 ton upper loading, 10 ton hydraulic winch, 12 ton 3-section trailing arm,

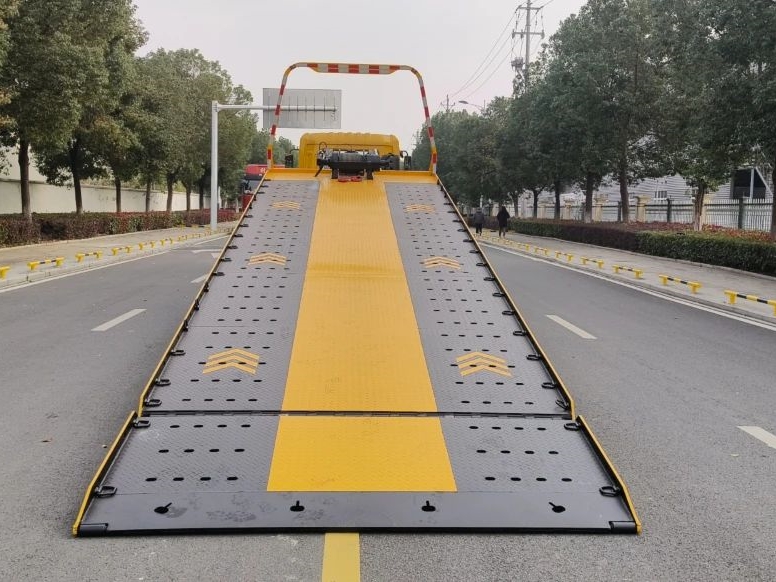

② The flat panel is 10 meters long (including 1.2 meters of hydraulic flip), 2.55 meters wide, 8mm thick patterned plate, 16mm thick steel plate frame, innovative and unique double vertical and horizontal cross brace, double 10mm thick sliding groove, reinforced double auxiliary beam,
③ Two rear work lights, one toolbox, HZL oil cylinder, and Hyde multi way valve.
| Product Name |
Dongfeng D3V 6x2 12T one tow two wrecker truck |
| Driving Type |
6×2 |
| Weight /Classification |
As follows |
| Type |
one tow two wrecker truck |
| Lift weight(kg) |
9170 |
| Dimensions |
As follows |
| Wheelbase(mm) |
1995+5450 |
| Overall Dimension(mm) |
12345,12385,12445×2550×3000,3060,3120(mm) |
| Engine |
As follows |
| Engine brand & model |
YCS06270-60A, Yuchai 270hp |
| Displacement(L)/Power(kw) |
6.23L/199KW |
| Chassis |
As follows |
| Axle Quantity |
3 |
| Transmission Type |
9-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
11.00R20 18PR, 8+1 spare |
| Cab |
D3V cab, air conditioning, airbag seats |
| Platform |
The tablet is 10 meters long (including 1.2 meters of hydraulic flip), 2.55 meters wide, and has a 8mm thick patterned plate, |
| Crane specification |
no crane |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D3V 6x2 12T one tow two wrecker truck
A tow truck (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a truck used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
Product parameters
