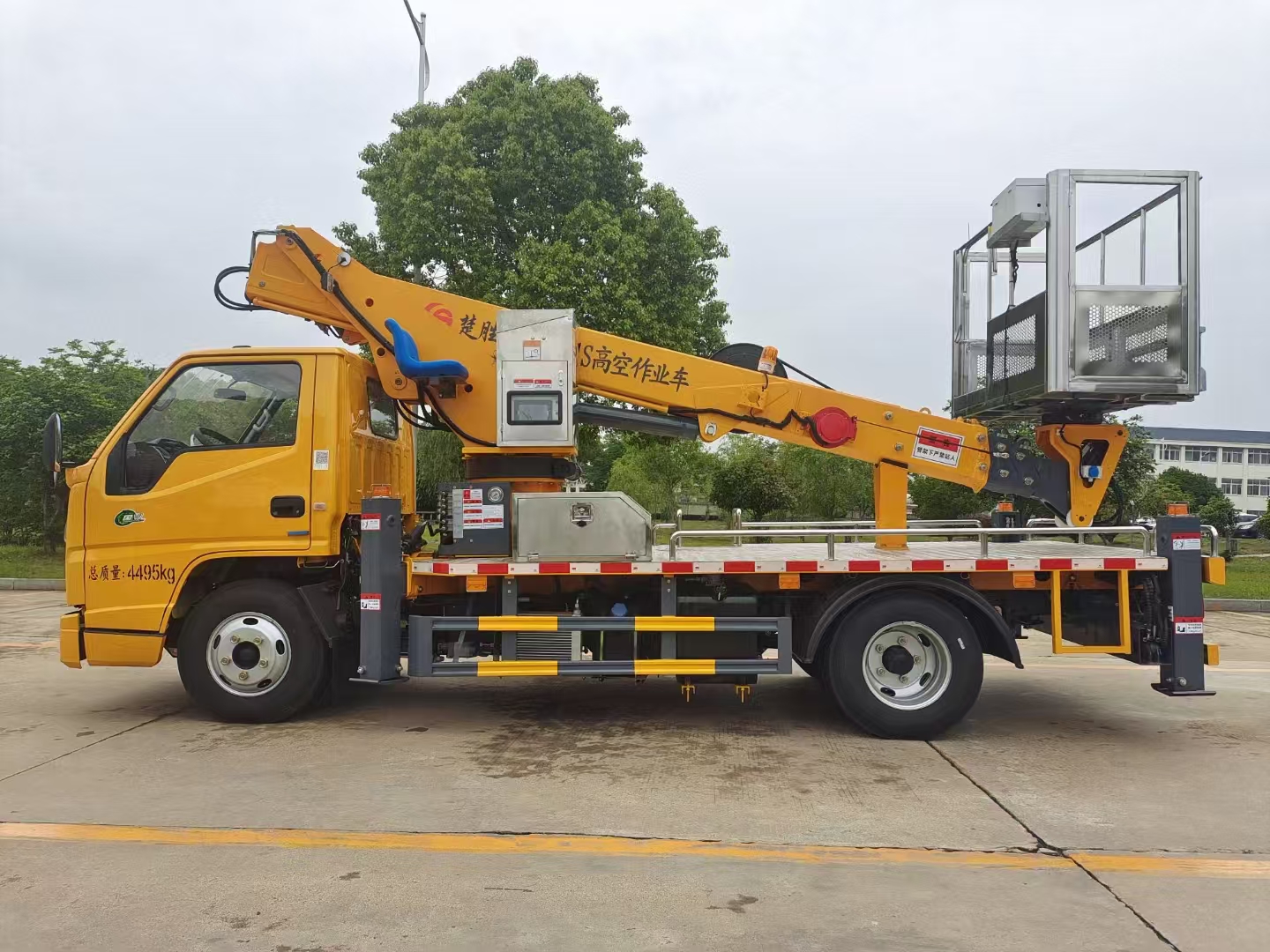

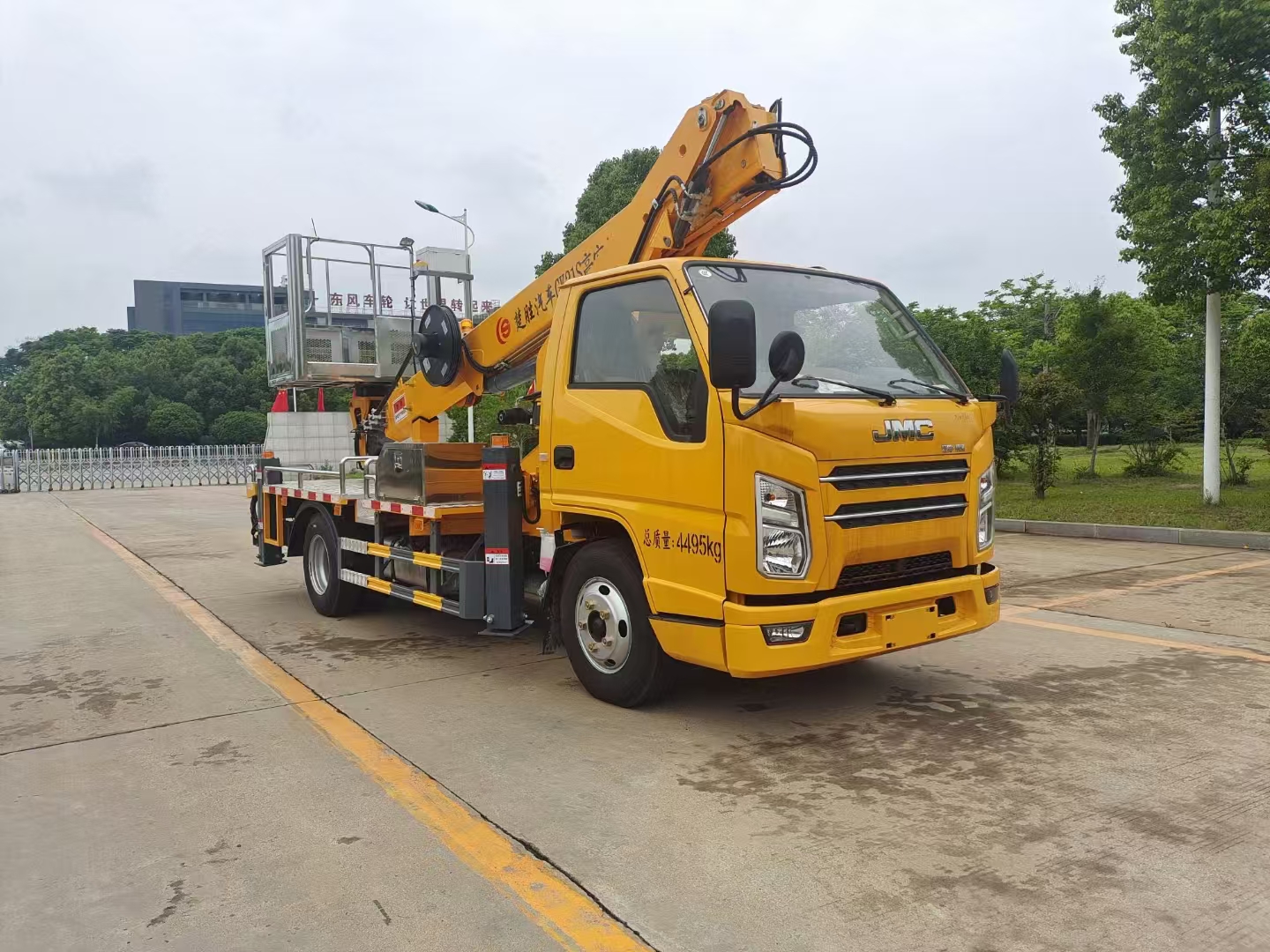

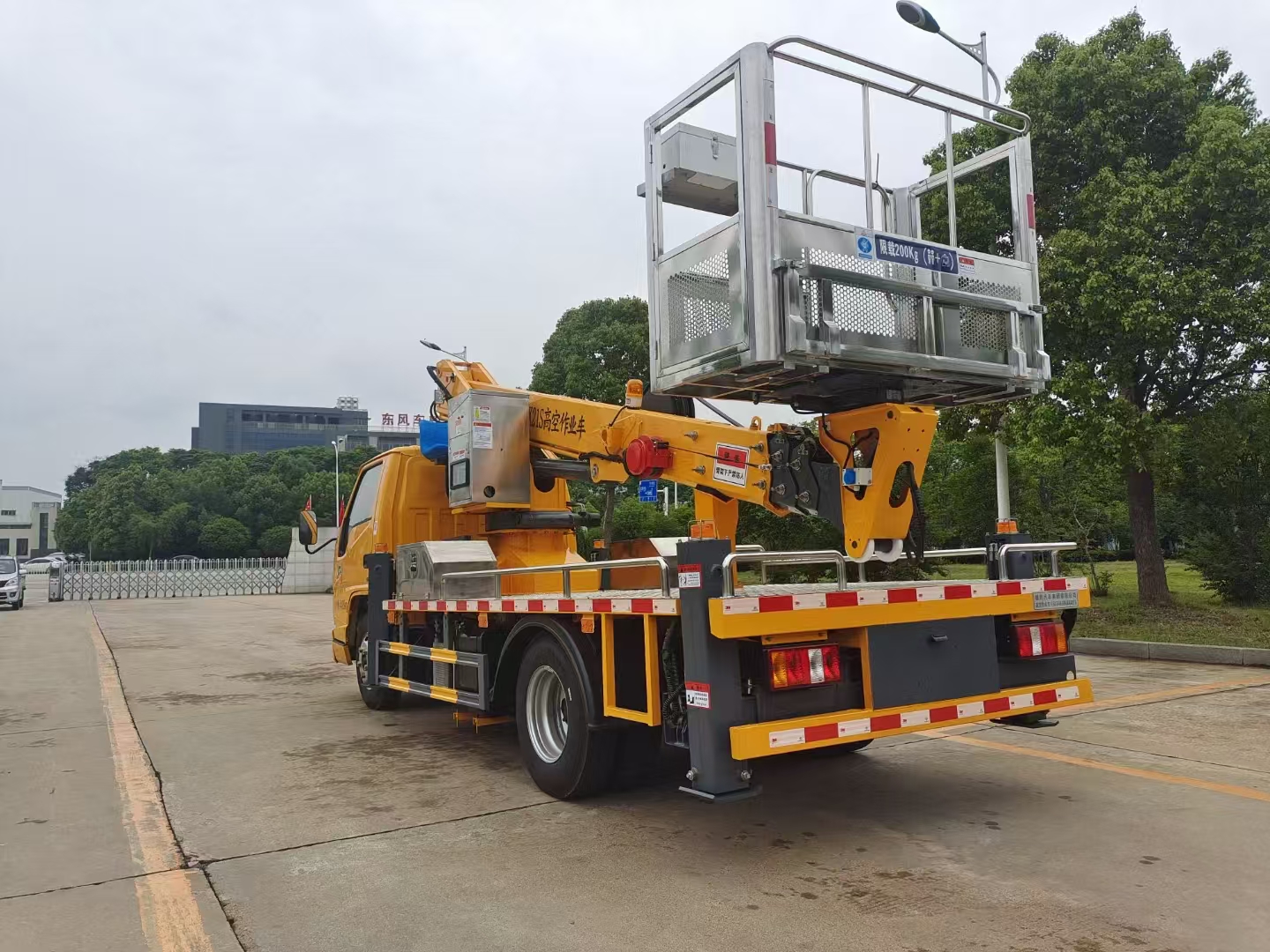

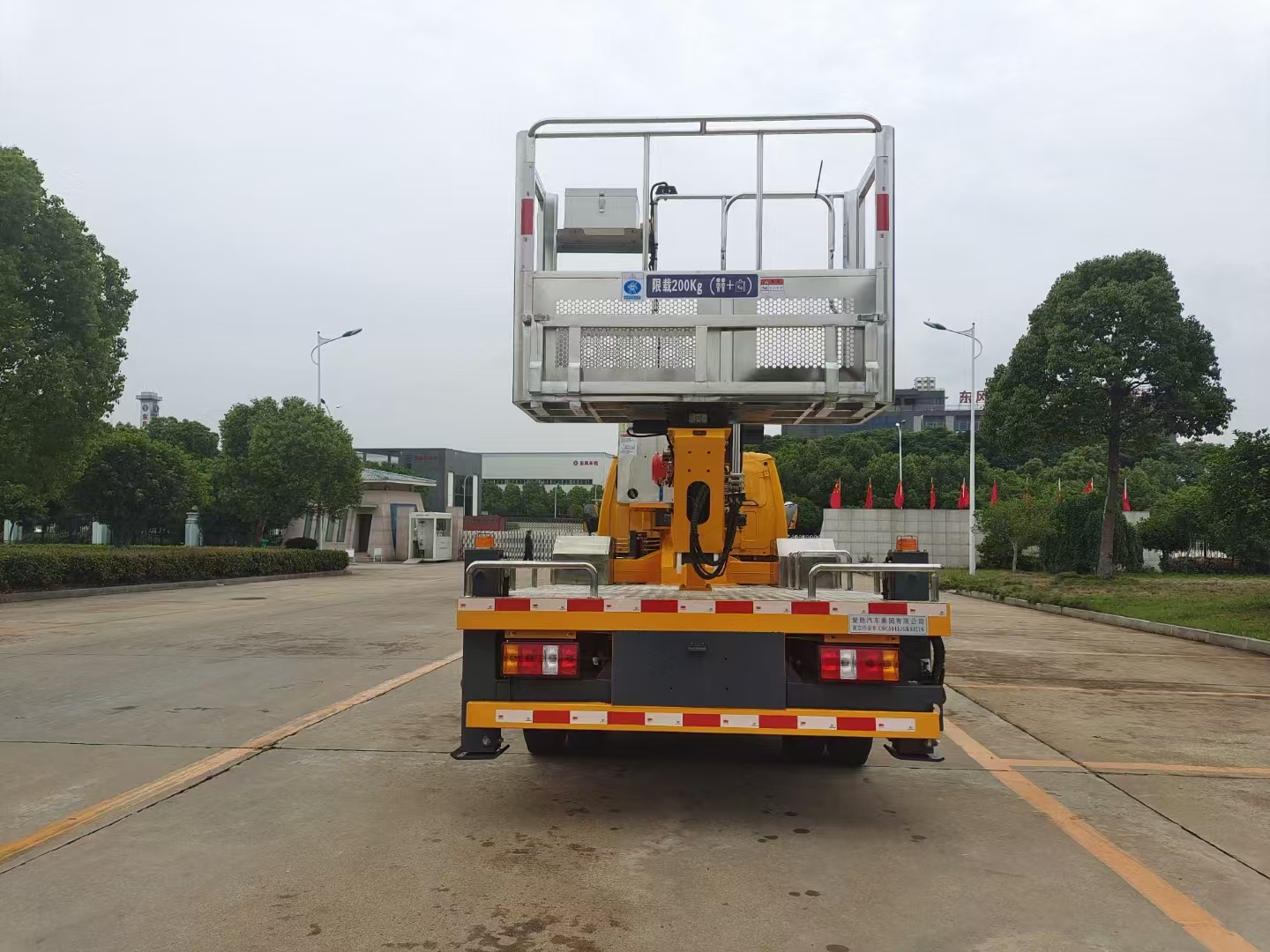

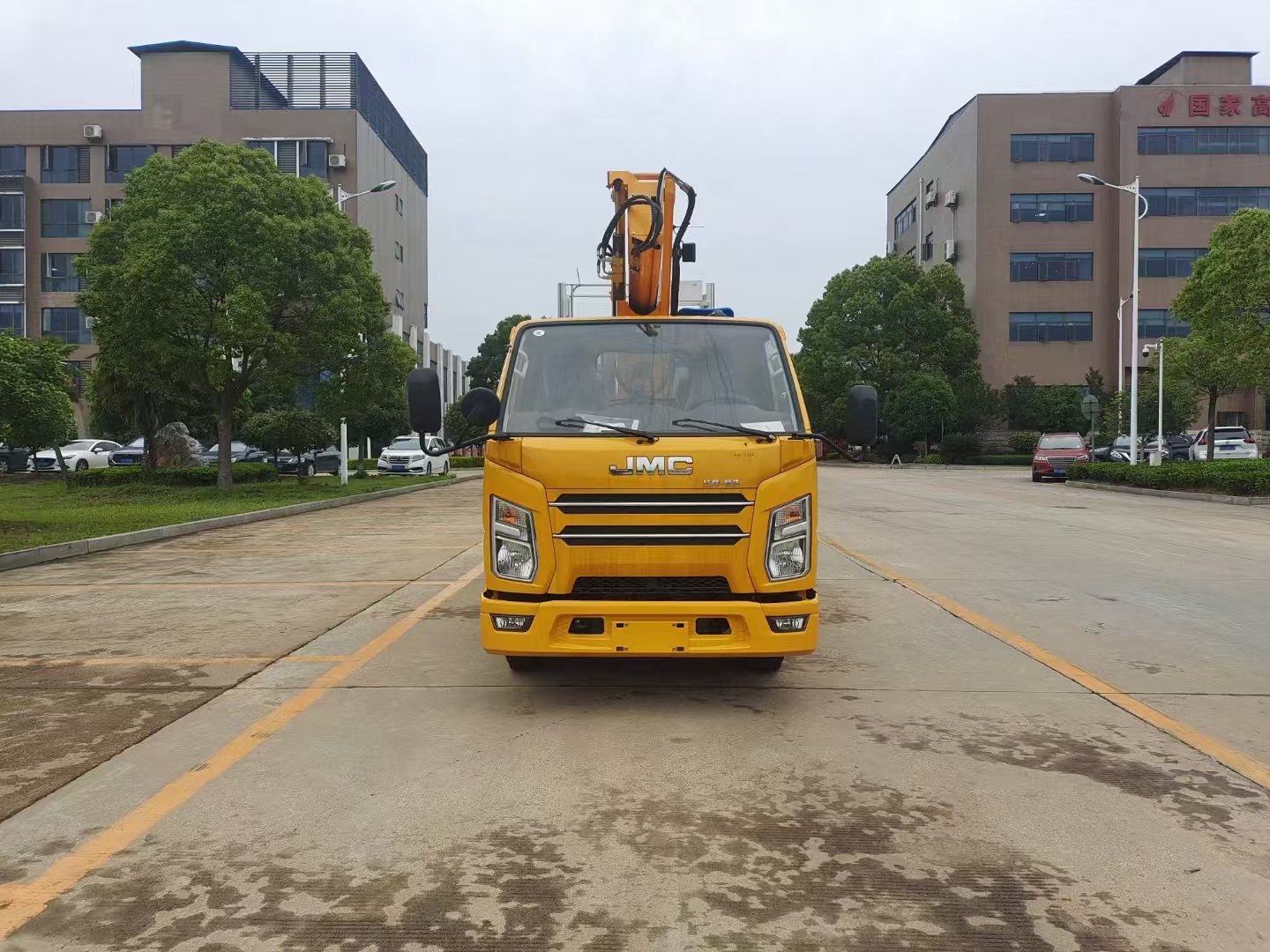

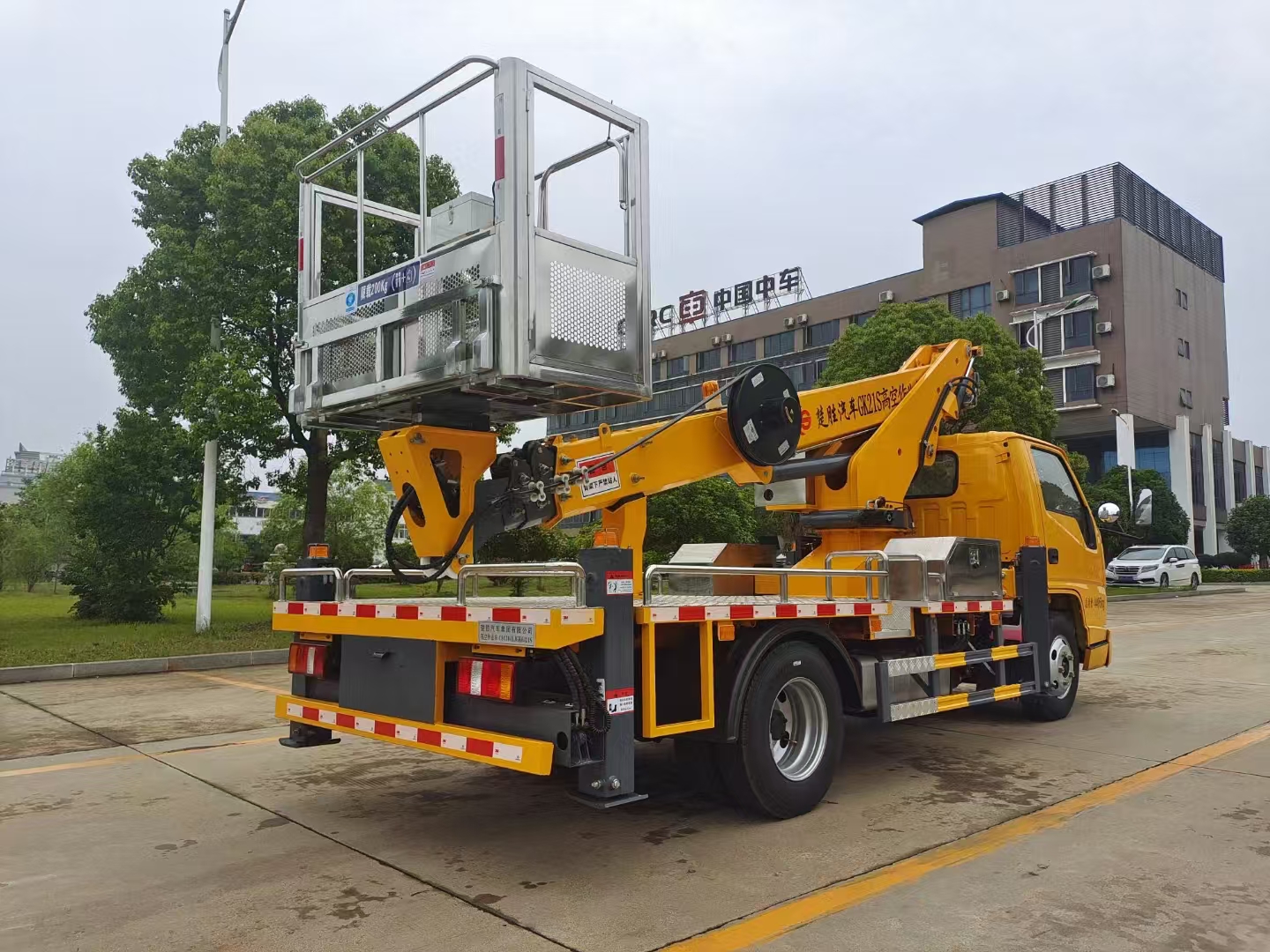

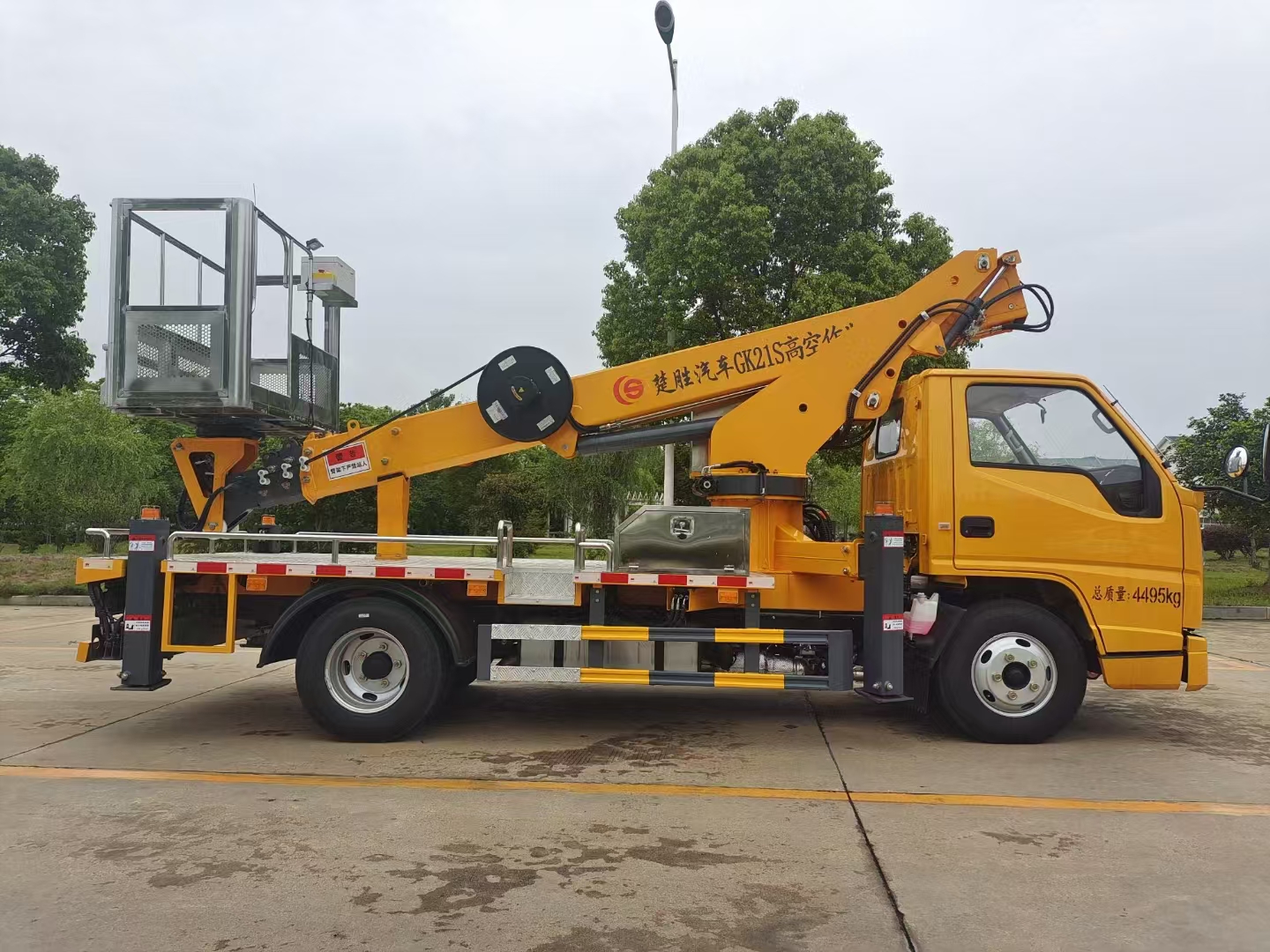

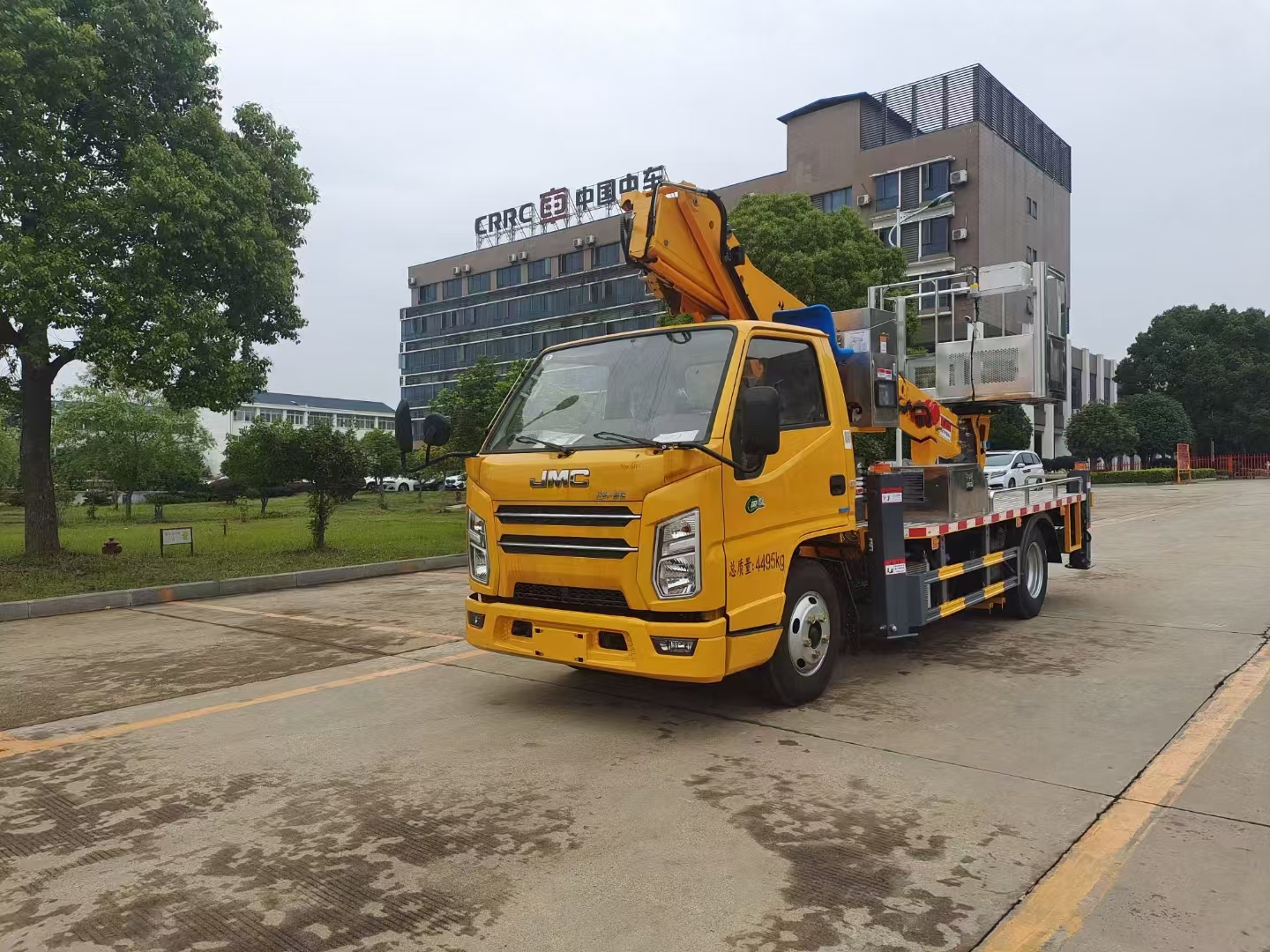

JMC 21 meter telescopic arm aerial work truck
2024-09-29 15:14:38 Source：chusheng
Chassis configuration:
single row cab, wheelbase of 3360mm,115 horsepower, five speed gearbox, 7.00 steel tires, oil brake, air conditioning, central locking system, power windows, multifunctional steering wheel.
Upper configuration:
Operating height of 21 meters, four telescopic arms, working bucket load limit of 200kg, hydraulic 360 degree full rotation, with automatic hydraulic leveling, hydraulic system with proportional control, stepless speed regulation, emergency operation, square support legs, fully hydraulic support legs, independent operation of loading and unloading, equipped with tilt angle and length sensors, upper rotation limit, equipped with horn for high-altitude operation, serving as a safety warning.
| Product name |
JMC 21 meter telescopic arm aerial work truck |
| Overall Dimension |
5998×2050,2090×2900,2950,3000,3050,3100,3200,3300,2850(mm) |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
21m |
| Cab |
JMC cab,Single row cab |
| Engine |
JX4D30D6H, 115hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3360 (mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.00 steel wire tire, 6+1 spare |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
JMC 21 meter telescopic arm aerial work truck
Aerial work truck is a type of engineering truck designed specifically for high-altitude operations, mainly used in fields such as construction, electricity, communication, and landscaping. It controls multiple hydraulic cylinders through hydraulic or electric systems and can lift up and down for operation. A high-altitude work vehicle usually consists of three parts: a chassis, a lifting mechanism, and an operating platform. The chassis can be a car or engineering machinery chassis, with driving and load-bearing functions; The lifting mechanism is responsible for achieving the lifting and lowering of the operating platform; The operating platform is the main place for workers to carry out high-altitude operations.
