| Overall Dimension |
5995×1960×3000mm |
| Hanging basket dimension |
1600×750×1100mm |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
30.8m |
| Working range at maximum working height |
4.5m |
| Maximum working height |
16m |
| Control voltage |
24V |
| Work platform rotation |
Continuously 360° |
| Horizontal leg span |
5250mm |
| Longitudinal leg span |
5120mm |
| Arm amplitude variation time |
50s |
| Arm rotation speed |
60s/r |
| Outrigger extension and retraction time |
35s |
| Chassis |
Jiefang |
| Cab configuration |
Directional assistance, electric windows, air conditioning |
| Engine model and horsepower |
JX493ZLQ6A |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5 forward gears and 1 reverse gear |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
2800mm |
| Axle quantity |
2 |
| Tire Specification and Quantity |
6.50 steel wire tire, 6+1spare |
| Fences and walkways material |
Stainless steel fence, aluminum alloy anti slip walking board. |
| Power take-off system |
Pneumatic power take-off |
| Working platform size |
Pneumatic power take-off |
| Skeleton form |
Six section fourteen sided large arm, synchronously extendable and retractable |
| Slewing gear |
360° continuous rotation |
| Outrigger |
Front and rear V-shaped double leg support |
| Operation |
Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation for getting off the vehicle, equipped with an electric emergency pump, the whole vehicle can achieve full hydraulic electric emergency operation. |
| Control system |
Duman aerial vehicle control system, strong stability |
| Leveling system |
Hydraulic automatic leveling |
| Stretching force balance |
Set up a balance mechanism for the stretching rope to ensure balanced force distribution on the left and right steel wire ropes |

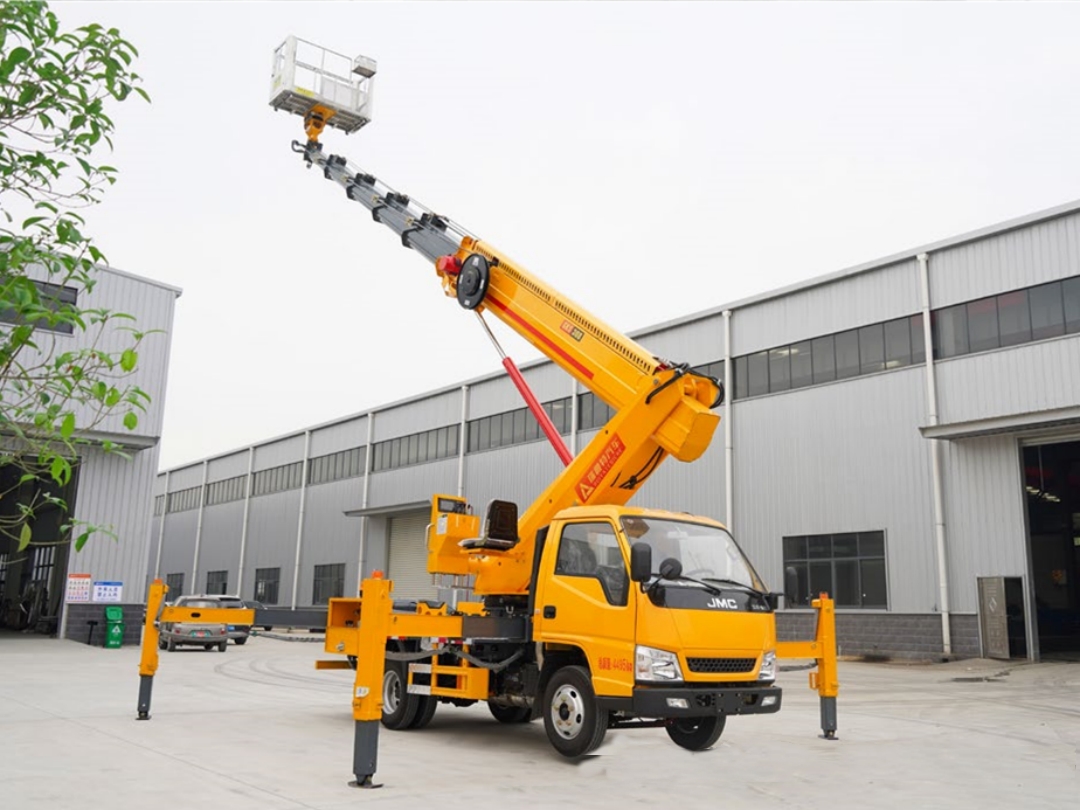

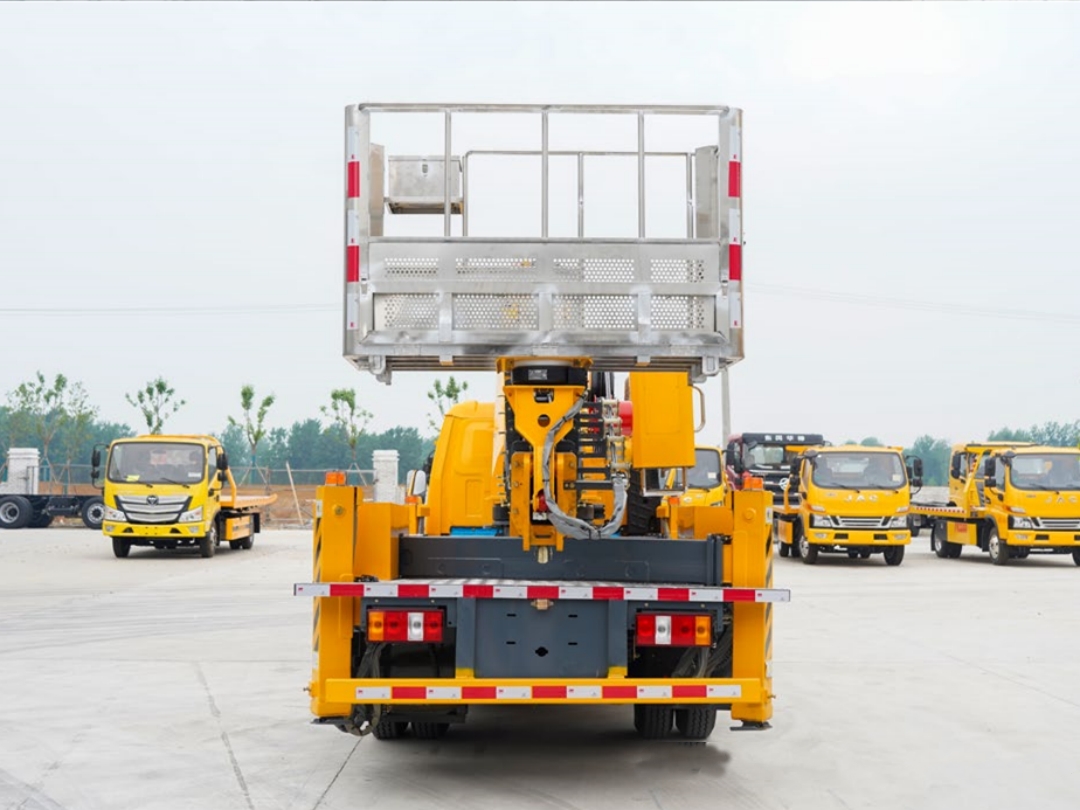

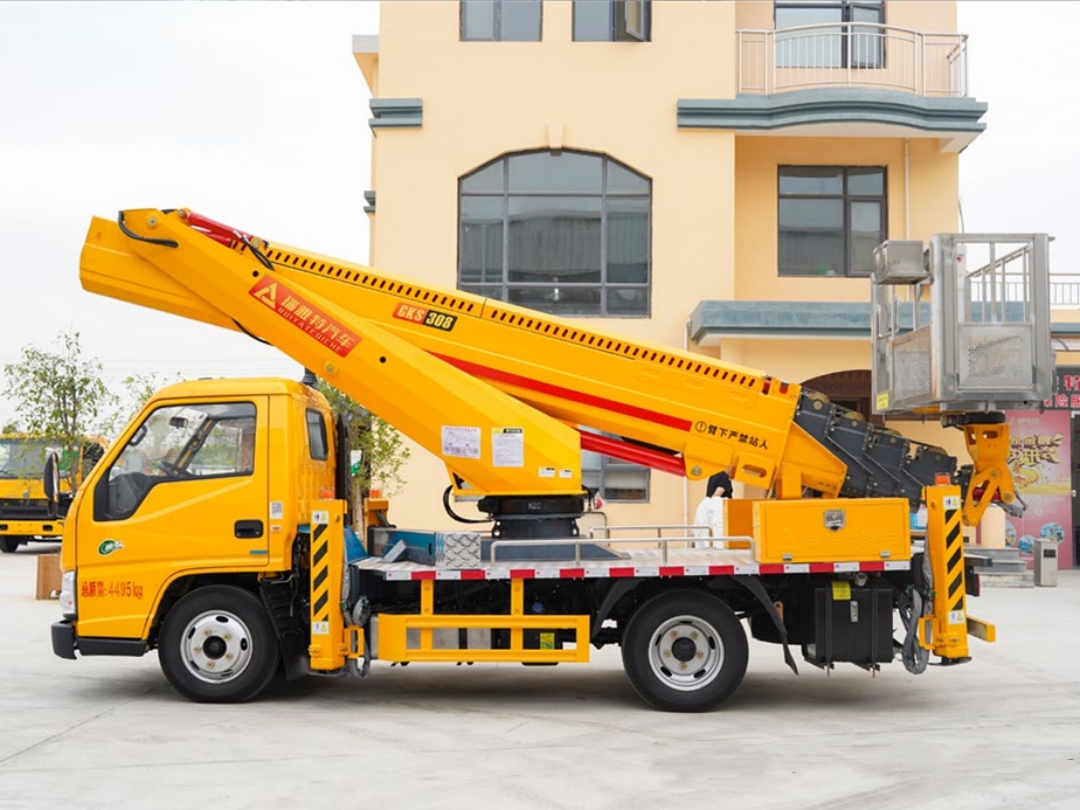

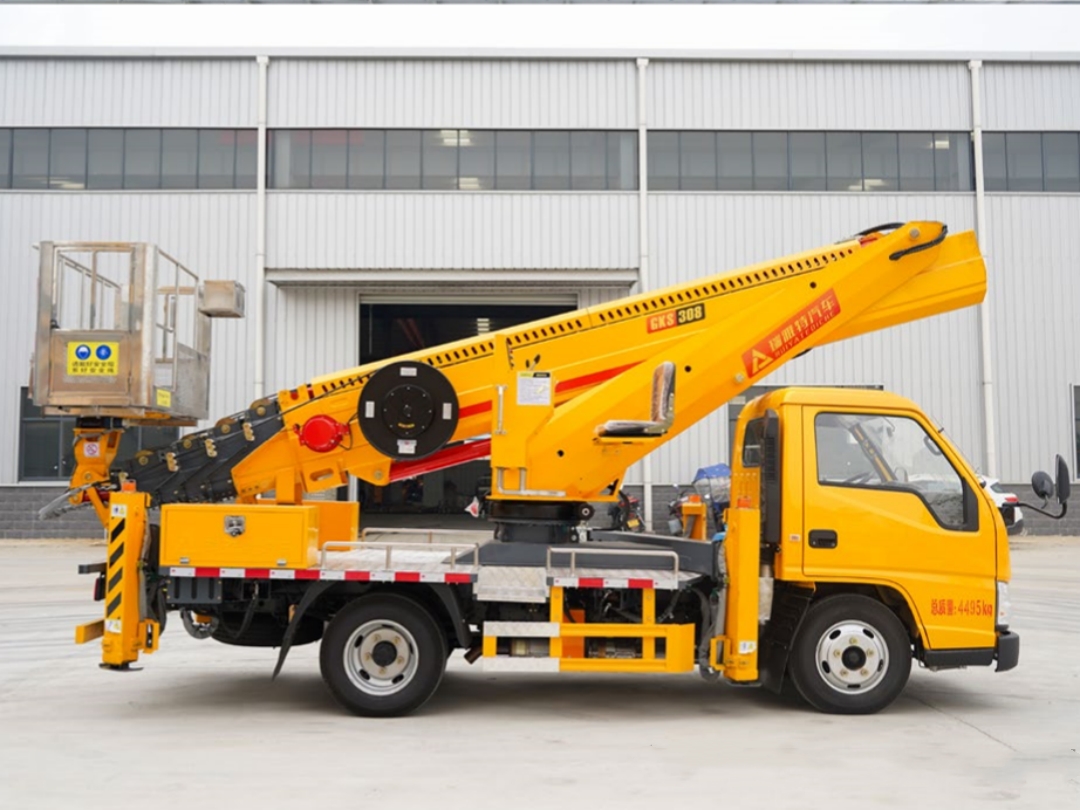

JMC 30.8m high altitude work vehicle
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Technical parameters of high-altitude operation truck
