| Overall Dimension |
5998×2280×3150mm |
| Hanging basket dimension |
1600×700×1100mm |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
30m |
| Working range at maximum working height |
4.5m |
| Maximum working height |
16m |
| Control voltage |
12V |
| Work platform rotation |
Continuously 360° |
| Horizontal leg span |
6000mm |
| Longitudinal leg span |
5800mm |
| Arm amplitude variation time |
50s |
| Arm rotation speed |
60s/r |
| Outrigger extension and retraction time |
35s |
| Chassis |
JAC |
| Cab configuration |
JAC K5 cab, equipped with air conditioning, central locking, electric glass, and air brake |
| Engine model and horsepower |
HFC1045P32K1C7NS,Yunnei 140hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
Fast 8-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3365,2850,3600(mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
6.50R16LT 8PR,7.00R16LT 8PR,6.50R16LT 10PR,185R15LT 8PR, 6+1spare |
| Fences and walkways material |
Stainless steel fence, aluminum alloy anti slip walking board. |
| Power take-off system |
Pneumatic power take-off |
| Working platform size |
Pneumatic power take-off |
| Skeleton form |
Seven section octagonal synchronous telescopic arm |
| Slewing gear |
360° continuous rotation |
| Outrigger |
Front V-shaped and rear V-shaped double leg support, individually adjustable and synchronously extendable |
| Operation |
Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation for getting off the vehicle, equipped with an electric emergency pump, the whole vehicle can achieve full hydraulic electric emergency operation. |
| Control system |
Duman aerial vehicle control system, strong stability |
| Leveling system |
Hydraulic automatic leveling |
| Stretching force balance |
Set up a balance mechanism for the stretching rope to ensure balanced force distribution on the left and right steel wire ropes |

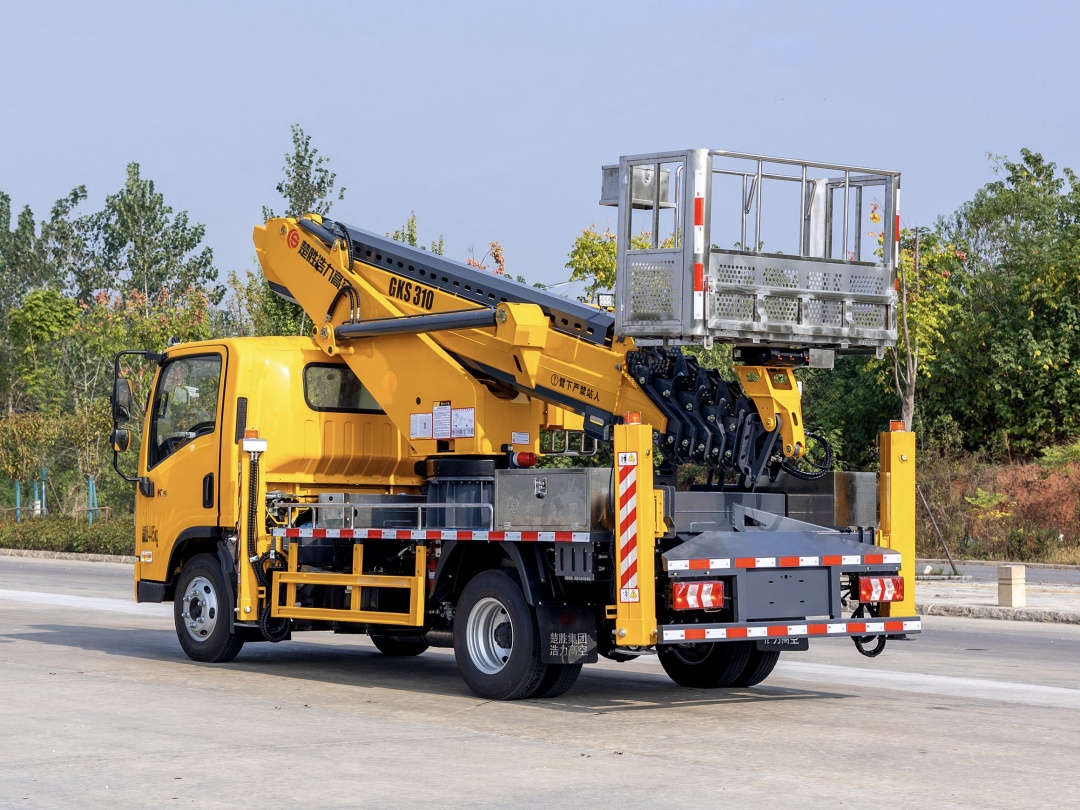

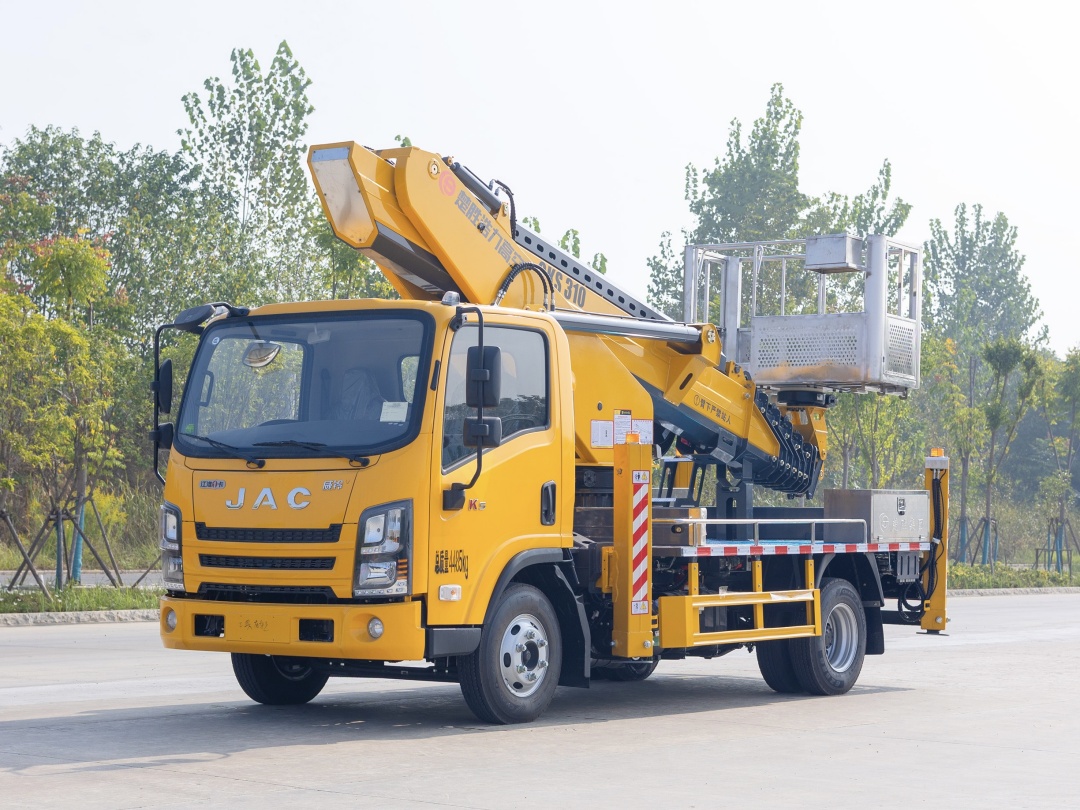

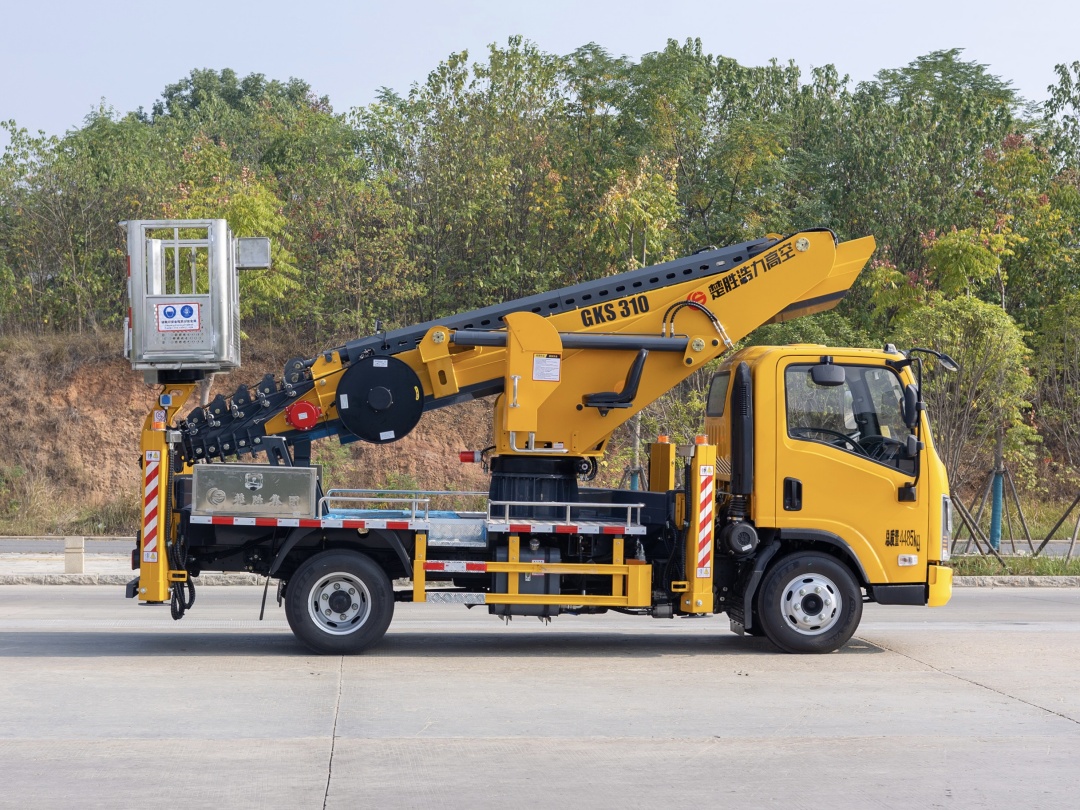

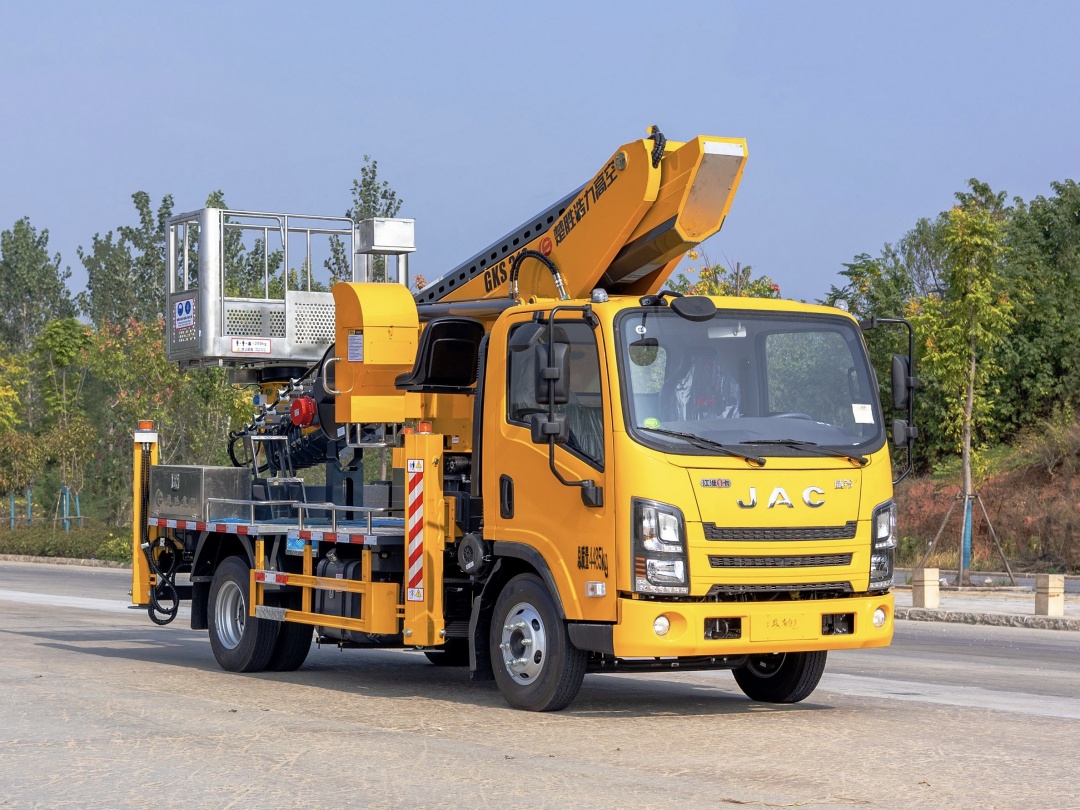

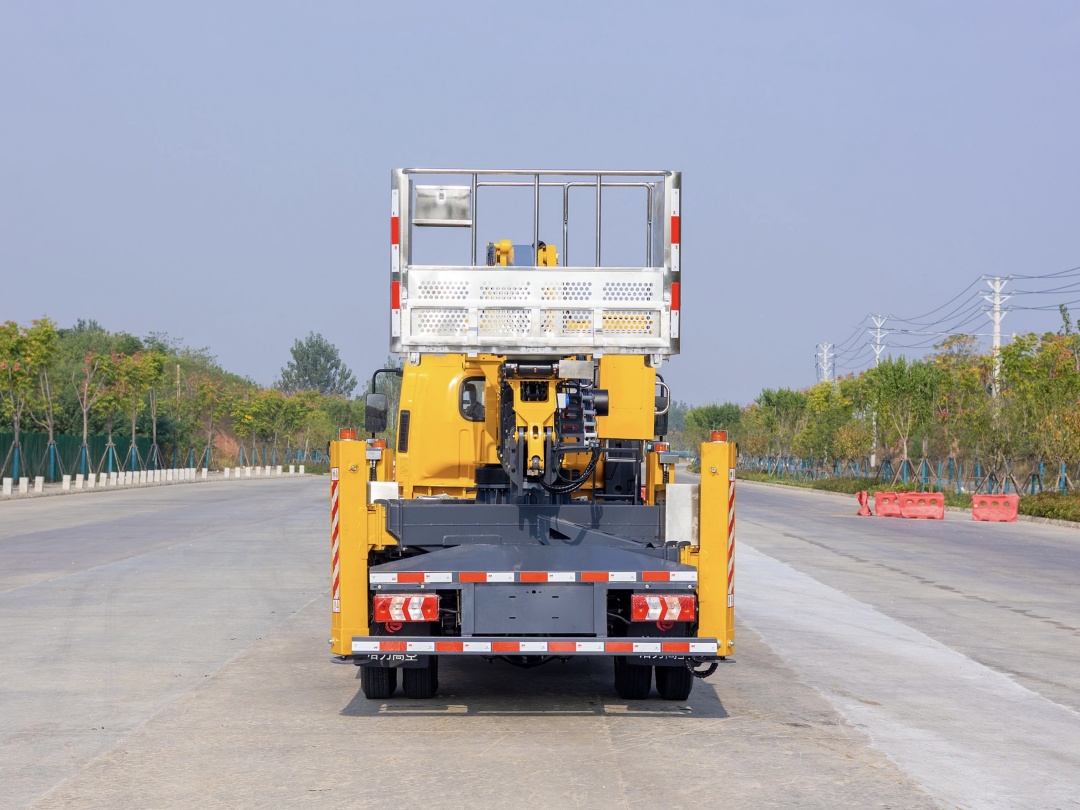

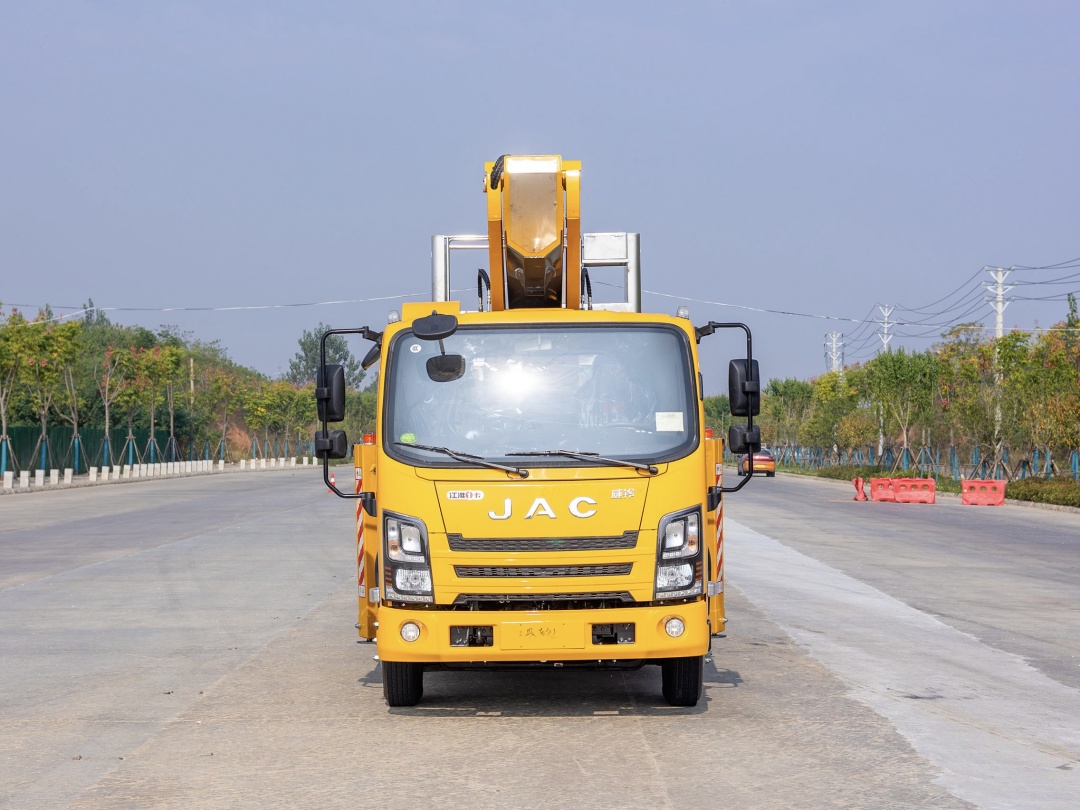

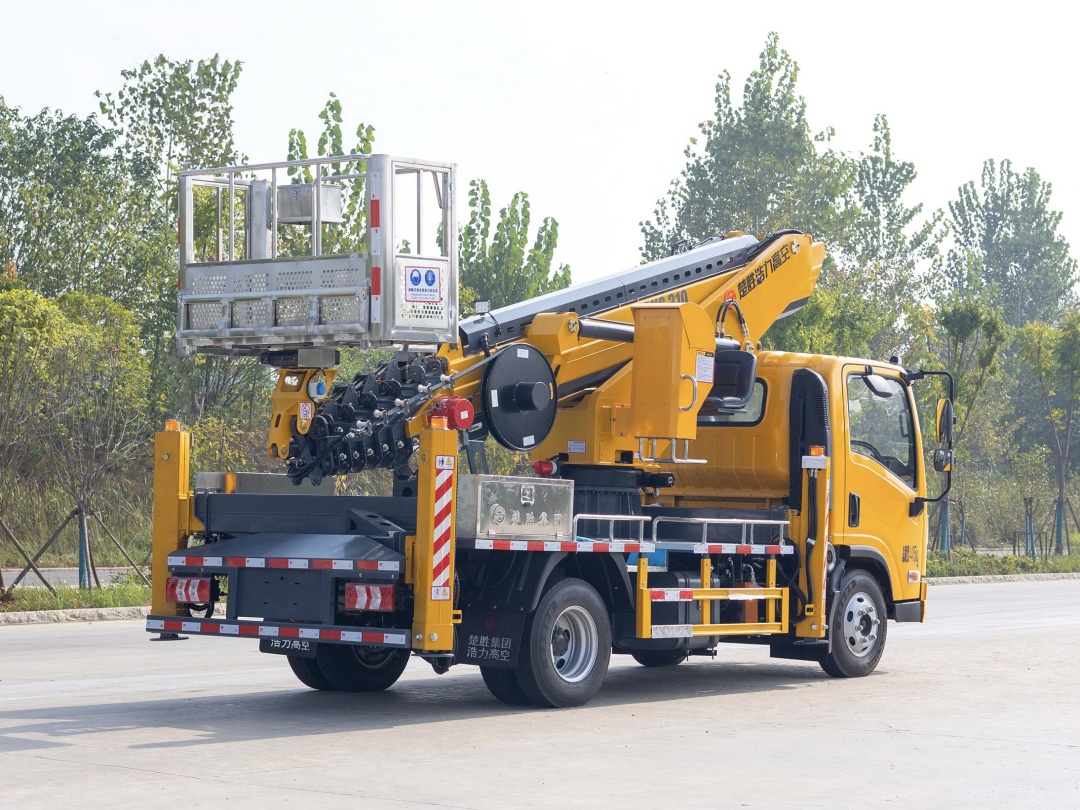

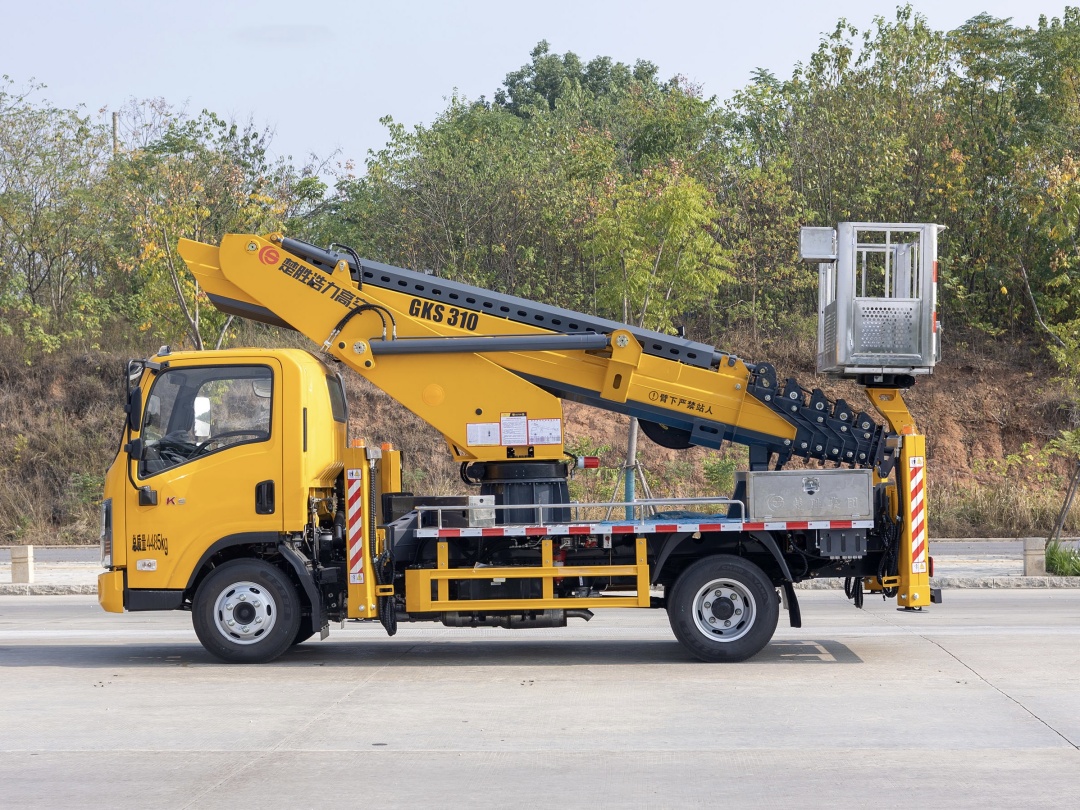

JAC 30m aerial platform vehicle
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Technical parameters of high-altitude operation truck
