Jiefang three-in-one aerial platform vehicle
2024-09-29 15:14:38 Source：chusheng

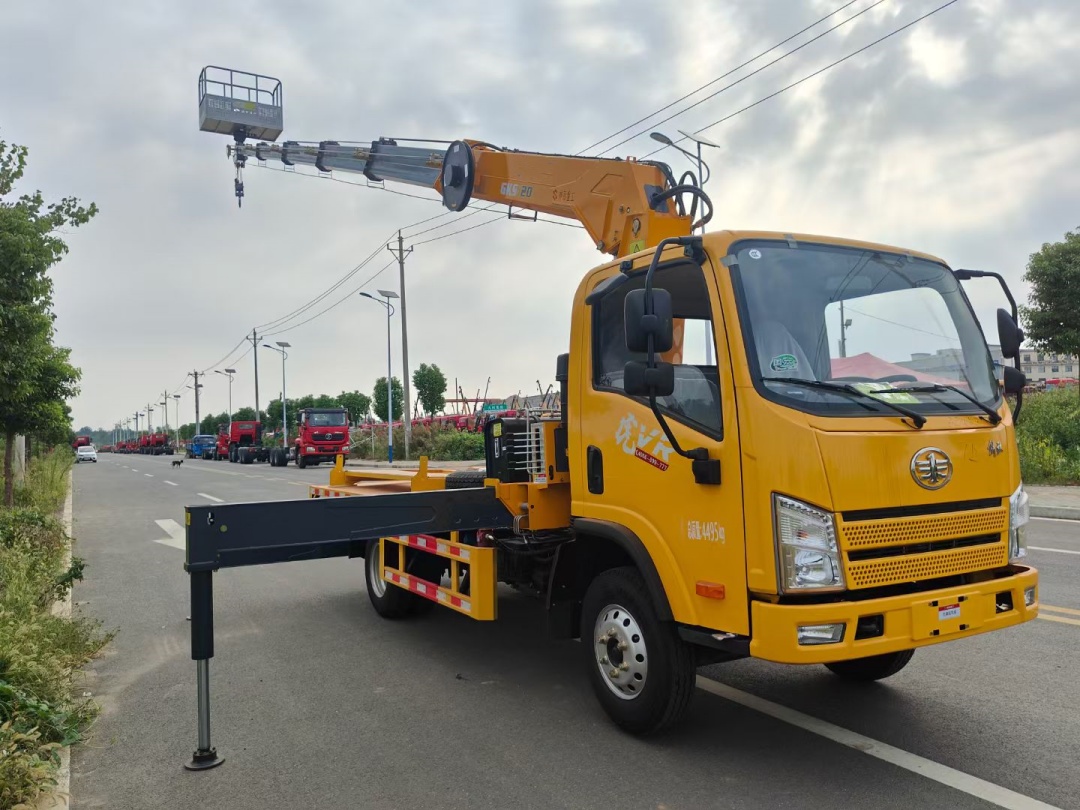

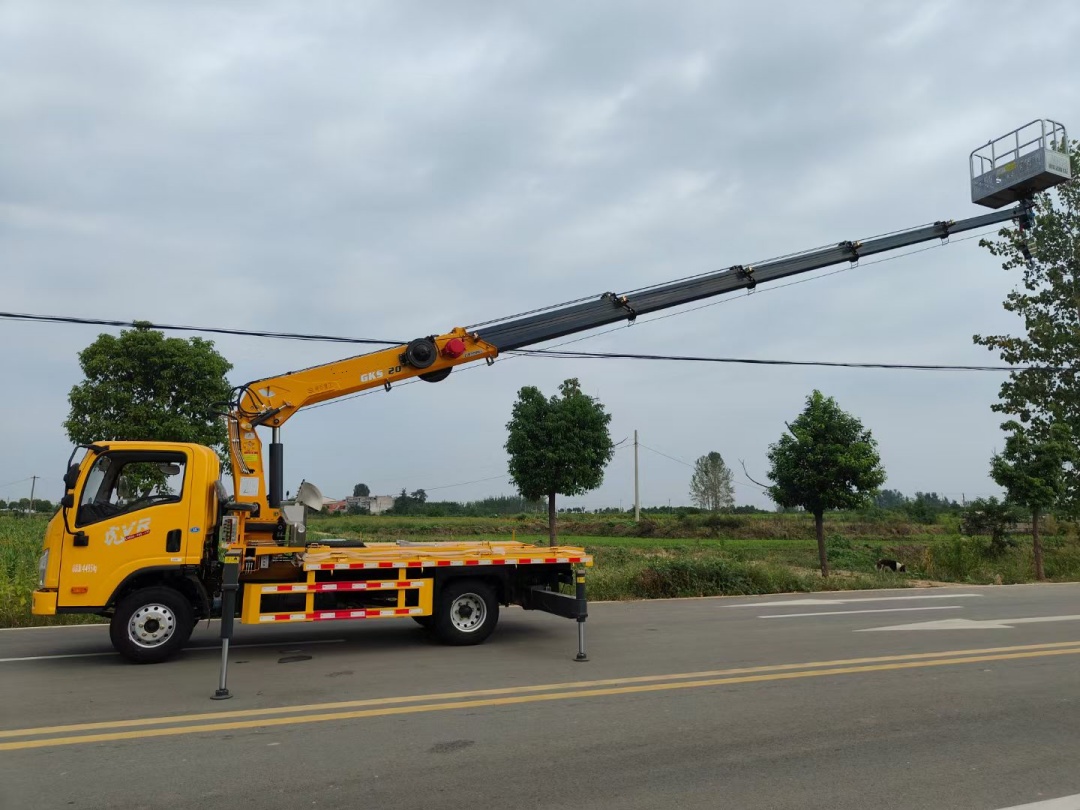

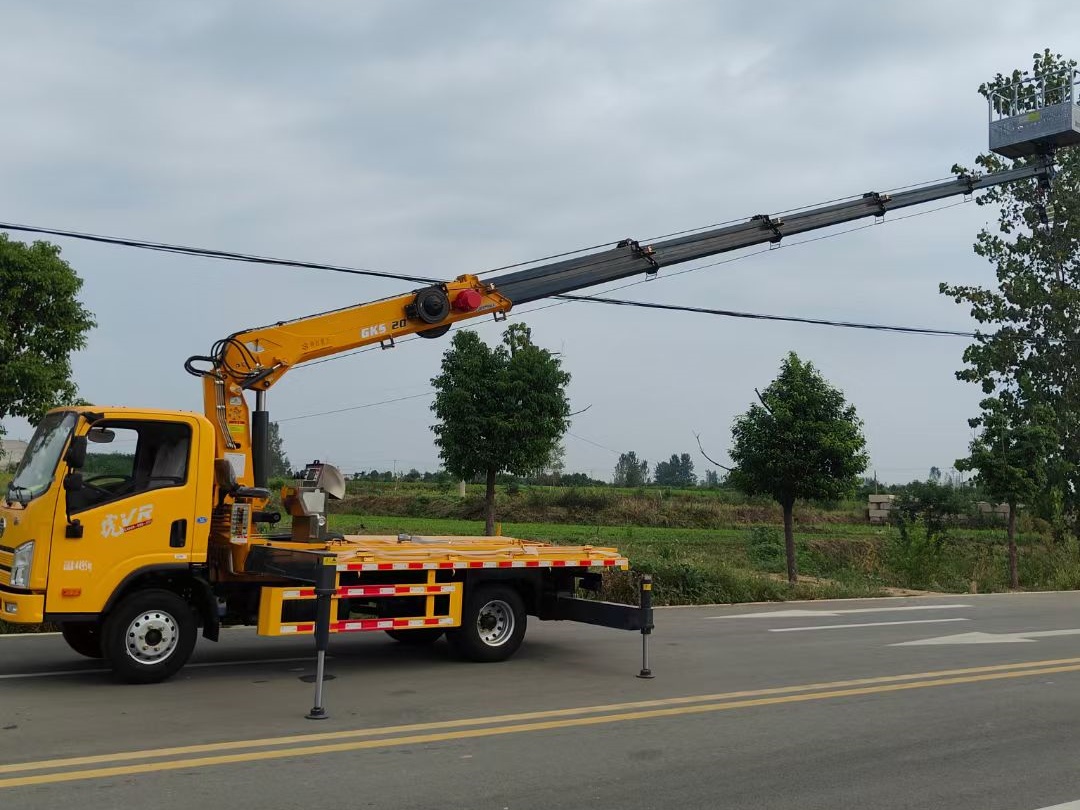

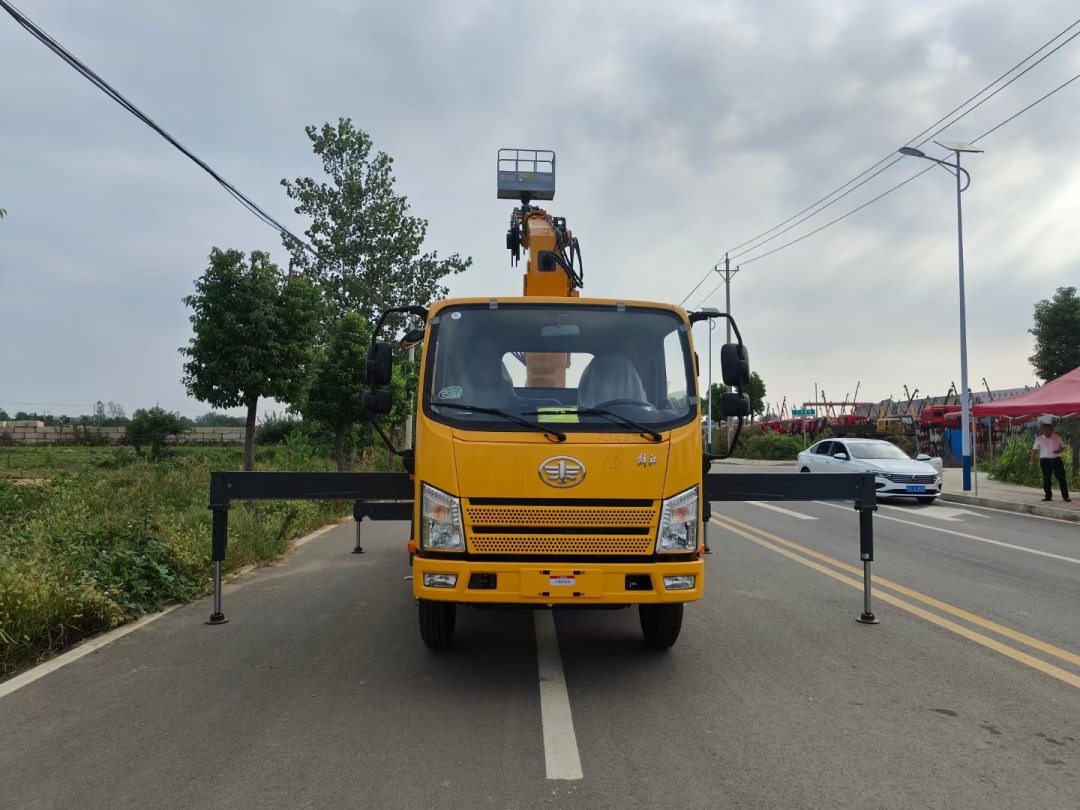

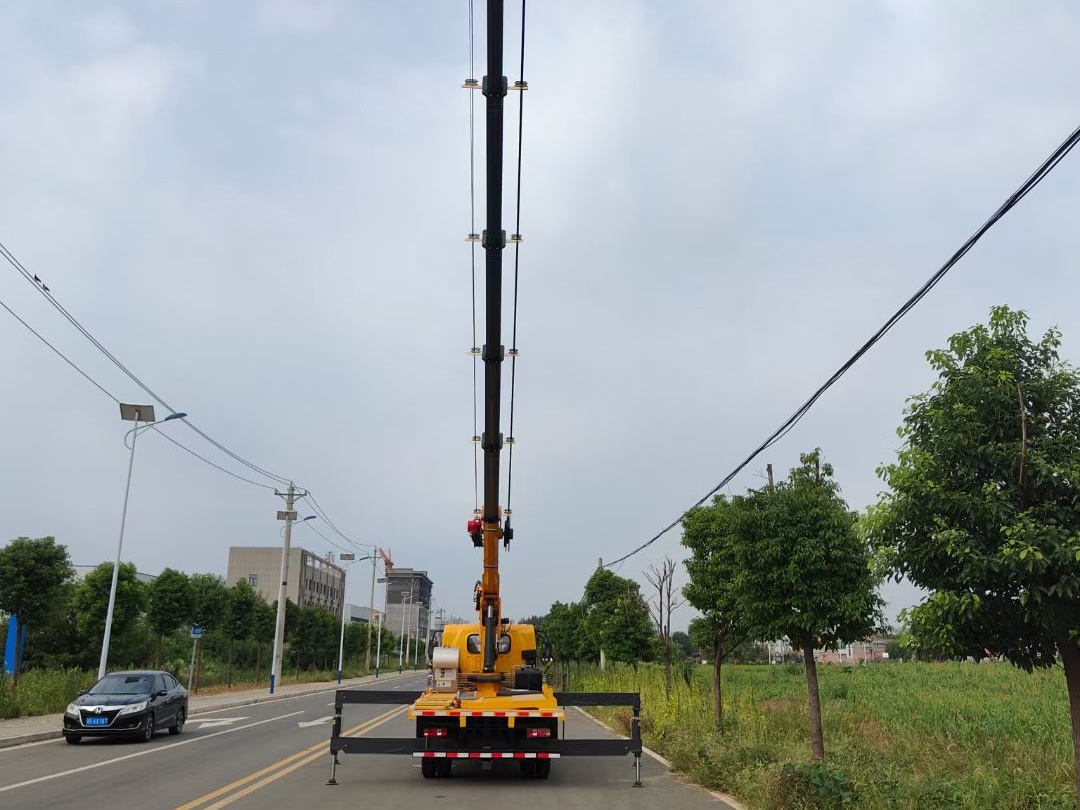

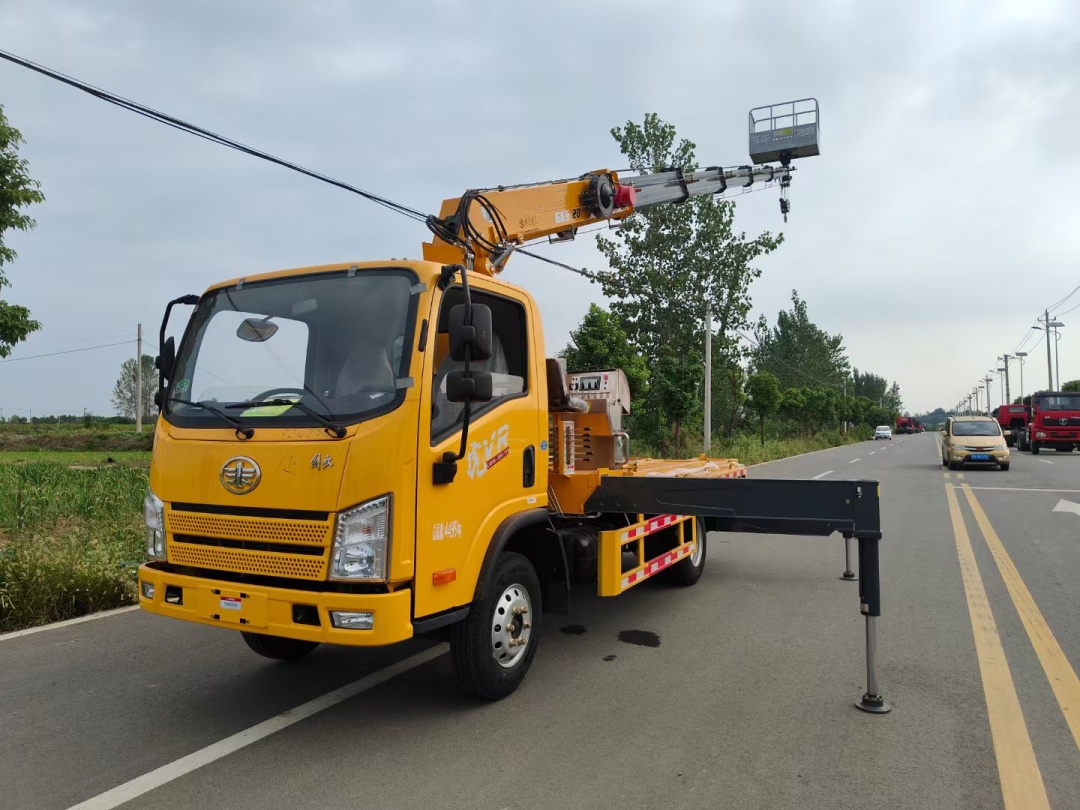

Jiefang three-in-one aerial platform vehicle
Jiefang VR single row cab, Xichai 140 horsepower, Wanliyang five speed gearbox, 5-ton rear axle, equipped with 20 meter 5-ton 6-section arm multi-functional high-altitude crane, with a maximum lifting capacity of 5 tons and a full boom of 550kg. It can not only pull cargo but also perform high-altitude operations. Good cars are affordable and economical.
Advantages of Chusheng Aerial Work Vehicle
1.High end design, small turning radius2.Dual lifting cylinder design3.Double leg support, large span4.Good operational performance and wide operating range5.Both the turntable and platform can rotate continuously 360 °6.Work platform, small platform with load7.Dual electronic control operating system8.Turntable seats and controls9.High reliability
| Product name |
Jiefang three-in-one aerial platform vehicle |
| Overall Dimension |
5995×2098×2820,2750,2700(mm) |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365,4300(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
20m |
| Cab |
Jiefang VR Single Row Cab |
| Engine model and horsepower |
CA4DB2-16E68, Xichai 140hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3300,3600,3000,2800(mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.00R16 8PR,7.00R16 10PR,7.00R16LT 8PR,7.00R16LT 10PR,6.50R16LT 10PR,6.50R16LT 12PR |
| Crane configuration |
Install a 20 meter, 5-ton, 6-arm multi-functional high-altitude crane with a maximum lifting capacity of 5 tons and a total output of 550kg |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Jiefang three-in-one aerial platform vehicle
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Technical parameters of high-altitude operation truck
