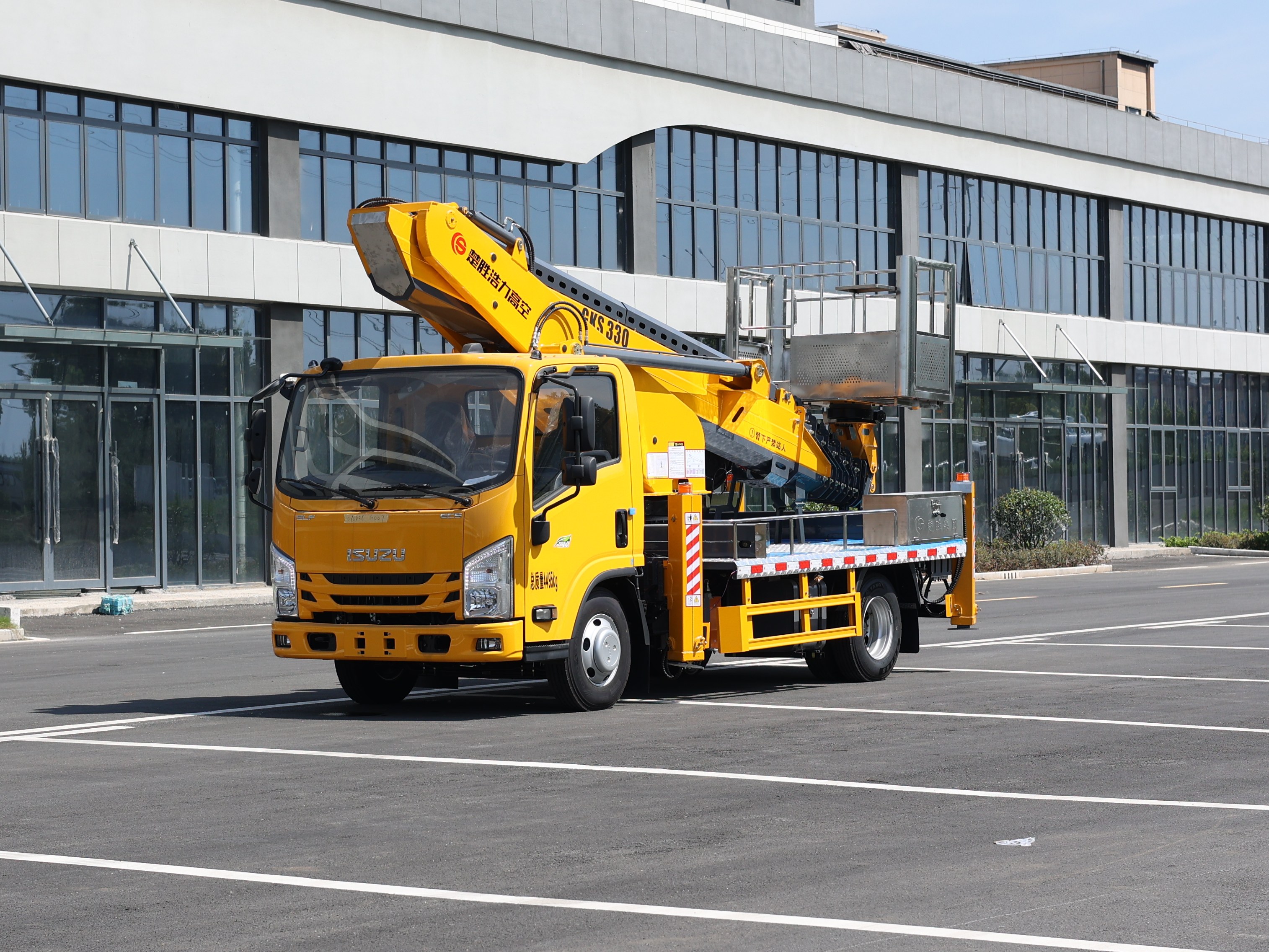

ISUZU 33 meters aerial work platform, 33m high altitude operation vehicle

2024-09-29 15:14:38 Source：chusheng

Advantages of Chusheng Aerial Work Vehicle
1.High end design, small turning radius
2.Dual lifting cylinder design
3.Double leg support, large span
4.Good operational performance and wide operating range

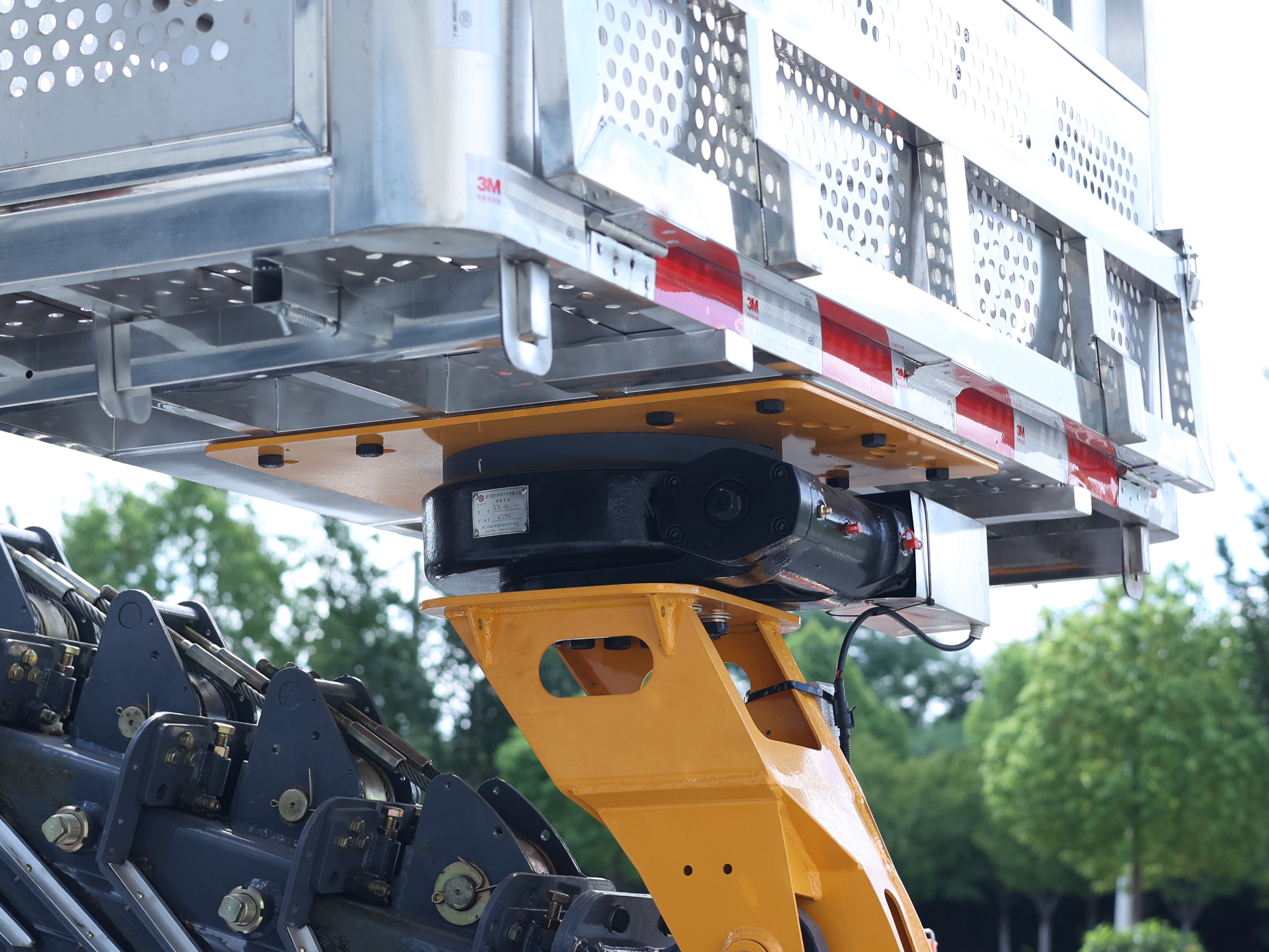

5.Both the turntable and platform can rotate continuously 360 °
6.Work platform, small platform with load
7.Dual electronic control operating system
8.Turntable seats and controls
9.High reliability

Overall Dimension	5998X2280X3050(mm)
Hanging basket dimension	1600X700X1100(mm)
Gross vehicle weight	4495(Kg)
Curb weight	4365,4300(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	33m
Working range at maximum working height	4.5m
Maximum working height	16m
Control voltage	12V
Work platform rotation	Continuously 360°
Horizontal leg span	6000mm
Longitudinal leg span	5800mm
Arm amplitude variation time	50s
Arm rotation speed	60s/r
Outrigger extension and retraction time	35s
Chassis	ISUZU
Cab configuration	Single row, seating 2-3 people, equipped with air conditioning, central locking system, electric glass, and air brake
Engine model and horsepower	JE493ZLQ6K, 127hp
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	5 forward gears and 1 reverse gear
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3360mm
Axle quantity	2
F/R axle load	1840/2655
F/R wheel track	1565,1585(mm)/1565,1585(mm)
F/R suspension	1090/1548(mm)
Approach angle/departure angle	20/11(°)
Tire Specification and Quantity	7.00R16LT 8PR,7.00R16LT 10PR,7.50R16LT 6PR, 6 with 1 spare tire
Fences and walkways material	Stainless steel fence, aluminum alloy anti slip walking board.
Power take-off system	Pneumatic power take-off
Working platform size	Pneumatic power take-off
Skeleton form	7 section octagonal synchronous telescopic arm

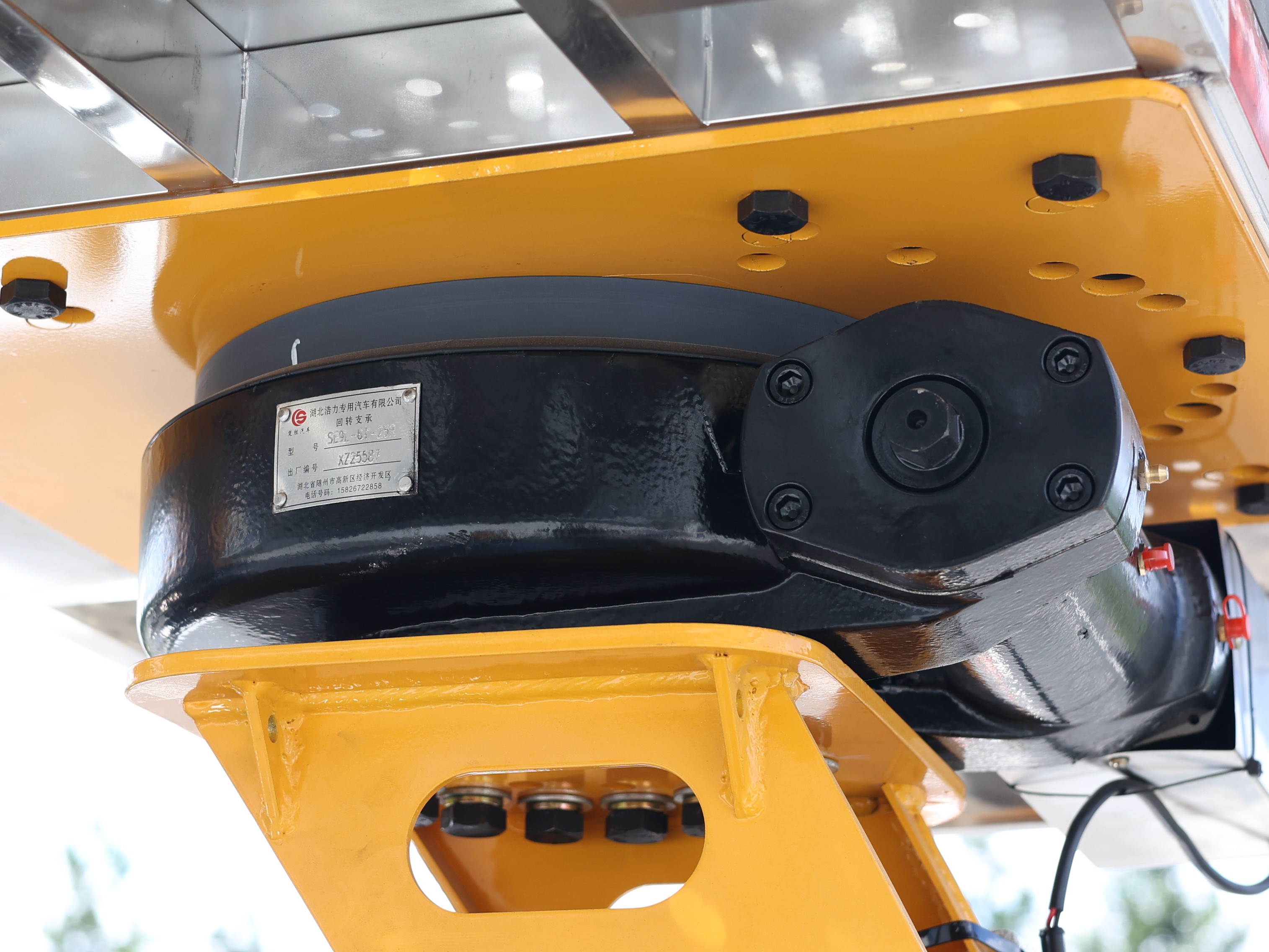

Slewing gear	360° continuous rotation
Outrigger	Front and rear V-shaped double leg support, individually adjustable and synchronously extendable.

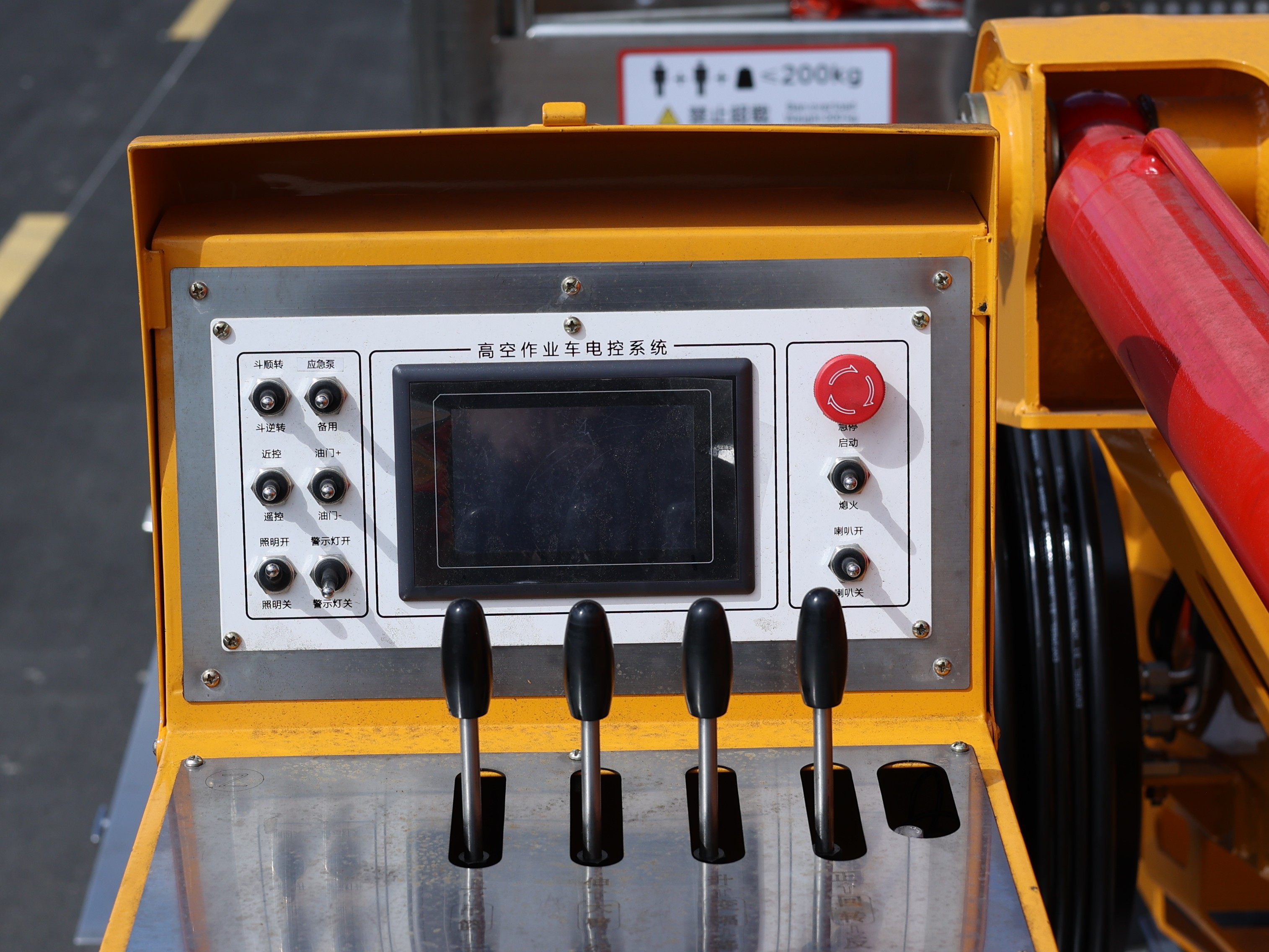

Operation	Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation for getting off the vehicle, equipped with an electric emergency pump, the whole vehicle can achieve full hydraulic electric emergency operation.
Control system	Duman aerial vehicle control system, strong stability
Leveling system	Hydraulic automatic leveling
Stretching force balance	Set up a balance mechanism for the stretching rope to ensure balanced force distribution on the left and right steel wire ropes

1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.
It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high effecience and great performance with good safety.

3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.

Technical parameters of high-altitude operation truck
