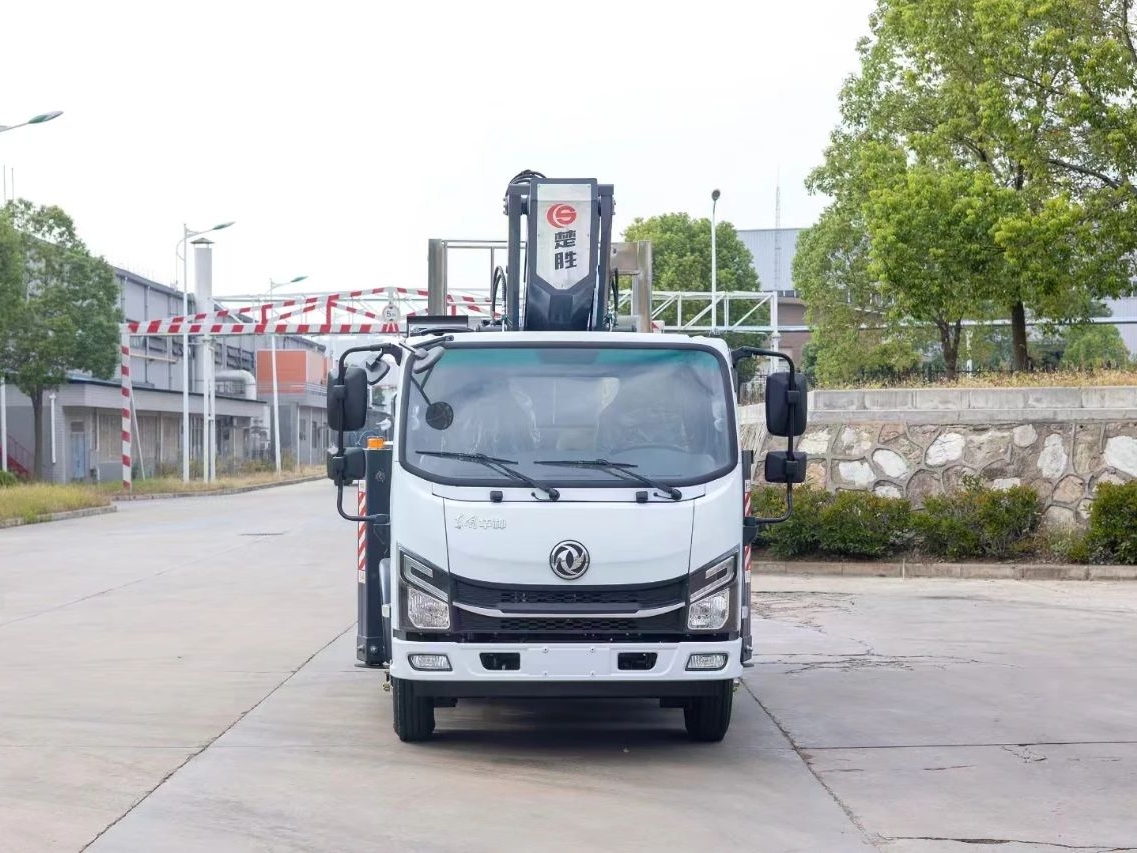

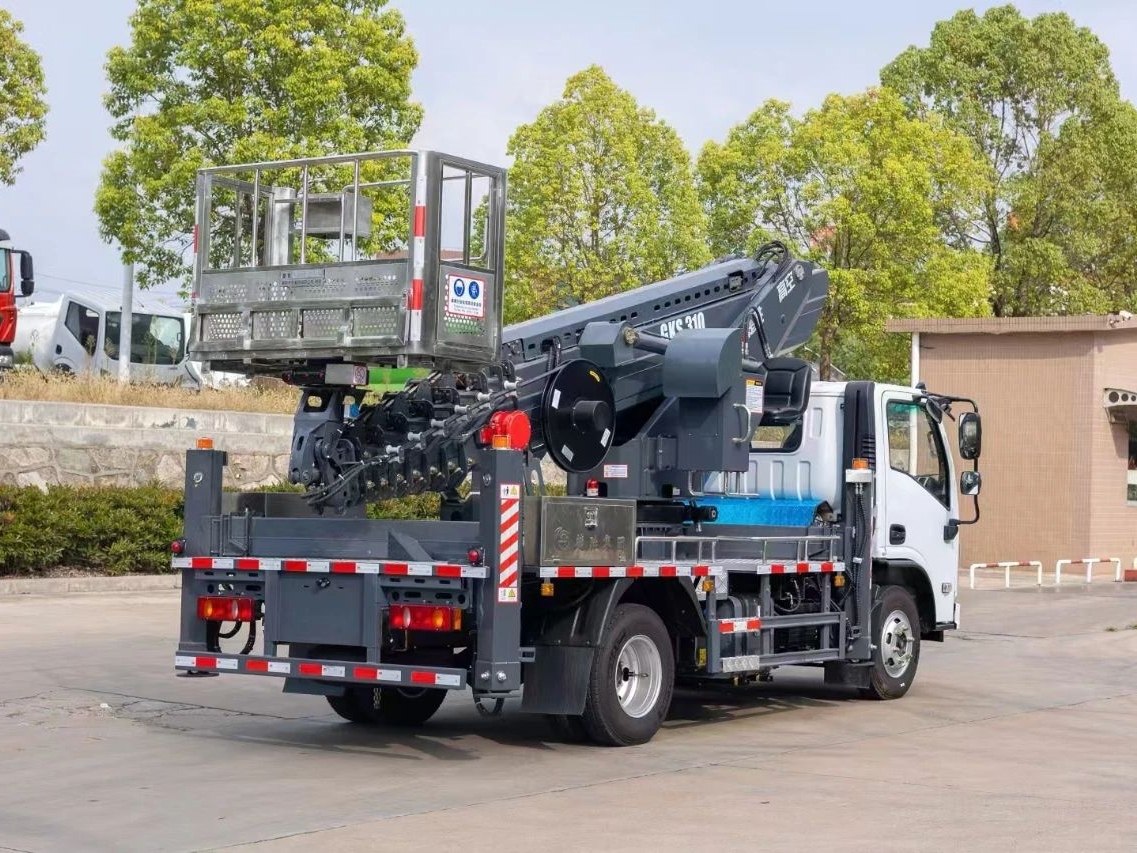

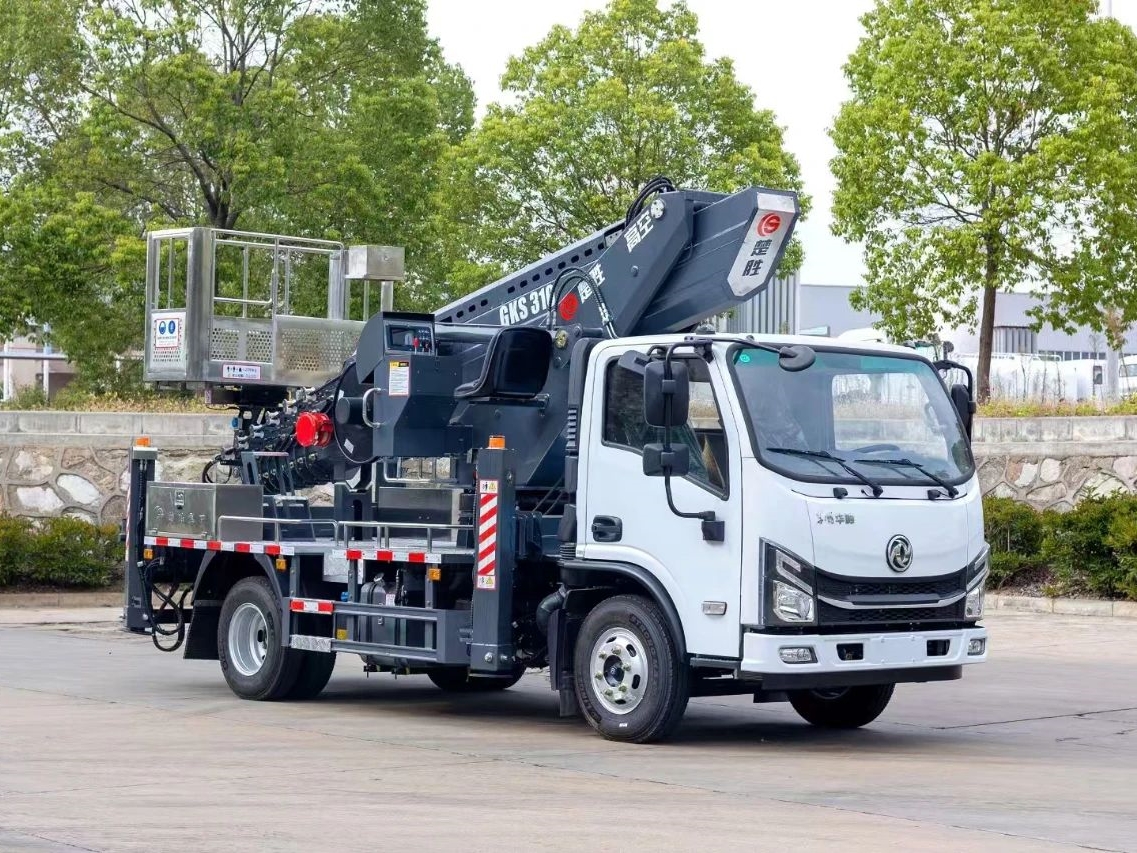

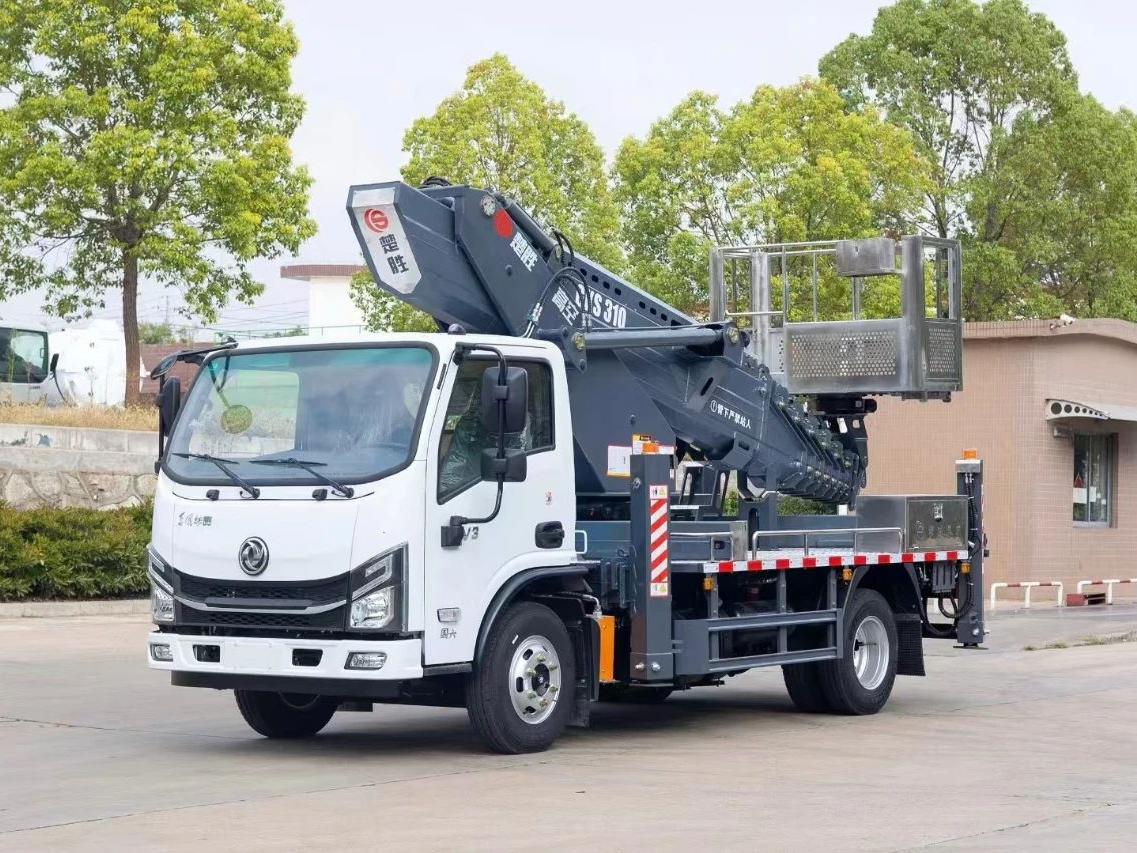

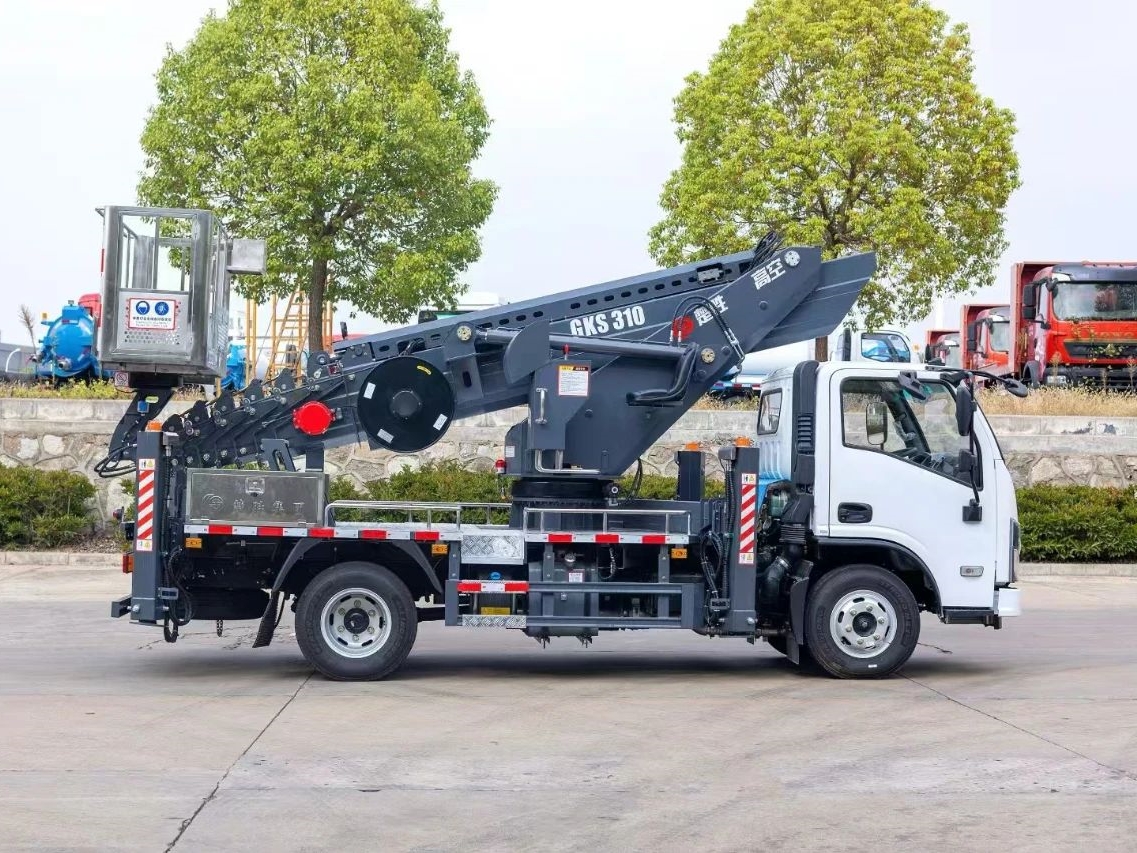

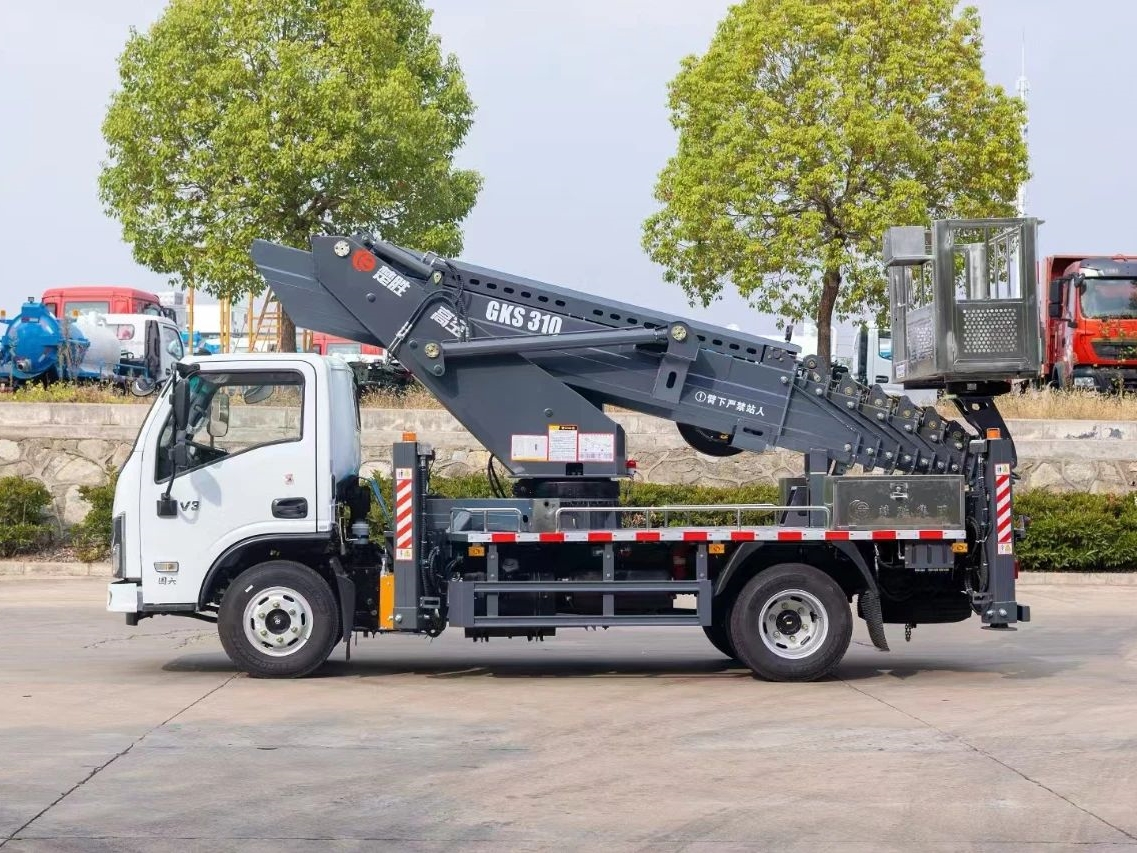

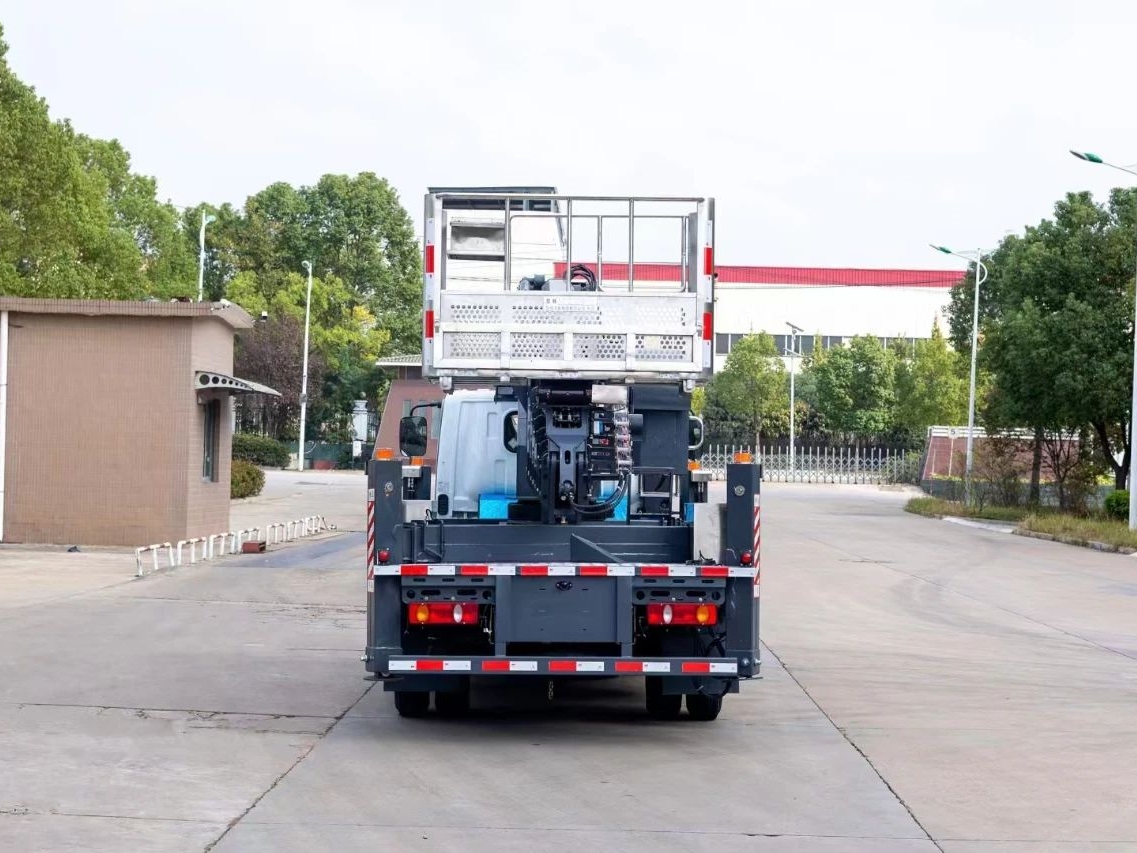

Dongfeng Huashen 30 meter aerial work truck

Chassis configuration:

Dongfeng Huashen v3 (1750mm cab), 3300mm wheelbase, Quanchai 142 horsepower engine, Wanliyang 5-speed gearbox, 7.00R16 8PR tires, air conditioning central locking system, electric glass.
Installation configuration:
Adopting an eight section octagonal boom with synchronous extension and retraction, the boom rotates 360 degrees, with front V-shaped and rear V-shaped double section hydraulic support legs that can be adjusted separately. The front and rear support legs have a span of 6 meters and can be extended and retracted synchronously. 1.6-meter stainless steel suspended basket with a load capacity of 200 kilograms. The entire vehicle is coated with electrostatic powder coating technology. Standard electronic control operation screen, remote control, hydraulic oil radiator, and soft leg protection. (Optional installation of oil and electricity dual-use device, reversing camera, hydraulic winch, and upper control cab.)

Product name	Dongfeng Huashen 30 meter aerial work truck
Overall Dimension	5998×2300,2250,2200,2090×3280,3200,3150,2950,2850,2700(mm)
Gross vehicle weight	4495(Kg)
Curb weight	4365,4300(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	30m
Cab	Dongfeng Huashen V3 cab
Engine	Q23A-142E60, Quanchai 142hp
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	Wanliyang 5-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3300 (mm)
Axle quantity	2
Tire Specification and Quantity	7.00R16 8PR , 6+1 spare
Notice	The above information is for reference only. Trucks can be customized according to customer needs.
