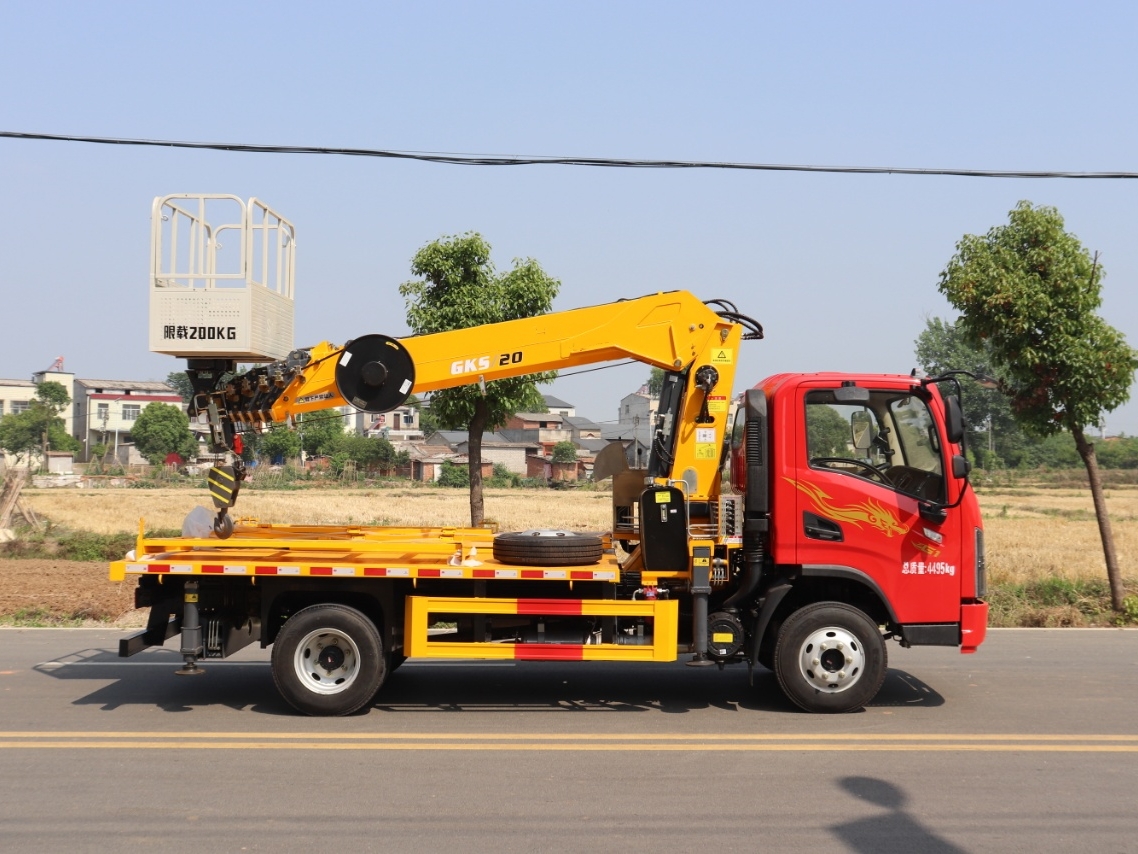

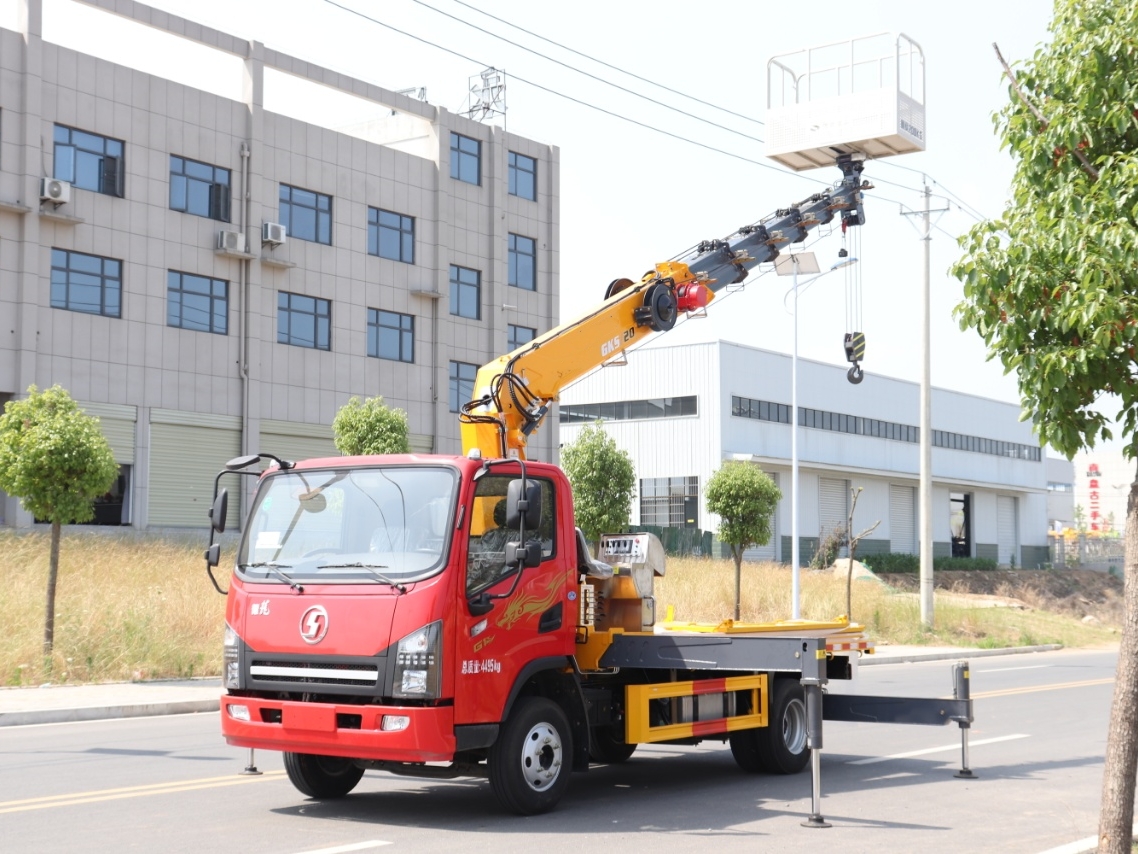

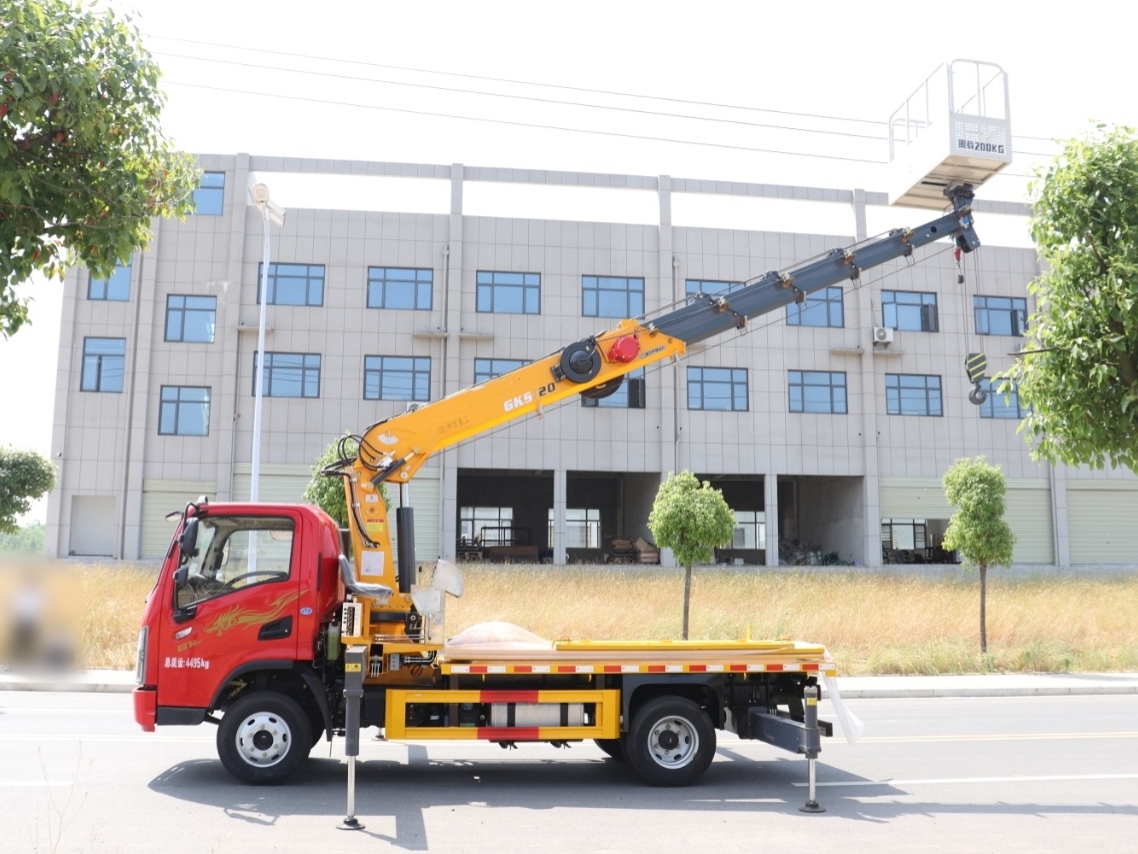

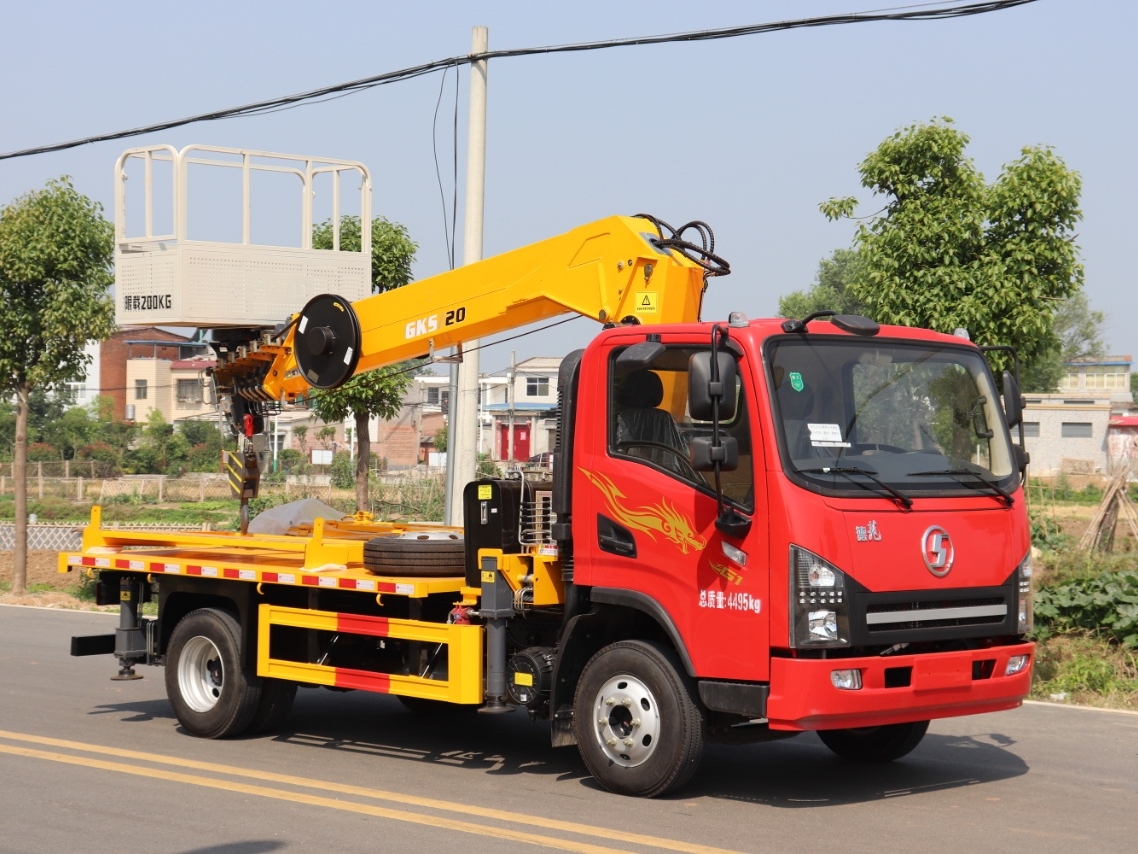

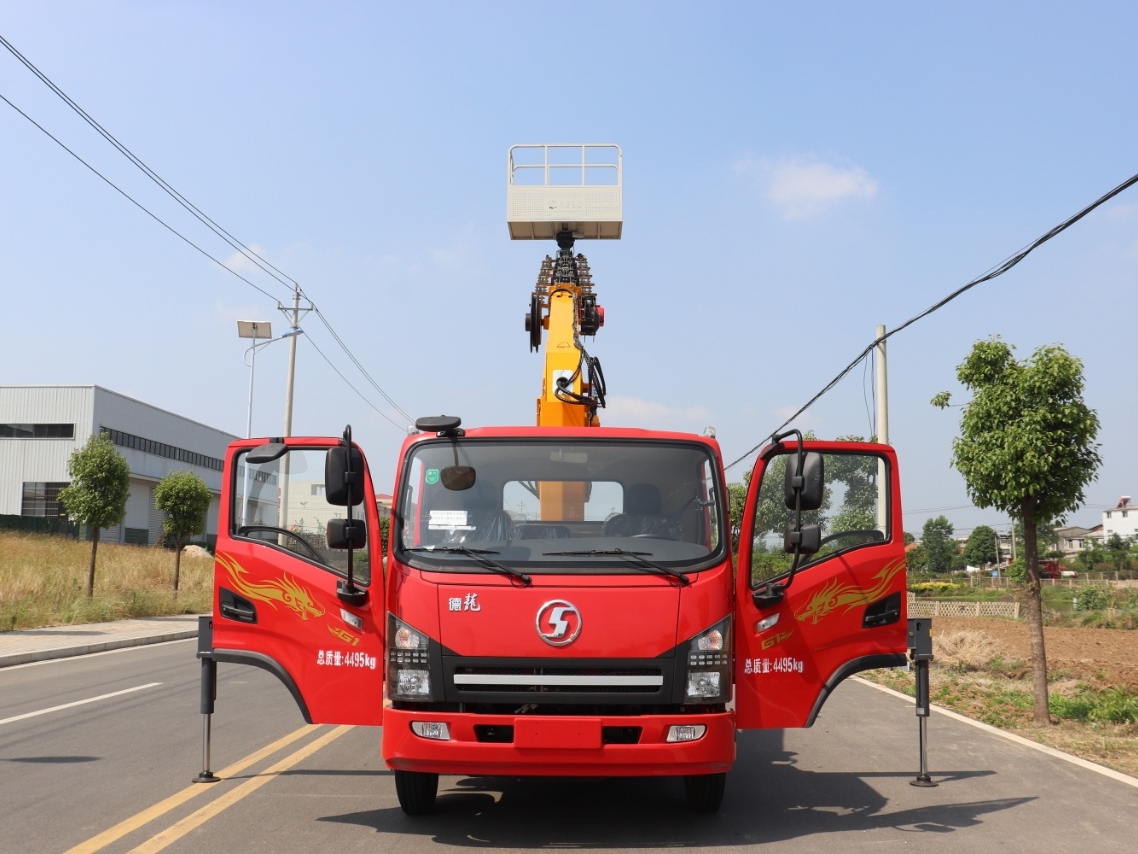

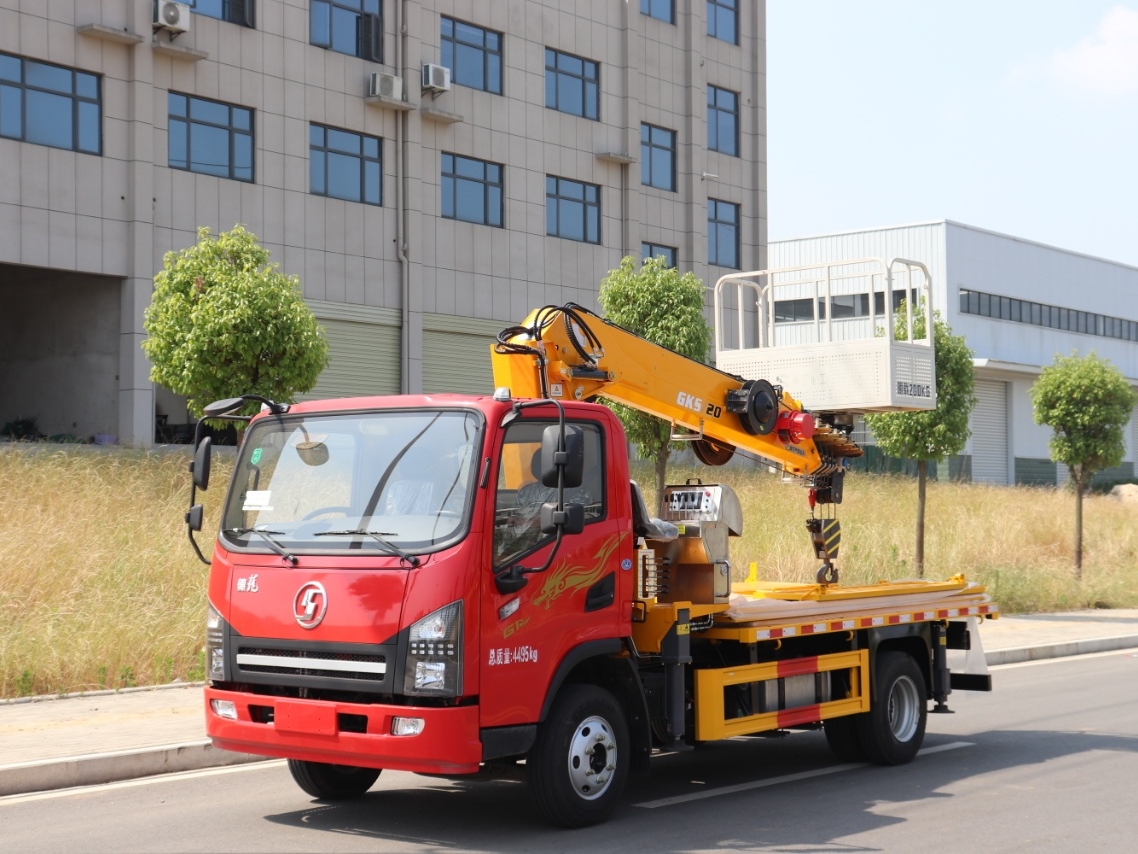

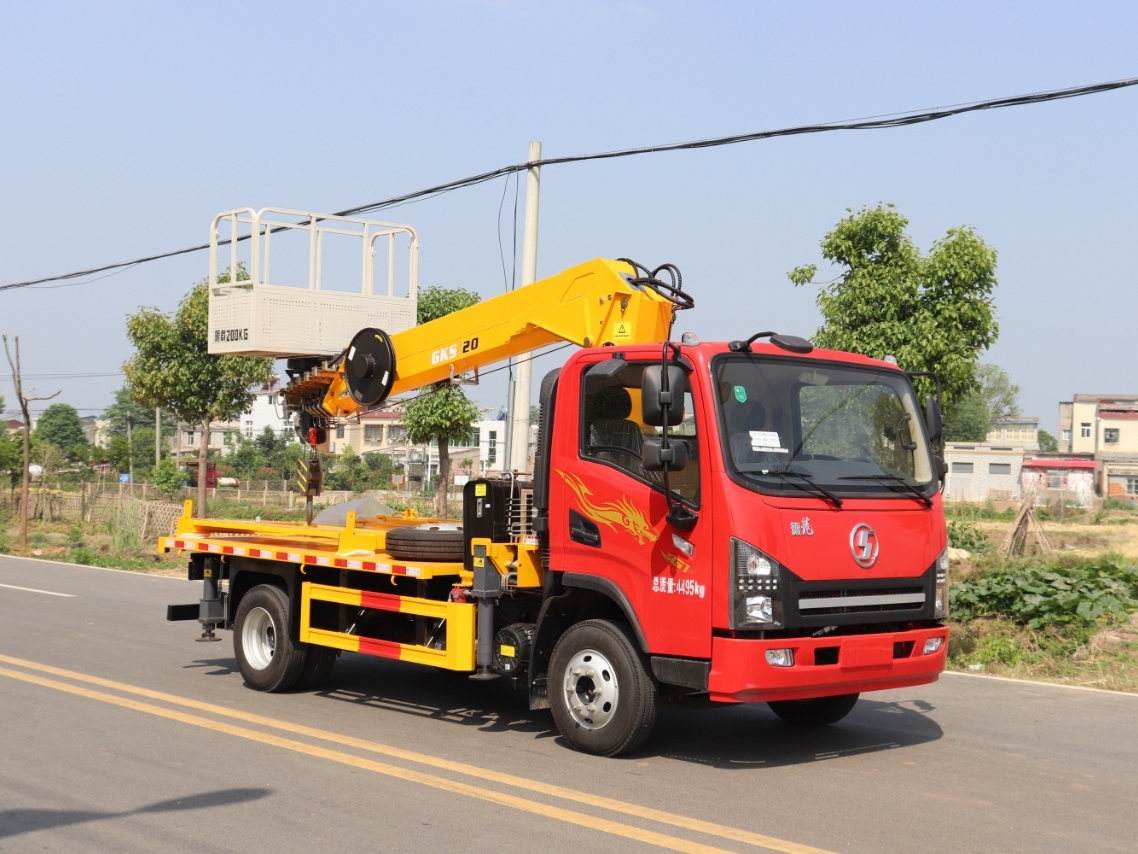

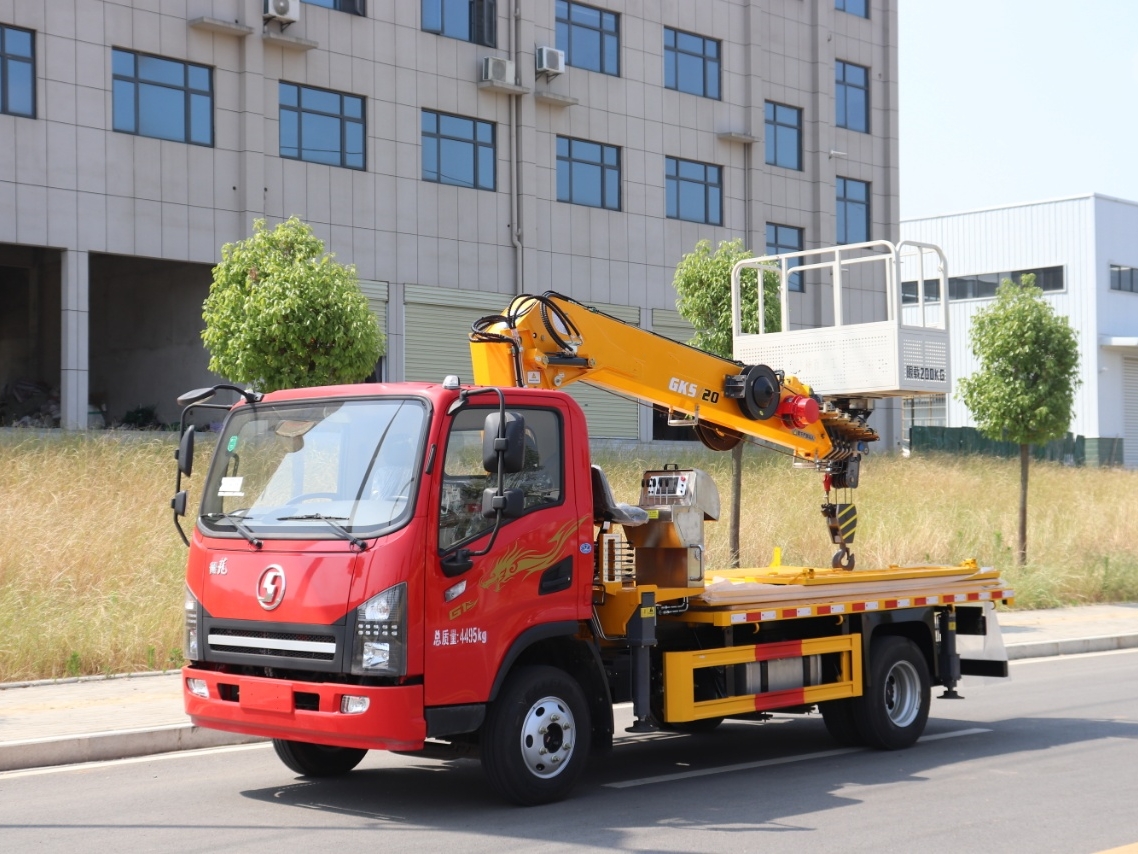

Shacman Delong G1 Multi functional three-in-One Aerial Work Vehicle

1.Cab: Shacman Delong G1 cab
2.Engine: YN25PLUS160A, 114kw
3.Transmission: FAST 8-speed gearbox

4.Wheelbase: 3600mm
5.Frame: 180 original double-layer beam
6.Axle: 6T rear axle (Hande maintenance free, speed ratio 4.875)
7.Tire: 7.00R16 8PR , 6+1 spare
8.Other: Air conditioning, power windows, headlight adjustment, central locking, regular steering wheel, mechanical seats (upgraded version), three in one lock, electric horn, gas horn, phone holder, foot pedal, pole mirror, radio and tape player, fire extinguisher mounting bracket, domestic four channel ABS, air brake, exhaust assist brake, aluminum air cylinder, 80Ah battery, with spare tire

Aerial work vehicle refers to a specialized vehicle used to transport workers and equipment to the site for aerial operations.

Installation configuration:
Lateral span of front and rear legs: 5150mm/4500mm
Longitudinal span of front and rear legs: 3400mm
Maximum working height of aerial work platform: 20 meters
Maximum working range: 12 meters (electronic control limit)
Maximum working radius: 15 meters
Platform rated load: 200KG
Arm rotation angle: 360 degrees
Platform size: 1500mm x700mm x1100mm
Platform rotation range: ± 180 °

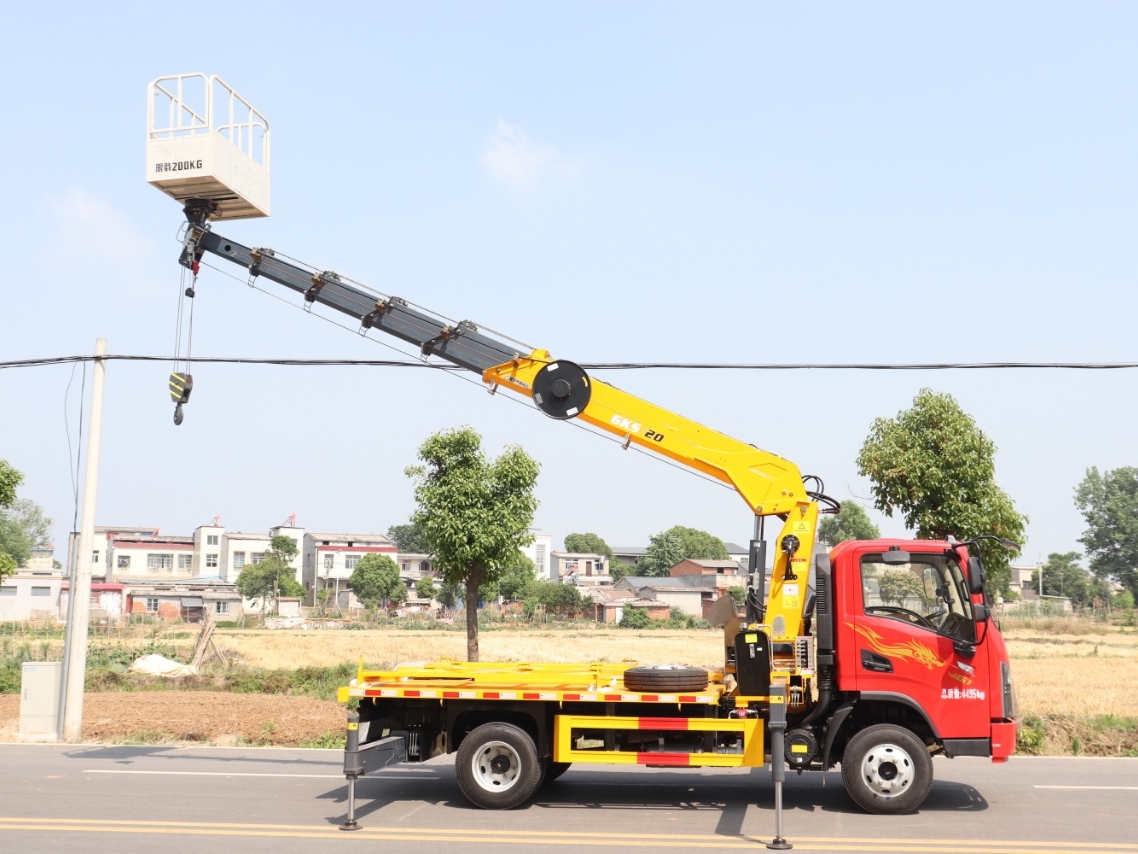

Big arm: 6-section arm, 5-section synchronous extension and contraction, wire rope with spare wire rope for the arm, even if the main wire rope breaks, it can smoothly lower the person down
Operating System: A well-known electronic control system in China, equipped with a wireless remote control.
Hydraulic system: electro-hydraulic proportional valve, capable of infinite speed regulation.

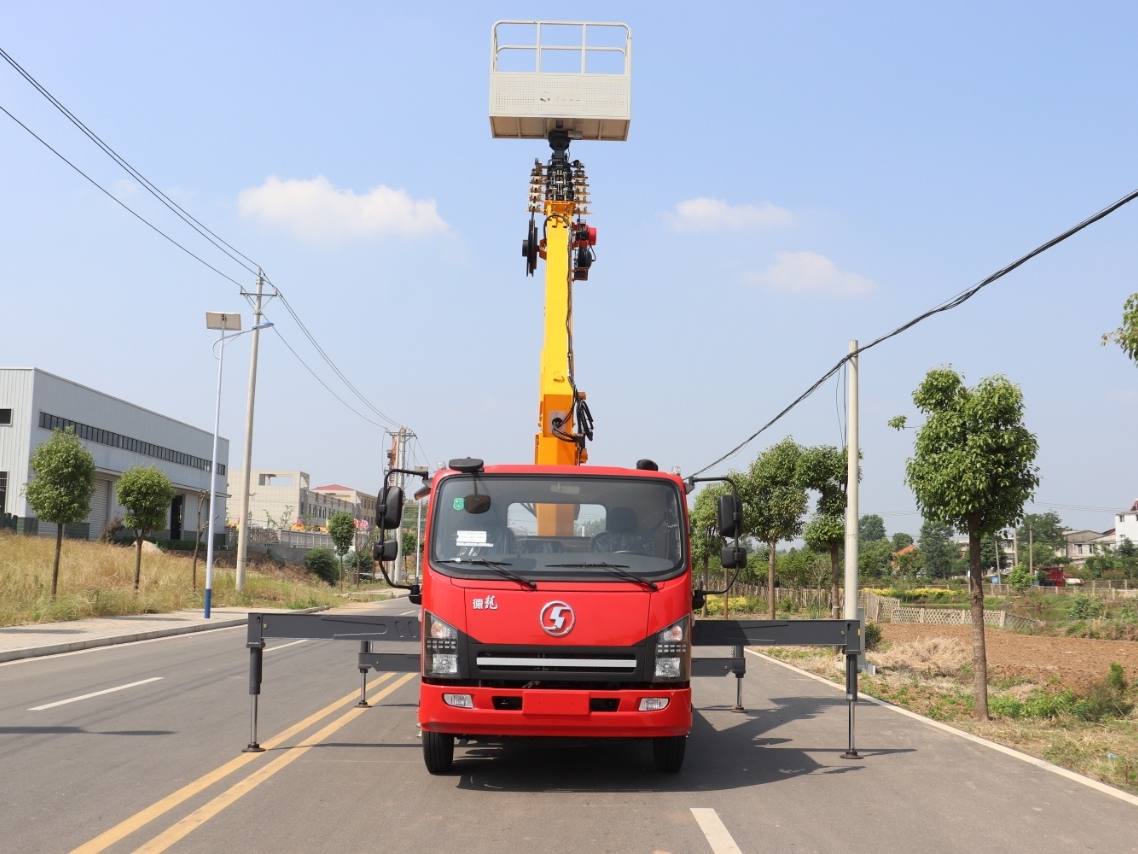

Hydraulic support legs: H-shaped support legs, 4 telescopic support legs, individually adjustable. More stable.
Safety device: Interlocking of loading and unloading, limit protection, bidirectional hydraulic balance valve, truck crane

Technical parameters

Product name	Shacman Delong G1 Multi functional three-in-One Aerial Work Vehicle
Overall Dimension	5998×2098,2200,2250×2860,2950,3100,3580,3680(mm)
Gross vehicle weight	4495(Kg)
Curb weight	4365,4300(Kg)
Rated weight	/
Rated load of working platform	200(Kg)
Maximum working height	20m
Cab	Shacman Delong G1 cab
Engine	YN25PLUS160A, 114kw
Emission standard	Euro 6 (Euro 3/4/5 can be customized.)
Gearbox	FAST 8-speed gearbox
Drive wheel	4X2
Steering wheel	Left/right hand driving
Seat capacity	2-3 person
Wheel base	3600 (mm)
Axle quantity	2
Tire Specification and Quantity	7.00R16 8PR , 6+1 spare
Notice	The above information is for reference only. Trucks can be customized according to customer needs.
