Chassis configuration:
1.Cab: Junling V5 (wide body 1920mm, 3-seater)
2.Engine: Quanchai Q25N high-end series, 152 horsepower, 2.5-liter large displacement, maximum torque 450nm
3.Transmission: 6-speed (three cone synchronizer)
4.Wheelbase: 3600mm
5.Frame: 180 original double-layer beam
6.Axle: front axle 3.3T, rear axle tonnage 6.5T, rear axle 60000 km maintenance free ultra wide
7.Track width : Fronttrack width1590mm/reartrack width1620mm,
8.Tire: 700R16 large tire, optional 7.50R16 large tire
| Product name | JAC Junling 4X2 30m aerial work vehicle |
| Overall Dimension | 5995×2030×3135,3300(mm) |
| Gross vehicle weight | 4485(Kg) |
| Curb weight | 4290,4355(Kg) |
| Rated weight | / |
| Rated load of working platform | 200(Kg) |
| Maximum working height | 30m |
| Cab | Junling V5 (wide body 1920mm, 3-seater) |
| Engine | Q25-152E60, 152hp |
| Emission standard | Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox | 6-speed gearbox |
| Drive wheel | 4X2 |
| Steering wheel | Left/right hand driving |
| Seat capacity | 2-3 person |
| Wheel base | 3600(mm) |
| Axle quantity | 2 |
| Tire Specification and Quantity | 7.00R16LT 8PR, 6+1 spare |
| Notice | The above information is for reference only. Trucks can be customized according to customer needs. |

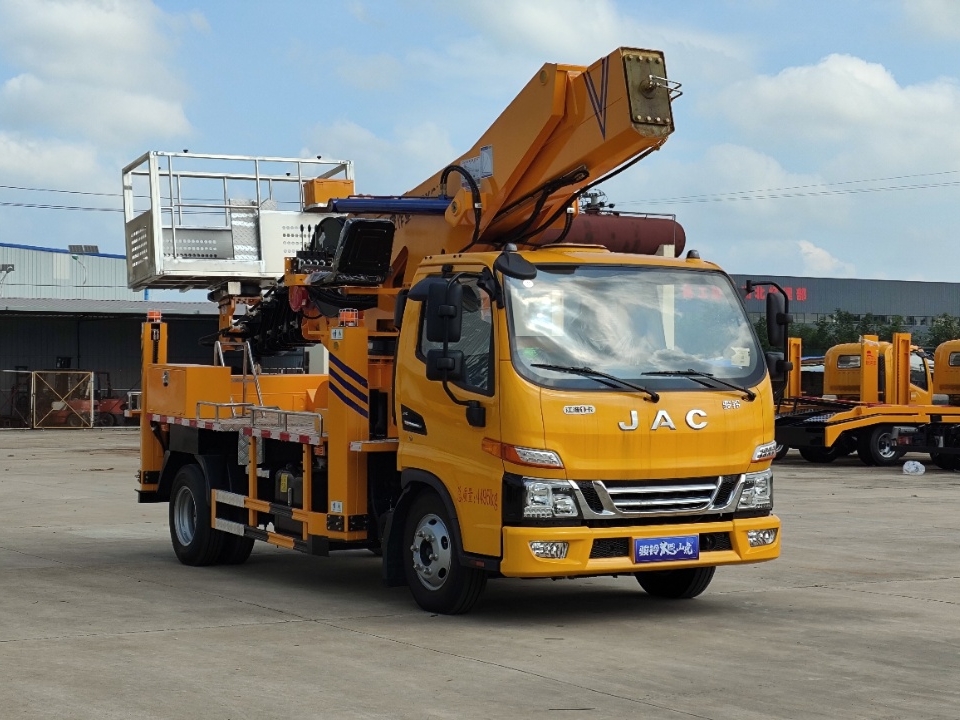

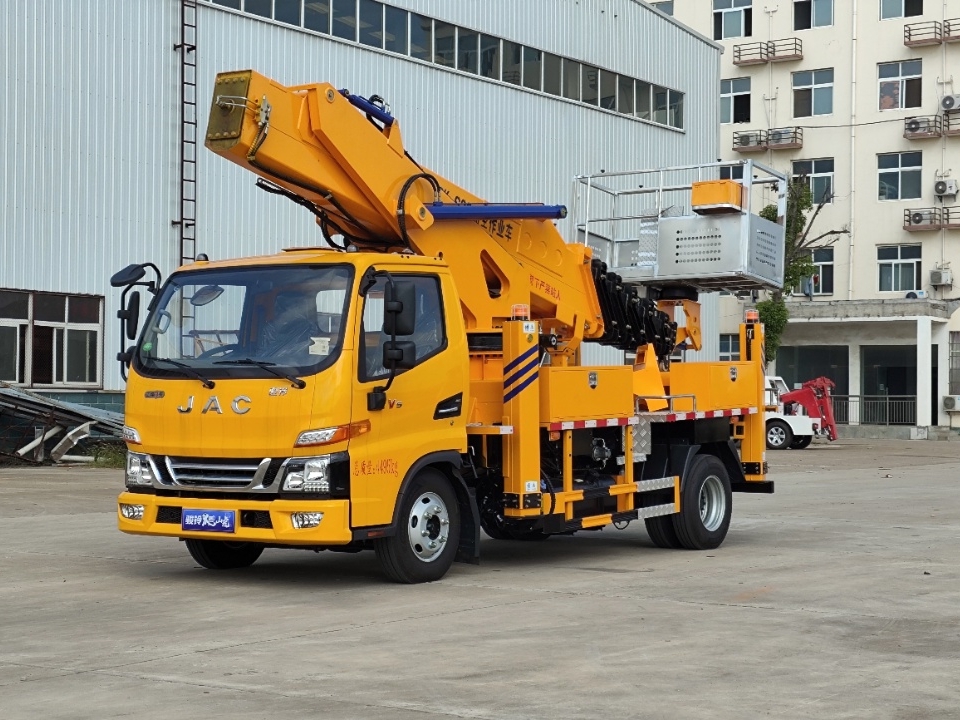

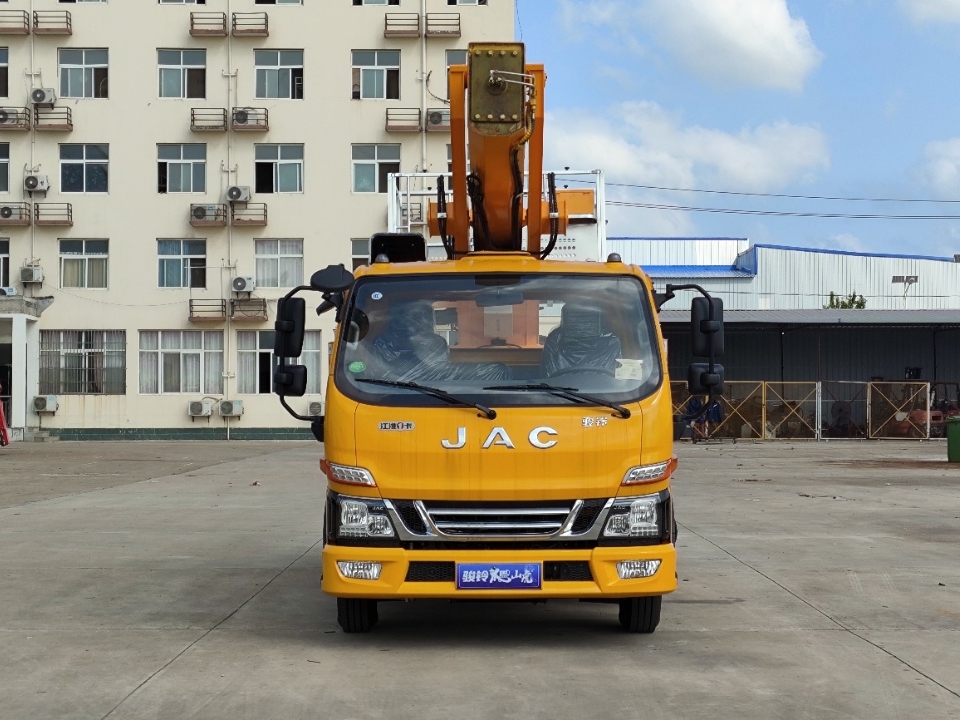

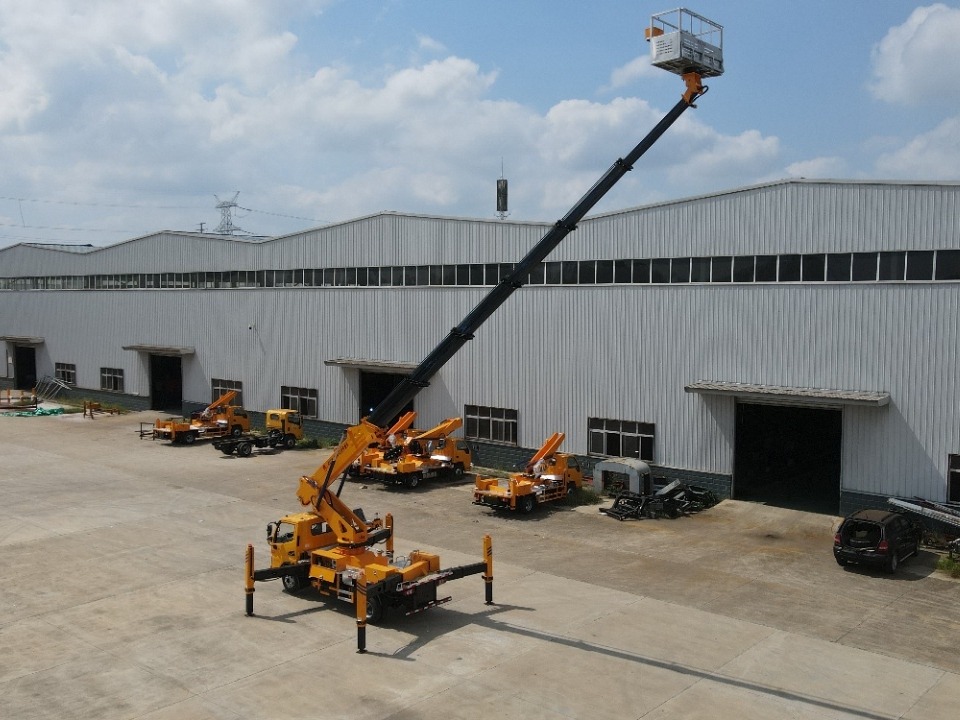

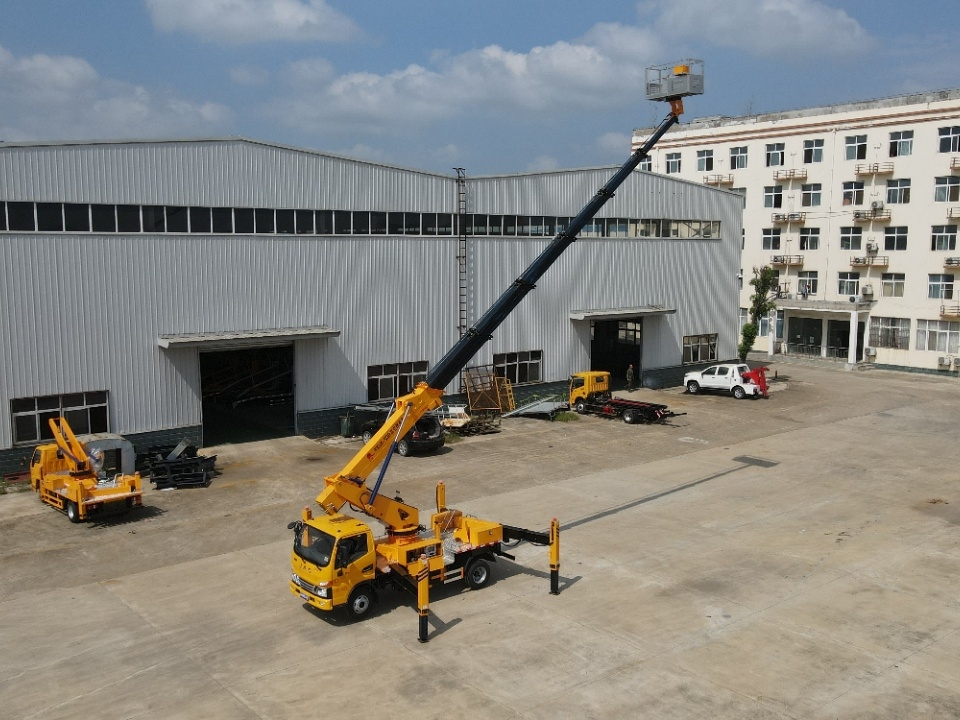

JAC Junling 4X2 30m aerial work vehicle
Aerial work vehicle refers to a specialized vehicle used to transport workers and equipment to the site for aerial operations.
Installation configuration:
1.8-meter telescopic 2.2-meter suspended basket, 21 inch rotation, 9-inch rotation on bucket, 220V inverter, soft leg alarm, dual battery with anti-theft, hydraulic oil tank radiator, imported balance valve, imported oil pipe turntable!
Technical parameters
