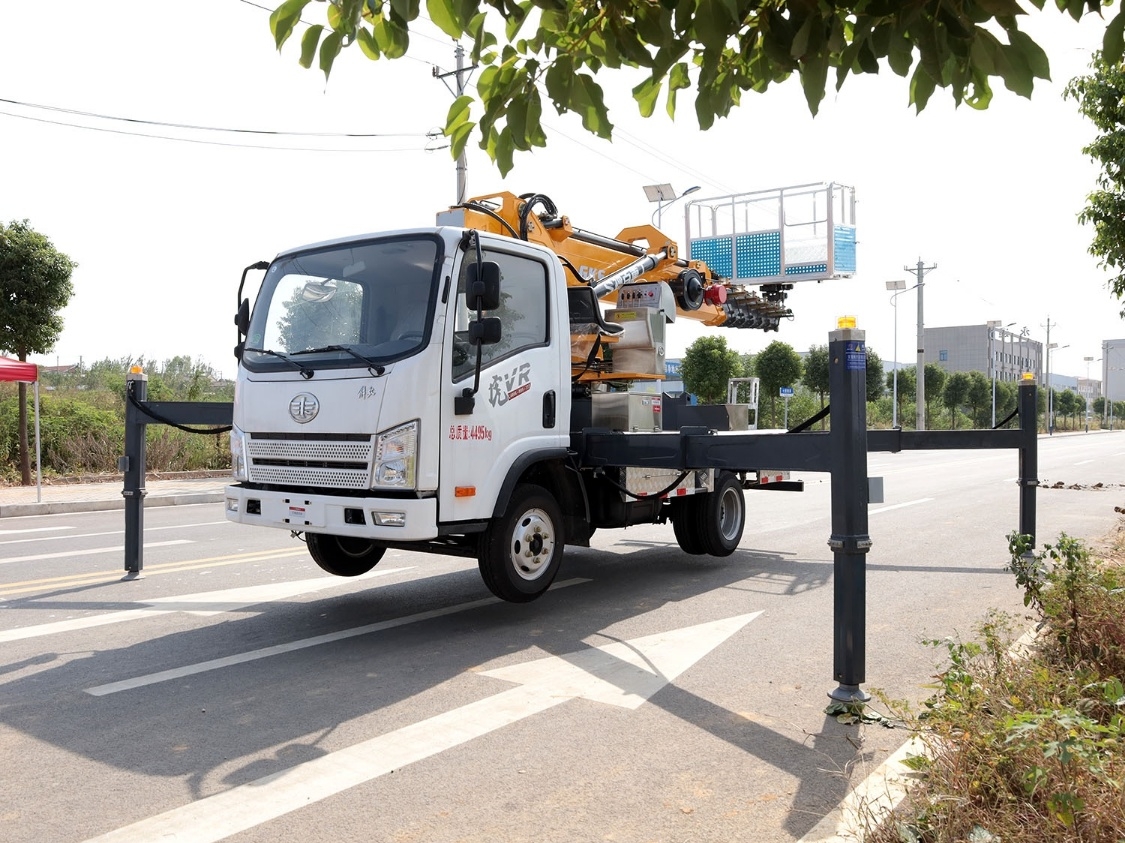

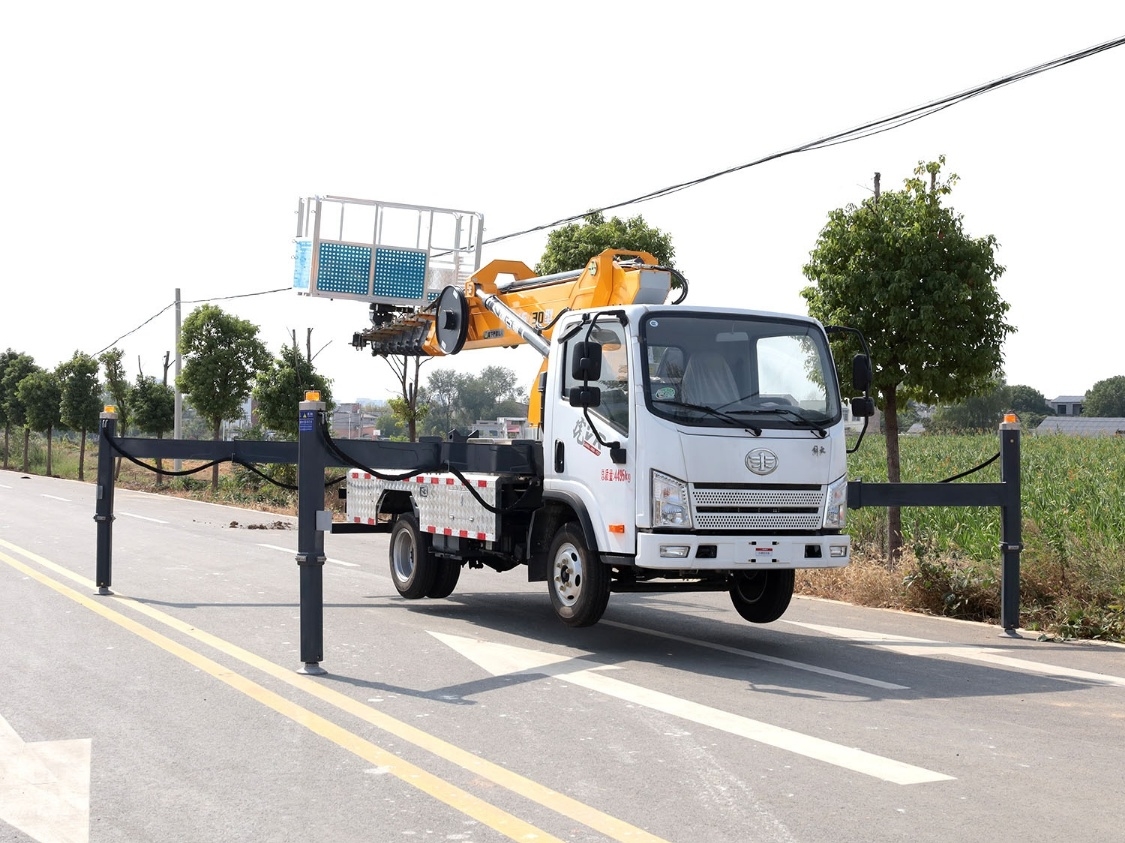

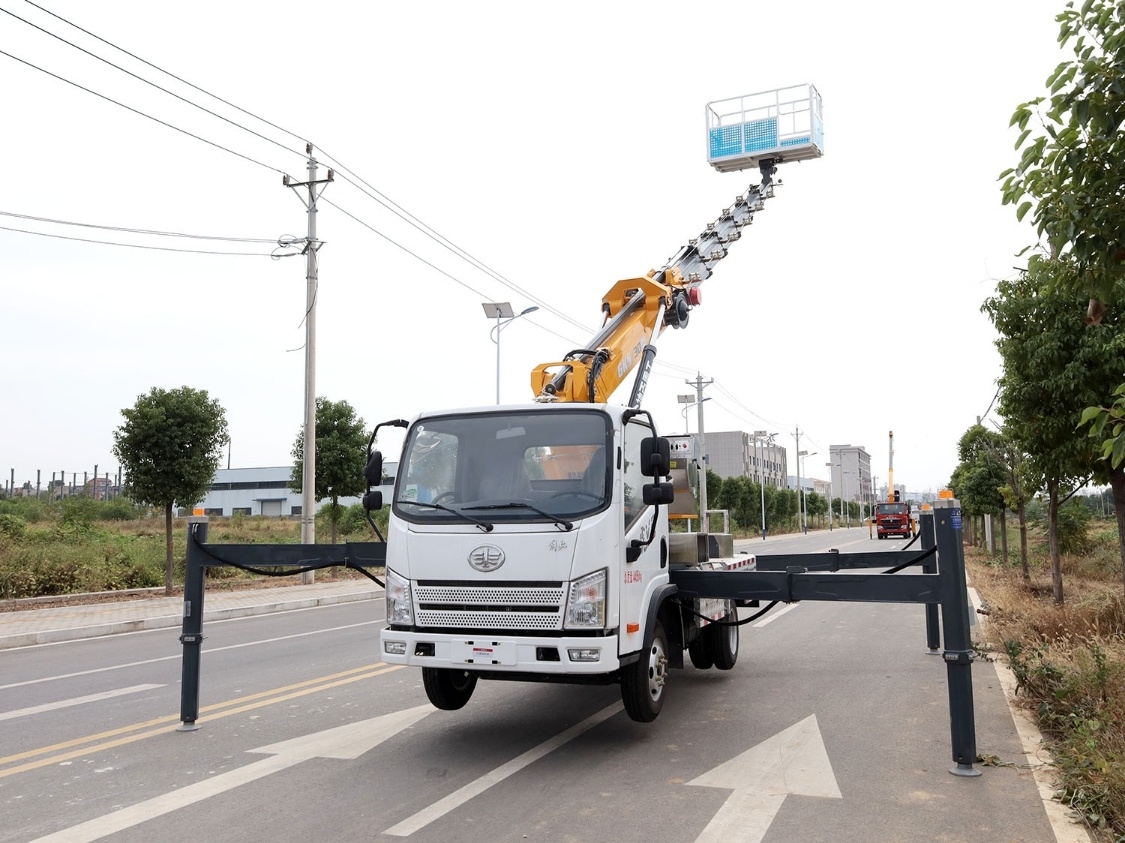

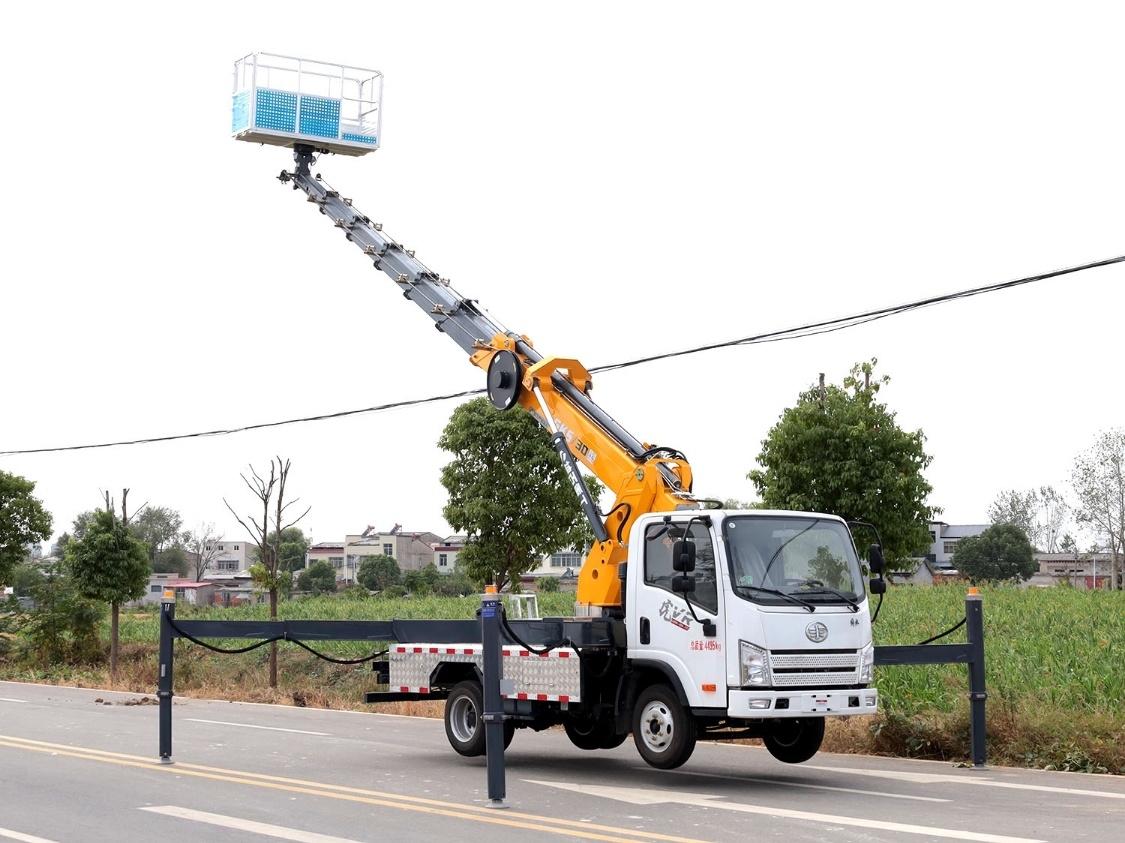

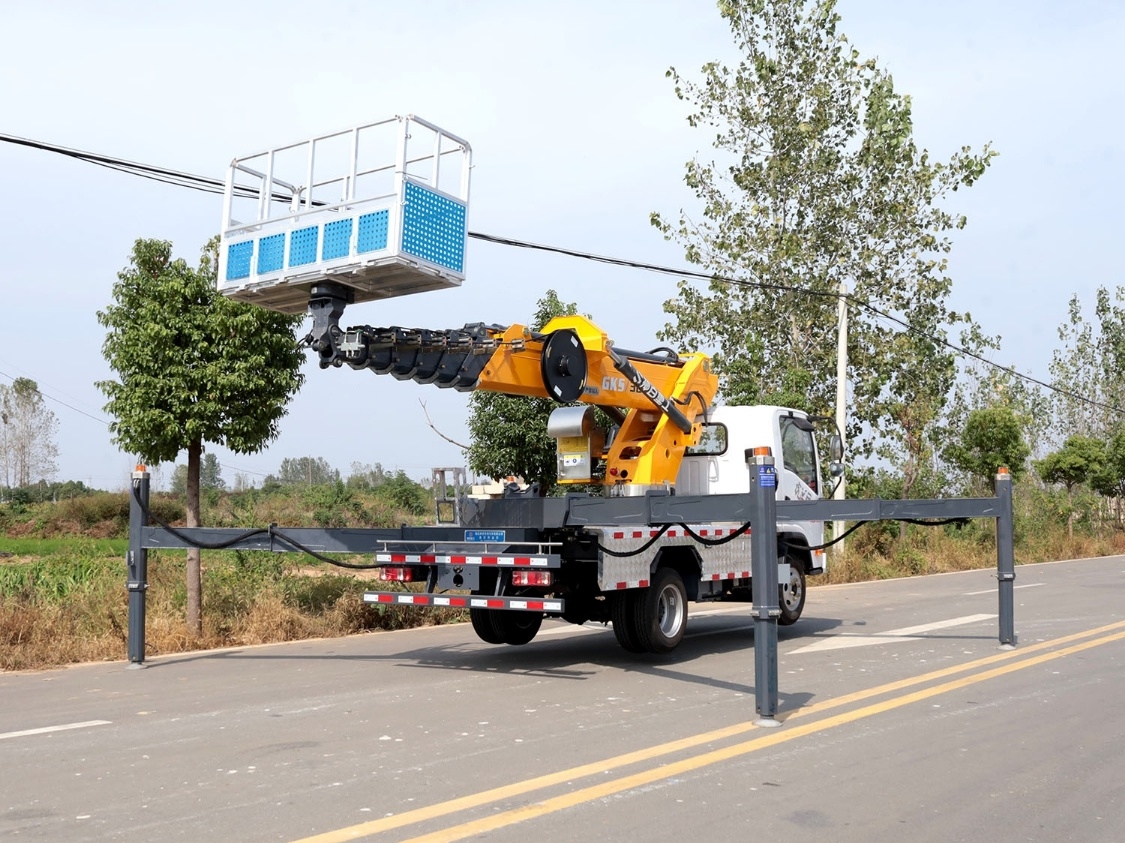

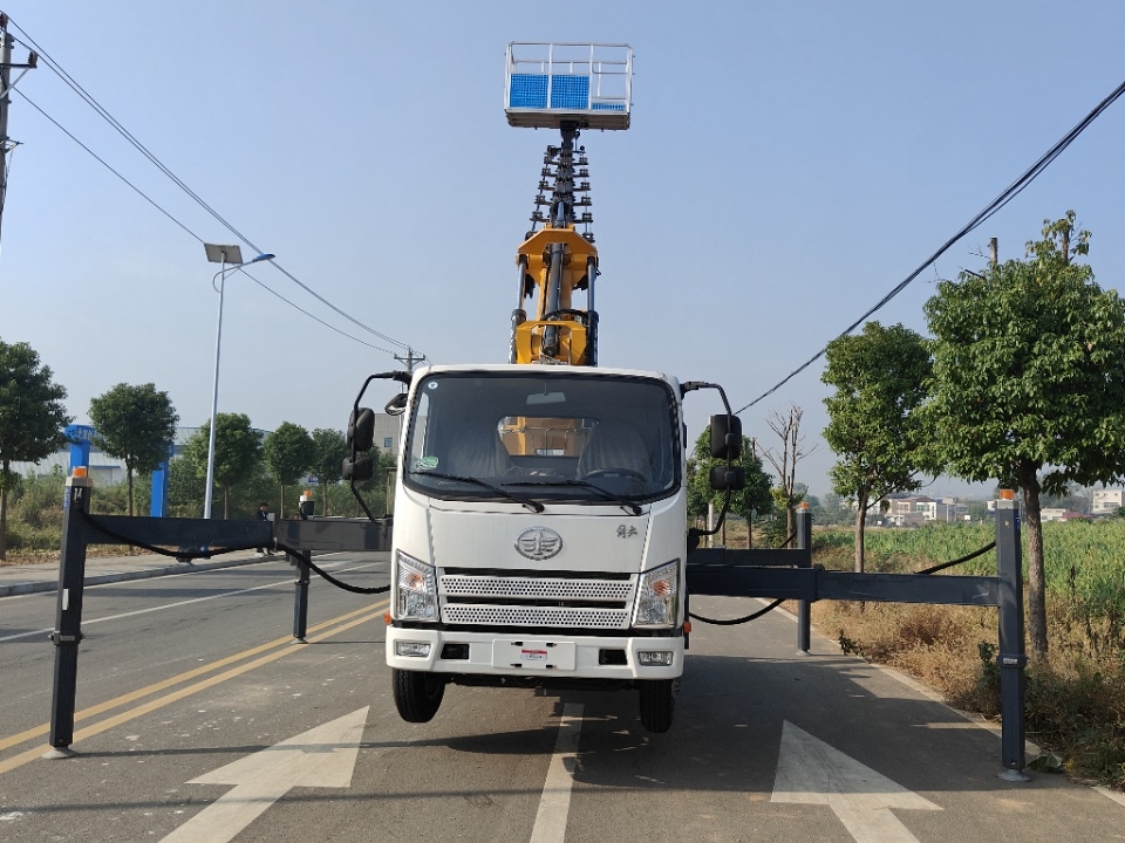

JiefangVR 28m aerial work truck
2024-09-29 15:14:38 Source：chusheng
Chassis configuration:
Tiger VR single row cab (2 seats), Quanchai 132 horsepower, Wanliyang 5-speed gearbox, 150mm double-layer beam, 6.50R16 steel tires, wheelbase 2800mm, 5-ton rear axle (speed ratio 4.875), air brake, aluminum alloy air storage cylinder, 10L urea tank, with ABS, 70L plastic fuel tank, leaf spring 3/3+2, air conditioning+electric doors and windows+central locking, wedge brake.
Upper configuration:
7-section arm, 6-section synchronous telescopic, dual lifting oil cylinder, maximum operating height of 28.3 meters, working radius of 16 meters, double leg support, longitudinal and transverse span of 6000/5800mm, 1.4-meter folding basket (unfolded 2 meters), box type frame, small turning radius, turntable does not protrude from the body, vehicle height is 2.7 meters, the crane is shot blasted and painted as a whole, durable.
| Product name |
JiefangVR 28m aerial work truck |
| Overall Dimension |
5995×2000,2098×2680,2750,2900,3000,3100,3200(mm) |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
28m |
| Cab |
JiefangVR cab |
| Engine |
Q23-132E60, Quanchai 132hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
Wanliyang 5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
2800 (mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
6.50R16 steel wire tire, 6+1 spare |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
JiefangVR 28m aerial work truck
Aerial work truck is a type of engineering truck designed specifically for high-altitude operations, mainly used in fields such as construction, electricity, communication, and landscaping. It controls multiple hydraulic cylinders through hydraulic or electric systems and can lift up and down for operation. A high-altitude work vehicle usually consists of three parts: a chassis, a lifting mechanism, and an operating platform. The chassis can be a car or engineering machinery chassis, with driving and load-bearing functions; The lifting mechanism is responsible for achieving the lifting and lowering of the operating platform; The operating platform is the main place for workers to carry out high-altitude operations.
