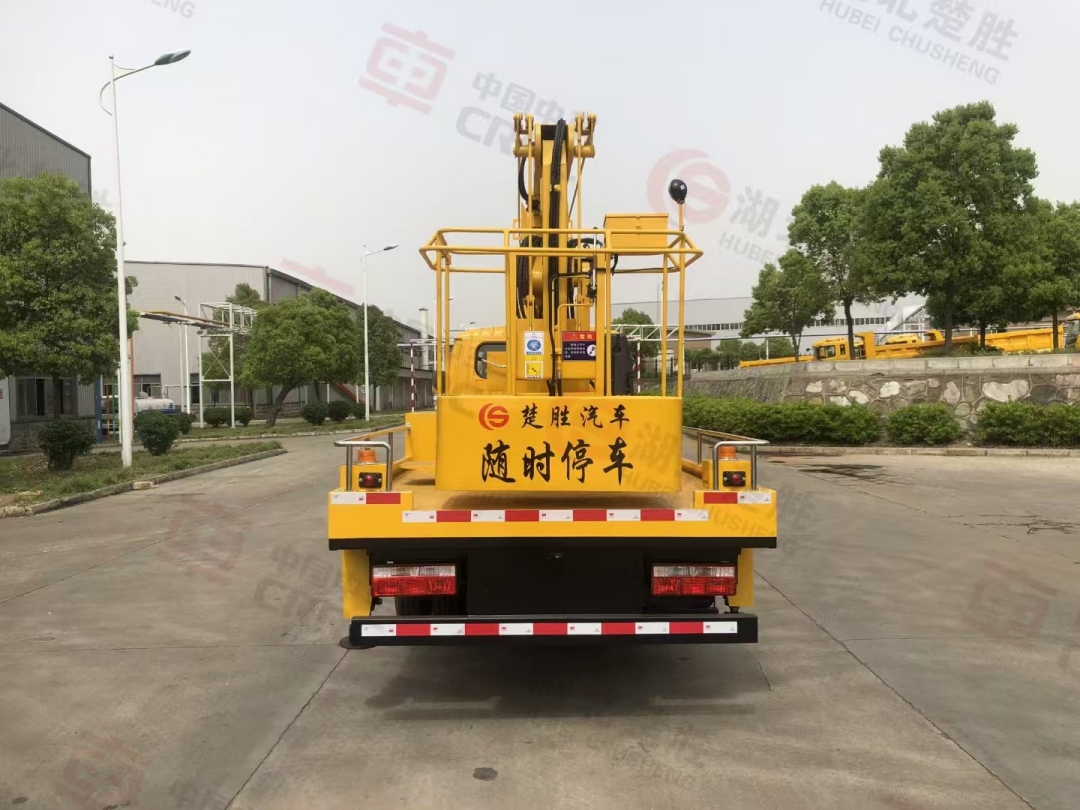

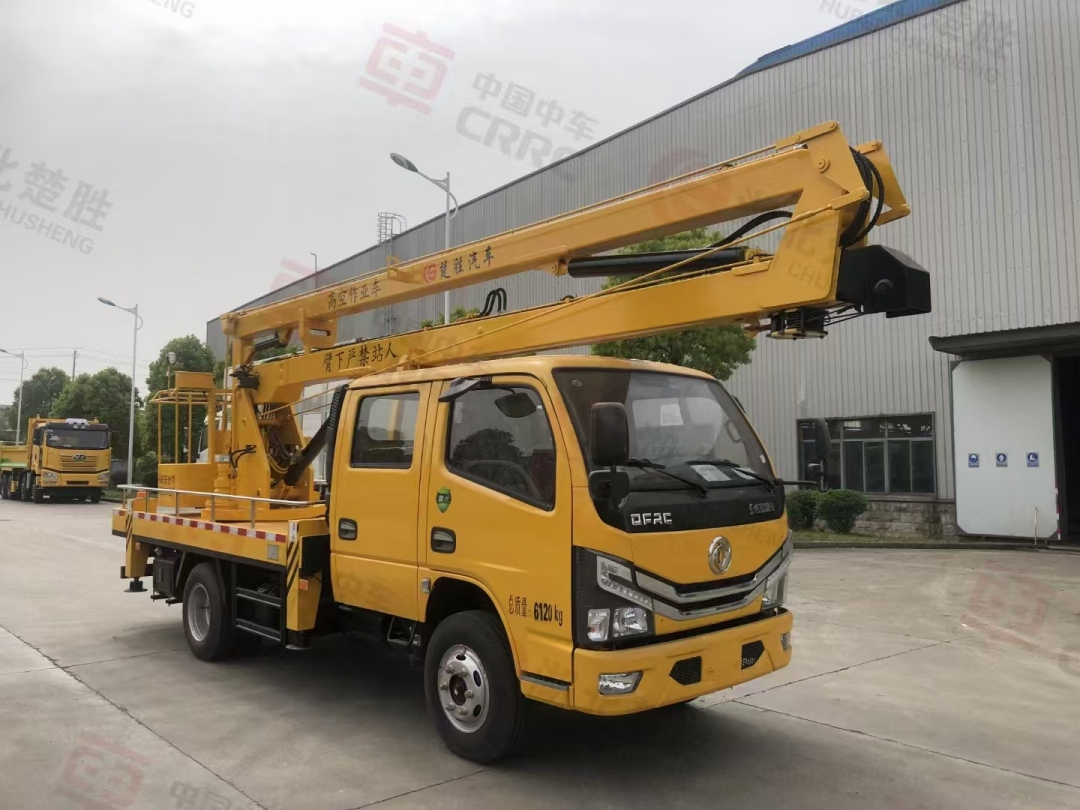

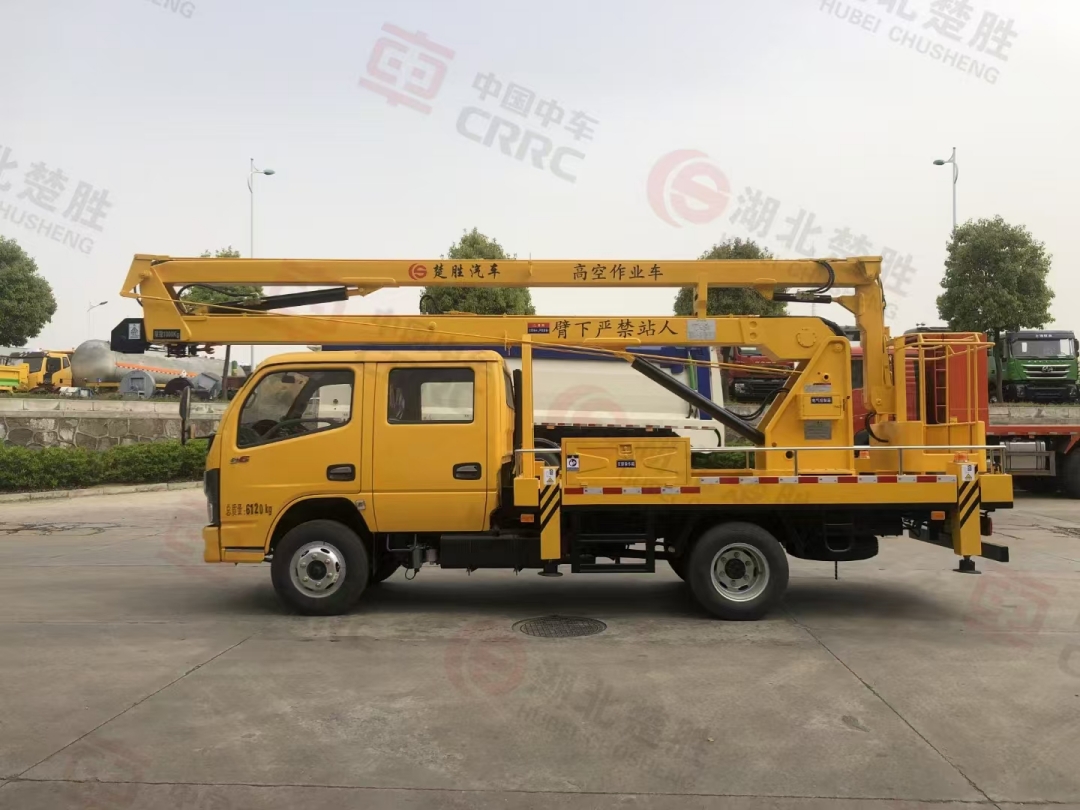

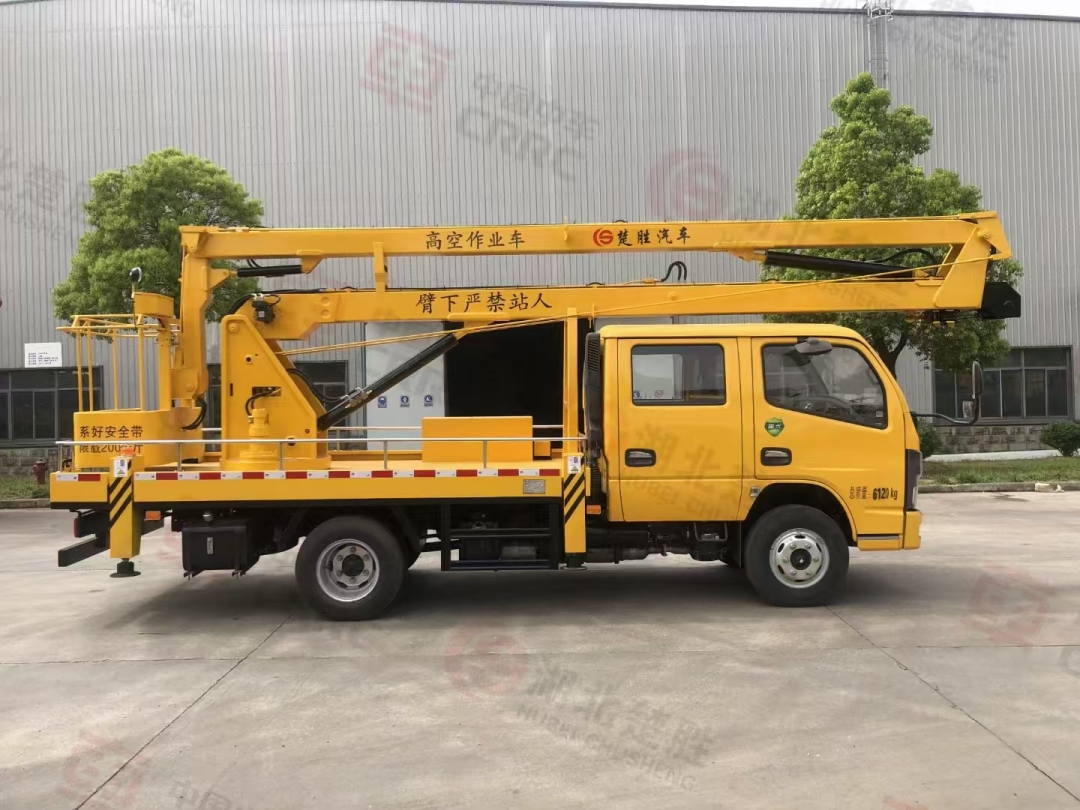

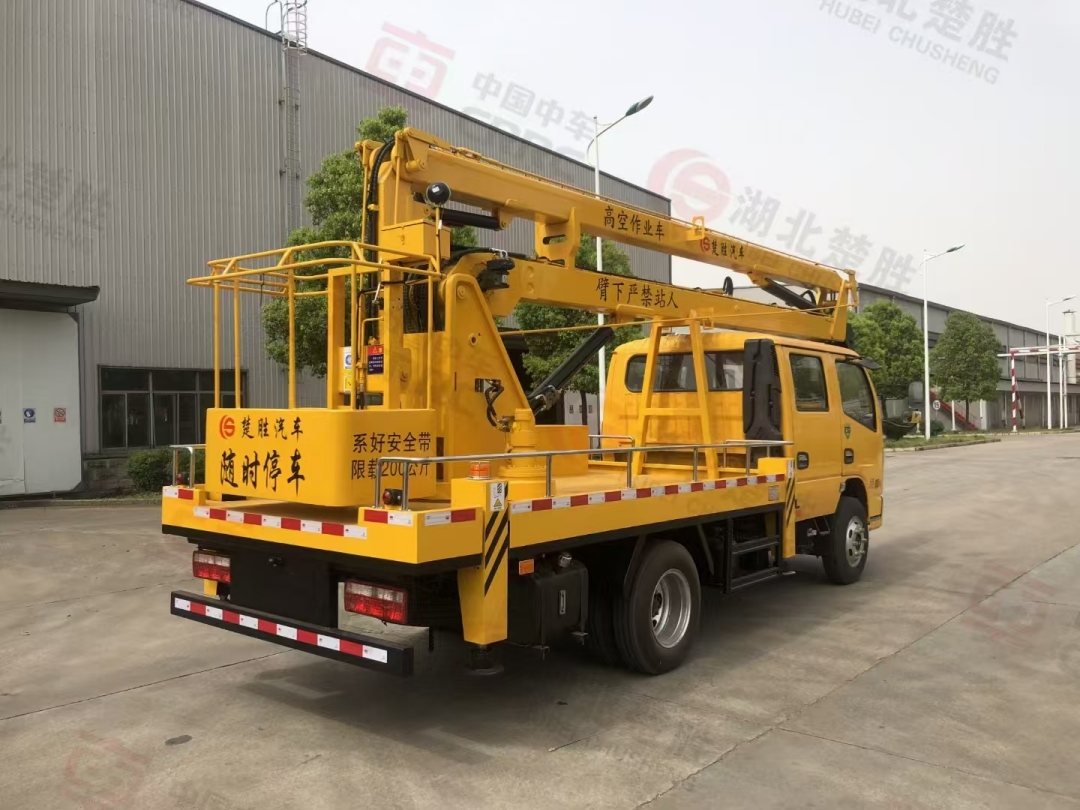

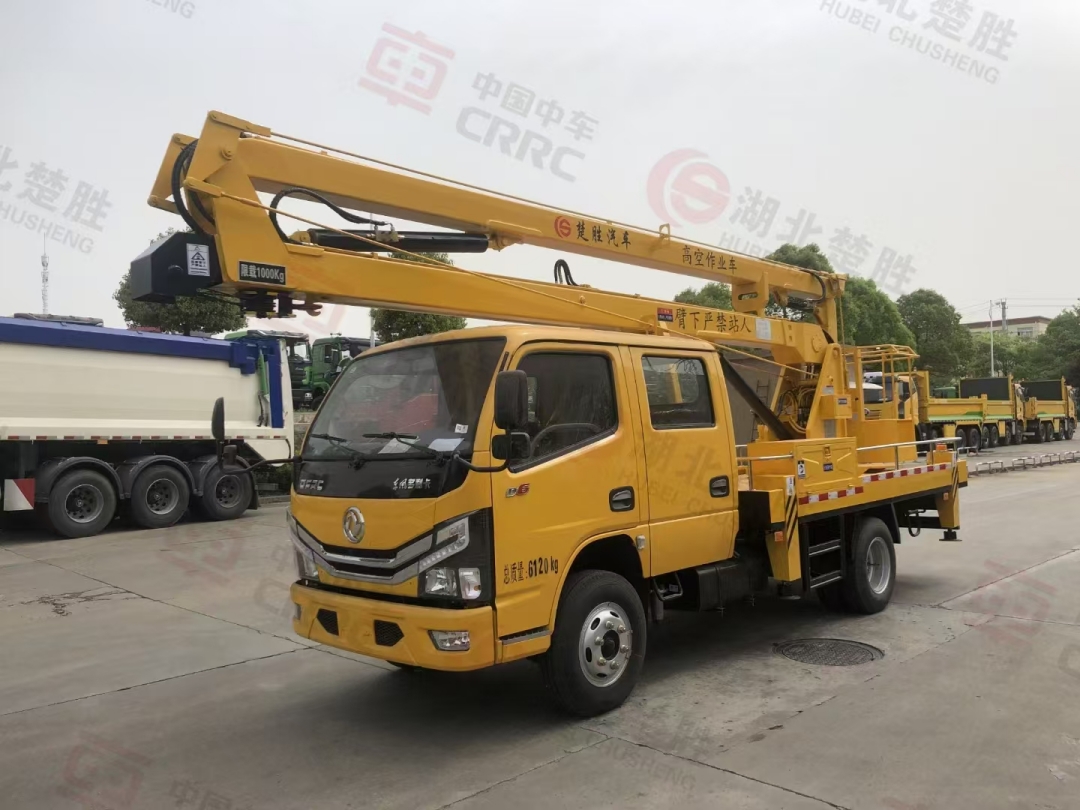

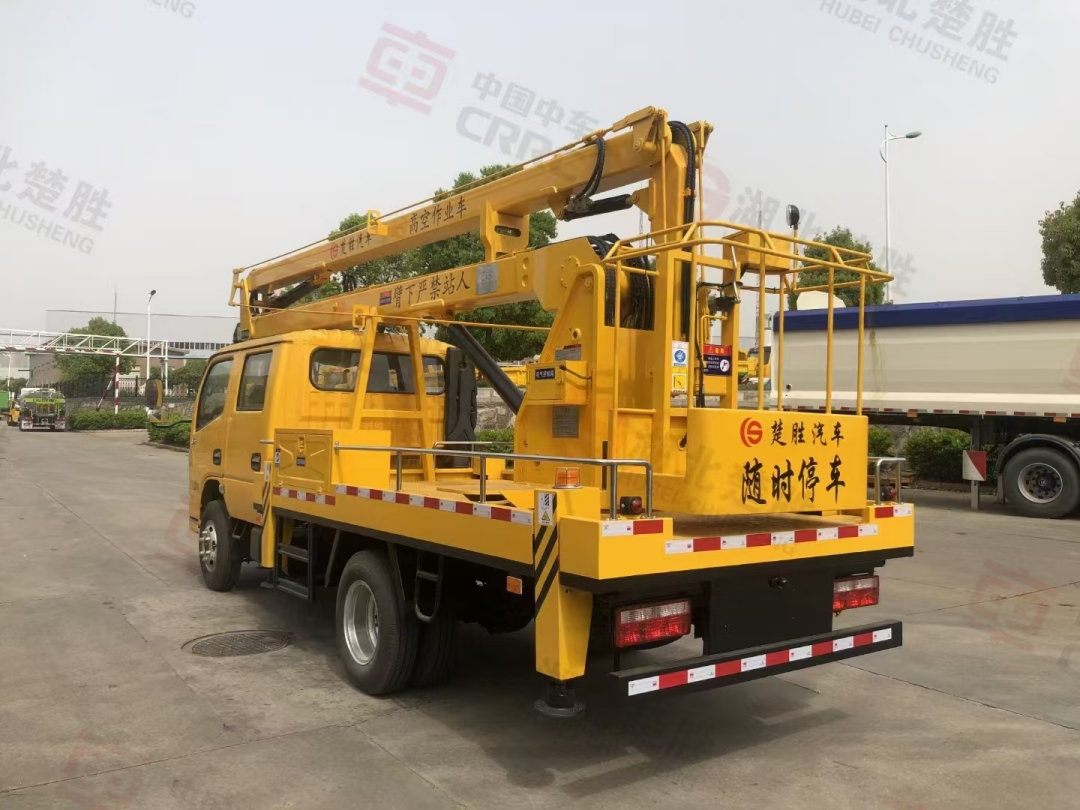

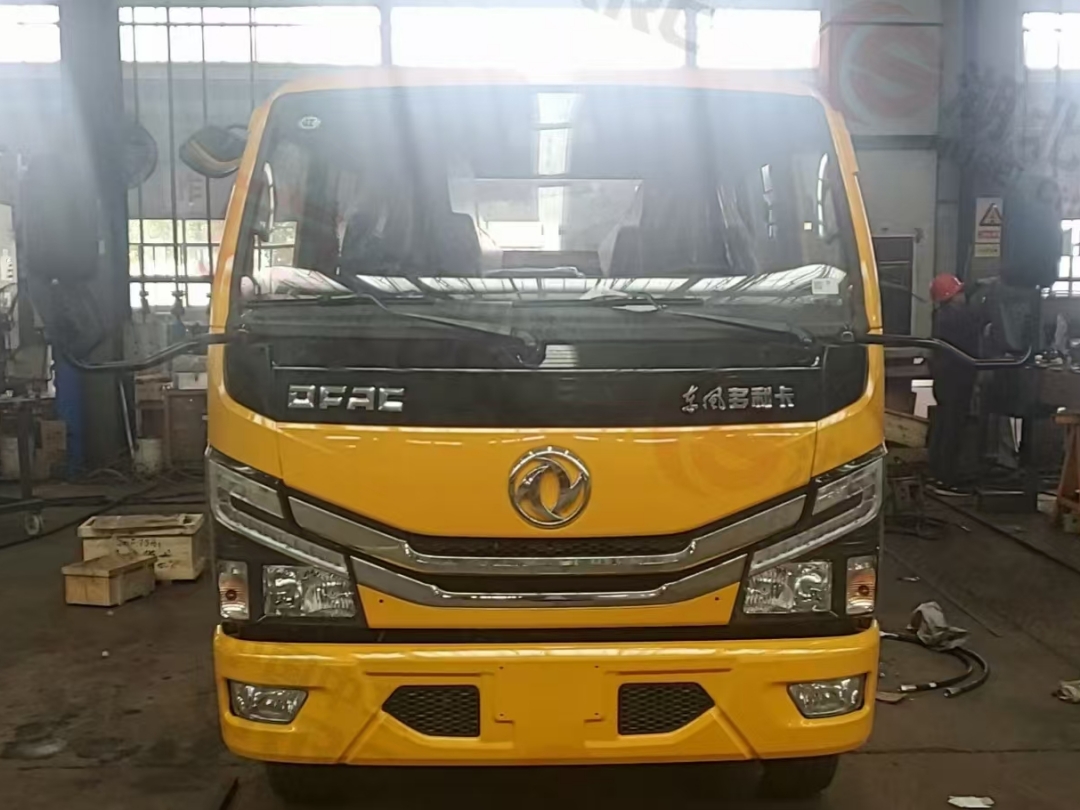

Dongfeng double row 16 meter aerial work platform
Chassis configuration:
National VI, 3308 wheelbase, all diesel 115 horsepower, five speed gearbox, 7.00 steel tires, air conditioning, steering assist, air brake, central locking, electric windows, multifunctional steering wheel
Installation configuration:
The lifting height is 16 meters, the working bucket has a load limit of 200kg, hydraulic 360 degree full rotation, three folding arms, single hydraulic lifting cylinder, with two-way balance valve, electrically controlled lifting arm, 1-ton telescopic hook, four adjustable hydraulic cylinders with two-way hydraulic locks (the leg operation is manual and can be controlled separately).
| Product name |
Dongfeng double row 16 meter aerial work platform |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
16m |
| Cab |
Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel |
| Engine model and horsepower |
Q23-115E60, Quanchai 115hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3308mm |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.00 steel wire tires, 6+1 spare |
| Upper configuration |
Lifting height of 16 meters, working bucket load limit of 200kg, hydraulic 360 degree full rotation, three folding arms, |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Dongfeng double row 16 meter aerial work platform
1.Altitude Operation Truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
