Foton 33m Altitude Operation Truck
2024-09-29 15:14:38 Source：chusheng

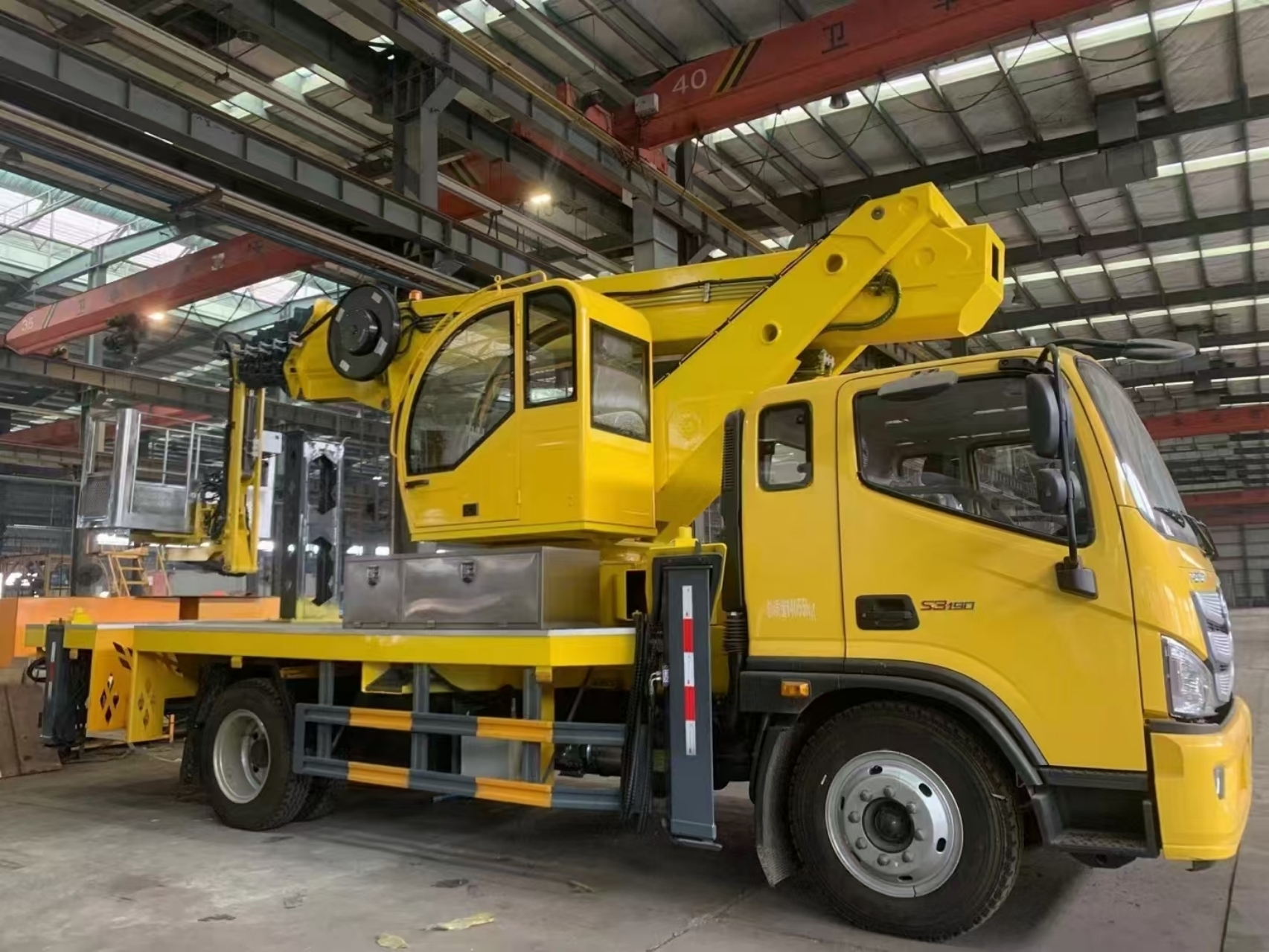

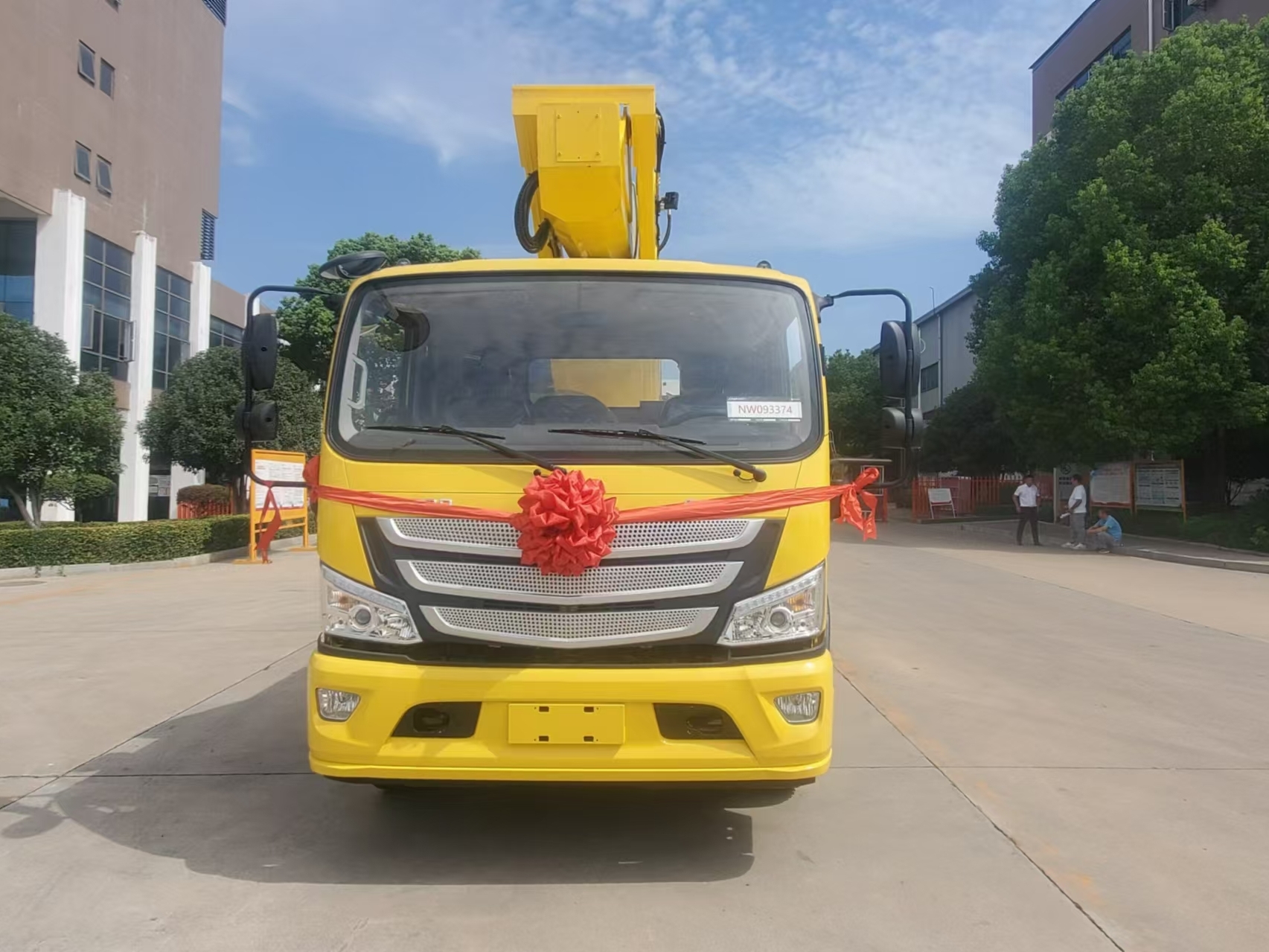

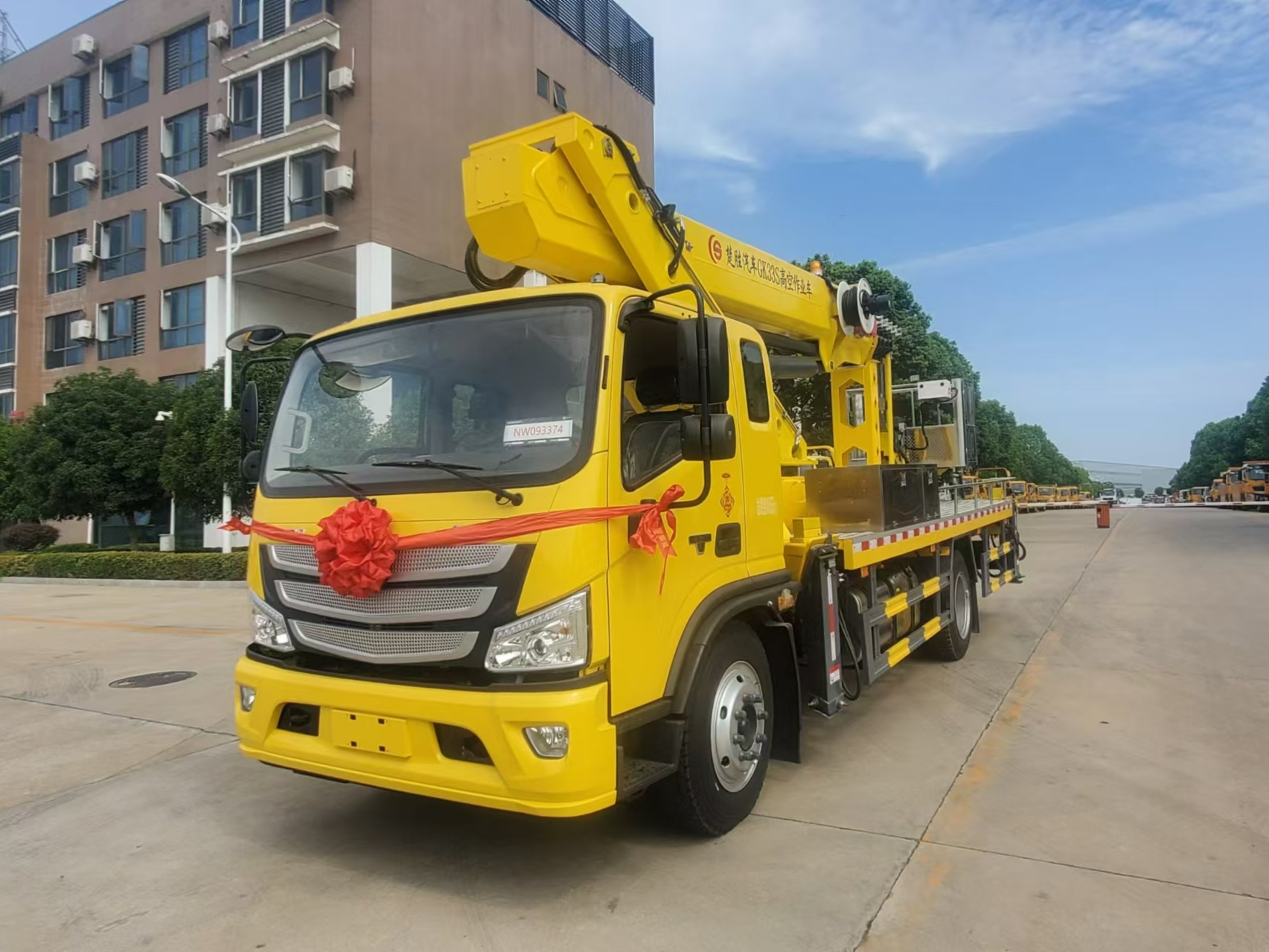

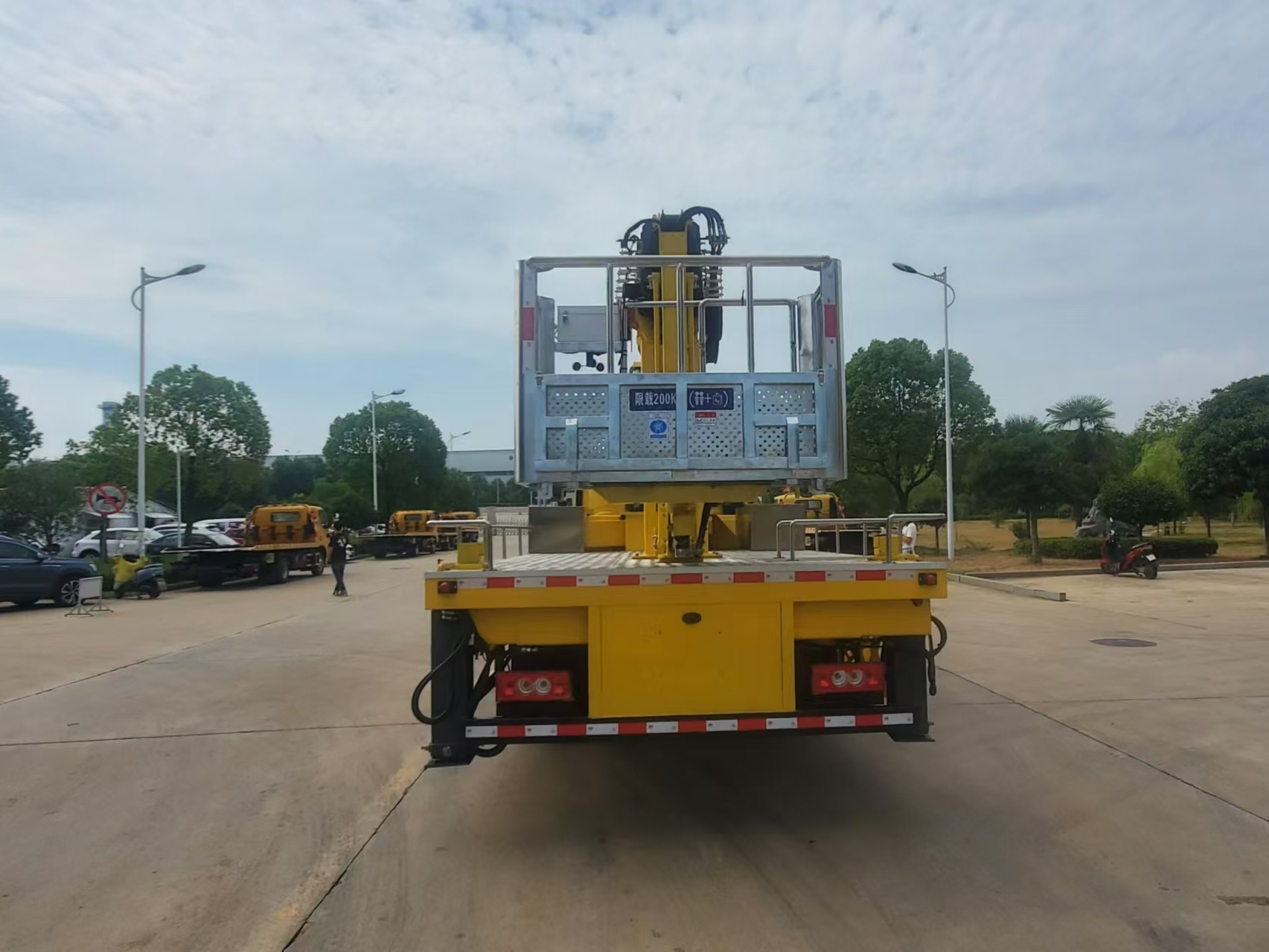

Foton 33m Altitude Operation Truck
Chassis configuration: National VI Foton half cab, wheelbase 4200mm, Cummins 190 horsepower, Fast eight speed gearbox, 8.25 steel wire tires, air brake, original air conditioning, central locking system, electric glass, multifunction steering wheel, remote key, 360L fuel tank.
Upper configuration:
① Operating height of 33.5 meters, six section telescopic arm with small flying arm, working bucket with a load limit of 200kg,
② Hydraulic 360 degree full rotation, with automatic hydraulic leveling, hydraulic system with proportional control, stepless speed regulation, emergency operation,
③ Square support legs, fully hydraulic support legs, independent operation of boarding and alighting, equipped with tilt and length sensors, boarding rotation limit, leg weight loss protection, anemometer,
④ High altitude operations are equipped with speakers to provide safety warnings,
⑤ The entire series comes standard with a 220V power supply, inverter, and oil temperature radiator.
| Product name |
Foton 33m Altitude Operation Truck |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
33m |
| Cab |
Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel |
| Engine model and horsepower |
Cummins 190 horsepower |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
Fast eight speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
4200mm |
| Axle quantity |
2 |
| Tire Specification and Quantity |
8.25 steel wire tires, 6+1 spare |
| Upper configuration |
Operating height of 33.5 meters, six section telescopic arm with small flying arm, working bucket with a load limit of 200kg |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Foton 33m Altitude Operation Truck
1.Altitude Operation Truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Product parameters
