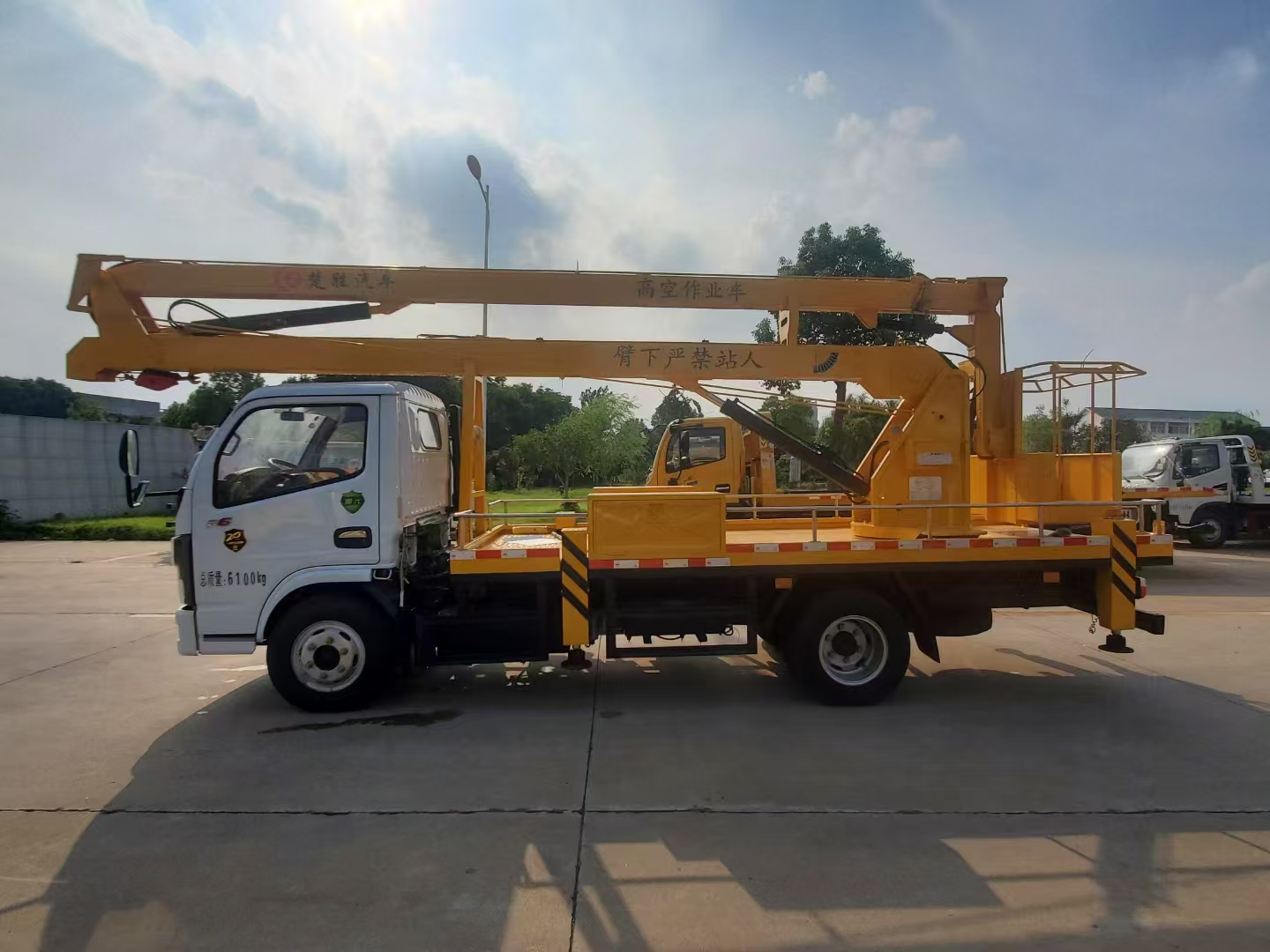

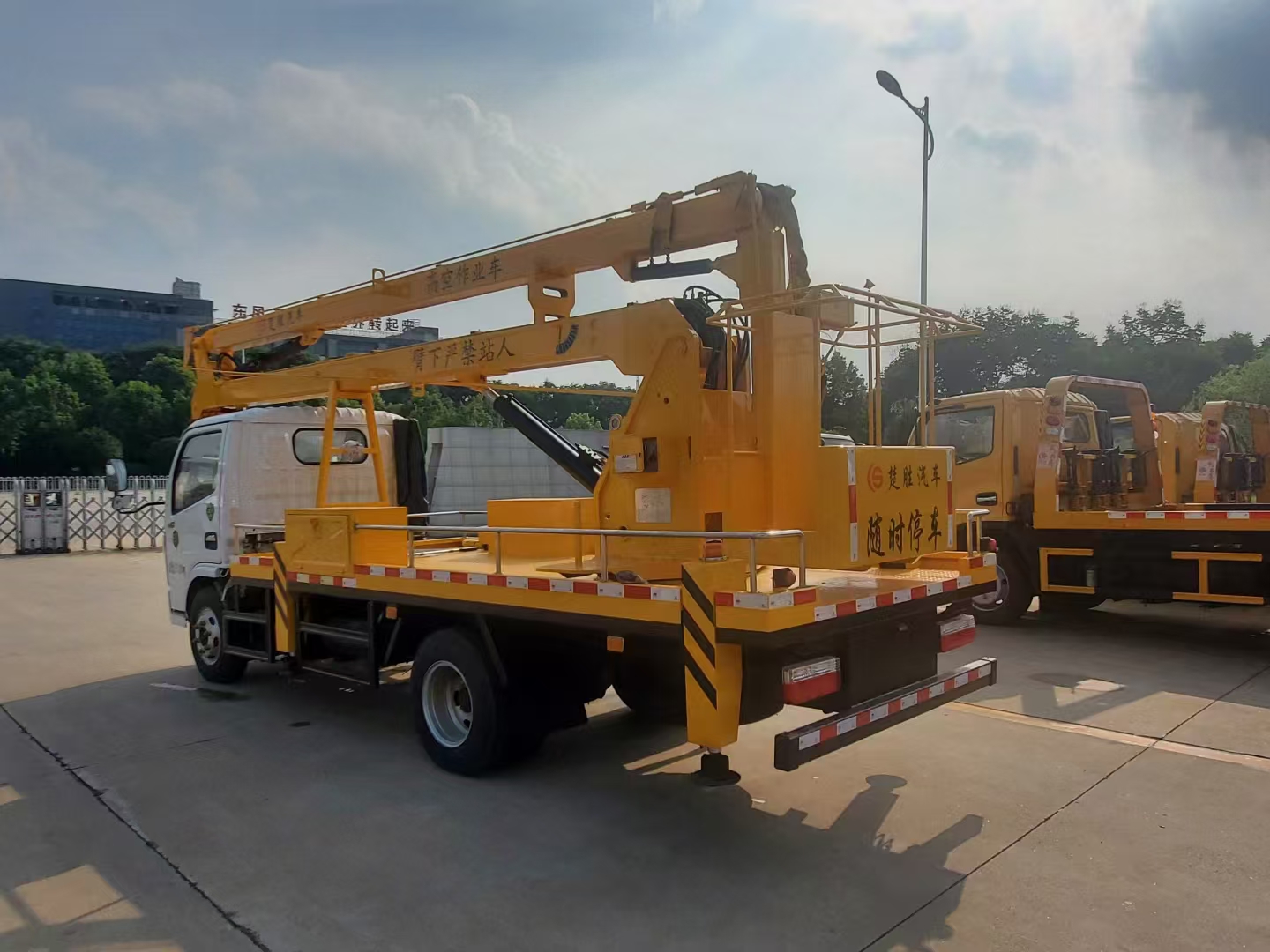

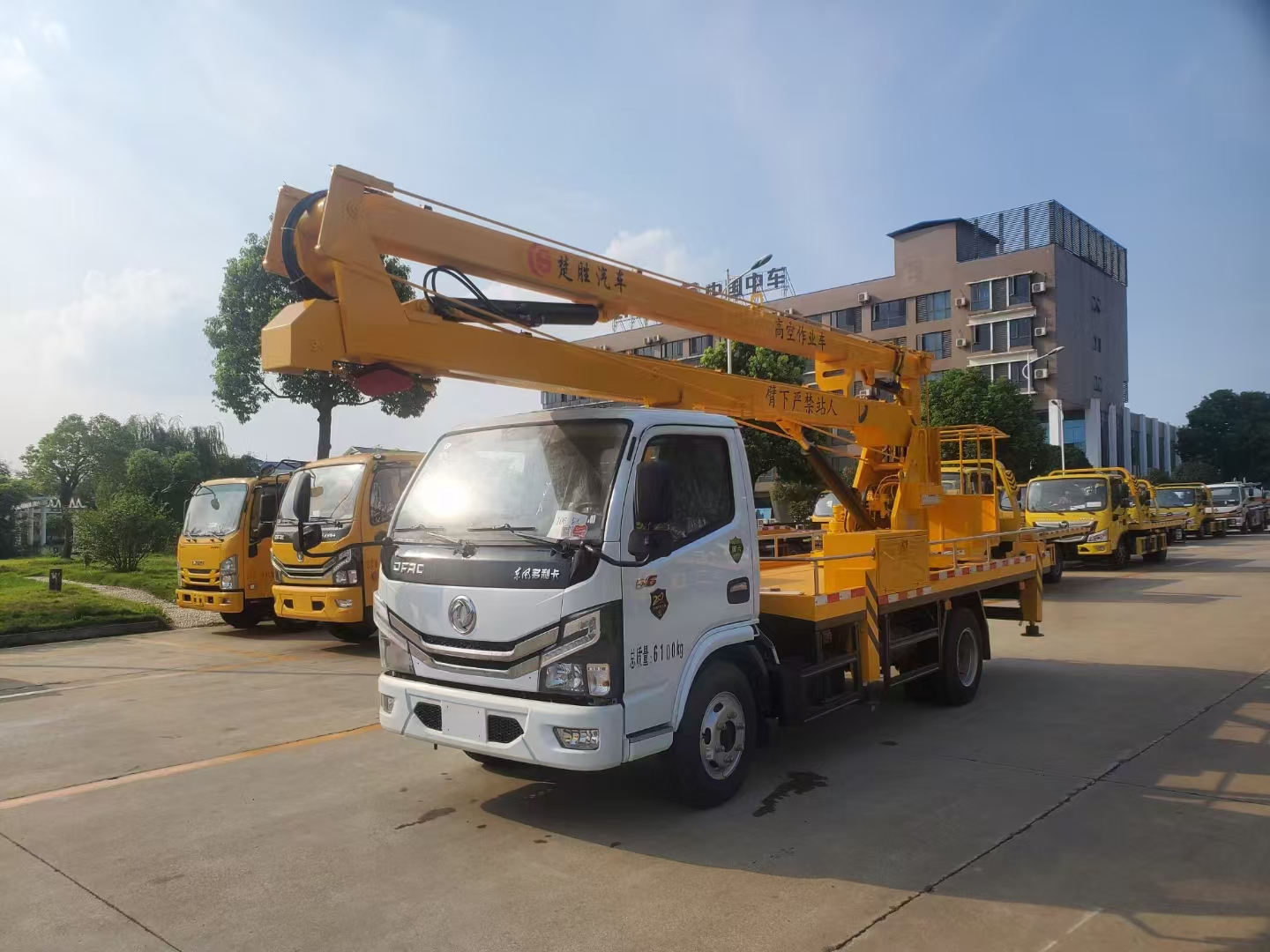

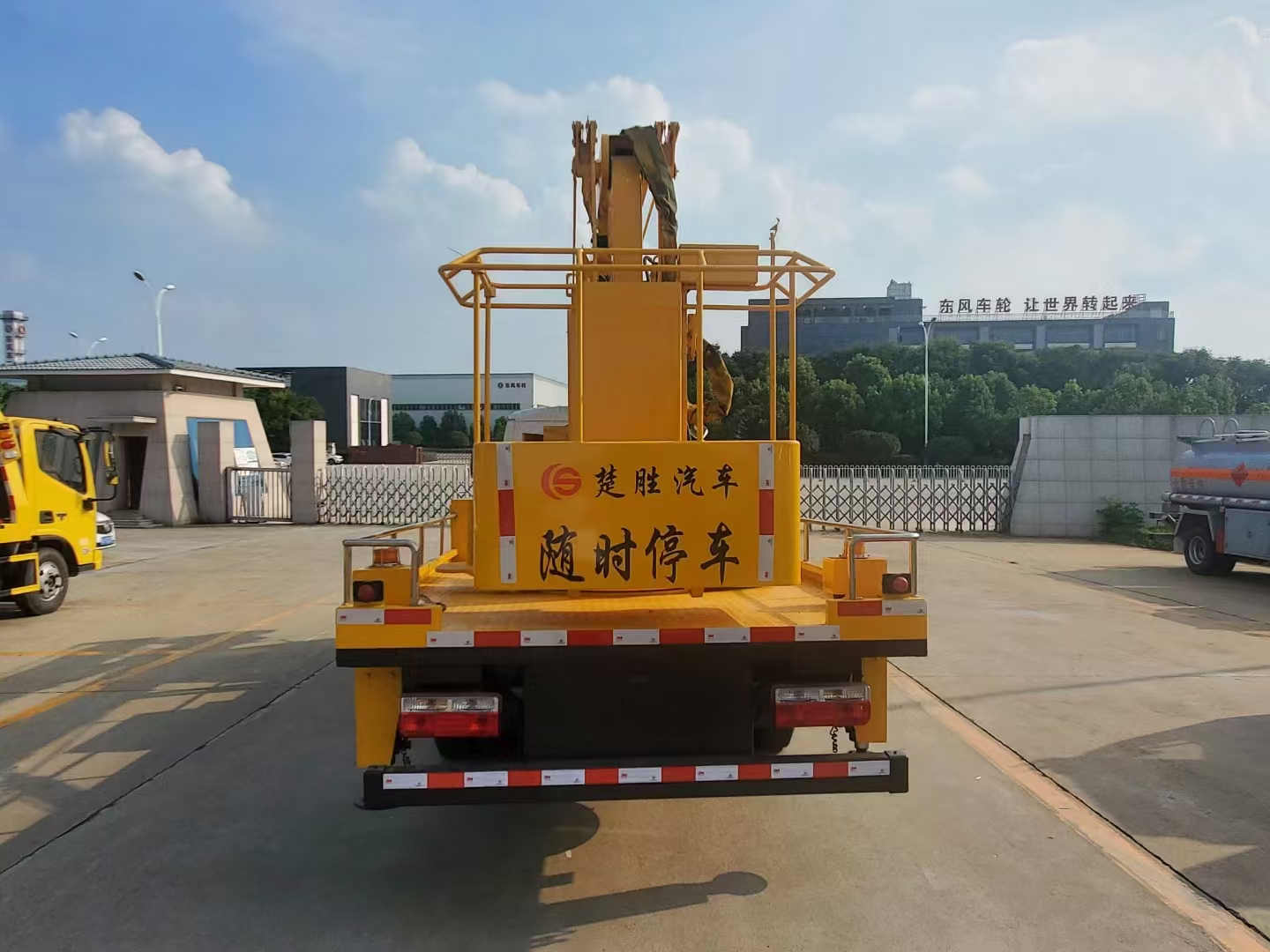

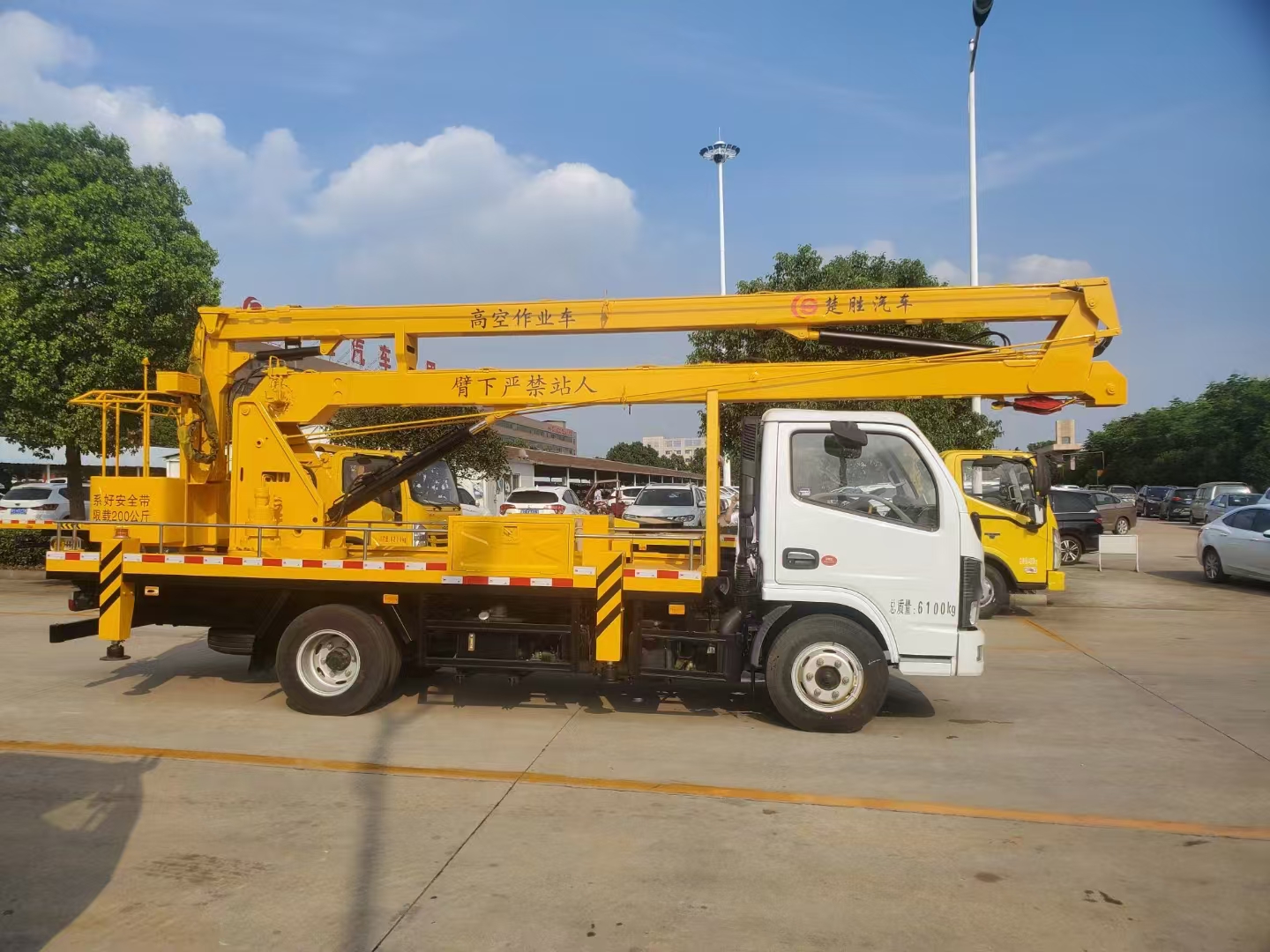

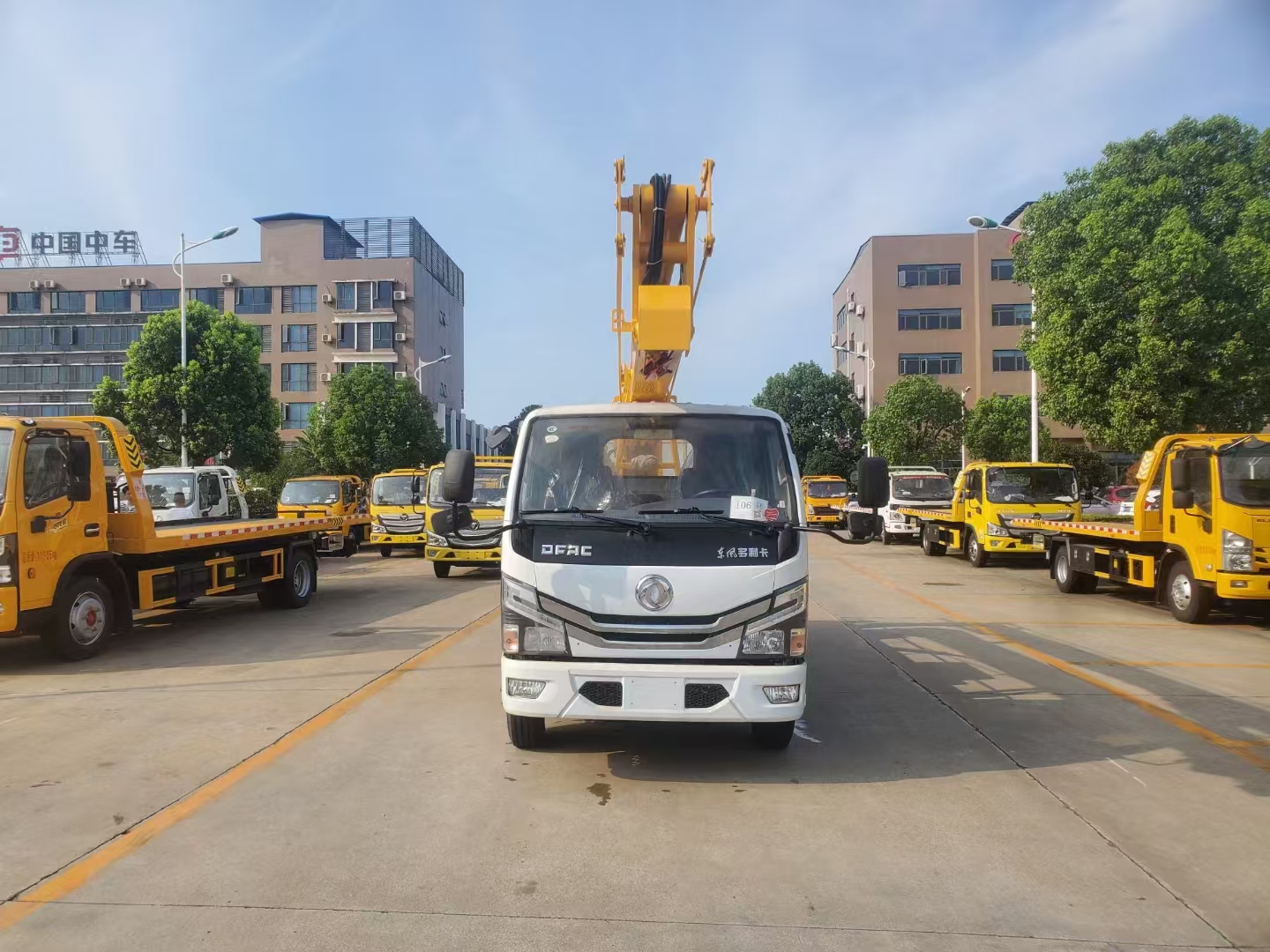

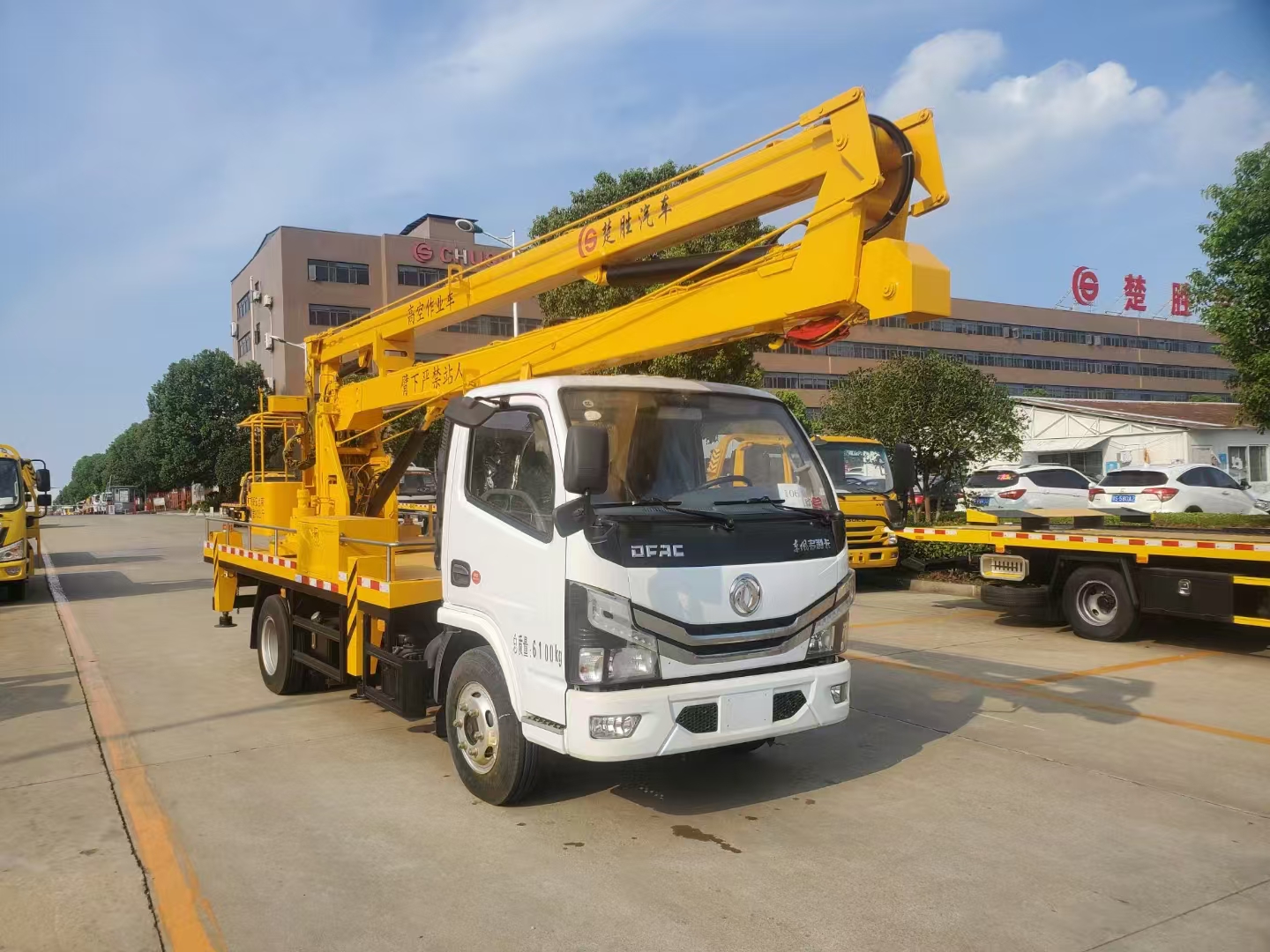

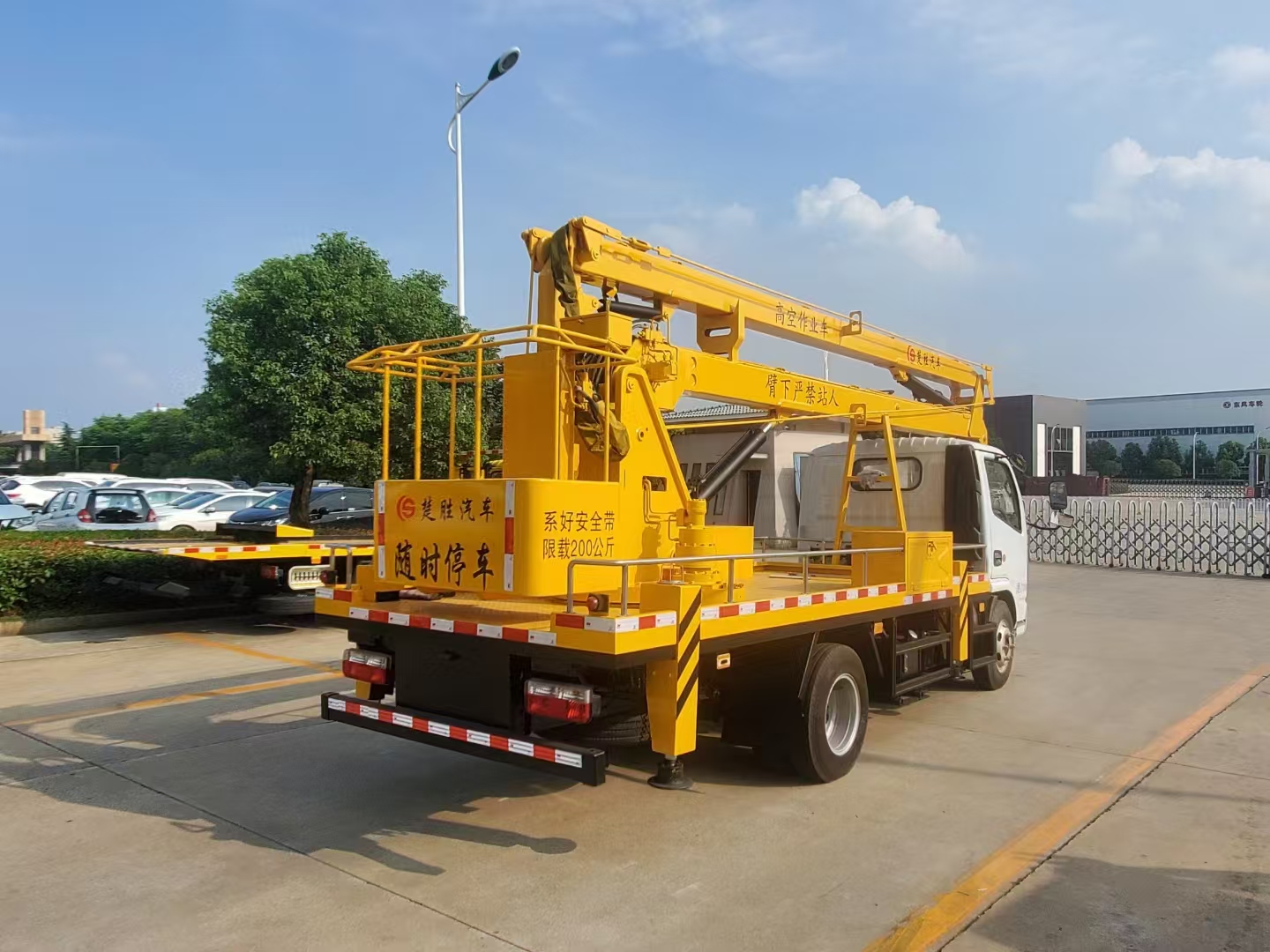

Dongfeng 16m Altitude Operation Truck
2024-09-29 15:14:38 Source：chusheng
Dongfeng 16m Altitude Operation Truck
Chassis configuration: 3308mm wheelbase, single row, Quanchai 115 horsepower, Wanliyang 5-speed transmission, 7.00R16 tires, front axle 1.8 tons, rear axle 3.5 tons, 192mm double frame, air conditioning, electric doors and windows, ABS, air brake.
Upper configuration: Operating height of 16 meters, working bucket load limit of 200KG, hydraulic 360 ° rotation, three section folding arm, hydraulic lifting cylinder, with two-way balance valve, electrically controlled lifting arm, one ton telescopic hook, adjustable hydraulic cylinder for all four limbs, legs with two-way hydraulic lock (leg operation is manual and can be operated separately)
| Product name |
Dongfeng 16m Altitude Operation Truck |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
16m |
| Cab |
Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel |
| Engine model and horsepower |
Quanchai 115 horsepower |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3308mm |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.00R16, 6+1 spare |
| Upper configuration |
Operating height of 16 meters, working bucket load limit of 200KG, hydraulic 360 ° rotation, three section folding arm, hydraulic lifting cylinder, with two-way balance valve, electrically controlled lifting arm, one ton telescopic hook, adjustable hydraulic cylinder for all four limbs, legs with two-way hydraulic lock (leg operation is manual and can be operated separately) |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Dongfeng 16m Altitude Operation Truck
1.Altitude Operation Truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Product parameters
