Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle
2024-09-29 15:14:38 Source：chusheng

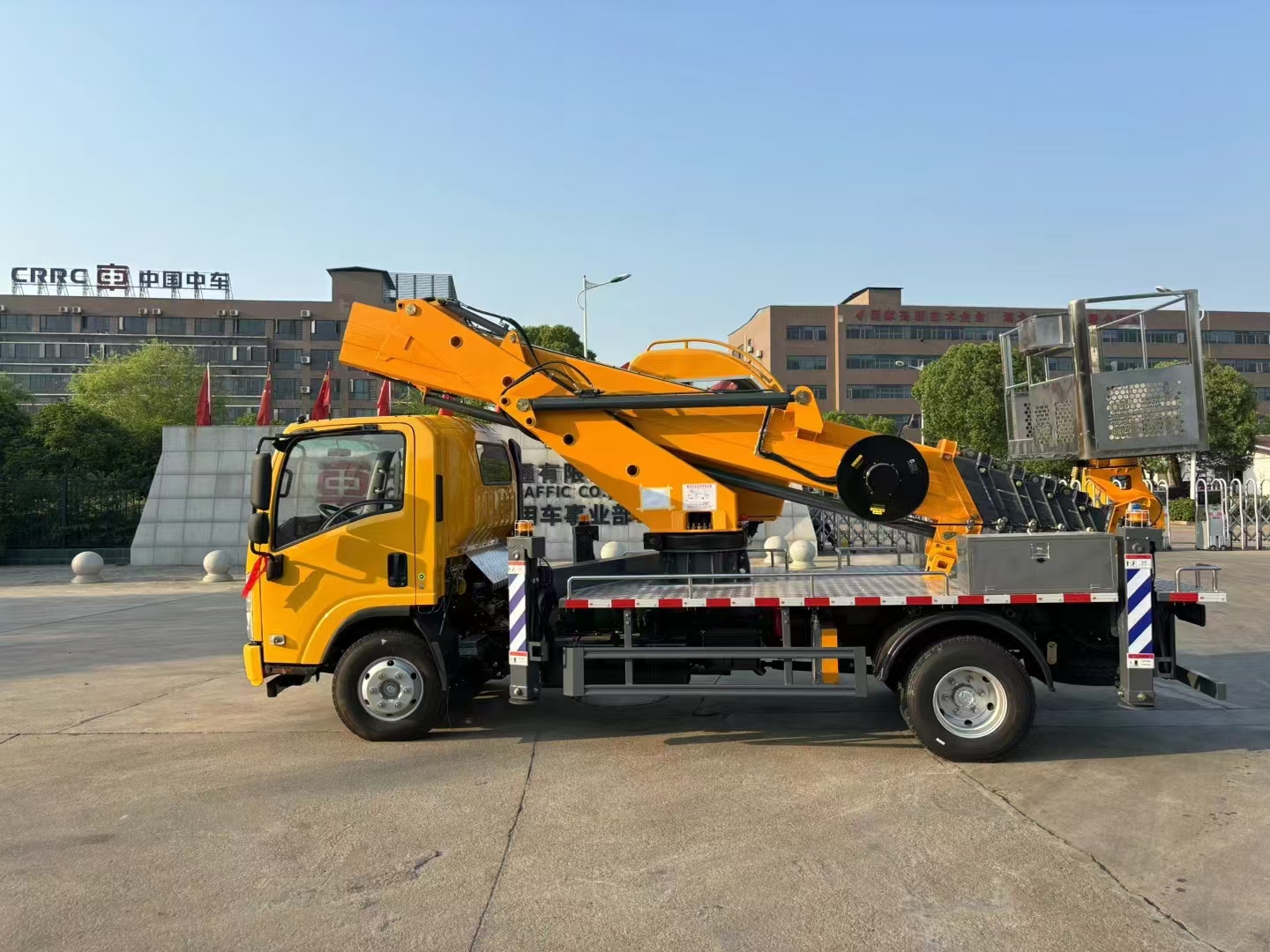

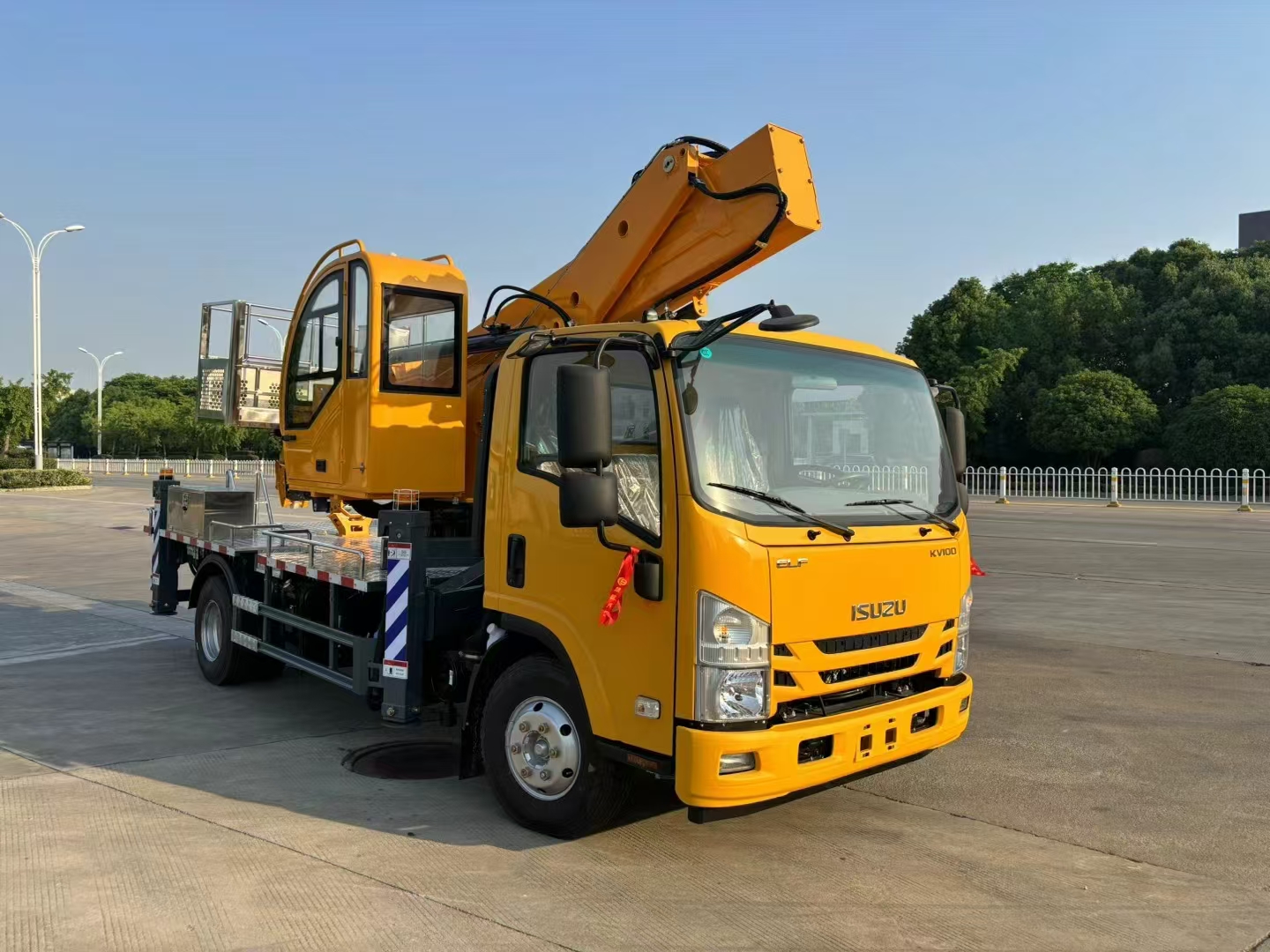

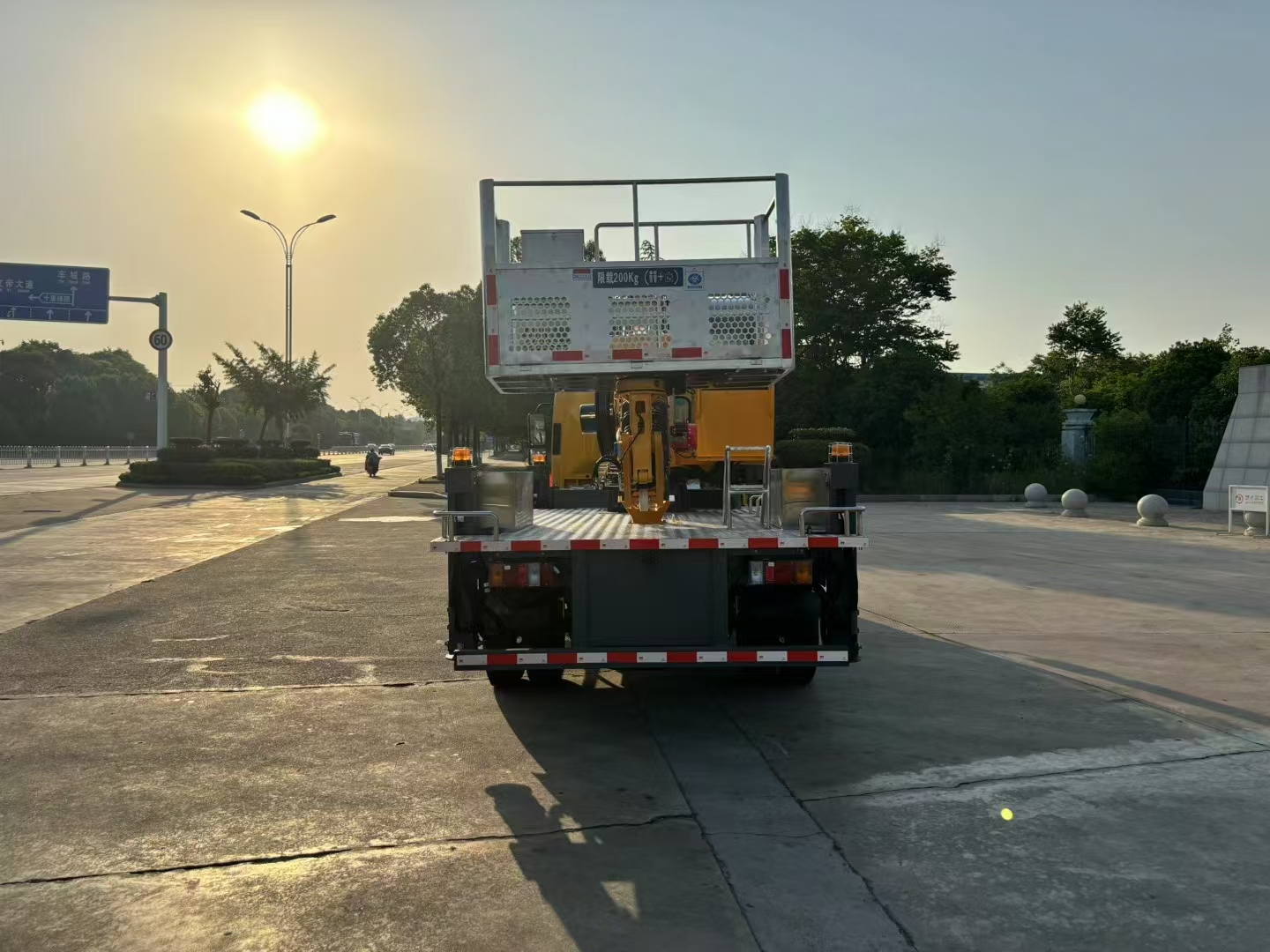

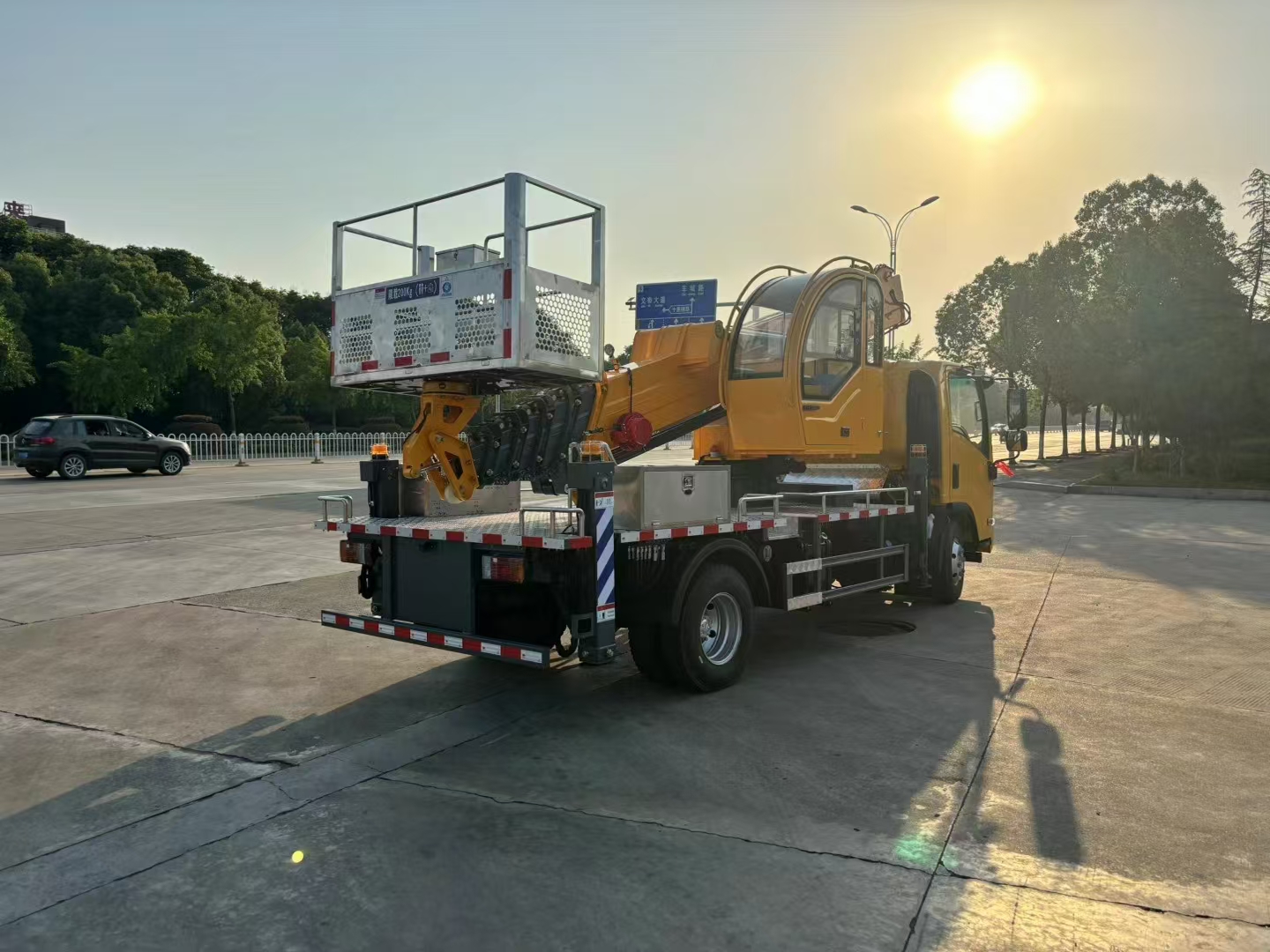

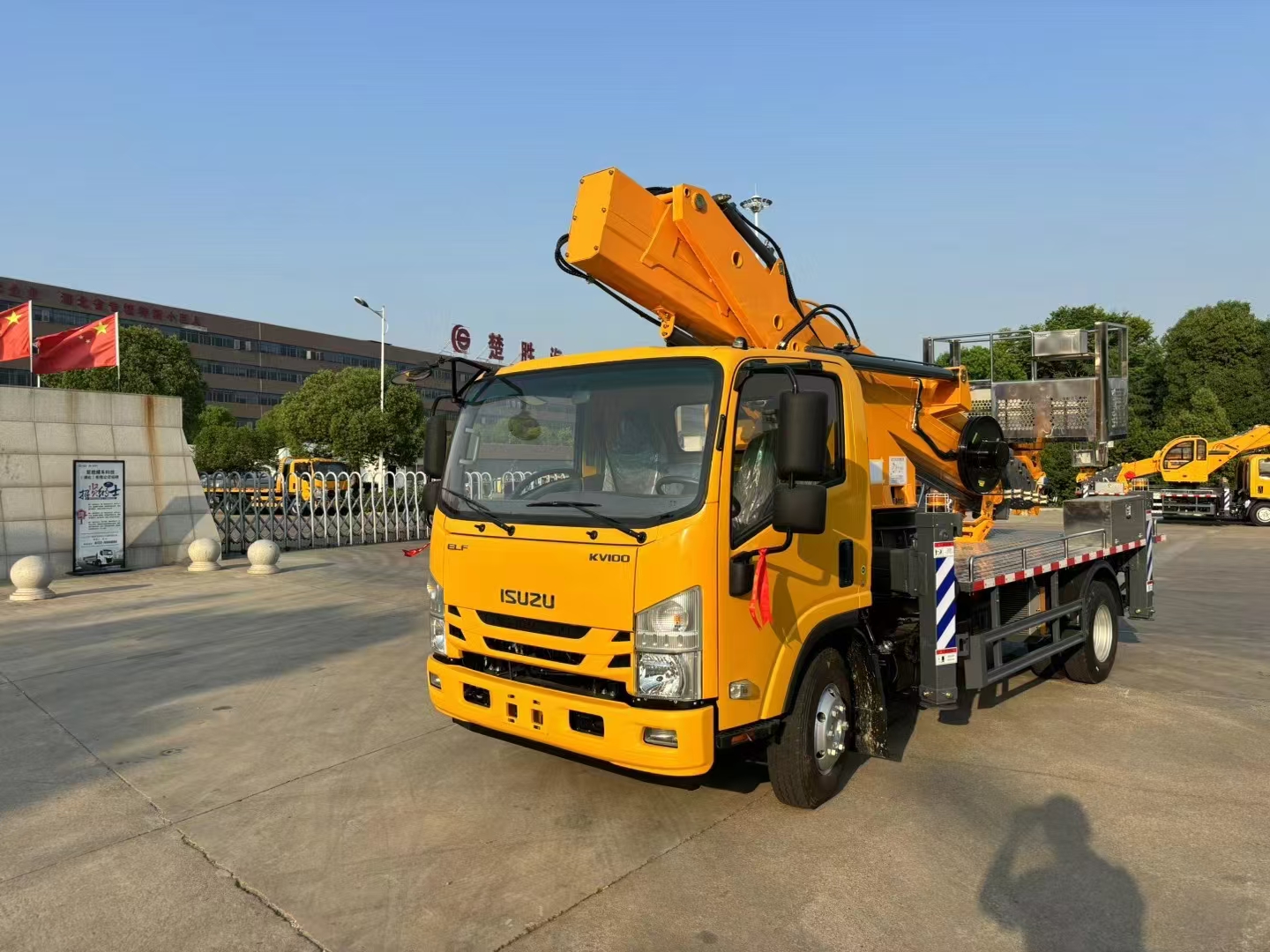

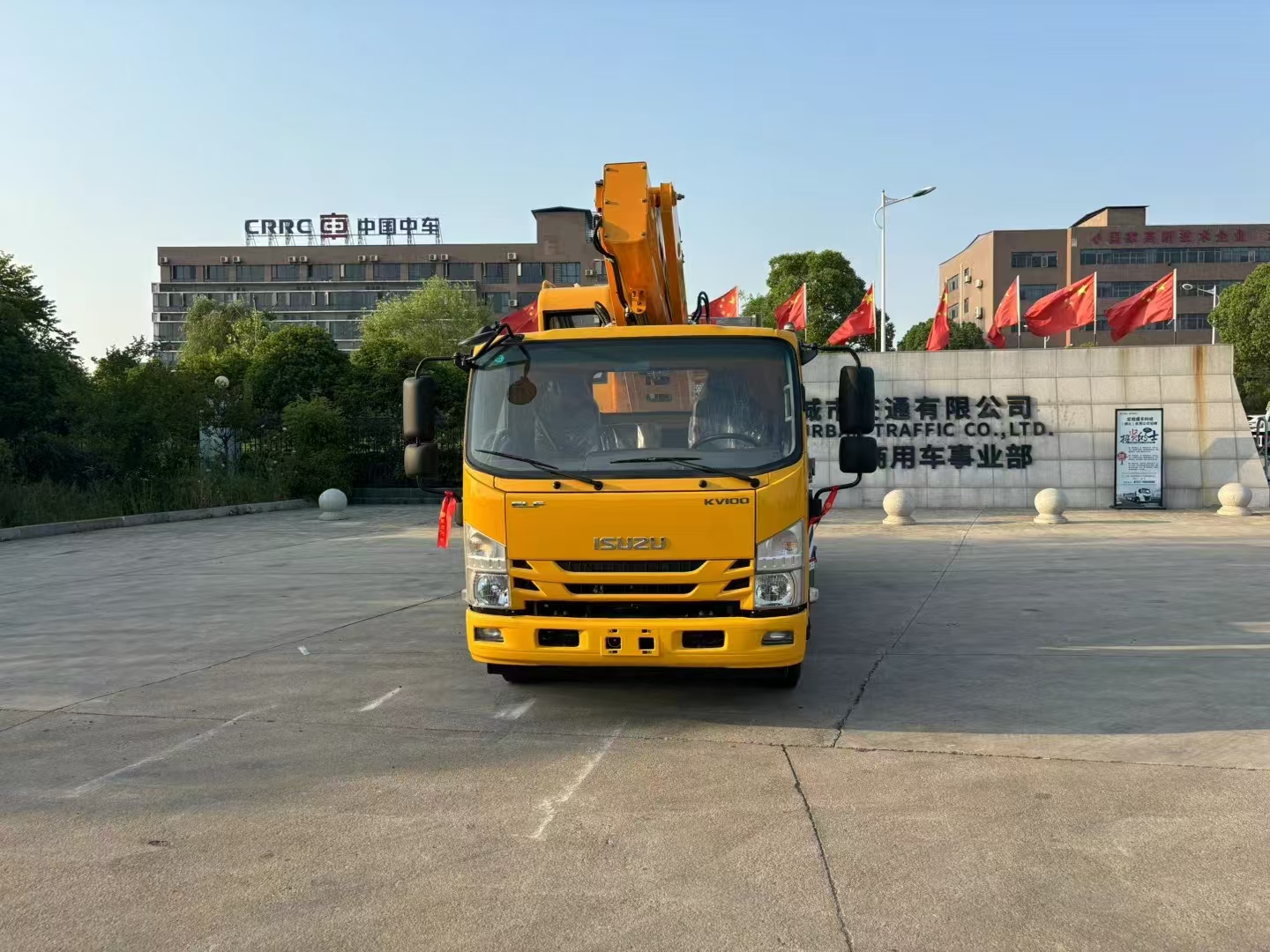

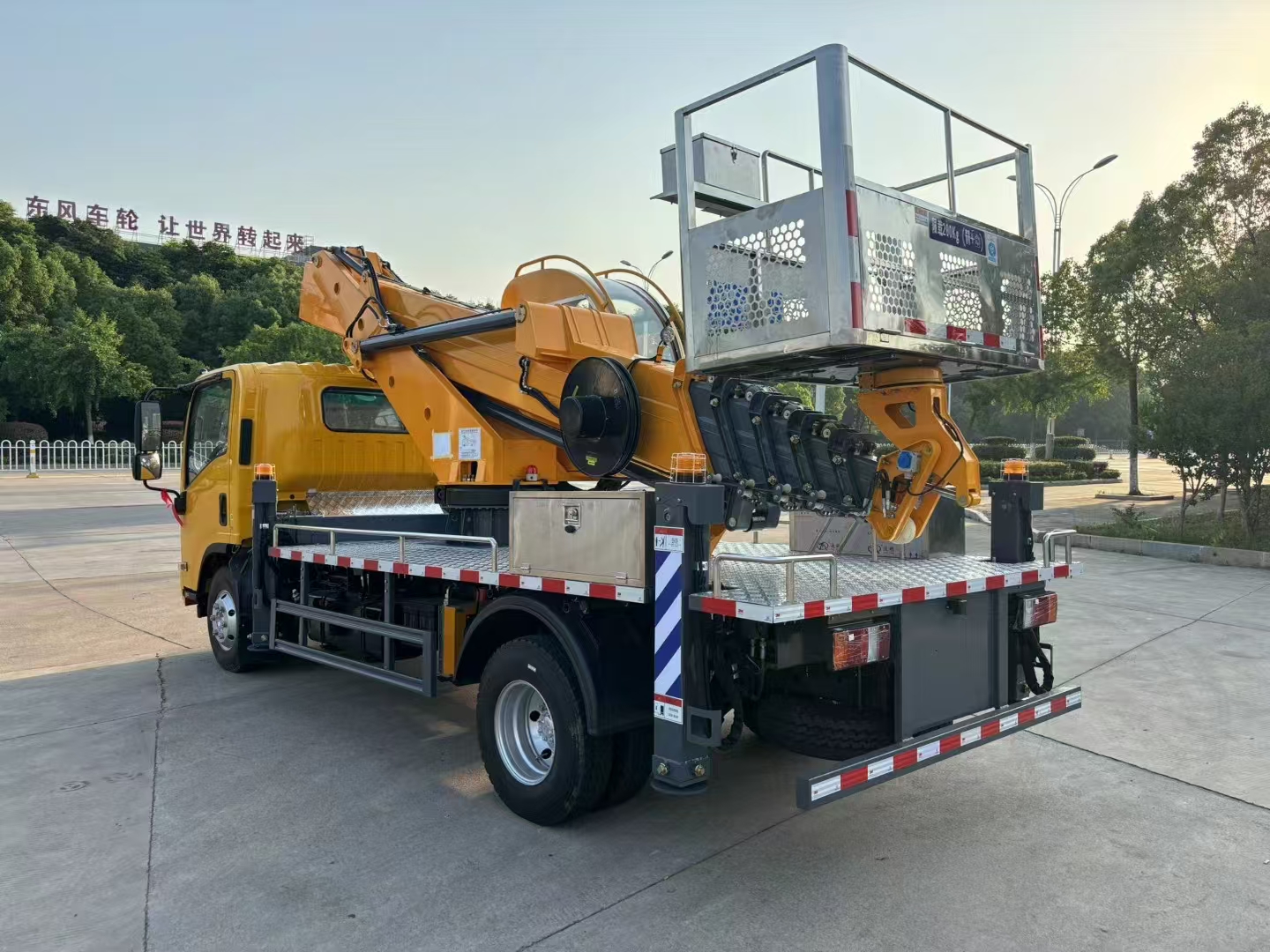

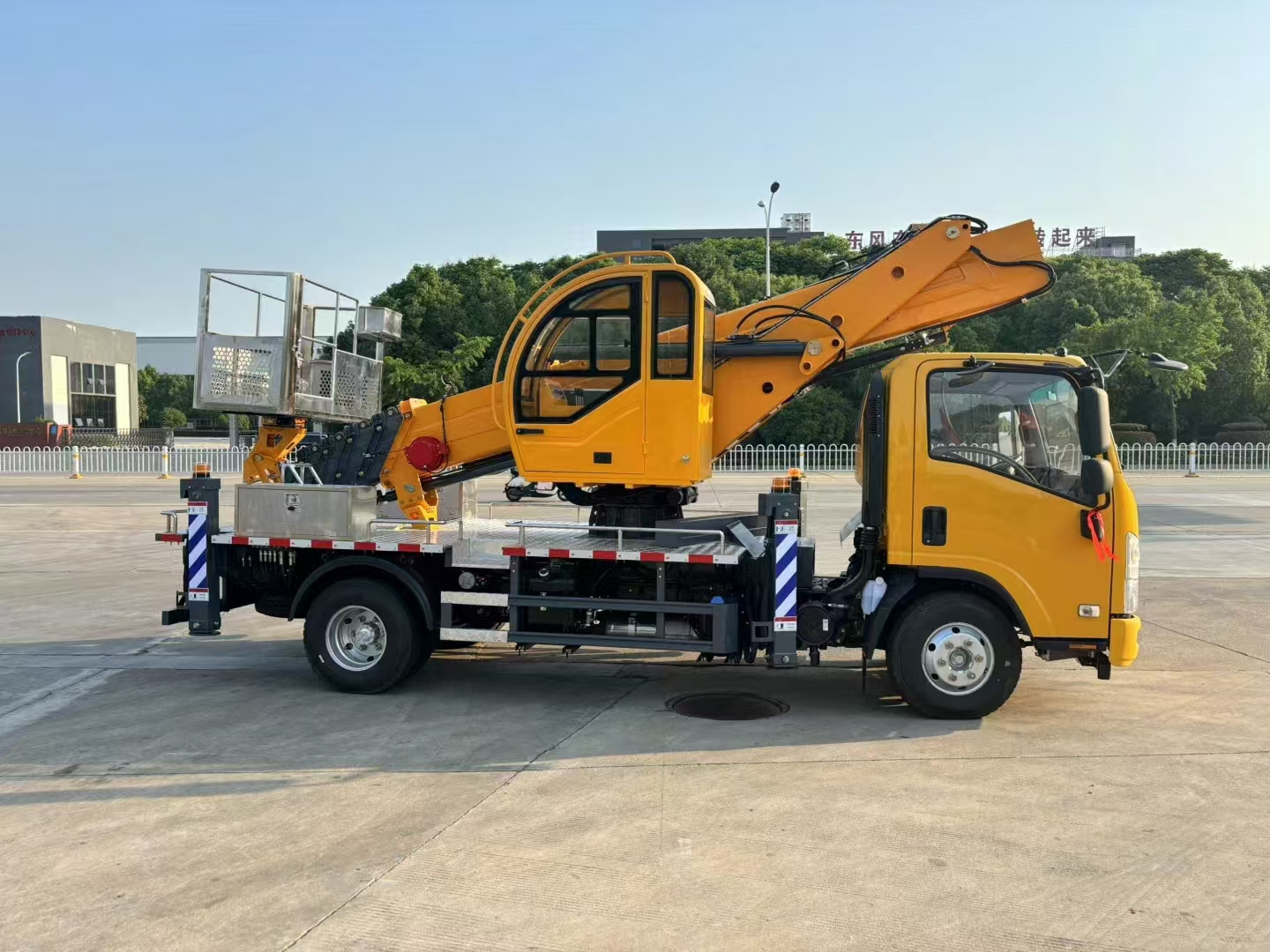

Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle
Chassis configuration: 3815mm wheelbase, 120 horsepower, five speed gearbox, 7.50 steel tires, air conditioning, steering assist, air brake, central locking, power windows, multifunctional steering wheel
Upper configuration: Fourteen sided six section telescopic arm, operating height of 30 meters, working bucket limit of 200kg, platform hydraulic 360 degree full rotation, working bucket 360 ° rotation, with automatic hydraulic leveling, hydraulic system with proportional control, turntable and working bucket dual position operation, all hydraulic systems are equipped with bidirectional hydraulic balance valves with locking function, electro-hydraulic proportional control, realizing infinite speed regulation of the upper movement, equipped with emergency power source, effectively responding to emergencies, support legs are fully hydraulic, and have separate valve group control operation. Each leg is equipped with a strobe light, which automatically flashes in operation and is wireless remote controlled. The remote control is equipped with a horn button, which can provide remote warning reminders. The legs and boarding operations can be interlocked, making it safer and more reliable. Set up vehicle tilt alarm or soft leg alarm for safer use, limit function, dangerous condition alarm, configure tilt angle and length sensors to achieve amplitude control of high-altitude work vehicles. Vehicle turning limit. High altitude operations are equipped with speakers to provide safety warnings.
| Product name |
Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
30m |
| Cab |
Air conditioning, steering assistance, air brake, central locking system, power windows, multifunctional steering wheel |
| Engine model and horsepower |
120hp |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
3815(mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.50 steel wire tire, 6+1 spare |
| Upper configuration |
Fourteen sided six section telescopic arm, operating height of 30 meters, working bucket limit of 200kg, platform hydraulic 360 degree full rotation |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Export exclusive Isuzu 30 meter telescopic boom aerial work vehicle
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Product parameters
