JMC 13.5-meter double row aerial work platform
2024-09-29 15:14:38 Source：chusheng

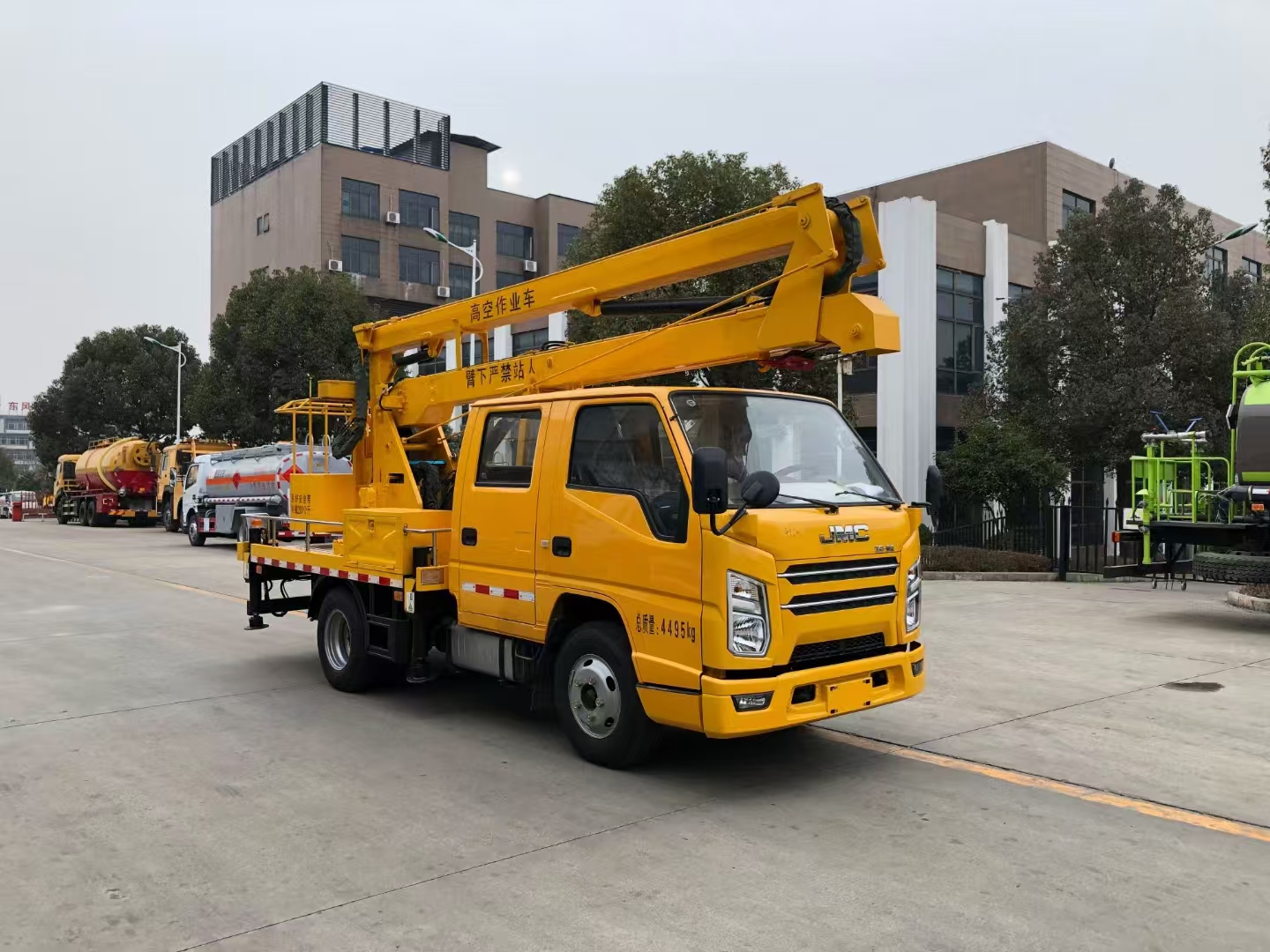

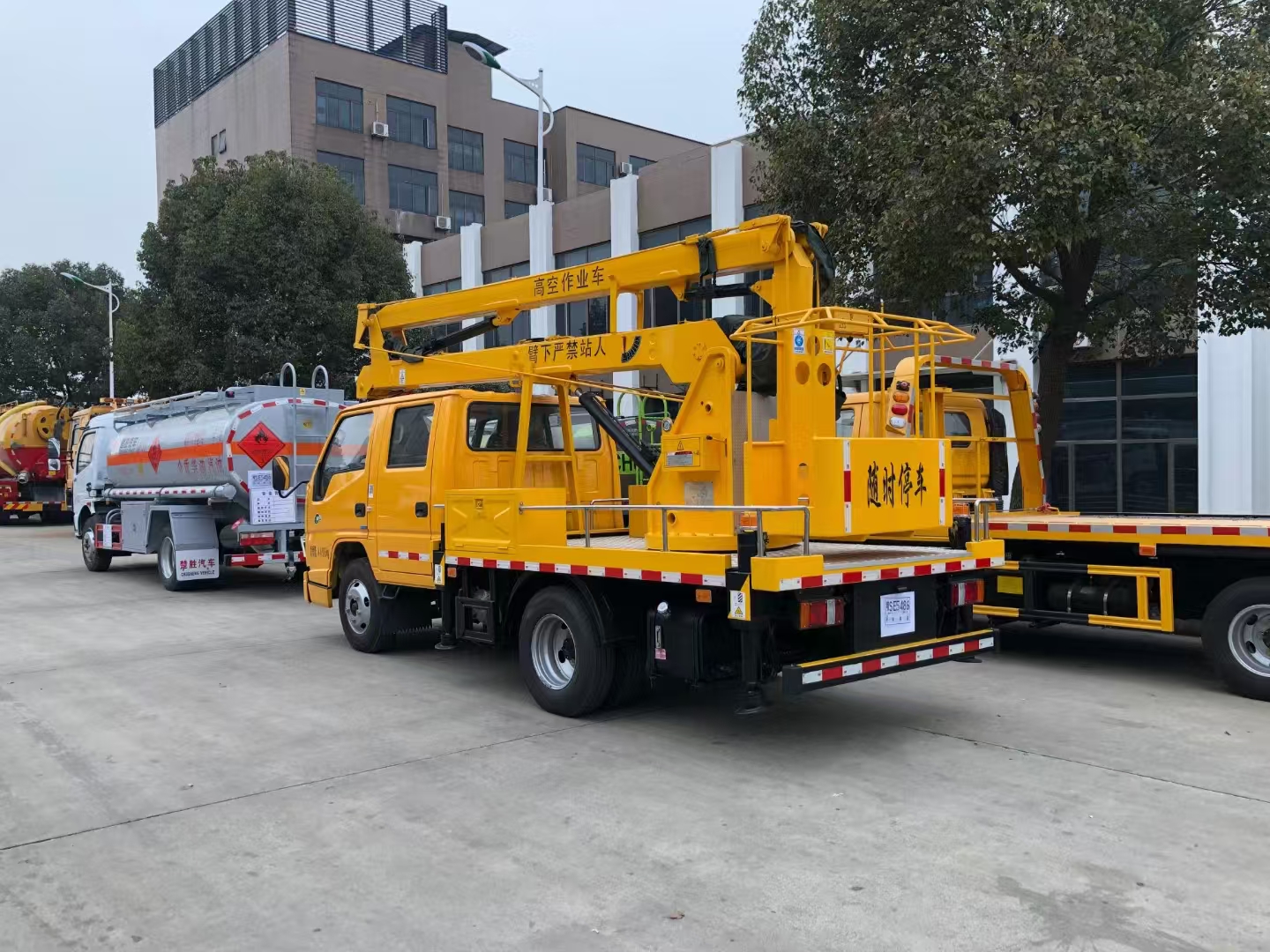

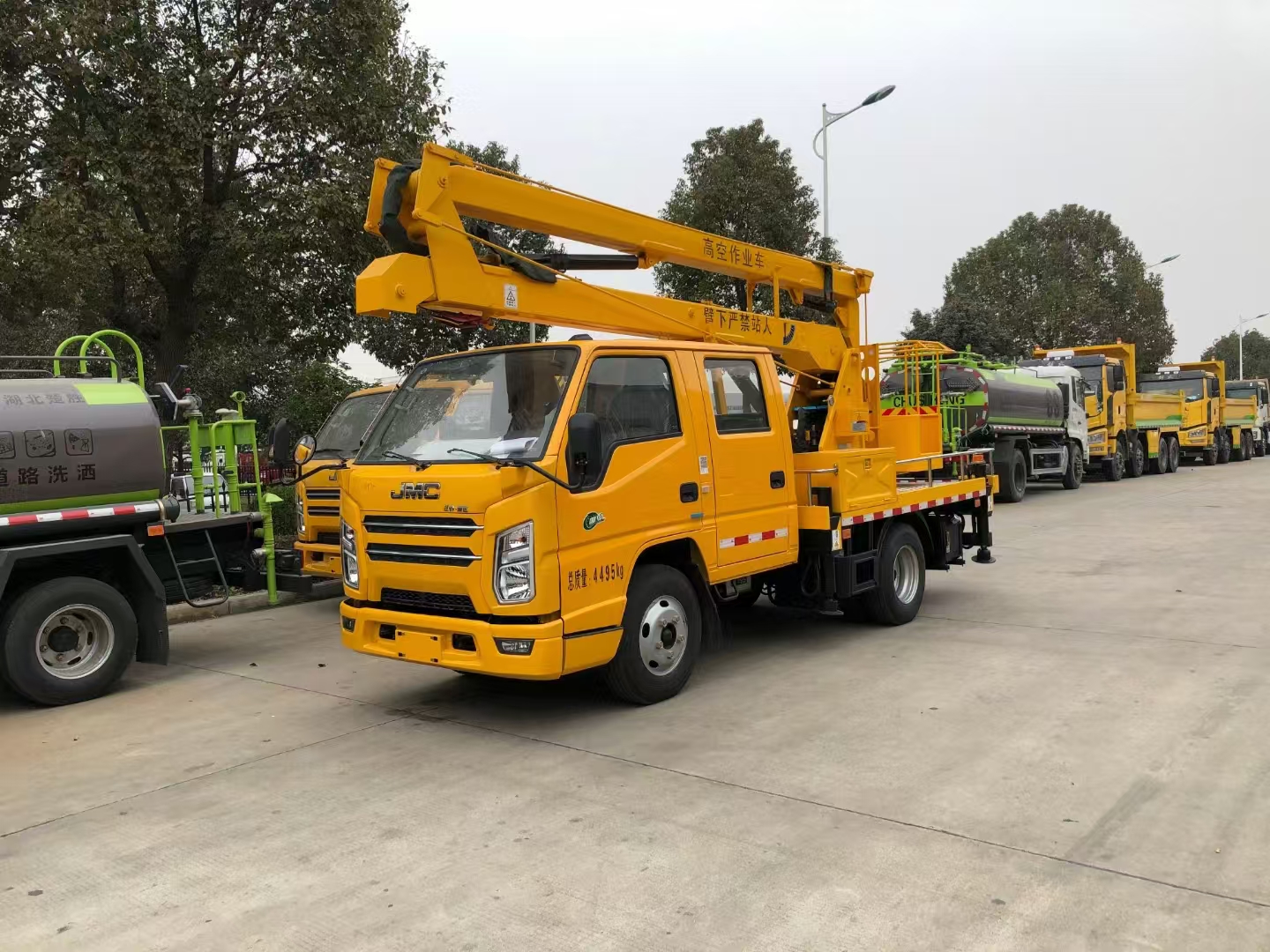

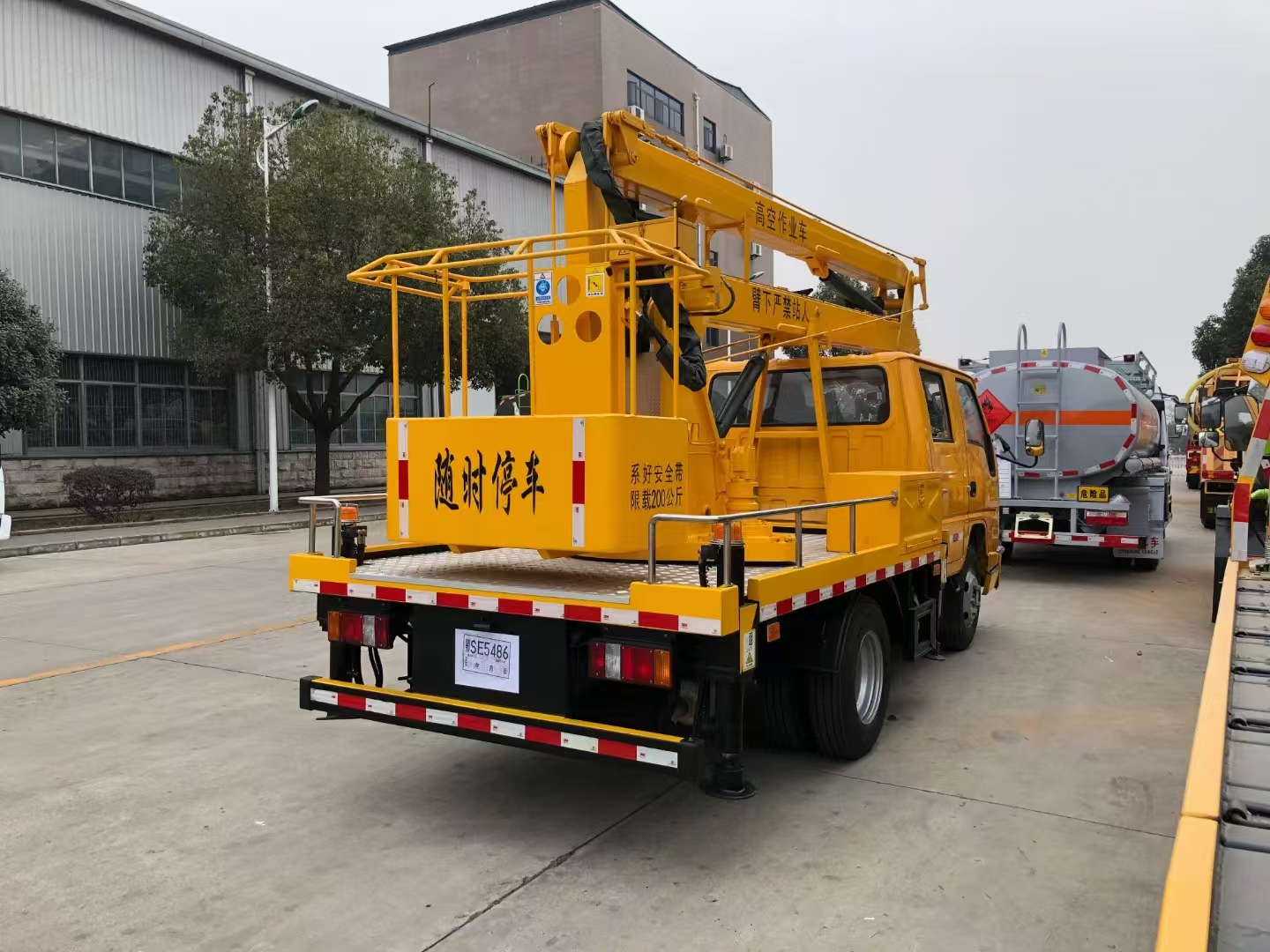

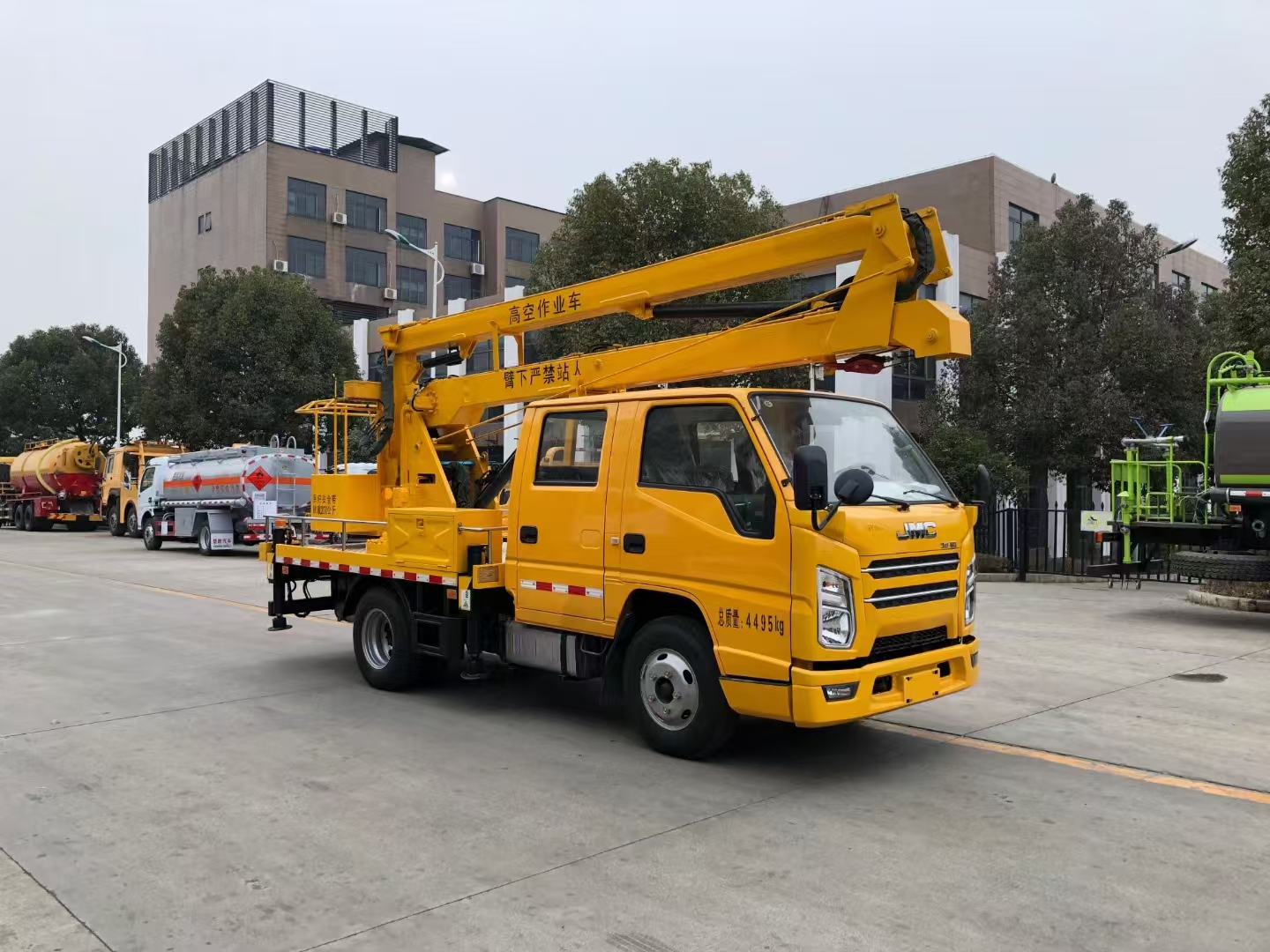

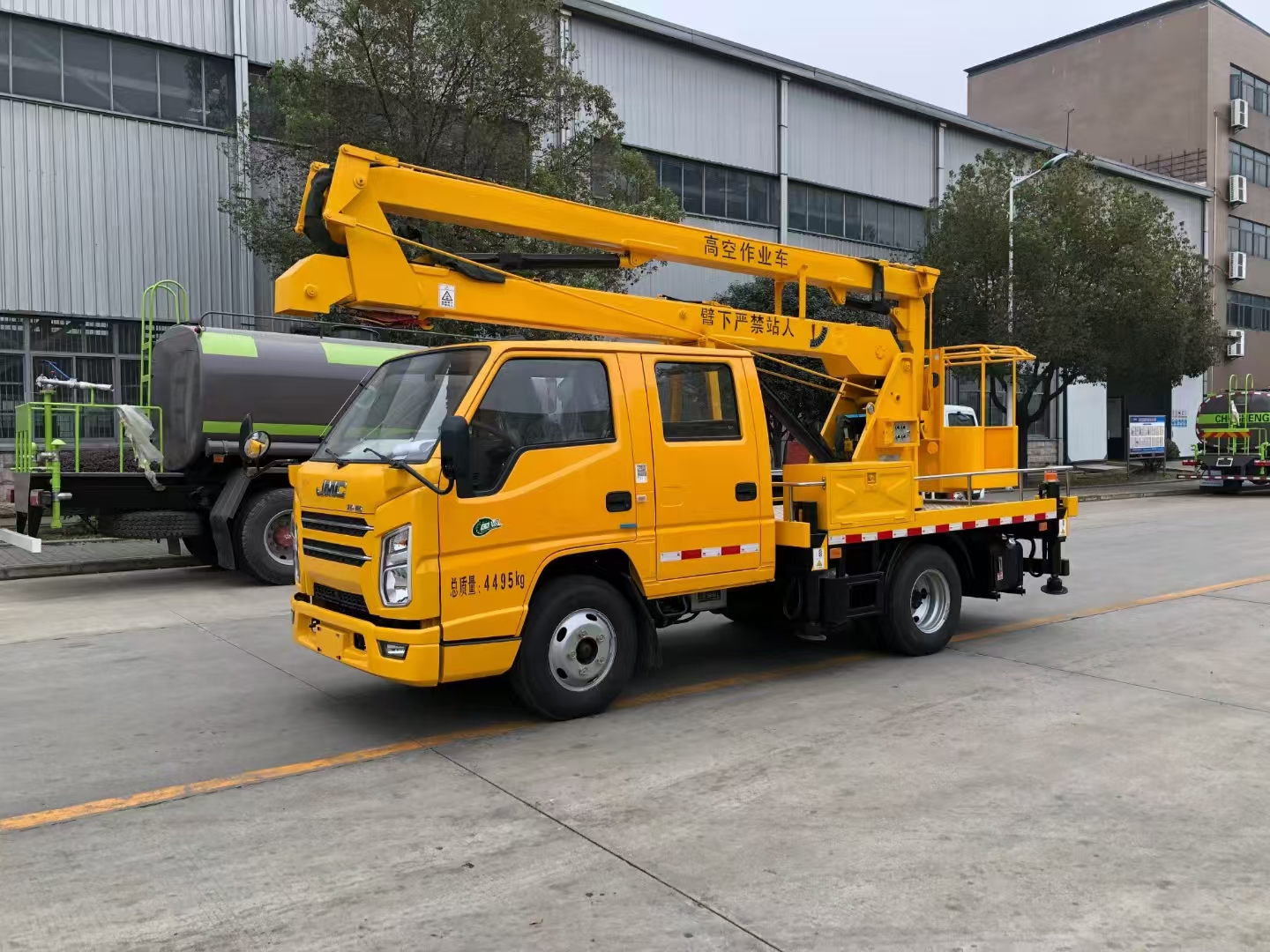

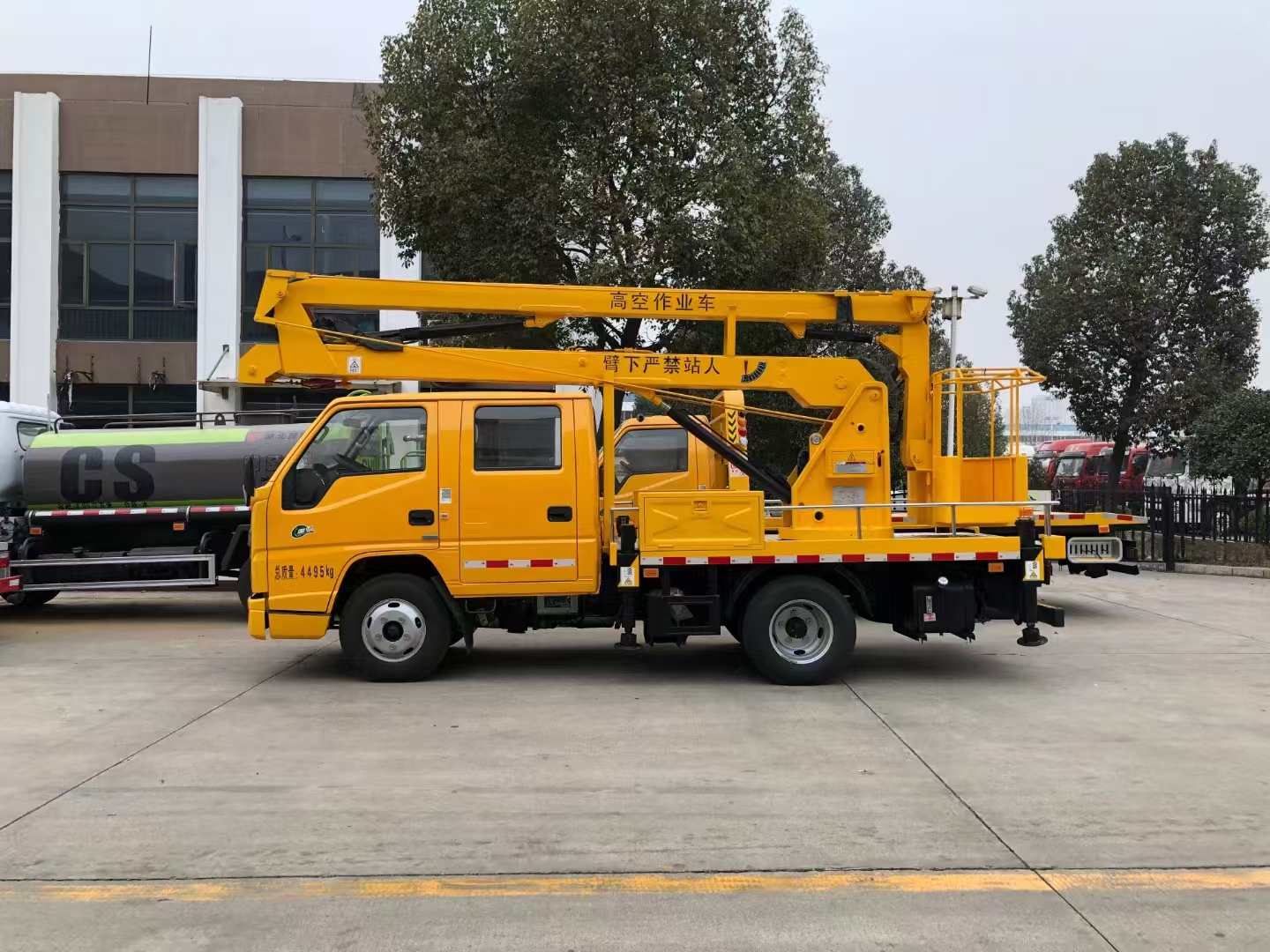

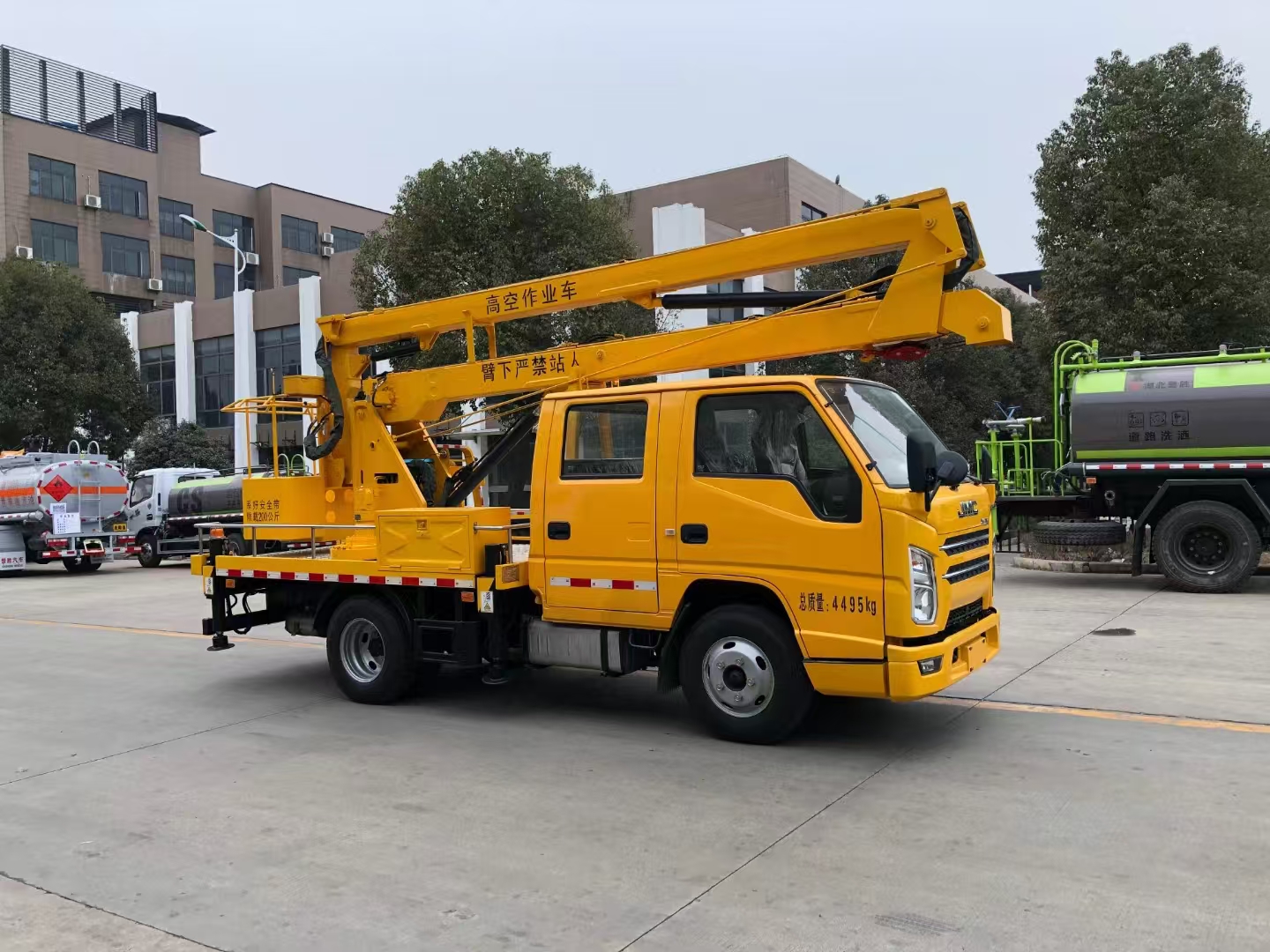

JMC 13.5-meter double row aerial work platform
Chassis configuration:
National VI Jiangxi Isuzu engine with 115 horsepower; 2800mm wheelbase, dual row cab with air conditioning and directional assistance, electric door and window central locking, multifunctional steering wheel.
Upper configuration: Maximum working height of 13.5 meters, three folding arms, front K-shaped and rear H-shaped support legs that can be linked or adjusted separately, support legs with flashing lights, steel toolbox, stainless steel fence, patterned anti-skid walking platform, work bucket and turntable dual working position, up and down operation, electro-hydraulic control, work arm can rotate 360 degrees, vehicle is equipped with two-way hydraulic lock, two-way balance valve, hydraulic cylinder and other main components all using well-known domestic brands, smooth reversing.
| Product name |
JMC 13.5-meter double row aerial work platform |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
13.5m |
| Cab |
Double row cab with air conditioning, directional assistance, electric door and window central locking, multifunctional steering wheel |
| Engine model and horsepower |
National VI Jiangxi Isuzu engine with 115 horsepower |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
2800mm |
| Axle quantity |
2 |
| Tire Specification and Quantity |
7.00 steel wire tires, 6+1 spare |
| Upper configuration |
Three folding arms, front K-shaped and rear H-shaped support legs, can be linked or adjusted separately |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
JMC 13.5-meter double row aerial work platform
1.Altitude Operation Truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Product parameters
