Liuqi 6X2 obstacle clearing vehicle
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
Wheelbase 2050+5350, M31B mechanical semi floating cab suspension, Yuchai 260 horsepower engine YCK05260-61 gearbox JS95TE-C configuration: hydraulic mechanical flip, leather airbag driver's seat, iron air reservoir, MP3+radio, air conditioning, leather standard multifunctional steering wheel, cruise control system, polymorphic switch, electrically controlled silicone oil fan ABS、 Electric heated rearview mirror, Chenglong V+car networking 3.0 system, central control lock, speed limit of 89Km/h, leather seat fabric, rain curtain, external sunshade, laminated glass, electric glass lifter, driving recorder same color bumper, automatic adjustment, right turn prompt sound, car lock treasure. 2X4.2T front axle, 153/4.444 rear axle, 11/11/12+9 plates with 10.00R20 tires, 350L aluminum alloy fuel tank, 264 (6) frame
| Product Name |
Liuqi 6X2 obstacle clearing vehicle |
| Driving Type |
6X2 |
| Gross vehicle weight(Kg) |
24500(Kg) |
| Curb weight(Kg) |
14800,14000,13200(Kg) |
| Rated weight(kg) |
/ |
| Cab |
M31B mechanical semi floating cab |
| Engine brand & model |
Yuchai 260 horsepower engine, YCK05260-61 |
| Wheelbase(mm) |
2050+5350(mm) |
| Axle Quantity |
3 |
| Transmission Type |
9-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
10.00R20, 8+1 spare |
| Overall Dimension(mm) |
12345,10545,11045,11445×2550,2500×3150(mm) |
| Crane specification |
no crane (Crane can be installed) |
| Standard configuration |
12P12 patterned flat plate (8mm), the rear of the motherboard can be hydraulically flipped |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Liuqi 6X2 obstacle clearing vehicle
Obstacle clearing vehicles,also known as road clearing vehicles, trailers, road rescue vehicles, and towing vehicles, have multiple functions such as lifting, pulling, and lifting. Obstacle clearing vehicles are mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue.
Installation configuration:

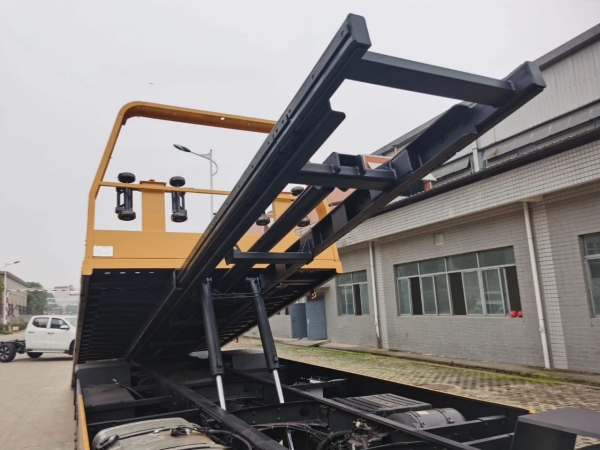

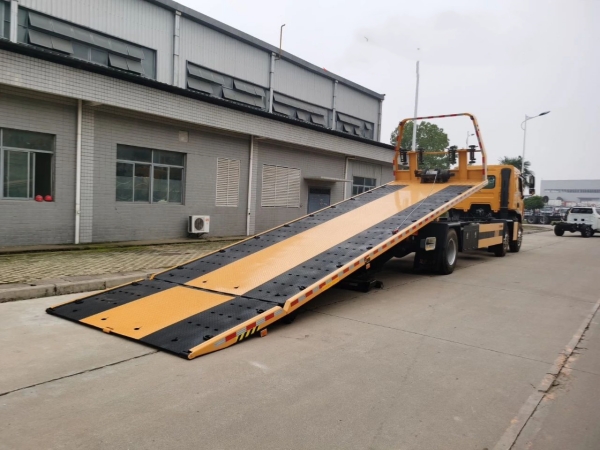

12P12 patterned flat plate (8mm), the rear of the main board can be hydraulically flipped; 1 100KN winch (equipped with 45 meter steel wire rope), 1 toolbox, 2 trolleys, 1 pair of L-shaped tire racks, 4 binding straps, 2 pairs of forks, 1 pair of fork seats, and 1 chain hook. Naval battle power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, original/Suizhou power take-off, center of gravity lowering and auxiliary air pipe assembly, rear support arm installed on the main beam, optional cross shaped bottom plate layout. 110 oil cylinder, reinforced with square tube under the plate.
Product parameters
