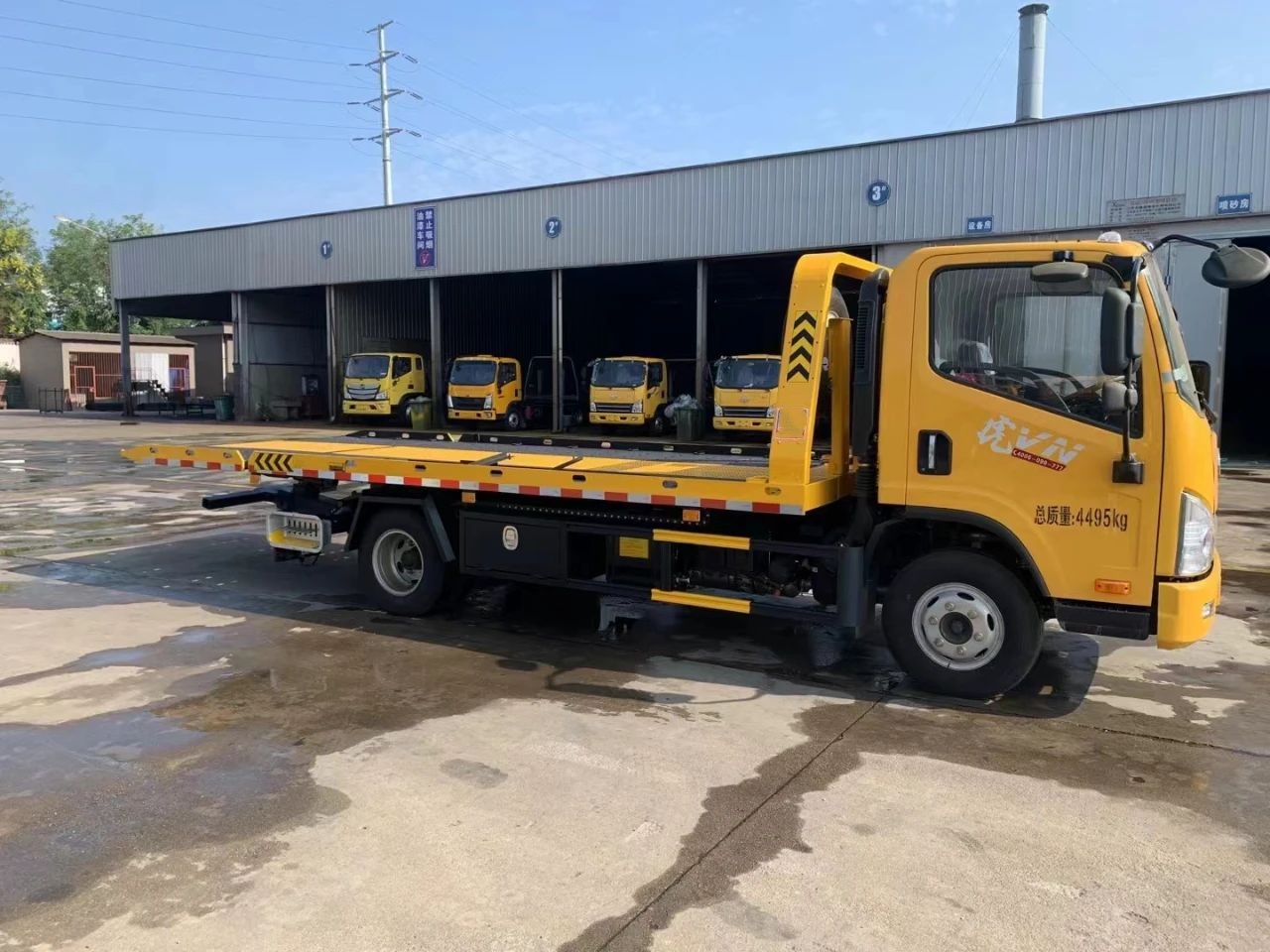

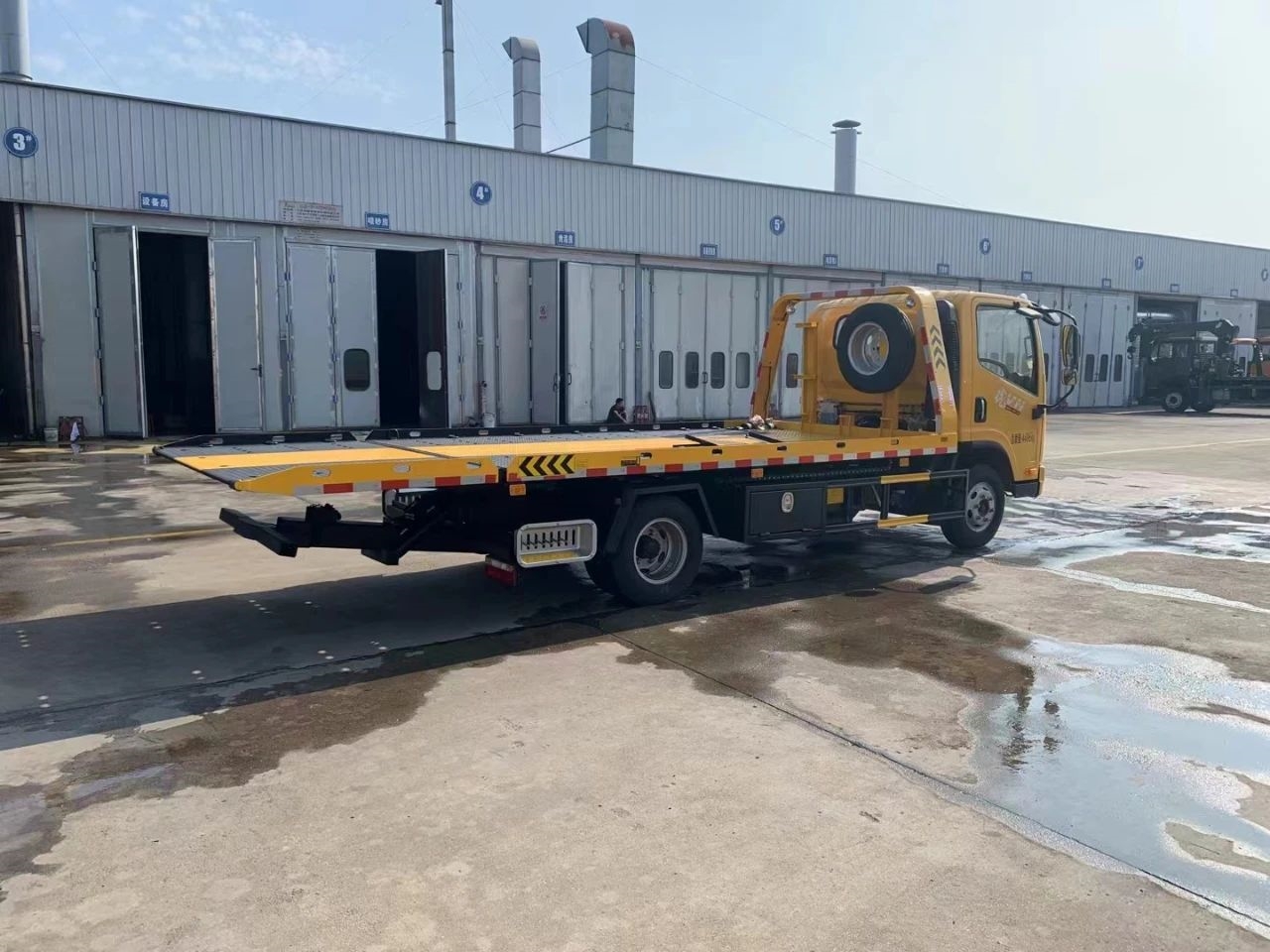

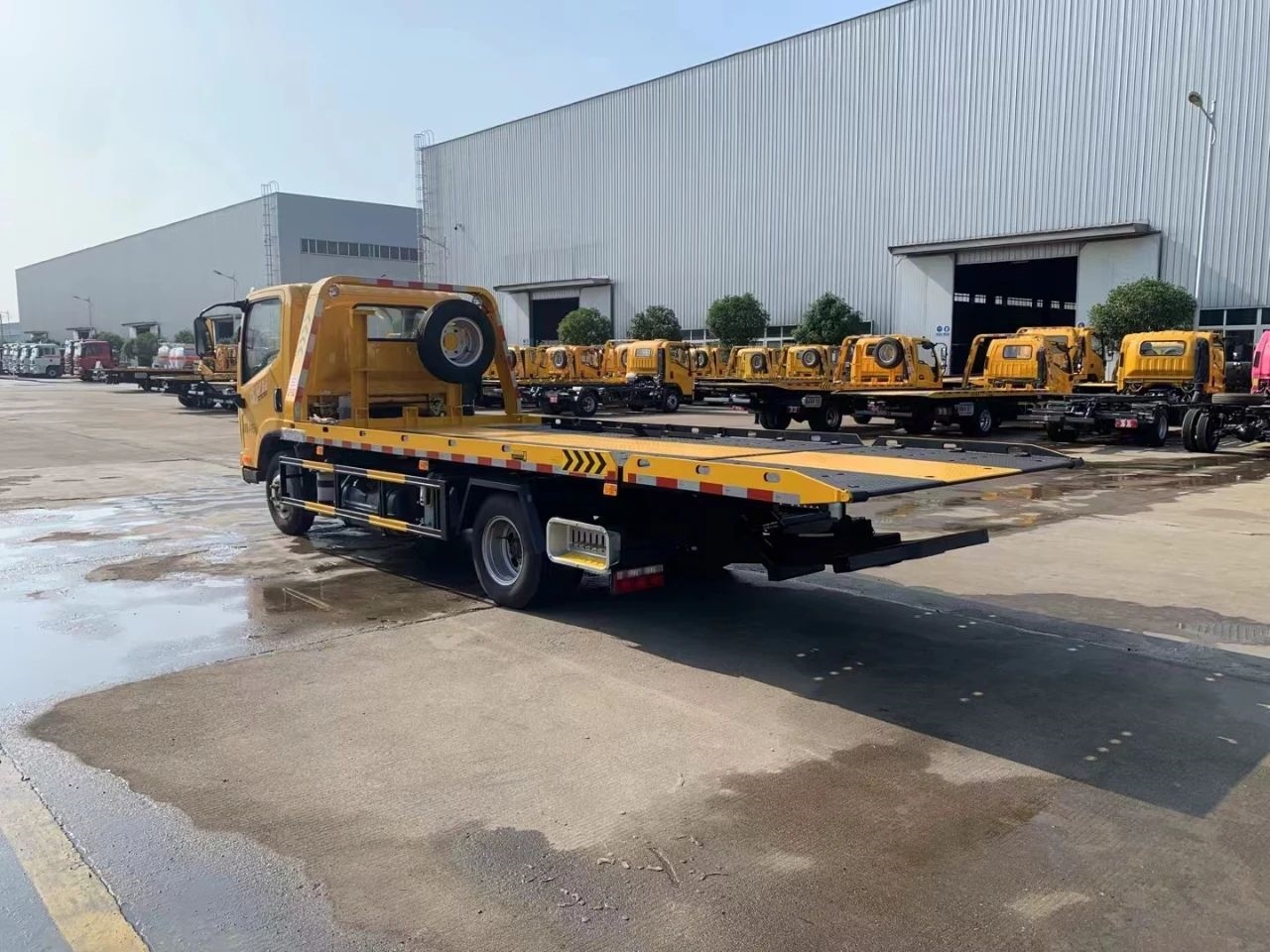

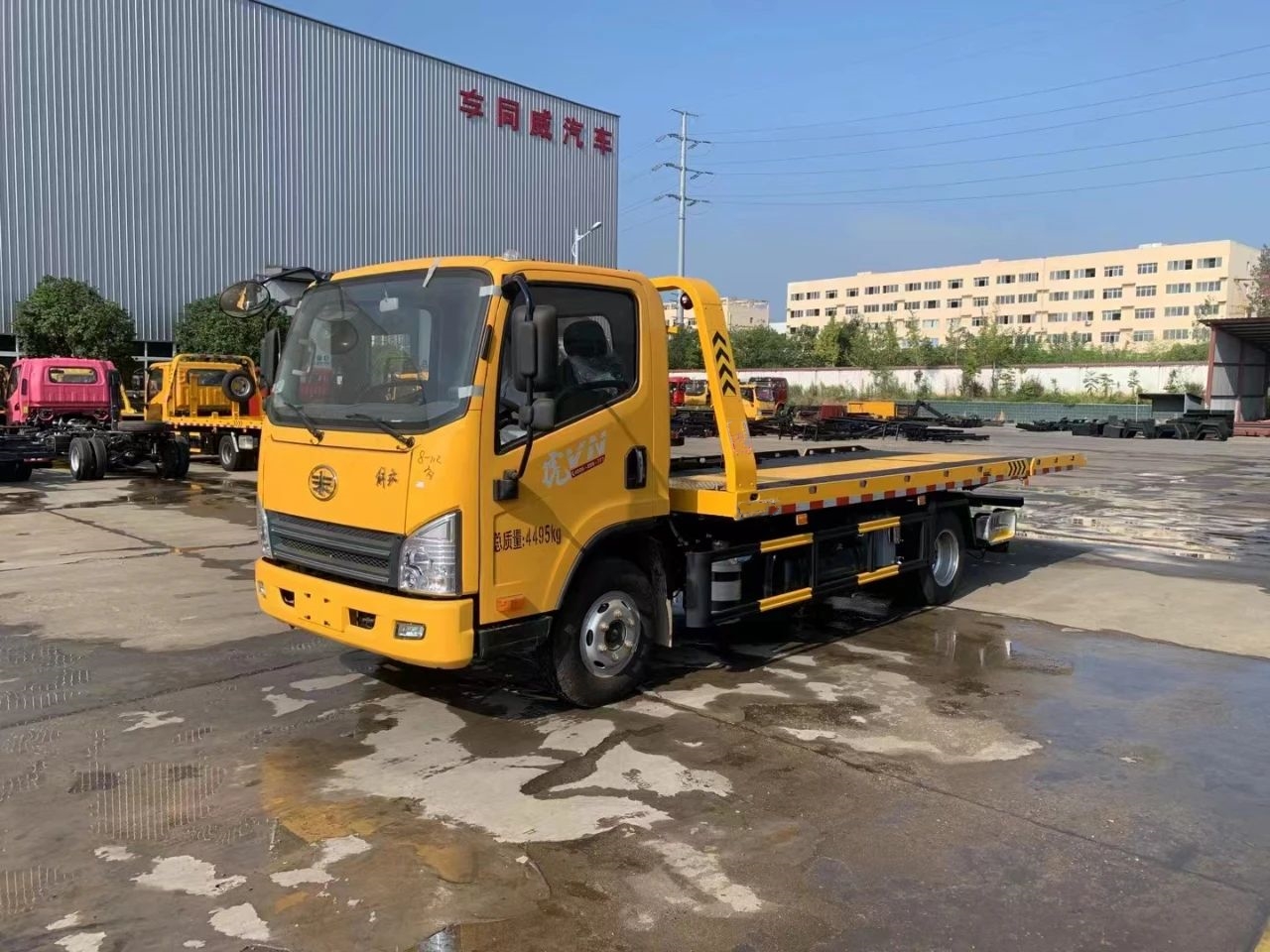

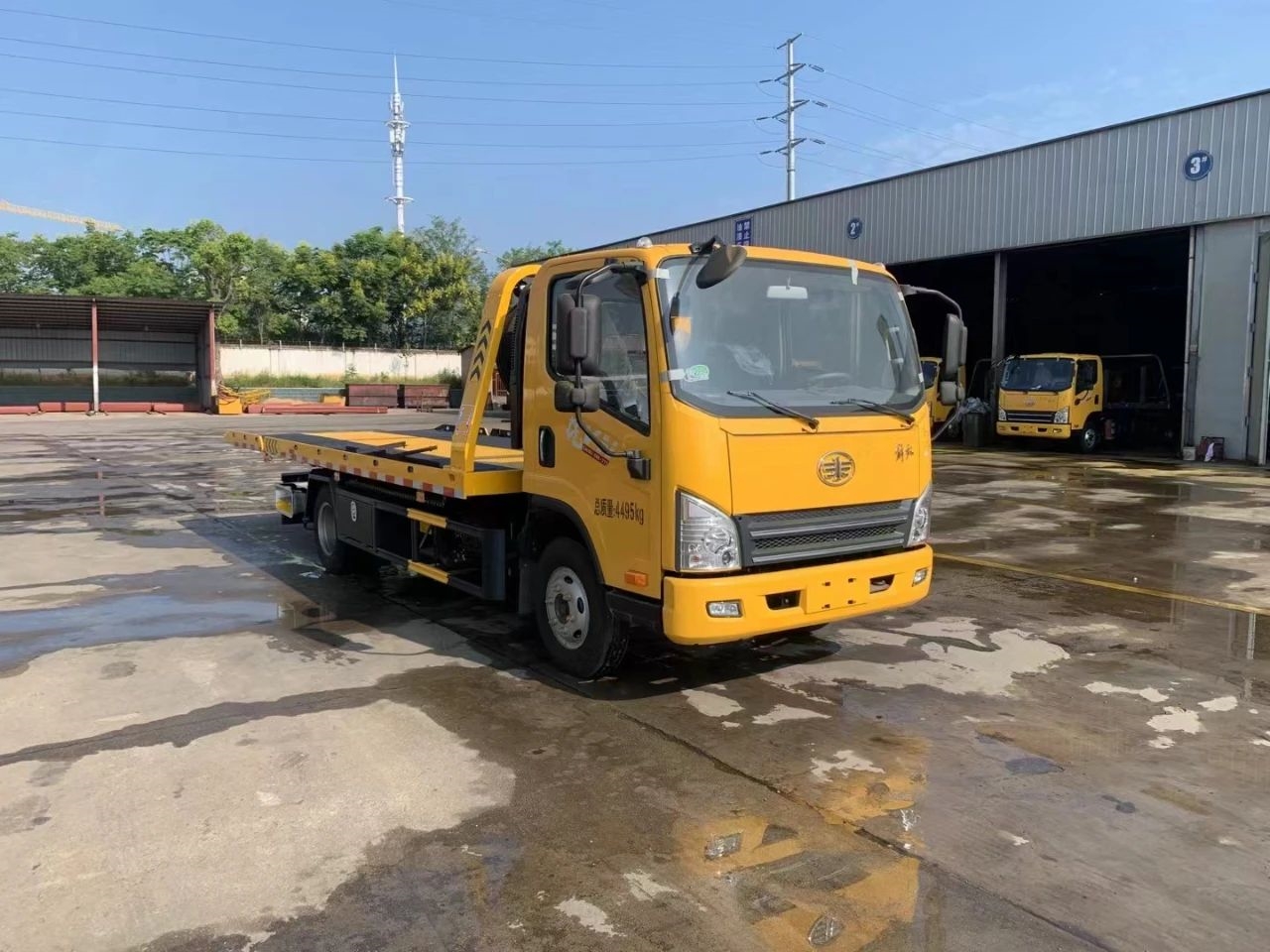

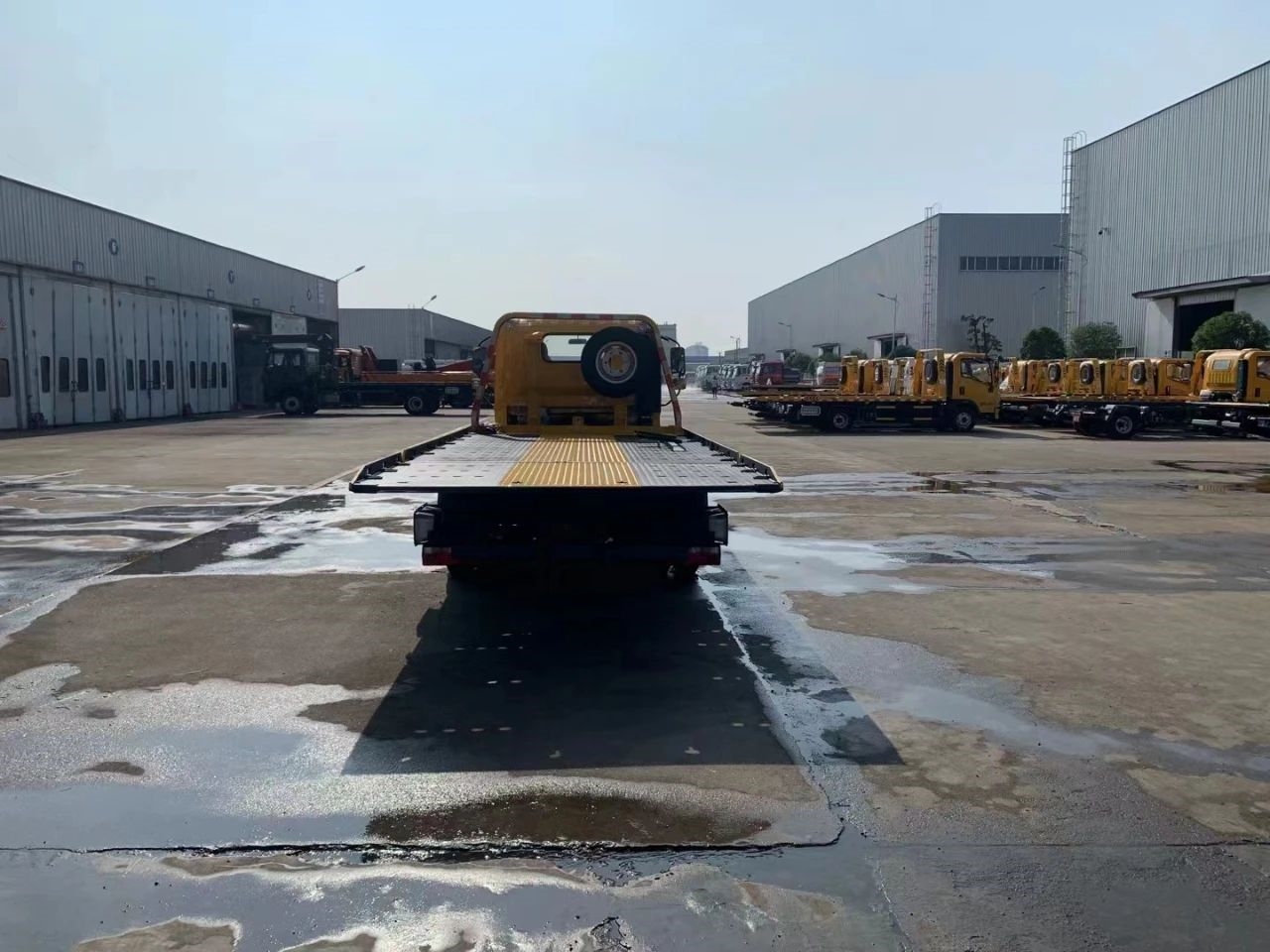

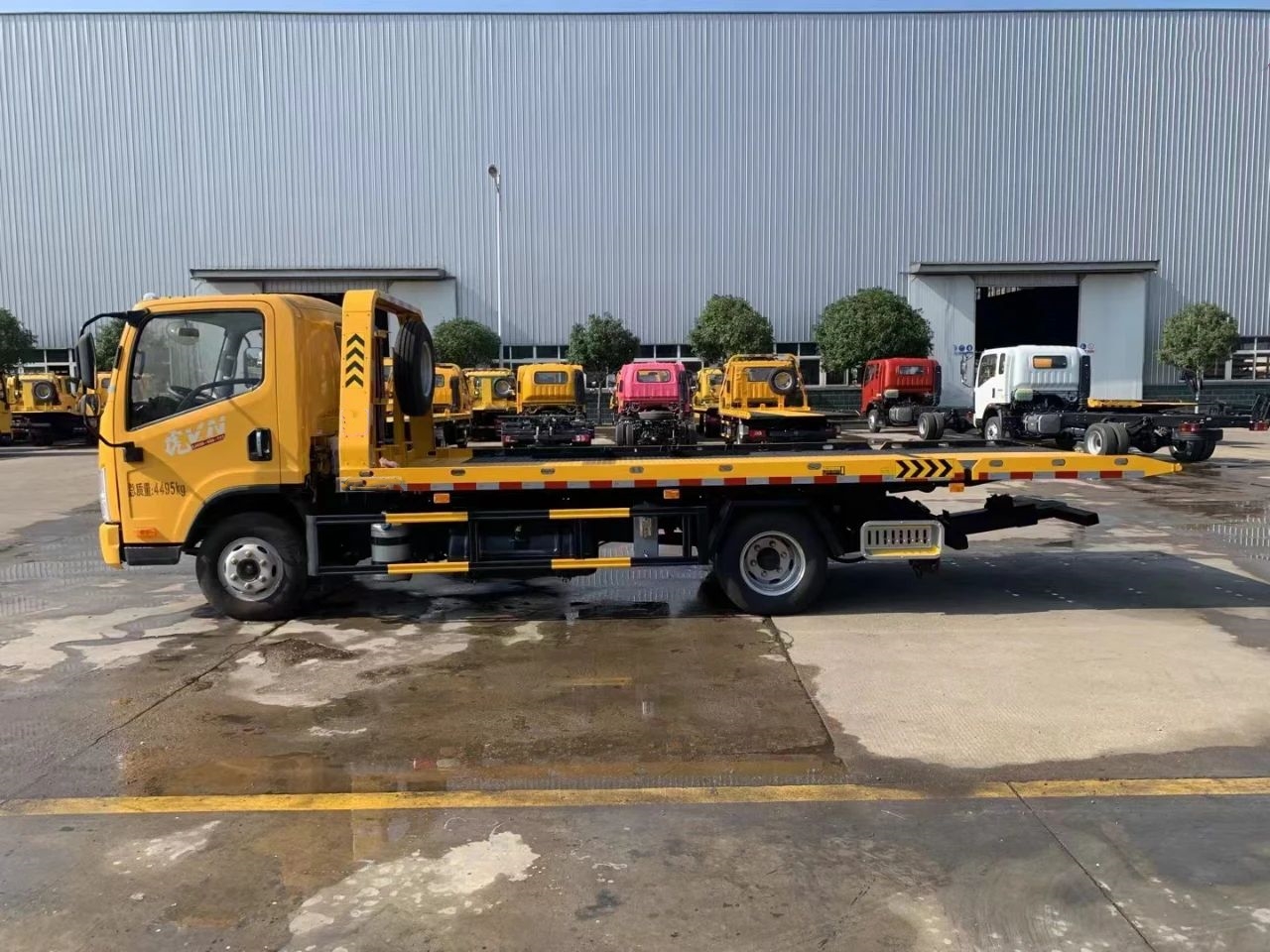

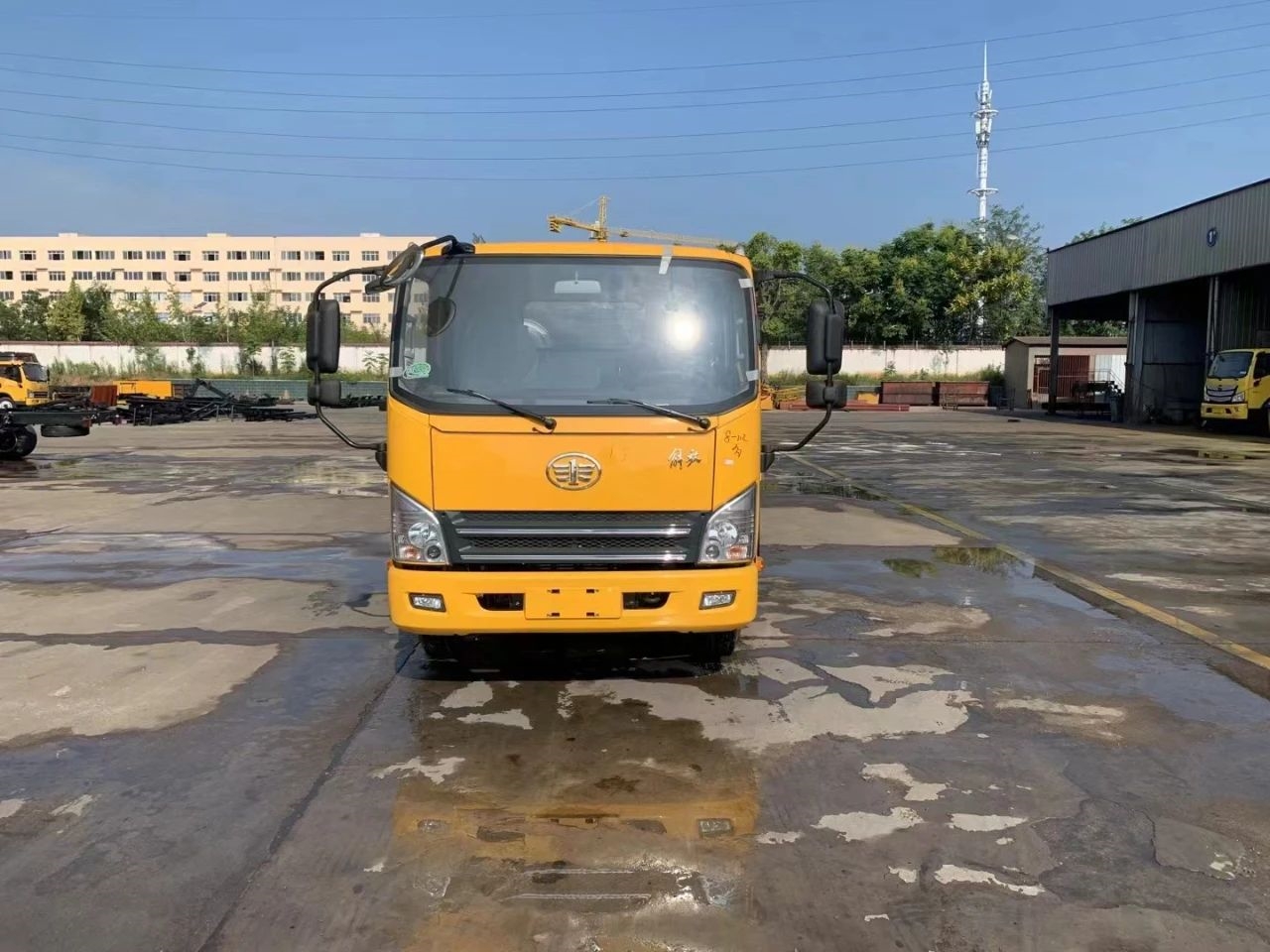

Jiefang single row 7-ton obstacle clearing vehicle
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
Jiefang Xichai 140 horsepower, Wanliyang 6-speed, 270 rear axle, airbag seats, 7.00 steel tires, multifunctional steering wheel with air brake, cruise control, adjustable headlights, ABS,air conditioning, central control door lock, electric doors and windows, original double-layer beam.
| Product Name |
Jiefang single row 7-ton obstacle clearing vehicle |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
4495(Kg) |
| Curb weight(Kg) |
2865,2800(Kg) |
| Rated weight(kg) |
1500(Kg) |
| Cab |
jiefang VN (1900mm), three seater cab |
| Engine brand & model |
Xichai 140 horsepower |
| Wheelbase(mm) |
3600(mm) |
| Axle Quantity |
2 |
| Transmission Type |
Wanliyang 6-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
7.00R16, 6+1 spare |
| Overall Dimension(mm) |
5995×2300,2400,2550×2280,2320,2350(mm) |
| Crane specification |
no crane (Crane can be installed) |
| Standard configuration |
12P12 patterned flat plate (8mm), the rear of the motherboard can be hydraulically flipped |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Jiefang single row 7-ton obstacle clearing vehicle
Obstacle clearing vehicles,also known as road clearing vehicles, trailers, road rescue vehicles, and towing vehicles, have multiple functions such as lifting, pulling, and lifting. Obstacle clearing vehicles are mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue.
Installation configuration:
The board is 5.6 meters long (4.2 meters for the main board and 1.4 meters for the hydraulic flip board), 2.3 meters wide, with a flat main oil cylinder and a rear trailing arm lifting oil cylinder with an outer diameter of 110, and double auxiliary beams. Easily drag 7 tons.
