Jiefang J6L towing and lifting obstacle clearing vehicle
2024-10-07 09:54:11 Source：chusheng

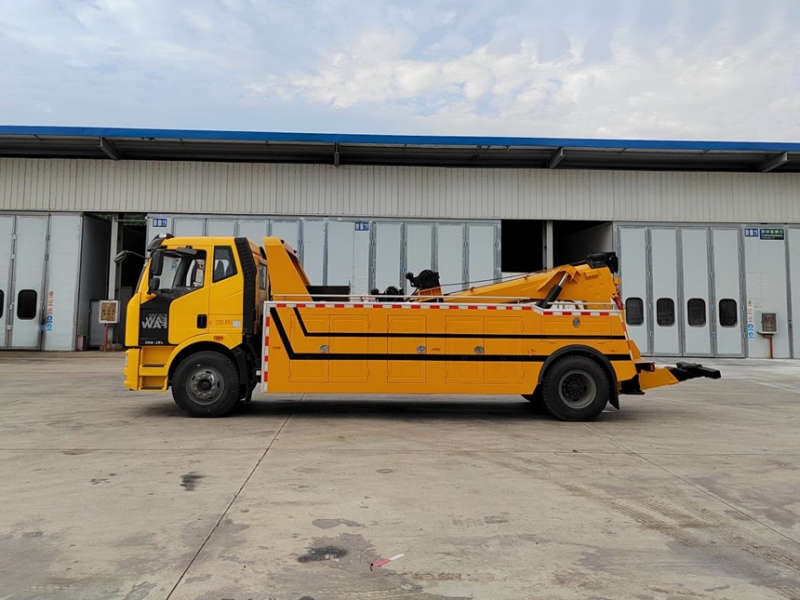

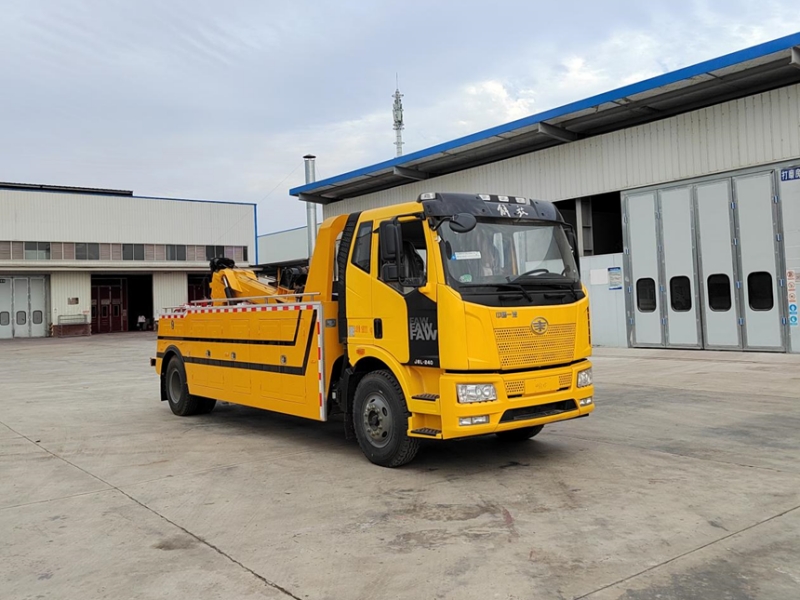

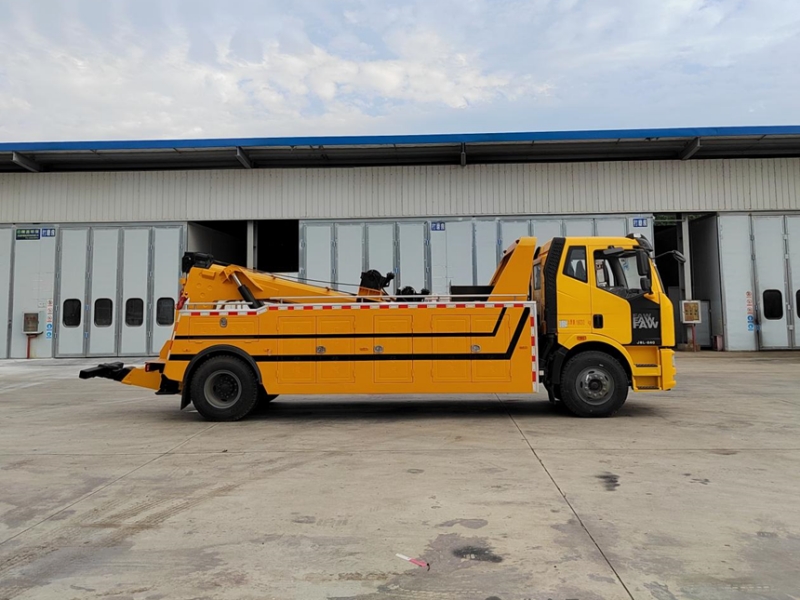

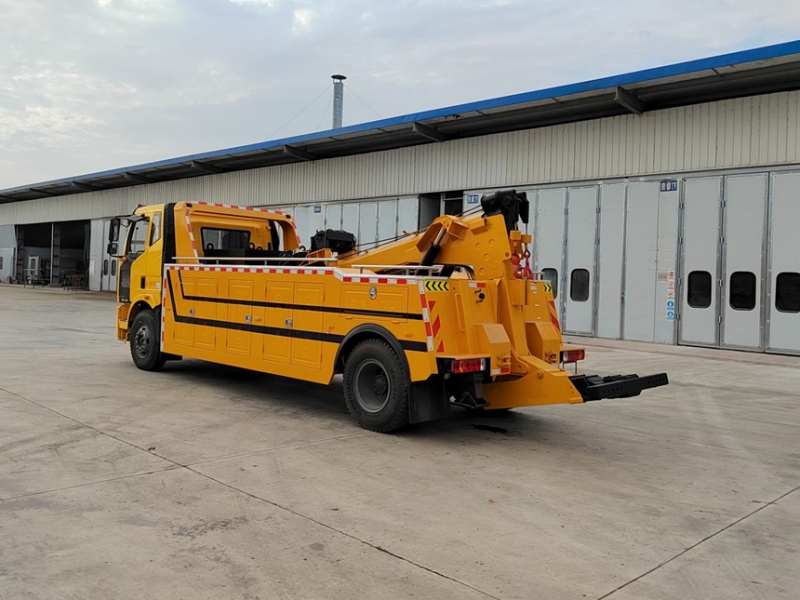

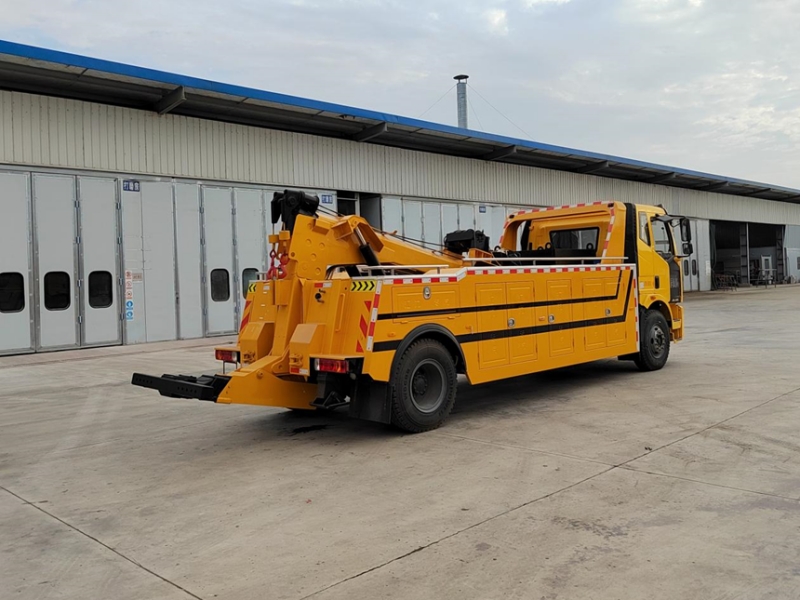

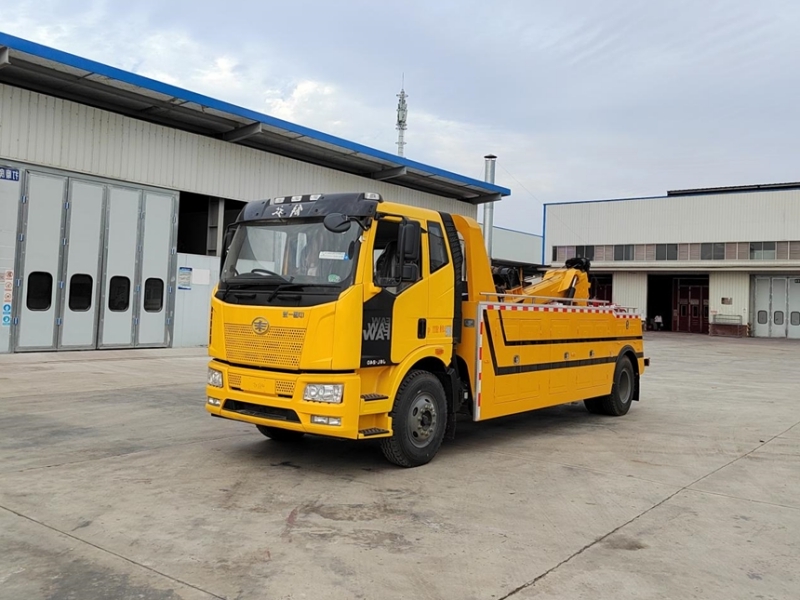

Jiefang J6L towing and lifting obstacle clearing vehicle
Chassis configuration: National VI emission standard, Jiefang J6L semi floating flat roof small displacement semi cab, 5800mm wheelbase, engine with 240 horsepower, electric glass lift, electric rearview mirror, air shock absorber seat, cruise switch, 8-speed gearbox, axle with Ø 435 welded bridge, ABS, speed ratio 4.875255 × 83 × (8+7+4), 10.00R20 type 18 level tires, automatic air conditioning, front lower protection device, metal bumper, electric hydraulic lifting device, suspension 10/12+8, 200L steel fuel tank, engine with a 50000 kilometer long oil change cycle, high-quality joints, right turn noise
Top configuration: 13T top, imported valve, two hexagonal suspension arms, three extendable rear support arms, split type car box, dual side linkage operation device, two 8-ton hydraulic winches, dual side toolboxes, 4 pairs of towing forks, 1 pair of towing fork seats, 1 pair of steel plate lifting ear towing forks, one set of auxiliary brake air pipe assembly, six link remote control, and the rest are made according to the company's normal standards.
| Product Name |
Jiefang J6L towing and lifting obstacle clearing vehicle |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
13500(Kg) |
| Rated weight(kg) |
/ |
| Cab |
J6L cab,Half floating flat top small row half cab |
| Engine brand & model |
CA6DH1-24E6 |
| Displacement(L)/Power(kw) |
179kw |
| Wheelbase(mm) |
5800mm |
| Axle Quantity |
2 |
| Transmission Type |
8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
/ |
| Tire Spec. & size |
10.00R20, 6+1 spare |
| Overall Dimension(mm) |
8960×2500×3080(mm) |
| Platform |
The tablet adopts a 5MM thick patterned integrated board |
| Crane specification |
without crane |
| Standard configuration |
/ |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Jiefang J6L towing and lifting obstacle clearing vehicle
An obstacle clearing vehicle (also called
a wrecker, a breakdown truck, recovery vehicle or
a breakdown lorry) is a vehicle used to move disabled,improperly parked, impounded, or otherwise indisposed motor vehicles. This
may involve recovering a vehicle damaged in an accident, returning one to a drivable surface in a mishap or inclement weather,
or towing or transporting one via flatbed to a repair
shop or other location.
This vehicle is mainly used for road block removal , and its main
specialized devices are flat plates, supporting arms, winches, steel wire
ropes, and oil cylinders.
