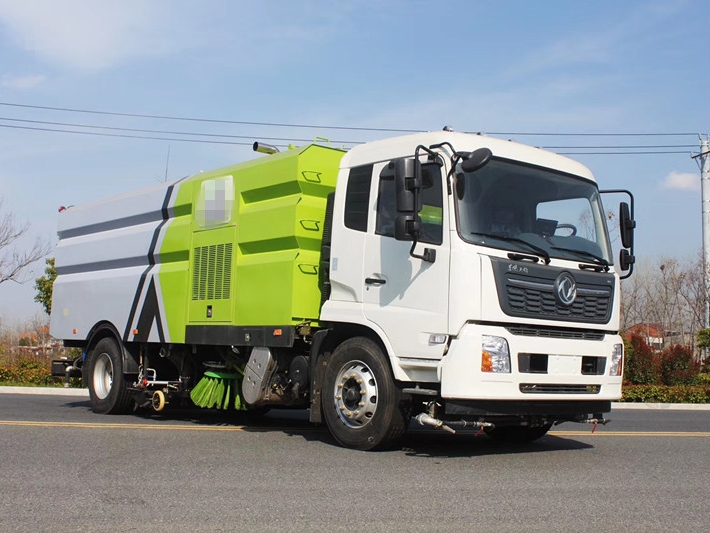

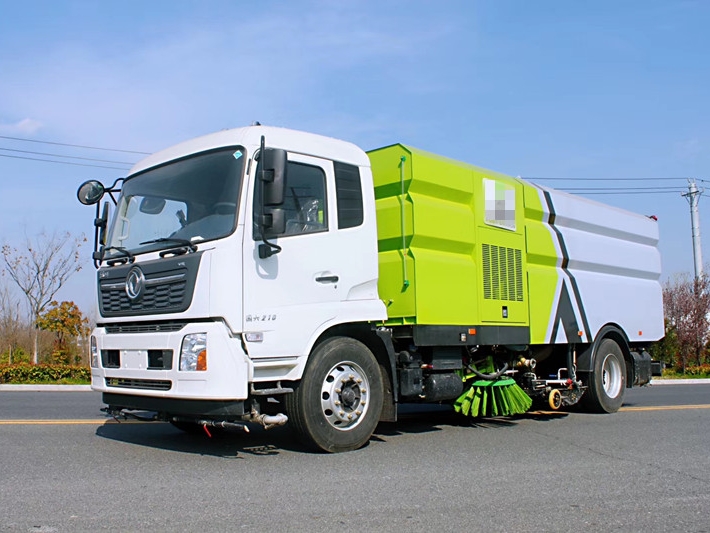

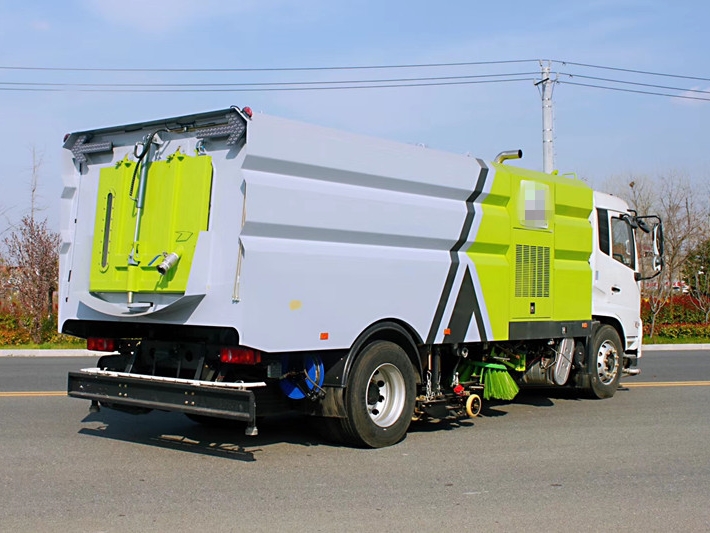

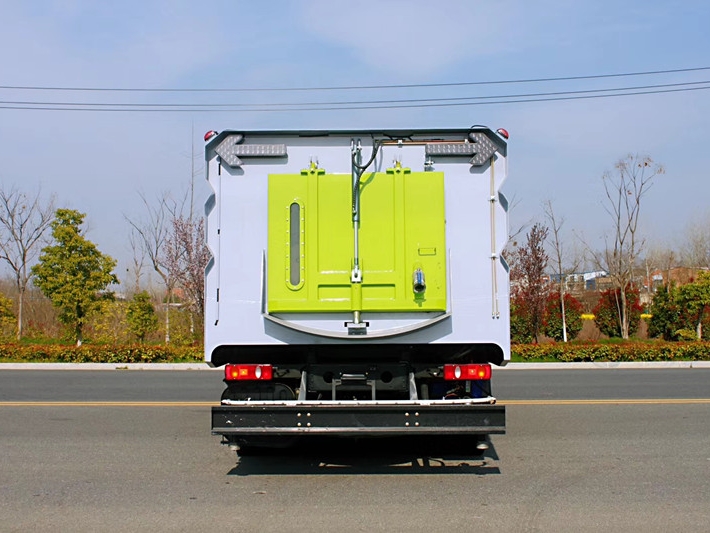

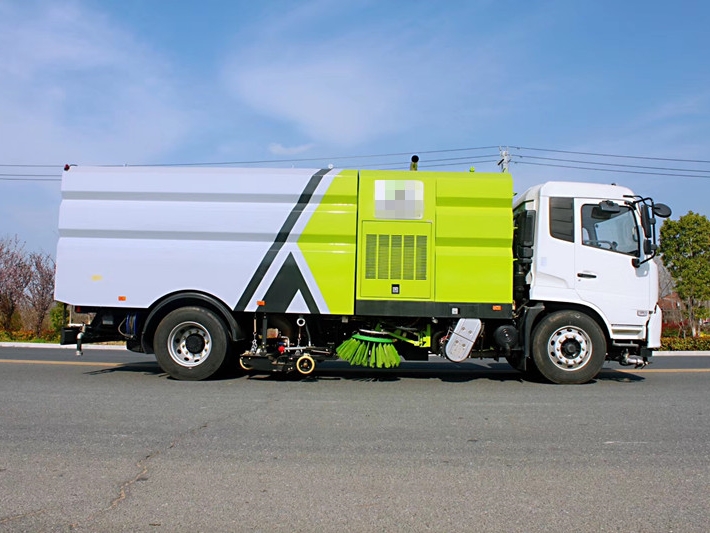

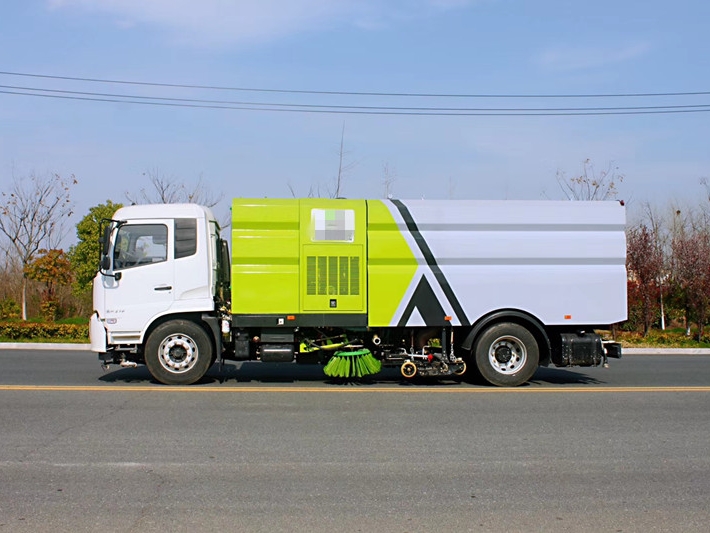

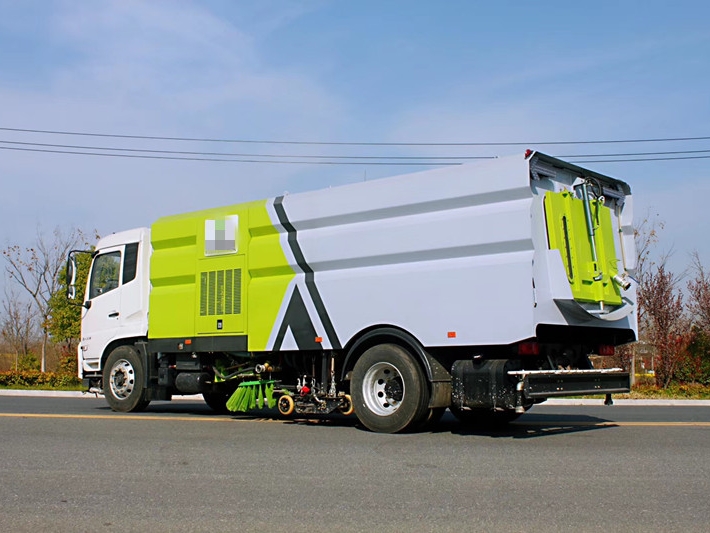

Dongfeng Tianjin VR 4X2 Cleaning and Sweeping Vehicle

The Dongfeng Tianjin 18 ton cleaning and sweeping vehicle adopts the Dongfeng Tianjin environmental sanitation special chassis, with a driving form of 4X2 and a wheelbase of 5000mm. The cab adopts Dongfeng Tianjin flat top with sleeper, high-end and atmospheric. Adopting the Cummins 210 horsepower joint venture between China and the United States, equipped with a Dongfeng 6-speed gearbox, a 9.0-ton rear axle, a 4.5-ton front axle, 9.00 steel wire tires, shock-absorbing seats, and a driver's cabin equipped with air conditioning, directional assistance, and clutch assistance, ABS。

Cleaning and sweeping vehicle is a multifunctional road sweeping vehicle mainly used for cleaning and sweeping operations on urban roads. It combines the functions of a sweeper and a floor scrubber, and can complete floor cleaning operations in one go, including sweeping, washing, and suctioning off floor dirt. Solid waste, particulate matter, sediment, dirt, and sewage will be removed and recycled.

Installation configuration:
1.Stainless steel water tank, stainless steel garbage bin, and discharge door opening speed of 45 degrees. The garbage bin is equipped with anti overflow alarm device and high-pressure spray cleaning device, and the water tank is equipped with a low water level sensing alarm system to reduce the labor intensity of operators. The cleaning operation width is 2.8-3.2 meters.
2.Equipped with 2 sweeping discs and Jiangling auxiliary engine; Italian motor, French Schneider control switch, Taiwanese solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Manual pump emergency system. The rotating mechanism of the front sweeping brush arm uses a high-tech wear-resistant engineering spacer sleeve, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe.
3.Cummins 170 horsepower auxiliary engine; Powerful motor; German high-pressure water pump (front flushing/side spraying/medium spraying/rear spray (stainless steel nozzle)/side flushing water gun/dustbin self-cleaning device); Wanxiang high-pressure roadside cleaning; Taiwan hydraulic valve group; Weilong low-pressure pump (front flushing); 4mm stainless steel garbage bin; 4mm stainless steel water tank; Stainless steel high-pressure pipeline; Double layer stainless steel vacuum cleaner; German controller; American sensors; Tail arrow light; Oil, garbage bins, and water tanks are all equipped with anti overflow or low-level alarm devices; Indoor monitor for reversing and cleaning status; Automatic reverse collision protection device; Maintenance of safety protection devices; The rotating mechanism of the sweeping arm uses a high-tech wear-resistant engineering spacer, which does not require oiling; 20m high-pressure flushing reel. Integrated motion controller, one click computer control.

Main Parameter

Product Name	Dongfeng Tianjin VR 4X2 Cleaning and Sweeping Vehicle
Cab	Dongfeng Tianjin VR Cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine	B6.2NS6B210, Cummins 210hp
Gearbox	Dongfeng 6-speed gearbox
Wheel base	5000(mm)
Axle numbers	2
Tire sepcification and quantity	9.00 steel wire tire, 6 + 1 spare tire
Vehicle dimension	8650,8350,8150,8950,9650,9750,10050×2500×3100(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	12000,11500(Kg)
Rated weight(Kg)	5870,5805,6370,6305(Kg)
Water tank capacity	9m³
Garbage bin capacity	7m³
Upper configuration	Modified from left and right vertical sweeping, wide suction nozzle with spray bar, low-pressure flushing system, sweeping disc dust reduction system, hydraulic system, dedicated device electrical control system, and subframe
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
