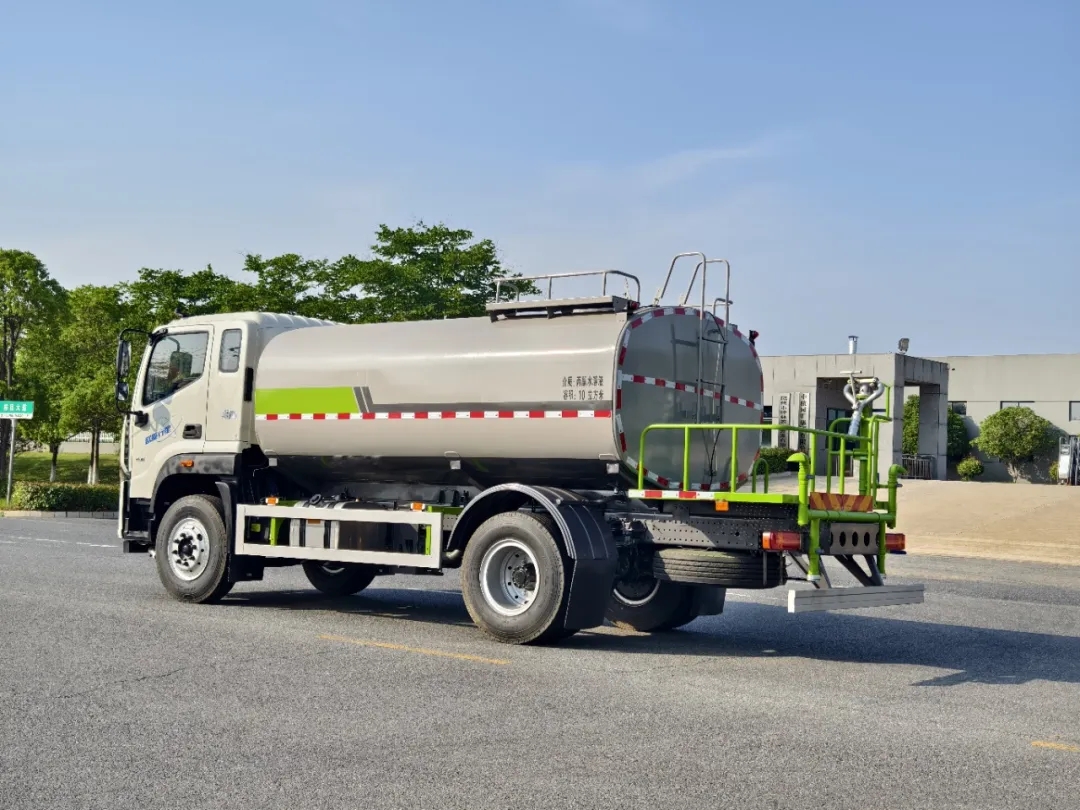

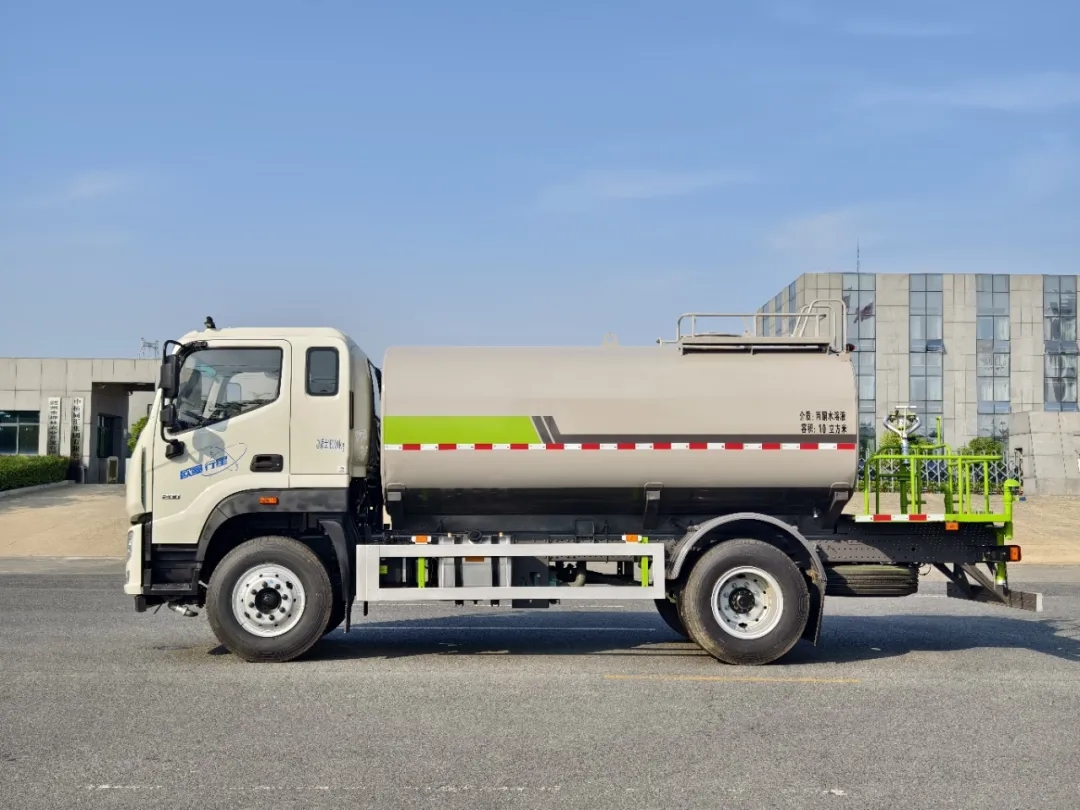

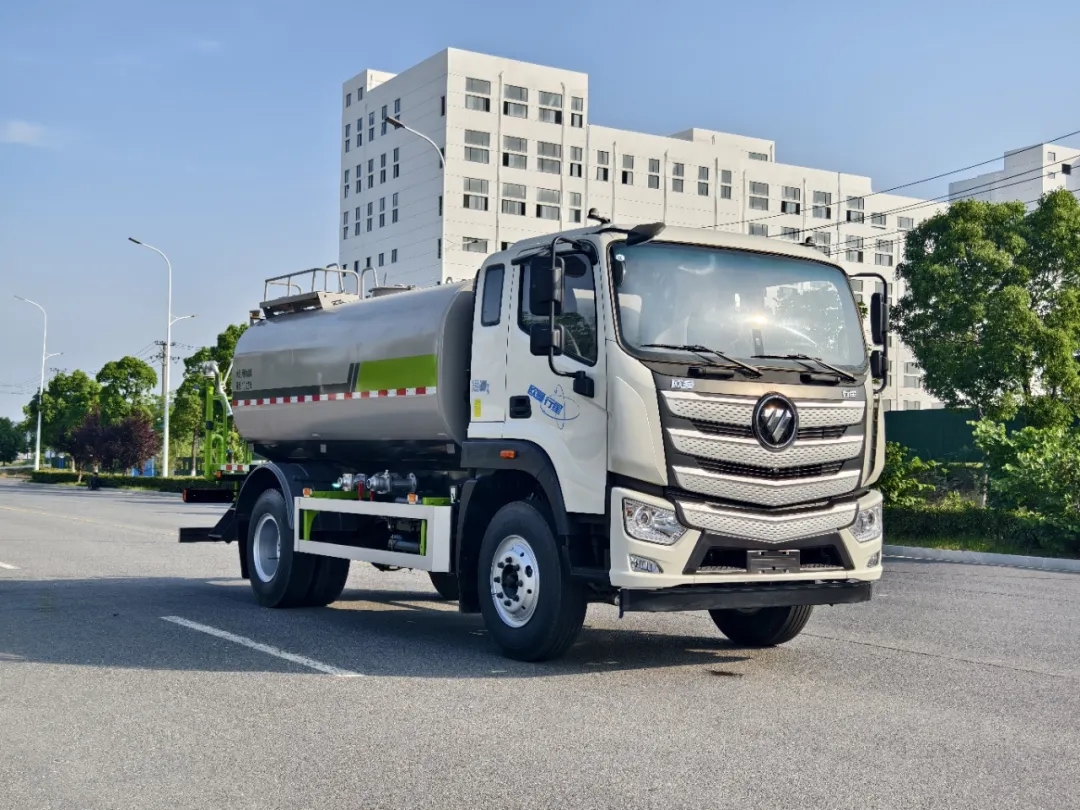

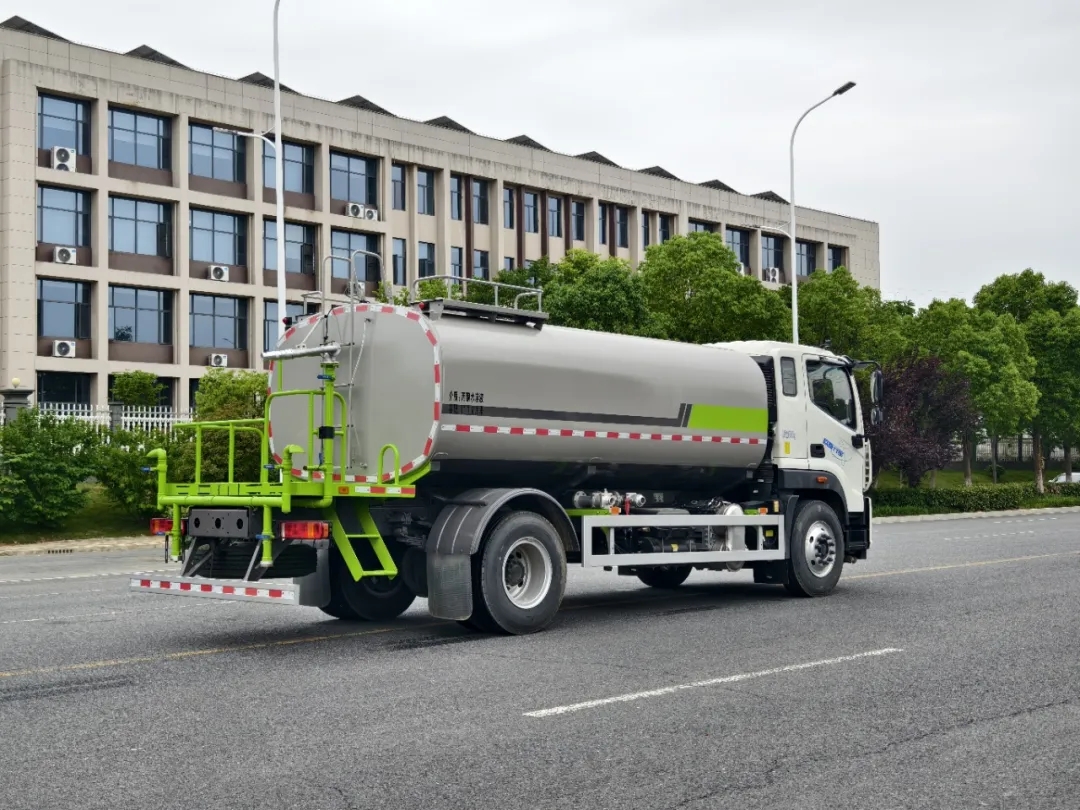

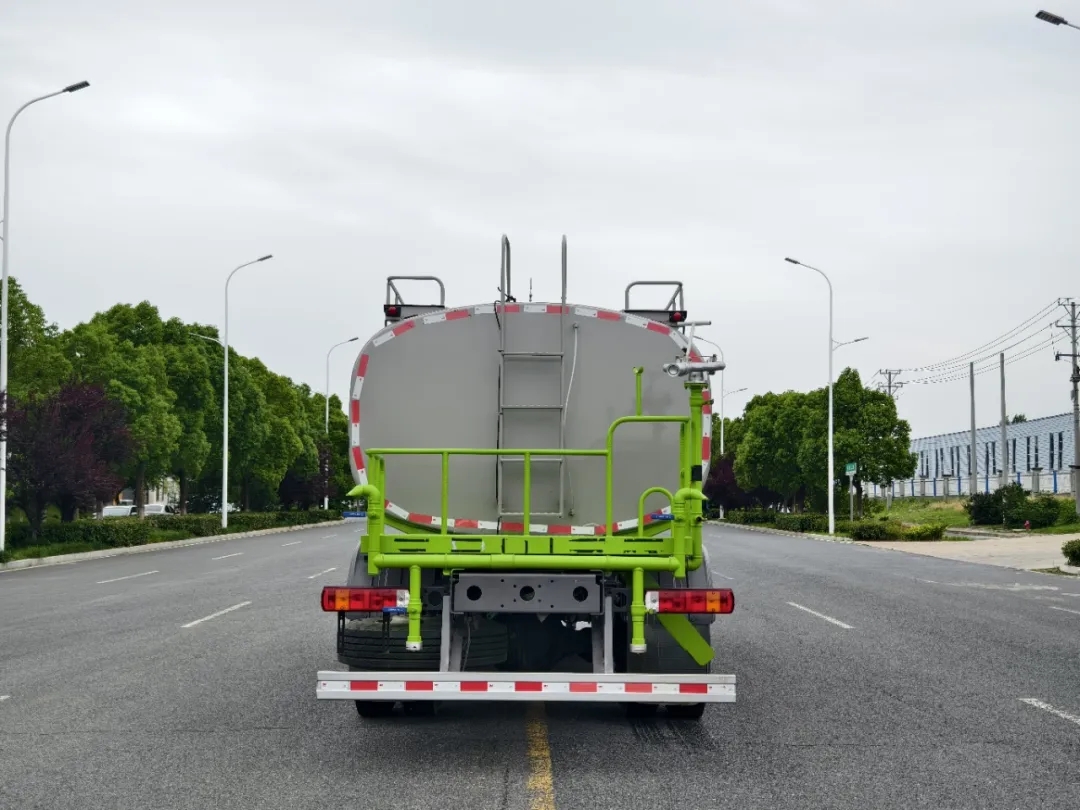

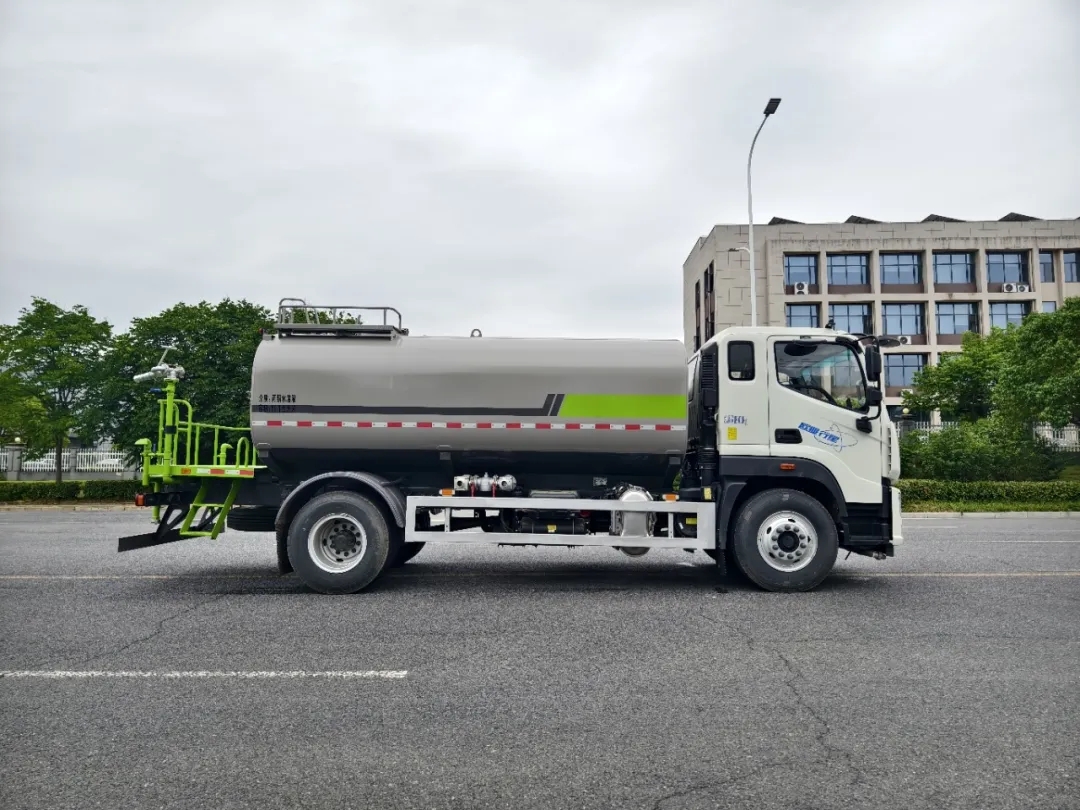

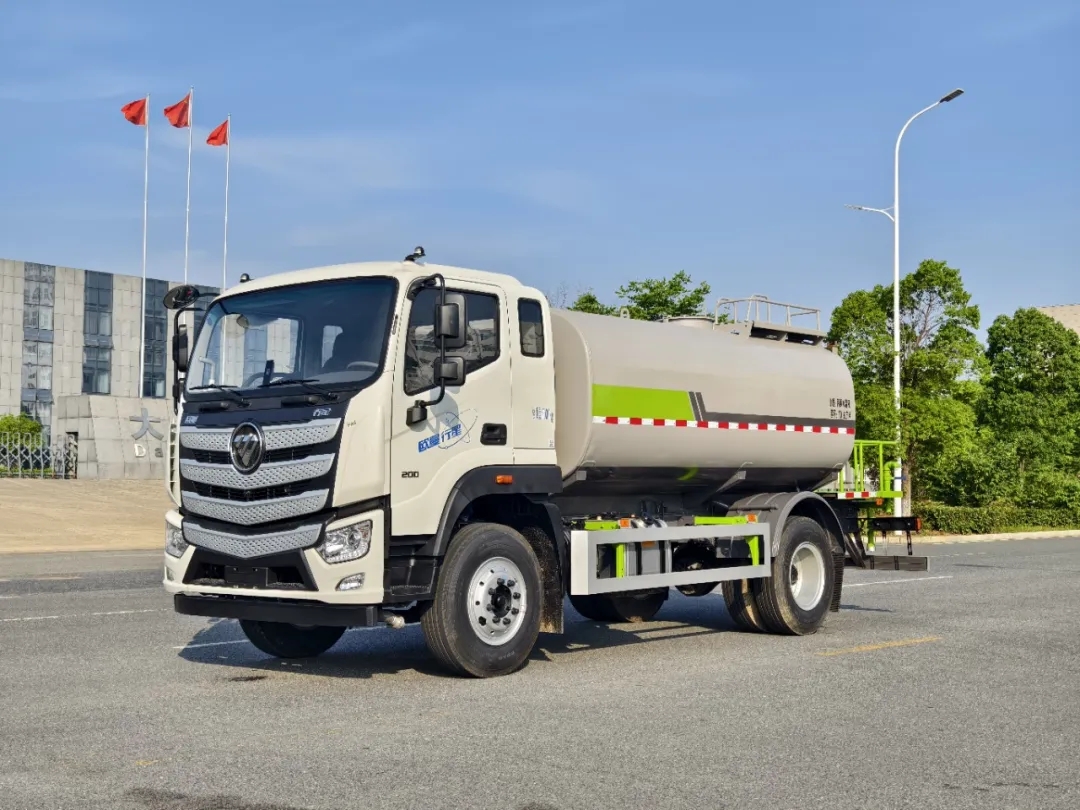

4X2 Mercedes Benz Auman 13m³ water truck
2024-10-09 15:48:19 Source：chusheng
4X2 Mercedes Benz Auman 13m³ water truck
Chassis configuration:
Yuchai 200/6-cylinder Yuchai 245 horsepower, 2350mm body, Fast 8-speed (with synchronizer power take-off), 10 ton/11 ton rear axle, 3950mm/4500mm wheelbase, 250 double-layer beam, electric doors and windows, central locking, air conditioning, multifunctional steering wheel, airbag shock absorber seats, cruise control, power take-off, ABS, standard 10.00R20 large tires!
Product advantages and selling points:
① The iconic 4-piece chrome plated diamond front face of the Ouman heavy-duty truck exudes a tough and domineering aura
② Optional Yuchai 200, 6-cylinder engine/Yuchai 245 horsepower, powerful
③ Fast 8-speed gearbox with synchronizer, smooth shifting and silky operation
④ Original power take-off switch enjoys three guarantee services
⑤ According to user needs, the standard for loading volume can be selected from 13-15 cubic meters
⑥ Standard 10.00 steel wire tire! 250mm straight through double-layer beam, 10/10+8 reinforced and thickened leaf springs, 11 ton rear axle, unbeatable load-bearing capacity!
⑦ Mercedes Benz technology tailors a specialized chassis for sprinkler trucks, paired with an upper mount for perfect integration, efficient operation, energy-saving and reliable!
| Product Name |
4X2 Mercedes Benz Auman 13m³ water truck |
| Driving type |
4X2 |
| Engine Model |
Yuchai 200/6-cylinder Yuchai 245 horsepower |
| Engine horsepower |
Yuchai 200/6-cylinder Yuchai 245 horsepower |
| Engine displacement |
6.23L |
| Gearbox |
Fast 8-speed gearbox |
| Tire specification |
10.00R20 18PR,275/80R22.5 18PR, 6+1 spare |
| Wheel base (mm) |
3950,4200,4500,4700,5100 |
| Gross vehicle weight(Kg) |
18000 |
| Curb weight(Kg) |
6900,6500 |
| Rated weight(Kg) |
10905,10970,11305,11370 |
| Vehicle dimensions (mm) |
8100,7700×2500,2550×3200 |
| Tank volume(cbm) |
13 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
40/50 |
| Tank material |
Q235 carbon steel |
| Additional configuration |
Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 Mercedes Benz Auman 13m³ water truck
Water truck, also known as water sprinking truck,
multifunctional sprinkler truck, or garden greening sprinkler truck. Sprinkler
trucks are suitable for various road surface cleaning, tree, green belt, lawn
greening, road, factory and mining enterprise construction, and high-altitude
building cleaning. Sprinklers can also be used as water transport vehicles, and
the most common types of vehicles include sanitation sprinklers,
multifunctional sprinklers, and green sprinklers.
