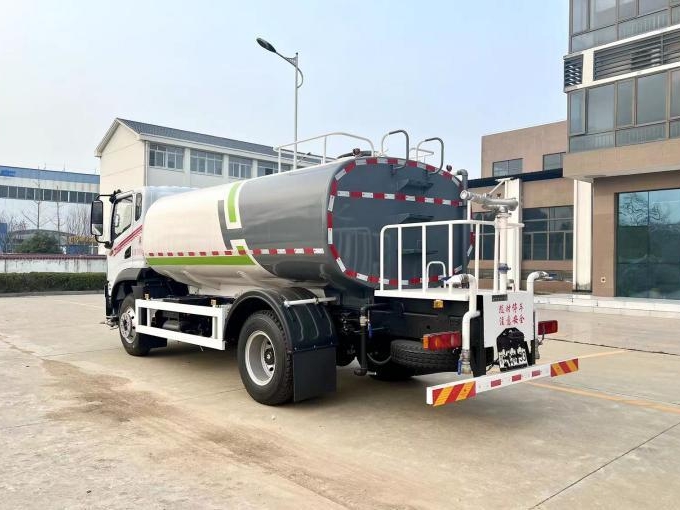

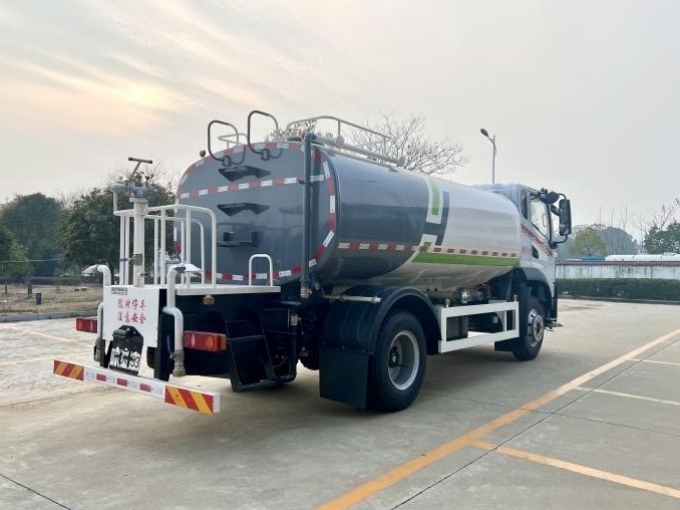

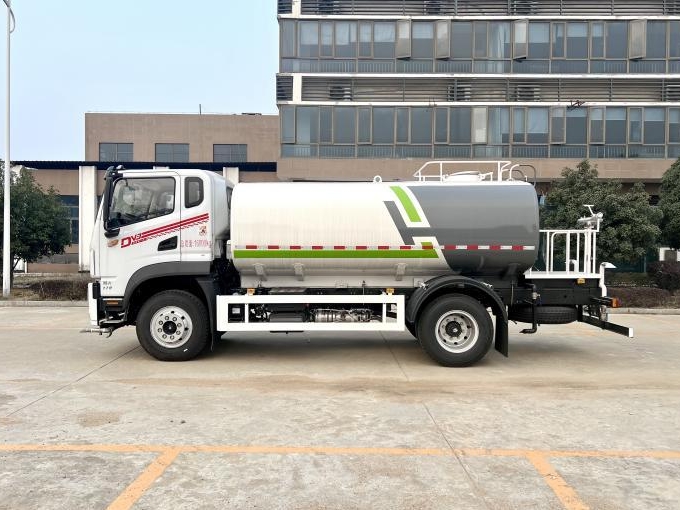

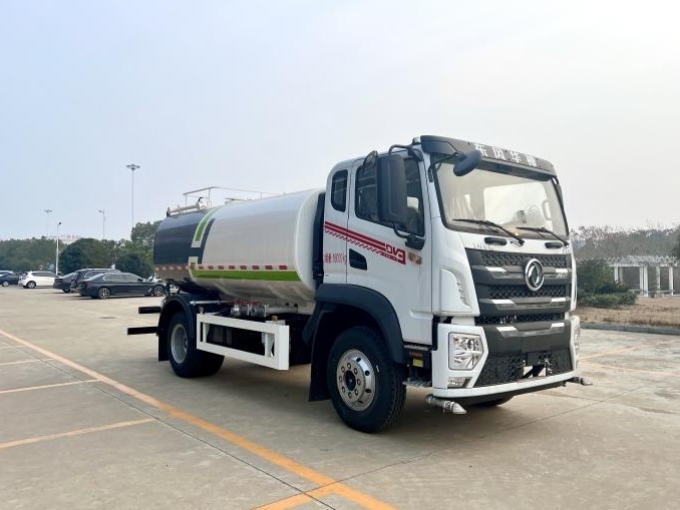

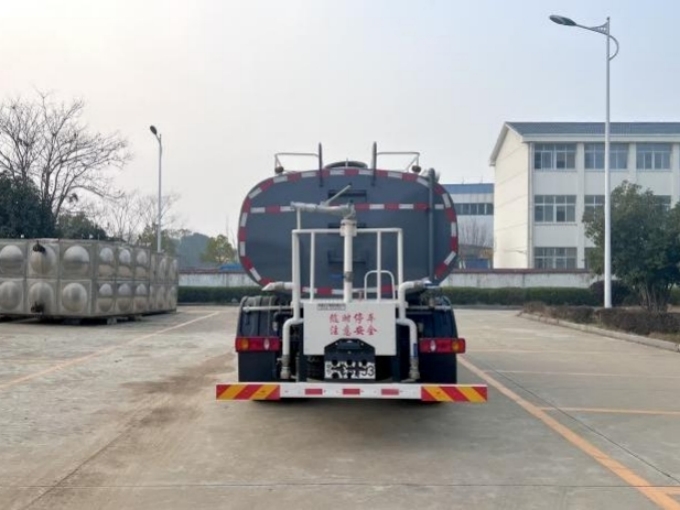

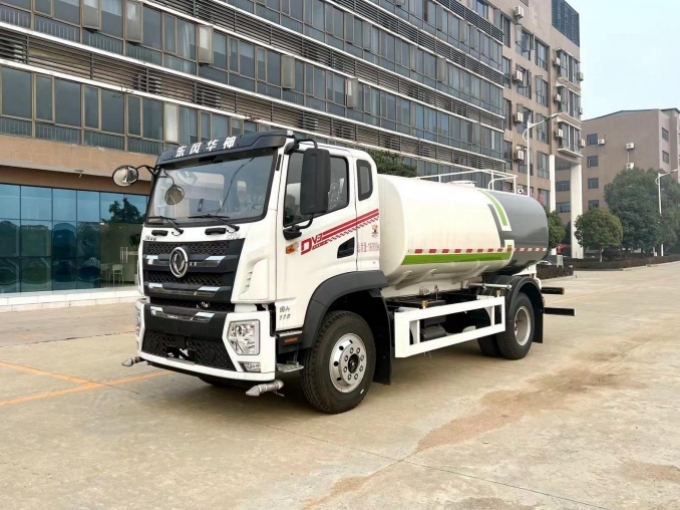

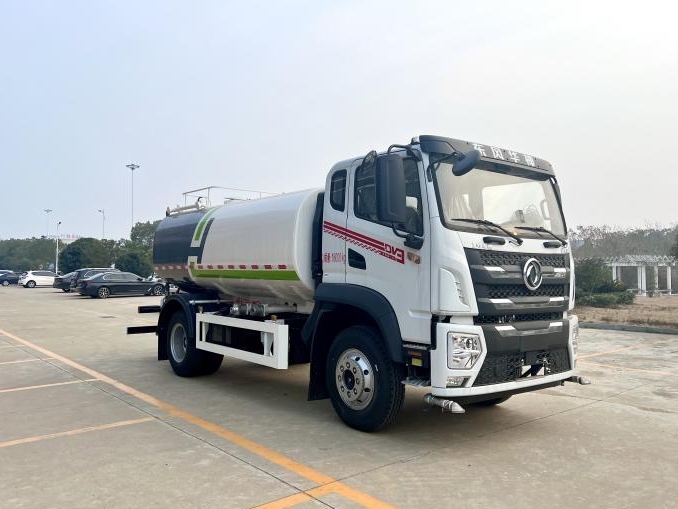

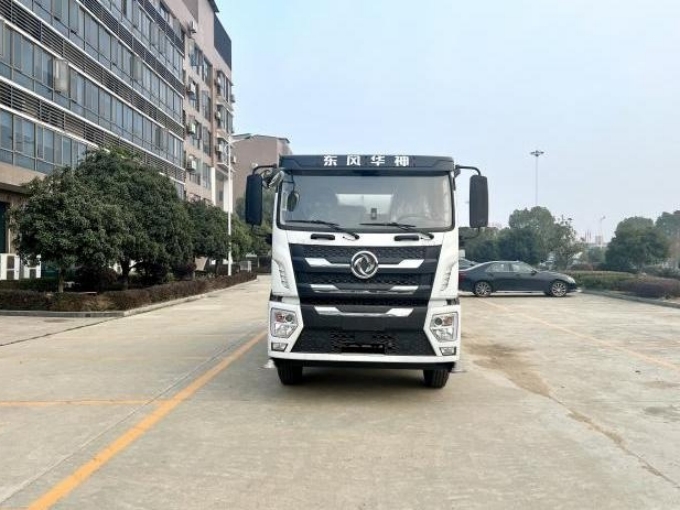

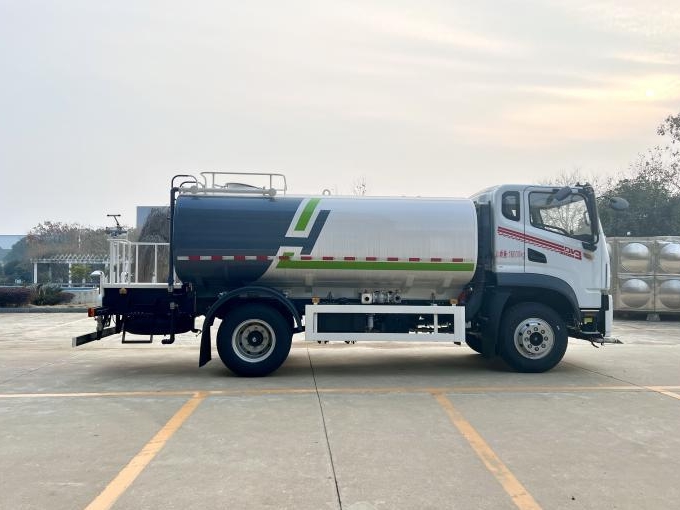

Dongfeng DV3 12m³ water tank truck
2024-10-09 15:48:19 Source：chusheng
Dongfeng DV3 12m³ water tank truck
Chassis configuration:
1. Engine: Yuchai 170hp
2.Transmission type: 8-speed transmission
3.Tyre:7.00 steel wire tire
4.Wheelbase:3950mm
5 other: Air brake, multifunctional steering wheel, original air conditioning, electric doors and windows, central locking system, driving recorder, sunshade..
Installation configuration:
1.The tank body is about 12 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
| Product Name |
Dongfeng DV3 12m³ water tank truck |
| Engine Model |
YCY30170-60 |
| Engine horsepower |
Yuchai 170hp/125KW |
| Engine displacement |
2.9L |
| Gearbox |
8 forward gears and 1 reverse gear |
| Tire specification |
9.00 steel wire tire |
| Wheel base (mm) |
3950 |
| Gross vehicle weight(Kg) |
16000 |
| Curb weight(Kg) |
6600,6400,6300 |
| Rated weight(Kg) |
9205,9270,9405,9470,9505,9570 |
| Vehicle dimensions (mm) |
8260,8100,7760,7600×2500×3100,3200 |
| Tank volume(cbm) |
12 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
60/90 |
| Tank material |
Q235 carbon steel |
| Additional configuration |
Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng DV3 12m³ water tank truck
Water truck, also known as sprinkler truck,
multifunctional sprinkler truck, or garden greening sprinkler truck. Sprinkler
trucks are suitable for various road surface cleaning, tree, green belt, lawn
greening, road, factory and mining enterprise construction, and high-altitude
building cleaning. Sprinklers can also be used as water transport vehicles, and
the most common types of vehicles include sanitation sprinklers,
multifunctional sprinklers, and green sprinklers.
Parameters
