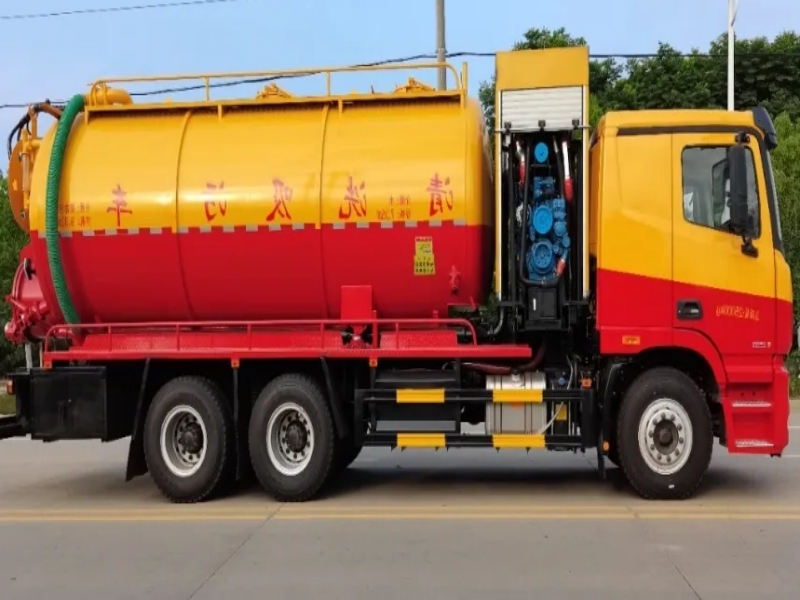

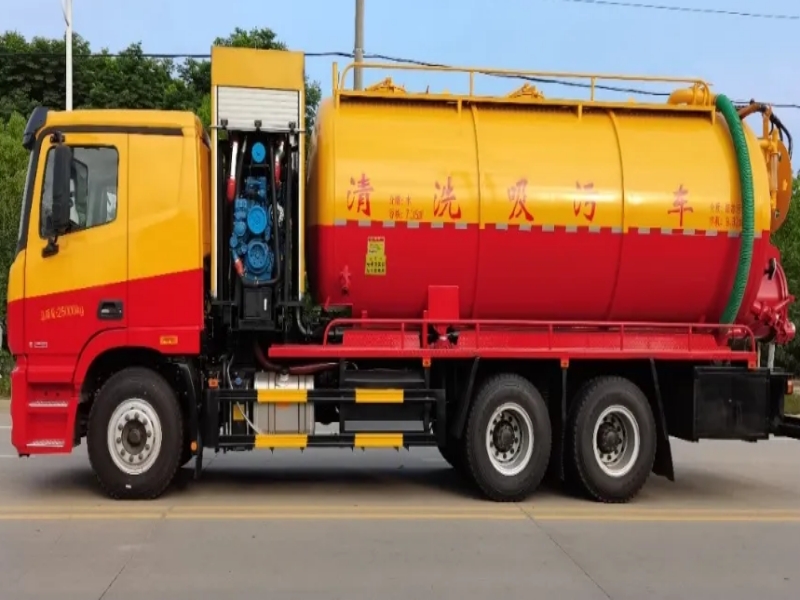

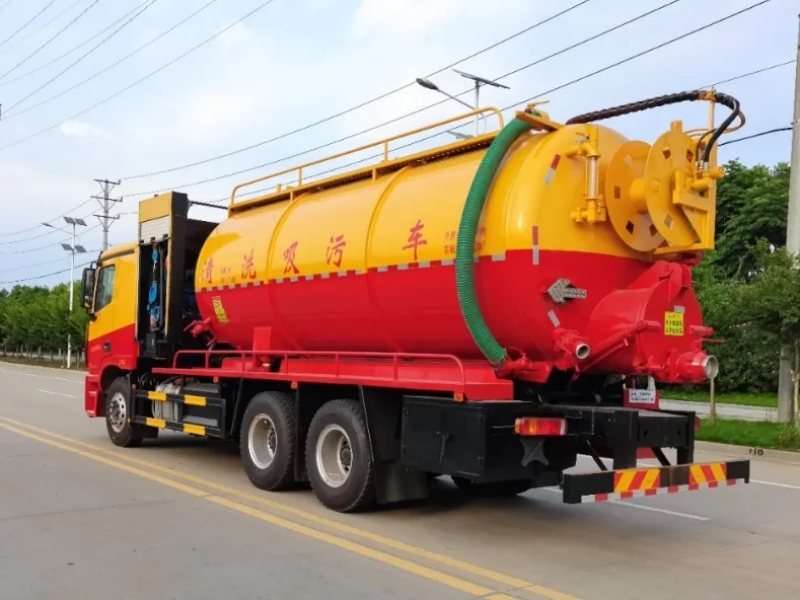

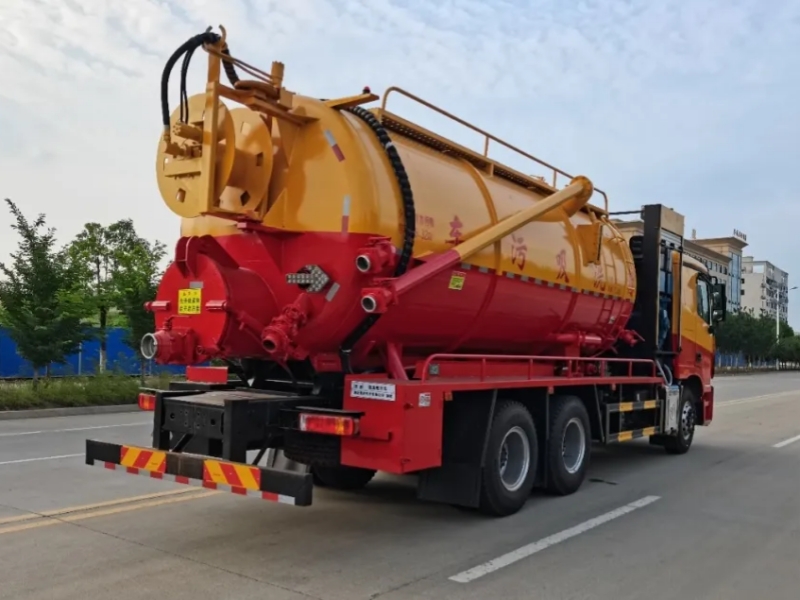

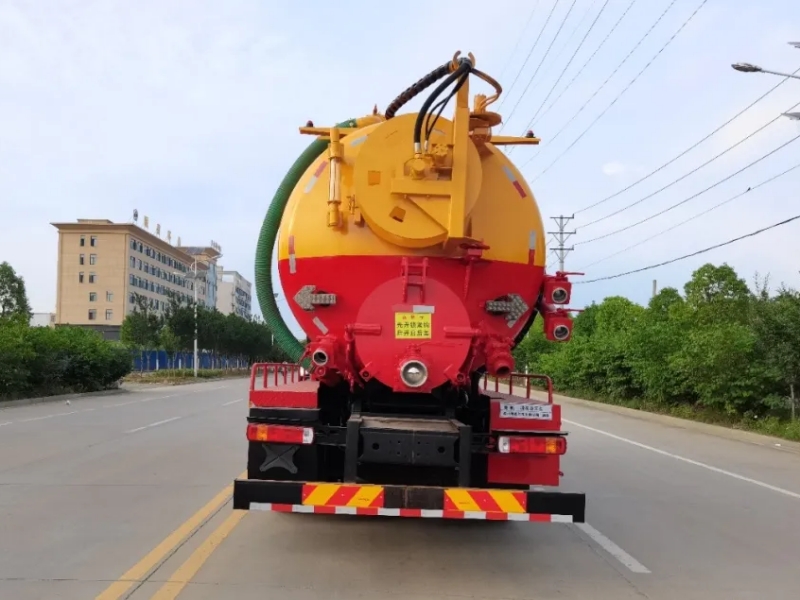

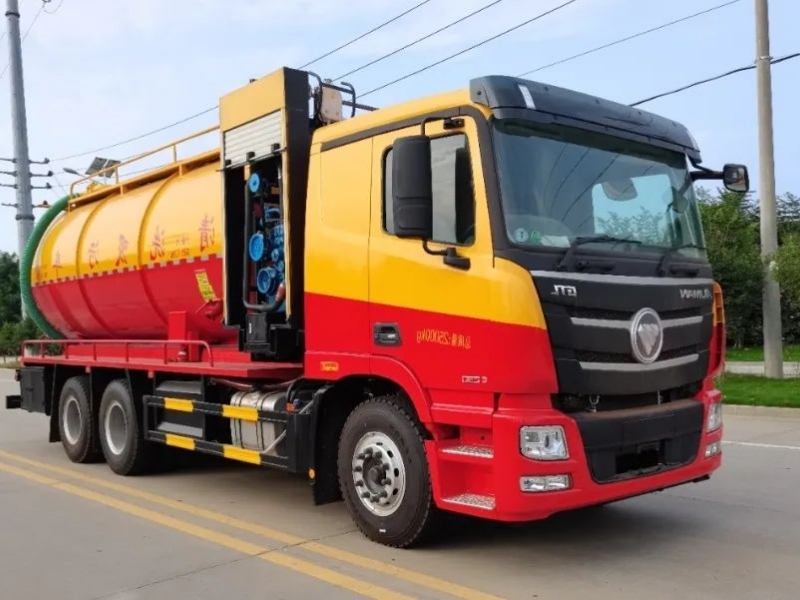

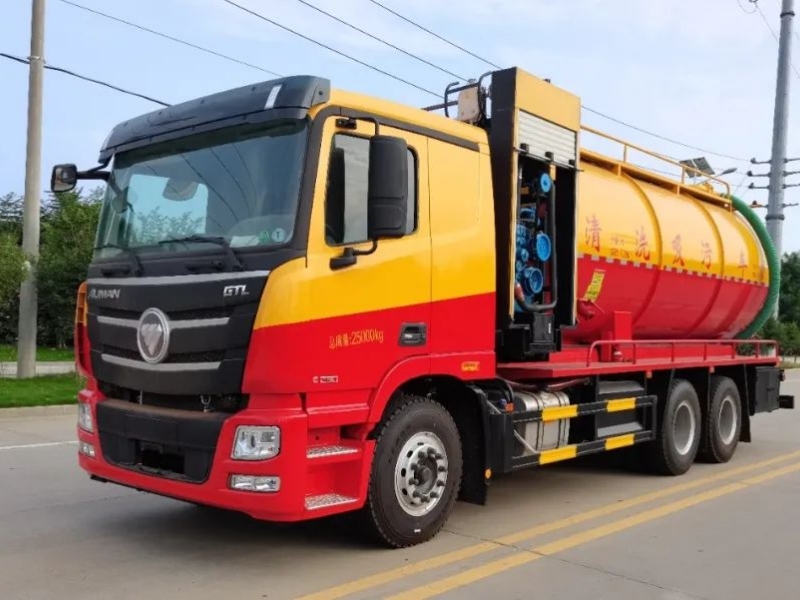

Mercedes Benz Auman 6X4 cleaning and suction truck
2024-10-07 09:54:11 Source：chusheng
Mercedes Benz Auman 6X4 cleaning and suction truck
Chassis configuration
1.Engine:D6.7NS6B290, Cummins 290hp
2.Transmission type: Fast 8-speed with synchronizer and power take-off
3.Tyre: 11.00R20 steel wire tire, 10+1 spare
4.Wheelbase: 4400+1350(mm)
5 Other: Remote key, PTO electric doors and windows, central locking, air conditioning, optional multifunction steering wheel, electric flip, 7-inch instrument panel+reverse image+reverse radar, flange or spline power take-offUpper configuration:
The Front compartment clear water tank 7 cubic meters, rear compartment suction tank 15 cubic meters, with water and sewage interconnection. It is made of high-quality steel plates from Wugang, with a wall thickness of 6mm and a clean water tank thickness of 4mm. It is equipped with a 215 flow high-pressure pump and a filtering device
| Product Name |
Mercedes Benz Auman 6X4 cleaning and suction truck |
| Driving Type |
6X4 |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(Kg) |
17700(Kg) |
| Rated weight(kg) |
7170(Kg) |
| Wheelbase(mm) |
4400+1350(mm) |
| Overall Dimension(mm) |
10250×2550×3850,3950(mm) |
| Tank volume(cbm) |
22m³ |
| Engine brand & model |
D6.7NS6B290, Cummins 290hp |
| Displacement(L)/Power(kw) |
6.7L/213kW |
| Axle Quantity |
3 |
| Transmission Type |
Fast 8-speed with synchronizer and power take-off |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
11.00R20 steel wire tire, 10+1 spare |
| Cab |
Mercedes Benz Ouman GTL2500mm driver |
| Tank material |
8mm carbon steel |
| Standard configuration |
Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Mercedes Benz Auman 6X4 cleaning and suction truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.Product parameters
