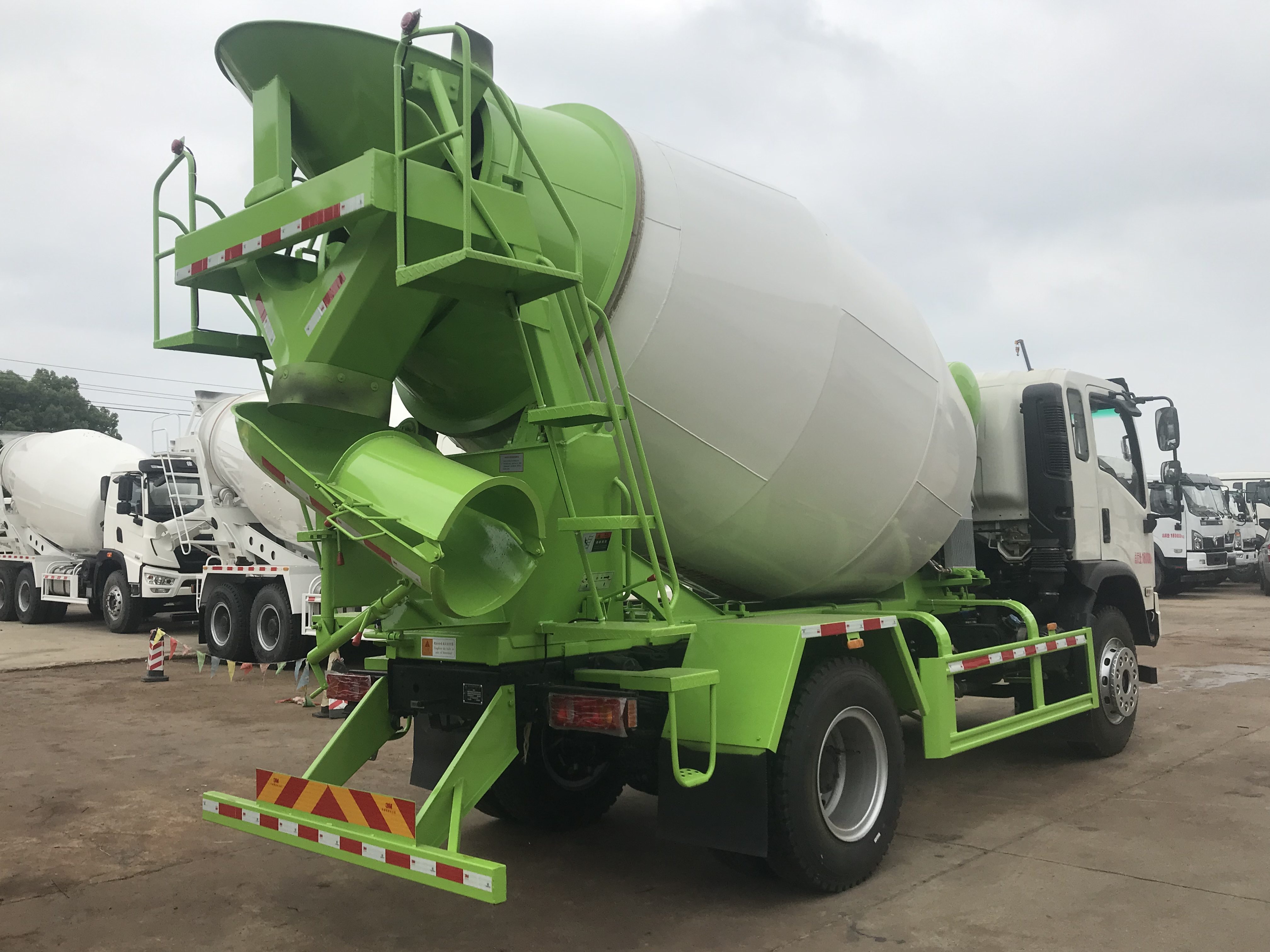

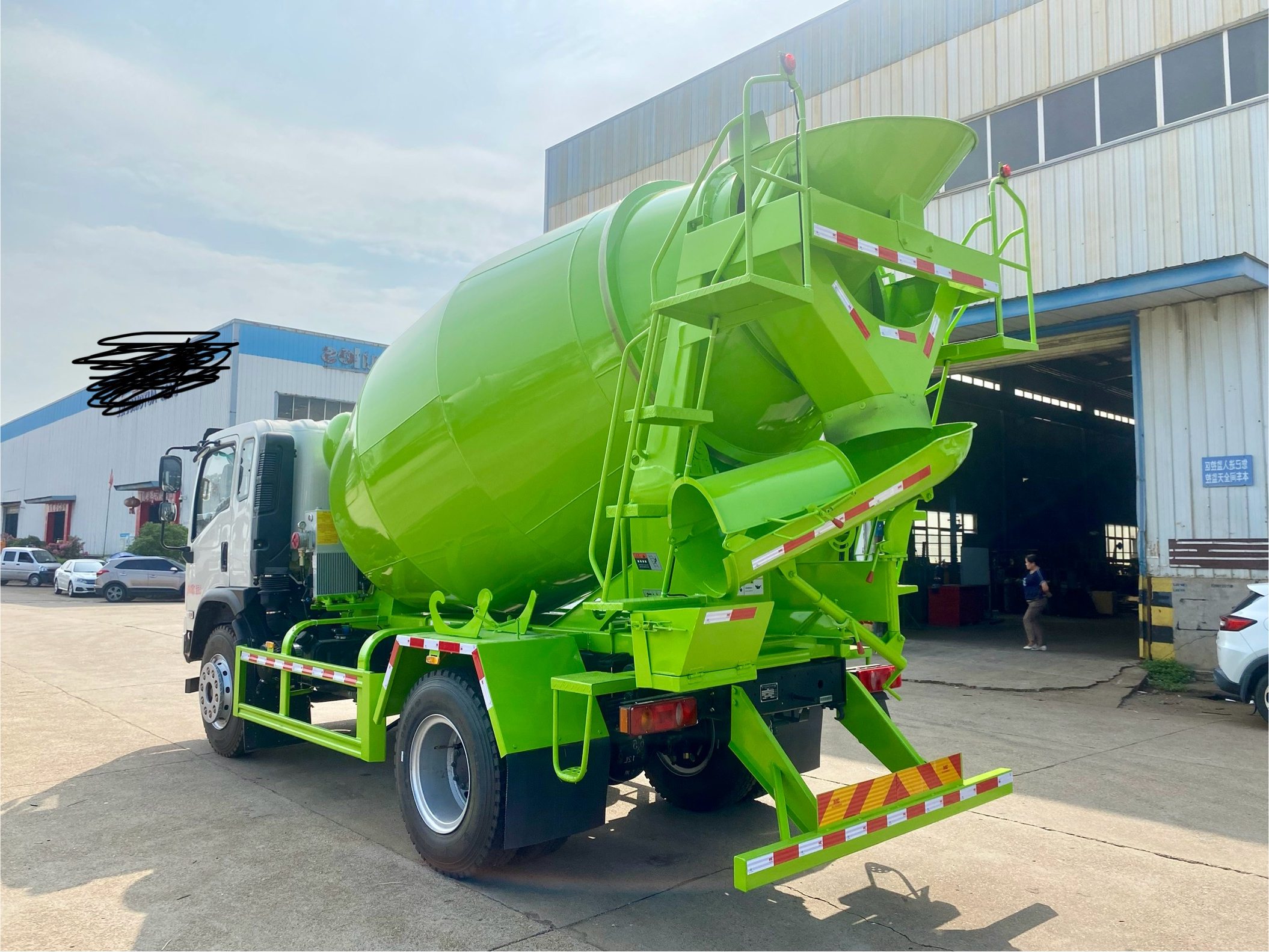

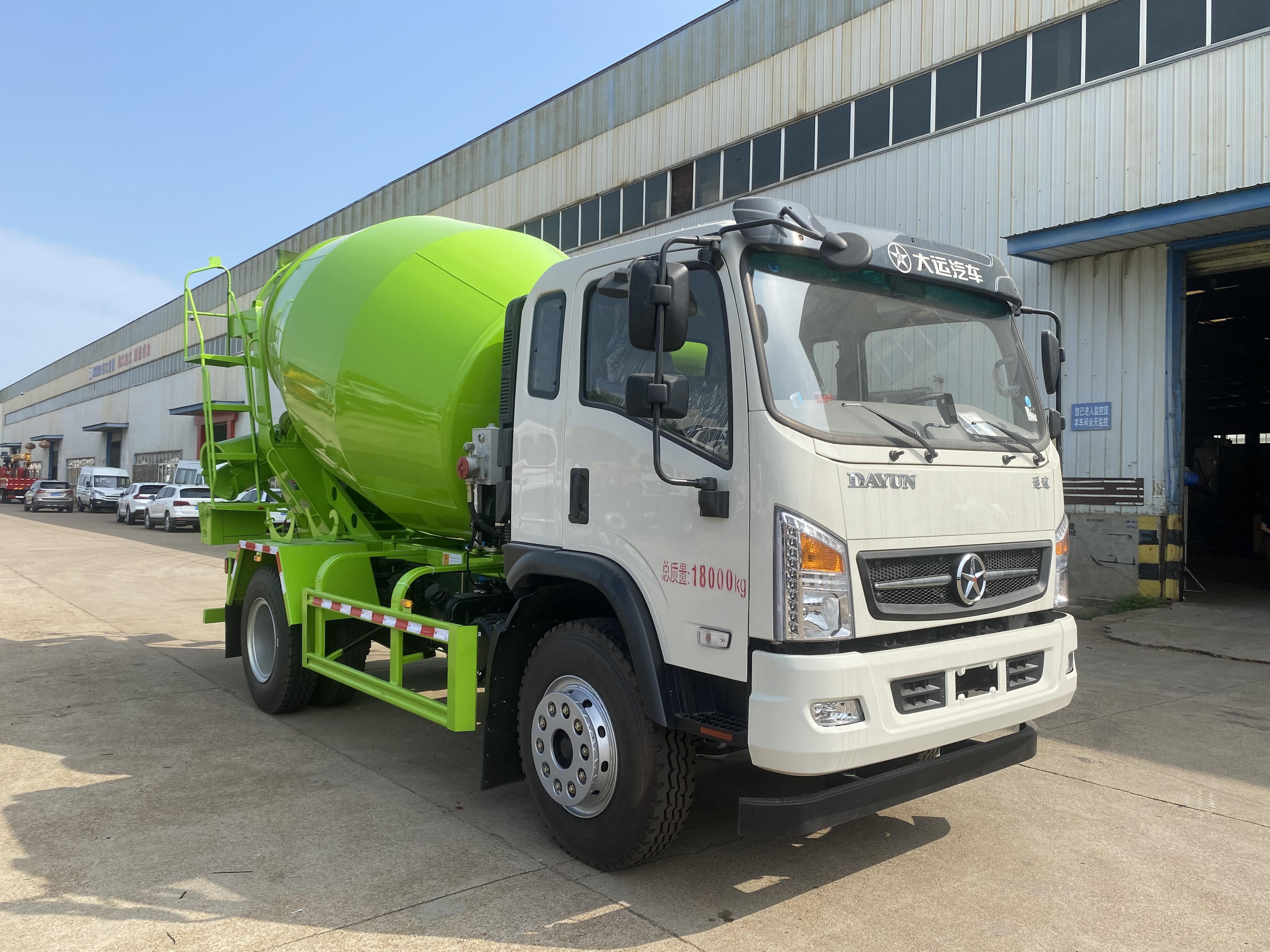

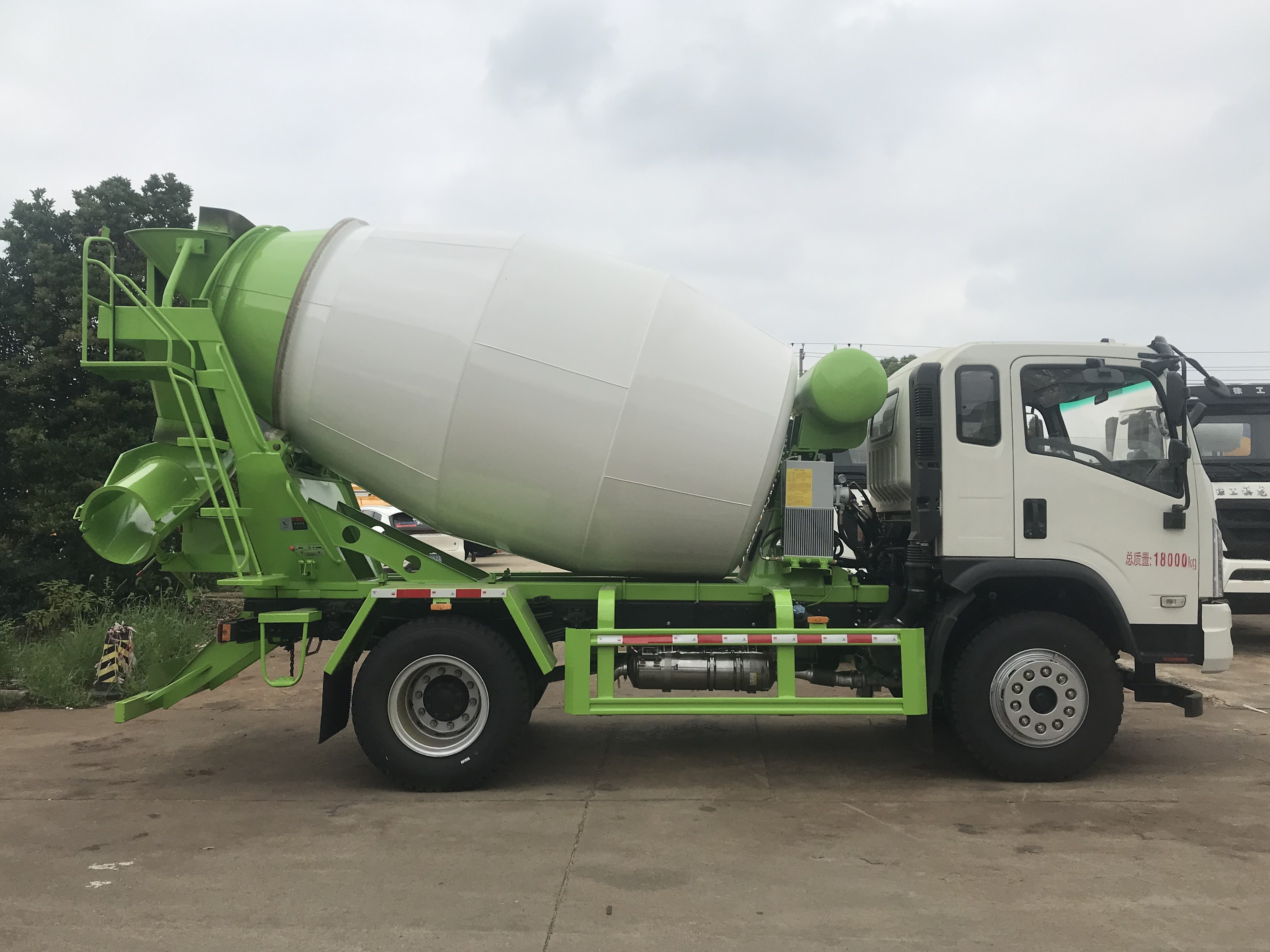

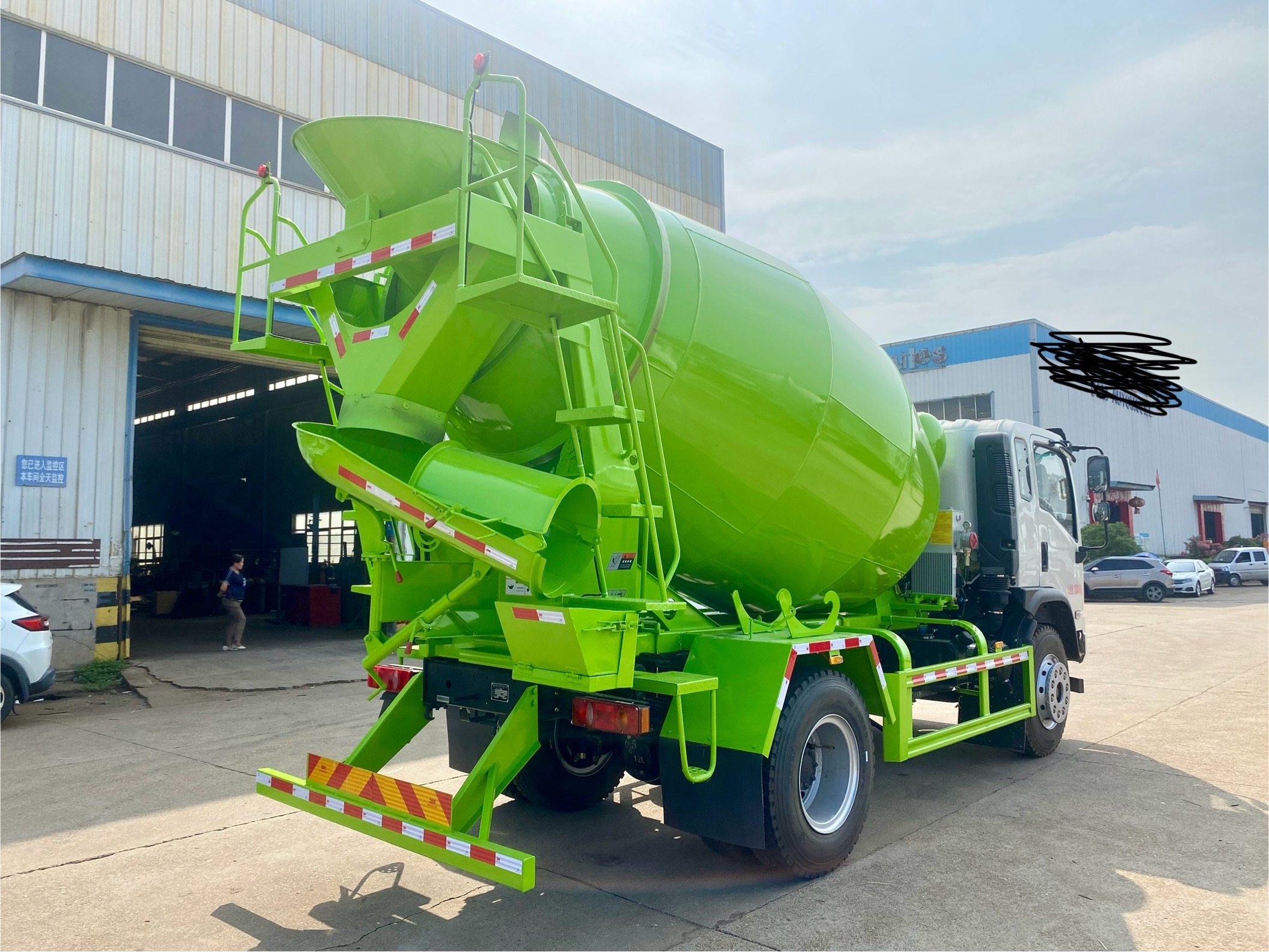

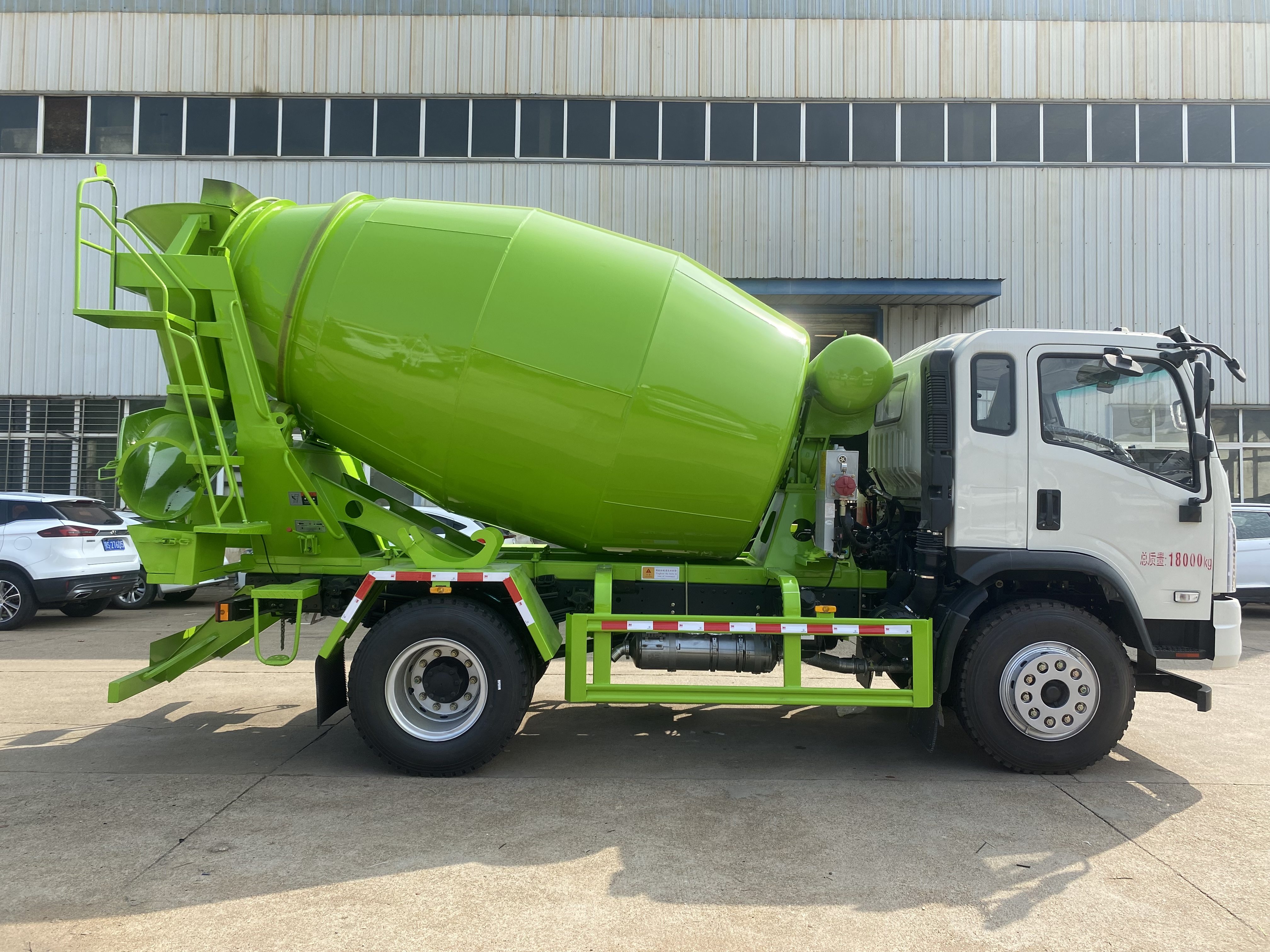

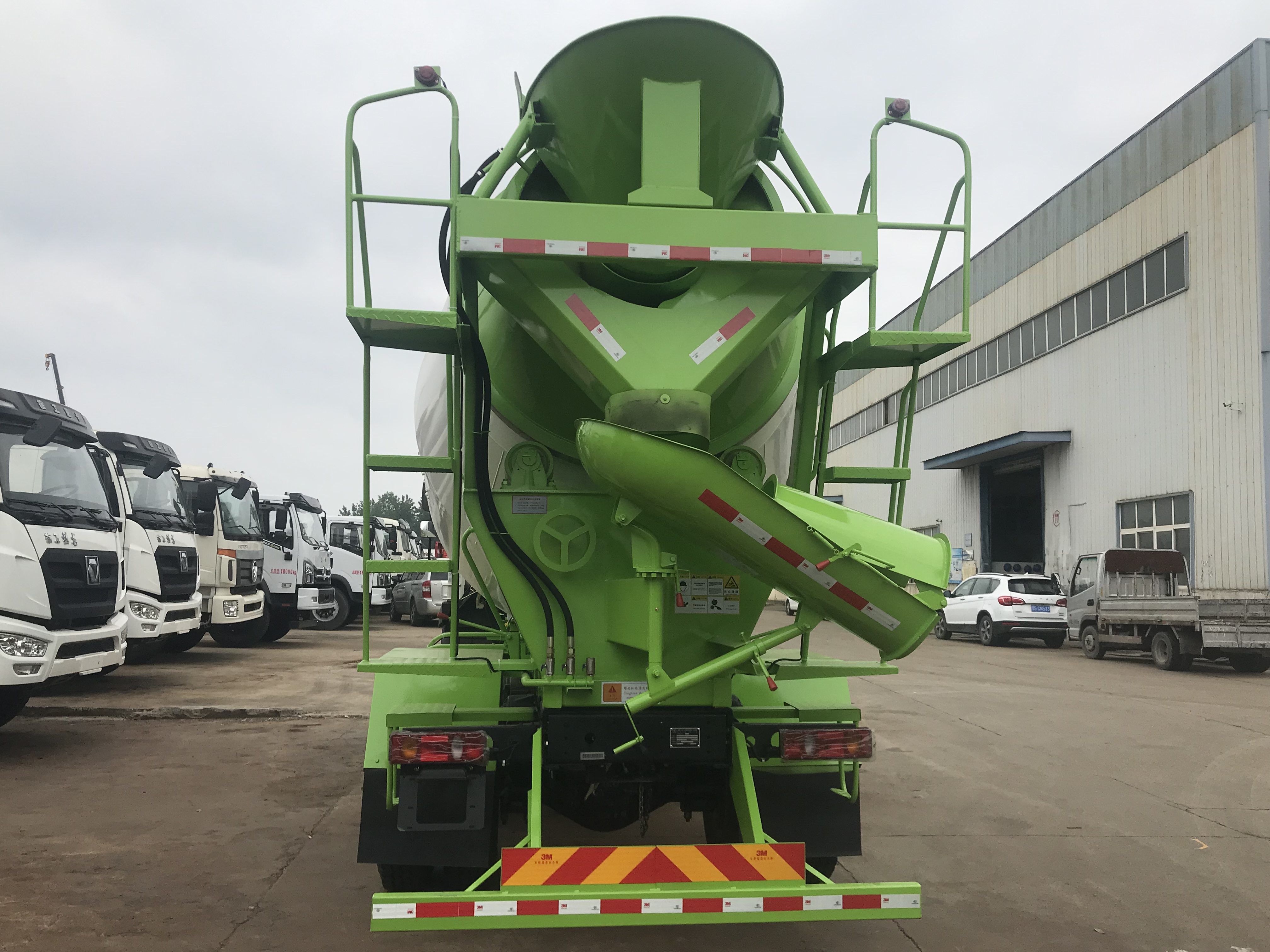

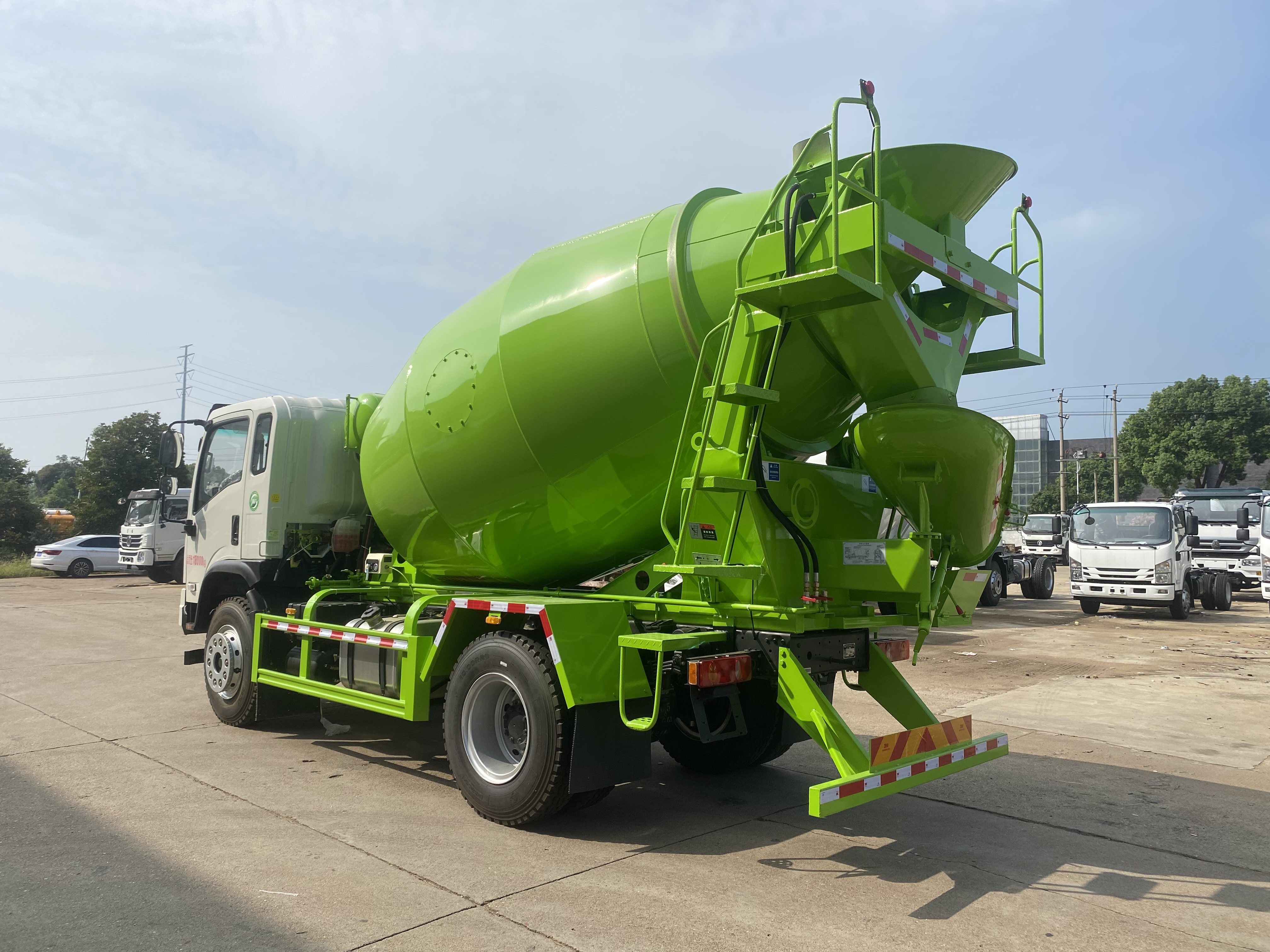

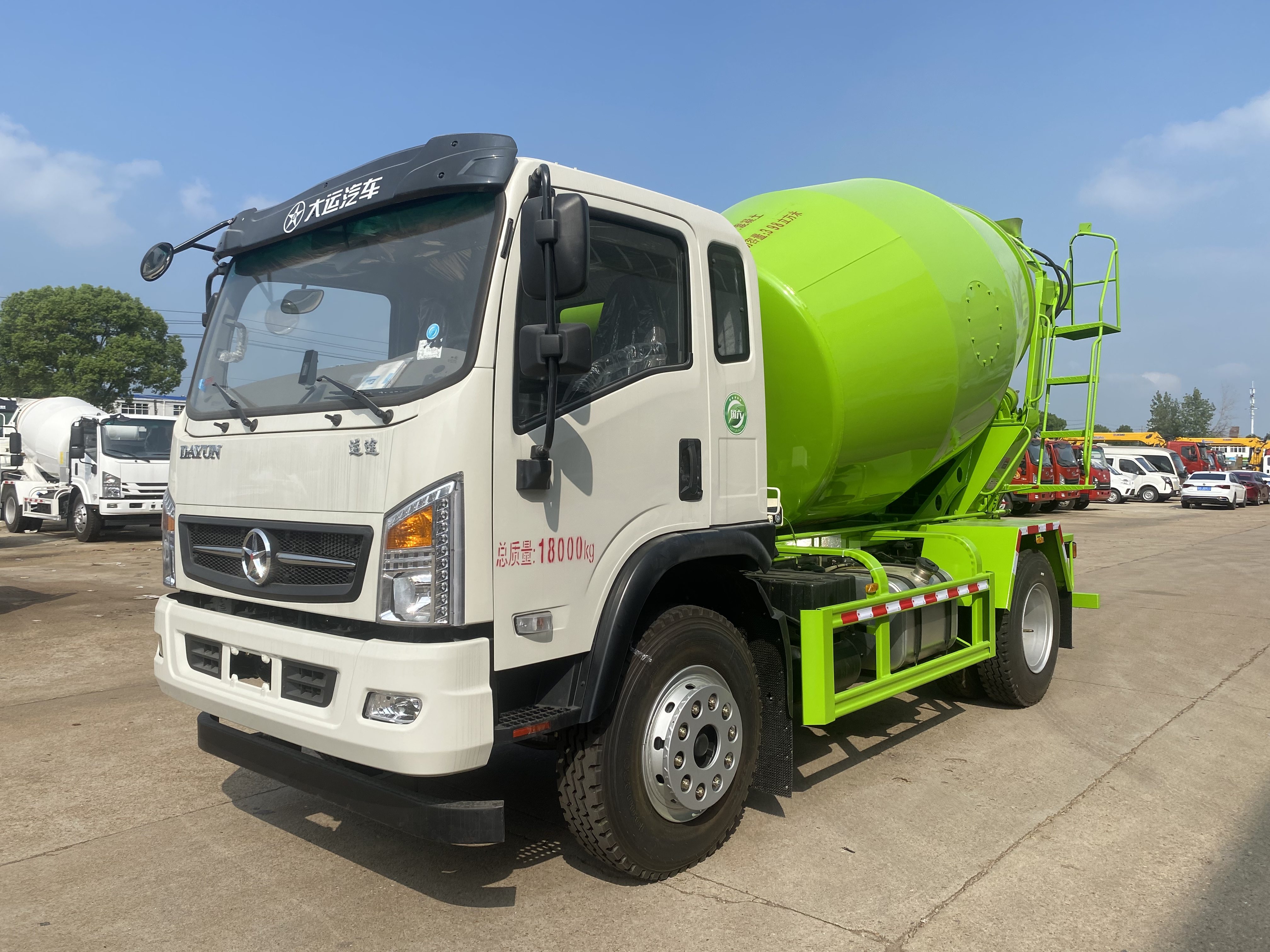

4X2 Dayun Yuntu 7m³ Concrete Mixer Truck
2024-10-07 09:54:11 Source：chusheng
Basic parameters of the vehicle:
1. Engine: YCS04200-68 Yuchai four cylinder 200 horsepower engine
2. Vehicle dimensions: 7235X2400/2500X3730mm
3. Total mass: 18000kg
4. curb weight: 8245kg
5. Rated load capacity: 9560kg
6. Tires: 10.00R20/18PR steel wire tire
7. Wheelbase: three thousand and six hundred

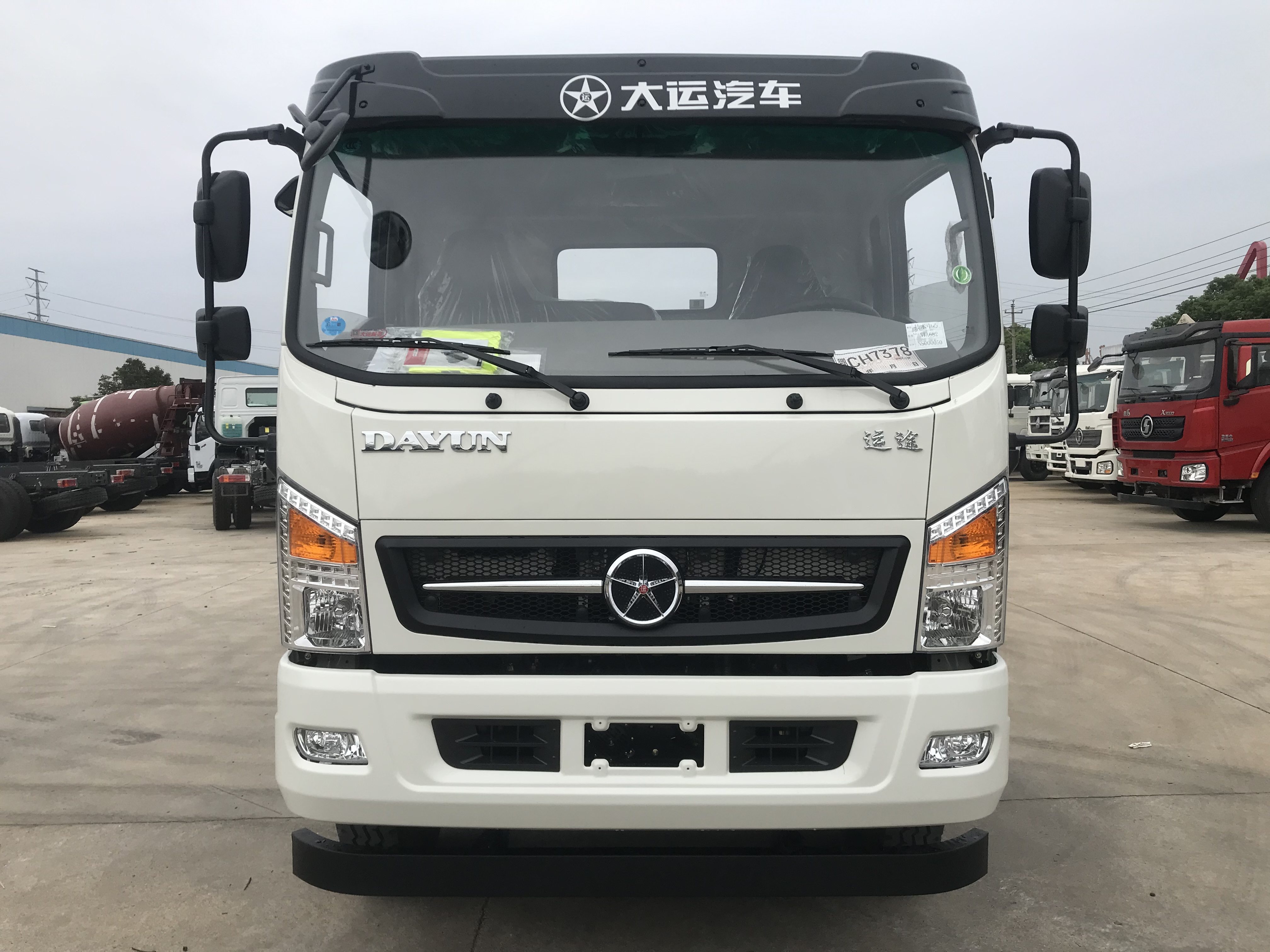

8. Cab: Dayun Yuntu Cab
9. Transmission: Fast eight speed gearbox
10. Front axle: 3.6T front axle
11. Rear axle: reinforced 10T rear axle
12. Other: Standard includes central locking, remote key, electric doors and windows, aluminum alloy fuel tank, and original air conditioning.
13. Tank capacity: announced agitation capacity of 3.98 cubic meters
14. Tank body material: The tank body is made of manganese steel Q345, 4mm material, and the head is made of 6mm high-strength steel
15. Hydraulic system: Keyi reducer, Weifu oil pump, motor. (optional according to user requirements)
16. Tank color: Regular color: white/red (can be customized according to user requirements)
| Product Name |
4X2 Dayun Yuntu 7m³ Concrete Mixer Truck |
| Driving Type |
4X2 |
| Total weight(kg) |
18000(Kg) |
| Curb weight(kg) |
8245(Kg) |
| Rated weight(kg) |
9560(Kg) |
| Wheel base(mm) |
3600(mm) |
| Overall Dimension(mm) |
7235,7400×2400,2500×3730,3800(mm) |
| Tank maximum diameter(mm) |
2200(mm) |
| Tank length(mm) |
3890(mm) |
| Engine brand & model |
YCS04200-68, Yuchai four cylinder 200 horsepower engine |
| Axle Quantity |
2 |
| Transmission Type |
FAST 8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
10.00R20/18PR steel wire tire, 6+1 spare |
| Cab |
Dayun Yuntu cab |
| Tank material |
Tank shell: 4mm Q345, tank head: 6mm Q345 |
| Tank agitation capacity |
3.98m³ |
| Tank volume(m³) |
7m³ |
| Stadard configuration |
The tank body is made of manganese steel Q345, 4mm material, and the head is made of 6mm high-strength steel Hydraulic system: Koyi reducer, Impop pump, motor. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
4X2 Dayun Yuntu 7m³ Concrete Mixer Truck
A
concrete mixer truck is a specialized truck used to transport concrete for
construction purposes; Due to its appearance, it is often referred to as a
snail car. These types of trucks are equipped with cylindrical mixing drums to
transport the mixed concrete. During transportation, the mixing drum will
always rotate to ensure that the concrete being transported does not solidify.
After transporting the concrete, it is usually washed with water inside the
mixing drum to prevent hardened concrete from occupying space and reducing the
volume of the mixing drum.
Concrete mixer truckis also called cement mixer truck, cacapity range from 3 cbm to 16 cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.
