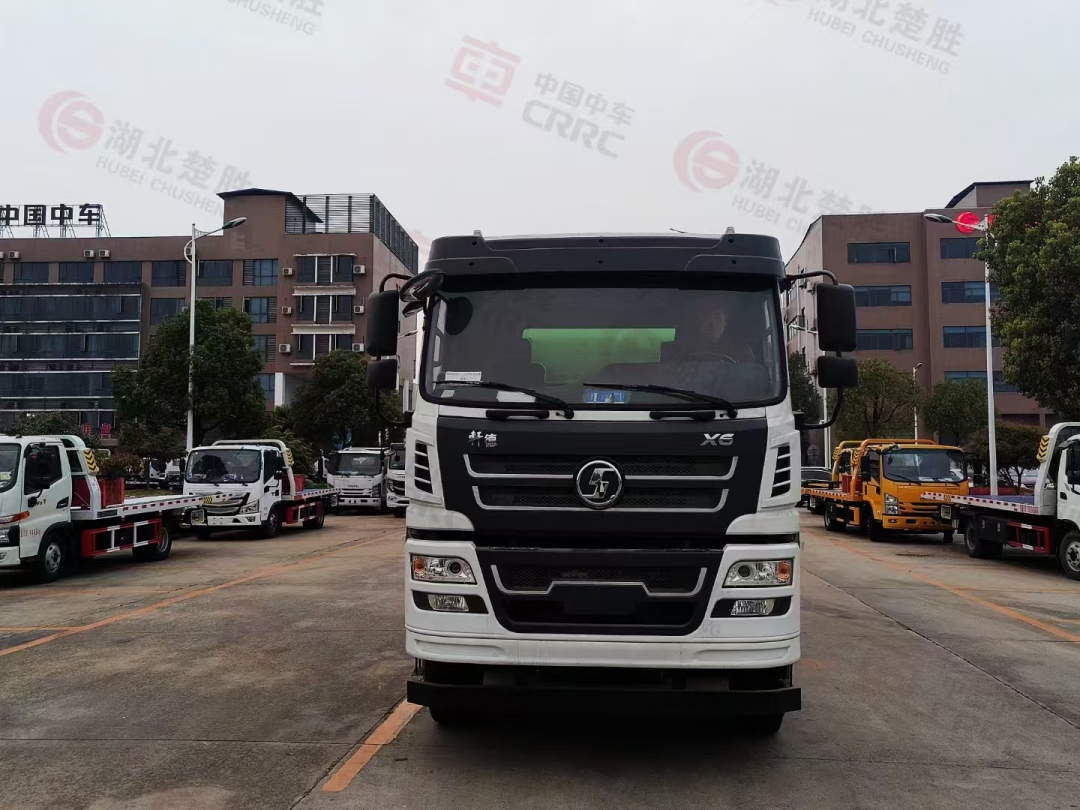

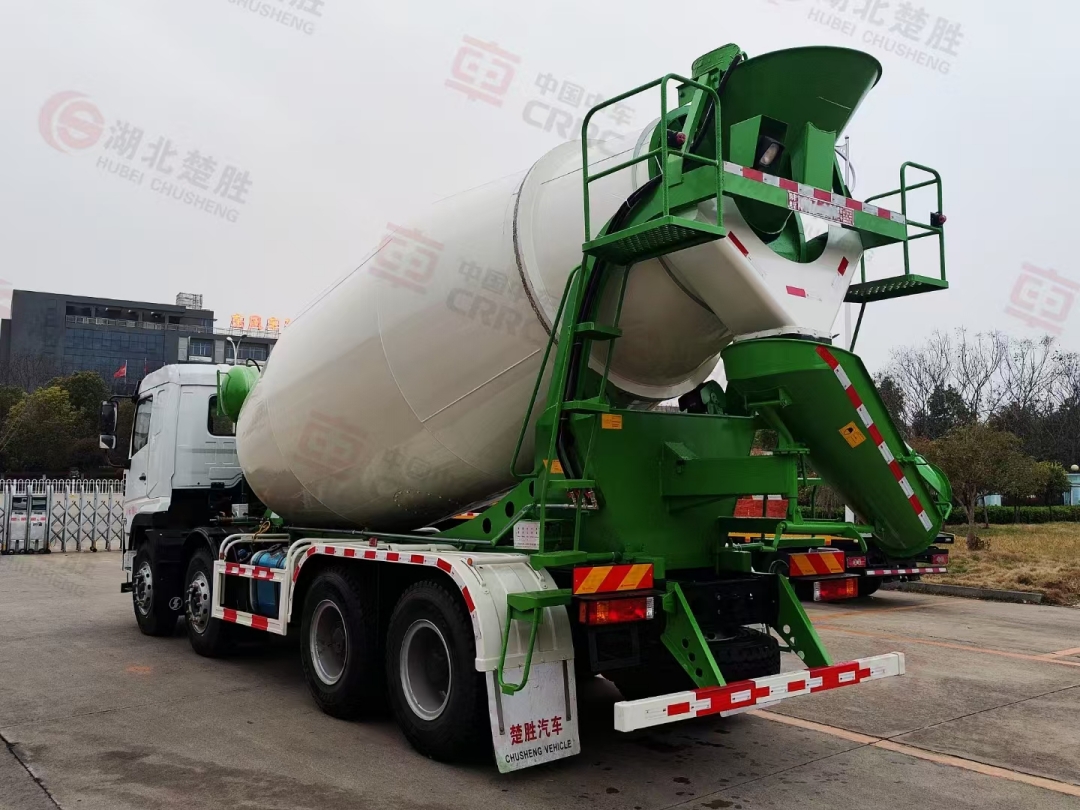

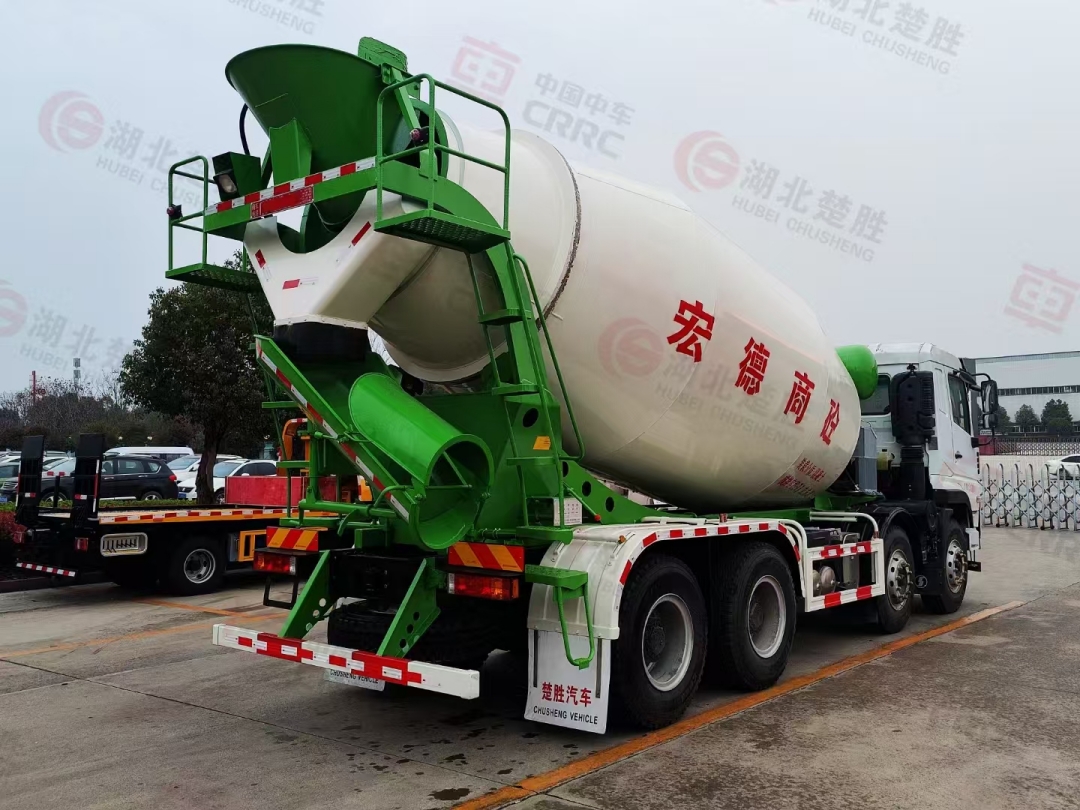

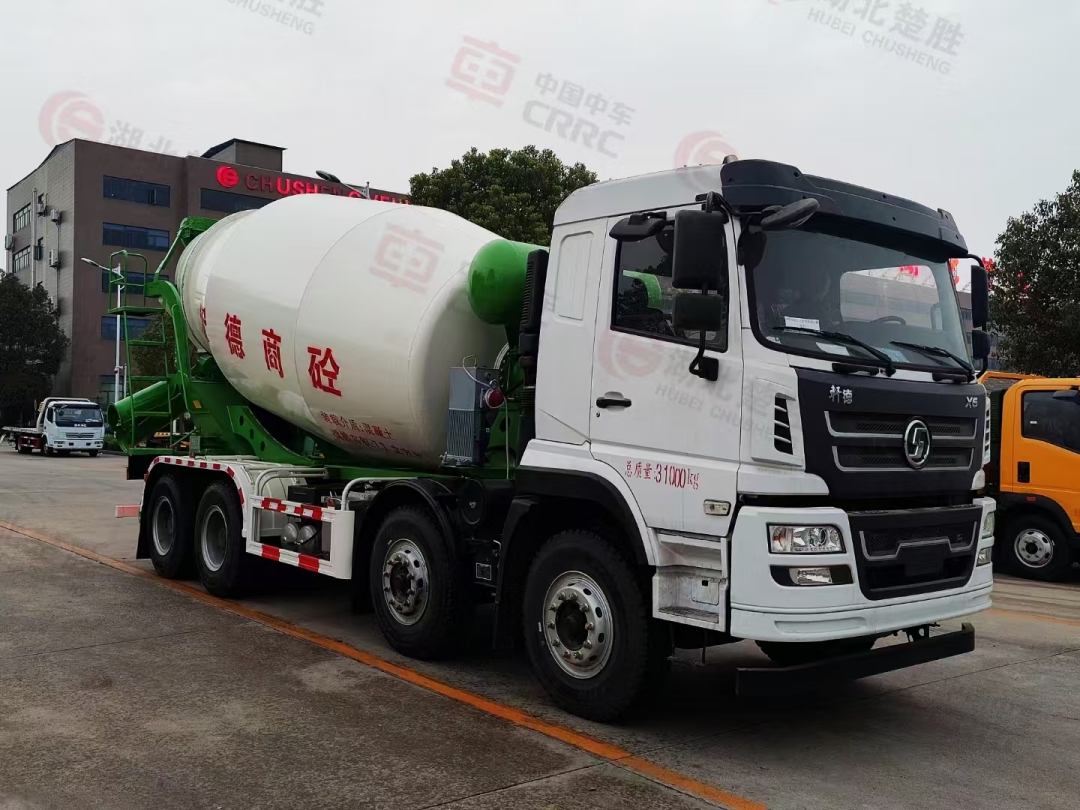

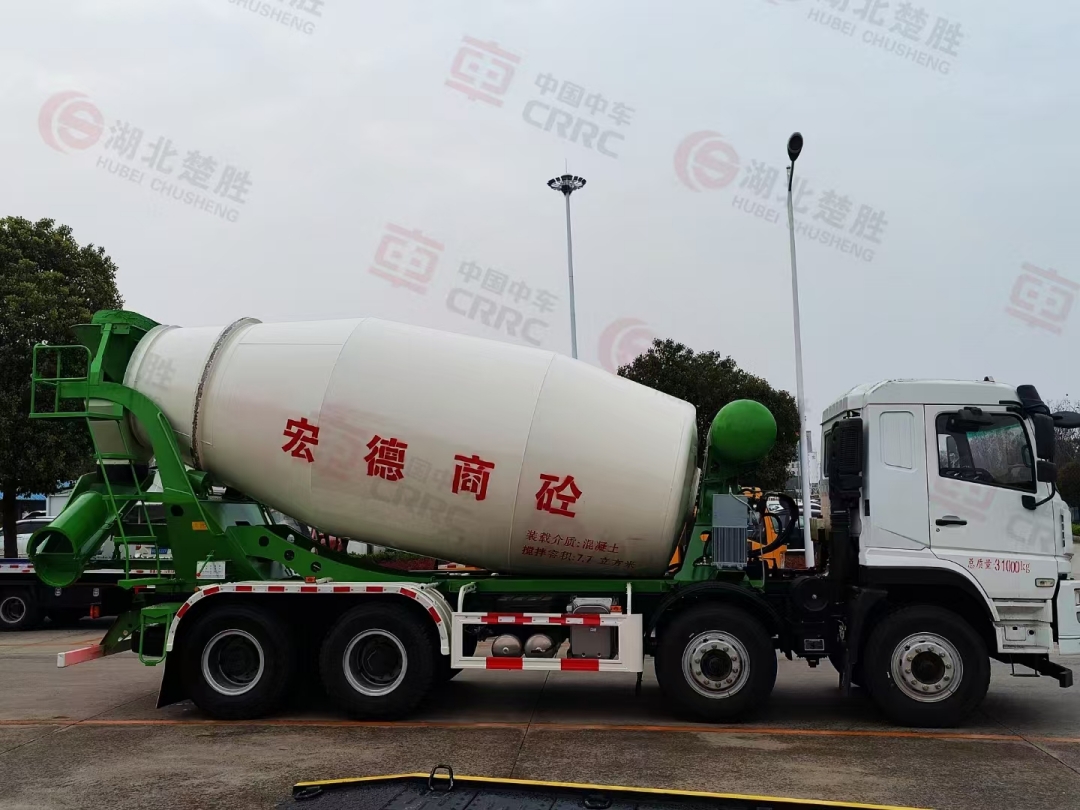

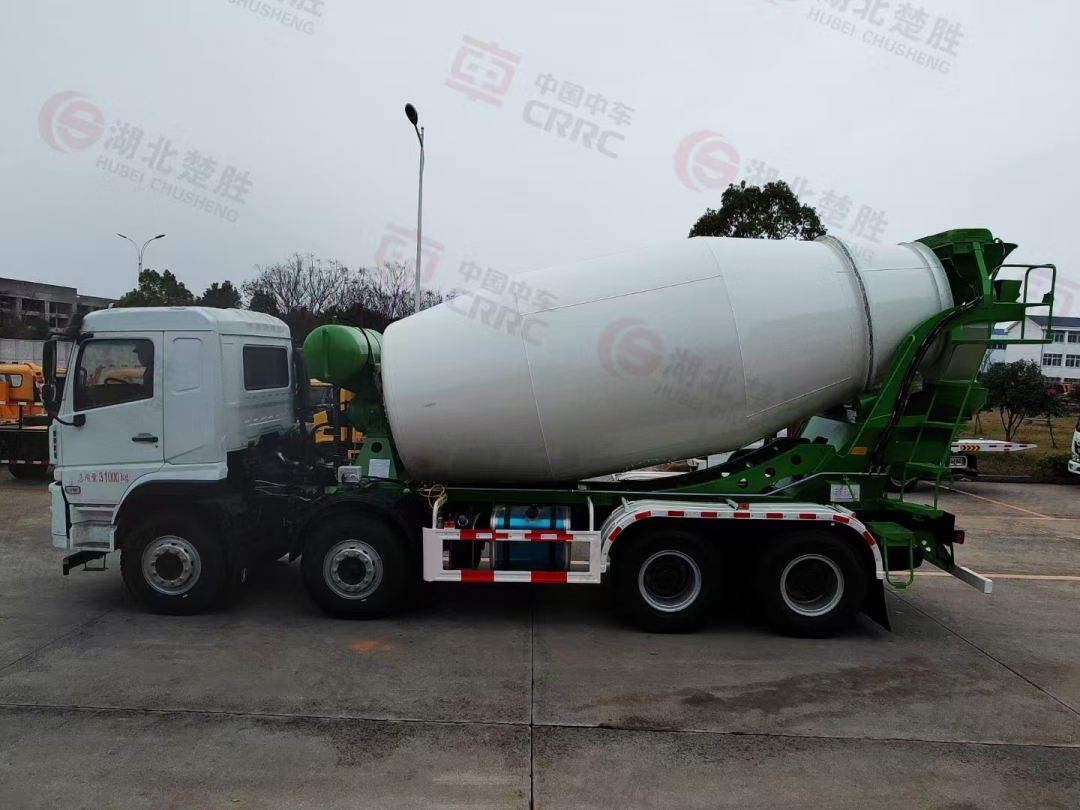

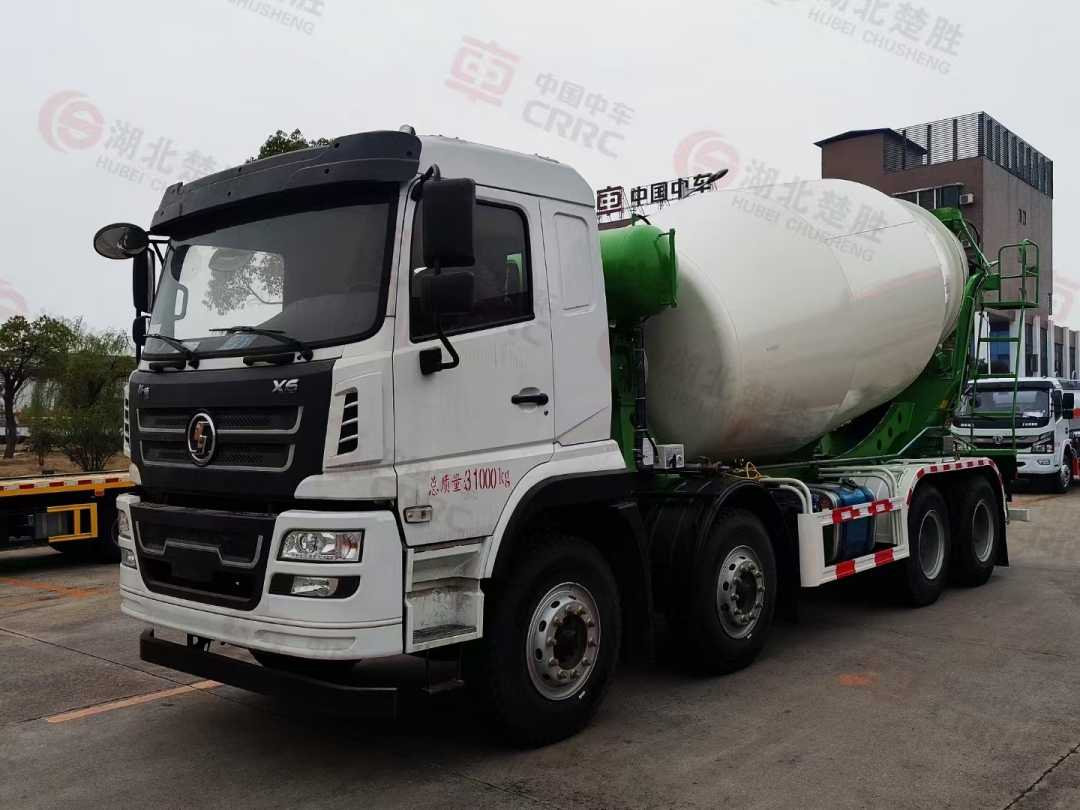

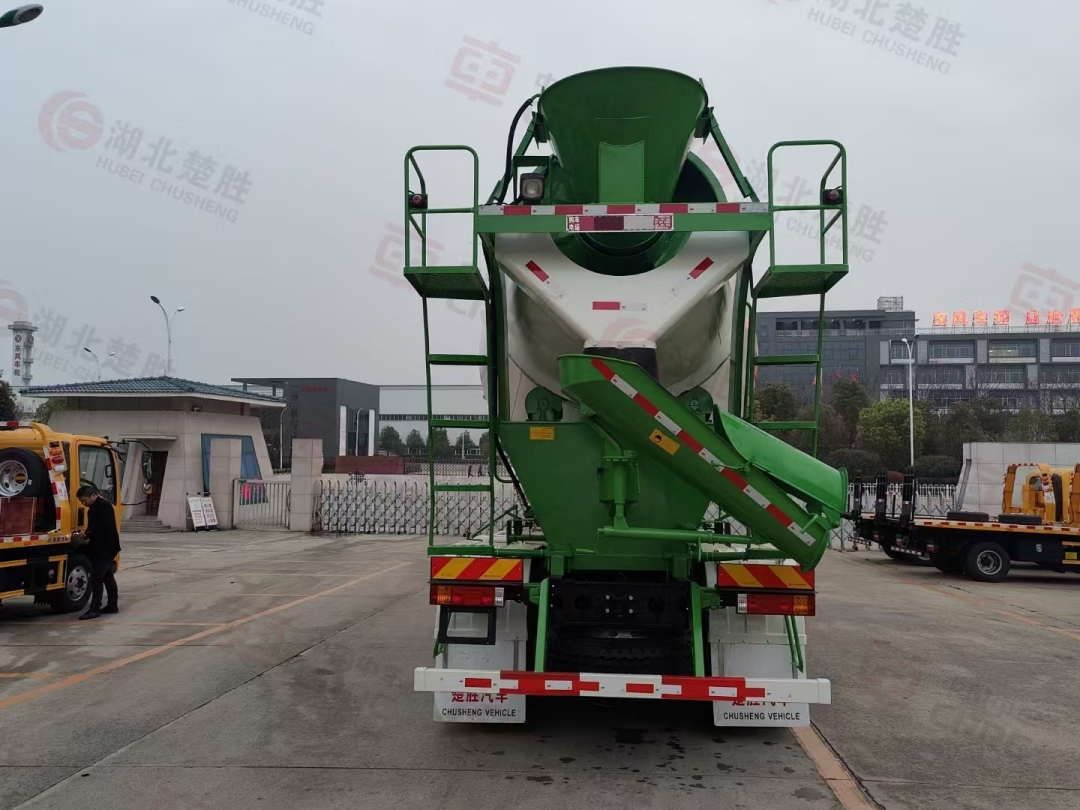

8X4 Shacman 12m³ concrete mixer truck
2024-10-07 09:54:11 Source：chusheng
8X4 Shacman 12m³ concrete mixer truck
Chassis configuration:
Shacman Xuande fully floating cab, Weichai 340 horsepower National V engine, Fast 10 speed gearbox, 5-ton front axle, Steyr 13 ton dual stage deceleration rear dual axle, electric doors and windows, central locking with remote key, remote throttle, driving recorder, airbag main seat, original air conditioning, 860 * 280 (8+6) double-layer frame, 11.00R20 steel wire tire.
Upper configuration:
The tank has a capacity of 7 cubic meters and is equipped with hydraulic pumps and motors from Sully or Impop; Domestic reducers from Shijiazhuang, Chongqing, or Shenlan, and domestic 18L radiators. The cylinder is made of T510 δ 4, and the blades are made of alloy steel T510 δ 4. There are also a large number of 3-15 square meter existing car resources.
Welcome to visit and inspect our factory!
| Product Name |
8X4 Shacman 12m³ concrete mixer truck |
| Driving Type |
8X4 |
| Total weight(kg) |
31000(Kg) |
| Curb weight(kg) |
13830(Kg) |
| Rated weight(kg) |
17040(Kg) |
| Wheel base(mm) |
1800+3000+1400(mm) |
| Overall Dimension(mm) |
10300,9800×2500,2550×3850,3990(mm) |
| Tank maximum diameter(mm) |
2100(mm) |
| Tank length(mm) |
5800(mm) |
| Engine brand & model |
WP7.340E53, Weichai 340hp |
| Displacement(L)/Power(kw) |
7.47L/250KW |
| Axle Quantity |
4 |
| Transmission Type |
10-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
11.00R20 steel wire tire, 12+1 spare |
| Cab |
Shacman Xuande X6TJG201 Fully Floating Cab |
| Tank material |
Tank shell: 5 mm Q345, tank head: 6mm Q345 |
| Tank agitation capacity |
7.7m³ |
| Tank capacity |
12m³ |
| Stadard configuration |
The cylinder is made of alloy steel QSTE500TM δ 4, the blades are made of alloy steel T510 δ 4, or the cylinder is made of ultra-high strength plate 300TP δ 3.5, and the blades are made of alloy steel W800KC δ 3 |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
8X4 Shacman 12m³ concrete mixer truck
A
concrete mixer truck is a specialized truck used to transport concrete for
construction purposes; Due to its appearance, it is often referred to as a
snail car. These types of trucks are equipped with cylindrical mixing drums to
transport the mixed concrete. During transportation, the mixing drum will
always rotate to ensure that the concrete being transported does not solidify.
After transporting the concrete, it is usually washed with water inside the
mixing drum to prevent hardened concrete from occupying space and reducing the
volume of the mixing drum.
Concrete mixer truck is also called cement mixer truck, cacapity range from 3 cbm to 16 cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.
