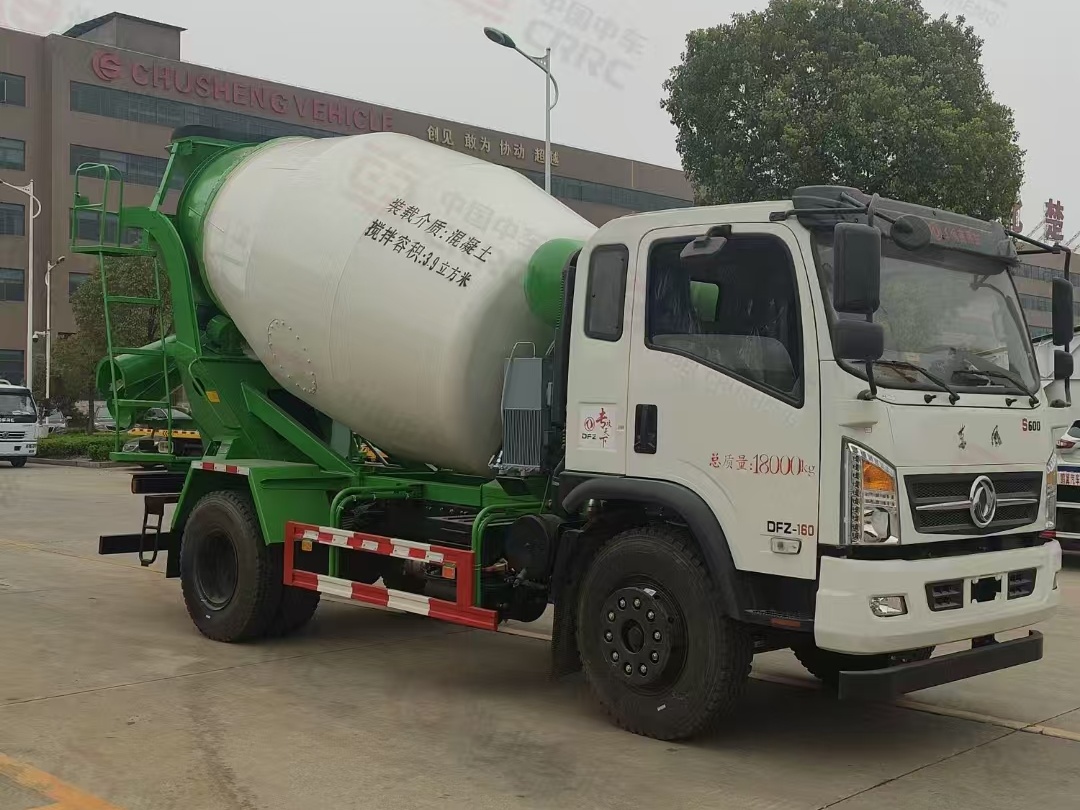

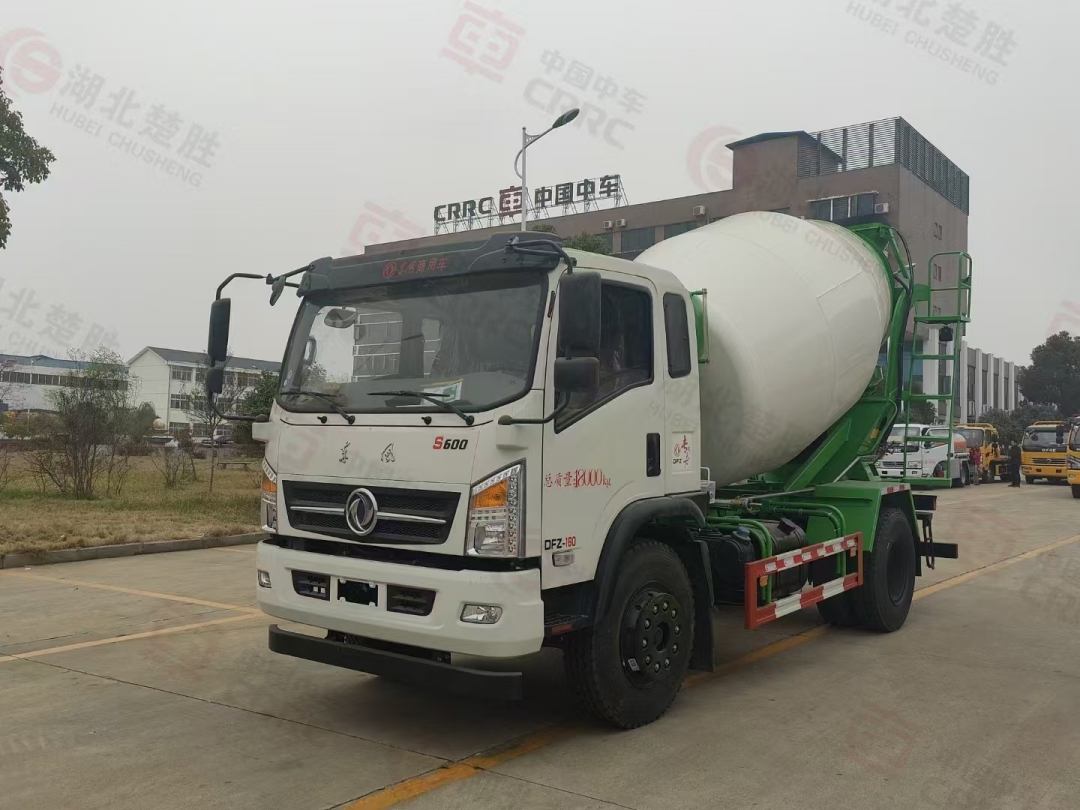

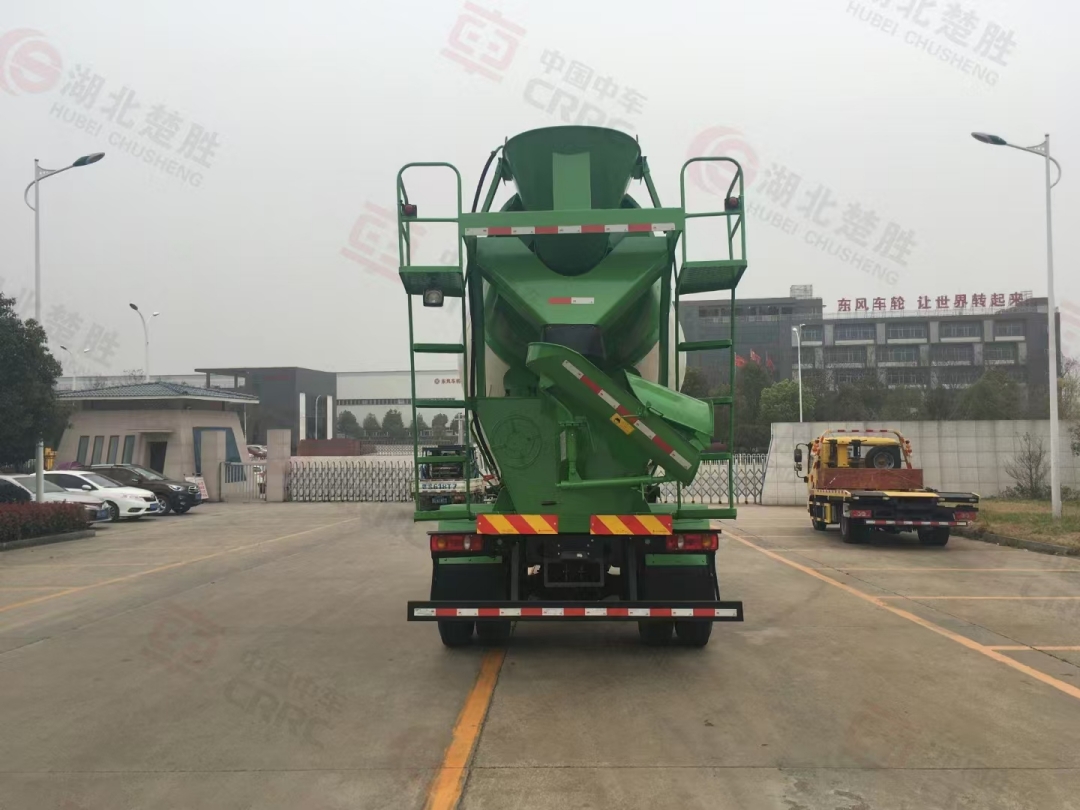

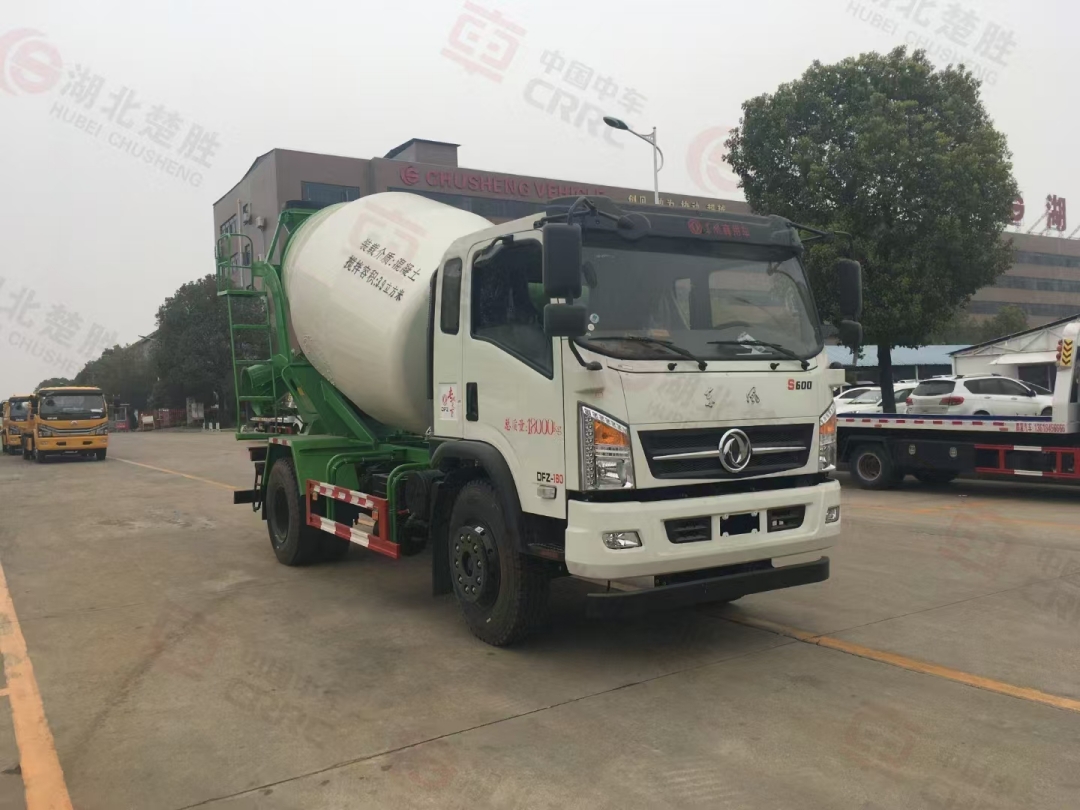

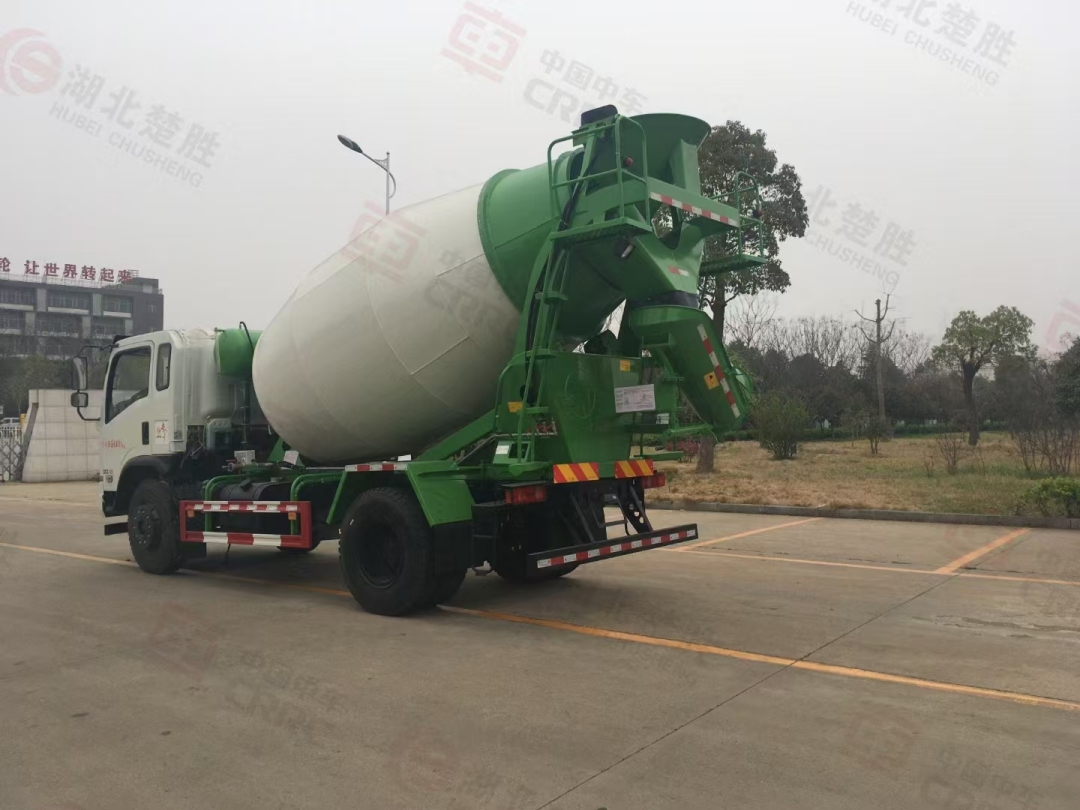

Dongfeng 7 cbm concrete mixer truck
2024-10-07 09:54:11 Source：chusheng
Dongfeng 7 cbm concrete mixer truck
Chassis configuration:
D912 one and a half row (2080) luxury driver's cab, wheelbase of 3800, National V Yuchai 4-cylinder 160 horsepower intercooled turbocharged, Fast 8 gearbox with high and low speeds, 3.6T front axle, 10T rear axle, 280 double-layer beam, air brake, 10.00R20 steel wire tires, with ABS, lower protection, and remote throttle
Upper configuration:
The tank has a capacity of 7 cubic meters and is equipped with hydraulic pumps and motors from Sully or Impop; Domestic reducers from Shijiazhuang, Chongqing, or Shenlan, and domestic 18L radiators. The cylinder is made of T510 δ 4, and the blades are made of alloy steel T510 δ 4. There are also a large number of 3-15 square meter existing car resources.
Welcome to visit and inspect our factory!
| Product Name |
Dongfeng 7 cbm concrete mixer truck |
| Driving Type |
4X2 |
| Total weight(kg) |
18000(Kg) |
| Curb weight(kg) |
7600(Kg) |
| Rated weight(kg) |
10205,10270(Kg) |
| Wheel base(mm) |
3800(mm) |
| Overall Dimension(mm) |
7585,7405×2500,2400×3660,3720(mm) |
| Tank maximum diameter(mm) |
1950(mm) |
| Tank length(mm) |
3932(mm). |
| Engine brand & model |
YC4S160-50 |
| Displacement(L)/Power(kw) |
3.76L/118KW |
| Axle Quantity |
2 |
| Transmission Type |
8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
10.00R20 steel wire tire, 6+1 spare |
| Cab |
D912 One and a Half Row (2080) Luxury Cab |
| Tank material |
Tank shell: 5 mm Q345, tank head: 6mm Q345 |
| Tank agitation capacity |
3.9m³ |
| Tank capacity |
7m³ |
| Stadard configuration |
Sali or Impop hydraulic pumps and motors; Domestic reducers from Shijiazhuang, Chongqing, or Shenlan, and domestic 18L radiators. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 7 cbm concrete mixer truck
Concrete mixer truck is also called cement mixer truck, cacapity range from 3 cbm to 16
cbm, chassis brand option: dongfeng, howo,shacman, foton, faw, isuzu, lveco, etc.
A
concrete mixer truck is a specialized truck used to transport concrete for
construction purposes; Due to its appearance, it is often referred to as a
snail car. These types of trucks are equipped with cylindrical mixing drums to
transport the mixed concrete. During transportation, the mixing drum will
always rotate to ensure that the concrete being transported does not solidify.
After transporting the concrete, it is usually washed with water inside the
mixing drum to prevent hardened concrete from occupying space and reducing the
volume of the mixing drum.
Product parameters
