JMC Kaiyun 4X2 refrigerated truck
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
Adopting JMC Kaiyun single row 2050 wide body cab, wheelbase: 3360mm, JX4D25A6H, 143HP engine, German Getrag 5-speed gearbox, air brake, exhaust brake, air brake parking, 7.00R16 steel wire tires, ABS, direction assist, power windows, central locking system, adjustable steering wheel, engine fuel preheating, 83L fuel tank, original air conditioning with refrigerated truck specific compressor double bracket.
| Product Name |
JMC Kaiyun 4X2 refrigerated truck |
| Driving Type |
4X2 |
| Total weight(kg) |
4495(Kg) |
| Curb weight(kg) |
3200(Kg) |
| Rated weight(kg) |
1100(Kg) |
| Wheel base(mm) |
3360(mm) |
| Overall Dimension(mm) |
5595X2300X3285mm |
| Cargo box size(mm) |
4020x2100x2060mm |
| Engine brand & model |
JX4D25A6H, 143hp |
| Axle Quantity |
2 |
| Transmission Type |
5-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Tire Spec. & size |
7.00R16 steel wire tire, 6+1 spare |
| Cab |
JMC Kaiyun single row 2050 wide body cab |
| Cargo box configuration |
The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin. |
| Compartment structure |
Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory. |
| Refrigerated Unit |
Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units. Kelly, Kexue, Lengwang, Carrier, Bayer and other refrigeration units can be optionally installed. |
| Optional |
The truck can be equipped with an optional Mobile frame style meat hook, docking slide rail, ventilation groove, insulation plate, inner stainless steel, 380V backup power supply, tailboard |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

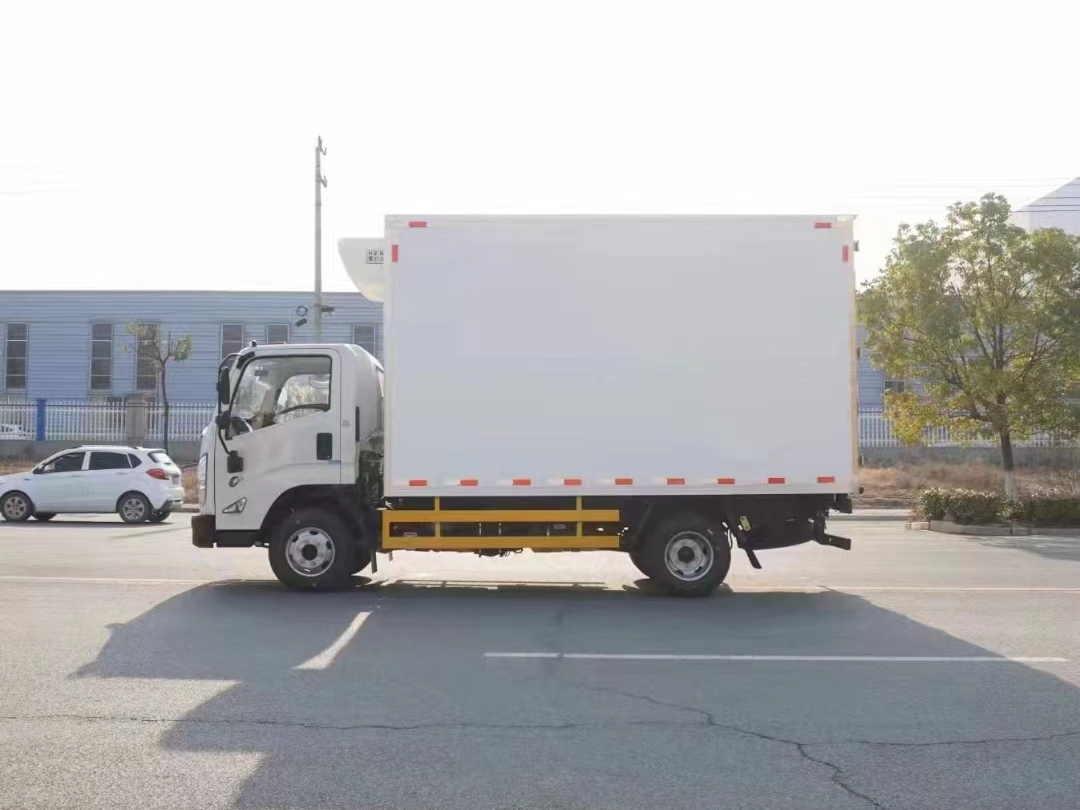

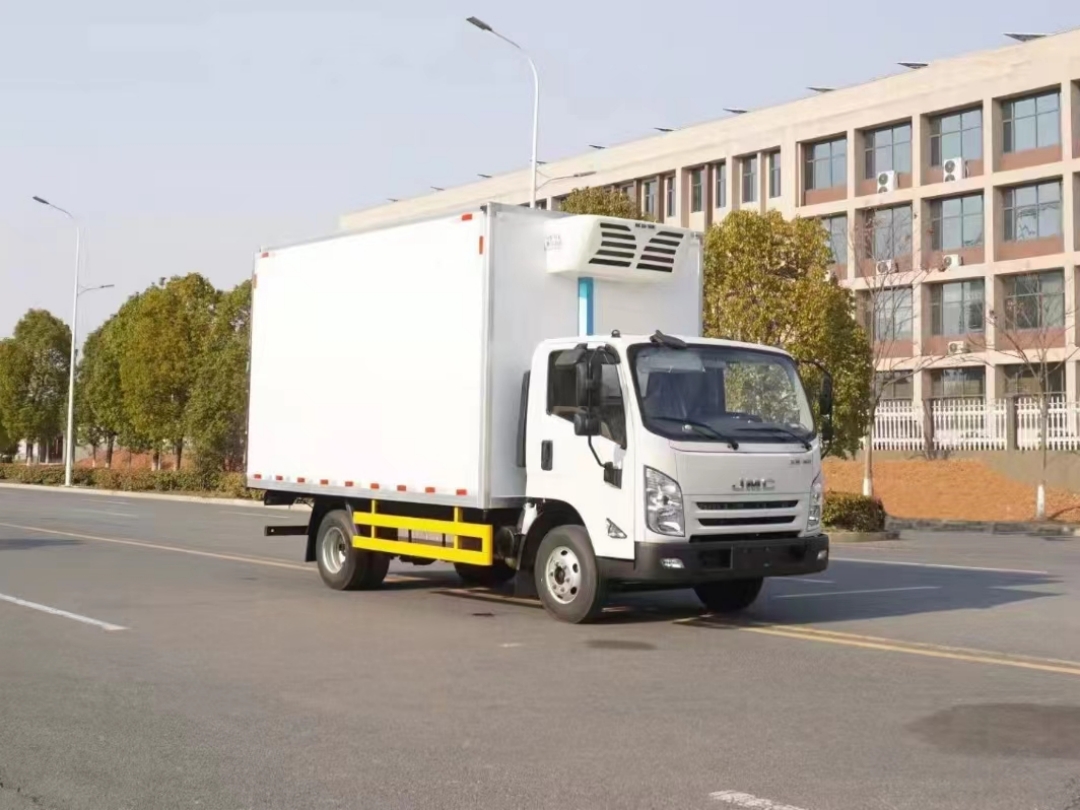

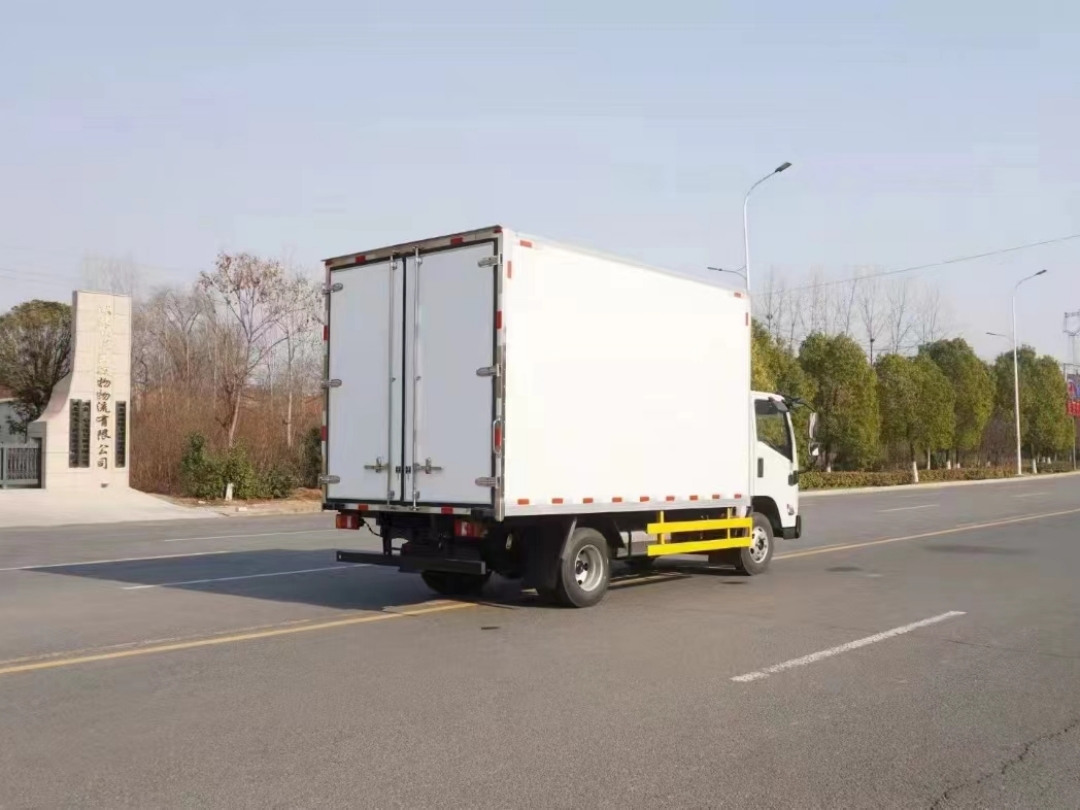

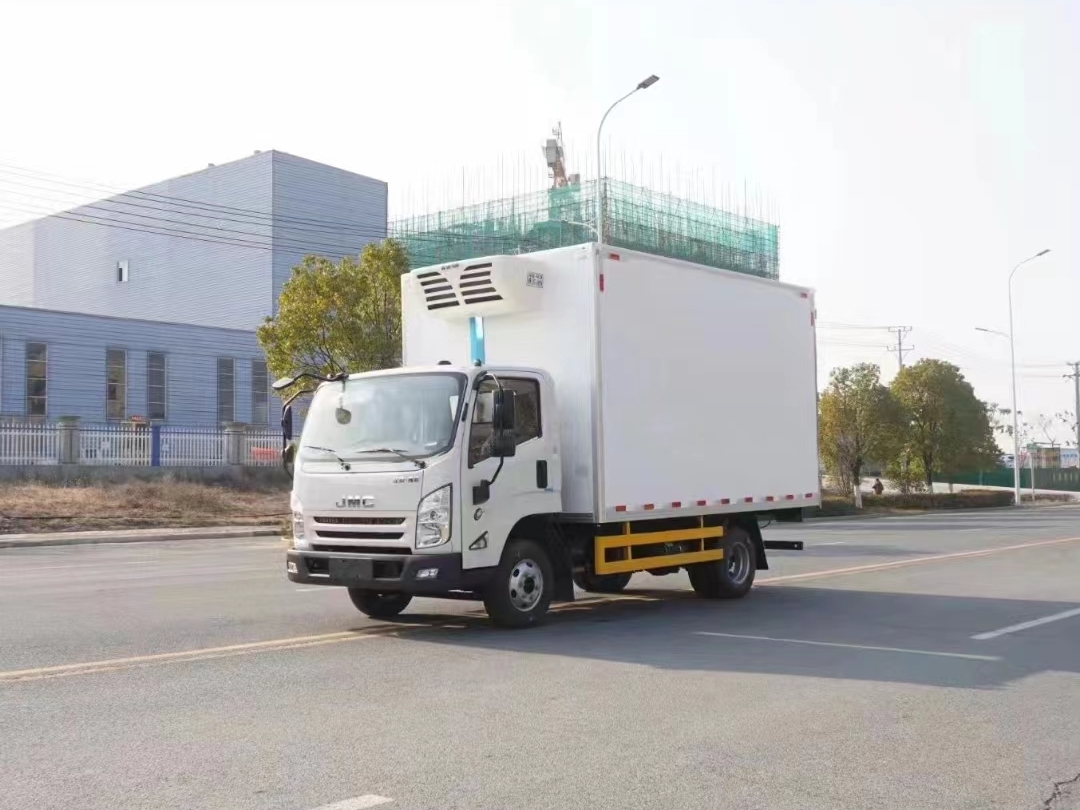

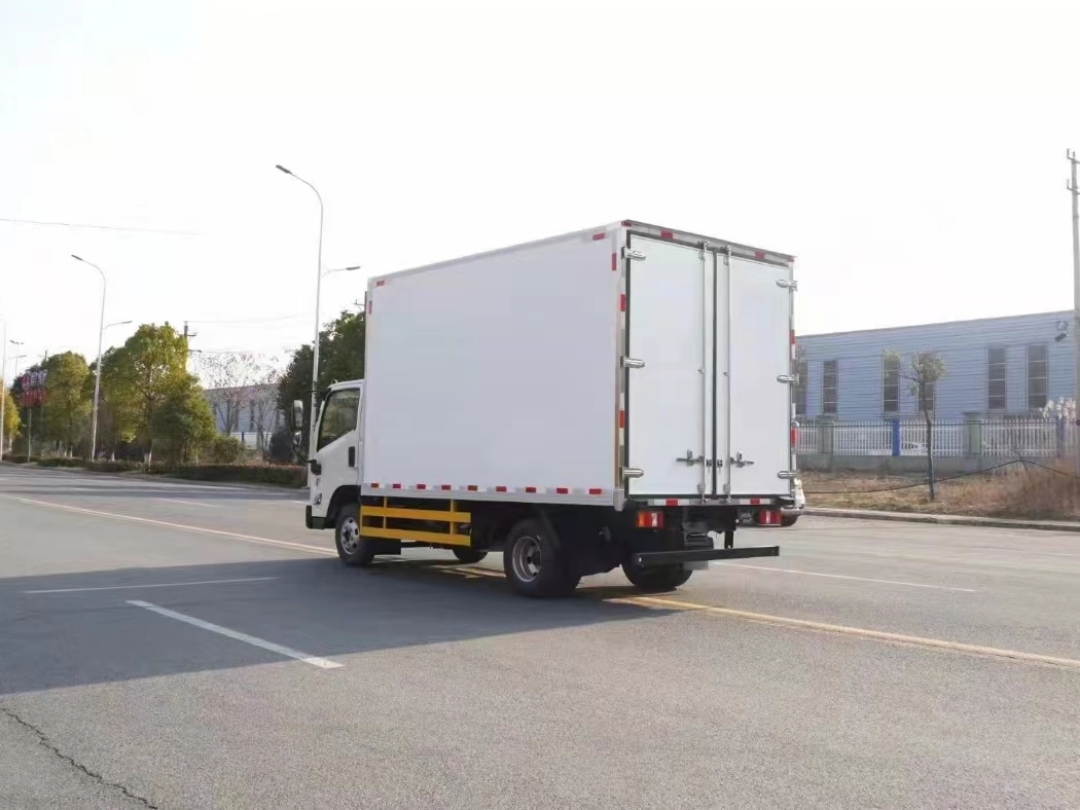

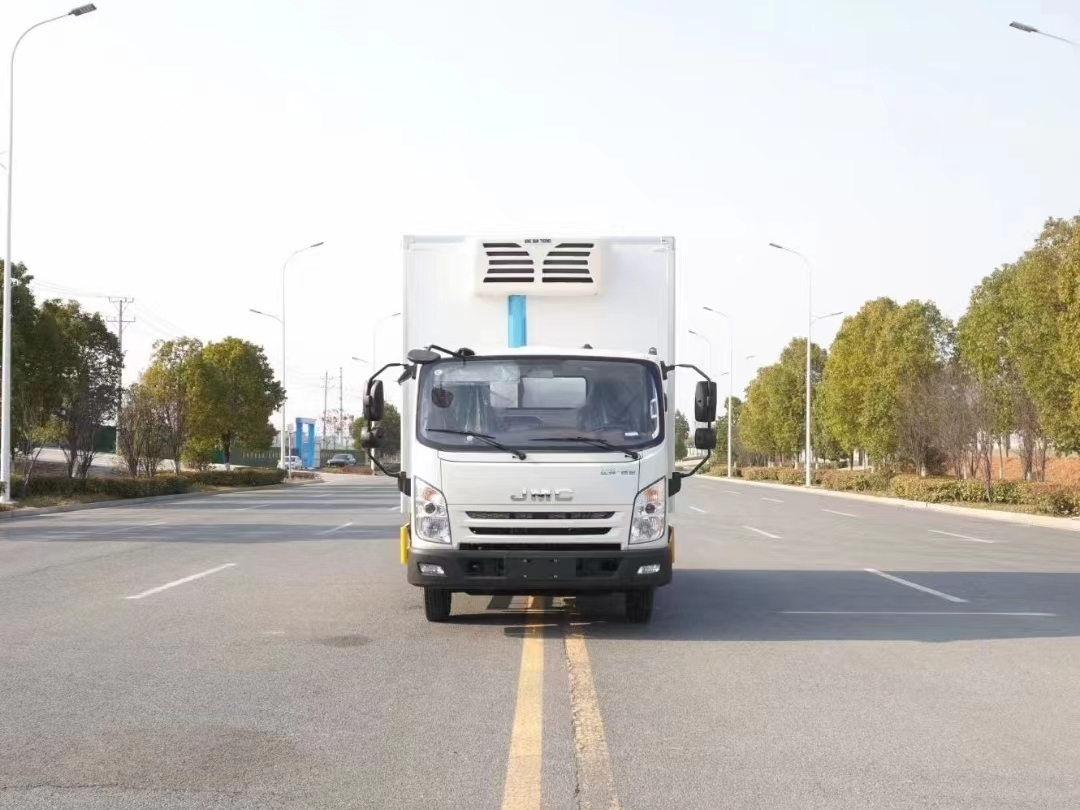

JMC Kaiyun 4X2 refrigerated truck
Refrigerated truck is a closed van vehicle used to transport frozen or fresh
goods. It is a specialized refrigerated transport vehicle equipped with a
refrigeration unit and a polyurethane insulated compartment. It is commonly
used to transport frozen food (refrigerated truck), dairy products (dairy
transport truck), vegetables and fruits (fresh goods transport truck), vaccines
and drugs (vaccine transport truck), etc.
Refrigerated truck consists of the walking part of a specialized vehicle
chassis, as well as insulation and thermal insulation compartment (usually made
of polyurethane material, fiberglass, color steel plate, stainless steel,
etc.), refrigeration unit, temperature recorder inside the compartment, and
other components. For vehicles with special requirements, such as meat hook
trucks, optional accessories such as meat hooks, cargo blocking troughs,
aluminum alloy guide rails, ventilation troughs, etc. can be added.
