Mercedes Benz Auman 4X2 refrigerated truck
Chassis configuration:
1. Engine: F4.5NS6B240
2.Transmission type: 8-speed gearbox with synchronizer and power take-off
3.Tyre: 275/80R22.5 18PR, 6 tires with a spare
4.Wheelbase: 4800mm
5 Other:Four point suspension, airbag seats, air conditioning, cruise control, multifunctional steering wheel, central locking system, electric doors and windows, remote key, ABS, no reverse electrical appliances+180Ah battery+120A generator, LED headlights, electric hydraulic body flip 7-inch color screen instrument panel, with reverse radar
Installation configuration:
1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C

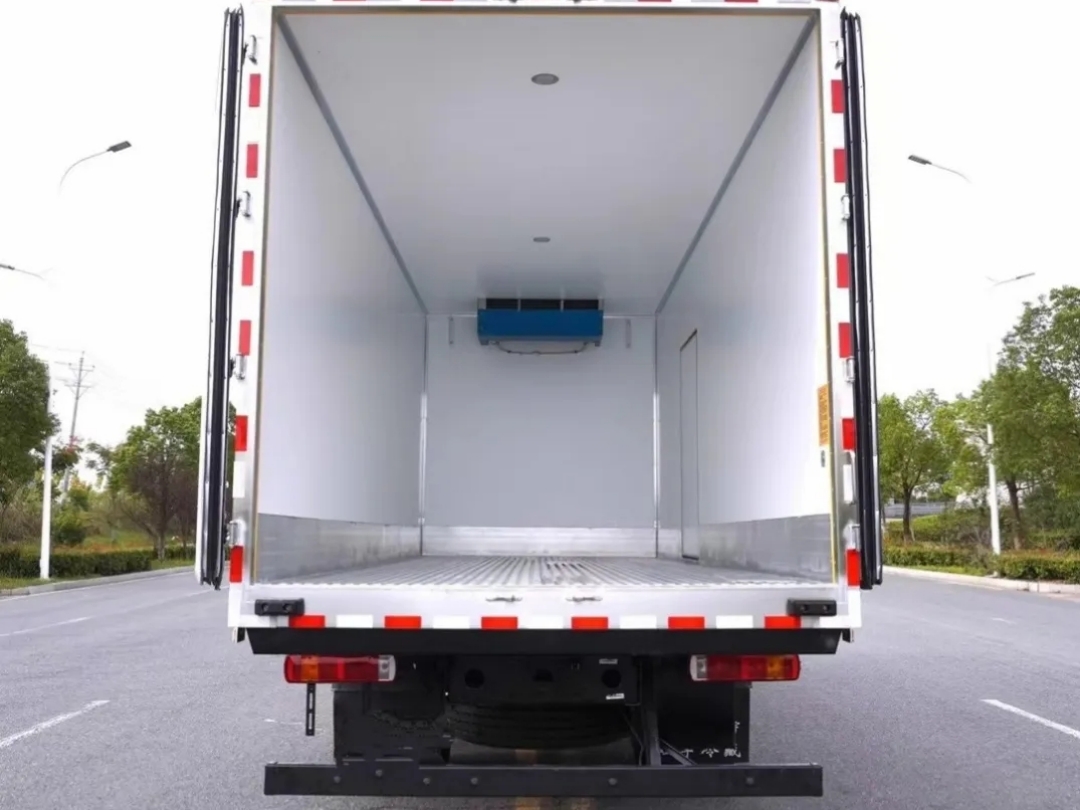

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
4.The car can be equipped with an optional tailboard.
| Product Name | Mercedes Benz Auman 4X2 refrigerated truck |
| Driving Type | 4X2 |
| Cargo box Volume(cbm) | 37 |
| Rated payload weight(kg) | 9870,9805 |
| Wheel base(mm) | 4800 |
| Overall Dimension(mm) | 9100,8390,8590,9190,7590,7790,8190×2600×3850,3950,3989 |
| Cargo box size(mm) | 6800,6000,6200,5200,5400,5800×2420,2450×2500,2550,2600 |
| Engine brand & model | F4.5NS6B240 |
| Displacement(L)/Power(kw) | 4.5L/176KW |
| Axle Quantity | 2 |
| Transmission Type | 8-speed gearbox with synchronizer and power take-off |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 275/80R22.5 18PR, 6 tires with a spare |

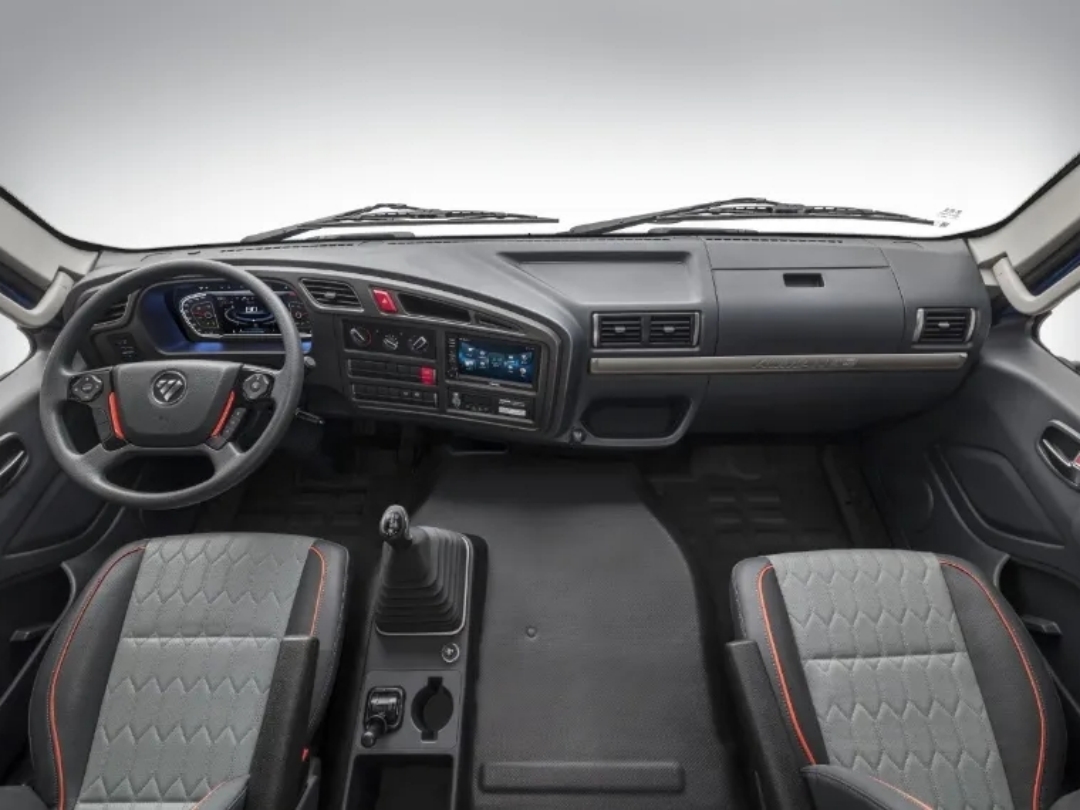

| Cab | Four point suspension, airbag seats, air conditioning, cruise control, multifunctional steering wheel, central locking system, electric doors and windows, remote key, ABS, no reverse electrical appliances+180Ah battery+120A generator, LED headlights, electric hydraulic body flip 7-inch color screen instrument panel, with reverse radar |
| Compartment material | FRP inside and outside,8 cm polyurethane foam middle |
| Compartment structure | Don |
| Refrigerated Unit | 1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C |
| Optional | The car can be equipped with an optional tailboard. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Mercedes Benz Auman 4X2 refrigerated truck
A refrigerated truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.
Product parameters
