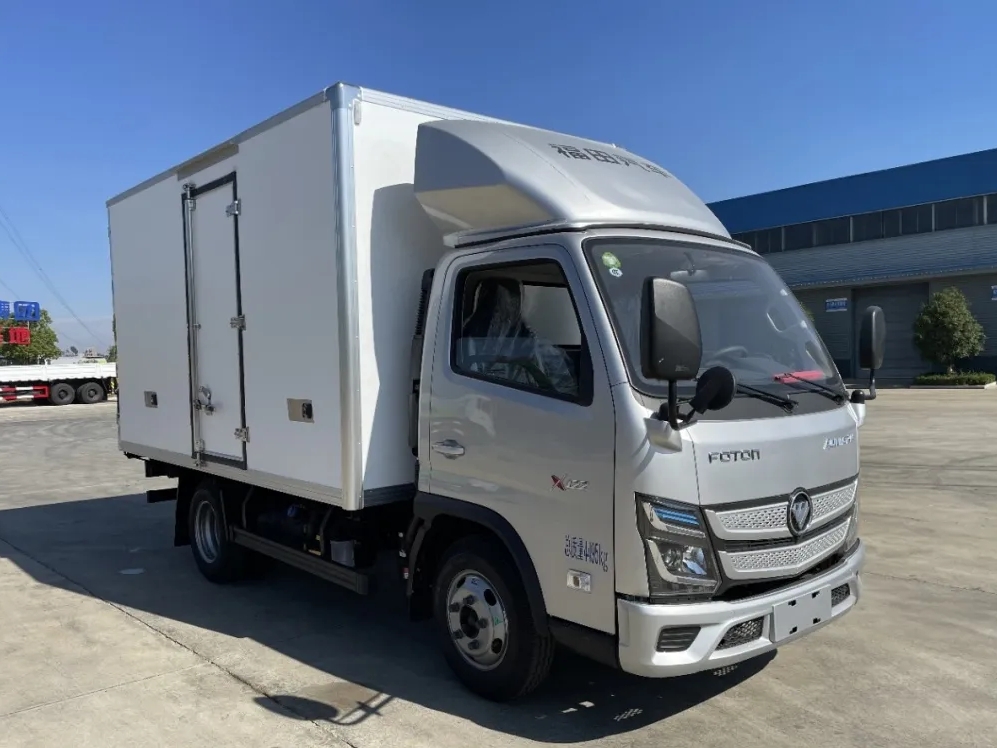

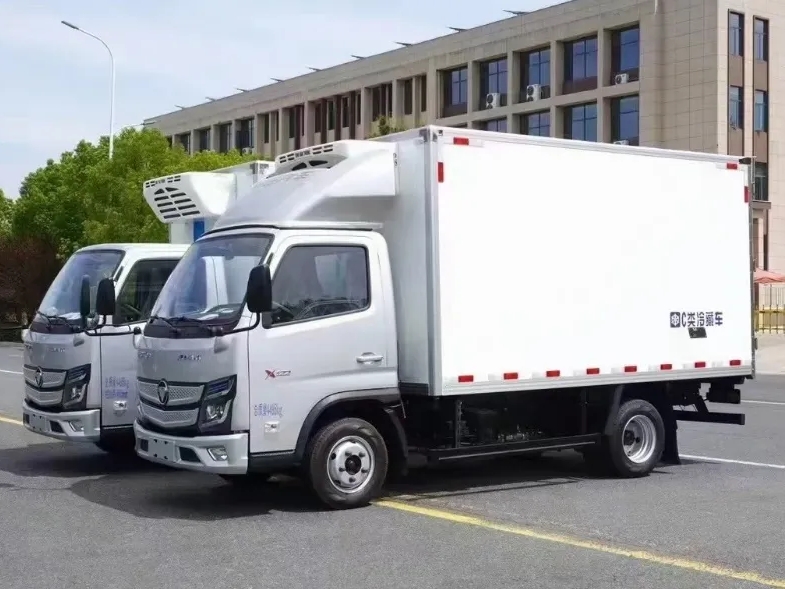

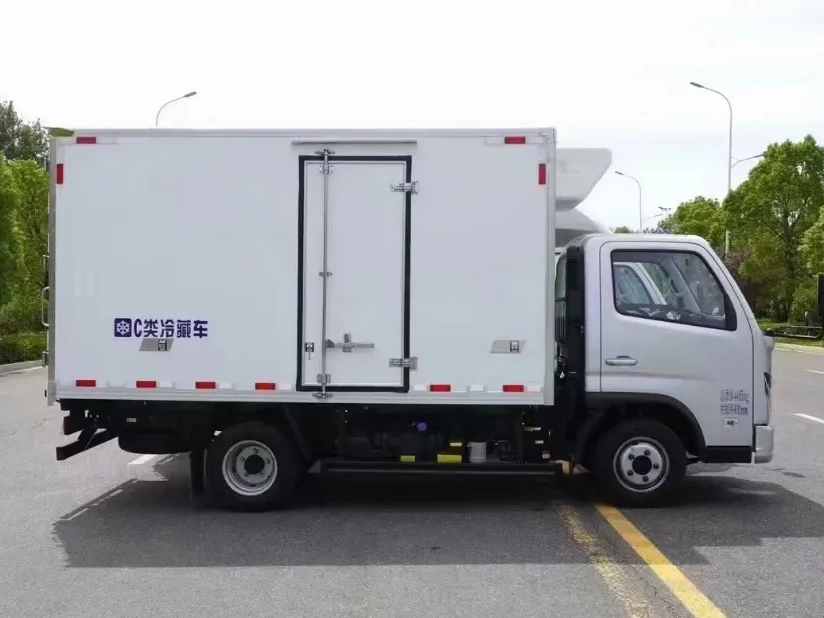

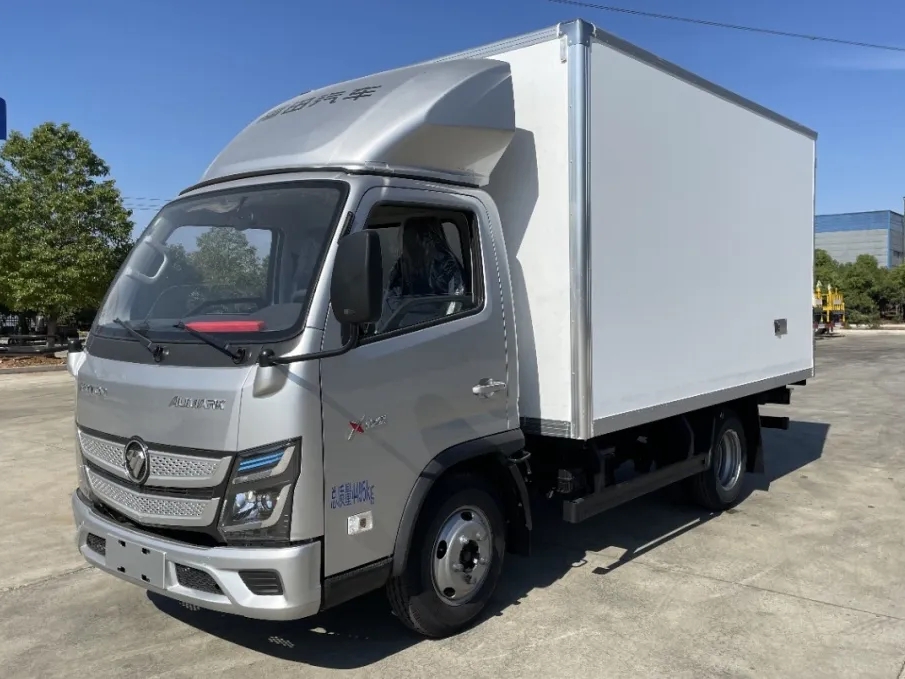

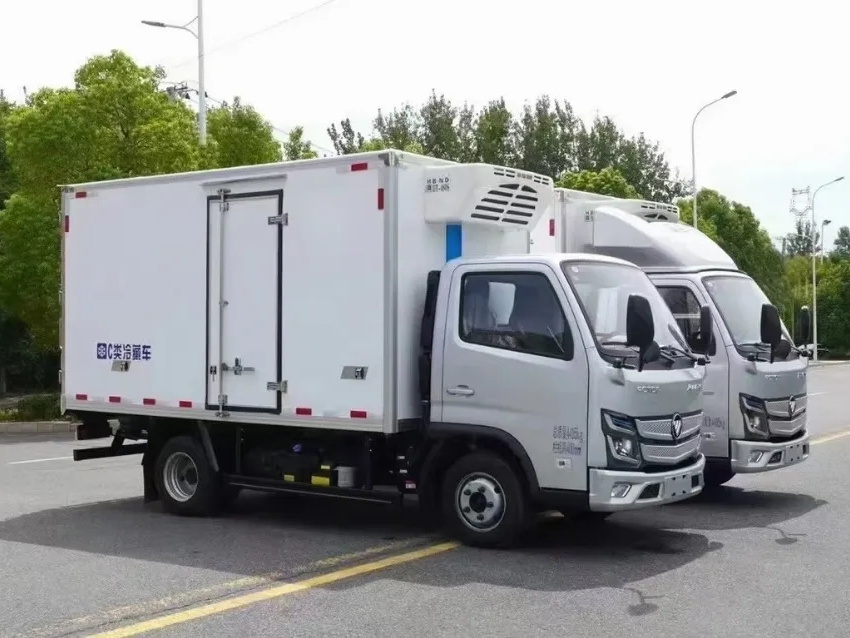

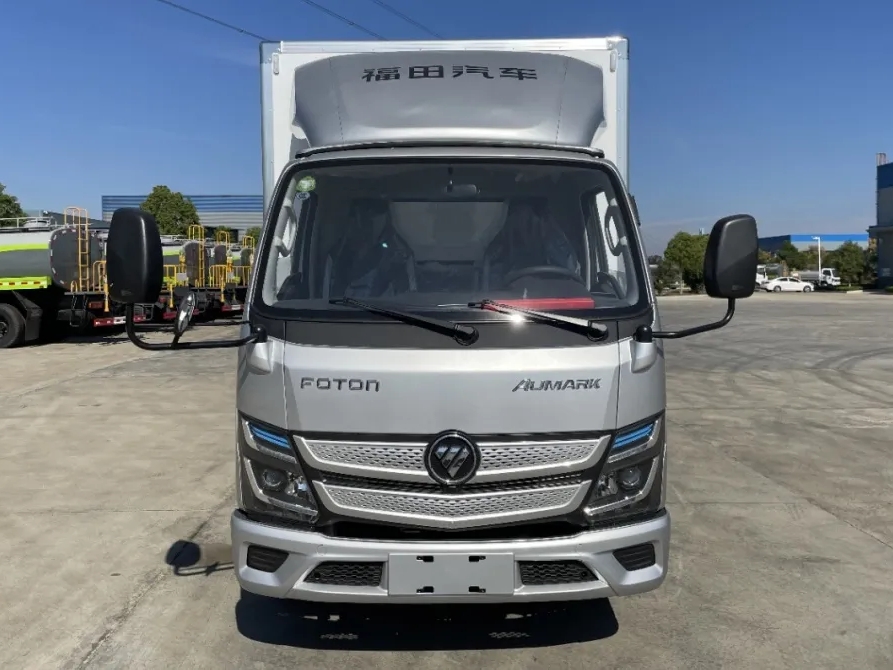

Foton Aumark 4X2 frozen vehicle
2024-10-07 09:54:11 Source：chusheng
Foton Aumark 4X2 frozen vehicle
Chassis configuration:
1. Engine: D20TCIF2,Yunnei 122ph
2.Transmission type: 5-speed gearbox
3.Tyre: 6.50R16, 6 tires with a spare
4.Wheelbase: 2900mm
5 Other:Air conditioning, multifunctional steering wheel, digital LCD instrument panel, cruise control, central locking, electric doors and windows, remote key, hydraulic brake.
Installation configuration:
1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-20 °C
3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
4.The truck can be equipped with an optional tailboard.
| Product Name |
Foton Aumark 4X2 frozen vehicle |
| Driving Type |
4X2 |
| Rated payload weight(kg) |
1490(Kg) |
| Wheel base(mm) |
2900mm |
| Overall Dimension(mm) |
5565,5995,5600,5700×1970,2030,2120,2080×2845,2875,2945,2975(mm) |
| Cargo box Volume(cbm) |
11 |
| Cargo box size(mm) |
4040,3580,3700,3240,3850,3455,3645,3800×1810,1870,1960,1920×1800,1900(mm) |
| Engine brand & model |
D20TCIF2,Yunnei 122ph |
| Displacement(L)/Power(kw) |
1.9L/90kW |
| Axle Quantity |
2 |
| Transmission Type |
5-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
hydraulic brake |
| Tire Spec. & size |
6.50R16, 6 tires with a spare |
| Cab |
Air conditioning, multifunctional steering wheel, digital LCD instrument panel, cruise control, central locking, electric doors and windows, remote key, hydraulic brake. |
| Compartment material |
FRP inside and outside,8 cm polyurethane foam middle |
| Compartment structure |
Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory. |
| Refrigerated Unit |
1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C |
| Optional |
The car can be equipped with an optional tailboard. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Foton Aumark 4X2 frozen vehicle
Afrozen vehicleis a closed van vehicle used to transport frozen or fresh
goods. It is a specialized refrigerated transport vehicle equipped with a
refrigeration unit and a polyurethane insulated compartment. It is commonly
used to transport frozen food (refrigerated truck), dairy products (dairy
transport truck), vegetables and fruits (fresh goods transport truck), vaccines
and drugs (vaccine transport truck), etc.
Afrozen vehicleconsists of the walking part of a specialized vehicle
chassis, as well as insulation and thermal insulation compartment (usually made
of polyurethane material, fiberglass, color steel plate, stainless steel,
etc.), refrigeration unit, temperature recorder inside the compartment, and
other components. For vehicles with special requirements, such as meat hook
trucks, optional accessories such as meat hooks, cargo blocking troughs,
aluminum alloy guide rails, ventilation troughs, etc. can be added.
