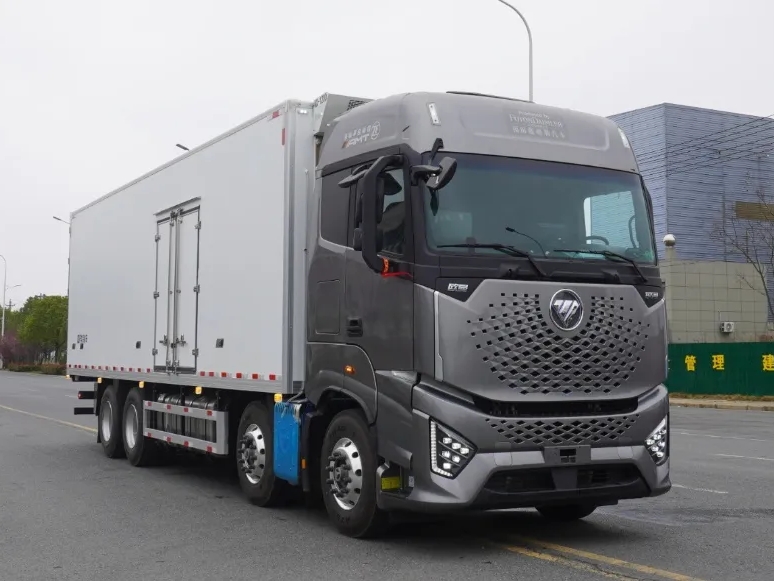

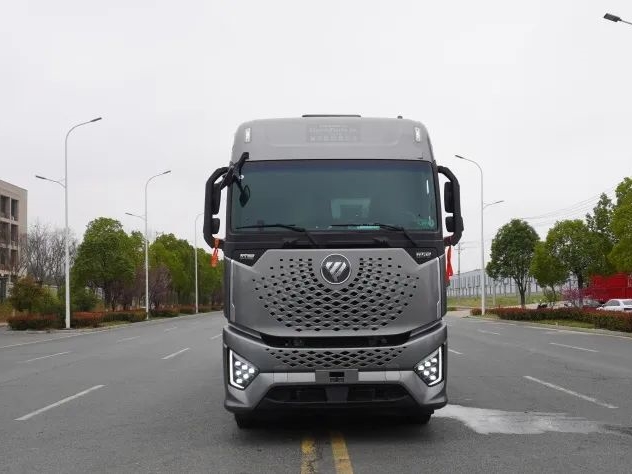

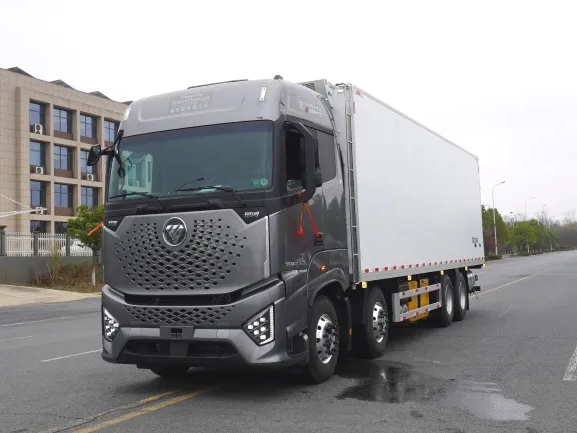

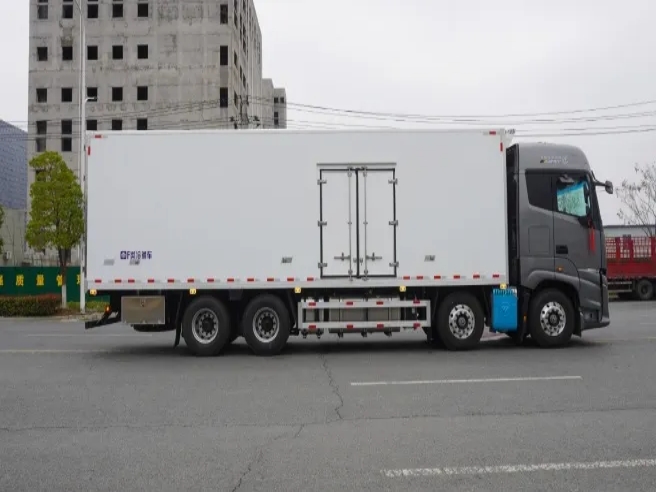

Mercedes Benz Auman 8x4 refrigerated van truck
Chassis configuration:
1. Engine: X13NS6B520
2.Transmission type: 12-speed gearbox with hydraulic retarder
3.Tyre: 275/80R22.5 18PR, 6 tires with a spare
4.Wheelbase: 4800mm
5 Other:2500mm body, high roof cab, double decker sleeper,High end passenger seat with electrically heated front rearview mirror, daytime running light+LED light+ambient light, electrically adjustable exterior rearview mirror, electric sunroof, rear windshield, electric flip, passenger desk, multifunctional steering wheel, one key start
Installation configuration:
1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C

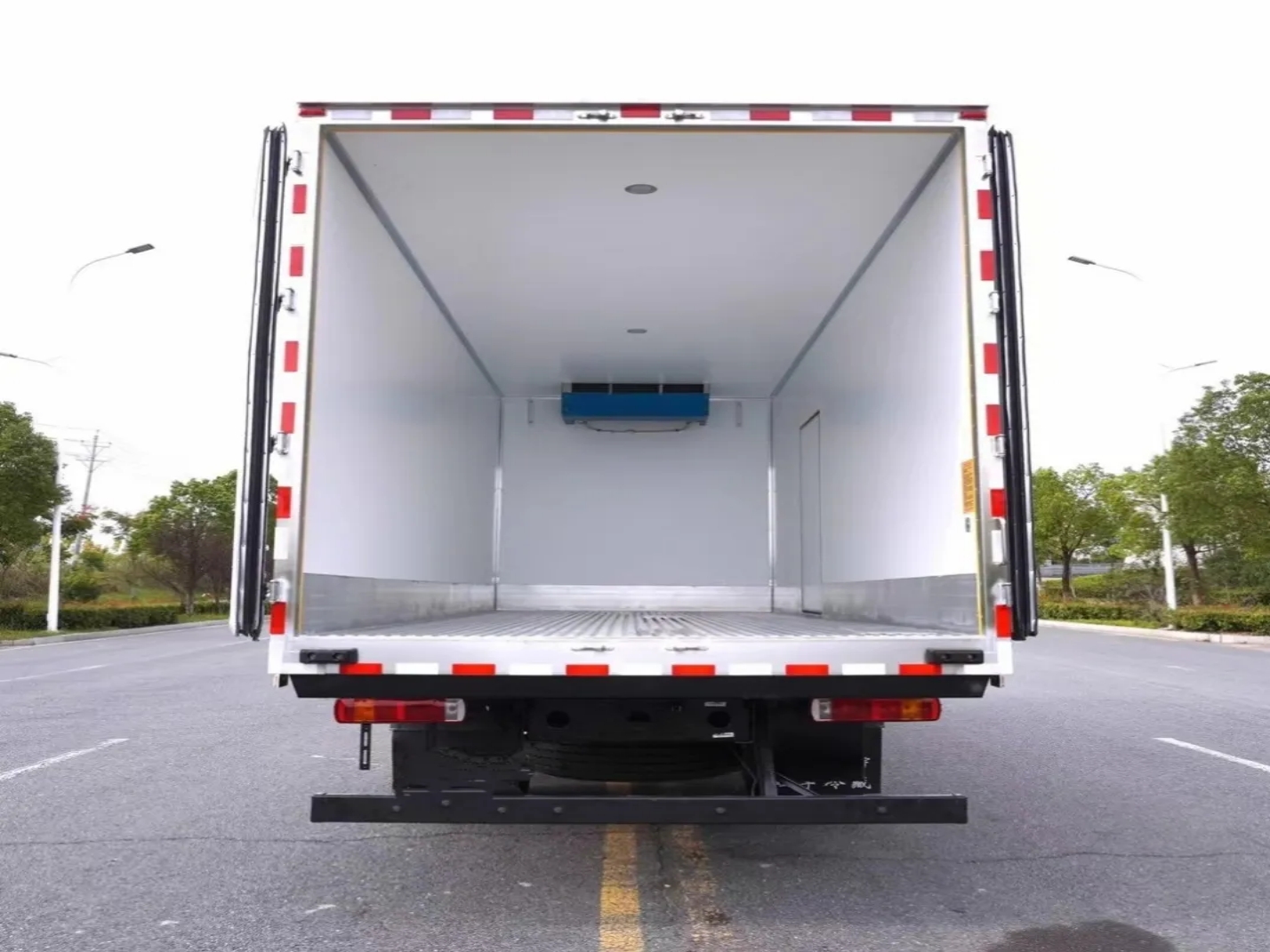

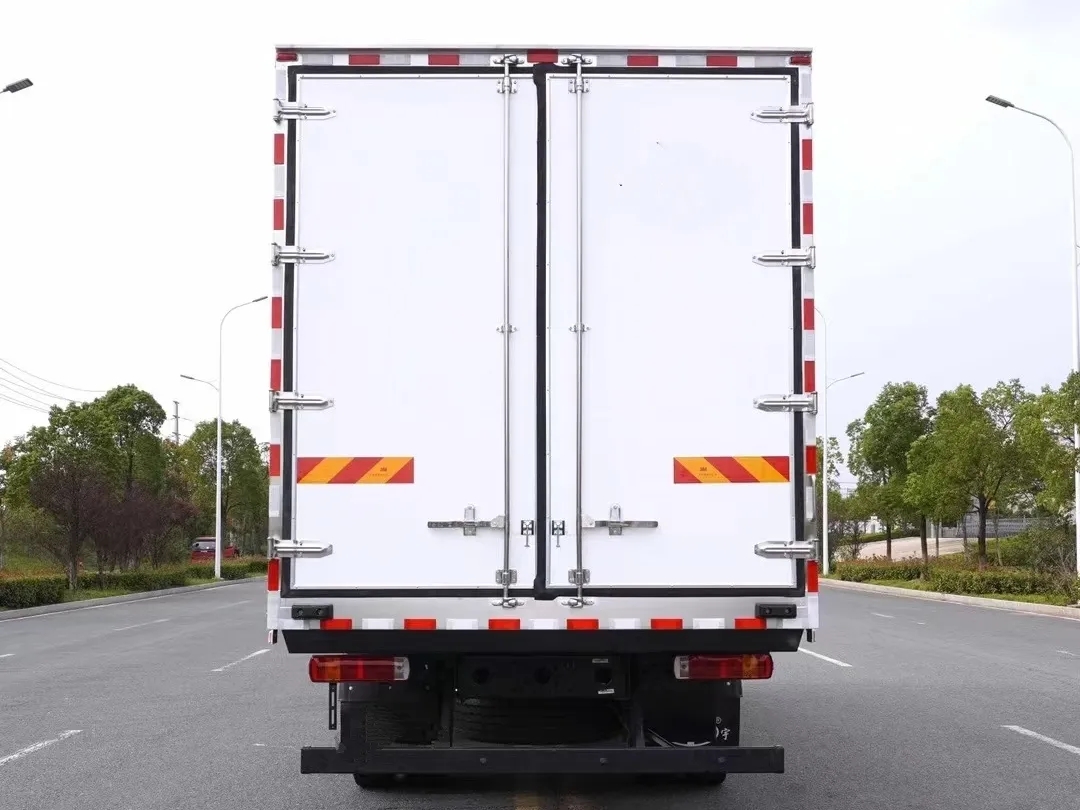

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
4.The truck can be equipped with an optional tailboard.
| Product Name | Mercedes Benz Auman 8x4 refrigerated van truck |
| Driving Type | 8X4 |
| Cargo box Volume(cbm) | 55 |
| Rated payload weight(kg) | 18970,18170(Kg) |
| Wheel base(mm) | 2100+4400+1350mm |
| Overall Dimension(mm) | 12000×2600×3950,3995(mm) |
| Cargo box size(mm) | 9350,9450×2430,2450×2430,2500,2600,2550(mm) |
| Engine brand & model | X13NS6B520 |
| Displacement(L)/Power(kw) | 12.9L/382KW |
| Axle Quantity | 4 |
| Transmission Type | 12-speed gearbox with hydraulic retarder |
| Steering Type | LHD or RHD with power steering |
| Brake system | Air brake |
| Tire Spec. & size | 120R22.5 16PR, 12 tires with a spare |

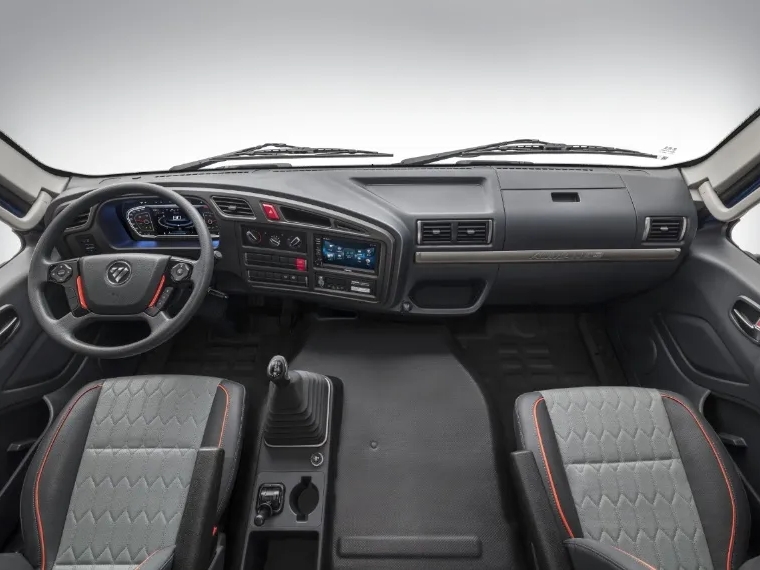

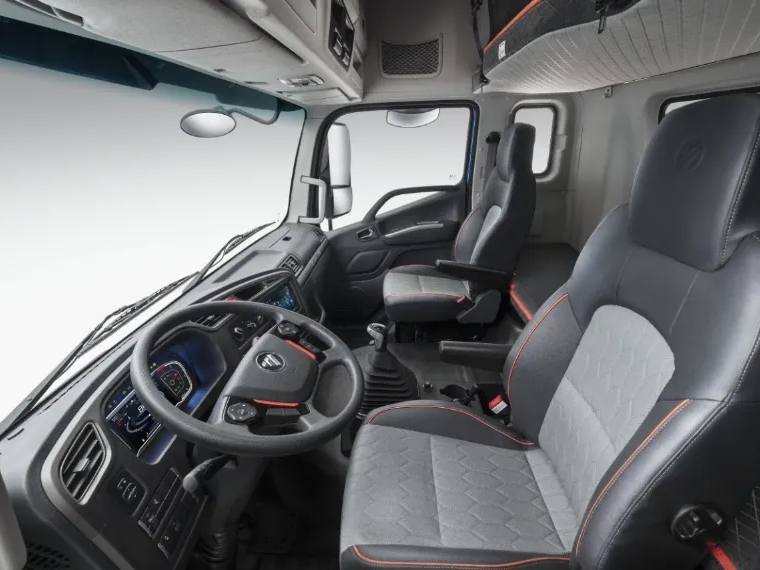

| Cab | 2500mm body, high roof cab, double decker sleeper |
| Compartment material | FRP inside and outside,8 cm polyurethane foam middle |
| Compartment structure | Don |
| Refrigerated Unit | 1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C |
| Optional | The car can be equipped with an optional tailboard. |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Mercedes Benz Auman 8x4 refrigerated van truck
A refrigerated van truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.
