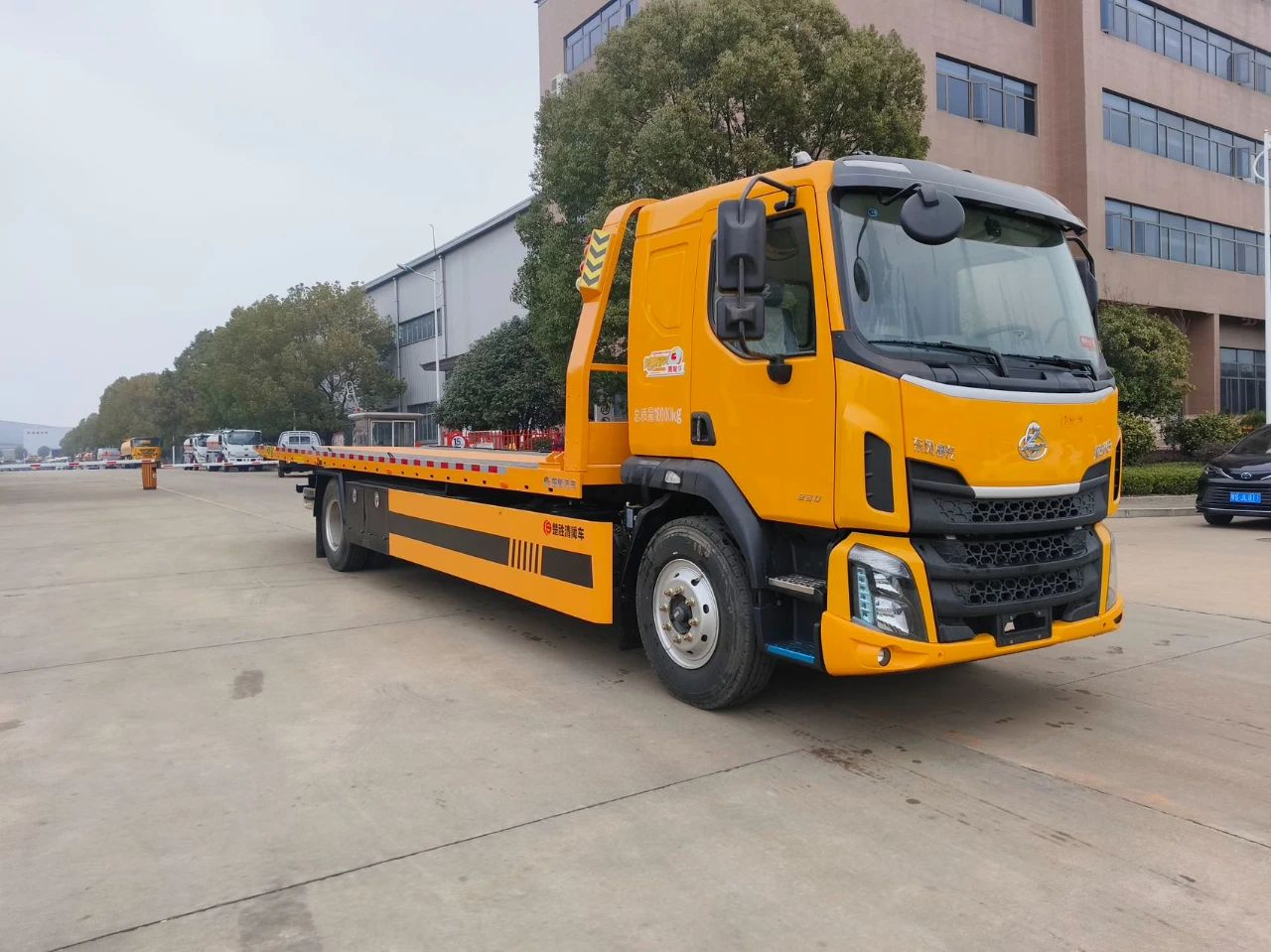

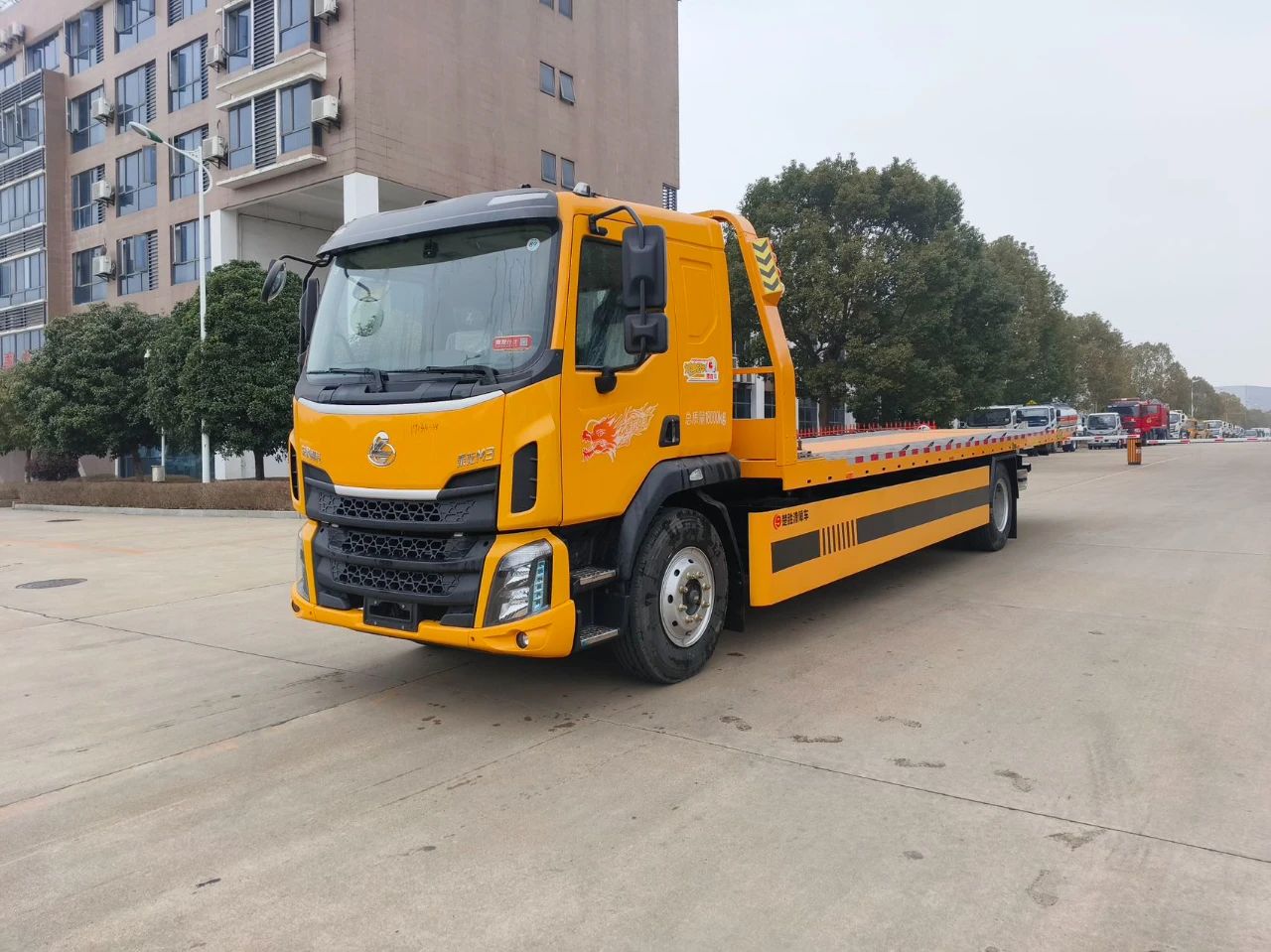

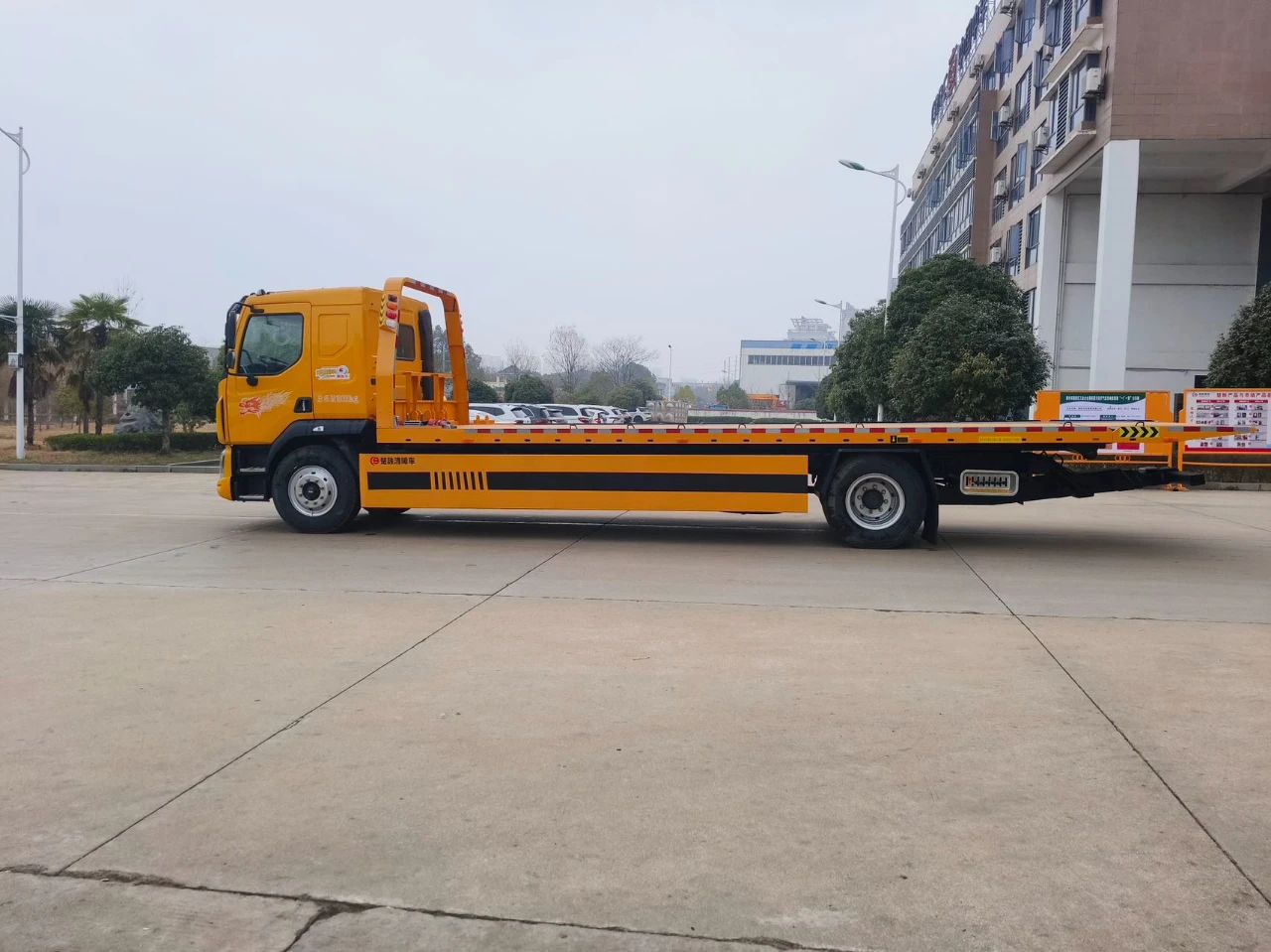

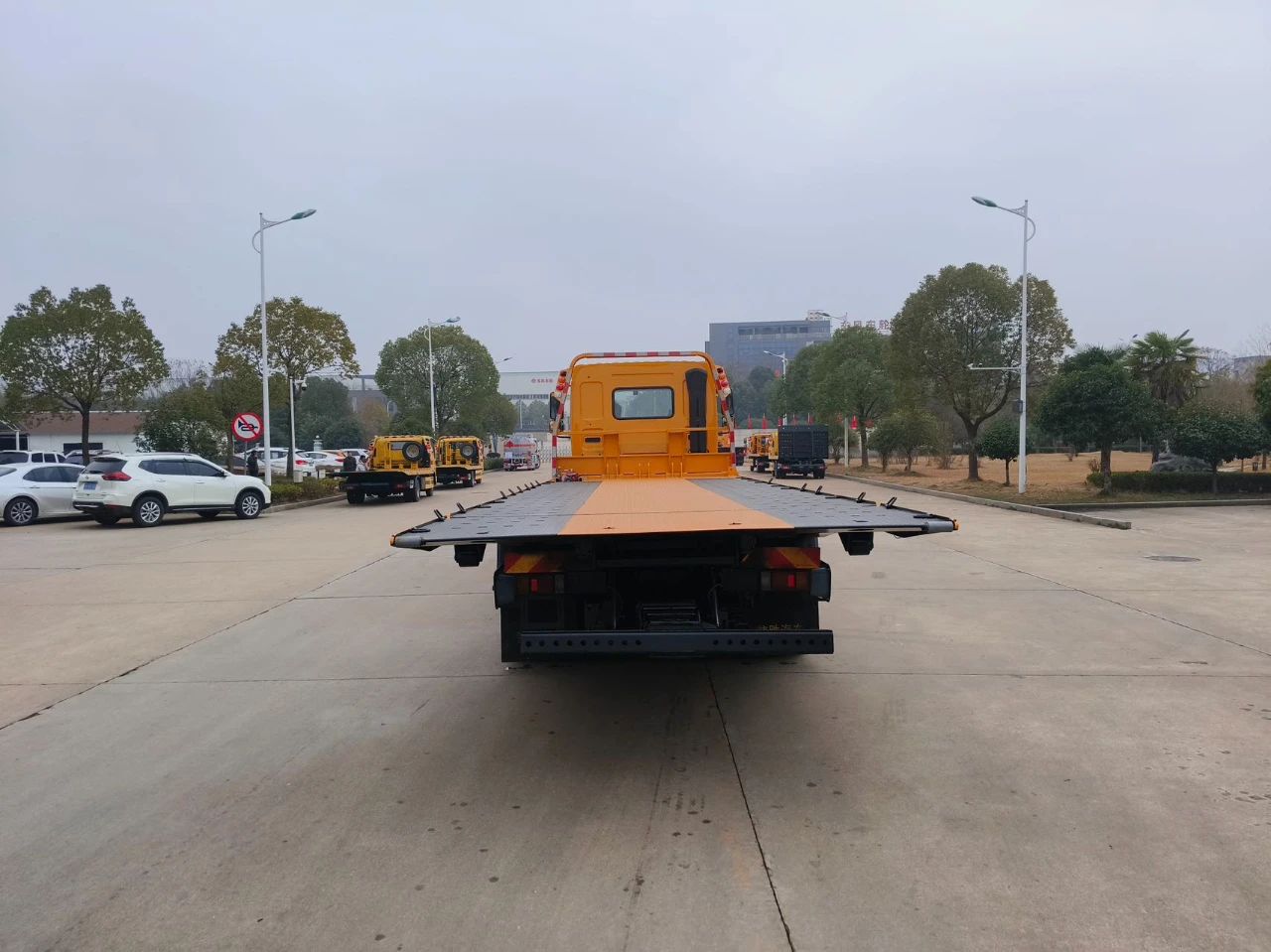

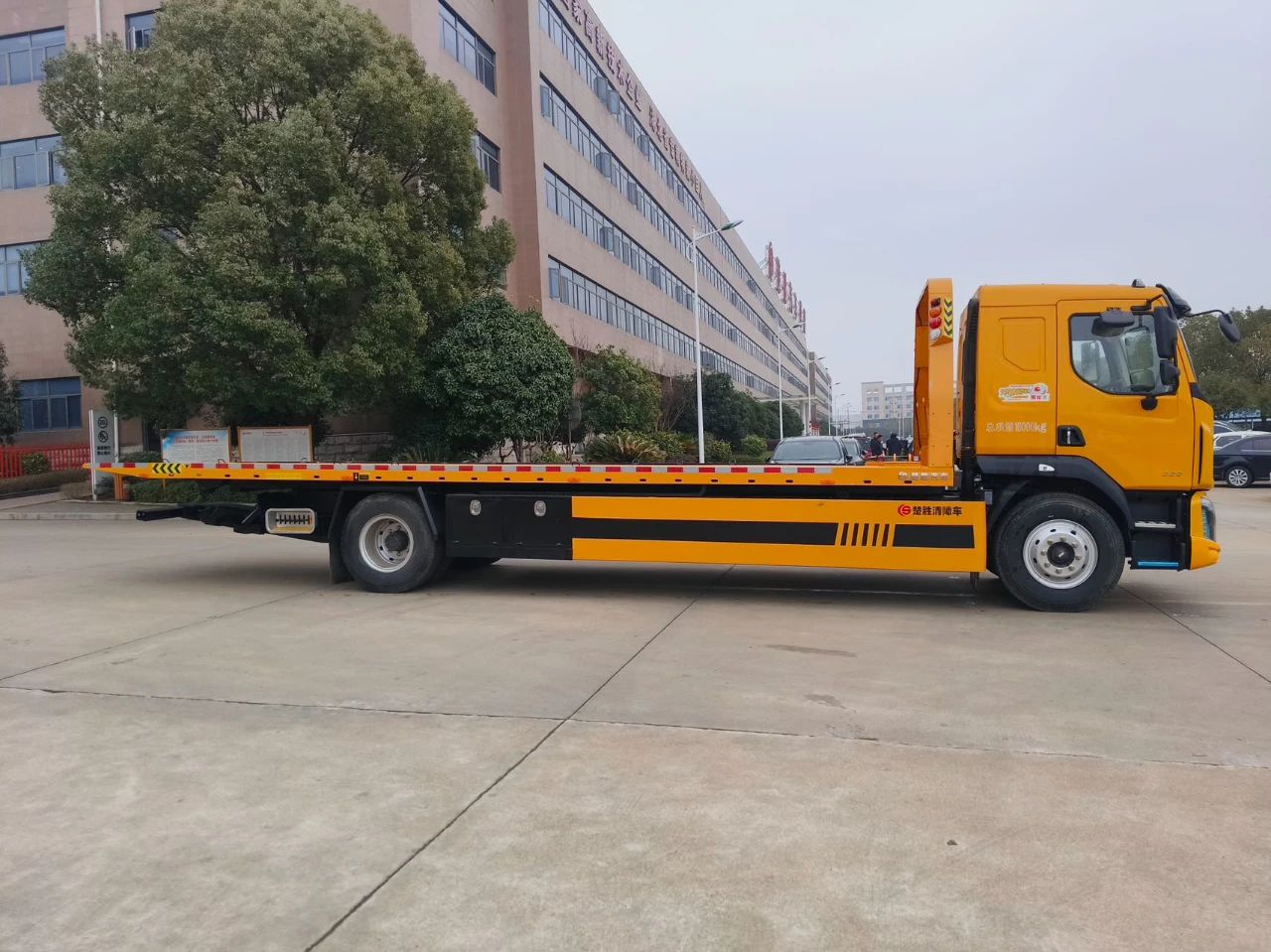

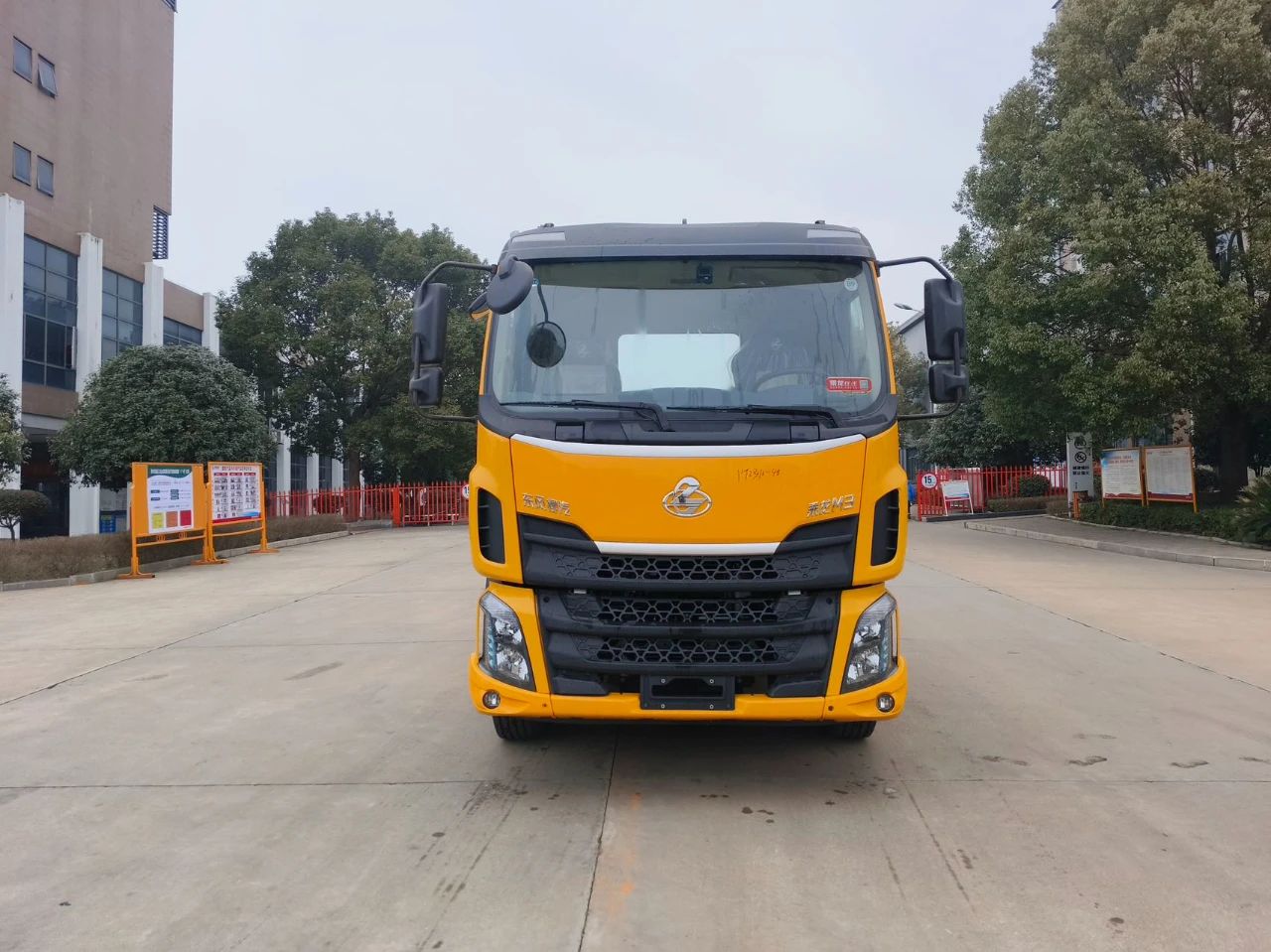

Liuqi 4X2 obstacle clearing vehicle
2024-10-07 09:54:11 Source：chusheng
Chassis configuration:
4 × 2, wheelbase 6300, Yuchai YCS04220-61A, 8JS85C, 3.6T front axle, rear axle 8T/4.333, 280L iron fuel tank, 10.00R20-/18PR, M31B cab, with a diameter of 395 clutch and 8/9+5231 plate springs, domestic steering wheel, semi floating cab suspension, hydraulic mechanical flipping, laminated glass, electric glass lifter, airbag shock absorber driver's seat, silicone oil fan, LCD LCD instrument panel, MP3+radio, air conditioning, cruise control, ABS, in car terminal (driving recorder+compatible with Beidou GPS), remote control central lock, self-adjusting arm, right turn prompt sound, Chenglong V+car networking 3.0 system, speed limit of 89K m/h, Lock Car Treasure.
| Product Name |
Liuqi 4X2 obstacle clearing vehicle |
| Driving Type |
4X2 |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
12500,11800,11000(Kg) |
| Rated weight(kg) |
/ |
| Cab |
M31b cab |
| Engine brand & model |
YCS04220-61A, Yuchai 220 horsepower |
| Wheelbase(mm) |
6300(mm) |
| Axle Quantity |
2 |
| Transmission Type |
8-speed gearbox |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
air brake |
| Tire Spec. & size |
10.00R20-/18PR, 6+1 spare |
| Overall Dimension(mm) |
12045,11945,11145,11245×2550,2500×2950,3250,3300(mm) |
| Crane specification |
no crane (Crane can be installed) |
| Standard configuration |
10P12 patterned flat plate (6mm), the rear of the main board can be hydraulically flipped; The board length is 7.6 meters for the main board, 1.3 meters for the hydraulic flip board, with steel plates attached to the frame and a cross shaped chassis layout |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Liuqi 4X2 obstacle clearing vehicle
Obstacle clearing vehicles,also known as road clearing vehicles, trailers, road rescue vehicles, and towing vehicles, have multiple functions such as lifting, pulling, and lifting. Obstacle clearing vehicles are mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue.
Installation configuration:

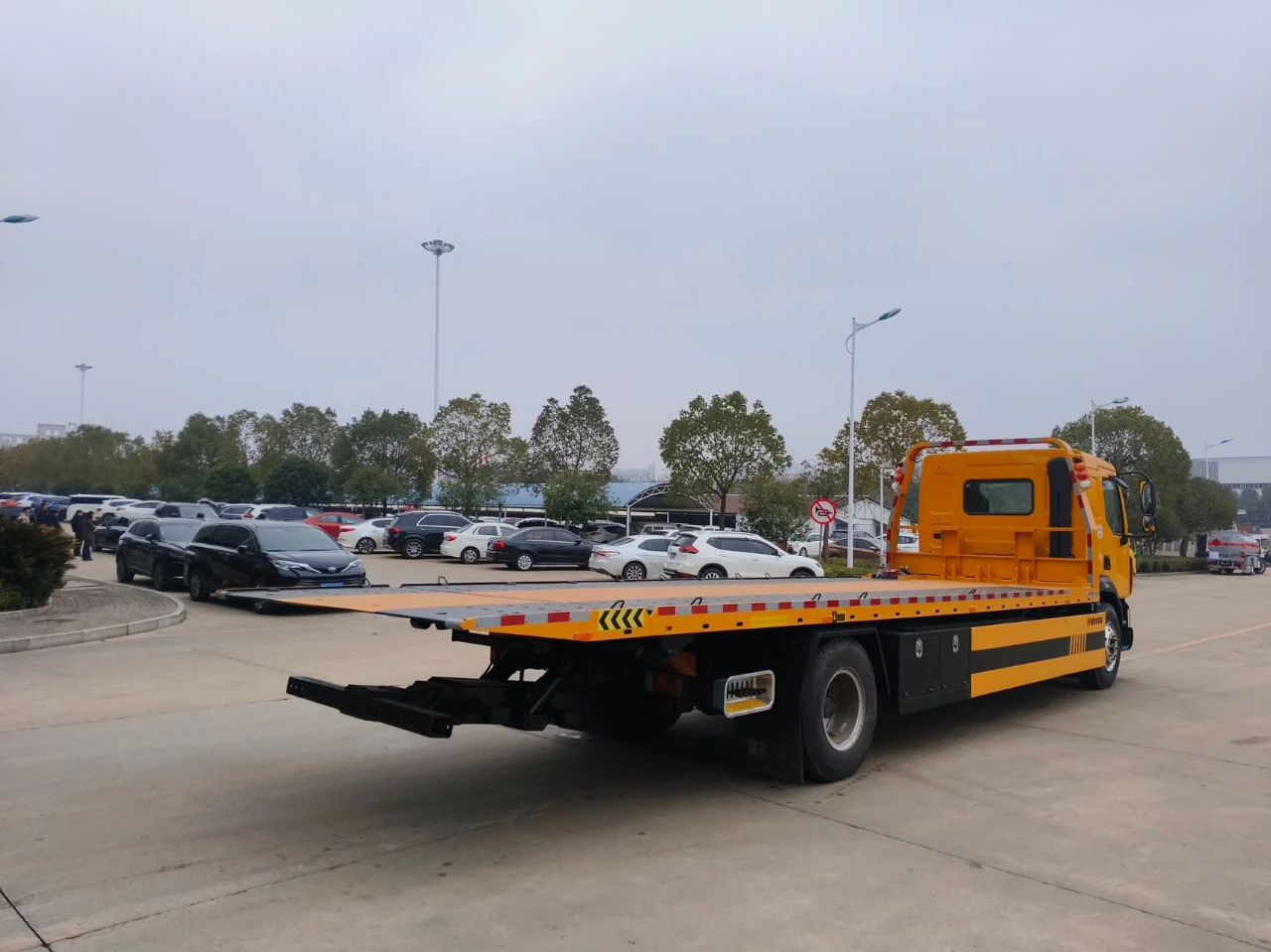

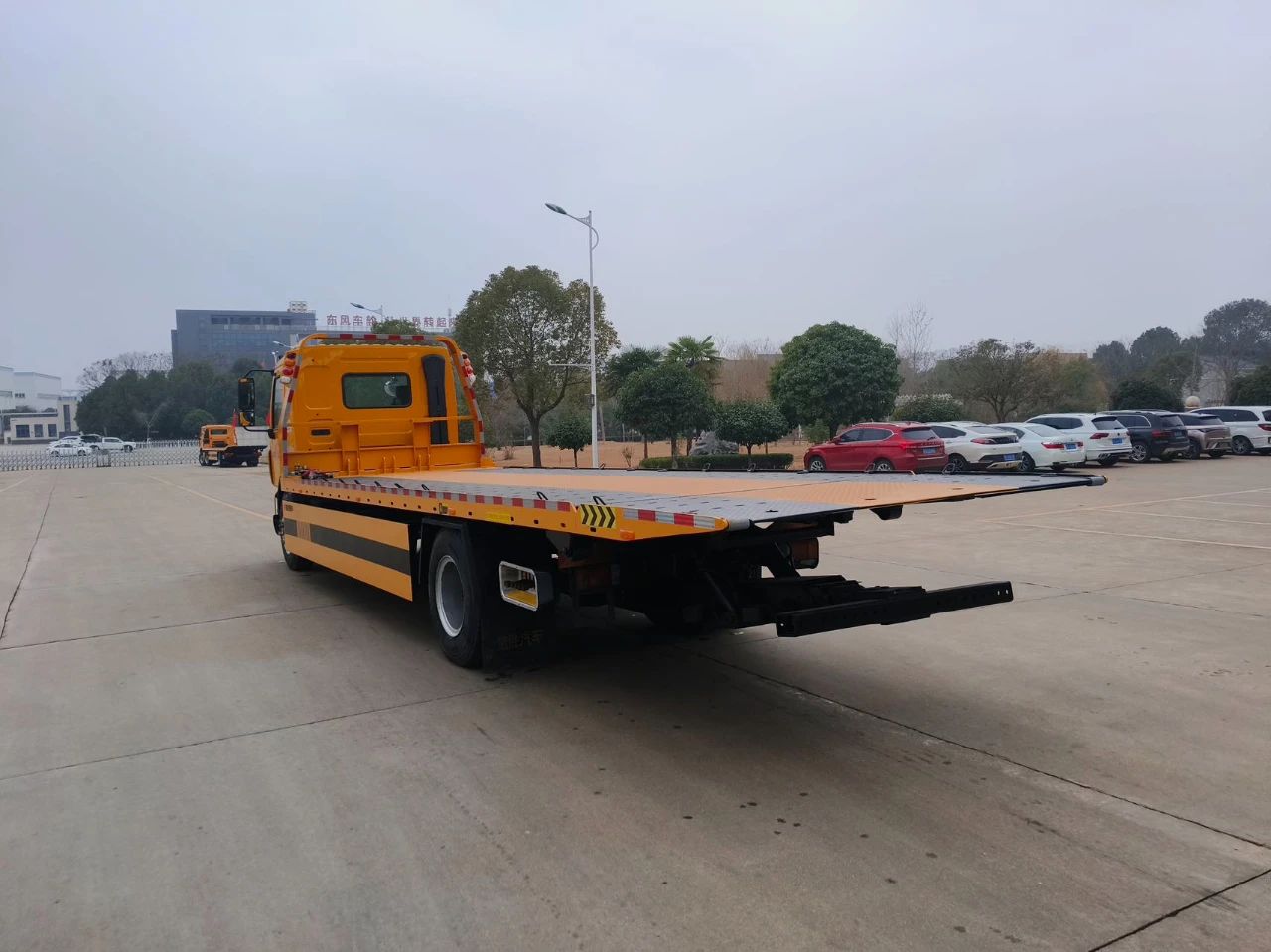

10P12 patterned flat plate (6mm), the rear of the main board can be hydraulically flipped; The board length is 7.6 meters for the main board, 1.3 meters for the hydraulic flip board, with steel plates attached to the frame, a cross shaped chassis layout, one 80KN winch (equipped with a 45 meter steel wire rope), a 12 ton 3-section rear support arm hanging beam, double-sided linkage operation device, one toolbox, two small cars, one pair of L-shaped tire racks, four binding straps, two pairs of support forks, one pair of support fork seats, and one chain hook. Naval battle power oil cylinder, Hefei Wanye hydraulic pump, Italian Ward hydraulic valve, original/Suizhou power take-off, center of gravity lowering and auxiliary air pipe assembly, rear support arm installed on the main beam, optional cross shaped bottom plate layout. Add square pipes under the board for reinforcement.
Product parameters
