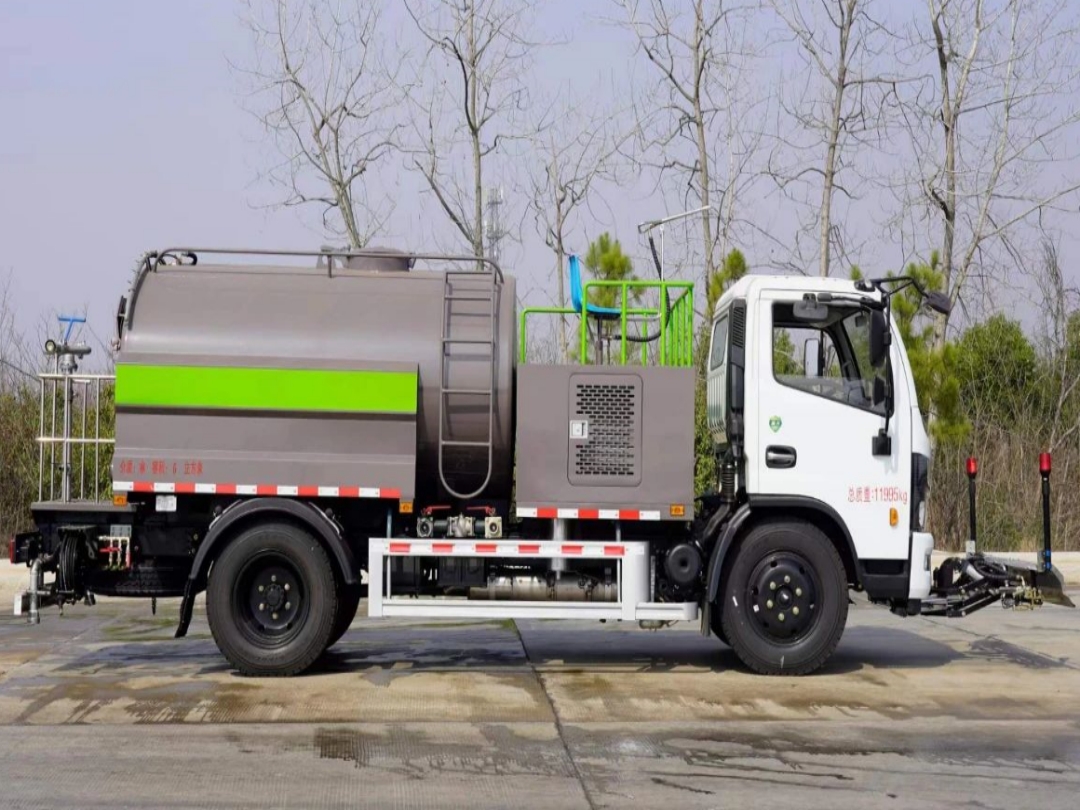

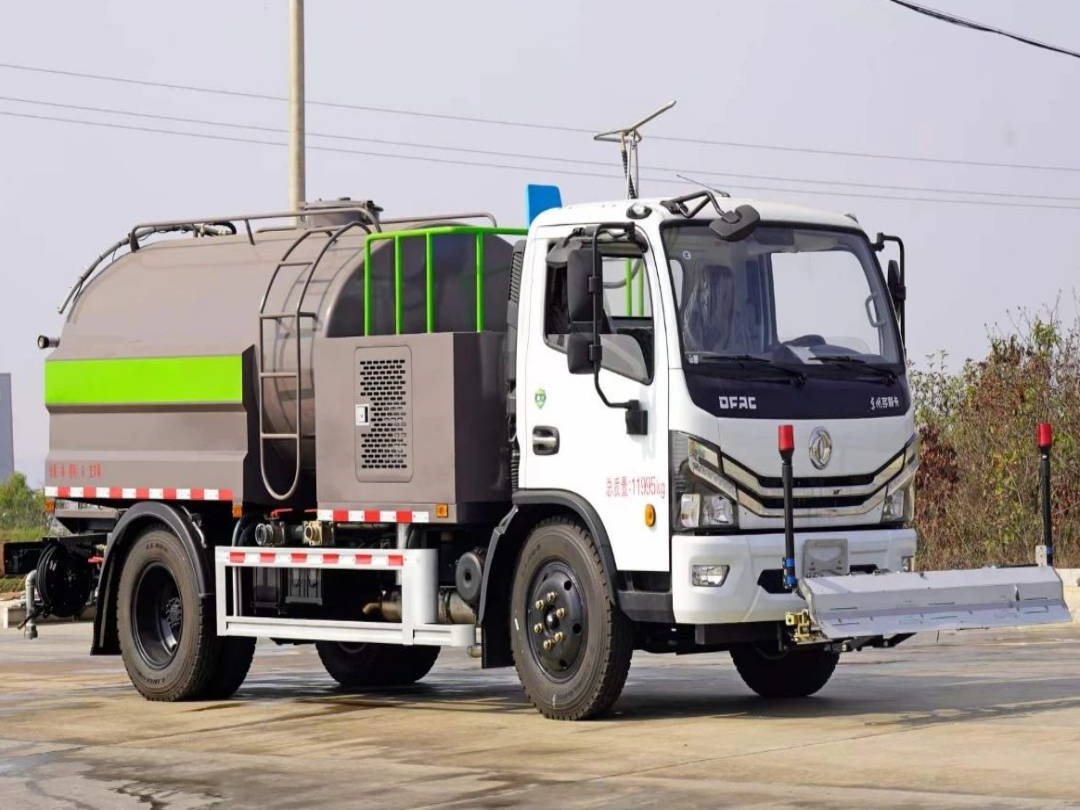

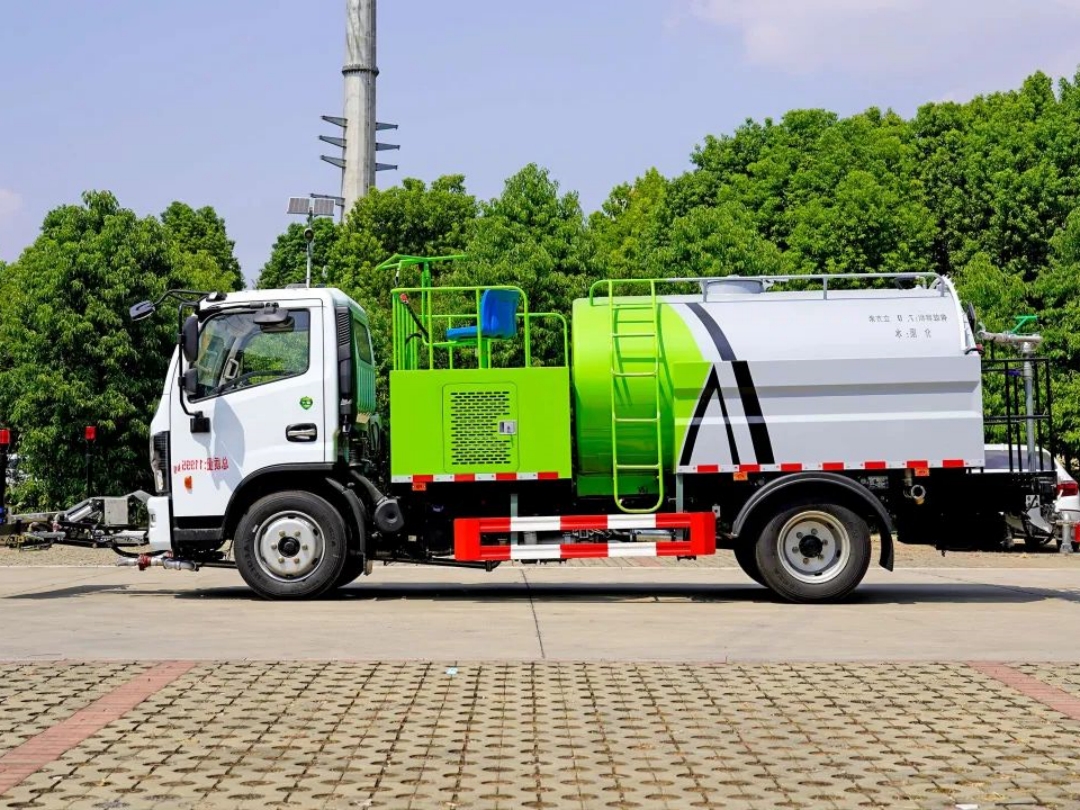

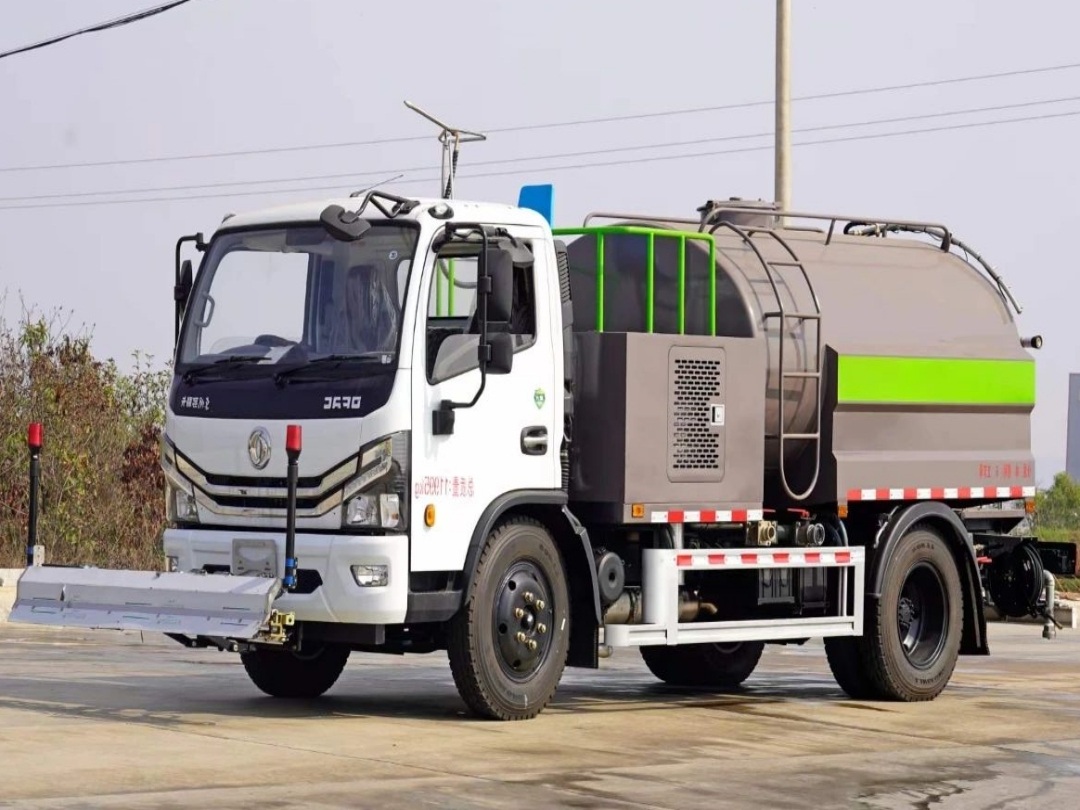

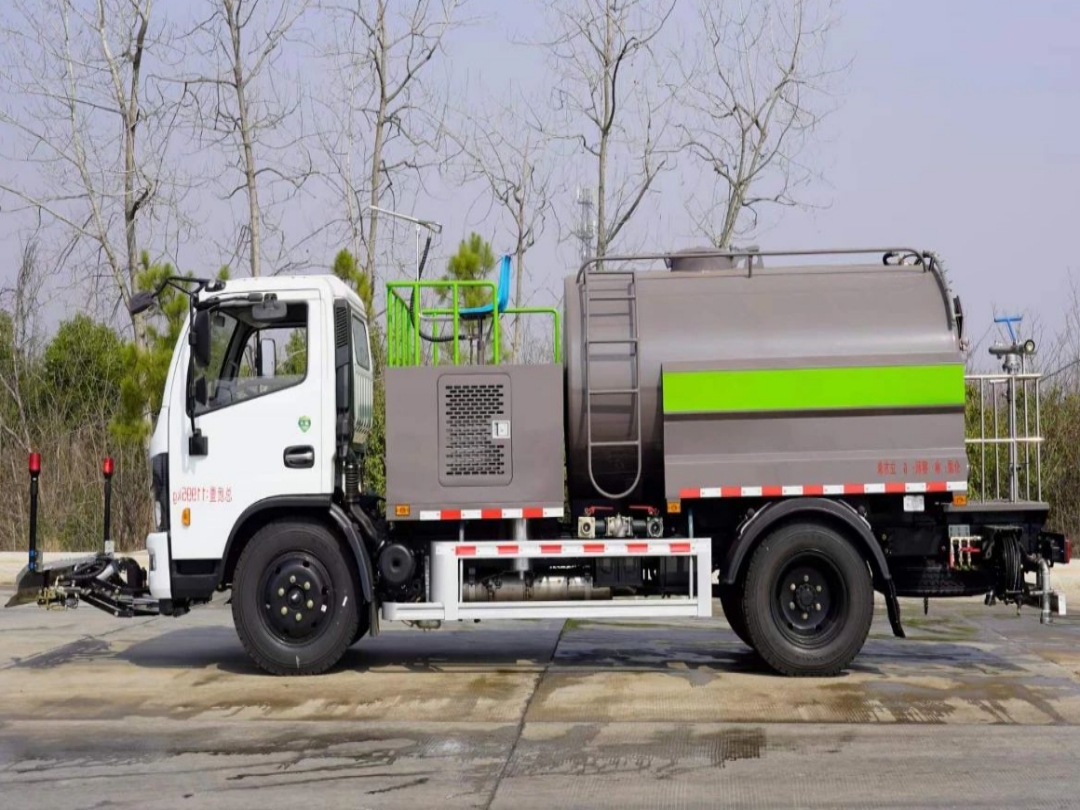

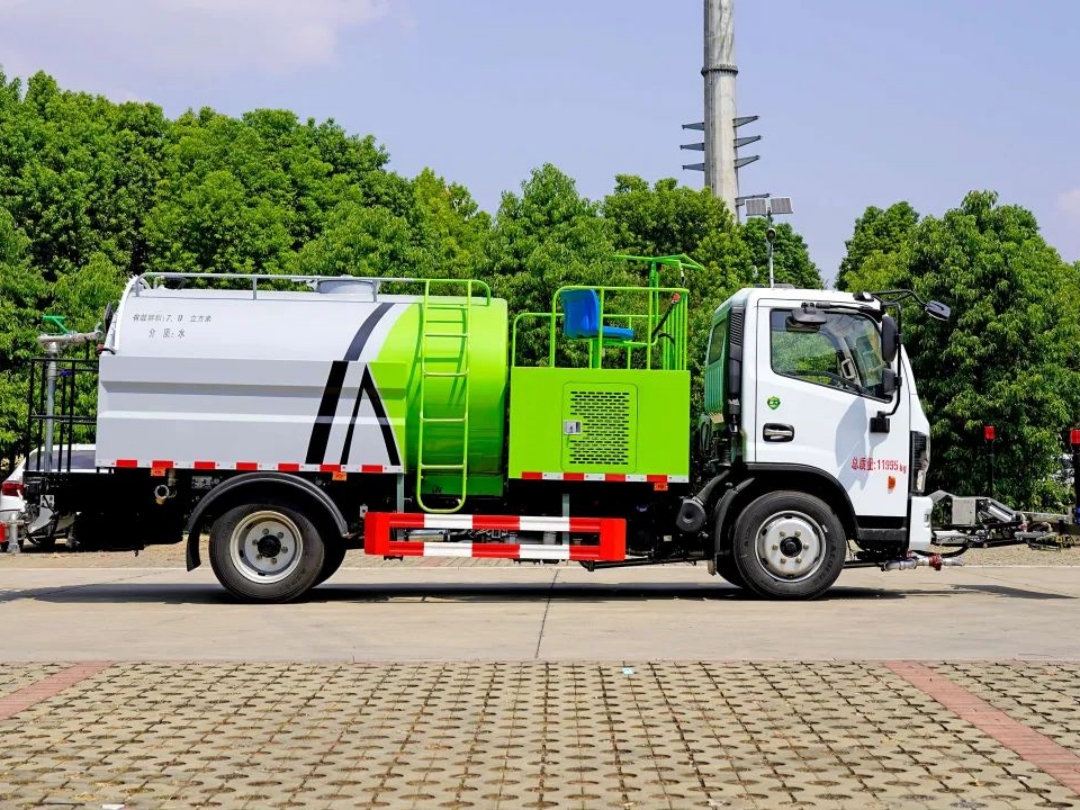

Dongfeng D7 4X2 Road High Pressure Cleaning Vehicle
2024-09-18 10:36:10 Source：chusheng
Main chassis configuration:
Yunnei 150 horsepower/Yuchai 165 horsepower chassis engine, 3800 wheelbase, Wanliyang 6-speed gearbox, 8.25 steel wire tires, electric glass, multifunctional steeringwheel, central locking, original air conditioning.
Installation configuration:
Jiangling 64KW with supercharged auxiliary engine, GTM high-pressure water pump, low-pressure water pump, dual engine, dual water pump cleaning, front high-pressure water flushing rack, alarm light, front corner spray, high-pressure spot spray, low-pressure water cannon, high-pressure spray arc (upper tail), high-pressure spray (lower tail), high-pressure winch, arrow light.
| Product Name |
Dongfeng D7 4X2 Road High Pressure Cleaning Vehicle |
| Cab |
Dongfeng D7 |
| Drive wheel |
4X2 |
| Steering wheel |
Left/Right hand drive |
| Seat capacity |
2-3 person |
| Engine Model |
Yunnei 150 horsepower/Yuchai 165 horsepower |
| Gearbox |
8-speed gearbox |
| Wheel base |
3800(mm) |
| Axle numbers |
2 |
| Tire sepcification and quantity |
8.25R20 steel wire tire, 6 + 1 spare tire |
| Vehicle dimension |
7800×2280×2700(mm) |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
5800(Kg) |
| Rated weight(Kg) |
6000,6065(Kg) |
| Water tank capacity |
6m³ |
| Garbage bin capacity |
/ |
| Upper configuration |
Jiangling 64KW with supercharged auxiliary engine, GTM high-pressure water pump, low-pressure water pump, dual engine, dual water pump cleaning, front high-pressure water flushing rack, alarm light, front corner spray, high-pressure spot spray, low-pressure water cannon, high-pressure spray arc (upper tail), high-pressure spray (lower tail), high-pressure winch, arrow light. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D7 4X2 Road High Pressure Cleaning Vehicle
High pressure cleaning vehicles, also known as pipeline dredging vehicles, use the strong pressure generated by high-pressure water flow to flush open blocked pipelines. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.
The high-pressure washing vehicle can also be equipped with sprinklers, including greening sprinklers, forward flushing, rear spraying and side spraying, which can be used for greening watering, spray, dust suppression, high-pressure road flushing, etc., and can be used for fire fighting in an emergency.
Main Parameter
