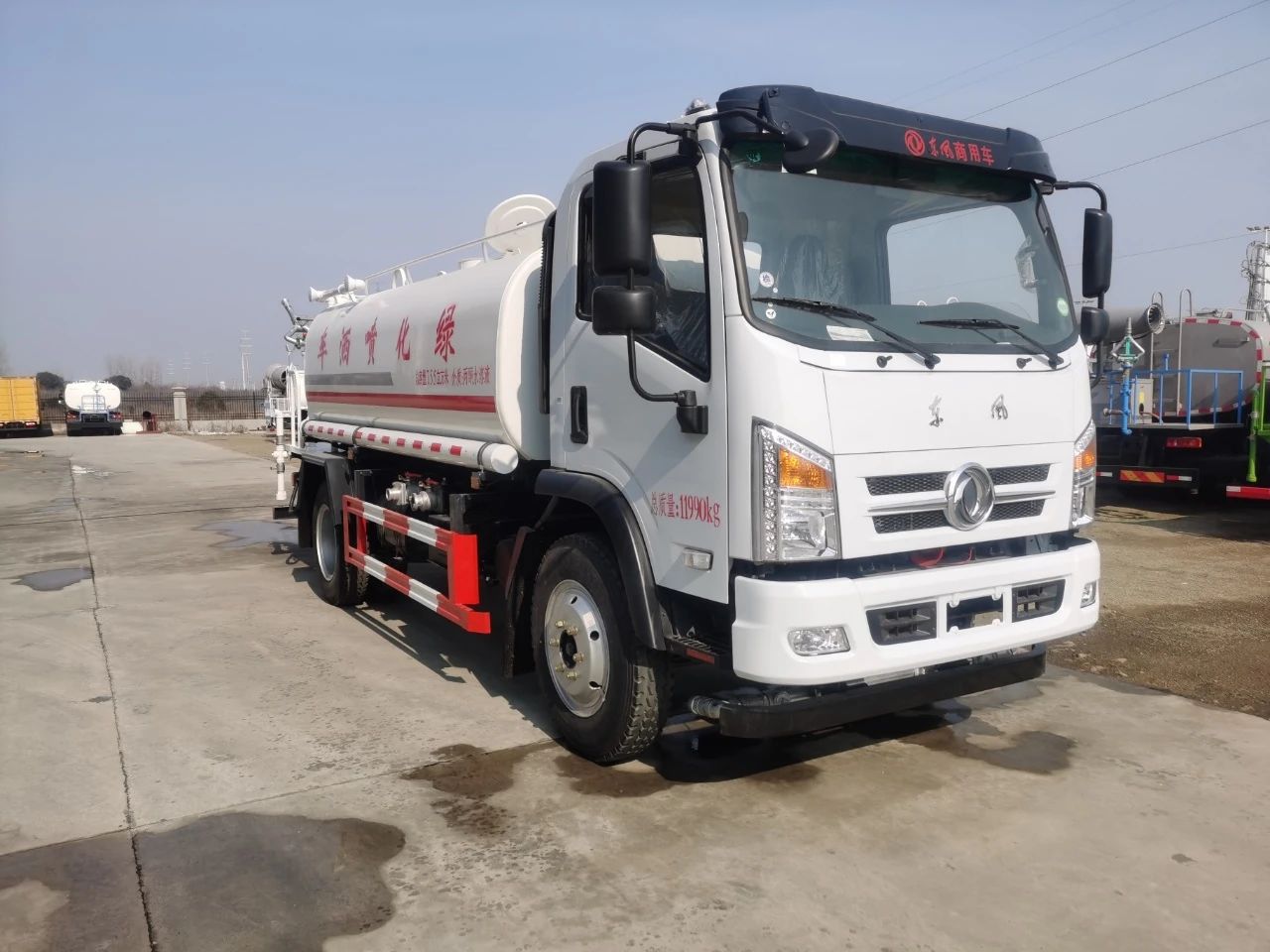

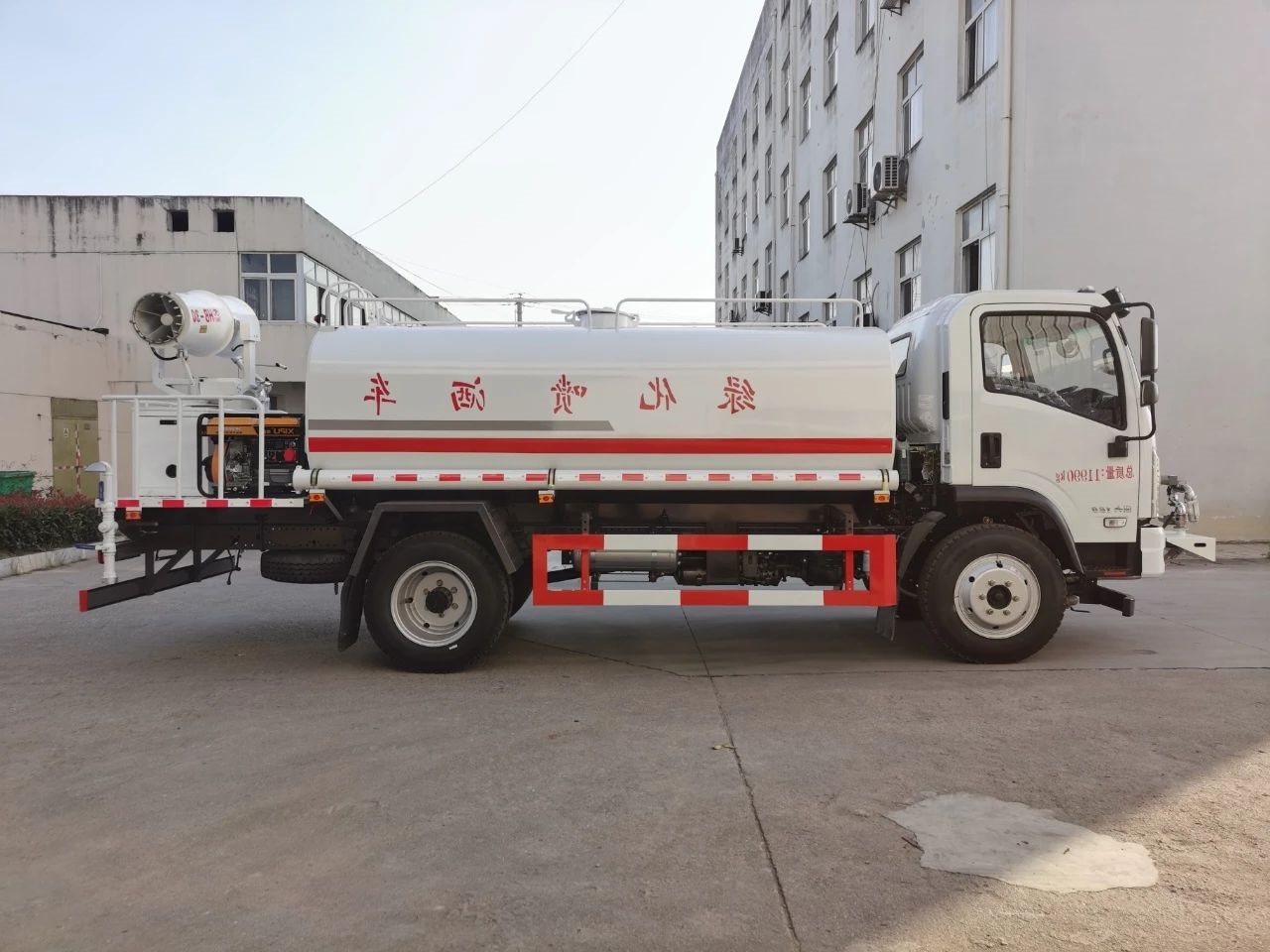

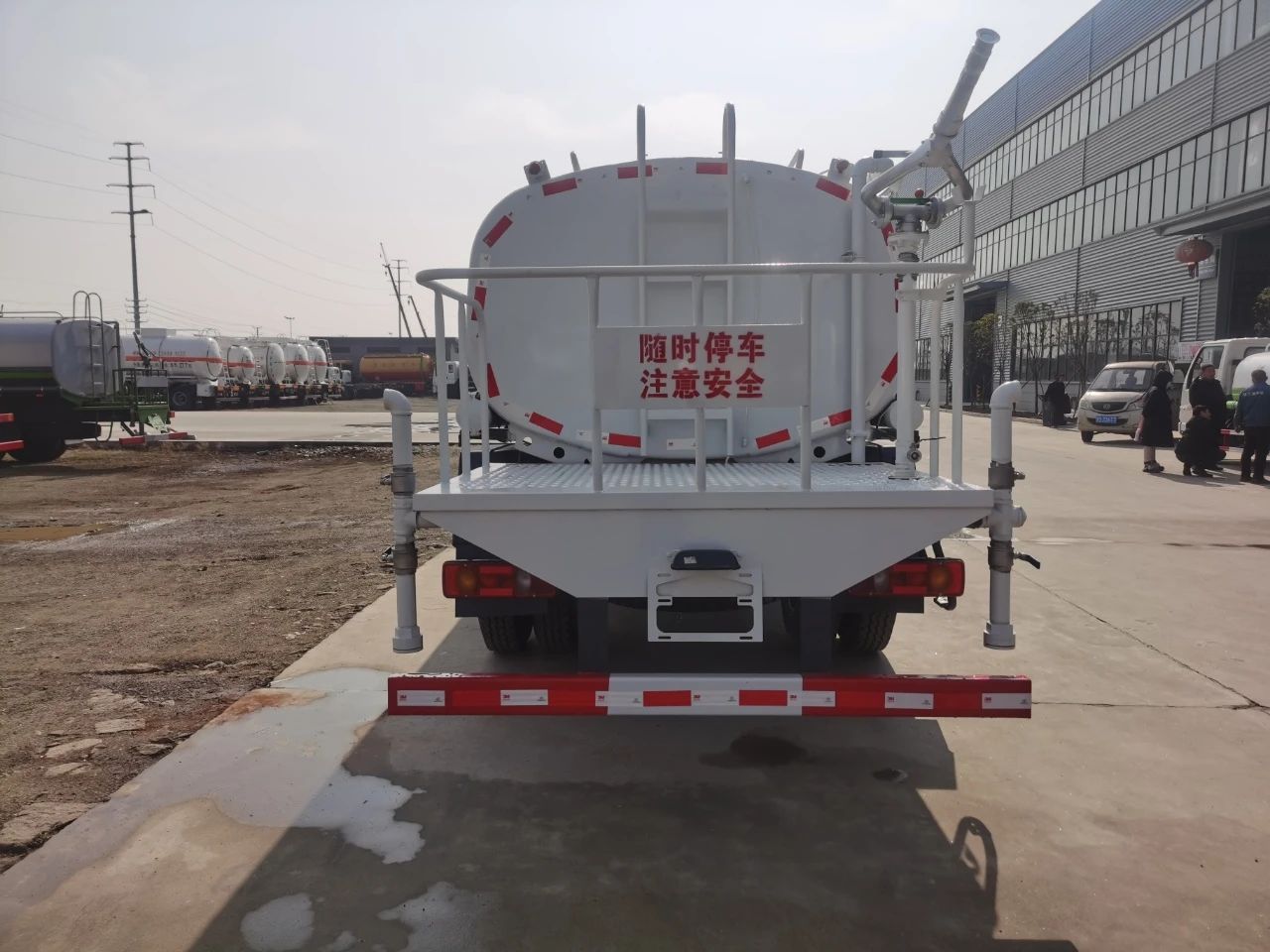

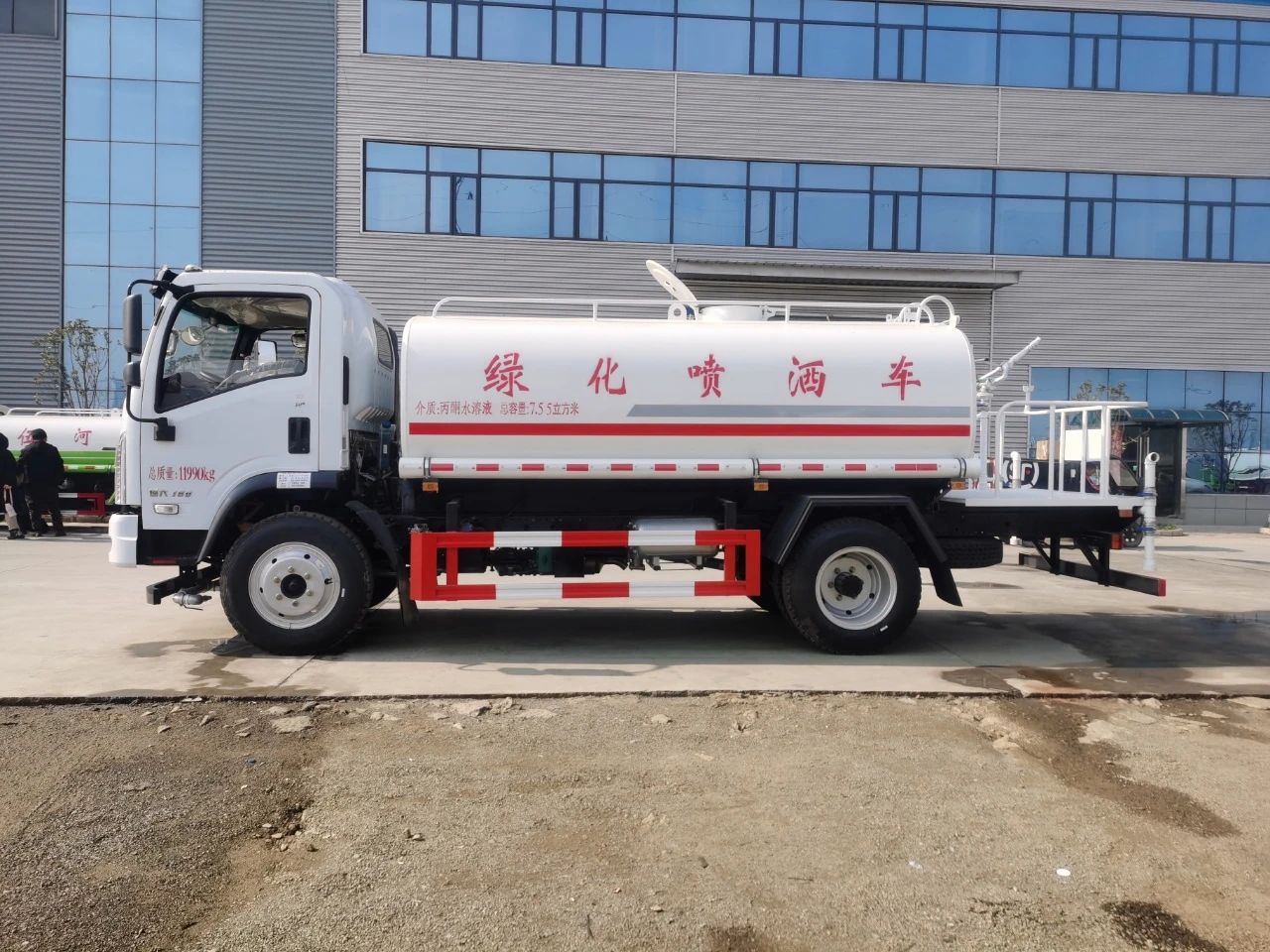

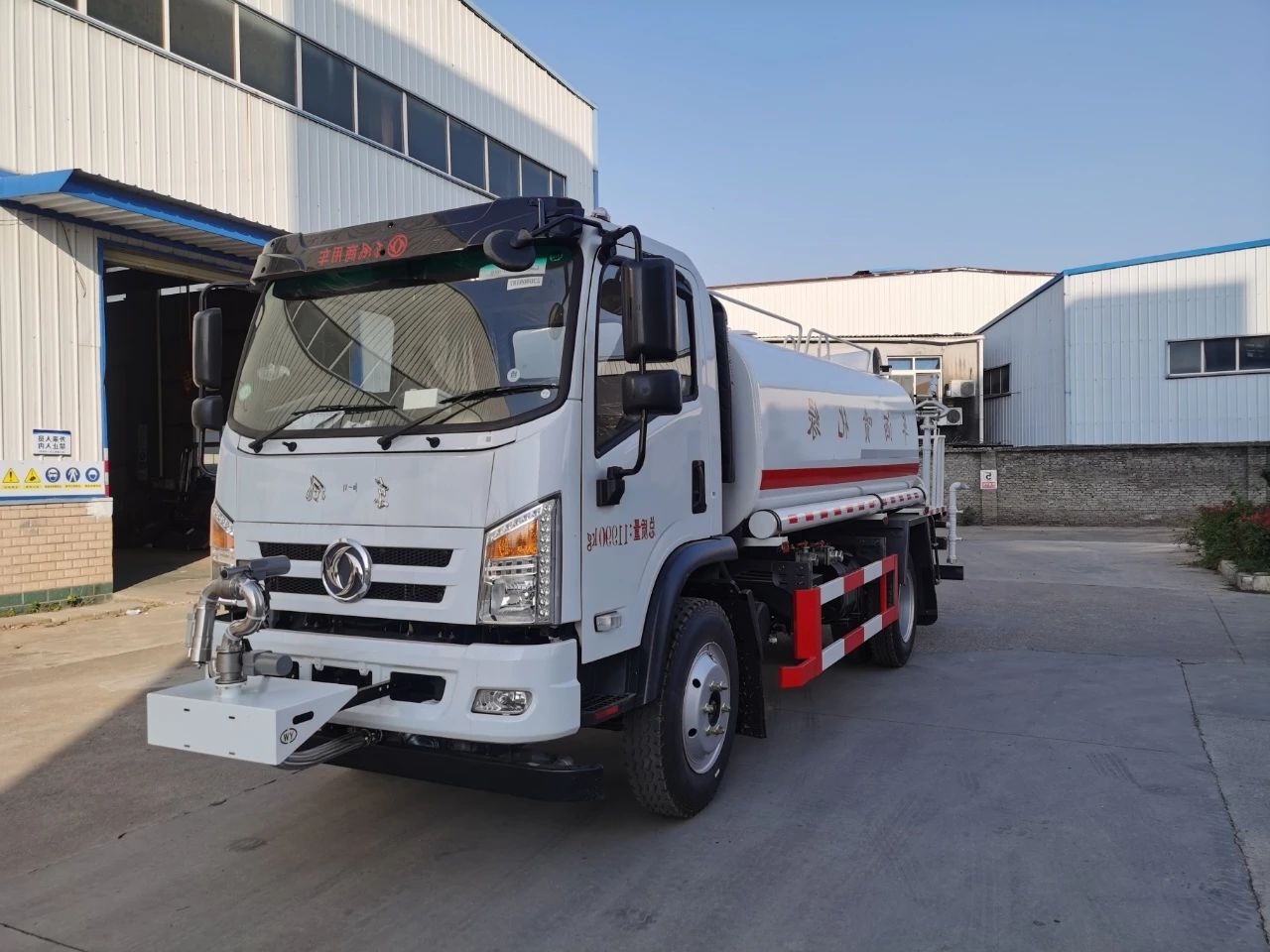

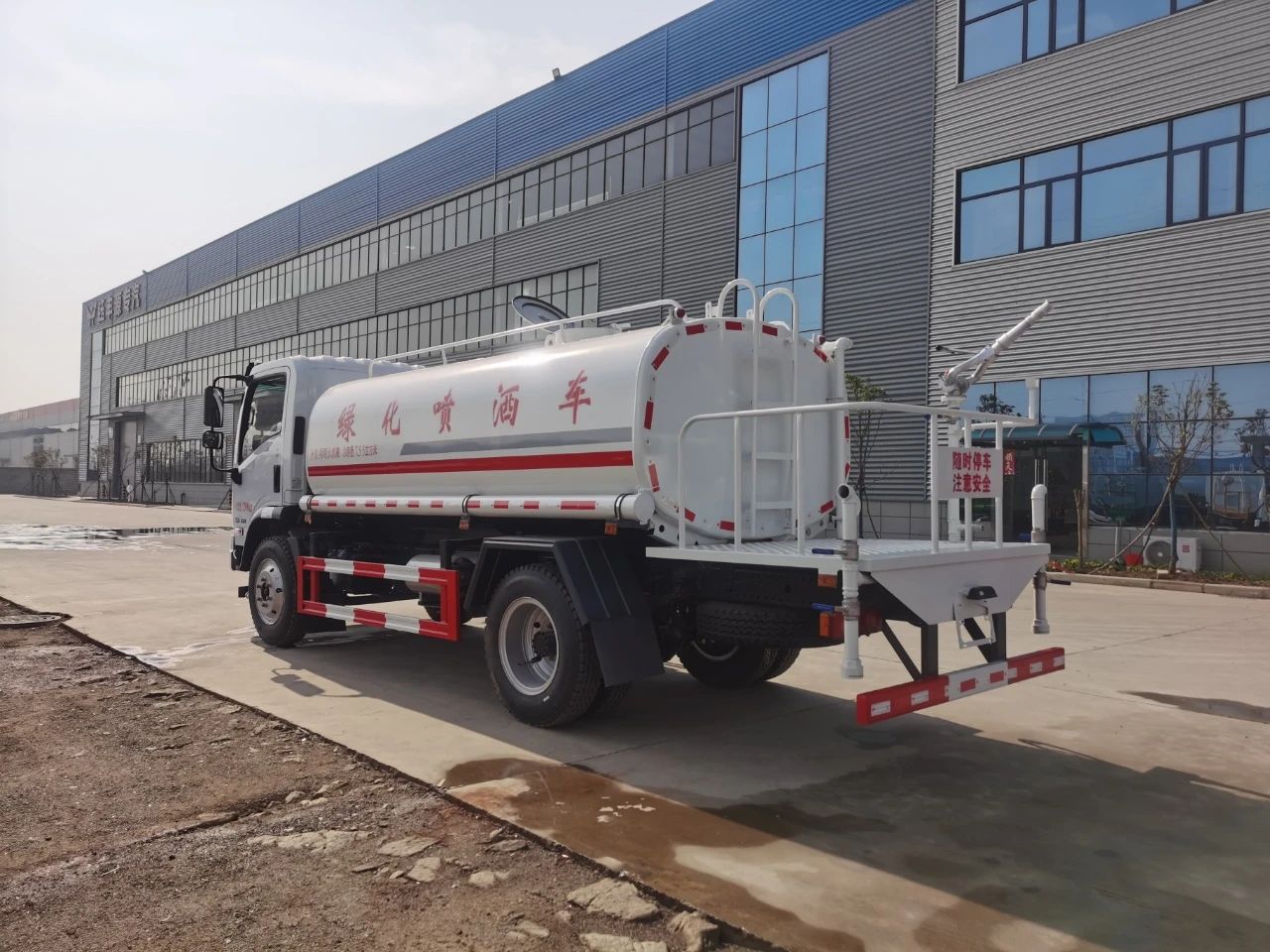

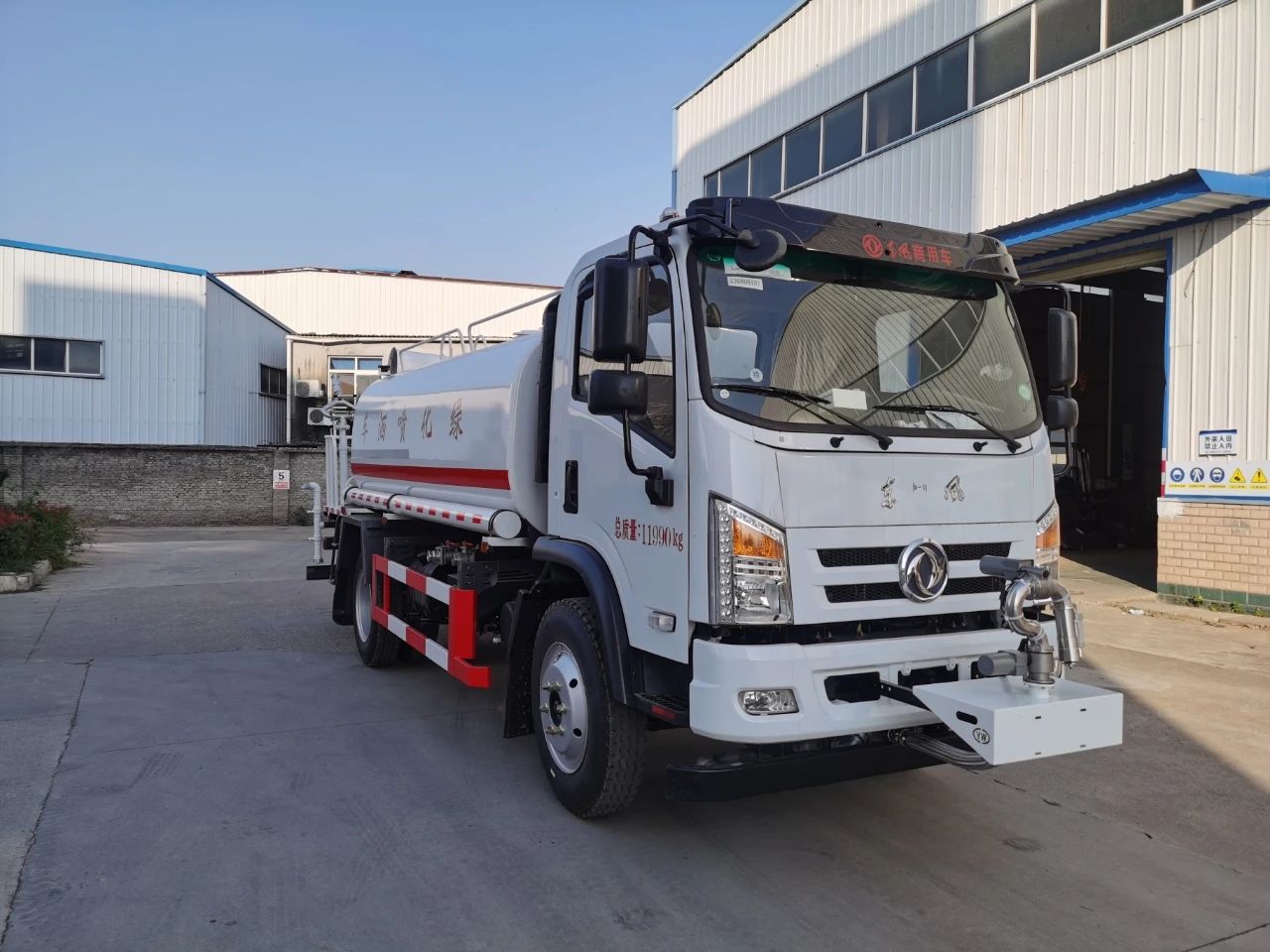

Dongfeng H3 4X2 Green Sprinkler Truck
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:
Dongfeng H3 cab, Yuchai 160 horsepower, Wanliyang 6-speed gearbox, 3800 wheelbase, 825R20 steel tires, 2.5-ton front axle, 6.5-ton rear axle, 190 partial double-layer beam, electric doors and windows, remote key, Payne air conditioning, radio, electronic dashboard.
Installation configuration:

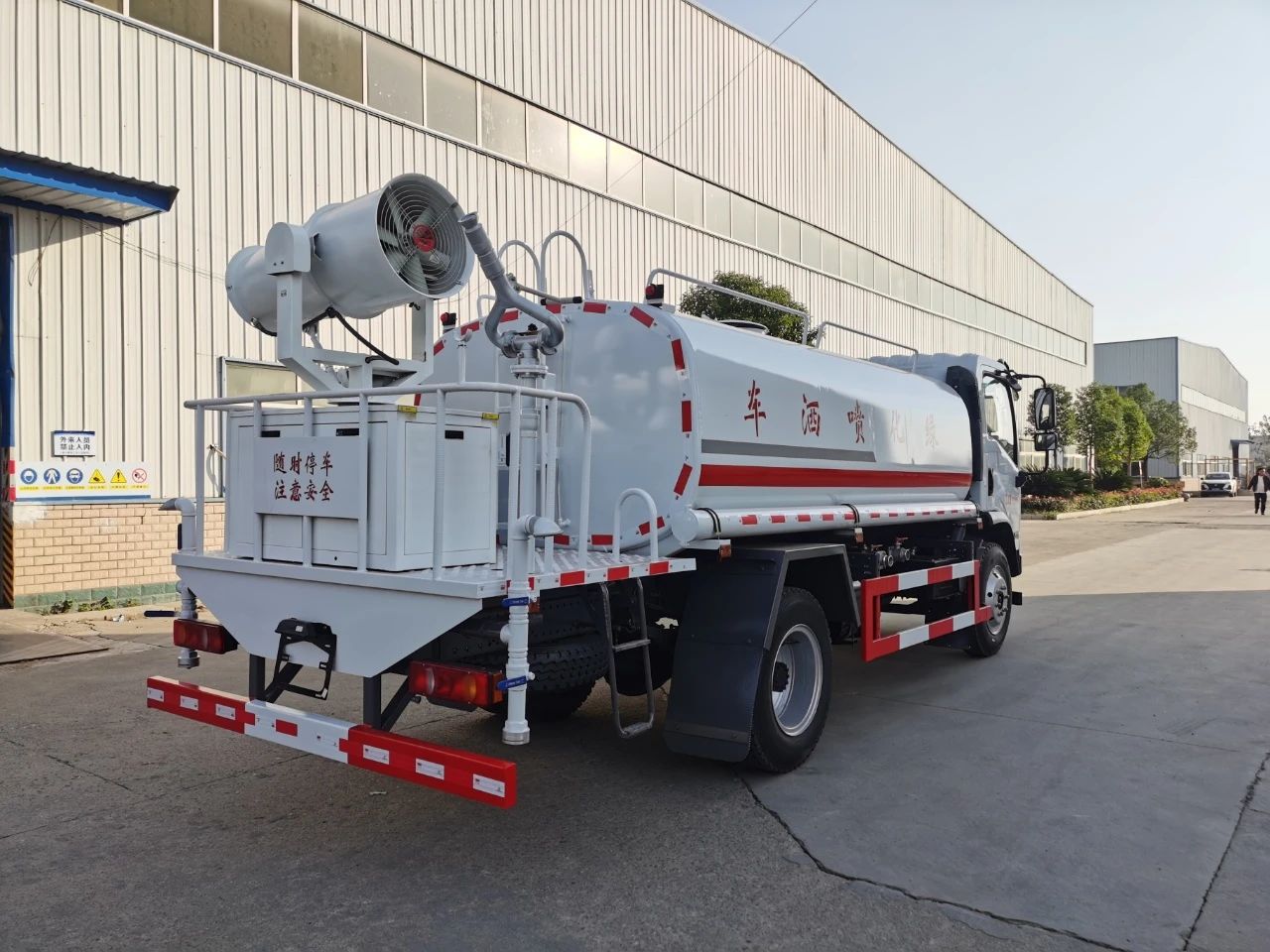

The volume is 9.2 cubic meters, and the tank body is made of standard Q235 carbon steel with a plate thickness of 4mm. It is equipped with a high-power dedicated sprinkler truck, which can self suction and self discharge, front flushing and rear spraying, side spraying, high-level showerhead, main pipeline thickening, large diameter ball valve, direct ball valve type fire interface, with a rear working platform, punching platform, with high-altitude gun, and can be equipped with 30-40 meter fog cannon and electronic water cannon.
| Product Name |
Dongfeng H3 4X2 Green Sprinkler Truck |
| Driving type |
4X2 |
| Gross vehicle weight(Kg) |
11990(Kg) |
| Curb weight(Kg) |
4950,4800(Kg) |
| Rated weight(Kg) |
6910,6845,7060,6995(Kg) |
| Cab |
Dongfeng H3 cab |
| Engine |
YCF25160-66, Yuchai 160hp |
| Gearbox |
Wanliyang 6-speed gearbox |
| Tire specification |
825R20 steel tires, 6+1 spare |
| Wheel base (mm) |
3800(mm) |
| Vehicle dimensions (mm) |
7390,7940,7050,7600×2500,2350,2300×2700,2850(mm) |
| Tank volume(cbm) |
9.2 ton water |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Tank material |
The tank body is made of standard Q235 carbon steel with a plate thickness of 4mm |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng H3 4X2 Green Sprinkler Truck
Green sprinkler truck generally refers to a sprinkler truck. Sprinkler truck, also known as sprinkler truck, multifunctional sprinkler truck, landscaping sprinkler truck, water tank truck, or water transport truck. Sprinkler trucks are suitable for various road surface cleaning, tree, green belt, lawn greening, road, factory and mining enterprise construction, and high-altitude building cleaning. It has functions such as watering, dust suppression, high and low level spraying, pesticide spraying, and guardrail flushing.
