FOTON 4X4 Forest Water Supply Fire Sprinkler Truck
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:
1.Cab: The cab is a double door flat head all metal enclosed cab, with an original single row and sleeper cab, a panoramic curved windshield, a front bumper, front combination lighting fixtures, electric glass windows, and a lower cover under the front bumper.
2. Engine: F3.8NS6B156/F3.8NS6B170,115Kw (150 hp)/125KW (170 hp)
3. Wheelbase: 4200(mm)
4. Transmission: 6-speed gearbox, manual
5. Tires: 8.25R20 steel wire tire, 6+1 spare
| Product Name |
FOTON 4X4 Forest Water Supply Fire Sprinkler Truck |
| Driving type |
4X4 |
| Gross vehicle weight(Kg) |
13995(Kg) |
| Curb weight(Kg) |
7250(Kg) |
| Rated weight(Kg) |
6550(Kg) |
| Cab |
The cab is a double door flat head all metal enclosed cab, with an original single row and sleeper cab, a panoramic curved windshield, a front bumper, front combination lighting fixtures, electric glass windows, and a lower cover under the front bumper. |
| Engine |
F3.8NS6B156/F3.8NS6B170,115Kw (150 hp)/125KW (170 hp) |
| Gearbox |
6-speed gearbox, manual |
| Tire specification |
8.25R20 steel wire tire, 6+1 spare |
| Wheel base (mm) |
4200(mm) |
| Vehicle dimensions (mm) |
7420,7440×2320×3120(mm) |
| Tank volume(cbm) |
7.6 ton water |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water cannon system parameters |
As follows |
| Fire pump model |
Shanghai CB10/30 |
| Fire monitor model |
West PS30W |
| Fire cannon range |
≥50m |
| Power take-off model |
Full power take-off with water cooling |
| Tank material |
Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and transverse anti sway plates, and treated with glass flake anti-corrosion. |
| Equipment box |
The fire pump is located at the back of the box, with two water outlets on each side of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The water hose bracket adopts the latest technology to produce aluminum alloy profiles, with a concealed tower connection manufacturing and a fully hexagonal connection structure, which is beautiful and durable |
| Electrical configuration |
The front end of the top of the cab is equipped with a long row of 100W alarms and warning lights, and safety sign lights are installed below. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

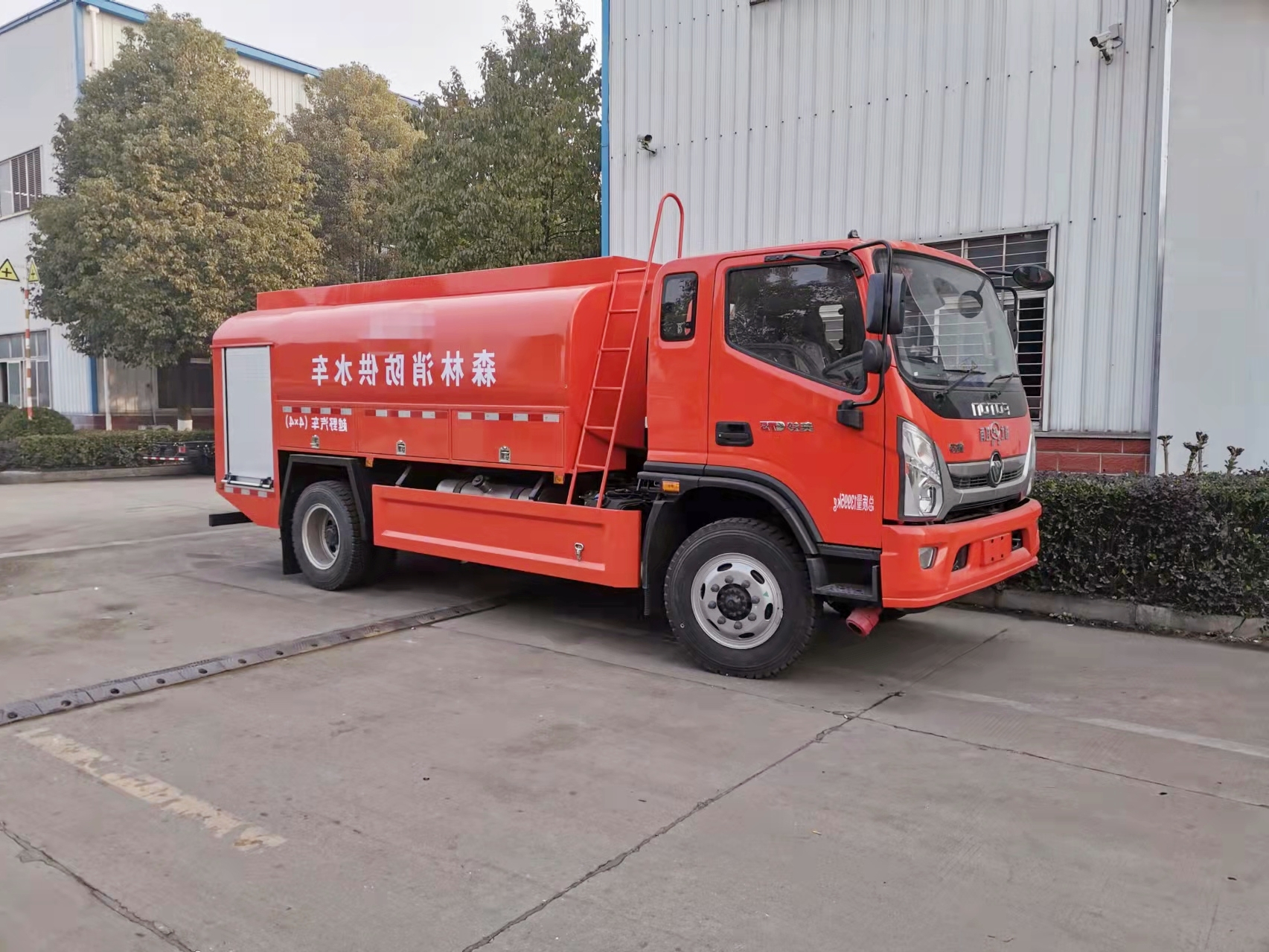

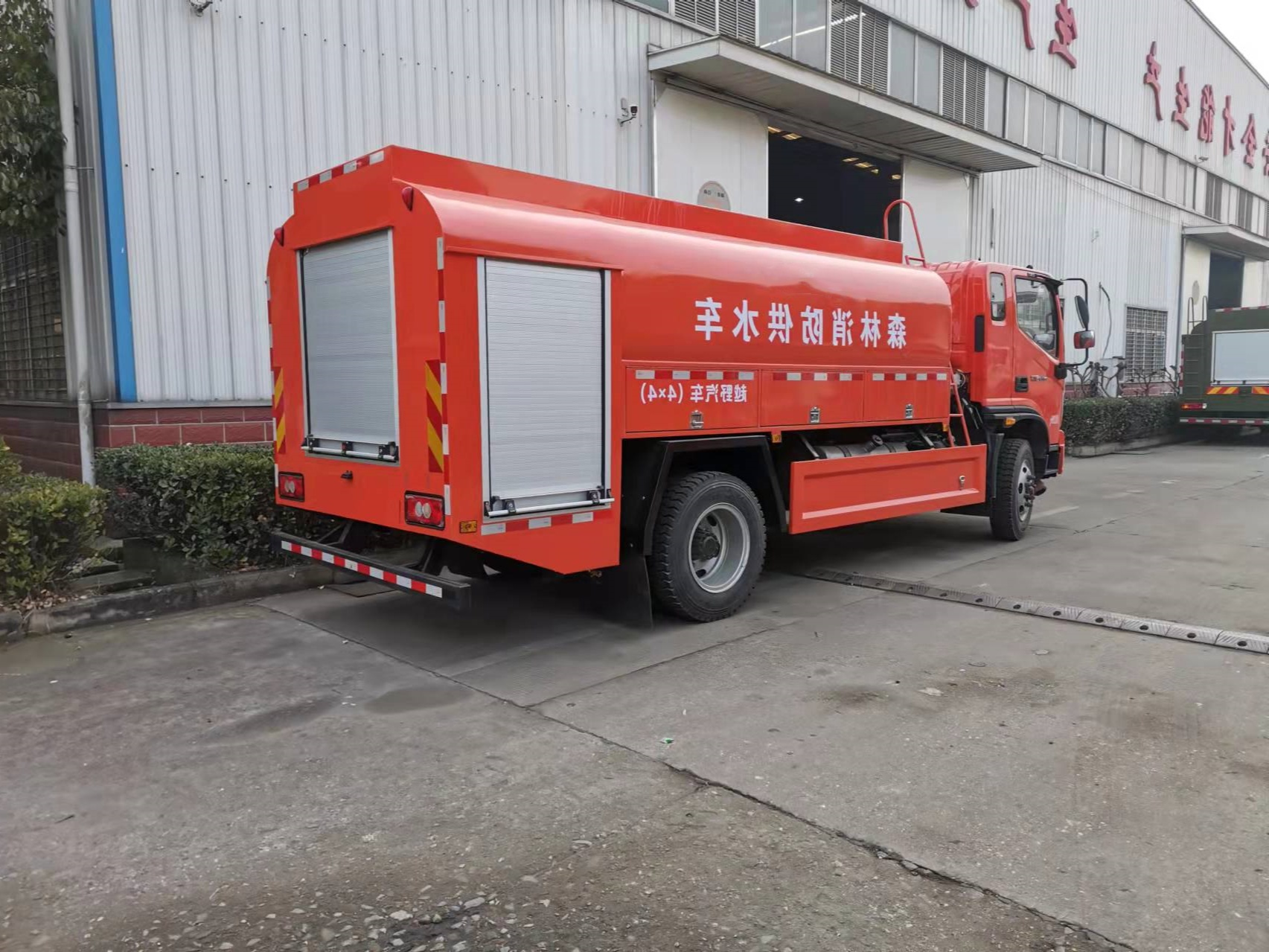

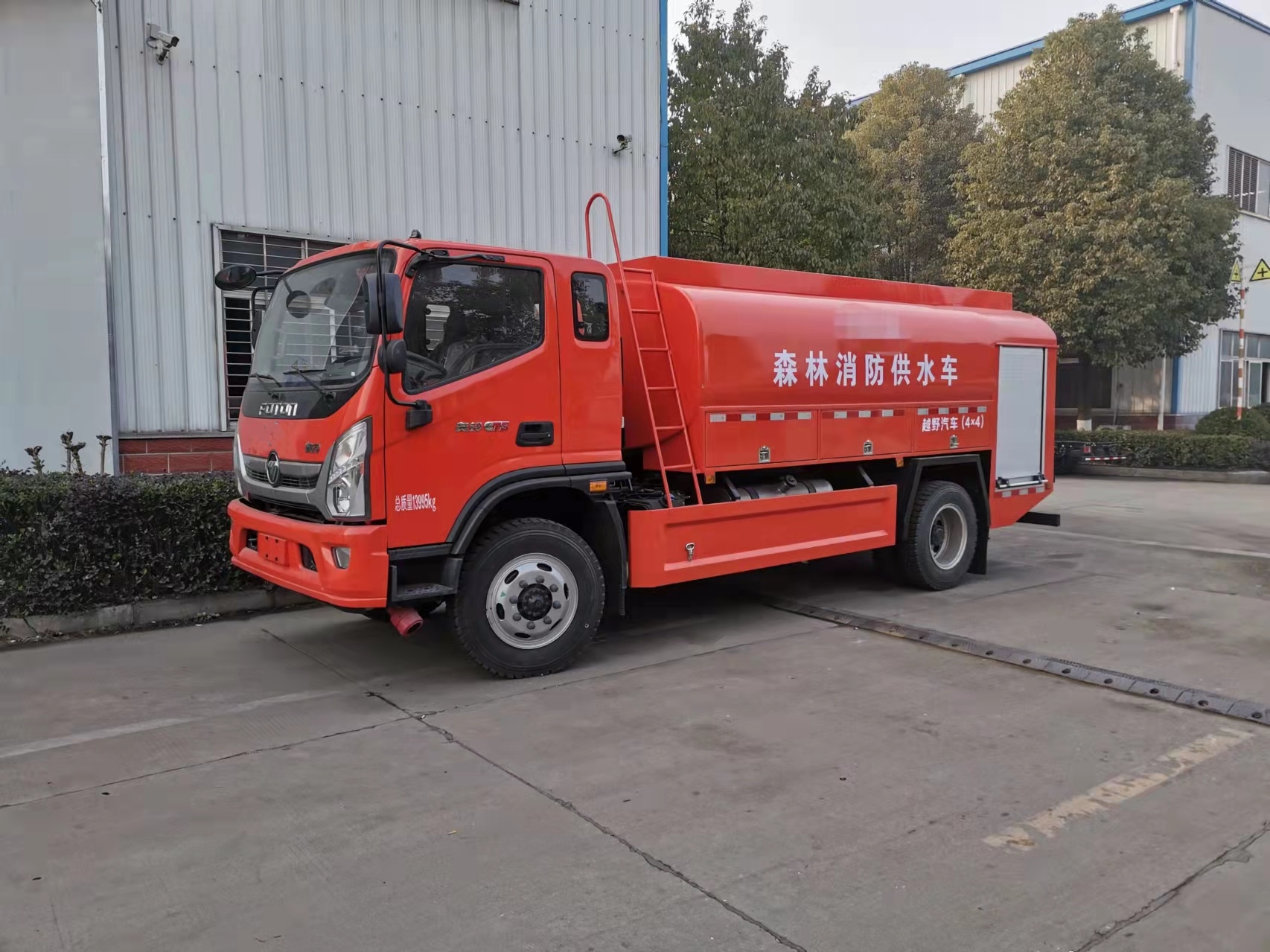

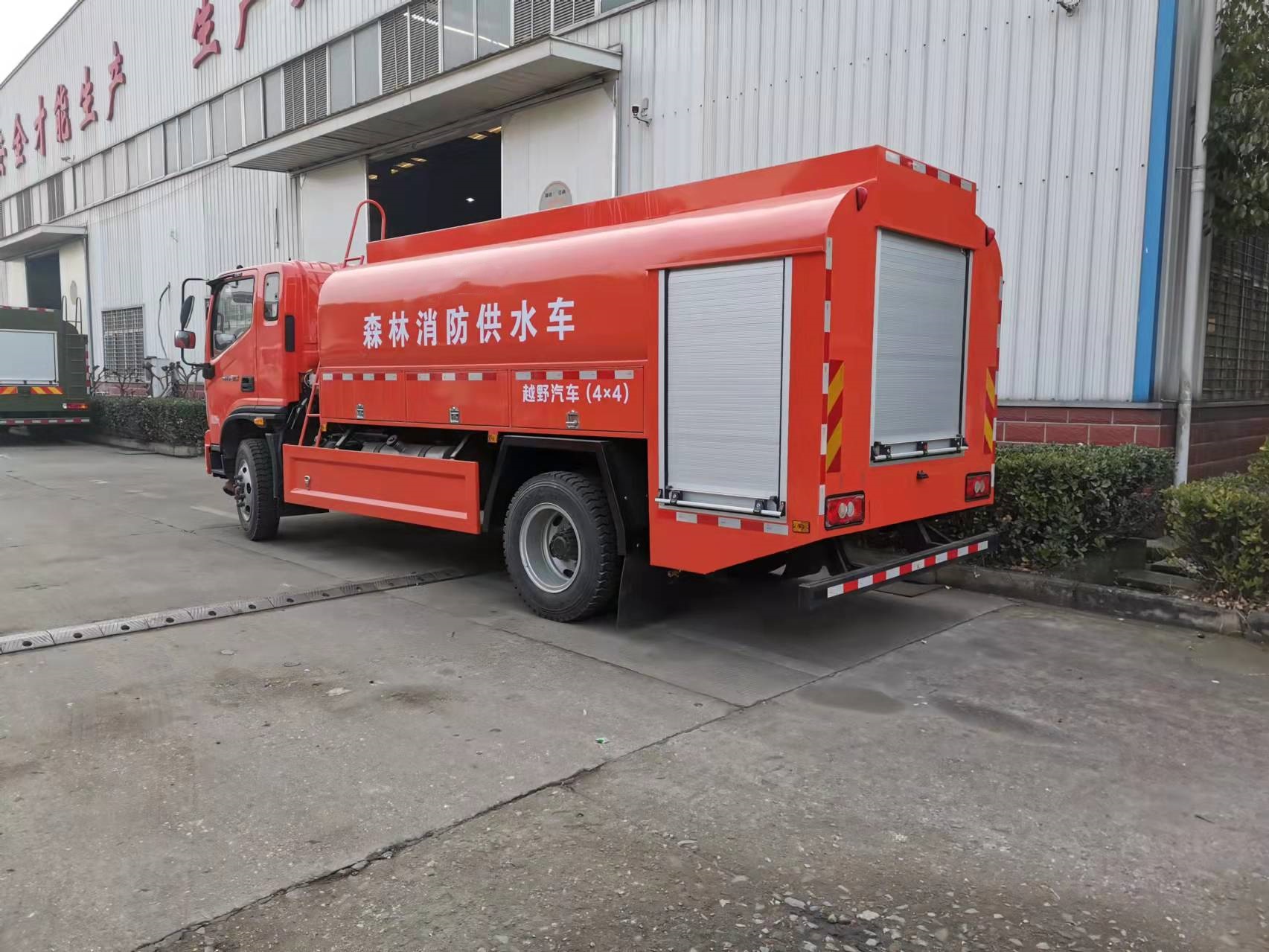

FOTON 4X4 Forest Water Supply Fire Sprinkler Truck
Fire sprinkler truck, also known as dual-purpose fire sprinkler truck, dual-purpose fire sprinkler truck, forest fire sprinkler truck, school fire sprinkler truck, airport fire sprinkler truck, community fire sprinkler truck, street and township and rural fire sprinkler truck. It is a dual-purpose vehicle that combines a fire truck and a sprinkler truck. It is located between a fire truck and a sprinkler truck and has the purpose of integrating fire and sprinkler functions. Although it lacks an equipment box compared to a fire truck, it has the same range as a fire truck and the same firefighting function.
