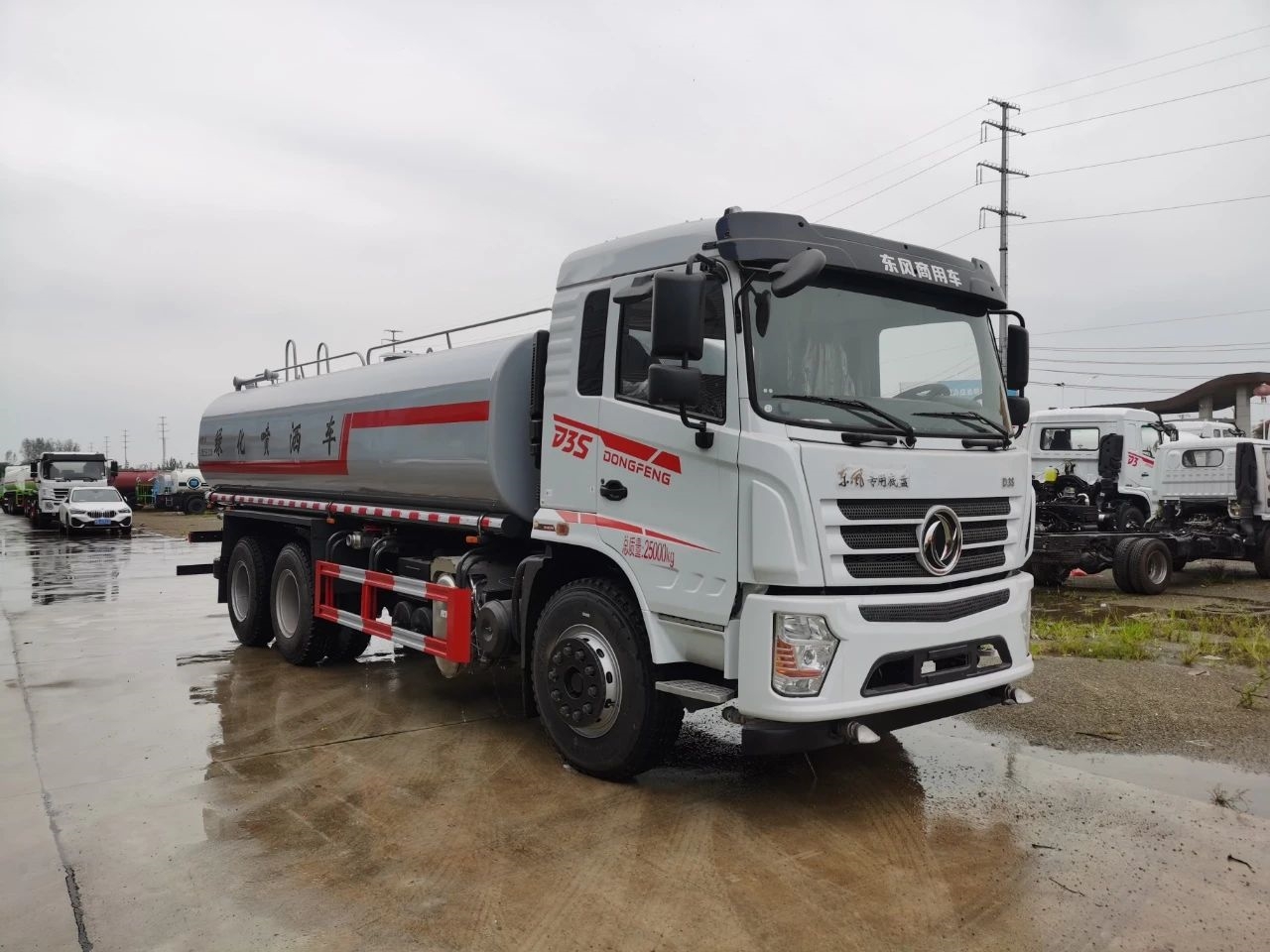

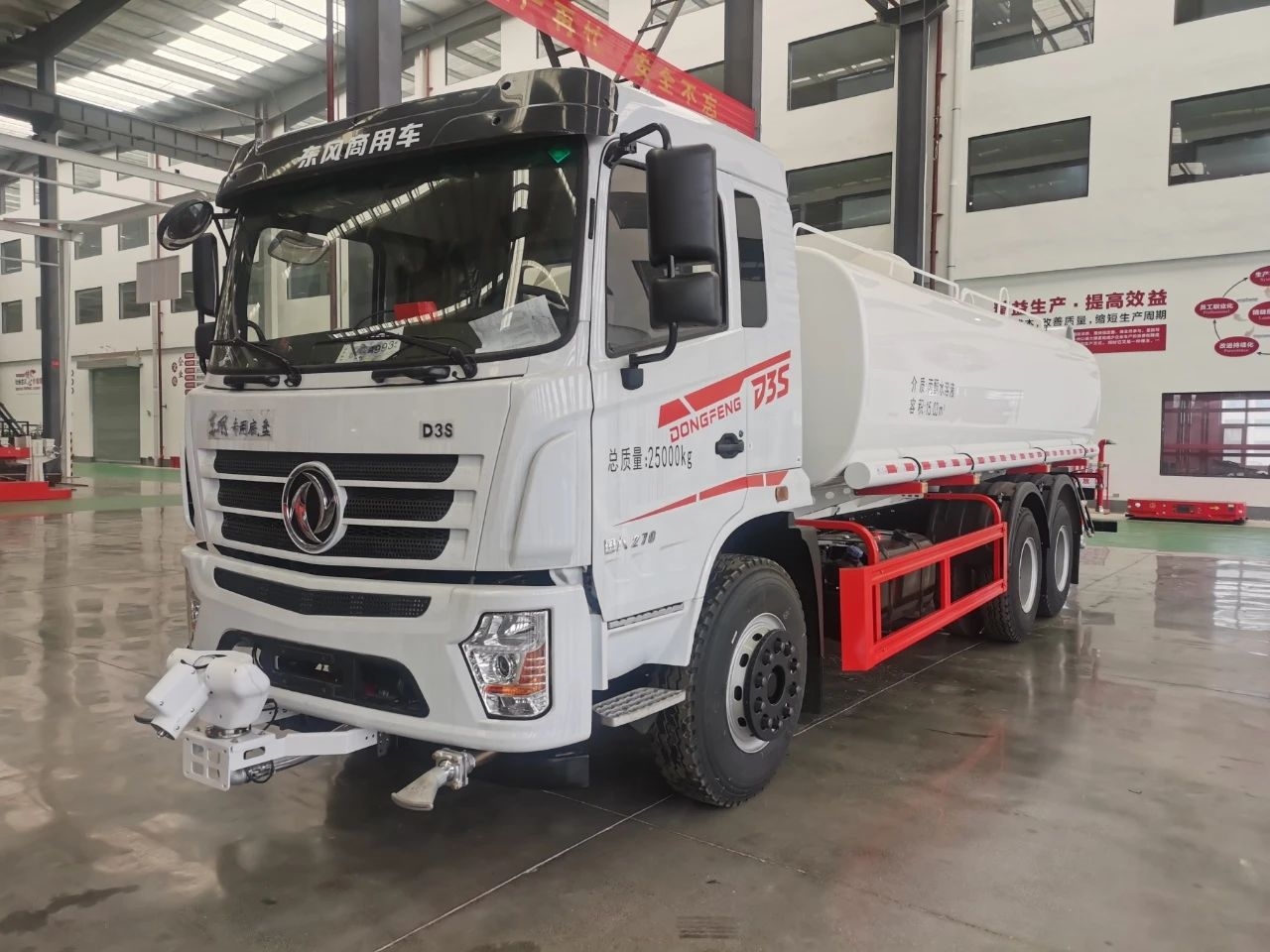

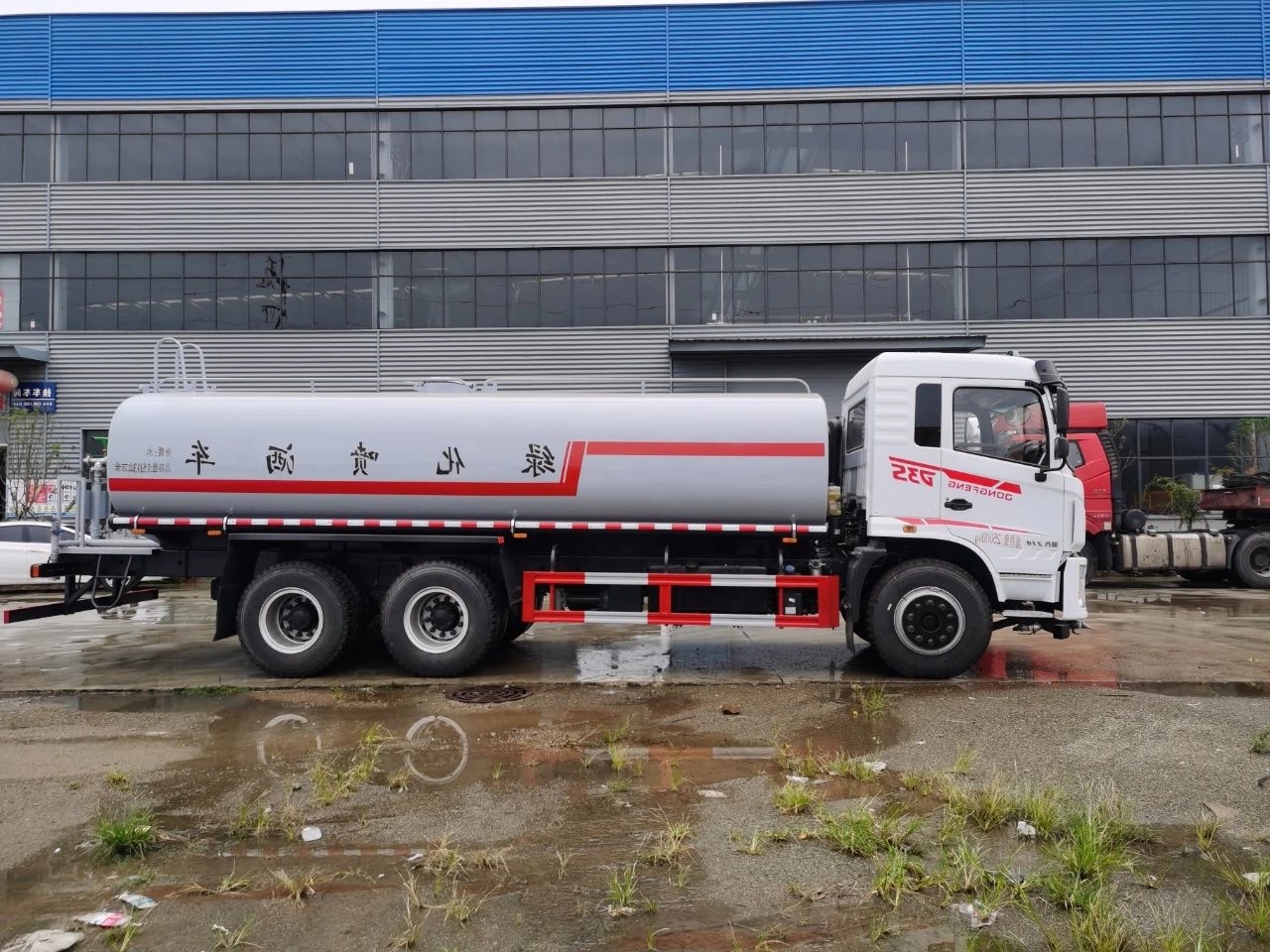

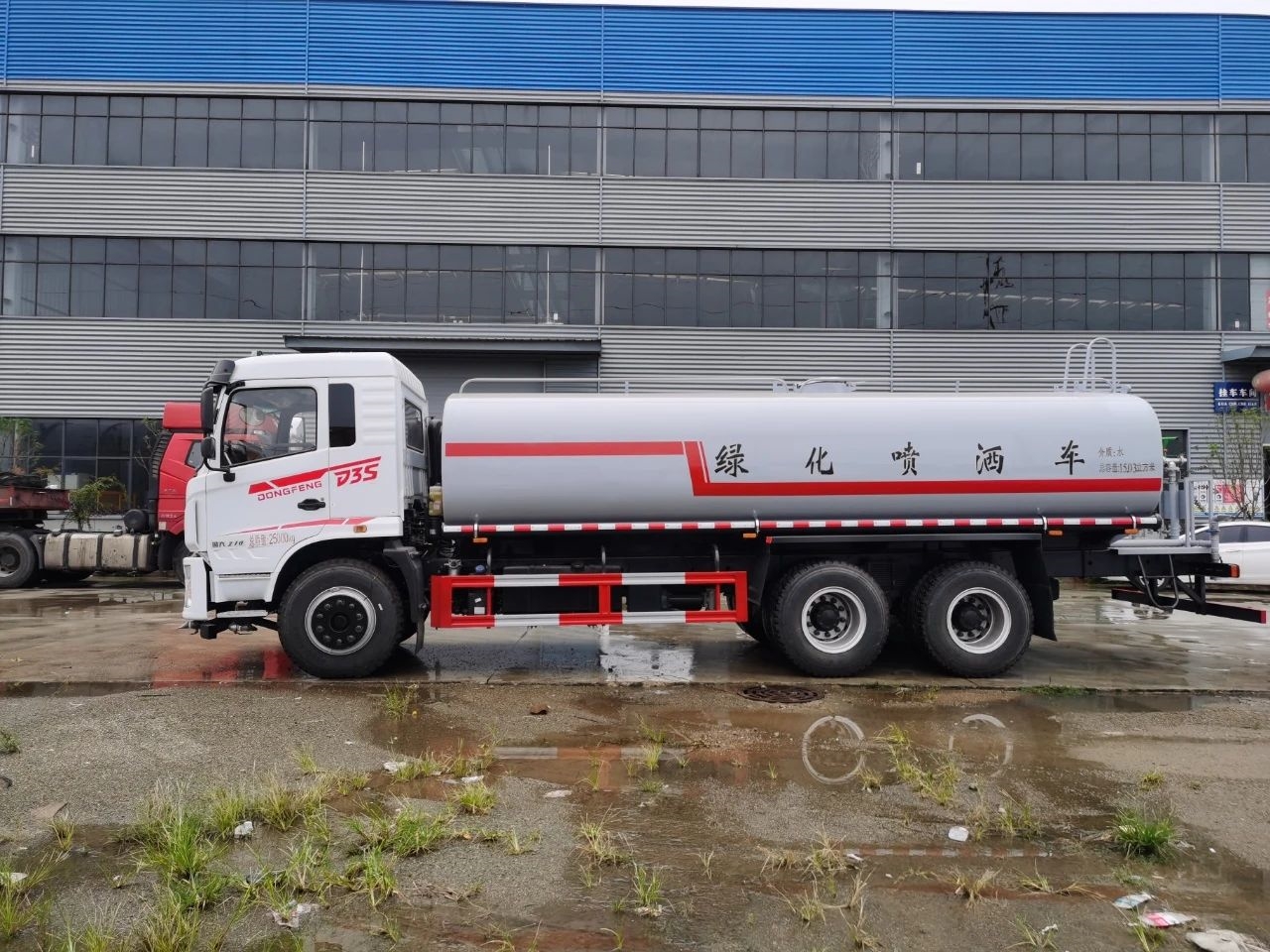

Dongfeng D3S 6X4 20m³ greening sprinkler truck
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:

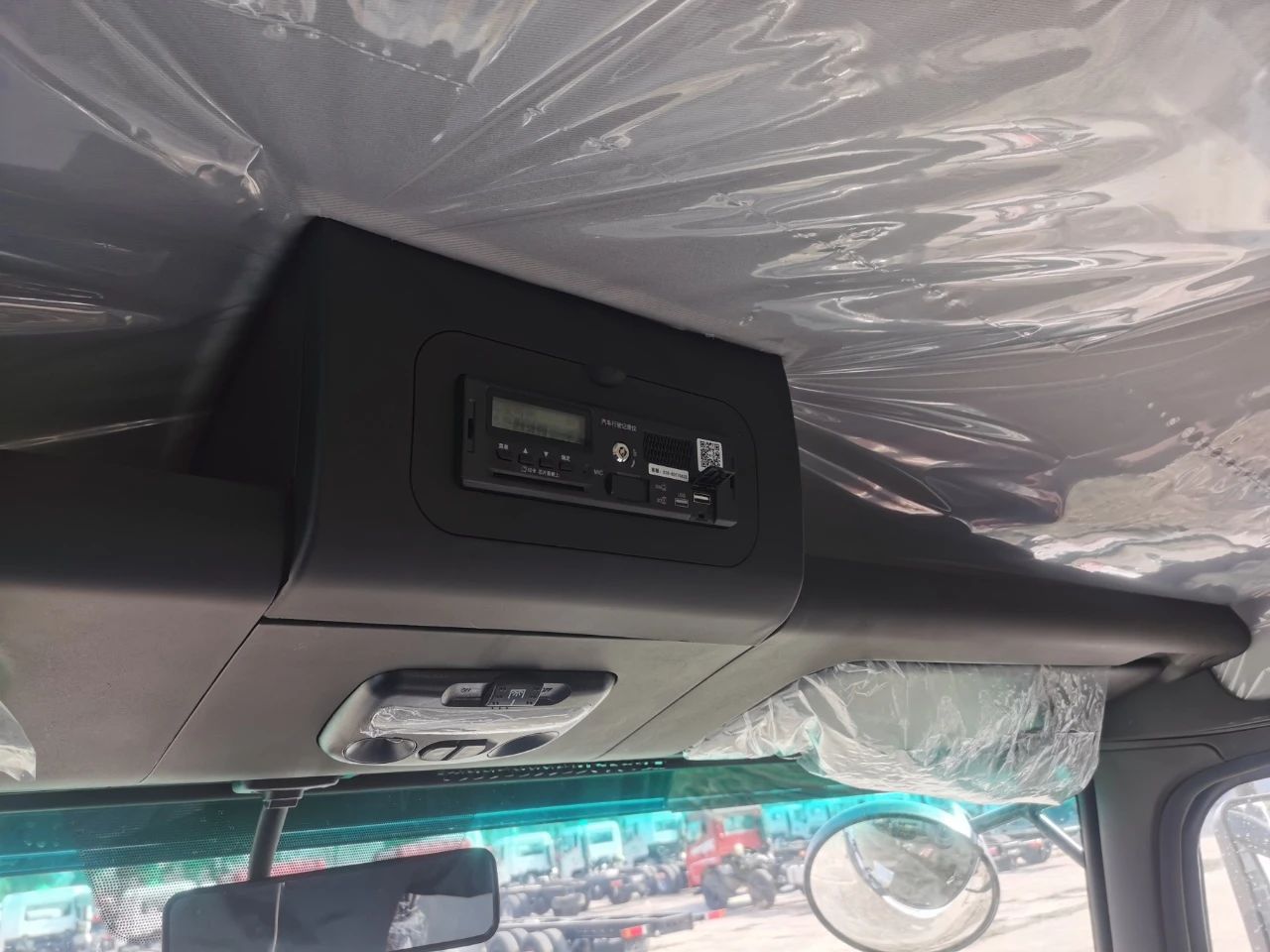

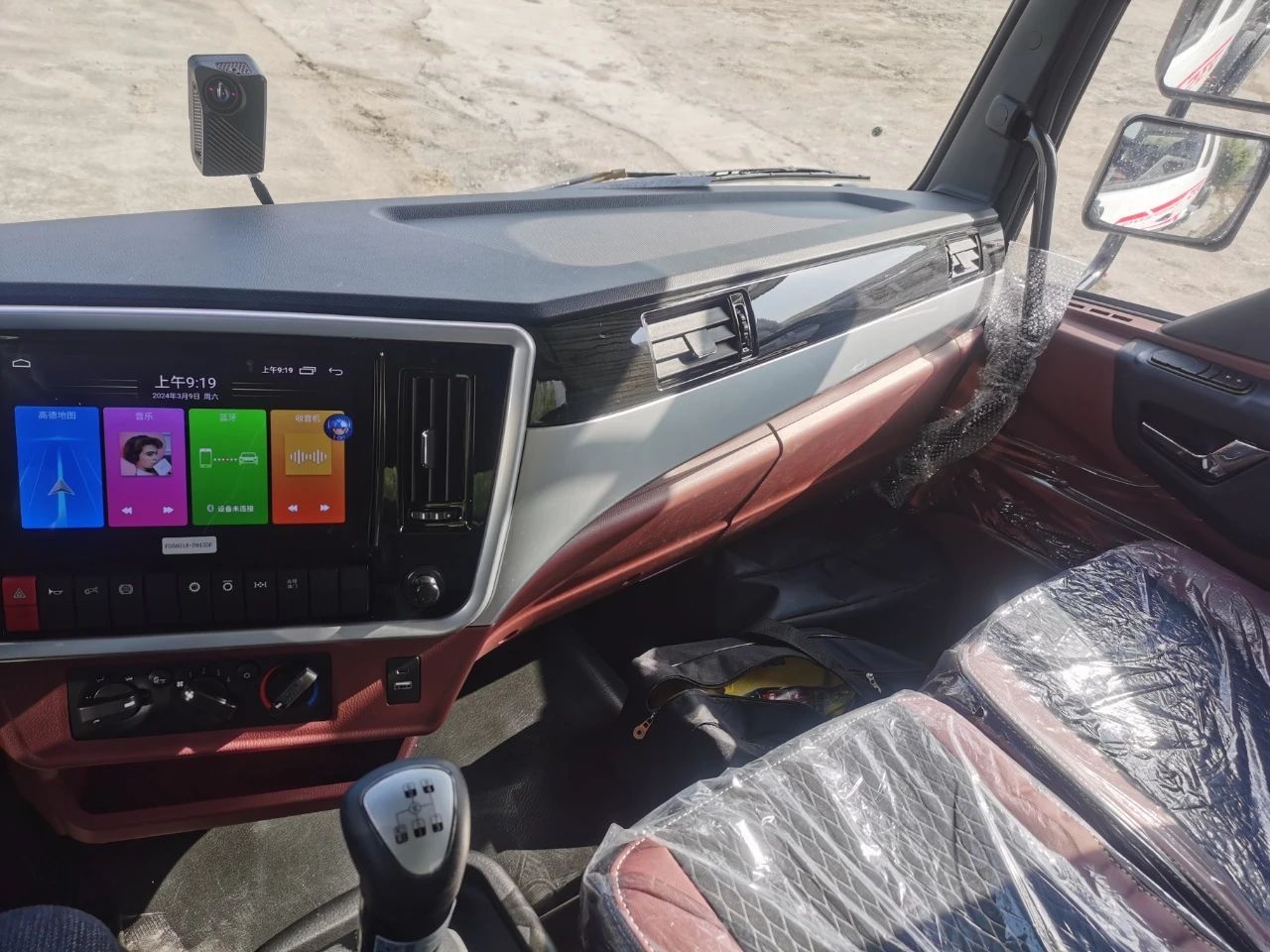

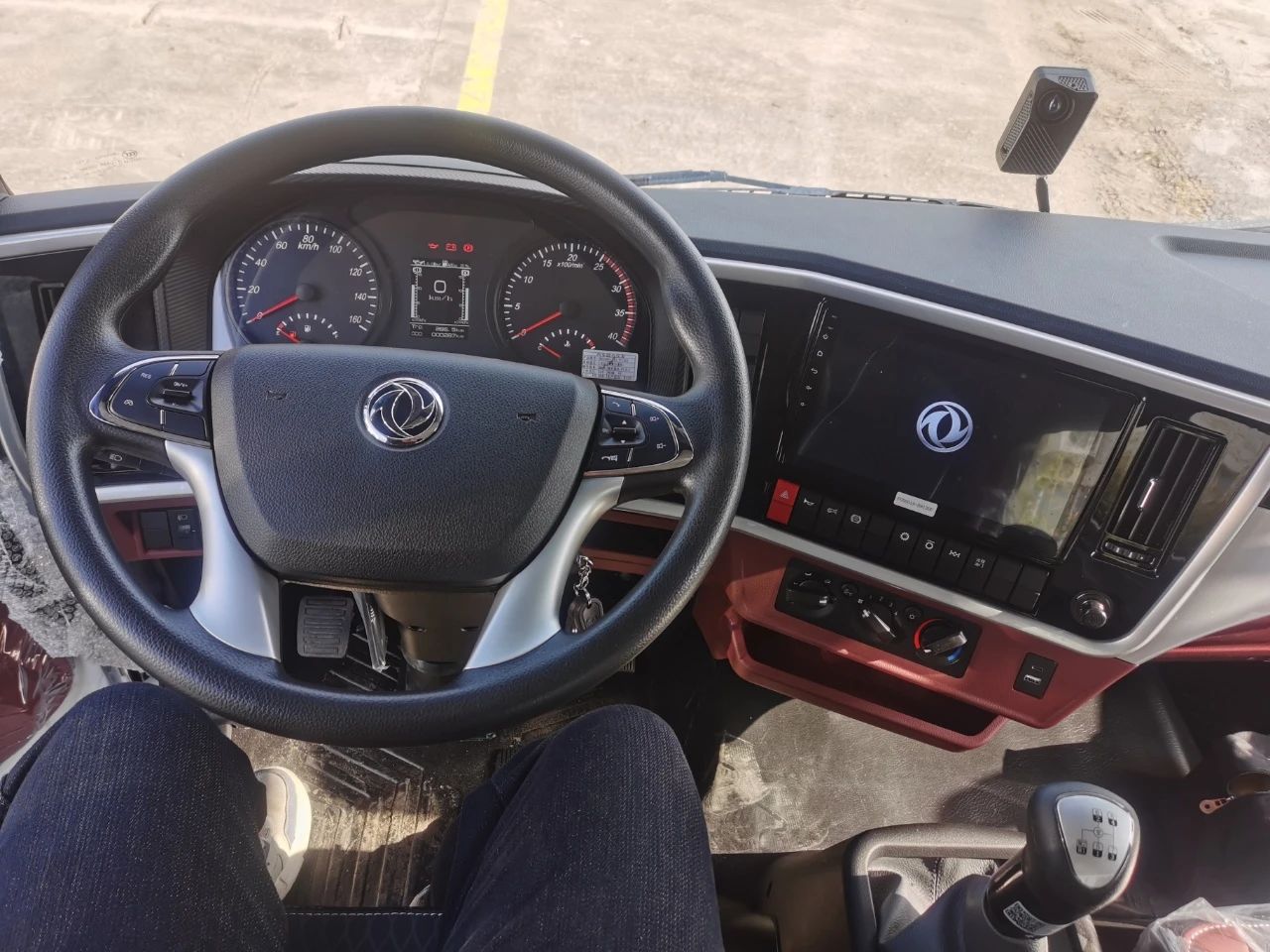

Dongfeng D3S Luxury Cab, Fast 8-speed Transmission, 6-cylinder Yuchai 245/270 horsepower, 4350+1350mm wheelbase, 1100R20 tires, front axle 5 tons, rear axle 10 tons, 280mm double-layer beam, remote key, electric doors and windows, airbag seats, air conditioning, multifunctional steering wheel.
| Product Name |
Dongfeng D3S 6X4 20m³ greening sprinkler truck |
| Driving type |
6X4 |
| Engine horsepower |
Yuchai 240hp/Yuchai 270 hp |
| Gearbox |
Fast 8-speed gearbox |
| Tire specification |
1100R20, 10+1 spare |
| Wheel base (mm) |
4350+1350(mm) |
| Gross vehicle weight(Kg) |
25000(Kg) |
| Curb weight(Kg) |
11200(Kg) |
| Rated weight(Kg) |
13605,13670(Kg) |
| Vehicle dimensions (mm) |
9950,10000,10500,10550,11050×2500,2520,2550×3300,3450(mm) |
| Tank volume(cbm) |
20 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
60/90 |
| Tank material |
Q235 carbon steel,5mm |
| Additional configuration |
Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

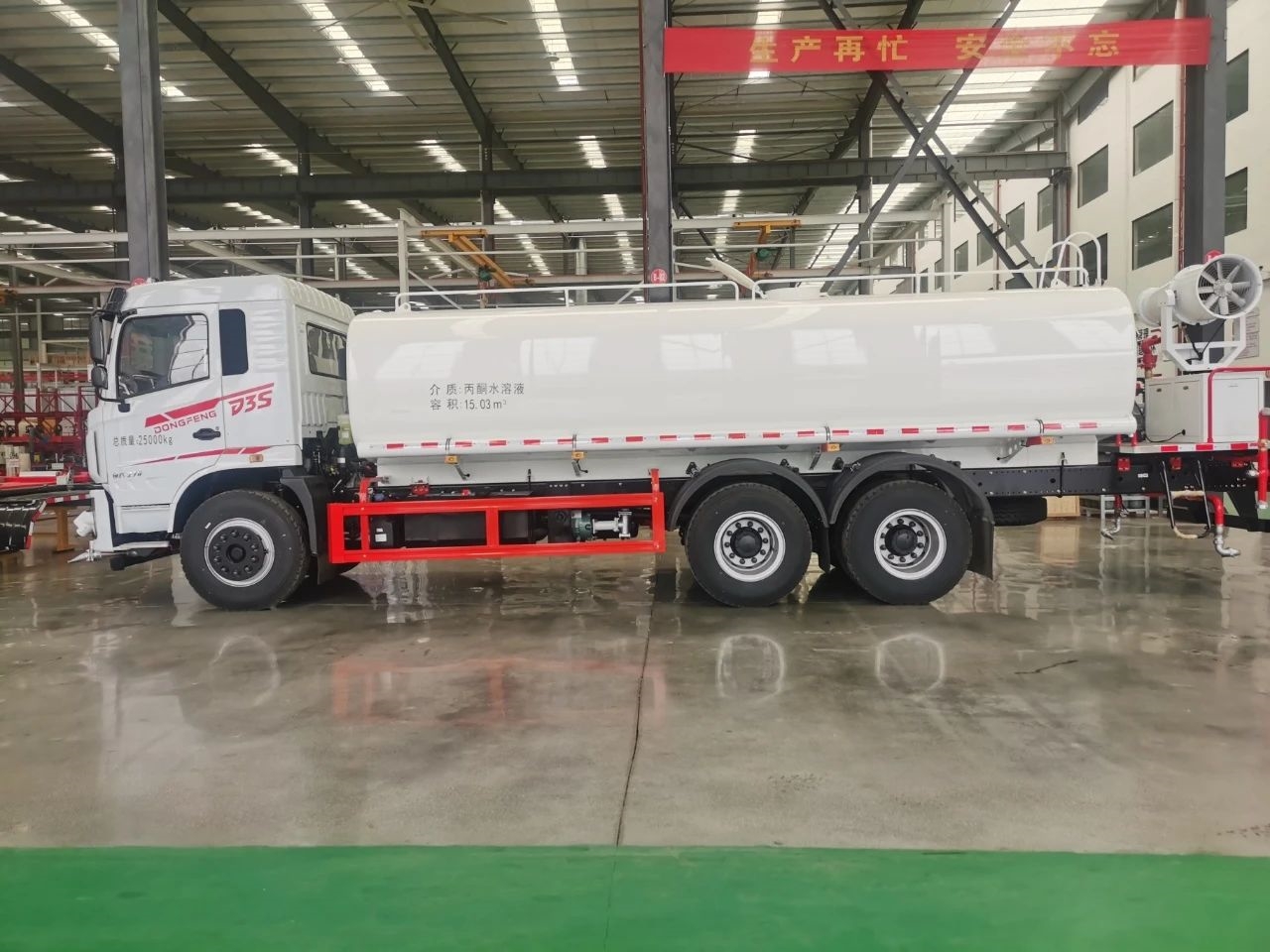

Dongfeng D3S 6X4 20m³ greening sprinkler truck
Greening sprinkler truck, also known as greening sprinkler truck or garden greening sprinkler truck, is used for garden seedling protection, urban greening, factory dust removal, fire sprinkler, and road flushing. Greening sprinkler trucks have the function of spraying in different directions.
Upper configuration:

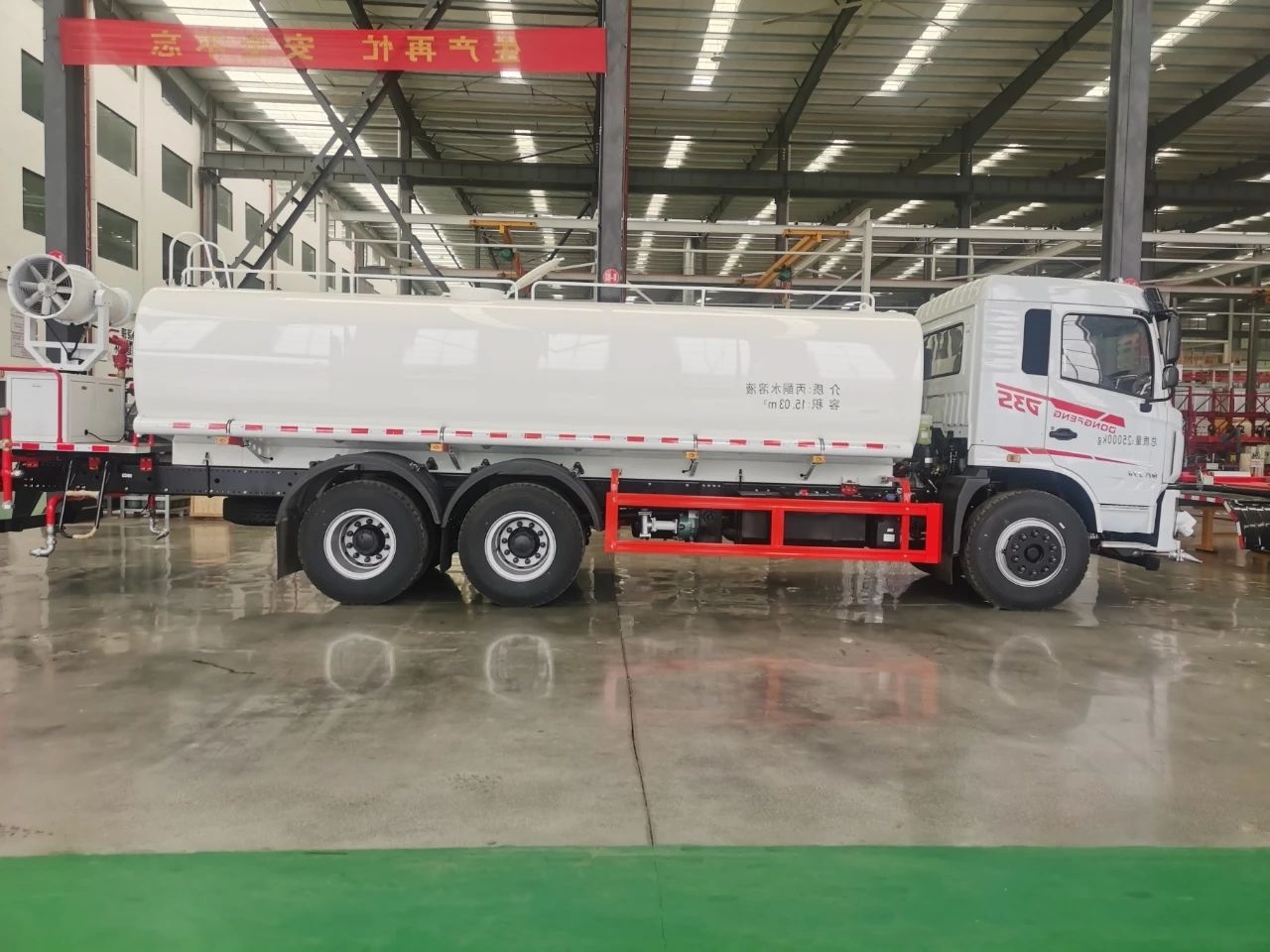

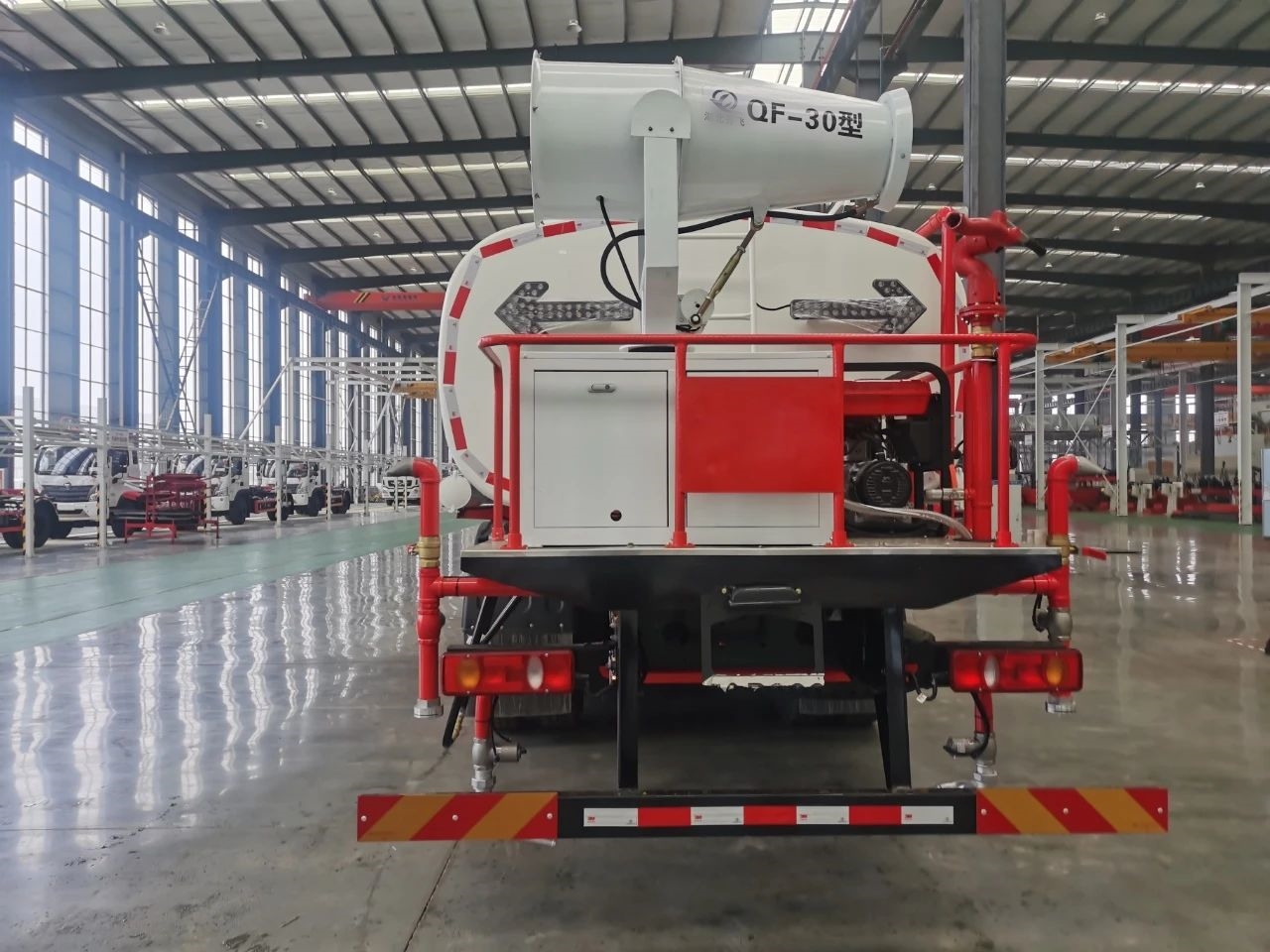

Capacity of 20 cubic meters, tank body made of standard Q235 carbon steel, plate thickness of 4mm, equipped with high-power dedicated sprinkler truck, self-priming and self discharge, front flushing and rear spraying, side spraying, high-level showerhead, main pipeline thickened, large diameter ball valve, straight ball valve type fire interface, with rear working platform, punching platform, equipped with anti-aircraft gun, can be equipped with fog cannon and electronic water cannon.
