4X2 SHACMAN L5000 15m³ greening sprinkler truck
Chassis configuration:
1. Engine: D4.5NS6B240,Cummins 240hp
2.Transmission type: Fast 8-speed gearbox
3.Tyre:1O.00R20, 6+1 spare
4.Wheelbase:4000(mm)
5 Other: Electric glass, with original ABS, airbag seats, original air conditioning, central locking with remote key, driving recorder
Installation configuration:
| Product Name | 4X2 SHACMAN L5000 15m³ greening sprinkler truck |
| Driving type | 4X2 |
| Engine Model | D4.5NS6B240 |
| Engine horsepower | Cummins 240HP |
| Engine displacement | 4.5L |
| Gearbox | Fast 8-speed gearbox |
| Tire specification | 10.00R20, 6+1 spare |
| Wheel base (mm) | 4000(mm) |
| Gross vehicle weight(Kg) | 18000(kg) |
| Curb weight(Kg) | 7250,6800(kg) |
| Rated weight(Kg) | 10620,10555,11070,11005(kg) |
| Vehicle dimensions (mm) | 7850,7450x2550,2500x3120,3000(mm) |
| Tank volume(cbm) | 15 |
| Fuel type | diesel |
| Emission standard | Euro 6 (option:Euro3/4/5) |
| Water pump model | 60/90 |
| Tank material | Q235 carbon steel,5mm |
| Additional configuration | Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

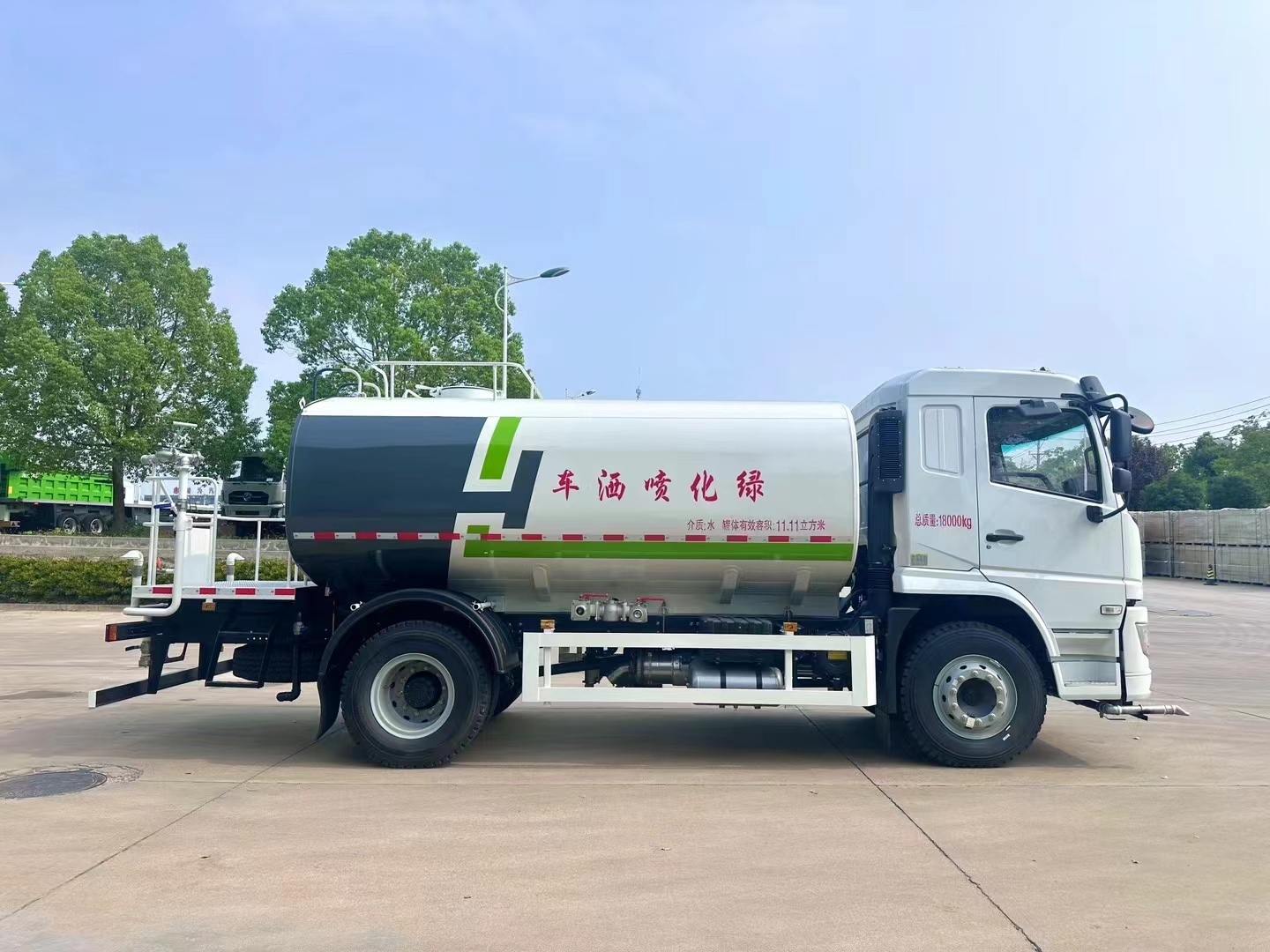

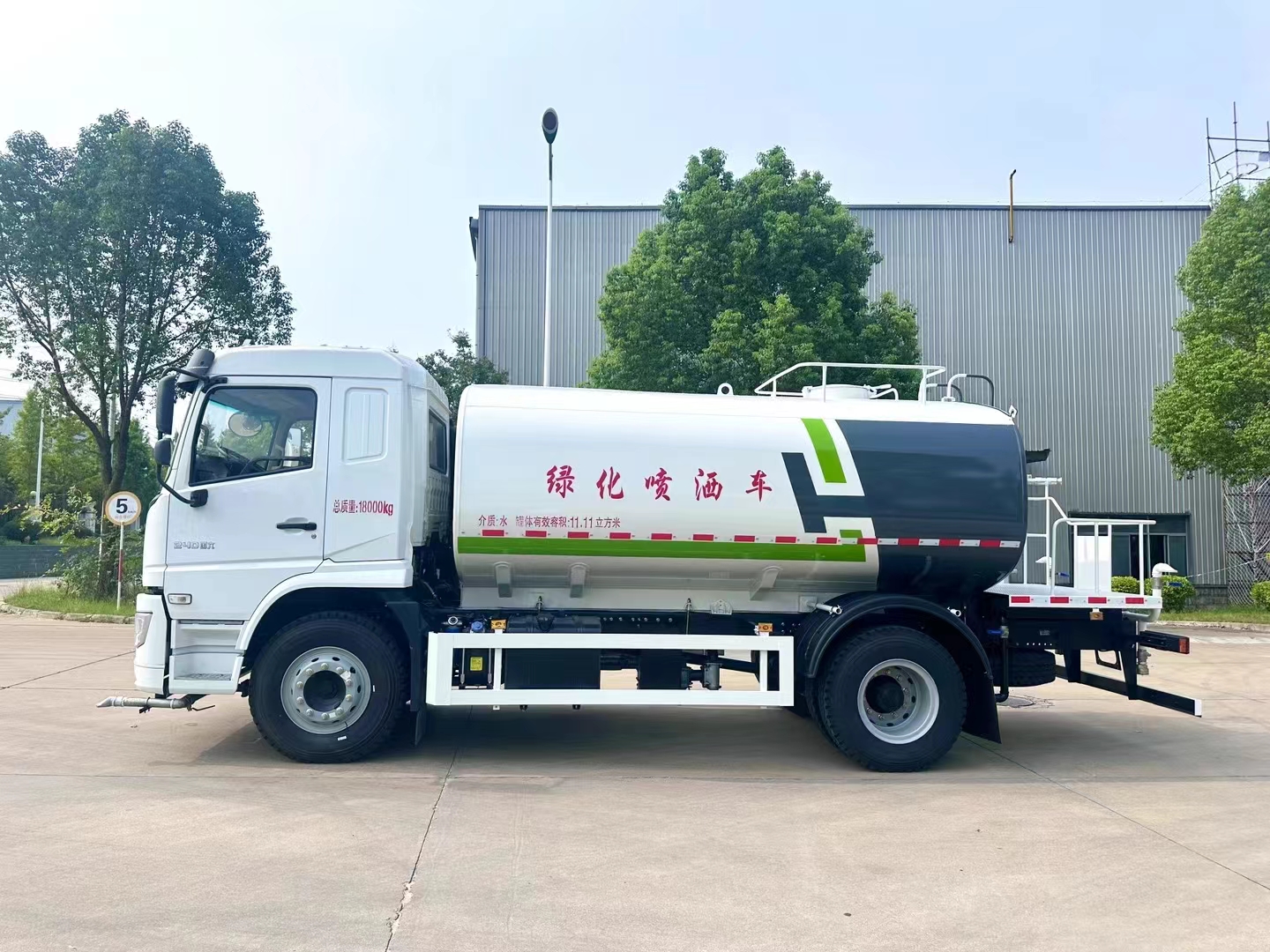

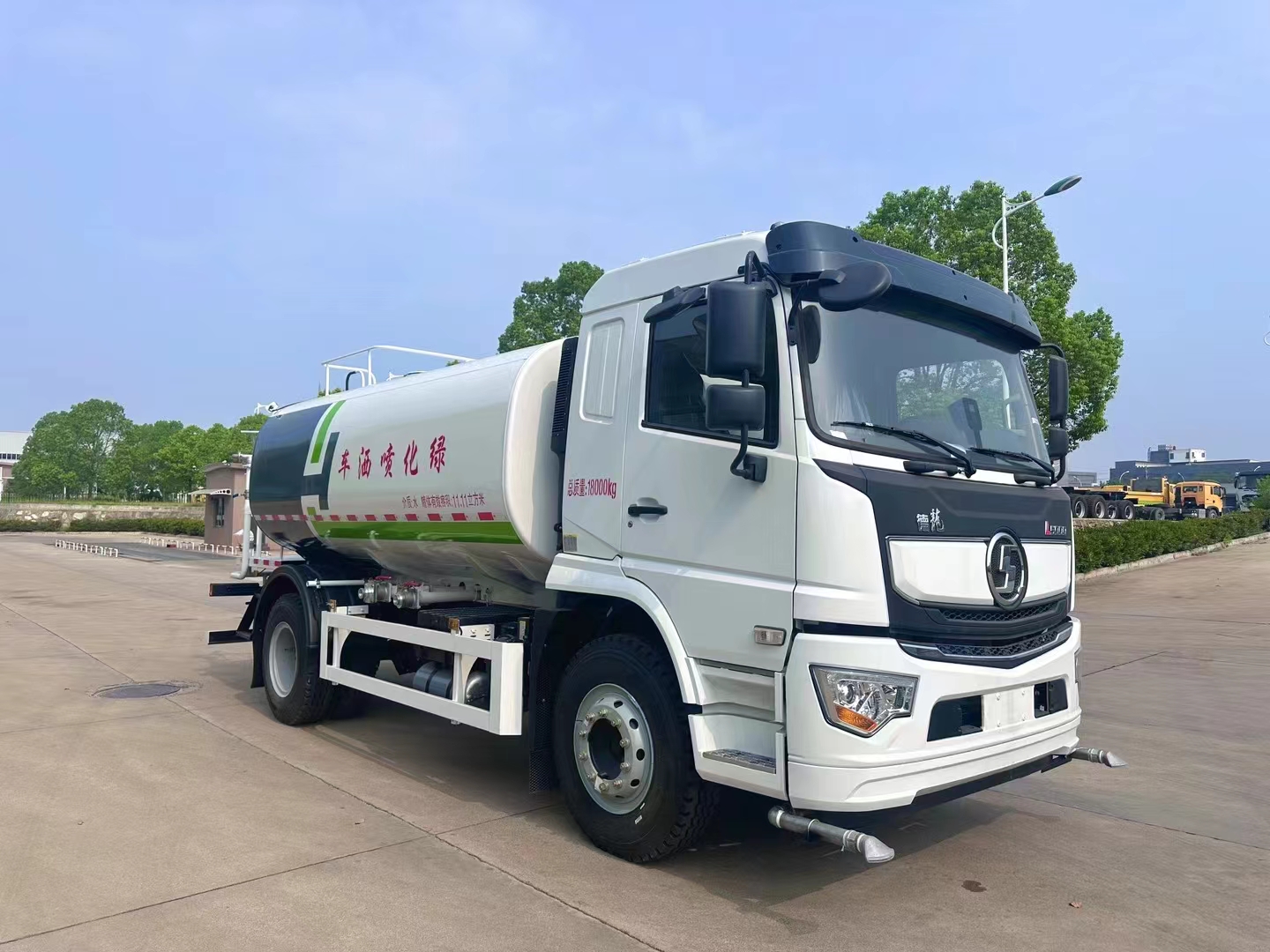

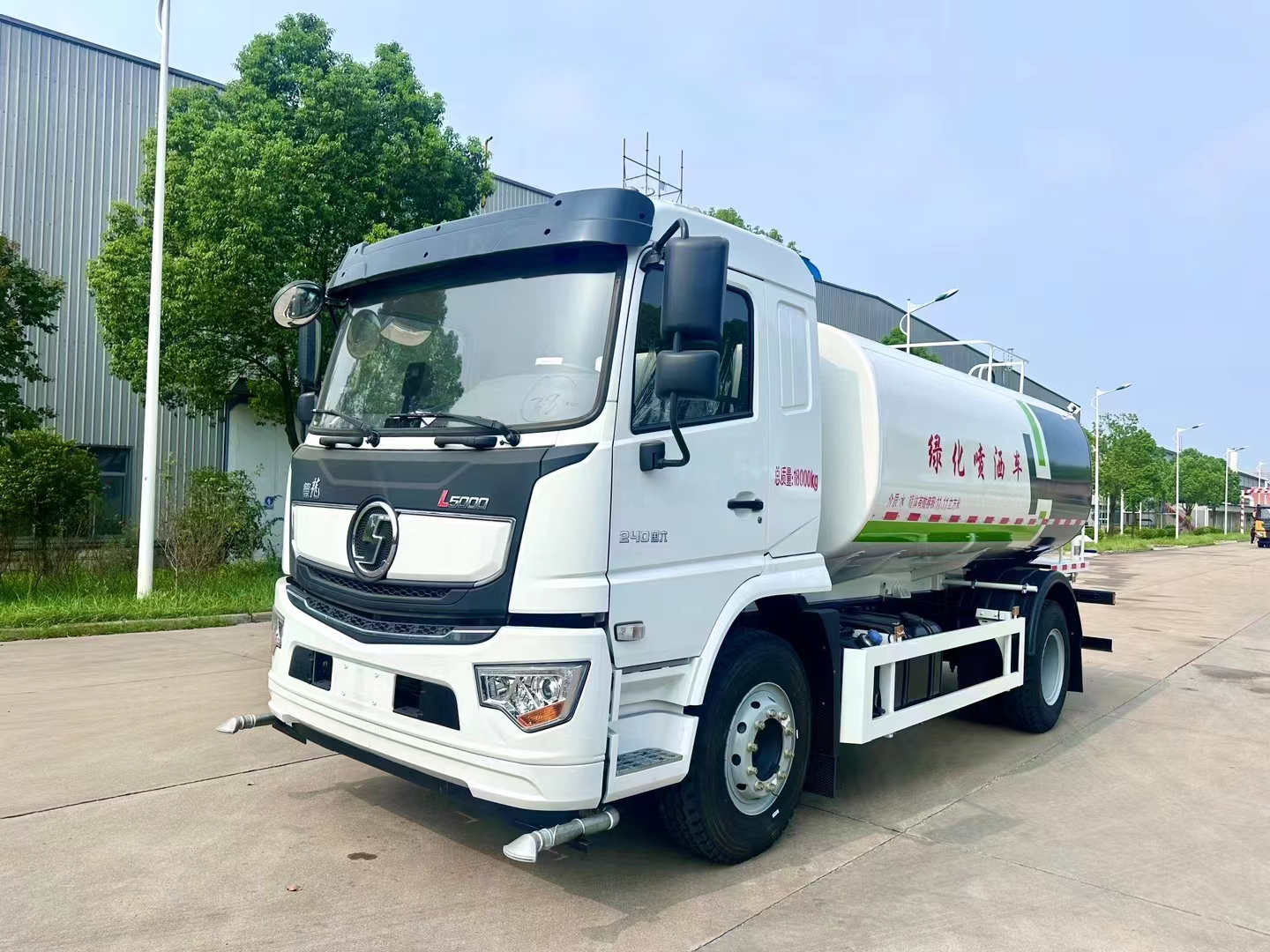

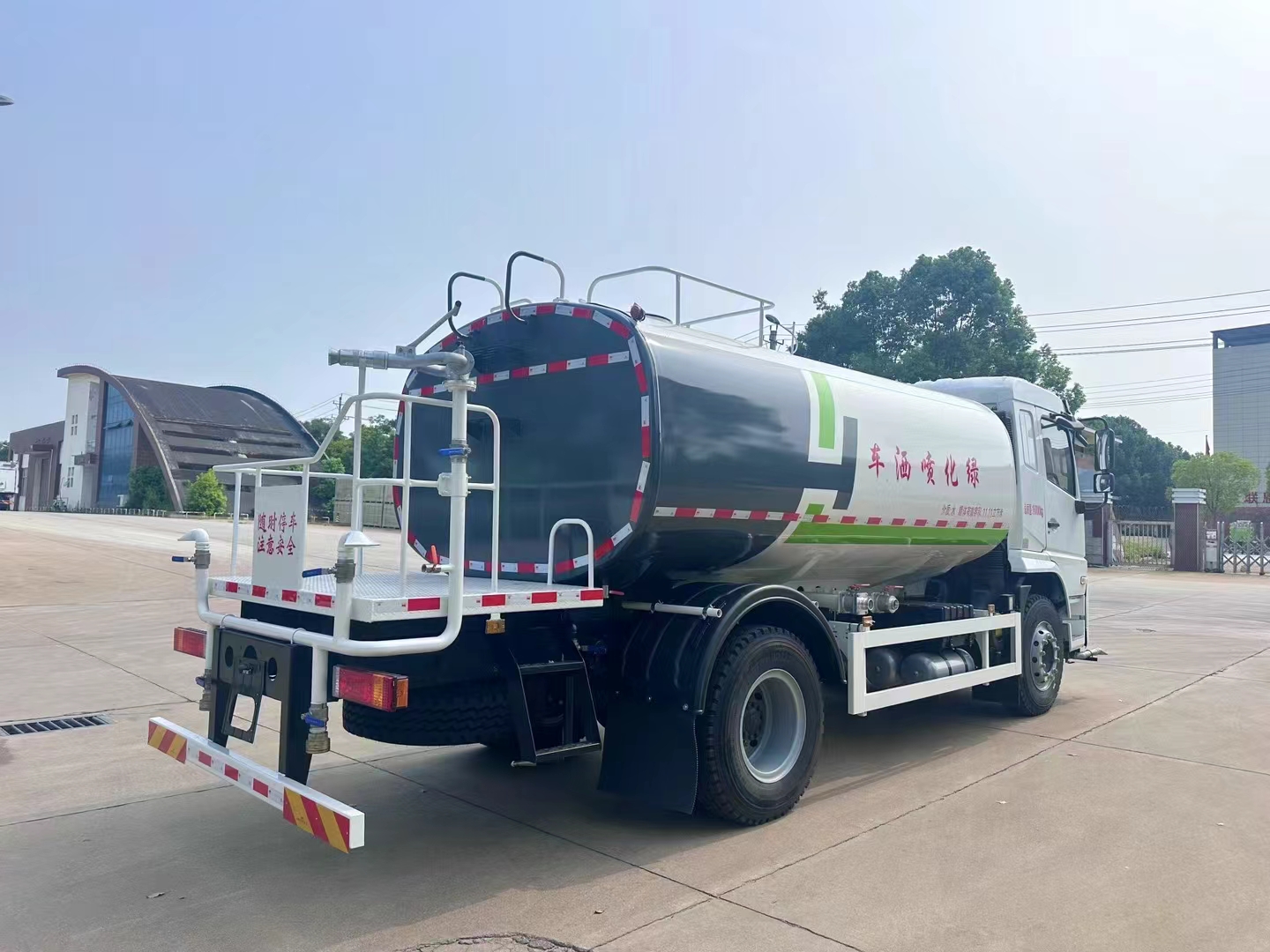

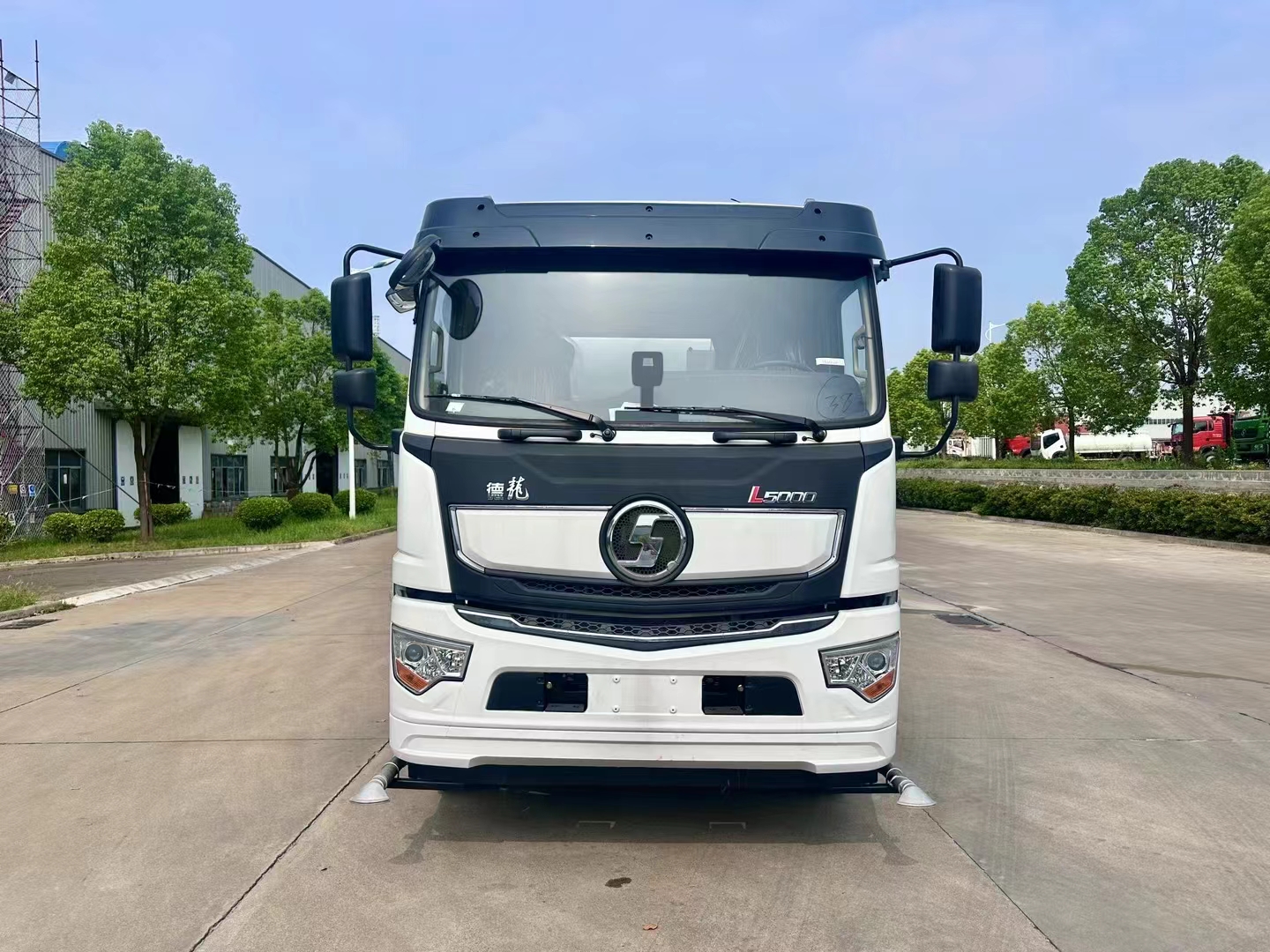

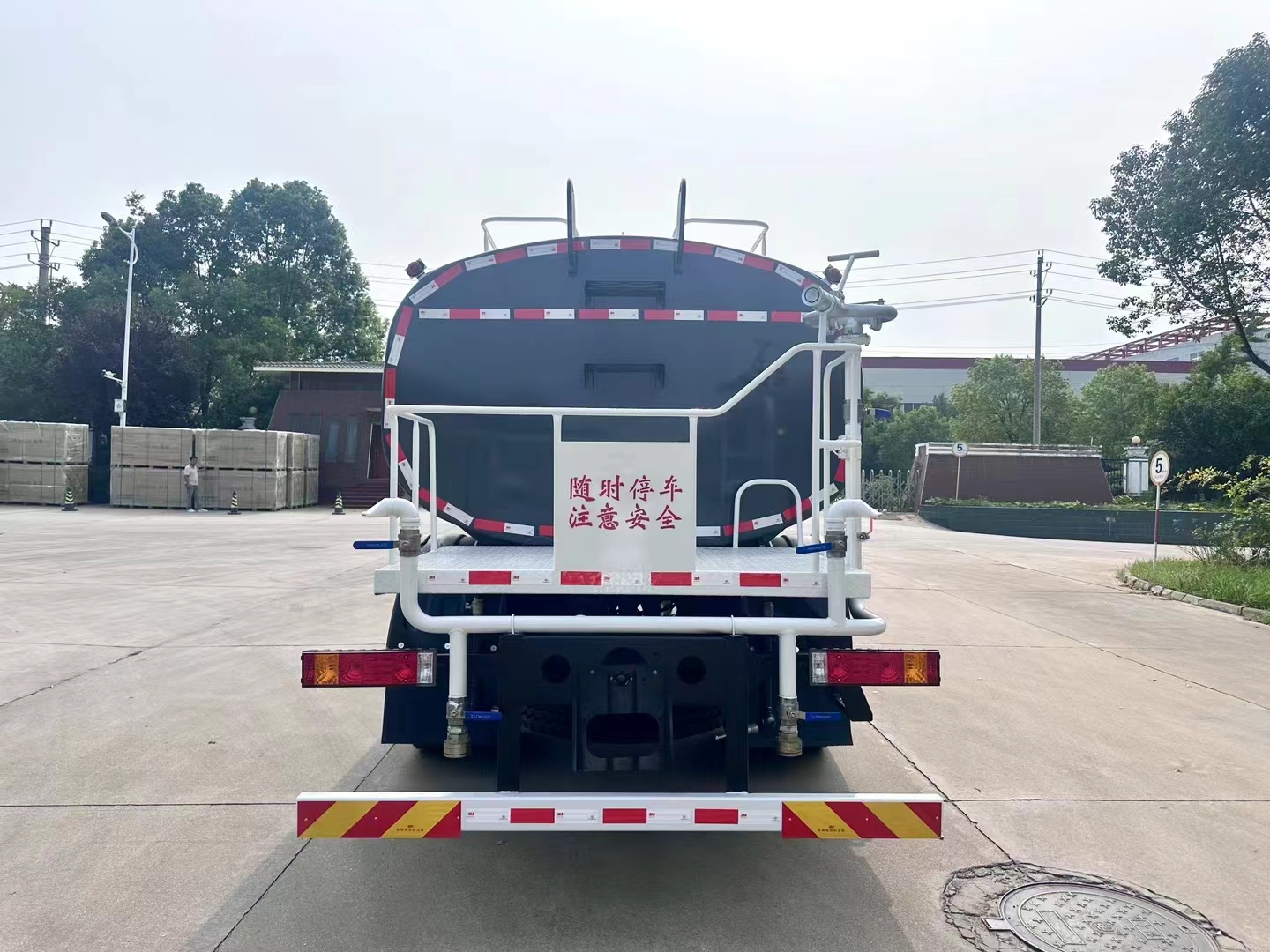

4X2 SHACMAN L5000 15m³ greening sprinkler truck
Greening sprinkler truck, also known as greening sprinkler truck or garden greening sprinkler truck, is used for garden seedling protection, urban greening, factory dust removal, fire sprinkler, and road flushing. Greening sprinkler trucks have the function of spraying in different directions.
