Dongfeng 10m³ sewage tanker truck
2024-10-07 09:54:11 Source：chusheng

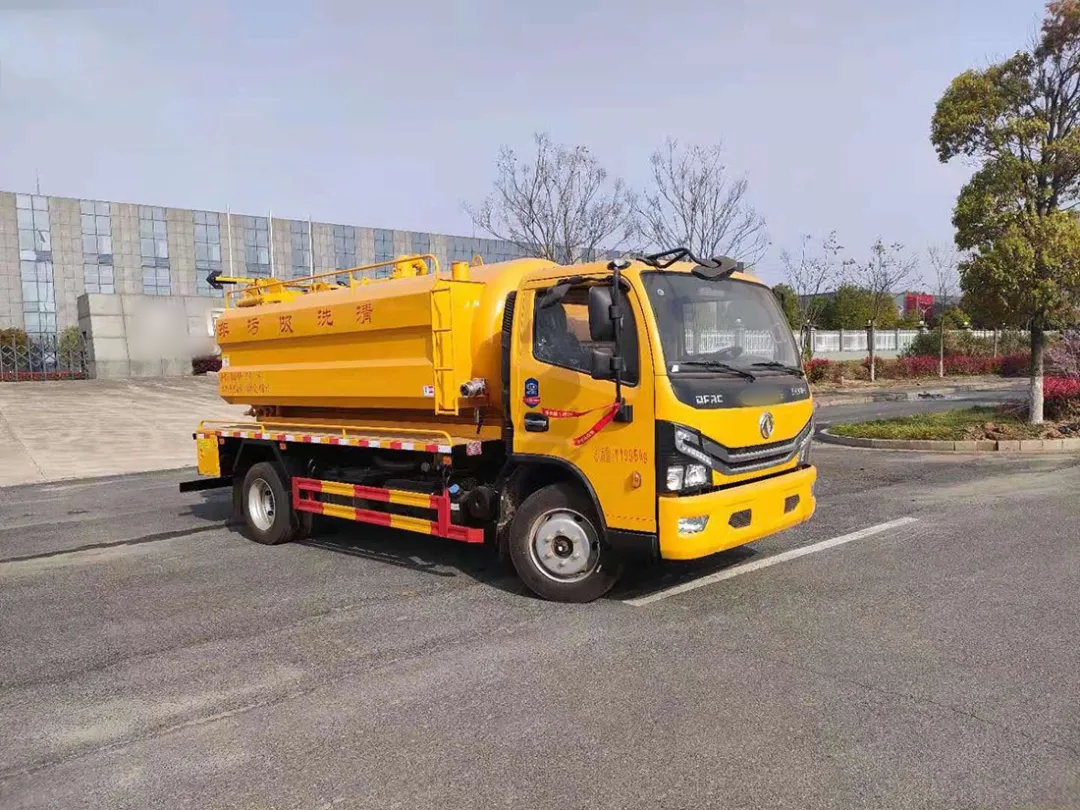

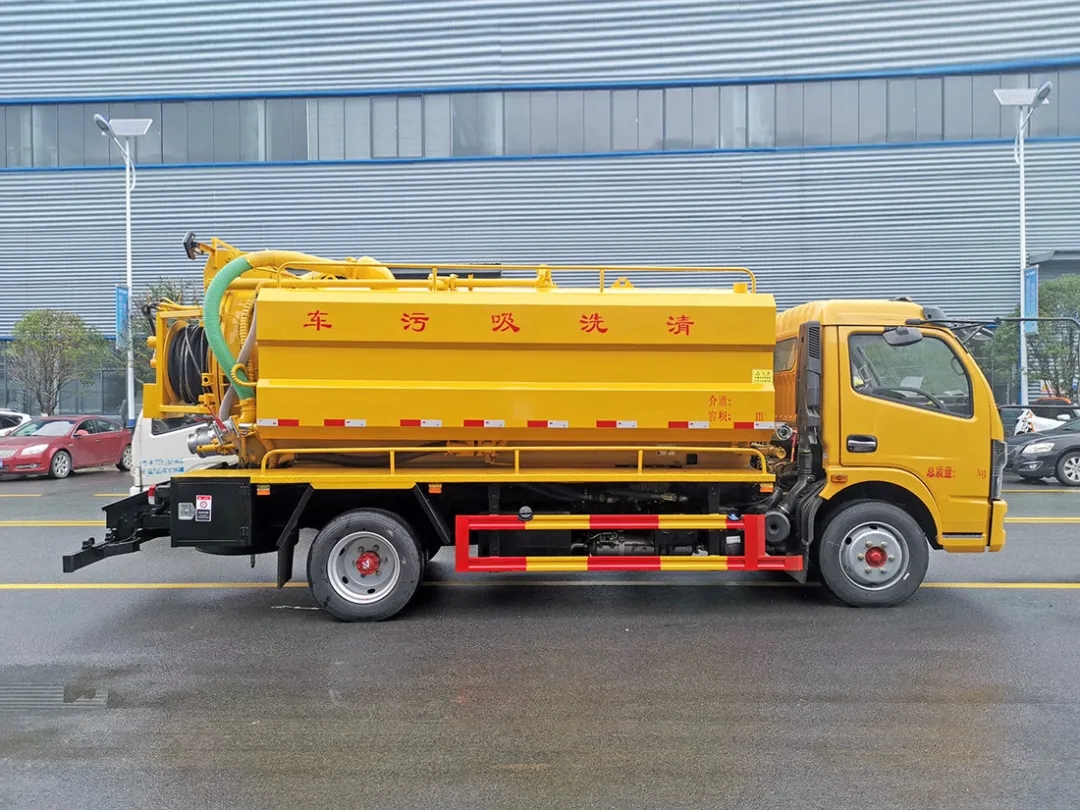

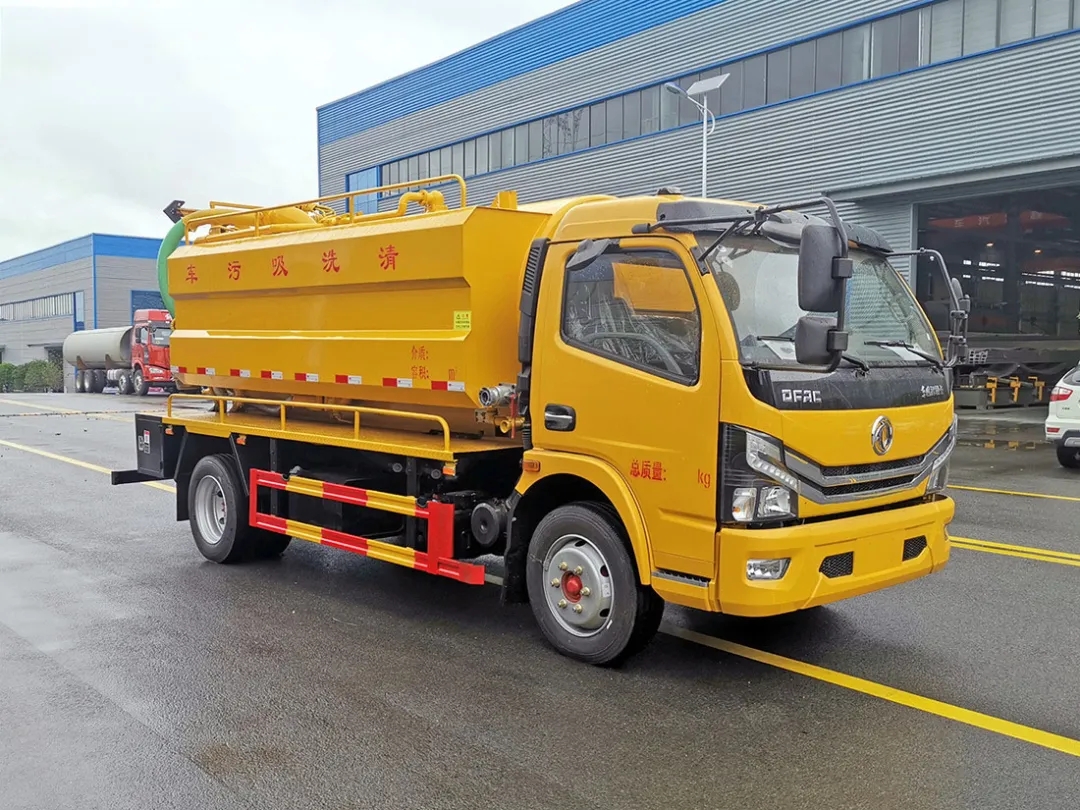

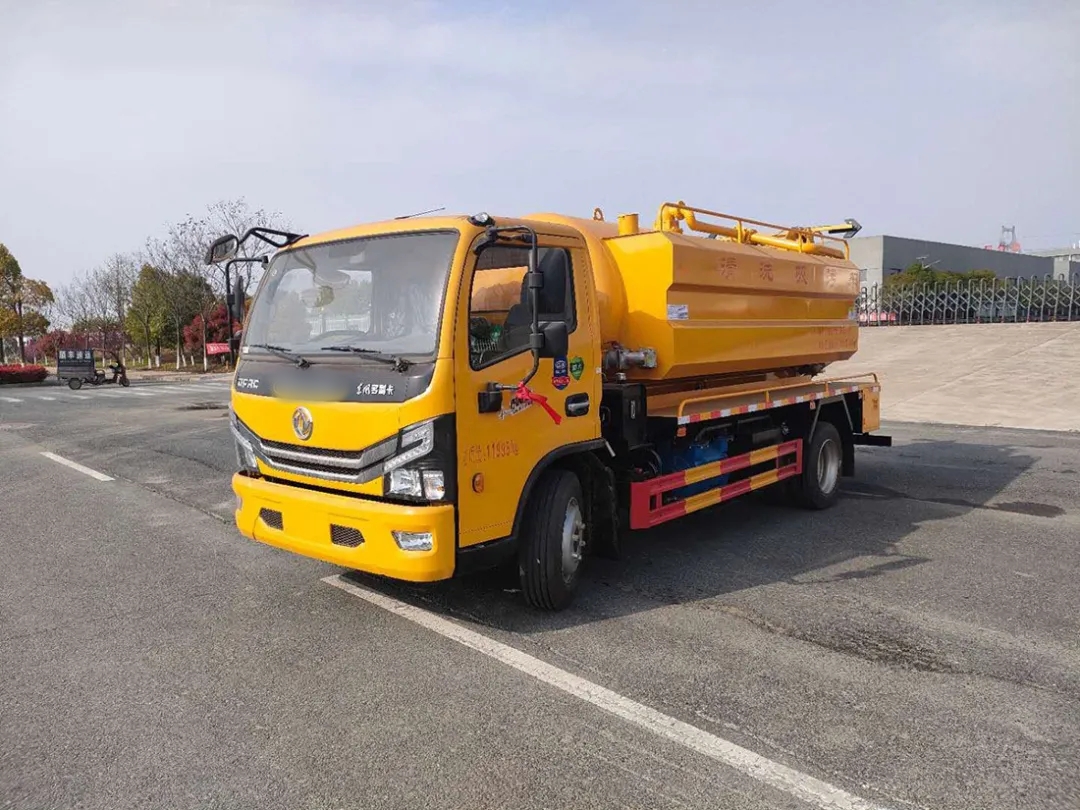

Dongfeng 10m³ sewage suction tanker truck
1.Chassis parameters:
The chassis adopts Yuchai 165 horsepower, wheelbase of 3800mm, National VI emission standard, with intercooled boosting, original ABS anti lock braking system, original steering assistance, air brake, original air conditioning, electric doors and windows, remote key, 245 vacuum tires, and new interior design.
2.Top configuration
Suction part: 7-square sewage tank, made of 6mm Q235 high-quality carbon steel, equipped with Zibo SK-12 water circulation pump, one 8-meter suction pipe, inlet pipe with filter screen, vacuum overflow valve, rear cover buckle lock, sight pipe, one 100mm ball valve suction port at the rear end, 150mm discharge port, tank body with lifting function, rear door with hydraulic opening.
Cleaning section: Three sided water tank, made of 4mm Q235 high-quality carbon steel plate, with fire interfaces on both sides of the water tank for water inlet, and one toolbox. Using a German made floating high-pressure pump with a flow rate of 215 liters and a pressure of 22 megapascals, equipped with a 60 meter inner diameter 19 # high-pressure pipe, a set of 10 nozzles of different sizes, a rear mounted cleaning reel, equipped with a shower device (used to rinse the residual dirt on the high-pressure pipe after dredging the pipeline), and an air blown water function (used to blow out the residual water stains inside the high-pressure pipe after each operation, to prevent freezing in cold weather from affecting the next use)
| Product Name |
Dongfeng 10m³ sewage suction tanker truck |
| Driving Type |
4x2 |
| Weight /Volume |
|
| Tank volume(cbm) |
7m³ sewage tank, 3m³ water tank |
| Rated payload weight(kg) |
4300 |
| Dimensions |
|
| Wheelbase(mm) |
3800 |
| Overall Dimension(mm) |
7100*2250*2900 |
| Engine |
|
| Engine brand & model |
Chaochai, YCY30165-60 |
| Displacement(L)/Power(kw) |
2.97L/121KW |
| Chassis |
|
| Axle Quantity |
2 |
| Transmission Type |
6 forward gears and 1 reverse gear |
| Steering Type |
LHD or RHD with power steering |
| Brake system |
Air brake |
| Tire Spec. & size |
245/70R19.5,8.25R20, 6 with a spare |
| Cab |
|
| Standard configuration |
D7 series cab |
| Air conditioning |
YES |
| Performance parameter |
|
| Garbage container material |
high-quality carbon steel |
| Standard configuration |
Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit. |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 10m³ sewage suction tanker truck
Sewage suction truck, also called sewage tanker
truck, sewage truck, sewage suction tanker truck,vacuum sewage suction
truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc
.
Introduction
Suction sewage truck is a new type of environmental sanitation vehicle
that collects, transfers, cleans, and transports sludge and sewage to avoid
secondary pollution. The suction truck can self suction and discharge, with
fast working speed, large capacity, and convenient transportation. It is
suitable for collecting and transporting liquid substances such as feces, mud,
and crude oil. The suction truck adopts a domestically advanced vacuum pump
with high suction force and long suction distance, which is particularly
suitable for the suction, transportation, and discharge of sediment in sewers,
especially for large objects such as sewage mud, sludge, stones, bricks, etc.Product parameters
