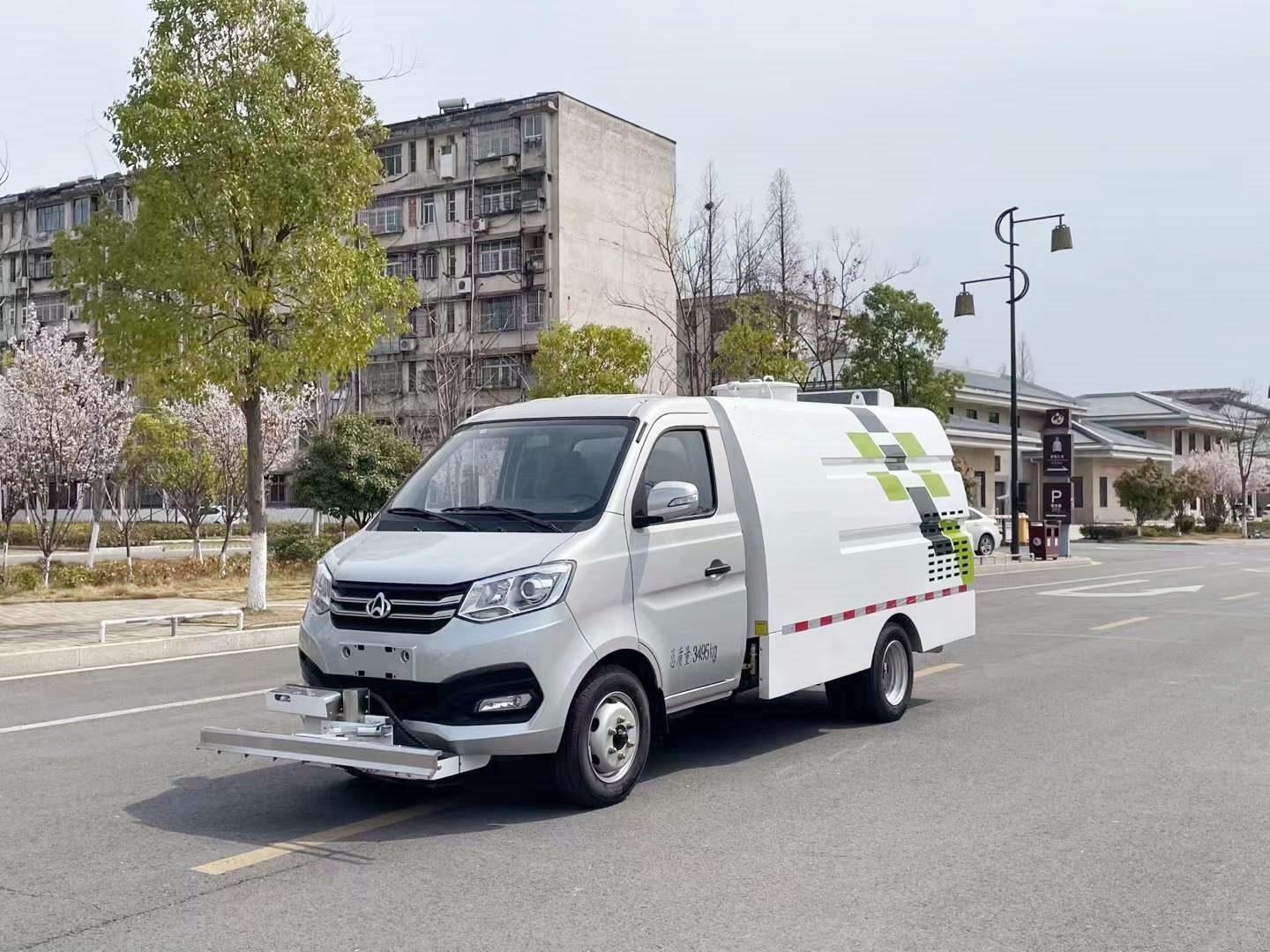

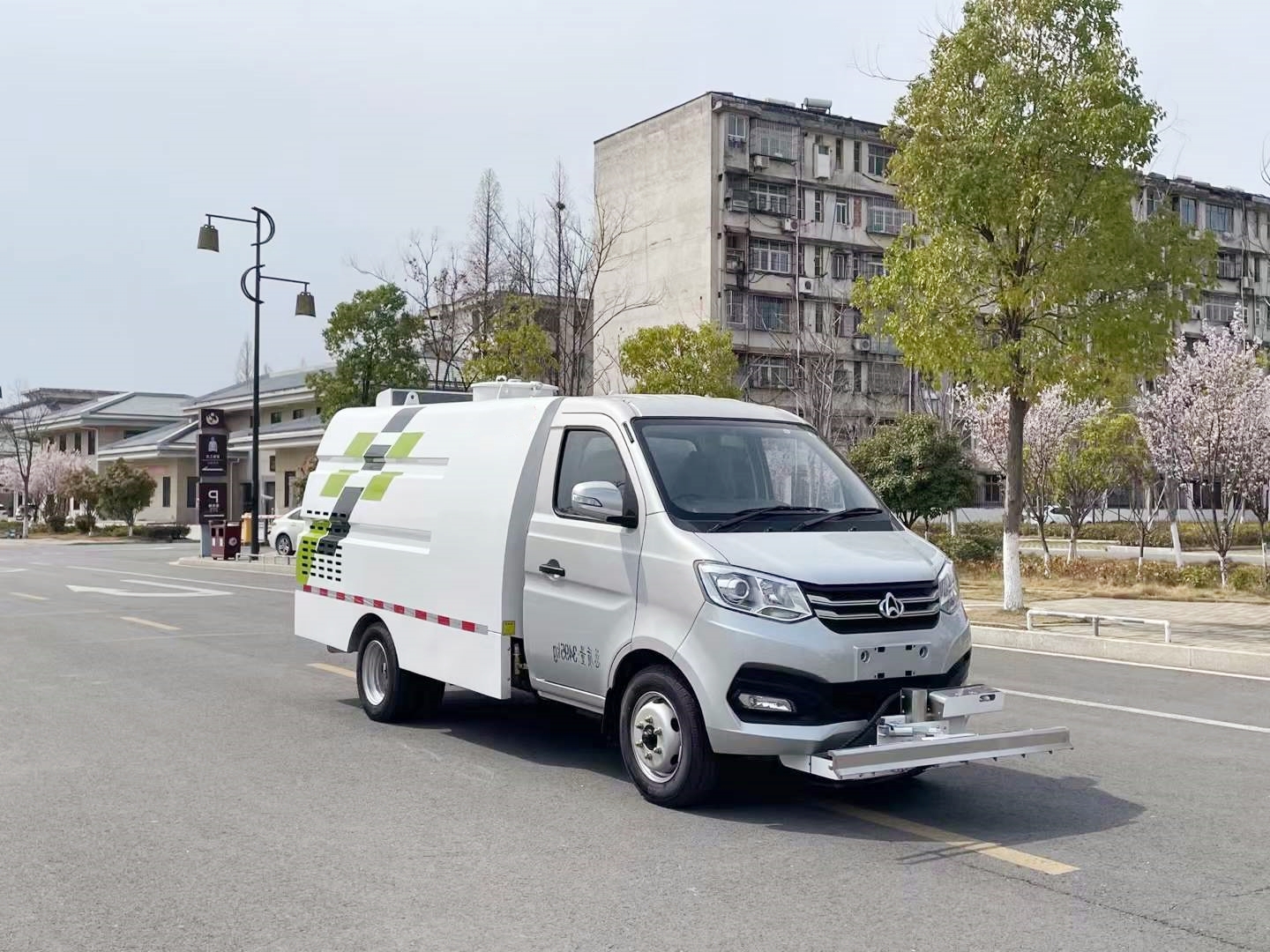

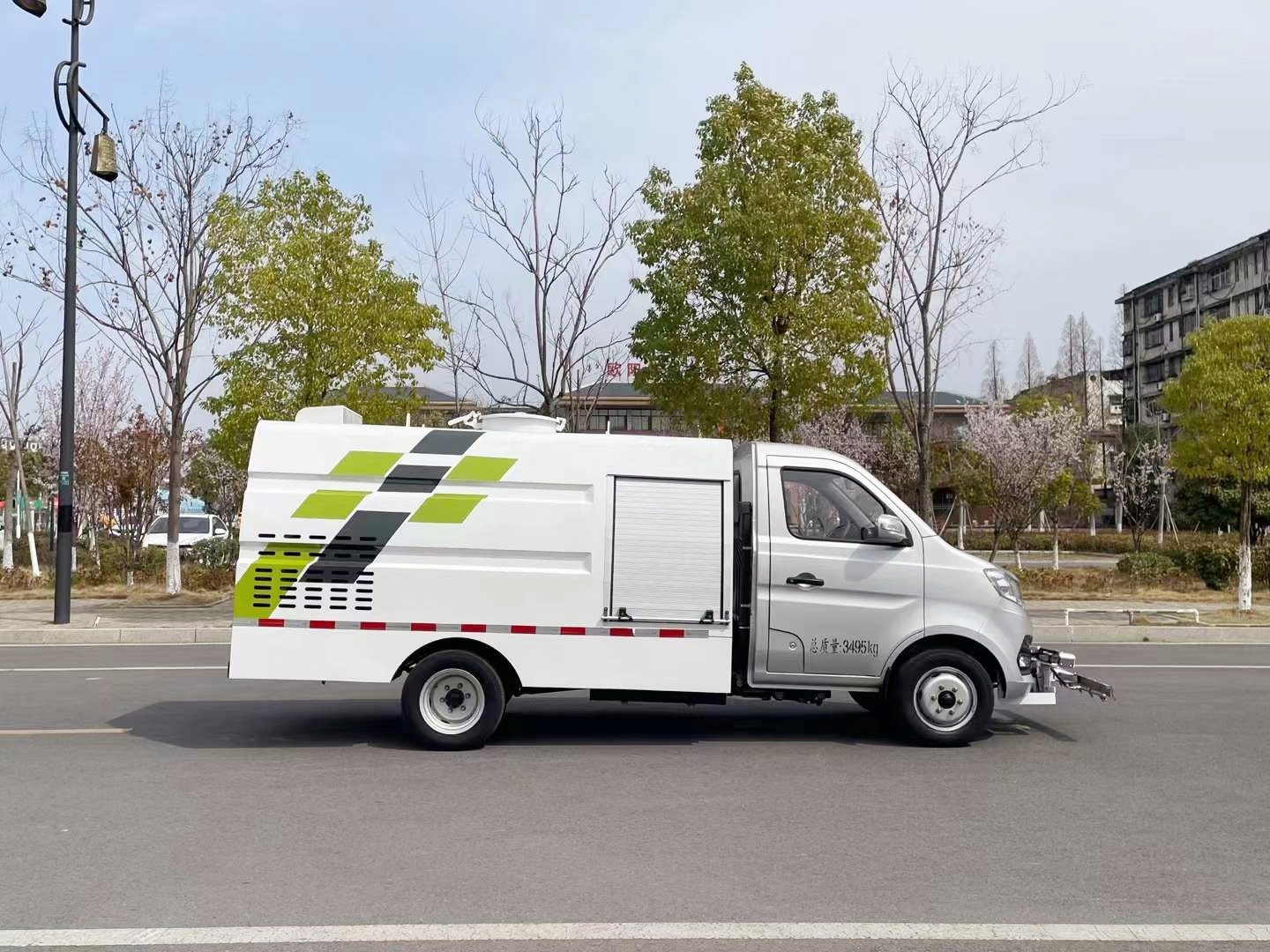

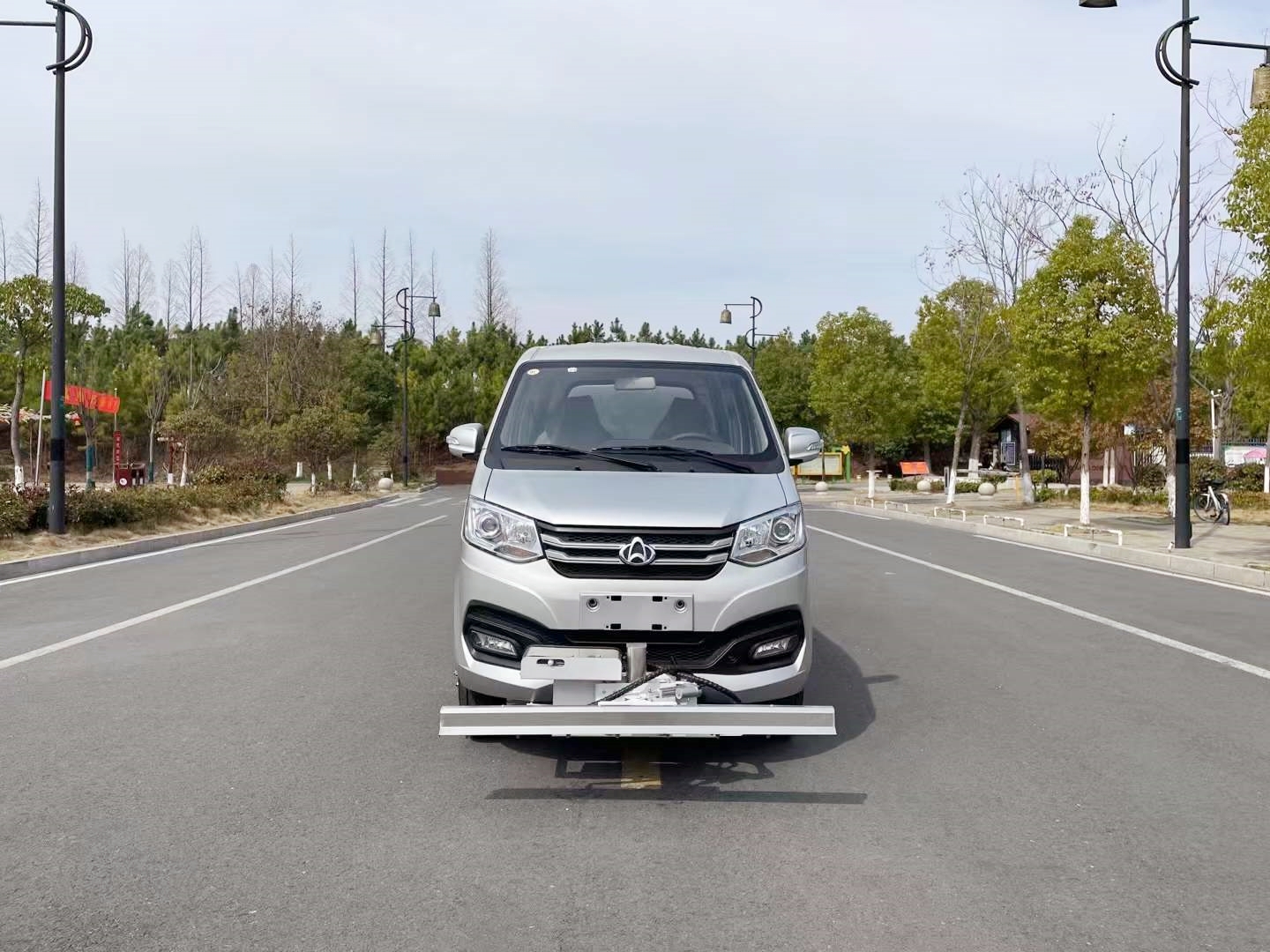

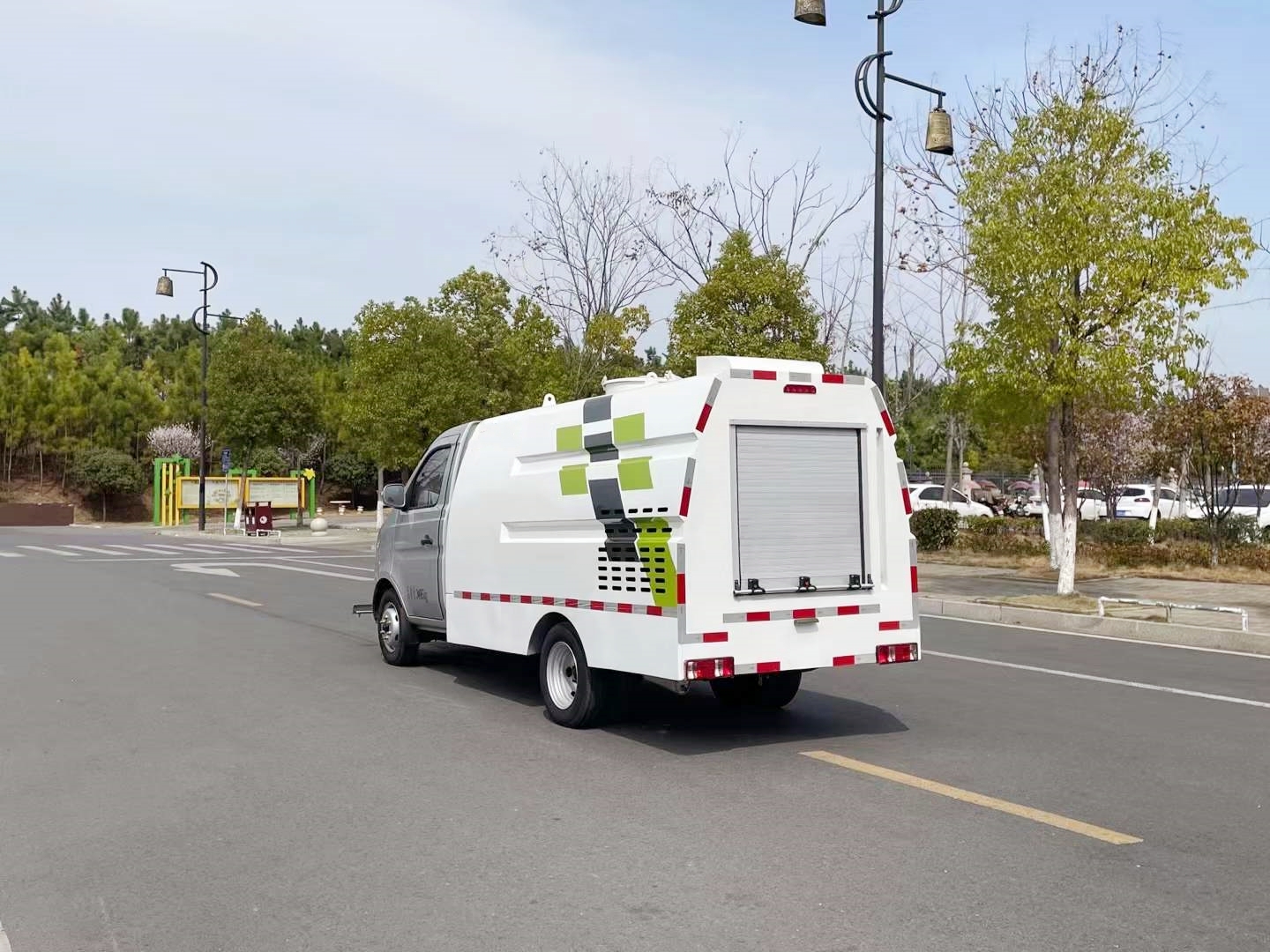

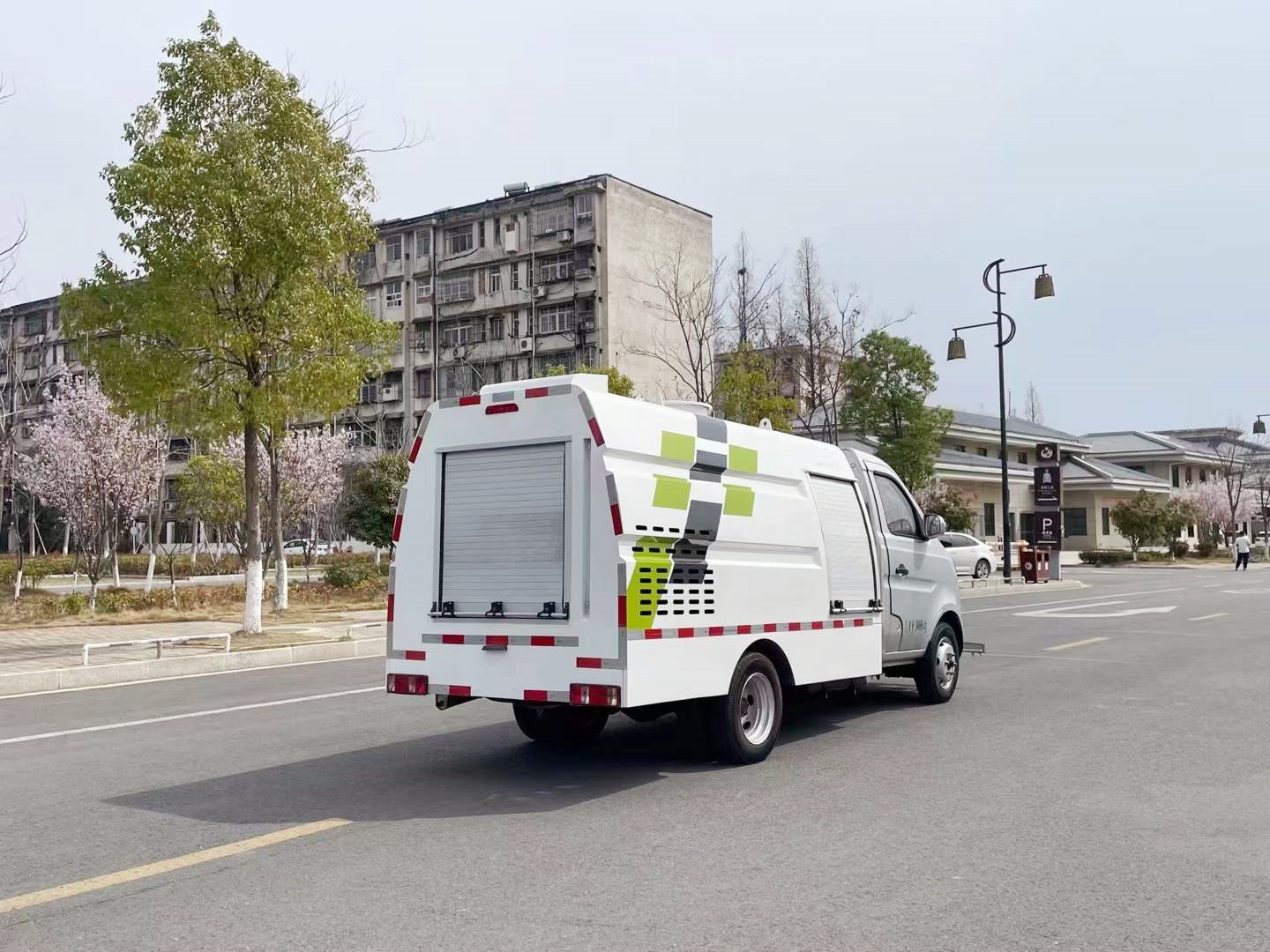

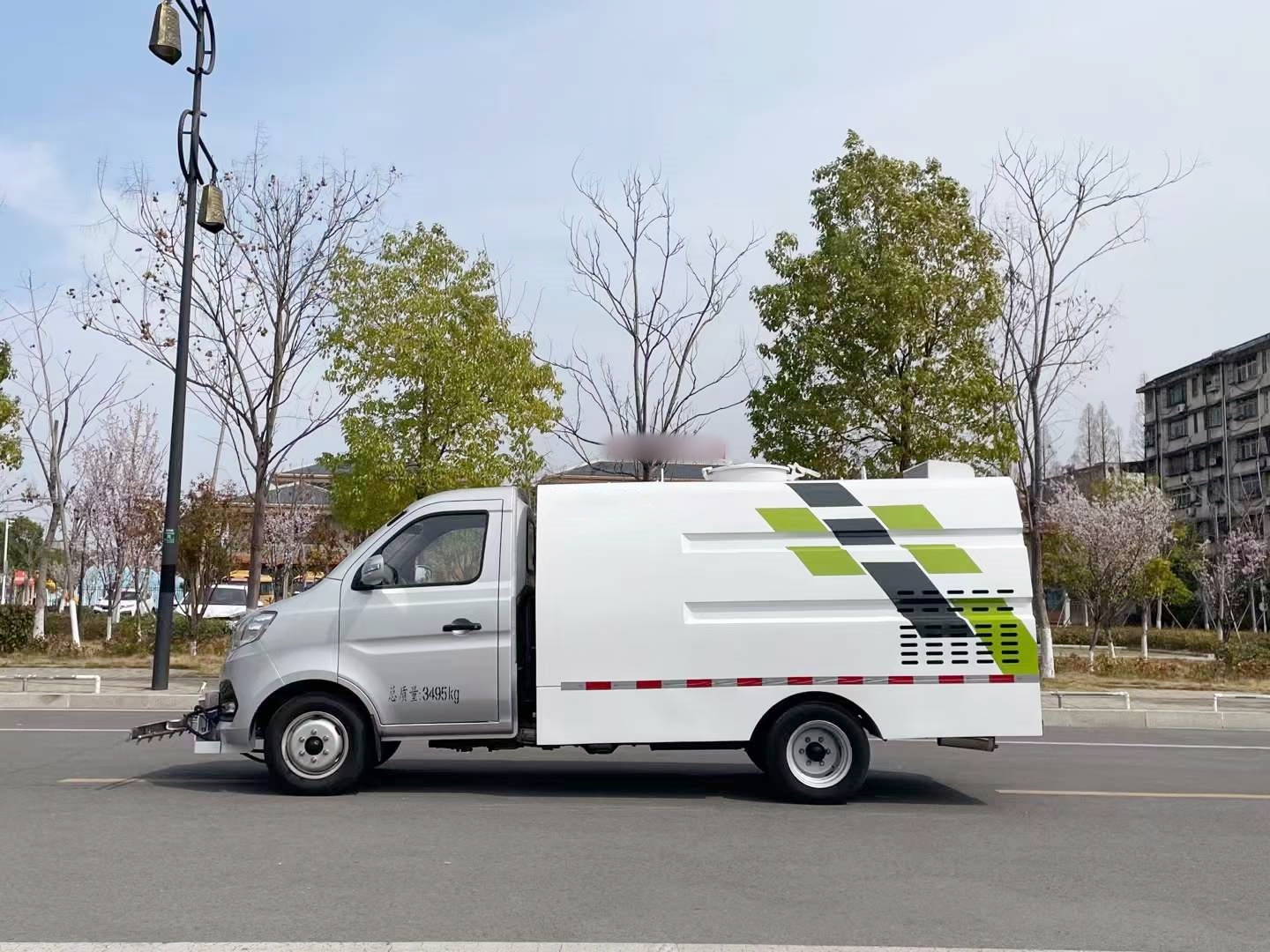

Changan rear dual wheel road maintenance vehicle
2024-10-09 15:48:19 Source：chusheng
Chassis configuration:
Engine: DAM16KR, Dong an 122hp
Transmission: 5-speed gearbox
Tire: 165R14LT 8PR,175R14LT 8PR, 6+1 spare tire
Wheelbase: 2990(mm)
Installation configuration:
1. The high-pressure spray water curtain formed by the 9 nozzles in the front row can be raised and lowered, with a 30 degree angle to the left and right, effectively cleaning the road surface.
2. Single point dredging with a deviation angle of more than 45 degrees on both sides to remove stubborn stains to the maximum extent possible.
3. The high-pressure reel with a length of 20 meters at the back and multiple angles of cleaning guns are good helpers for removing small advertisements.
4. Authentic Honda gasoline engine with Italian high-pressure pump, the entire unit has stable and reliable performance.
5. High quality electric push rod system, running smoothly.
| Product Name |
Changan rear dual wheel road maintenance vehicle |
| Drive type |
4X2 |
| Engine |
DAM16KR, Dong an 122hp |
| Gearbox |
5-speed gearbox |
| Wheel base (mm) |
2990(mm) |
| Vehicle dimensions (mm) |
5440×1610×2200(mm) |
| Tire specification |
165R14LT 8PR,175R14LT 8PR, 6+1 spare tire |
| Gross vehicle weight(Kg) |
3495(Kg) |
| Curb weight(Kg) |
2030(Kg) |
| Rated weight(Kg) |
1335(Kg) |
| Tank volume(m³) |
2m³ |
| Fuel type |
gasoline |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
50/50 |
| Tank material |
Q235 carbon steel |
| Additional configuration |
Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Changan rear dual wheel road maintenance vehicle
A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.
Main Parameter
