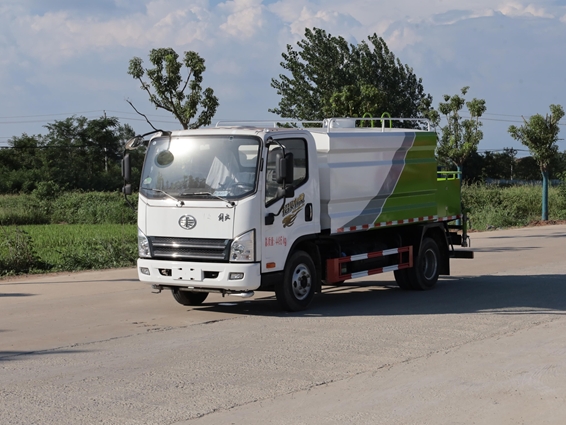

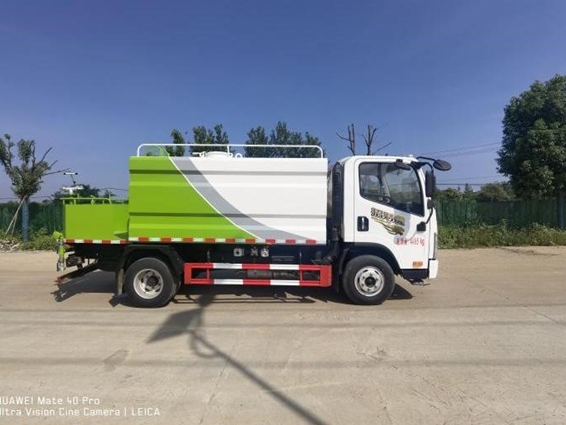

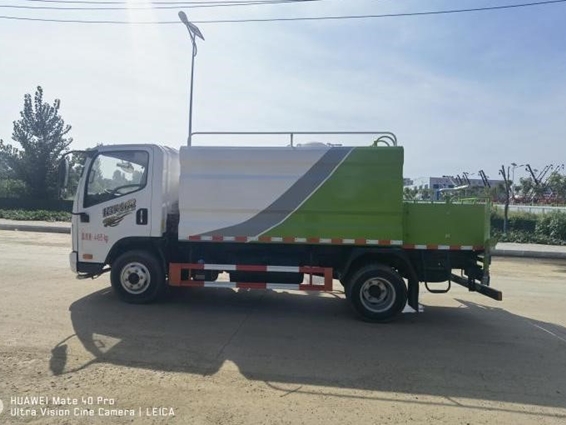

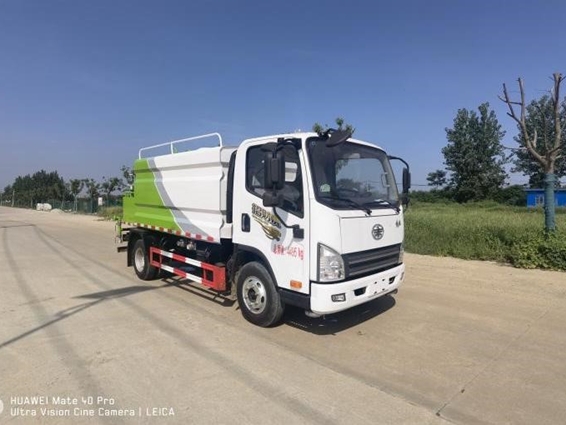

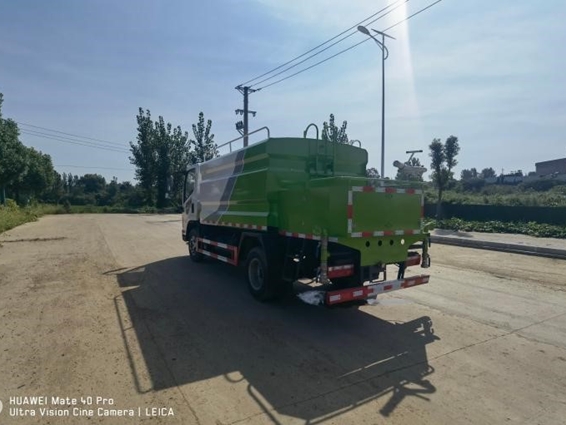

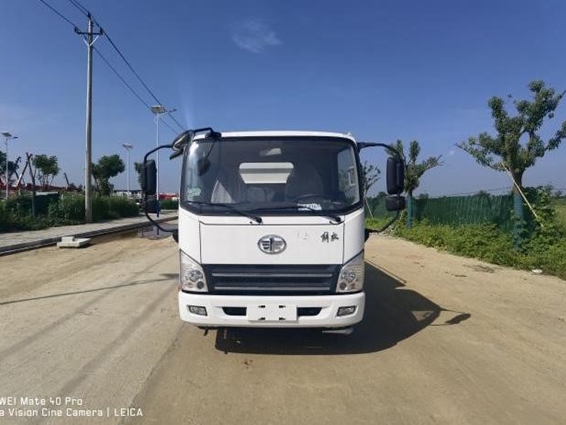

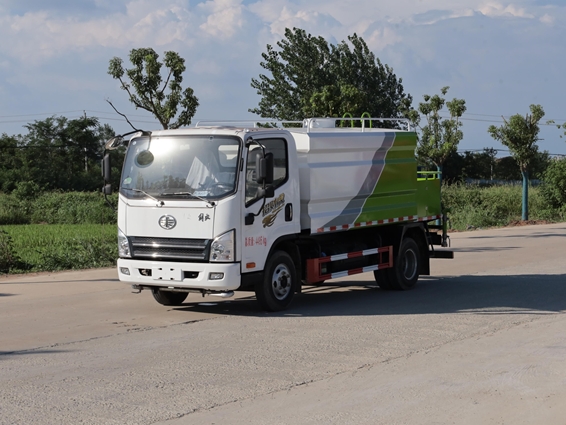

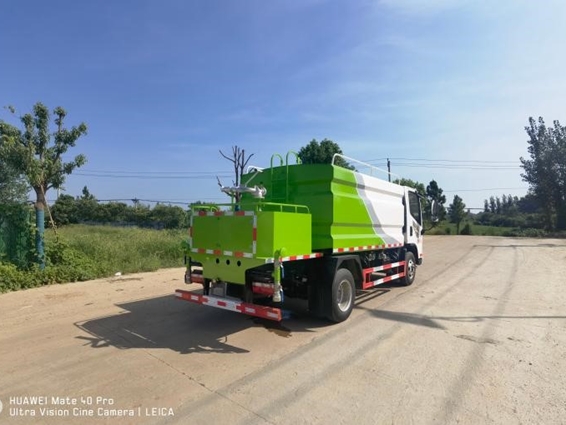

Jiefang 7cbm road maintenance vehicle
Chassis configuration:
1. Engine: 490PLUS2, Yunnei 140hp
2.Transmission type: 5 forward gears and 1 reverse gear
3.Tyre: 7.00R16 steel wire tire
4.Wheelbase:3300mm
5 Other: Air brake, original air conditioning, electric doors and windows, central locking system, driving recorder.
Installation configuration:
1.The tank body is about 7 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.
| Product Name | Jiefang 7cbm road maintenance vehicle |
| Engine Model | 490PLUS2 |
| Engine horsepower | Yunnei 140hp |
| Engine displacement | 2.46L |
| Gearbox | 5 forward gears and 1 reverse gear |
| Tire specification | 7.00R16 steel wire tire |
| Wheel base (mm) | 3300 |
| Gross vehicle weight(Kg) | 4495 |
| Curb weight(Kg) | 3630 |
| Rated weight(Kg) | 735 |
| Vehicle dimensions (mm) | 5998X2060X2700 |
| Tank volume(cbm) | 7 |
| Fuel type | diesel |
| Emission standard | Euro 6 (option:Euro3/4/5) |
| Water pump model | 50/50 |
| Tank material | Q235 carbon steel |
| Additional configuration | Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |
Product Introduction
A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.
Main Parameter
