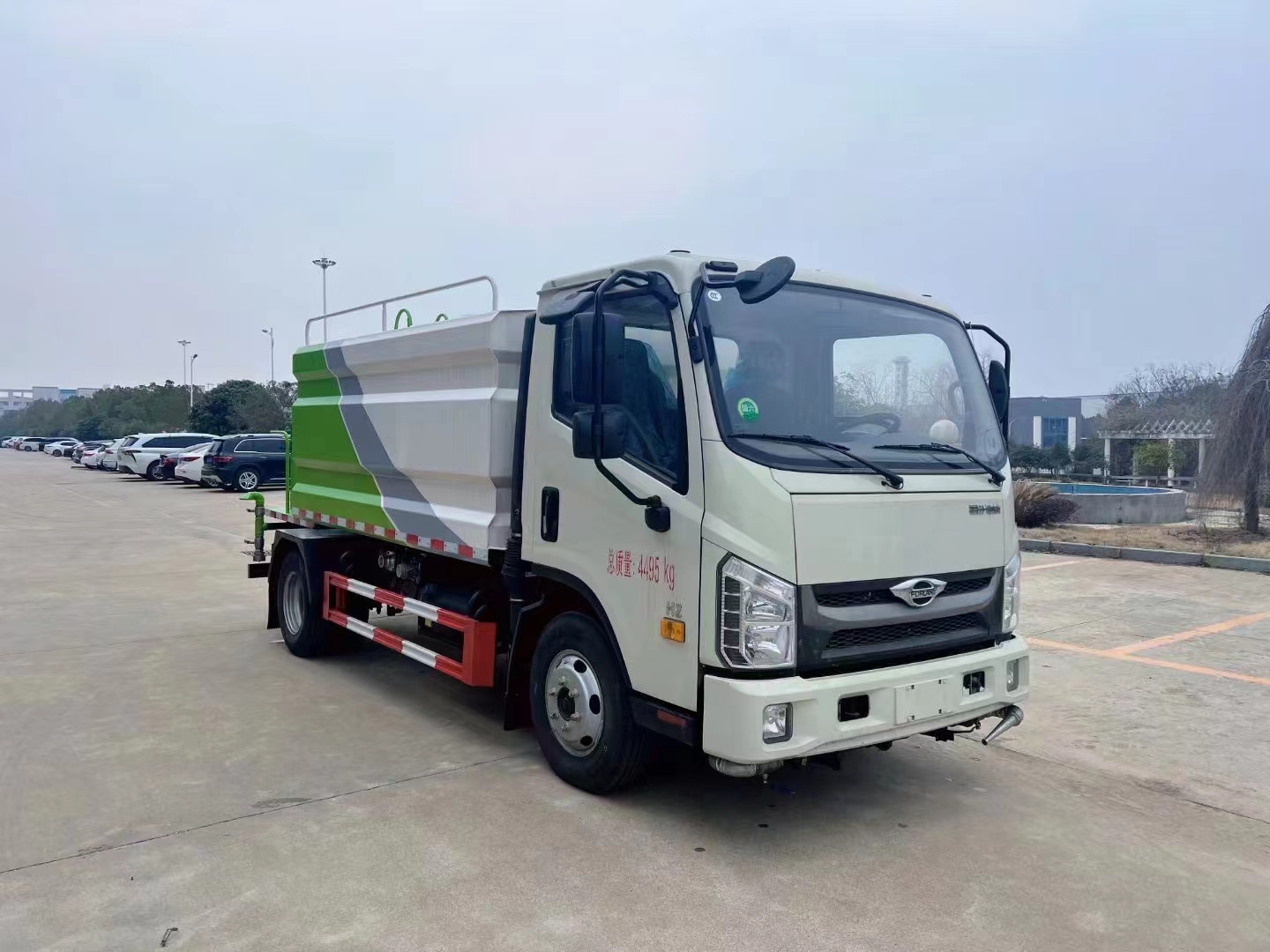

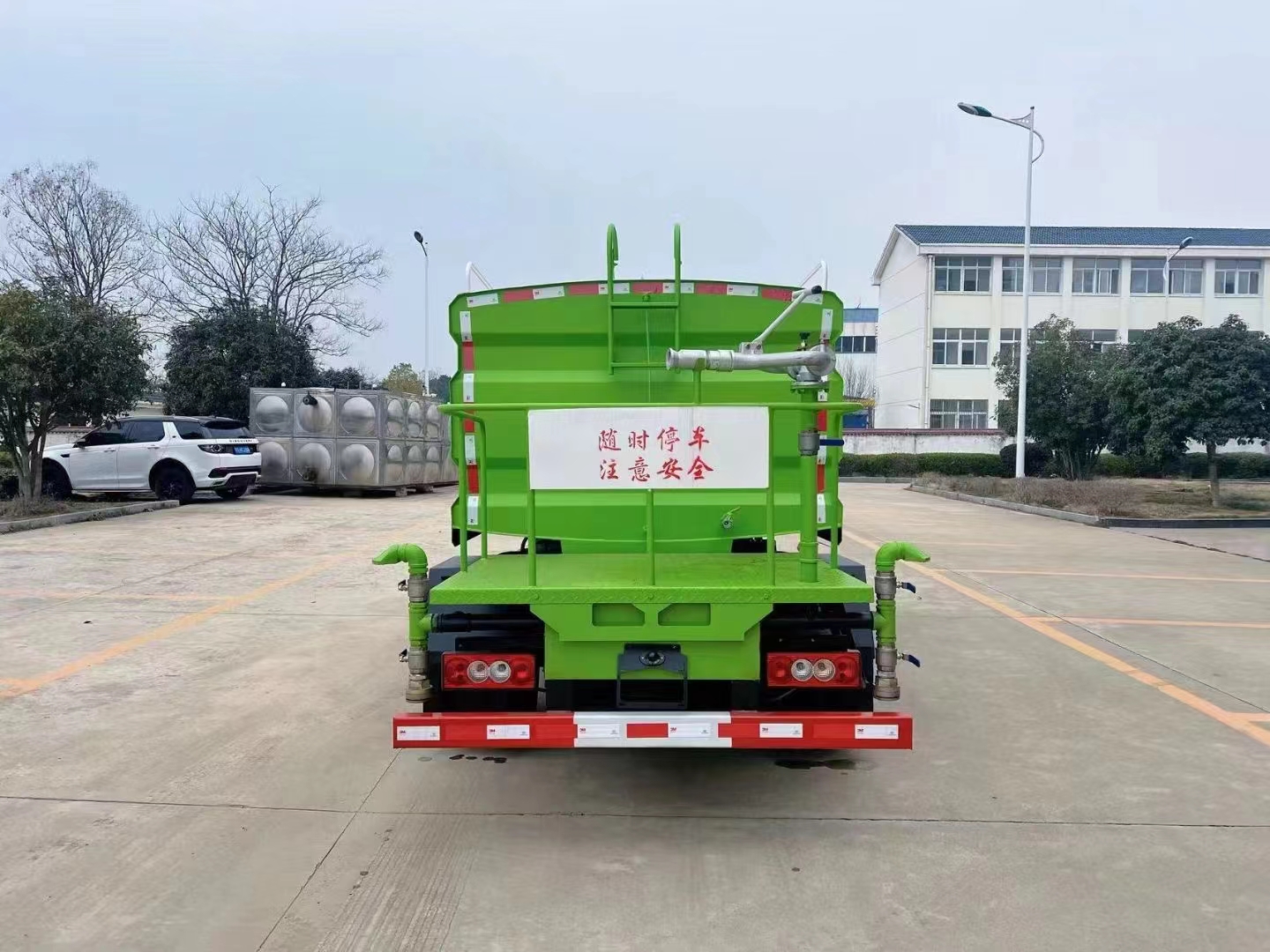

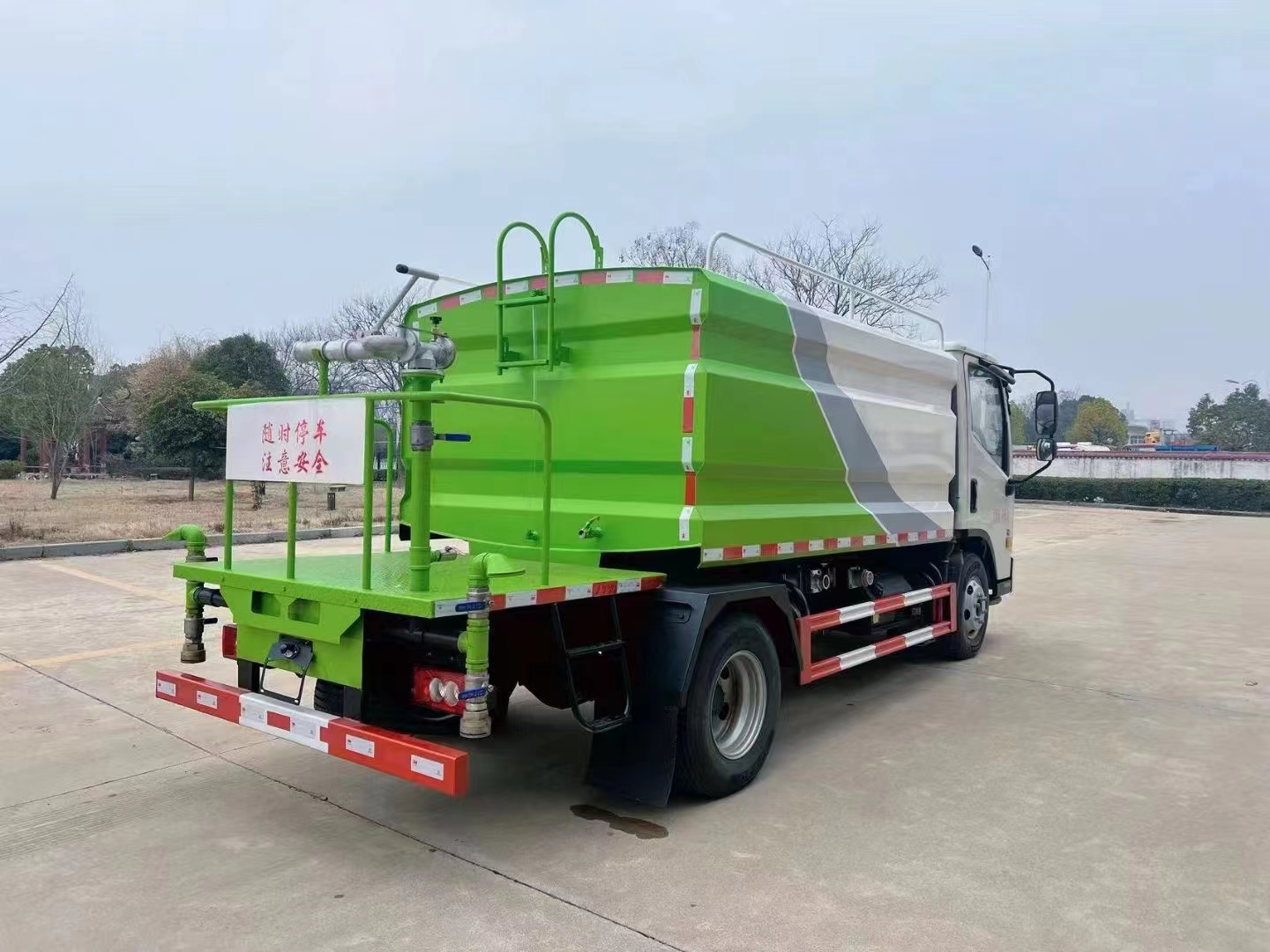

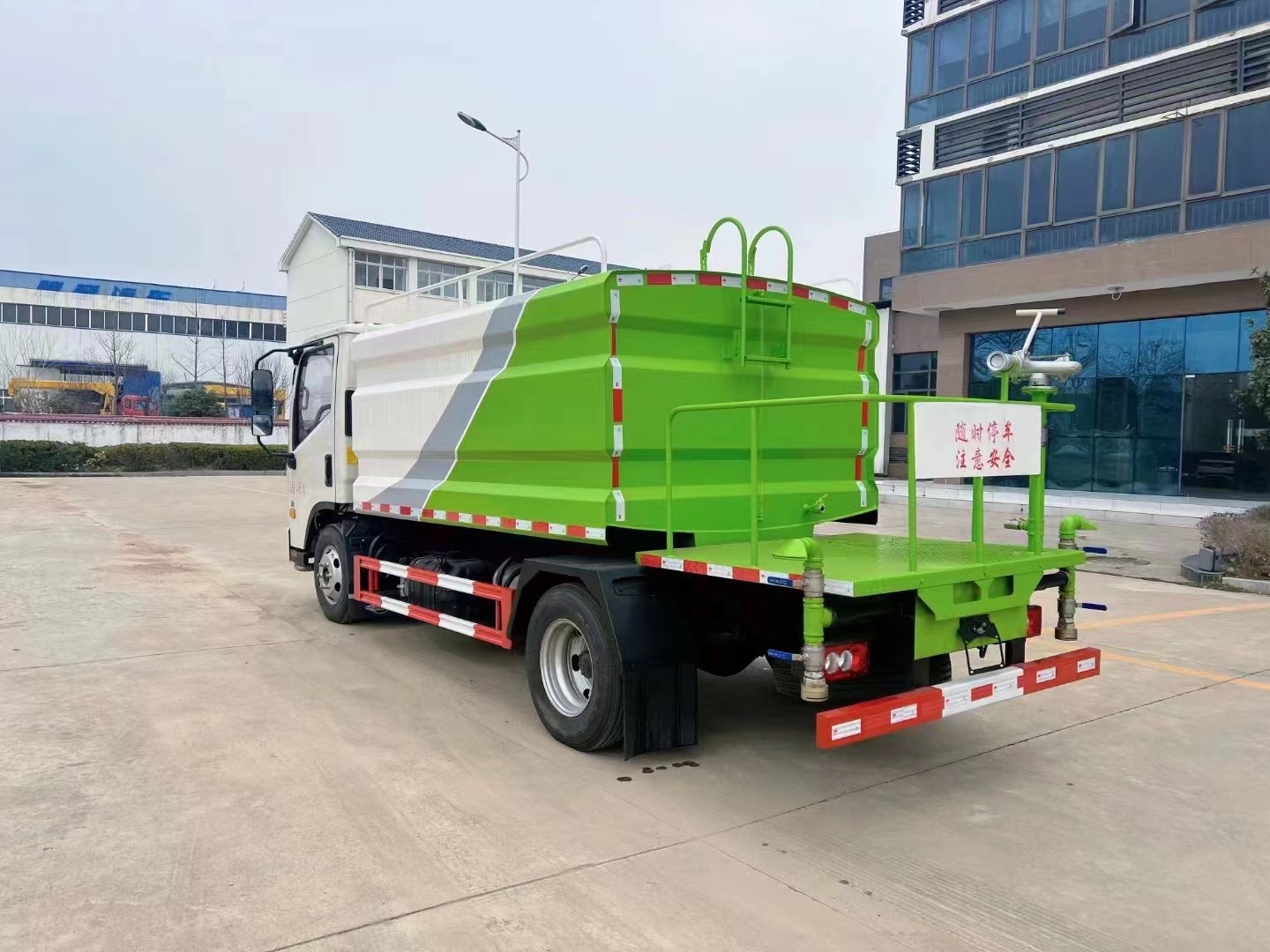

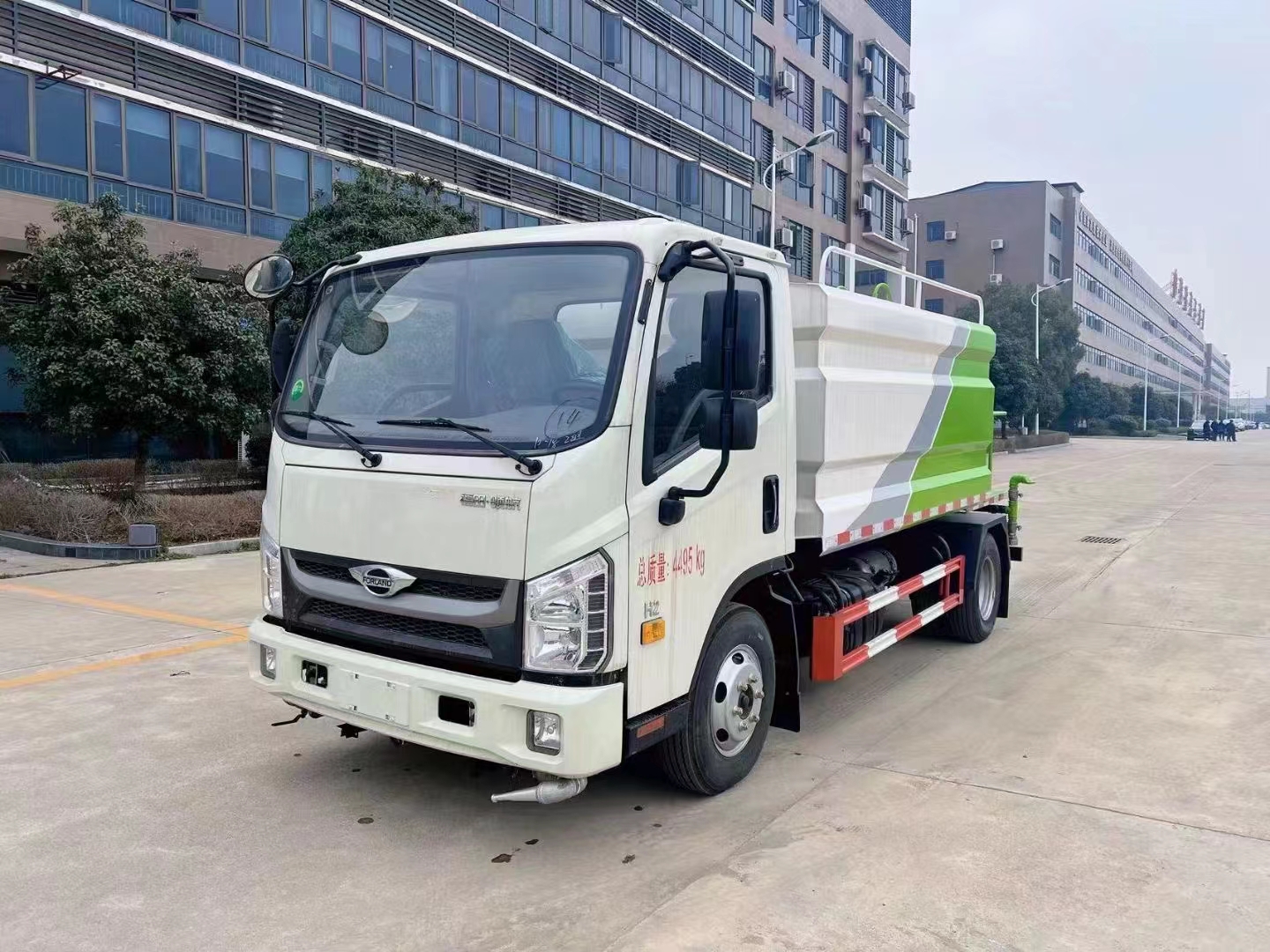

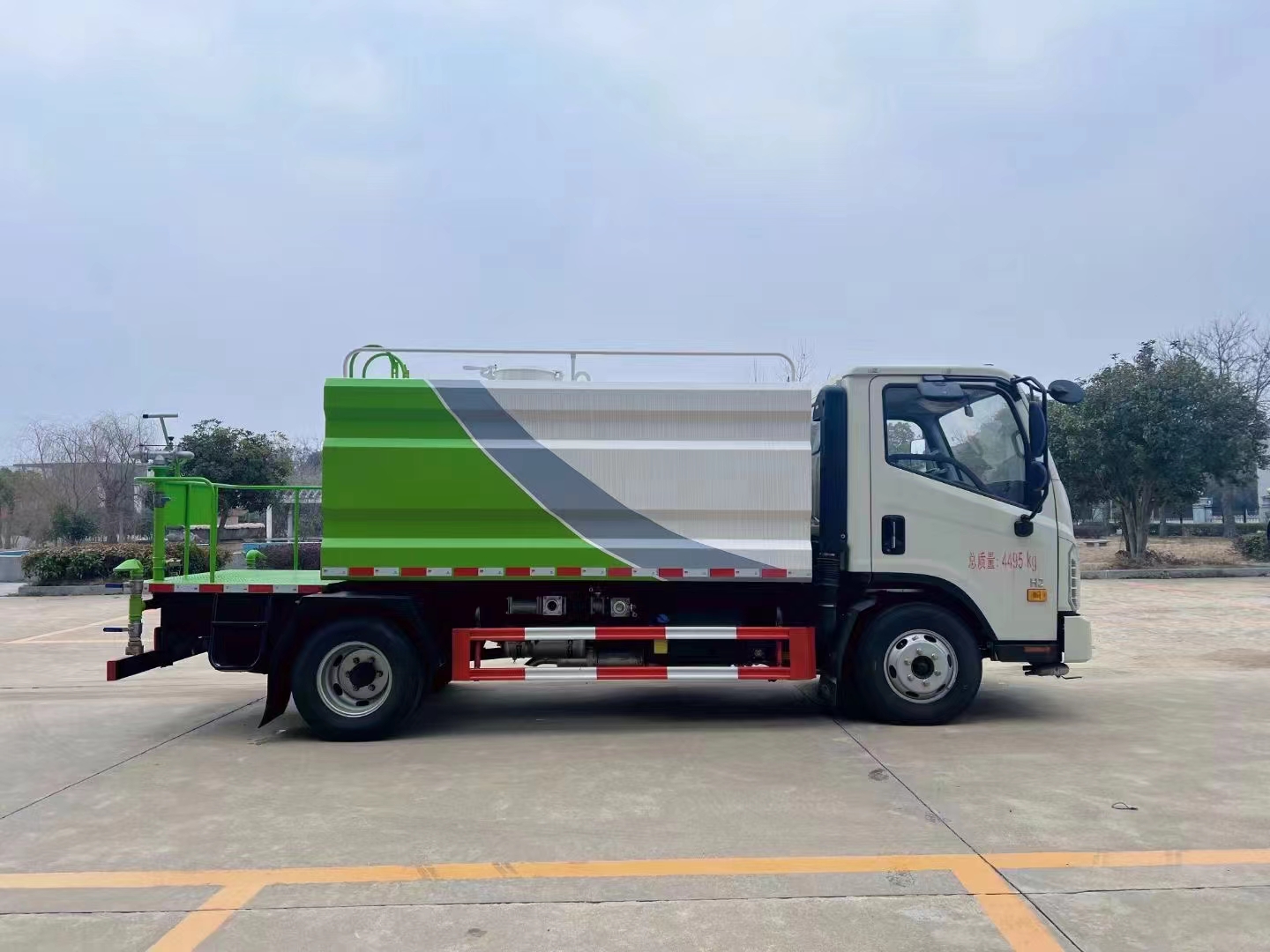

FOTON H2 4X2 road maintenance vehicle

2024-10-09 15:48:19 Source：chusheng

Chassis configuration:
1. Engine: Q25-152E60, Quanchai 152hp

2.Transmission type: 6 forward gears and 1 reverse gear

3.Tyre: 7.00R16 steel wire tire

4.Wheelbase:3360mm

5 Other: Air brake, original air conditioning, electric doors and windows, central locking system.
Installation configuration:
1.The tank body is about 7 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.

Product Name	FOTON H2 4X2 road maintenance vehicle
Engine Model	Q25-152E60
Engine horsepower	Quanchai 152hp
Engine displacement	2.49L
Gearbox	6 forward gears and 1 reverse gear
Tire specification	7.00R16 steel wire tire
Wheel base (mm)	3360
Gross vehicle weight(Kg)	4495
Curb weight(Kg)	3600
Rated weight(Kg)	700
Vehicle dimensions (mm)	5998×2080,2100×2600,2800
Tank volume(cbm)	7
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	40-50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.

Product Introduction

A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.

Main Parameter
