Chassis configuration:
Multi functional steering wheel, central door lock, power windows, remote key, integrated audio system, cruise control, radio+MP3+Bluetooth, air conditioning, LCD instrument panel,
Driver's cab: S100 driver's cab, height: 2100mm, width: 1730mm;
Beam width: 740mm, partially double layered beam of 180mm.
Engine: Quanchai 132 horsepower
Transmission: Wanliyang 8-speed gearbox
Tire: 7.00R16 steel wire tire
Wheelbase: 3300mm
Front/Rear (Bridge): 1.8/4.5 (T)
Chassis weight: 2180Kg
Installation configuration:
The tank body is a square tank body made of high-quality carbon steel plate. When this vehicle is a high-pressure cleaning vehicle device, the volume of the compartment is 7 cubic meters, with a front flushing and rear spraying platform anti-aircraft gun.
| Product Name | Yuejin 4X2 Road Maintenance Vehicle |
| Drive type | 4X2 |
| Engine | Q23-132E60, Quanchai 132 hp |
| Gearbox | Wanliyang 8-speed gearbox |
| Wheel base (mm) | 3300(mm) |
| Vehicle dimensions (mm) | 5998×2020,2050,2100×2200,2450,2550(mm) |
| Tire specification | 7.00R16 steel wire tire, 6+1 spare |
| Gross vehicle weight(Kg) | 4495(Kg) |
| Curb weight(Kg) | 3670,3865(Kg) |
| Rated weight(Kg) | 695,500(Kg) |
| Tank volume(m³) | 7m³ |
| Fuel type | diesel |
| Emission standard | Euro 6 (option:Euro3/4/5) |
| Water pump model | 50/50 |
| Tank material | Q235 carbon steel |
| Additional configuration | Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light |
| Notice | The above information is for reference only, and vehicles can be customized depending on your requirements. |

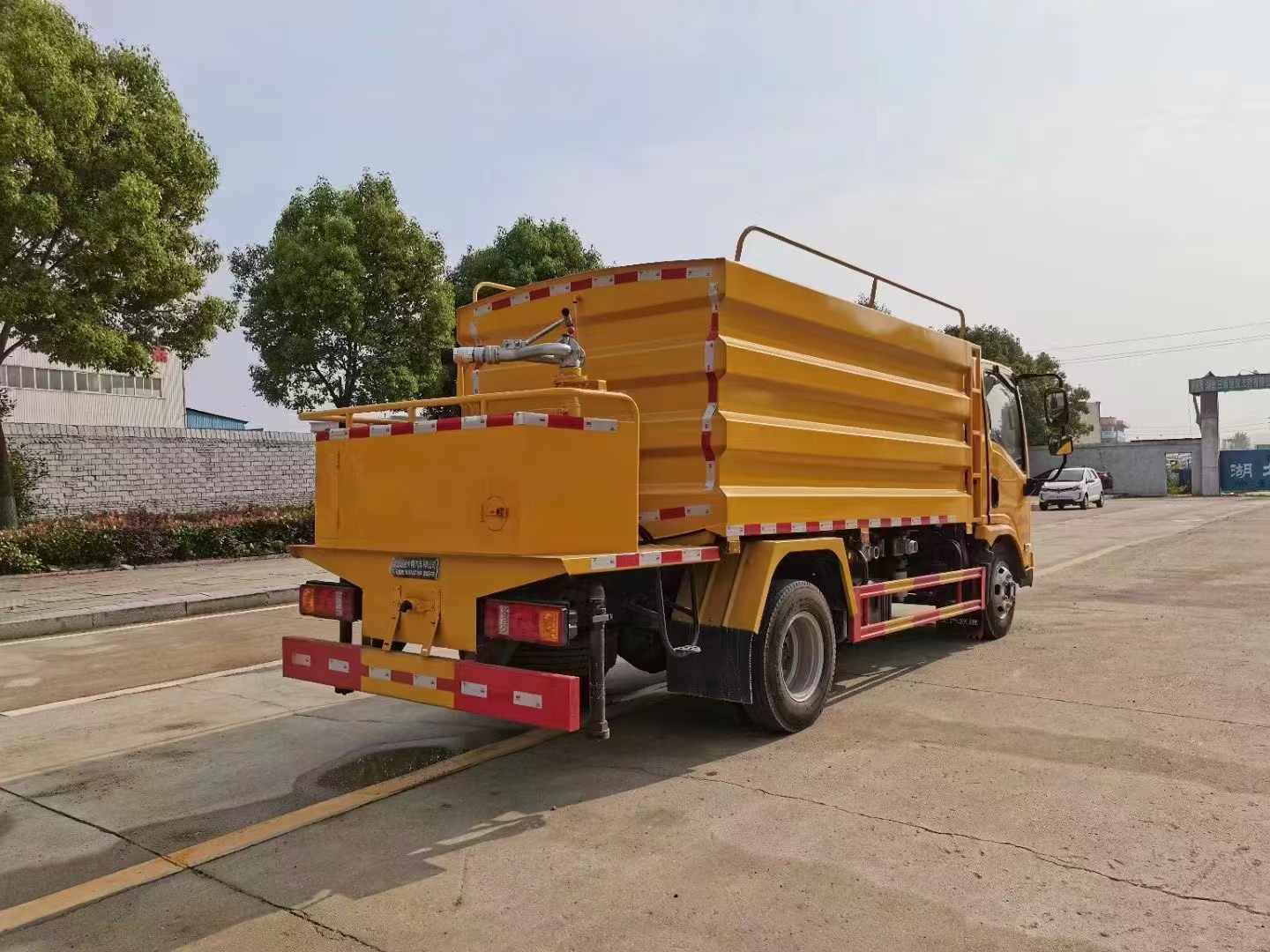

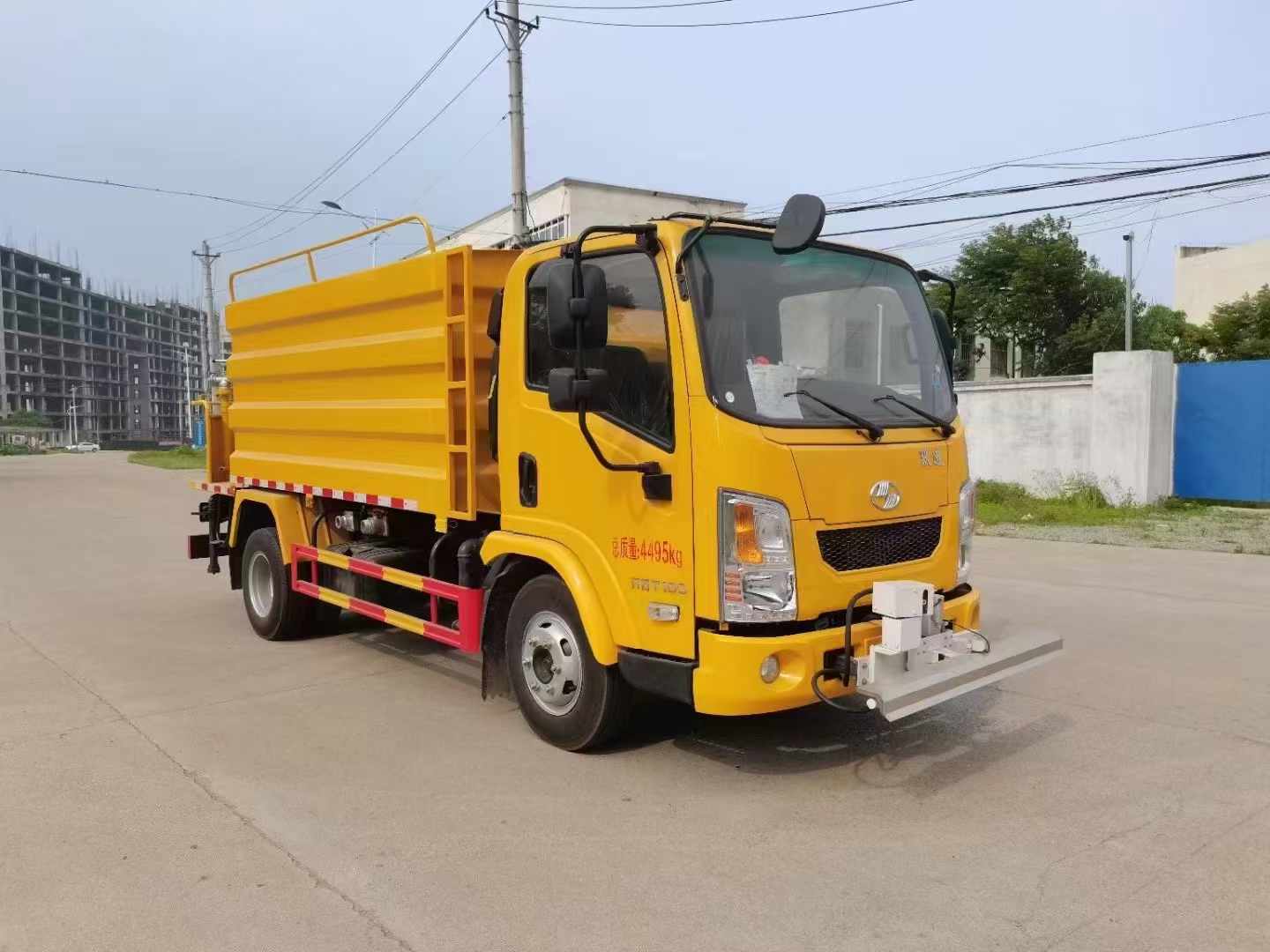

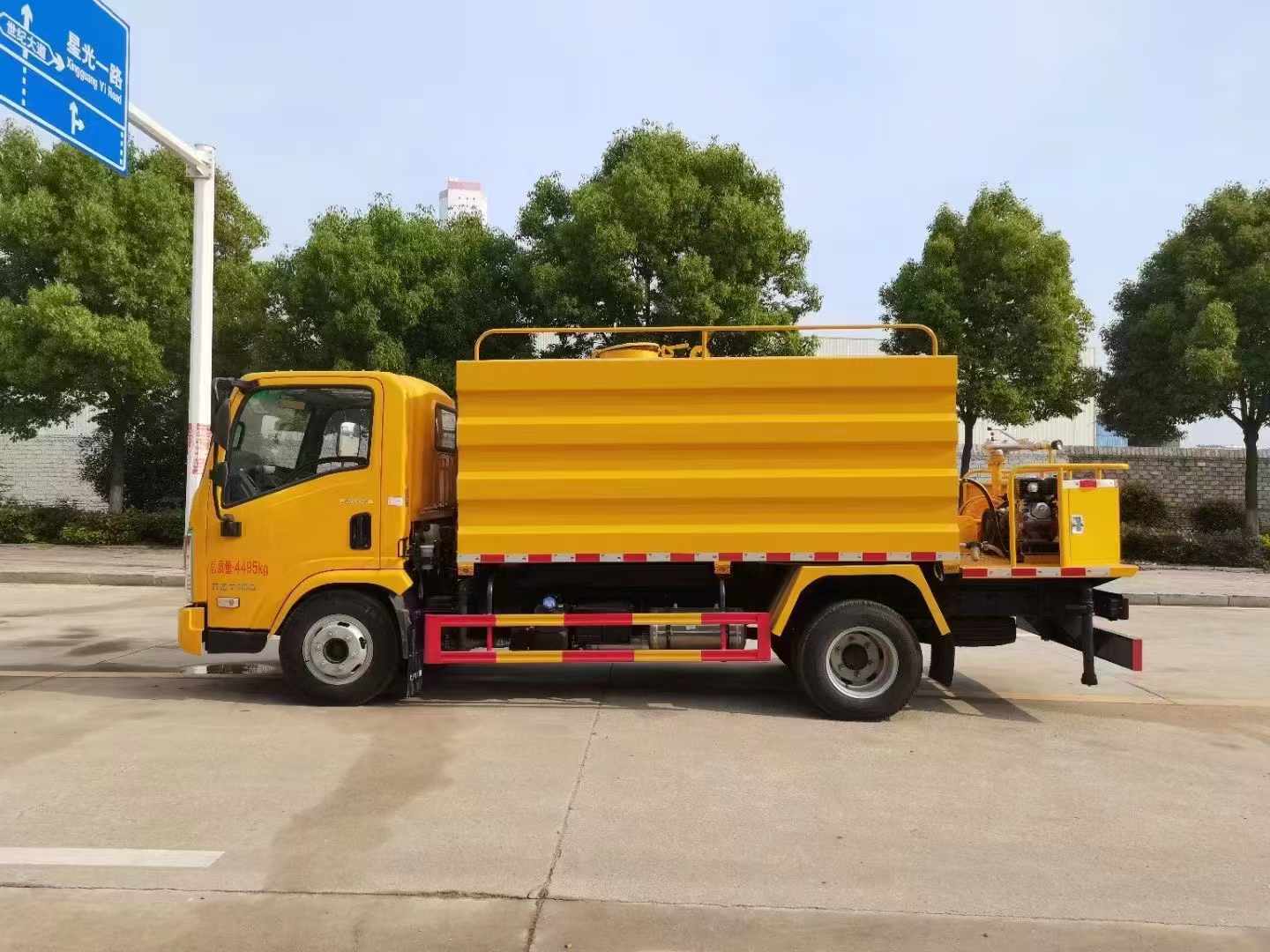

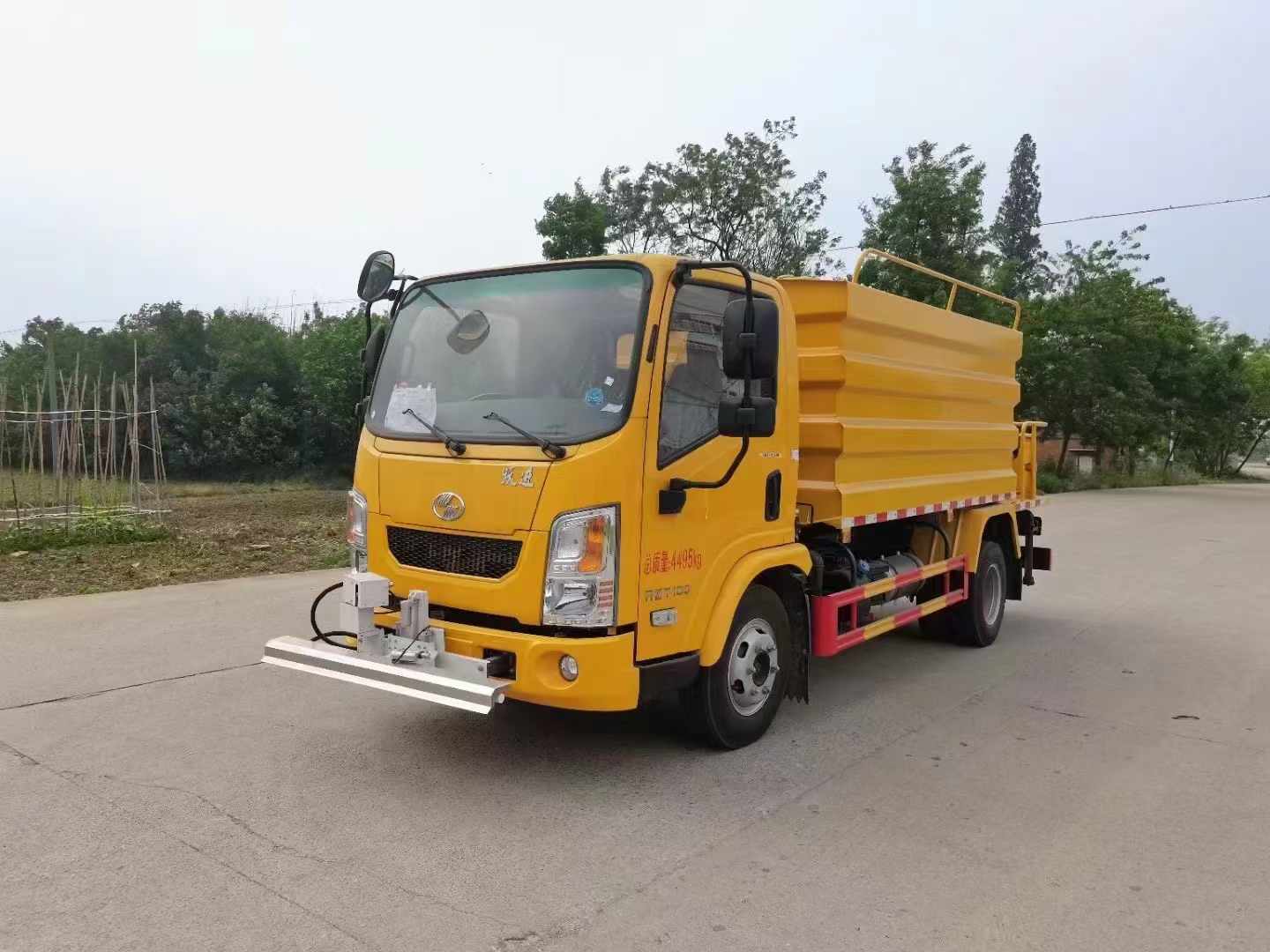

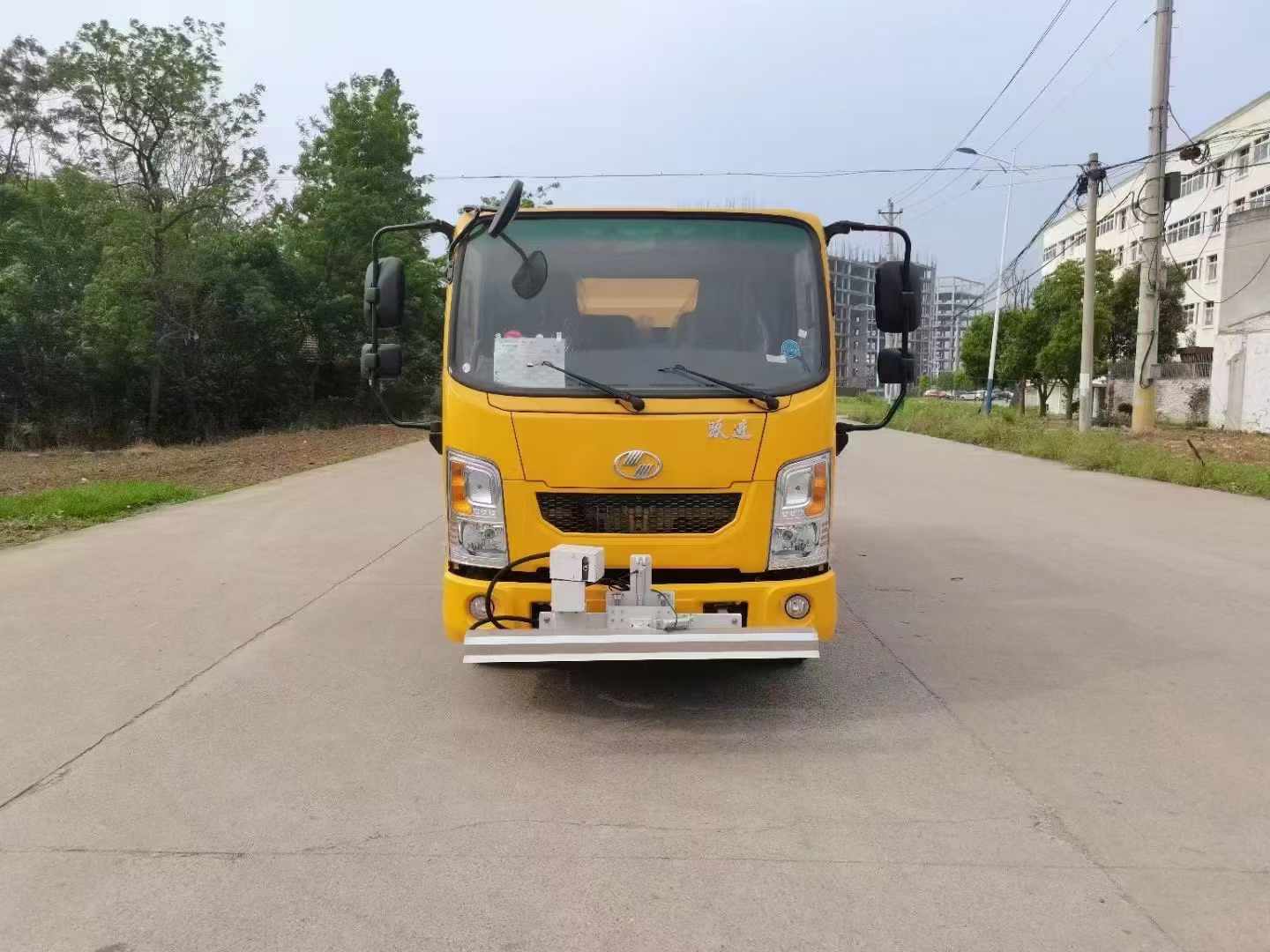

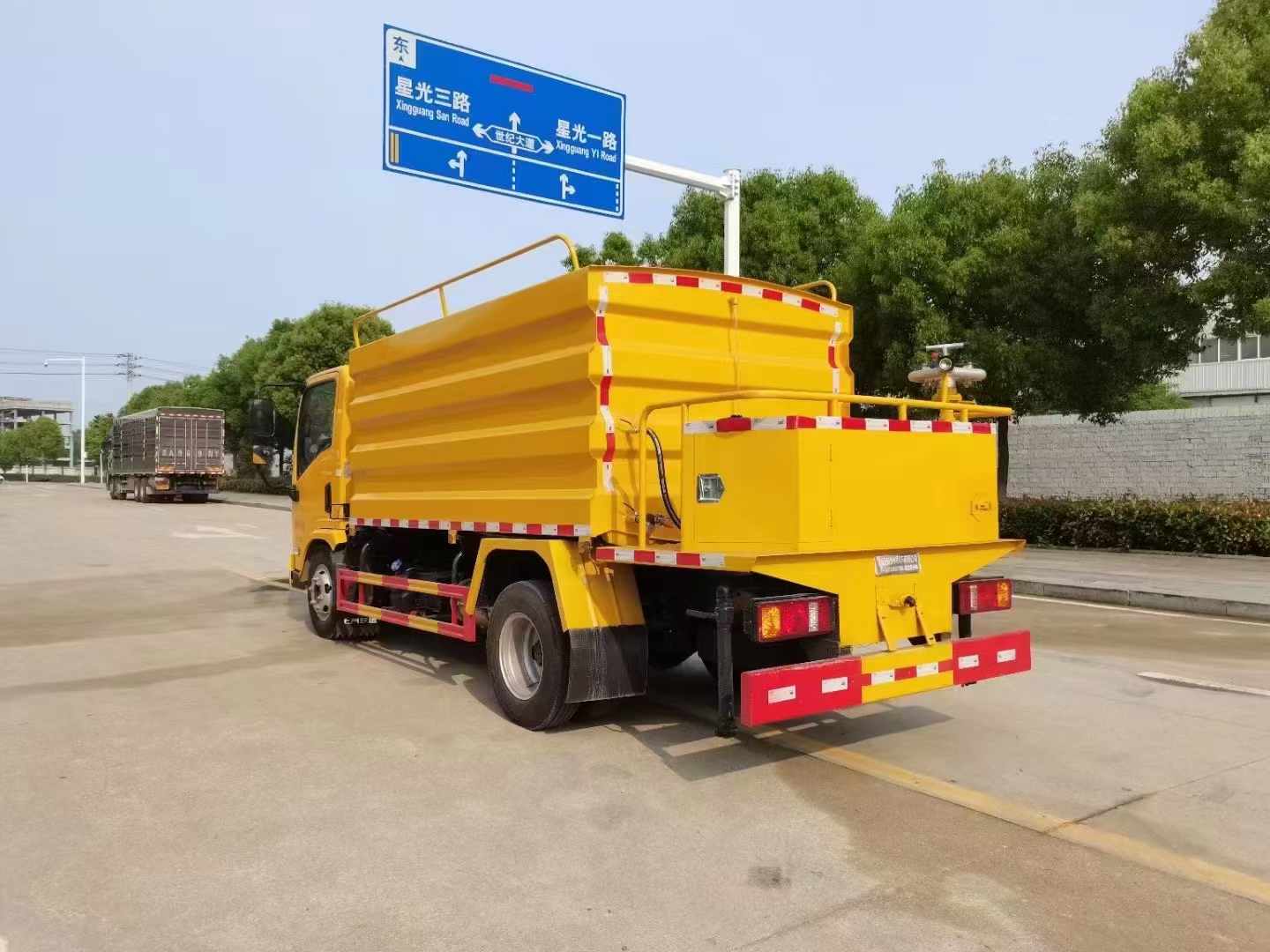

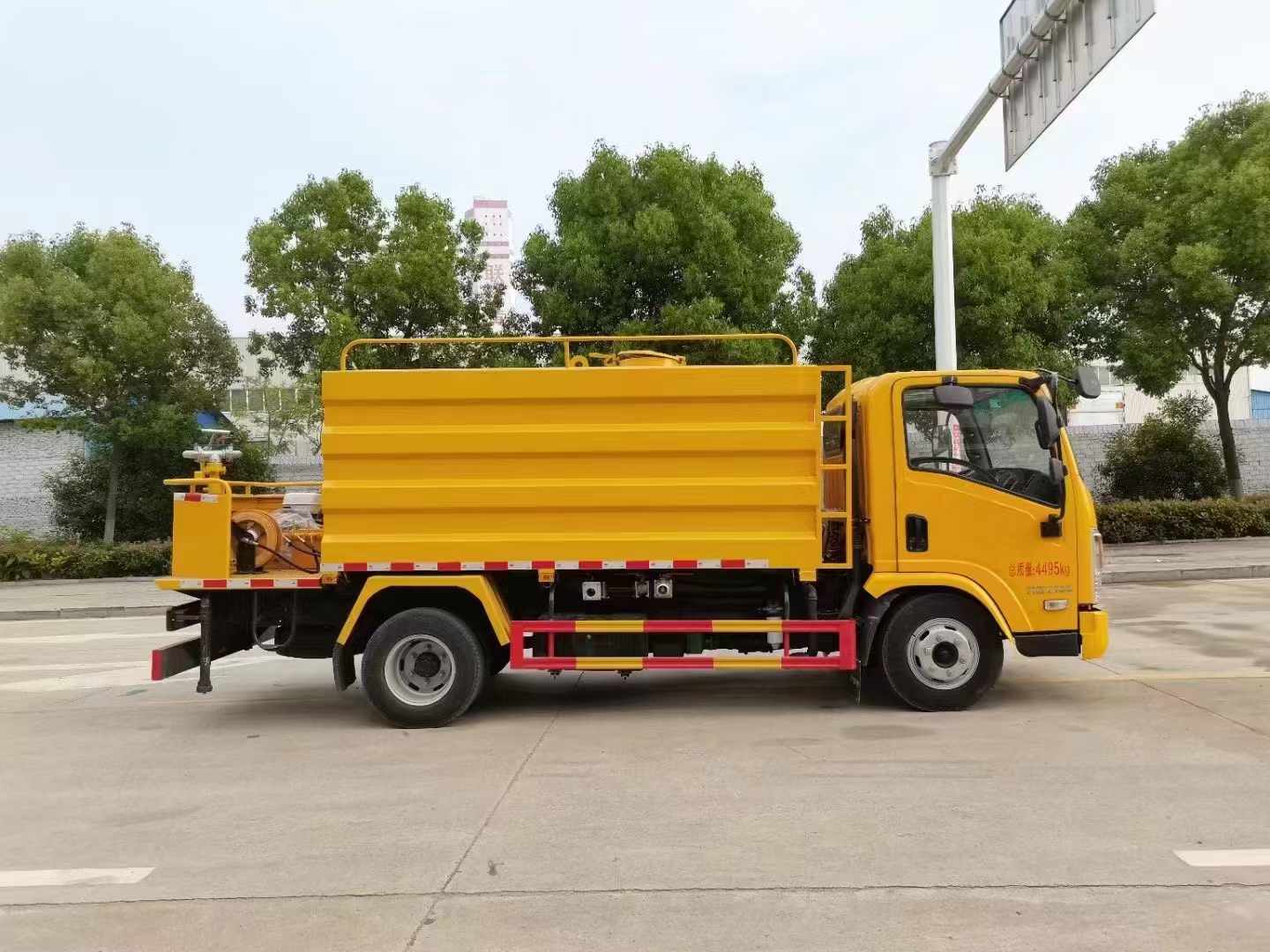

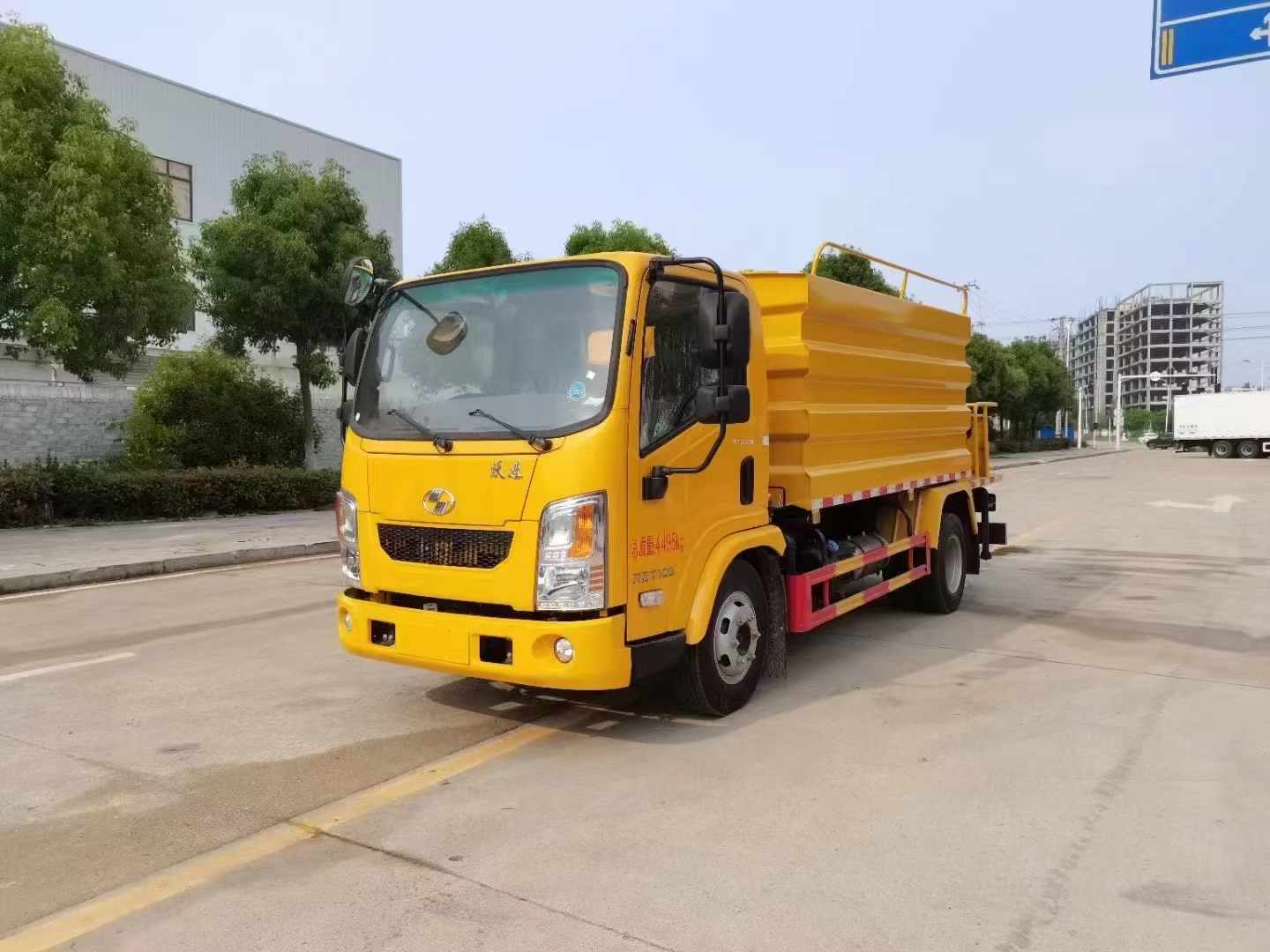

Yuejin 4X2 Road Maintenance Vehicle
A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.
Main Parameter
