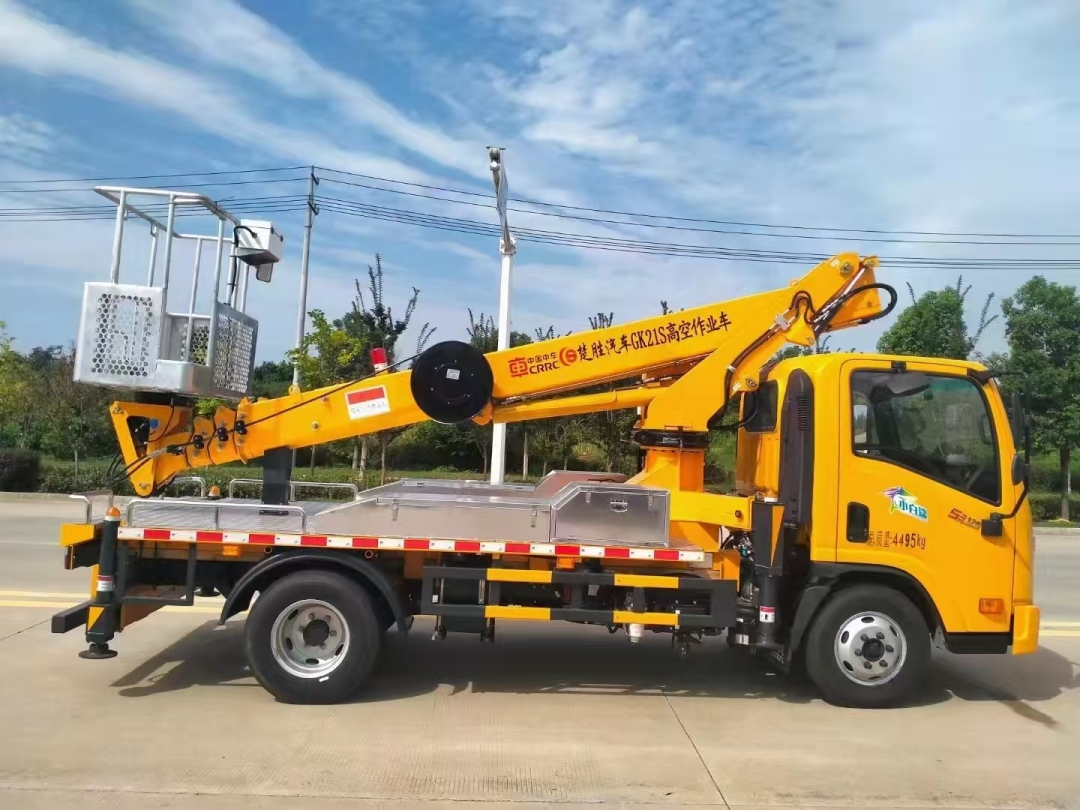

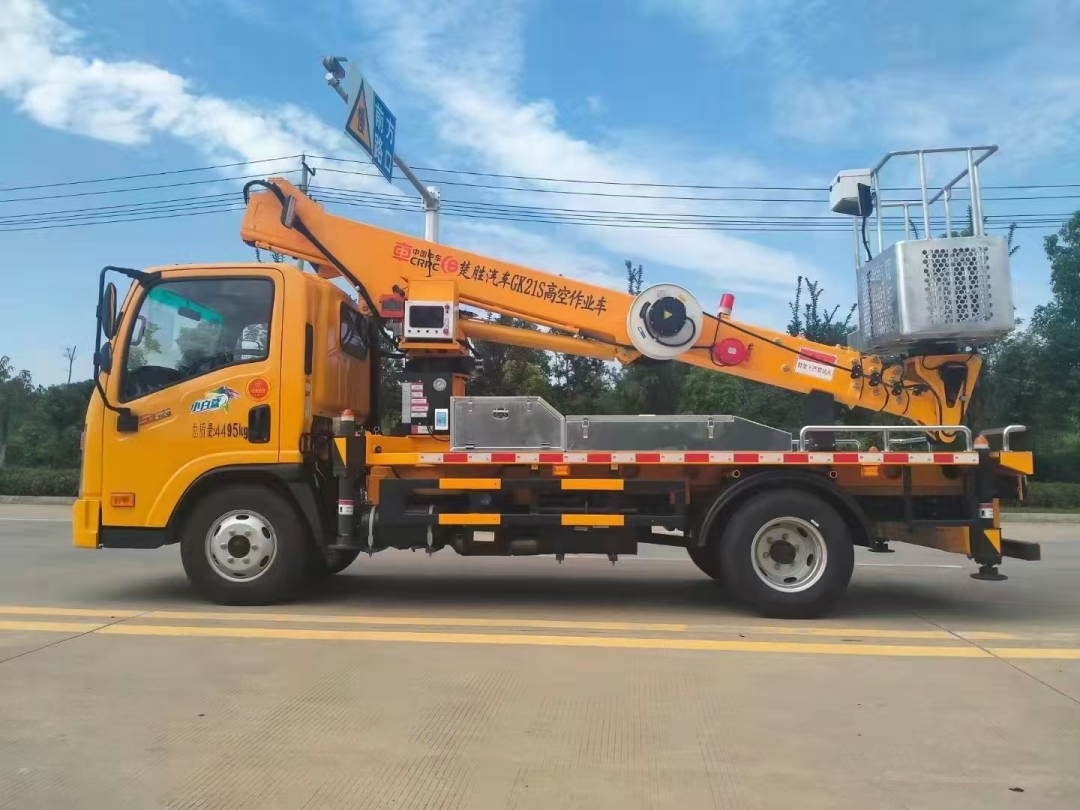

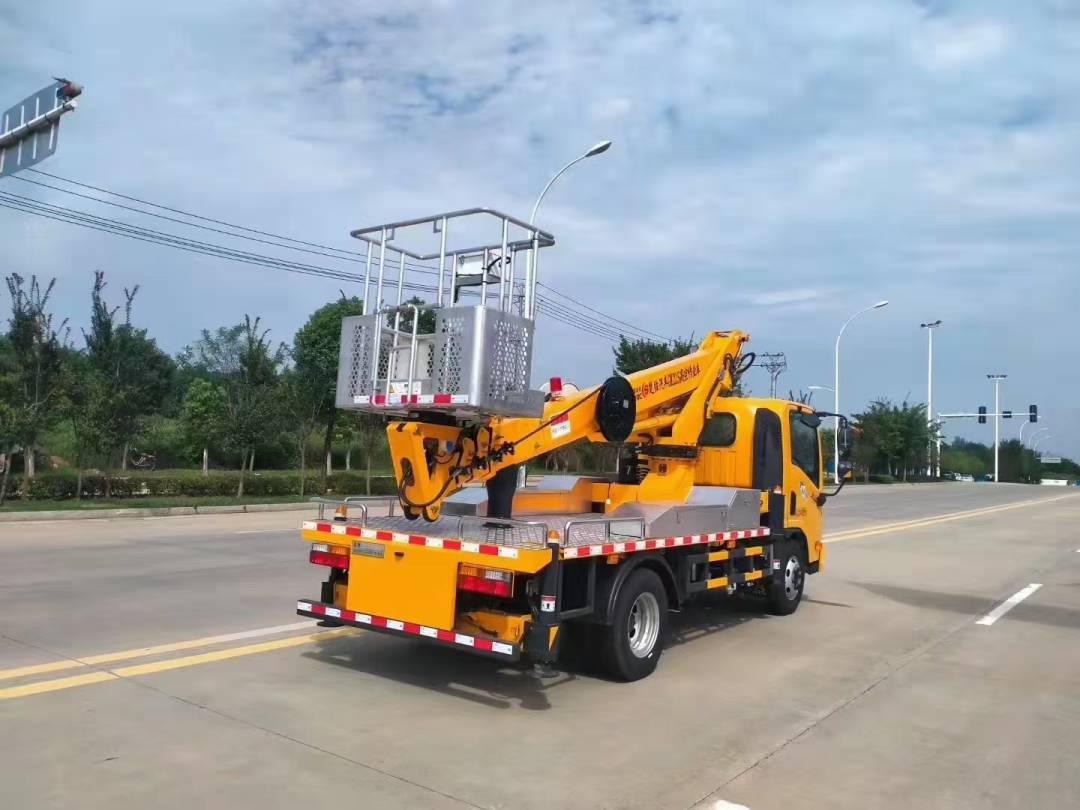

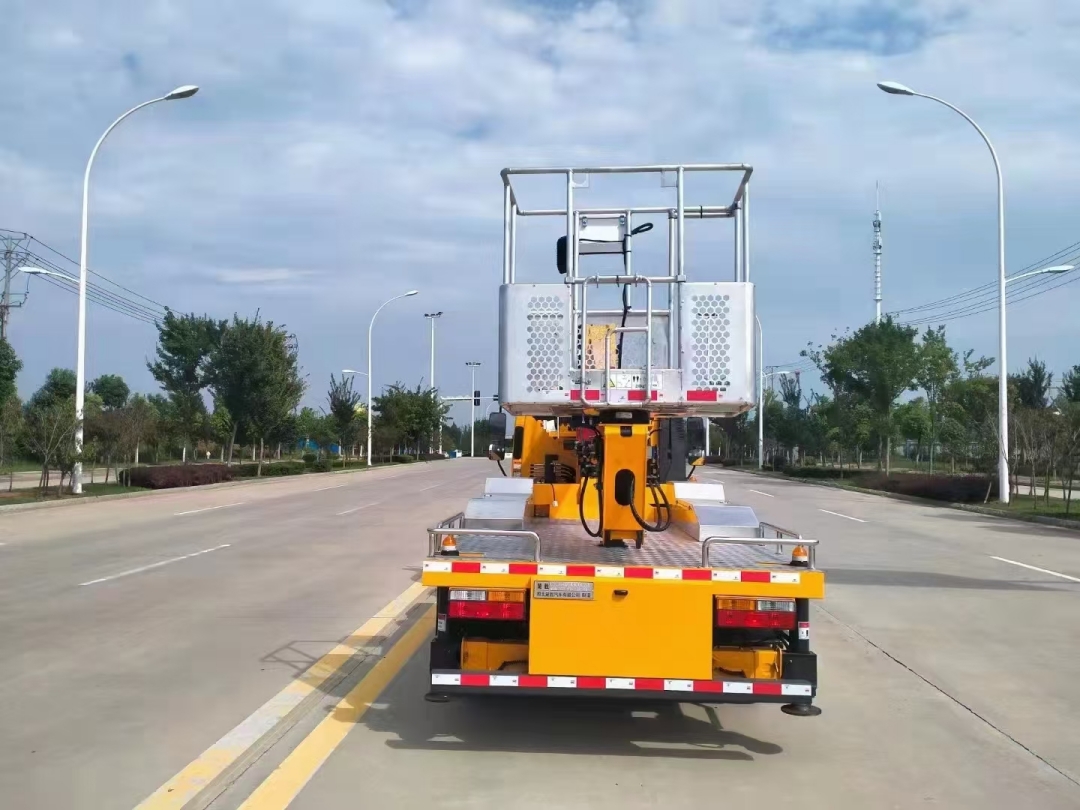

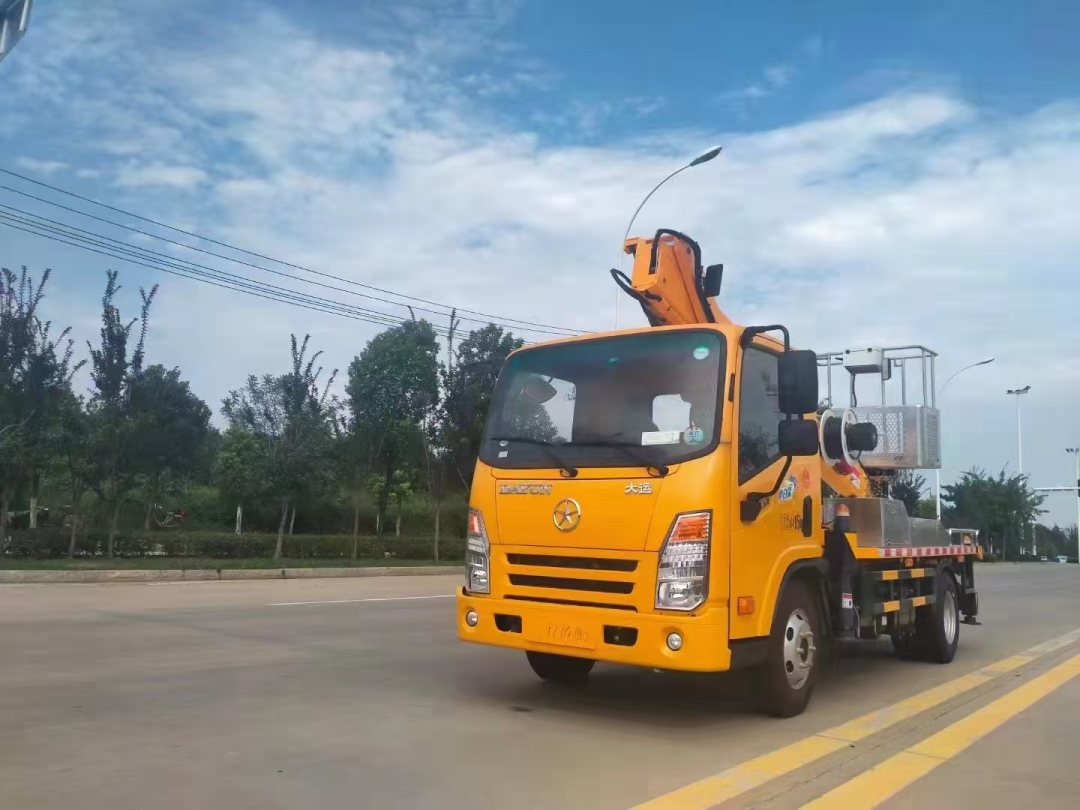

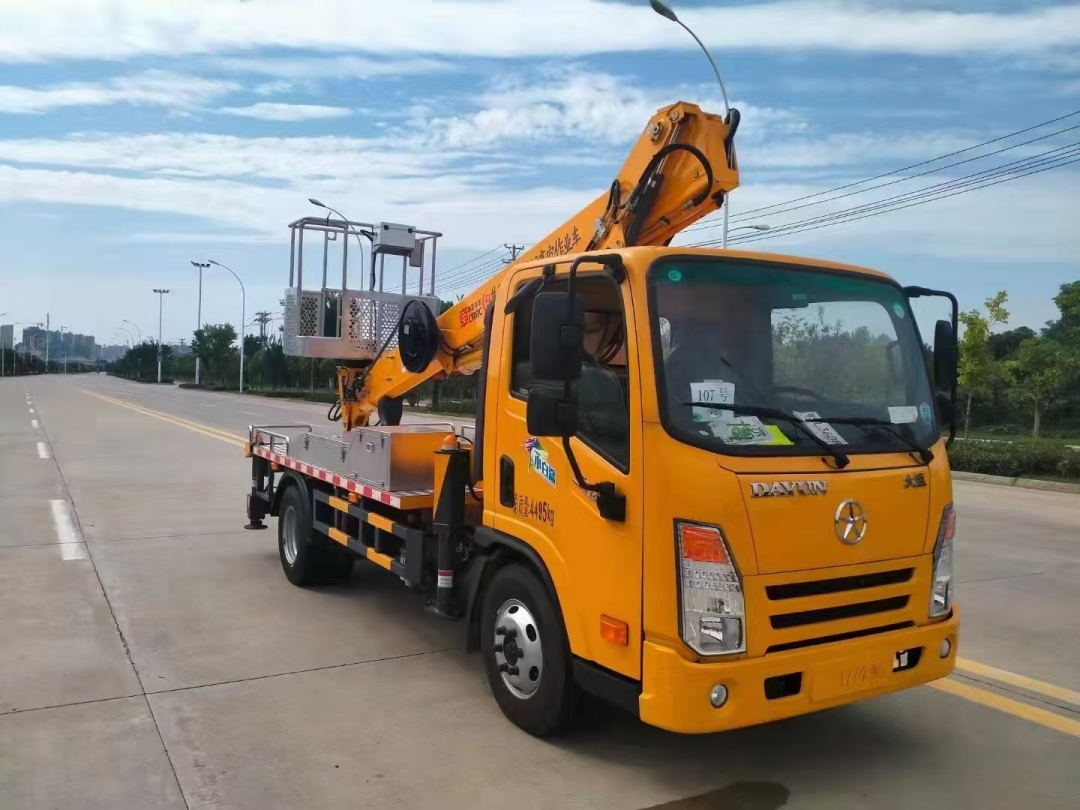

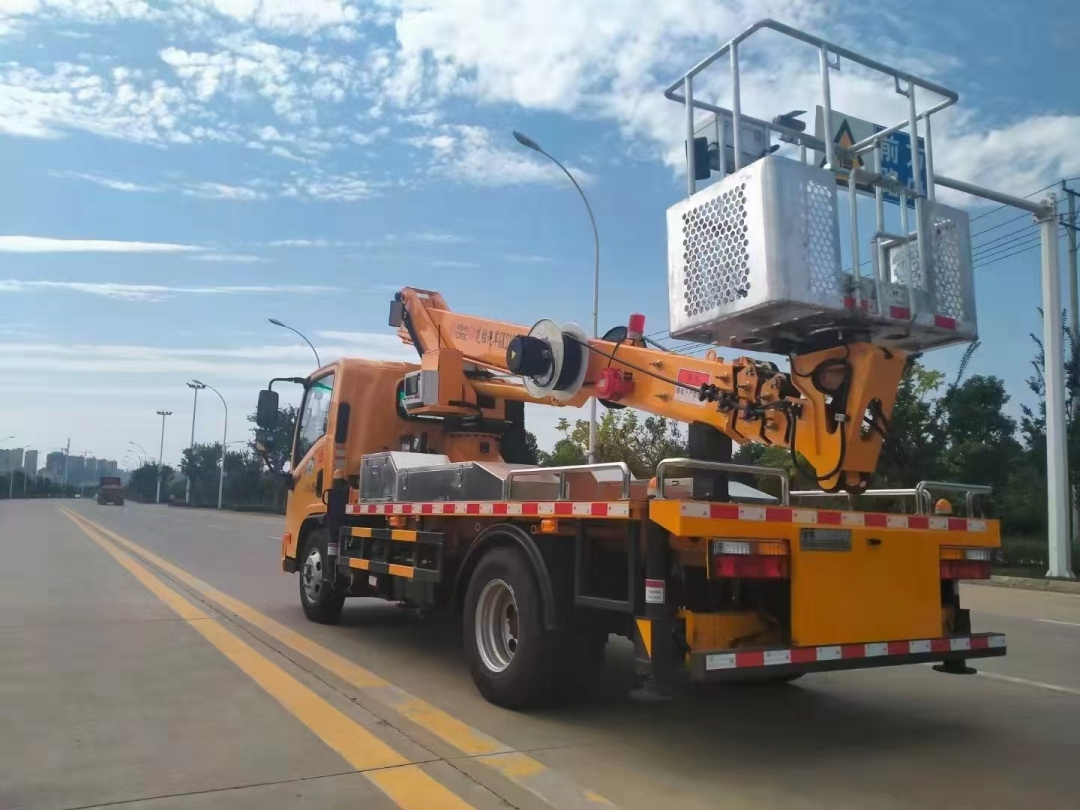

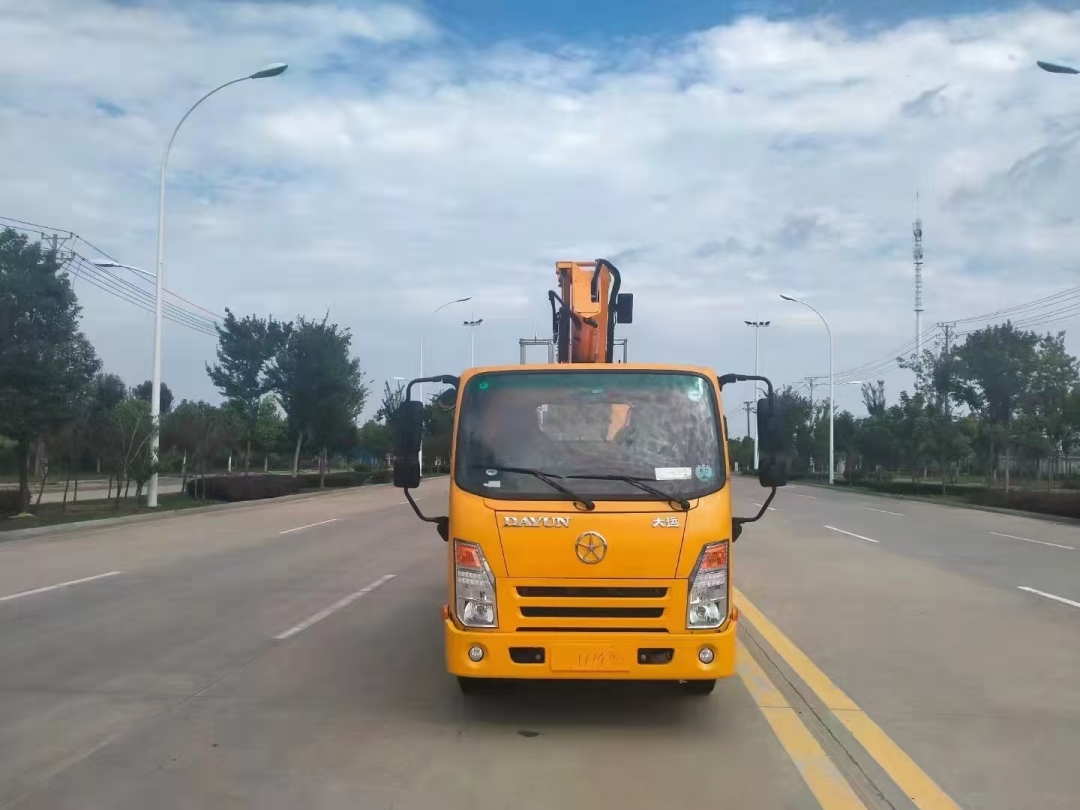

Dayun 21m-24m high-altitude operation truck
2024-09-29 15:14:38 Source：chusheng
Dayun 21m-24m high-altitude operation truck
Chassis configuration: 1735 Opli single row cab, Sino German joint venture Dewei Yunnei D20TCIF1 (Yunnei 126), Fast five speed, 1030 (4T) rear axle, 700R16 * 7 tires, 160mm beam, ABS, air conditioning, electric doors and windows+remote control central door lock, MPS (Bluetooth)
Installation configuration:
1. The homework height can be selected from 21 to 24 meters, with a telescopic arm and a working bucket limit of 200kg,
2-platform hydraulic 360 degree full rotation, working bucket 180 degree left and right rotation, with automatic hydraulic leveling, hydraulic system with proportional control, turntable and working bucket dual position operation, all hydraulic systems are equipped with bidirectional hydraulic balance valves with locking function, electro-hydraulic proportional control, realizing infinite speed regulation of loading action, equipped with emergency power source, effectively responding to emergencies, legs are fully hydraulic, and have separate valve group control operation.
3- Each leg is equipped with a strobe light, which automatically flashes in working state for boarding operation. It is equipped with two independent upper and lower operators, with the upper operator installed in the basket and the lower operator being a wireless remote control type. The up and down operators can control the start and stop of the car engine. The operator is equipped with a horn button, which can provide remote warning reminders. The leg support and boarding operation can be interlocked, making it safer and more reliable. Equipped with hooks, set up vehicle tilt alarm or soft leg alarm for safer use, limit function, dangerous condition alarm, equipped with intercom function for boarding and disembarking, equipped with tilt angle and length sensors to achieve amplitude control of the aerial work vehicle. Vehicle turning limit. High altitude operations are equipped with speakers to provide safety warnings.
| Product name |
Dayun 21m-24m high-altitude operation truck |
| Overall Dimension |
5995×1995×2995(mm) |
| Gross vehicle weight |
4495(Kg) |
| Curb weight |
4365,4300(Kg) |
| Rated weight |
/ |
| Rated load of working platform |
200(Kg) |
| Maximum working height |
21m-24m |
| Cab |
1735 Opli single row cab, ABS, air conditioning, electric doors and windows+remote control central door lock, MPS (Bluetooth) |
| Engine model and horsepower |
D20TCIF1(Yunnei 126hp) |
| Emission standard |
Euro 6 (Euro 3/4/5 can be customized.) |
| Gearbox |
5-speed gearbox |
| Drive wheel |
4X2 |
| Steering wheel |
Left/right hand driving |
| Seat capacity |
2-3 person |
| Wheel base |
2800,2820,3100,3300,2600,3150,3200,3000,3550(mm) |
| Axle quantity |
2 |
| Tire Specification and Quantity |
700R16, 6+1 spare |
| Upper configuration |
The homework height can be selected from 21 to 24 meters, with a telescopic arm and a working bucket limit of 200kg, |
| Notice |
The above information is for reference only. Trucks can be customized according to customer needs. |
Dayun 21m-24m high-altitude operation truck
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck etc.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel decoration,building engineering work,electric power works,factory,large exhibition hall etc.
2. high-platform operation truck is high efficience and great performance with good safety. 3. The Chassis brand for high-altitude operation truckare Dongfeng,CNHTC,Auman,JMC,JAC etc.
Technical parameters of high-altitude operation truck
