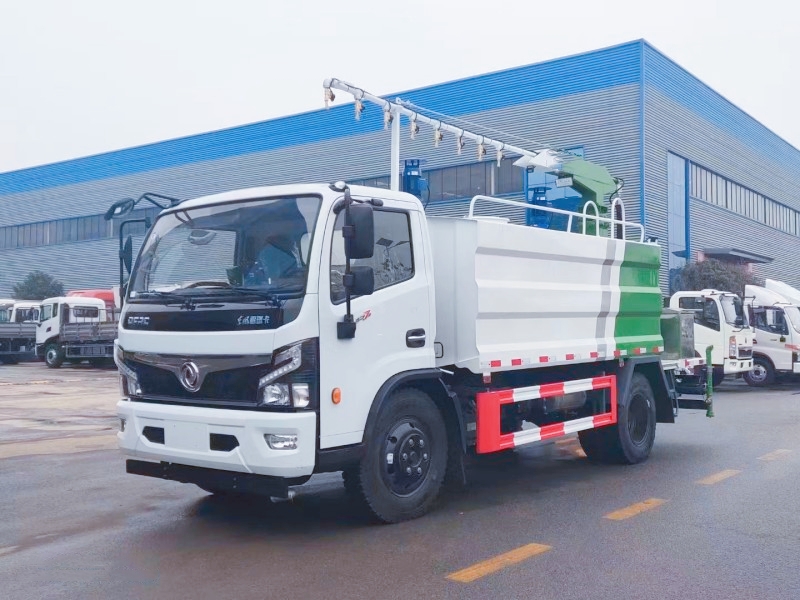

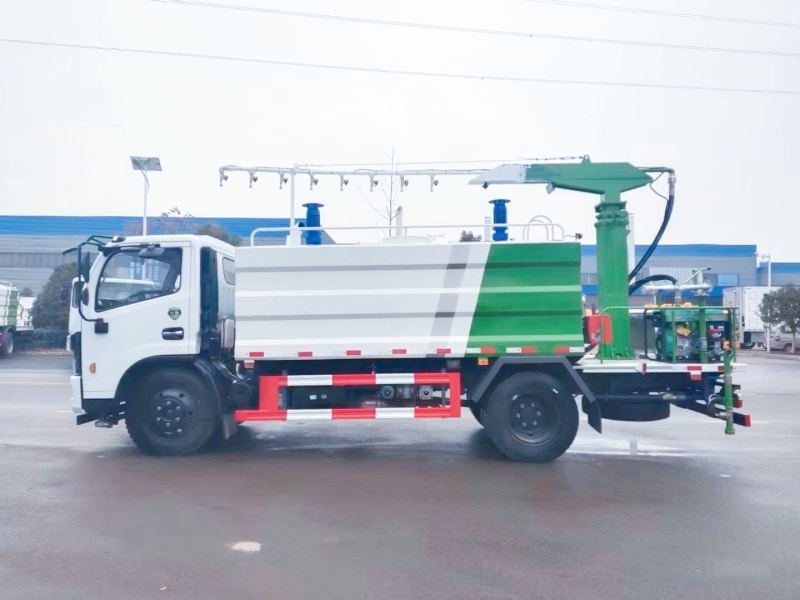

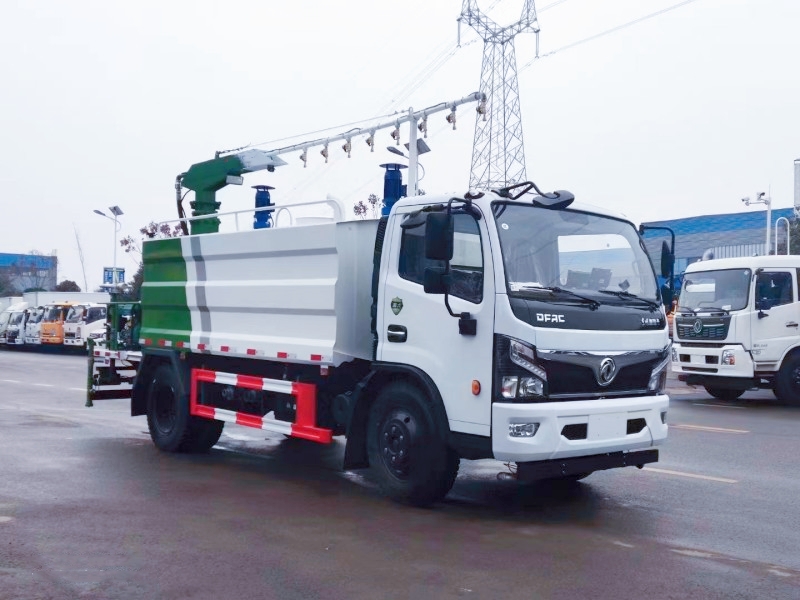

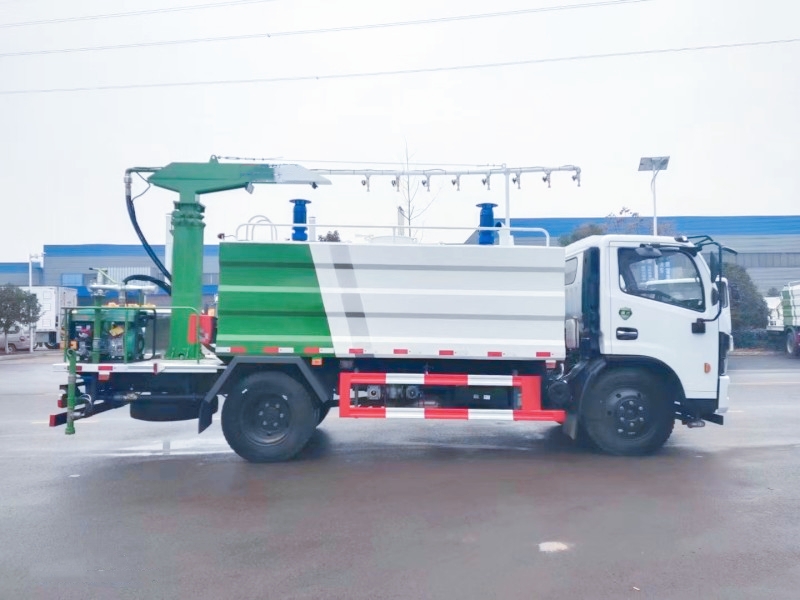

Dongfeng 8-ton railway dust suppression vehicle
8 ton railway dust suppression vehicle This vehicle is mainly used for dust suppression, haze reduction and dust removal. The main special devices are liquid storage tanks and rotary arm spray devices. Multiple engine options available, Dongfeng multifunctional railway dust suppression vehicle, Dongfeng original chassis, chassis model: EQ1125SJ8DCD, total weight: 11995KG, curb weight (vehicle weight): 5500KG, rated load capacity (upper tonnage): 6300KG, 3800MM wheelbase, optional Yunnei150 horsepower/Yunei 170 horsepower/Dachai 180 horsepower/Yuchai 165 horsepower engines, Wanliyang 6-speed gearbox, air conditioning, electric glass, central locking, with ABS,

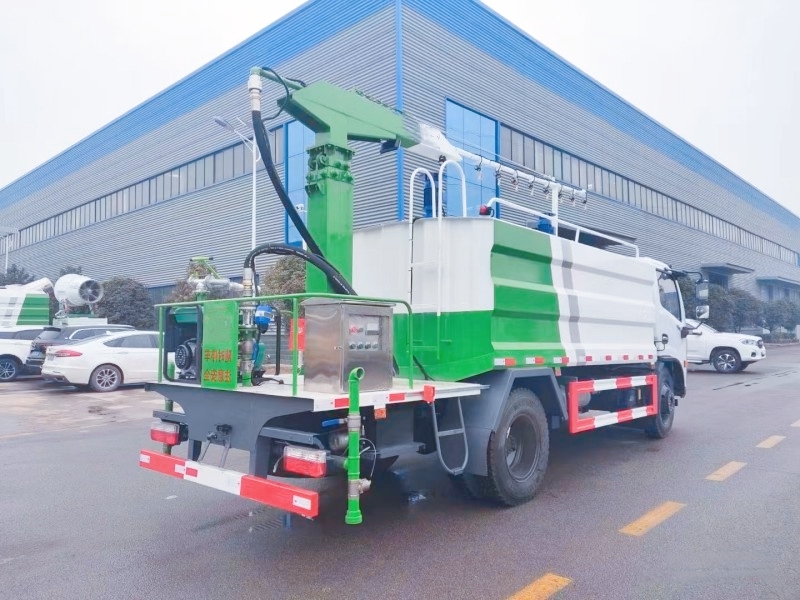

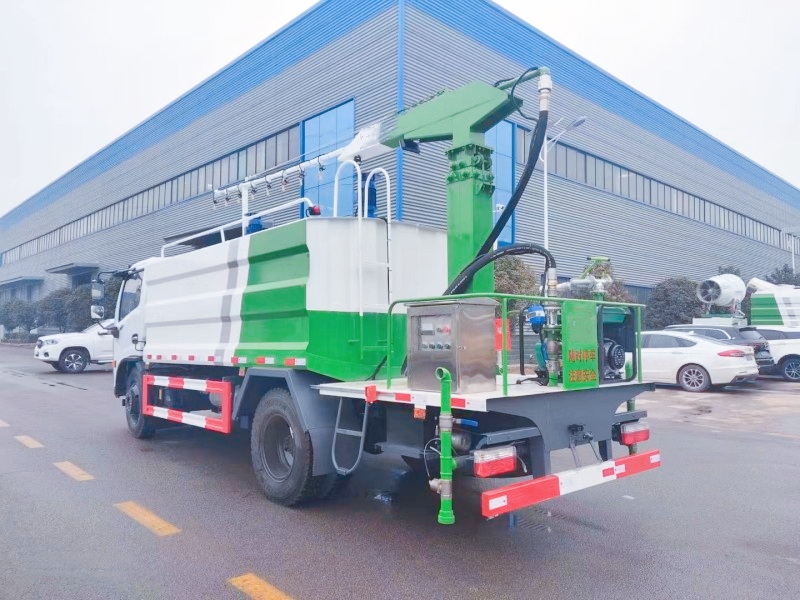

Upper configuration: A large capacity tank with a full load of about 8 cubic meters (with a one-year warranty for epoxy resin anti-corrosion treatment inside the tank), a novel tank design for more stable vehicle driving and longer service life, a large capacity square water tank, front flushing, rear spraying, side spraying, anti-aircraft gun, dust suppression spray rod (with rotating lifting function, hydraulic lifting, hydraulic rotation). The spraying rod is 3.4-5.5 meters above the ground and rotates 180 degrees. The rear platform is equipped with an 8KW diesel generator set and an electronic control box. The whole vehicle adopts a fully intelligent driver's cab touch screen and operation: vehicle spray system, mixing, rotating arm, heating and other functions. The sprinkler function is powered by the main engine. Rotation, lifting, and mixing can be powered by a generator set, and an external power connector sleeve is reserved in the distribution box. Function configuration: Equipped with front flushing road spraying device, side spraying device, rear working platform, and green sprinkler gun installed on the platform (adjustable spray shape), adjustable straight, heavy rain, moderate rain, drizzle, continuously adjustable, with a range of up to 28 meters and a vertical suction range of ≤ 7 meters. Equipped with fire interface and self flow valve, it can self suction and discharge
| Product Name |
Dongfeng 8-ton railway dust suppression vehicle |
| Engine Model |
YCY30165-60,D30TCIF1 |
| Engine horsepower |
Yuchai 150HP, Yunnei 170hp, |
| Engine displacement |
/ |
| Gearbox |
Wanliyang 6-speed gearbox |
| Tire specification |
245/70R19.5, 6+1 spare |
| Wheel base (mm) |
3800mm |
| Gross vehicle weight(Kg) |
11995(Kg) |
| Curb weight(Kg) |
5900,6300,6800(Kg) |
| Rated weight(Kg) |
5965,5900,5565,5500,5065,5000(Kg) |
| Vehicle dimensions (mm) |
7350,7400,8000,8050×2320,2350×3400,3500(mm) |
| Tank volume(cbm) |
8 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
60/90 |
| Tank material |
Q235 carbon steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng 8-ton railway dust suppression vehicle
Dust suppression
vehicle is a special type of vehicle that suppresses dust pollution by spraying
dust suppression solidifying agents and other spraying liquids. Mainly serving
railways, roads, and other dust prone areas. In terms of structure, the dust
suppression vehicle mainly consists of a swing arm spray device, a liquid
storage tank, a self-propelled vehicle, and a control system.
Dust
suppression vehicles need to install insulation and heating systems on their
tanks, spray nozzles, and pump bodies in northern regions during winter in
order to operate normally.Parameters
