Jiefang 4X2 multifunctional dust suppression vehicle
2024-10-09 15:48:19 Source：chusheng
Jiefang 4X2 multifunctional dust suppression vehicle
Chassis configuration:
1.Cab:Jiefang cab
2. Engine: CA4DK1-22E6, Dachai220hp
3.Transmission type: 6-speed gearbox
4.Tyre: 10.00R20,11.00R20,295/80R22.5, 6+1 spare
5.Wheelbase: 5300,5000,4700,4500,5600,5800(mm)
6. Other: Electric glass, central locking, with ABS,
Upper configuration:
1. The tank is approximately 10 cubic meters
2. The side lights are electrified, and two red clearance lights are standard above the tail of the tank
3. Standard front spray duckbill, standard rear punch, users can adjust the hedge position according to their own needs
4. Large patterned platform (with enhanced load-bearing capacity), customized bolt buckle for the rear cover of the barrel
5. Front spraying, rear flushing, rear spraying, side spraying, and the green anti-aircraft gun switch ball valve all use engineering specific 50 meter valves diameter ball valve
| Product Name |
Jiefang 4X2 multifunctional dust suppression vehicle |
| Engine Model |
CA4DK1-22E6, |
| Engine horsepower |
Dachai220hp |
| Engine displacement |
4.8L |
| Gearbox |
6-speed gearbox |
| Tire specification |
10.00R20,11.00R20,295/80R22.5, 6+1 spare |
| Wheel base (mm) |
5300,5000,4700,4500,5600,5800(mm) |
| Gross vehicle weight(Kg) |
18000(Kg) |
| Curb weight(Kg) |
10100,10500(Kg) |
| Rated weight(Kg) |
7705,7305,7770,7370(Kg) |
| Vehicle dimensions (mm) |
8700,8900,9600,9800×2500×3650,3850,3950(mm) |
| Tank volume(cbm) |
10 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
60/90 |
| Tank material |
Q235 carbon steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |

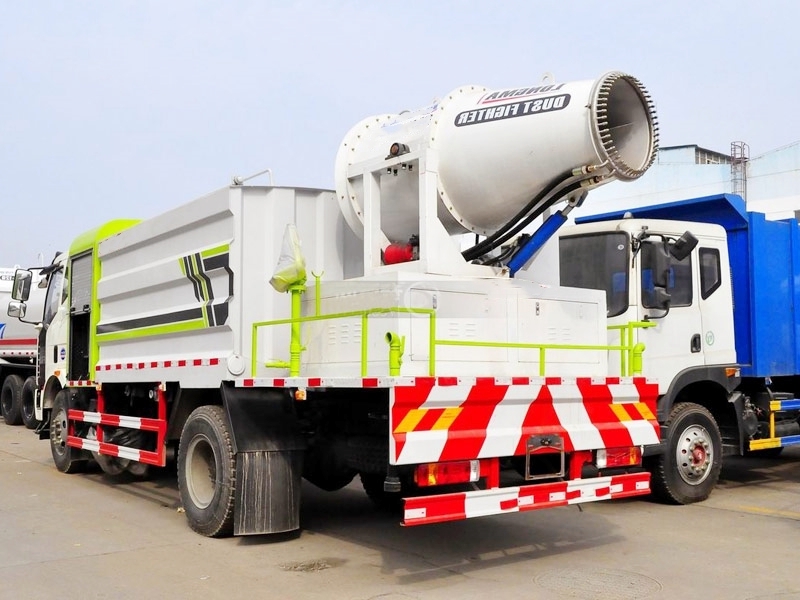

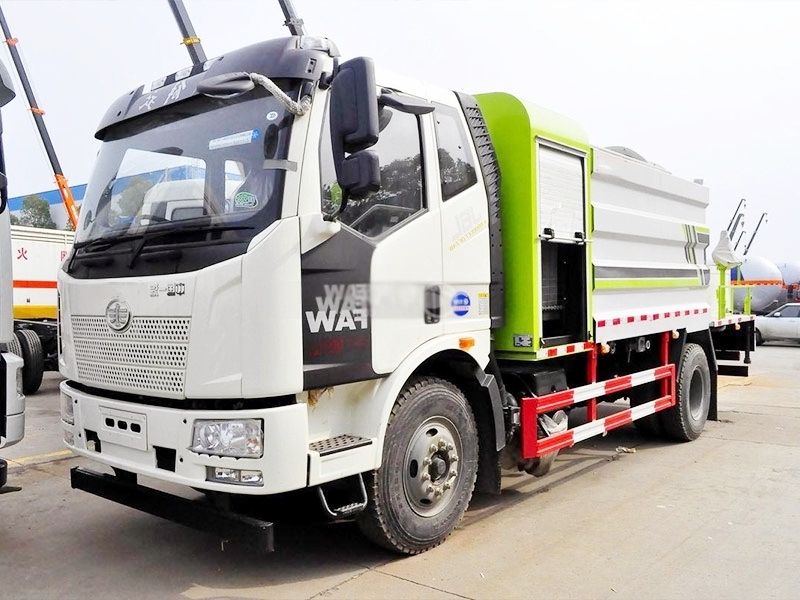

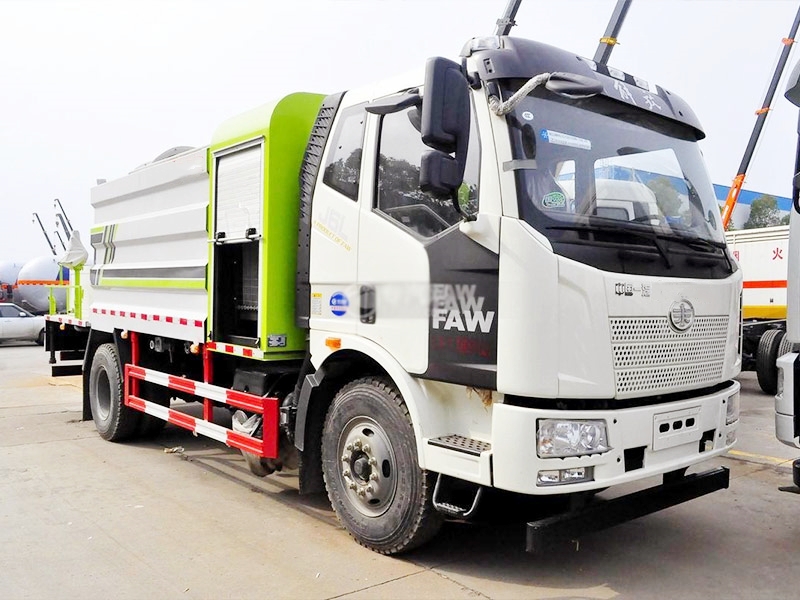

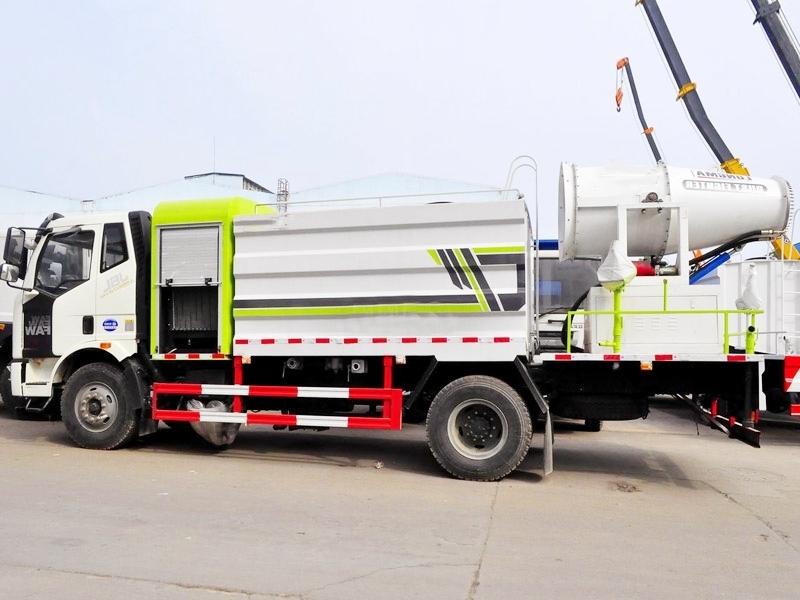

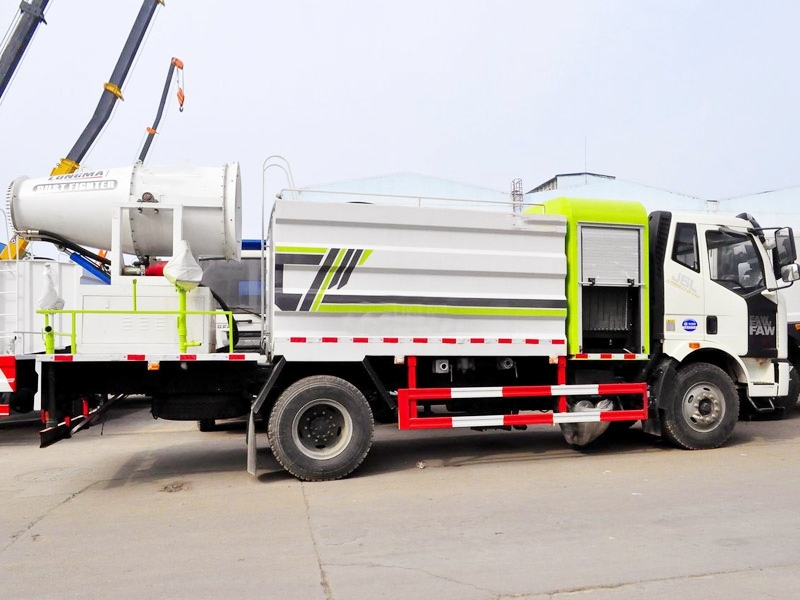

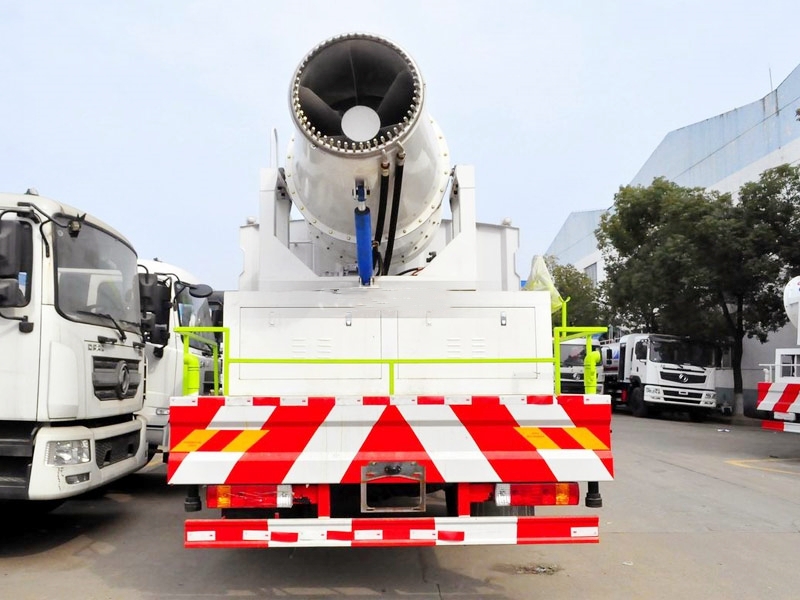

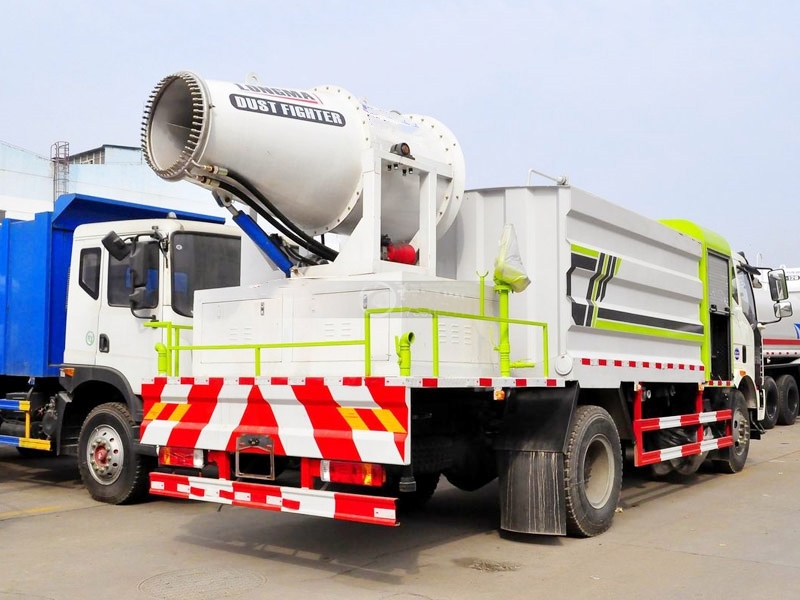

Jiefang 4X2 multifunctional dust suppression vehicle
Dust suppression
vehicle is a special type of vehicle that suppresses dust pollution by spraying
dust suppression solidifying agents and other spraying liquids. Mainly serving
railways, roads, and other dust prone areas. In terms of structure, the dust
suppression vehicle mainly consists of a swing arm spray device, a liquid
storage tank, a self-propelled vehicle, and a control system.
Dust
suppression vehicles need to install insulation and heating systems on their
tanks, spray nozzles, and pump bodies in northern regions during winter in
order to operate normally.
Parameters
