Dongfeng D9 railway spray dust suppression vehicle
2024-10-09 15:48:19 Source：chusheng

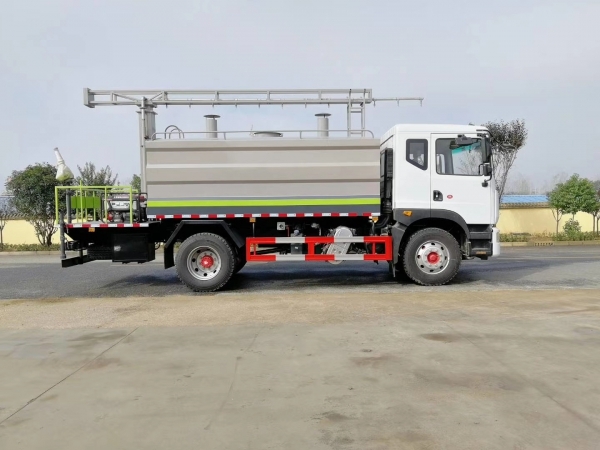

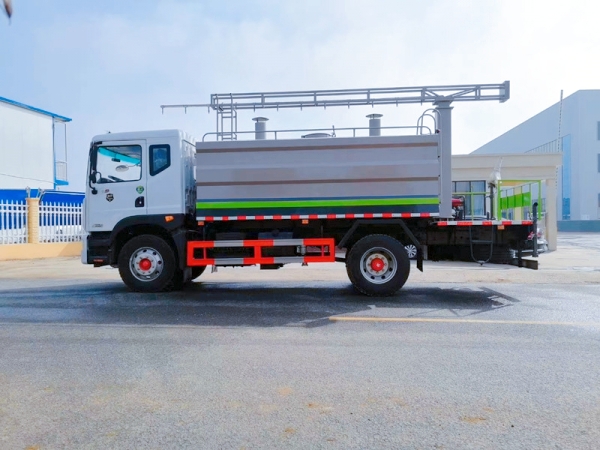

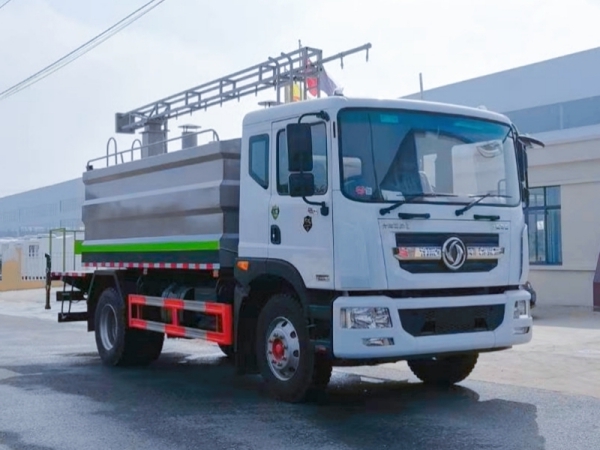

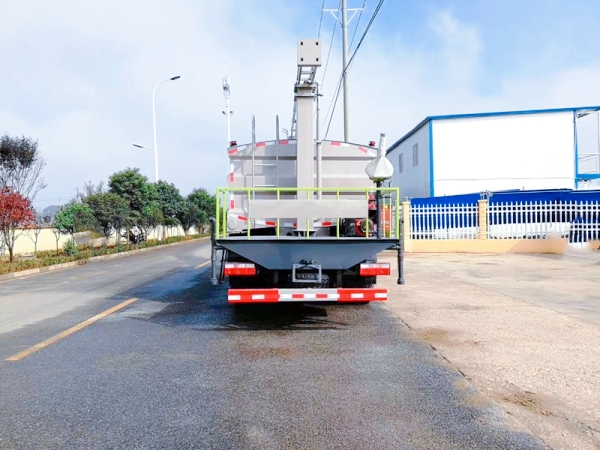

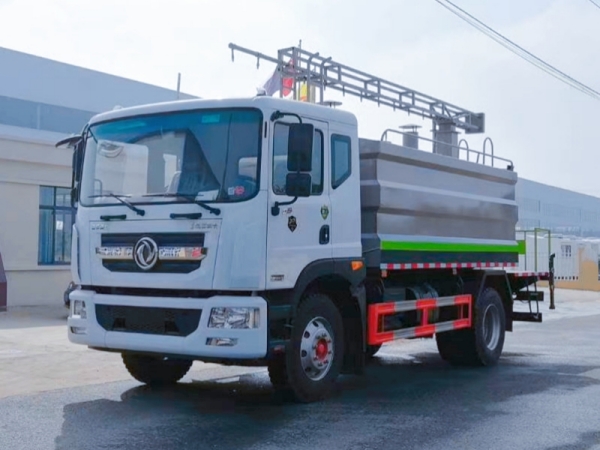

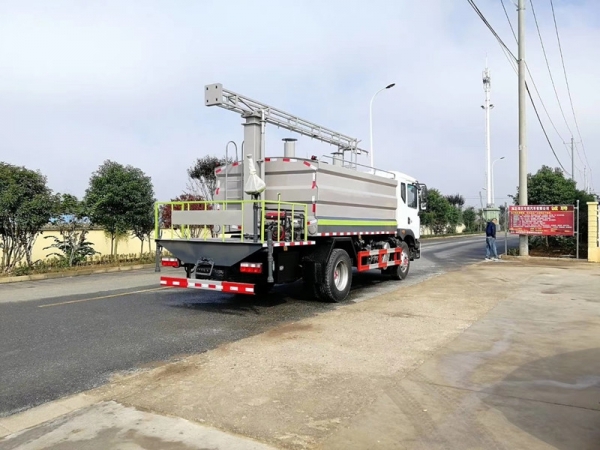

Dongfeng D9 railway spray dust suppression vehicle
Dongfeng D9 railway dust suppression vehicle, used for dust suppression and haze reduction, chassis configuration: Dongfeng D9 cab, Yuchai 200 horsepower engine, 8-speed gearbox, 10.00 steel wire tires. Equipped with original air conditioning and central locking system.
Top configuration
1. Thickness of tank steel plate: 4 mm,
2.The front of the vehicle is equipped with four aluminum alloy nozzles, which can be adjusted in the up, down, left, and right directions.
3.The rear of the vehicle is equipped with two aluminum alloy nozzles. Each nozzle (head) can be individually controlled by a handle switch.
4.The high-pressure water cannon can rotate horizontally 360 ° and tilt up and down 150 °, with water column diffusion adjustment function. Sprinkler width ≥ 15 m, high-pressure water range ≥ 25-45 m
| Product Name |
Dongfeng D9 railway spray dust suppression vehicle |
| Engine Model |
YCS04200-68 |
| Engine horsepower |
Yuchai 200HP |
| Engine displacement |
4.15L |
| Gearbox |
8-speed gearbox |
| Tire specification |
10.00 steel wire tire, 6+1 spare |
| Wheel base (mm) |
4500 |
| Gross vehicle weight(Kg) |
18000KG |
| Curb weight(Kg) |
9660KG |
| Rated weight(Kg) |
8145KG |
| Vehicle dimensions (mm) |
7630,8180×2500×3750 |
| Tank volume(cbm) |
15 |
| Fuel type |
diesel |
| Emission standard |
Euro 6 (option:Euro3/4/5) |
| Water pump model |
60/90 |
| Tank material |
Q235 carbon steel |
| Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
Dongfeng D9 railway spray dust suppression vehicle
Dust suppression
vehicle is a special type of vehicle that suppresses dust pollution by spraying
dust suppression solidifying agents and other spraying liquids. Mainly serving
railways, roads, and other dust prone areas. In terms of structure, the dust
suppression vehicle mainly consists of a swing arm spray device, a liquid
storage tank, a self-propelled vehicle, and a control system.
Dust
suppression vehicles need to install insulation and heating systems on their
tanks, spray nozzles, and pump bodies in northern regions during winter in
order to operate normally.Parameters
