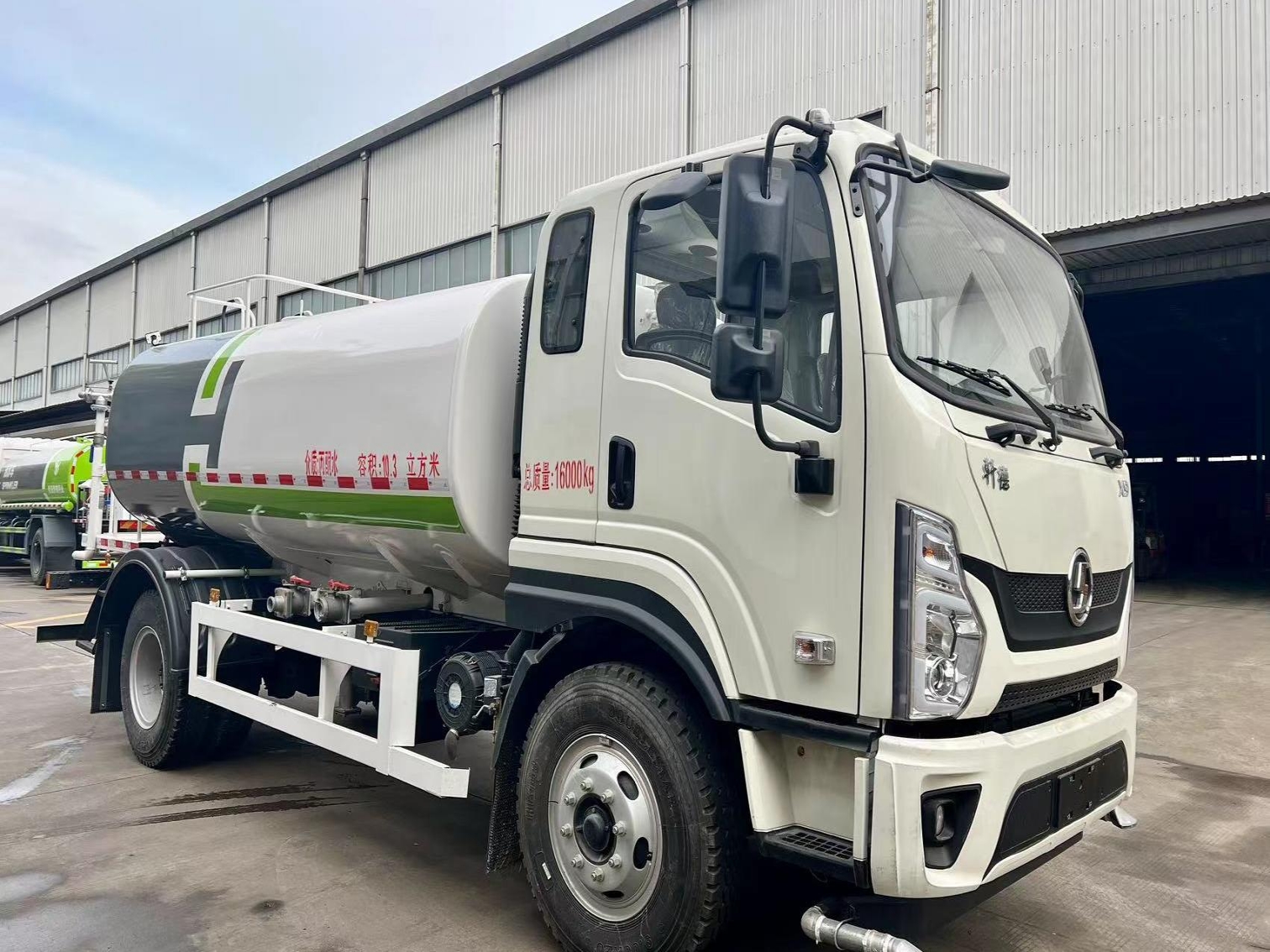

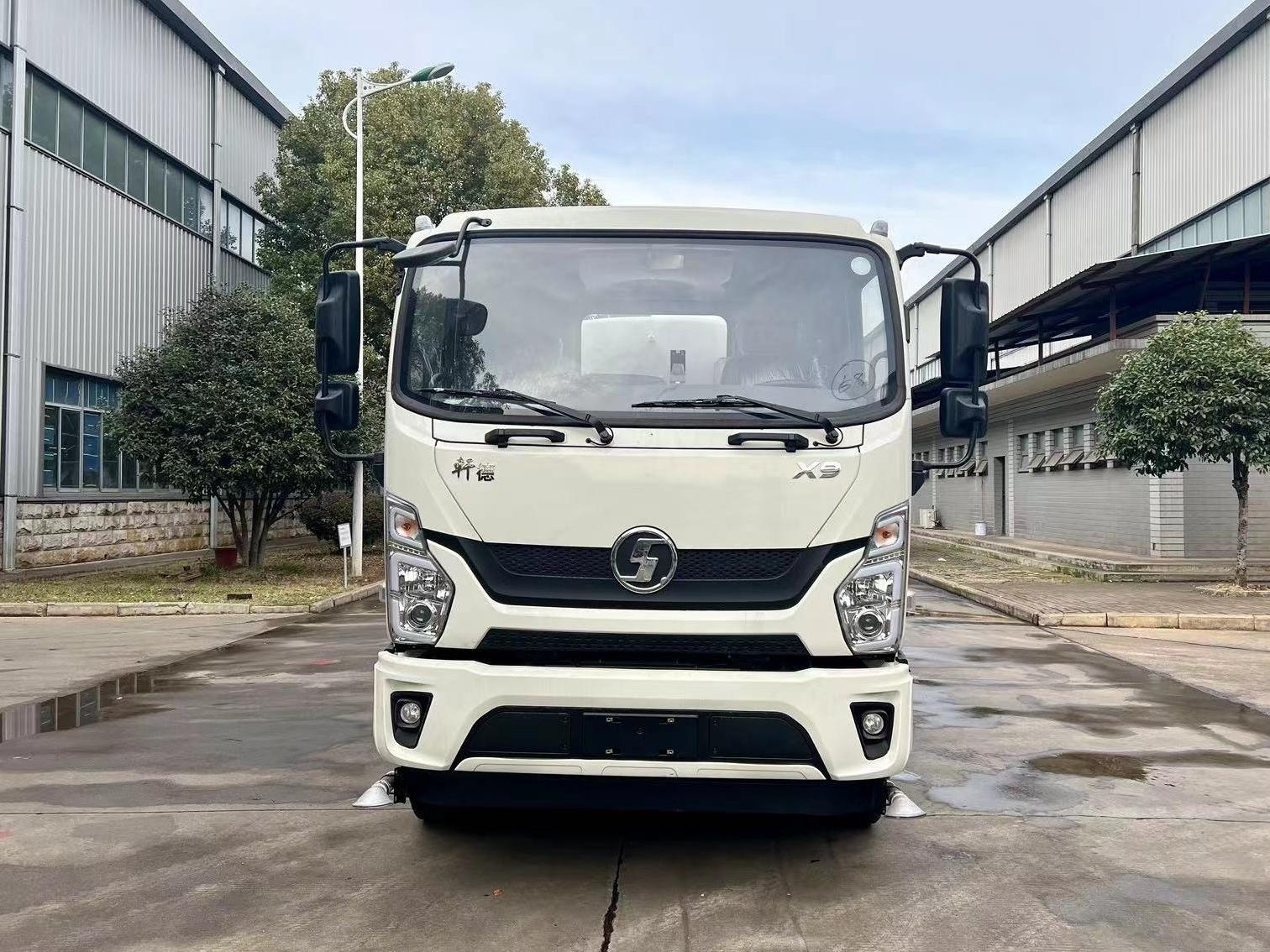

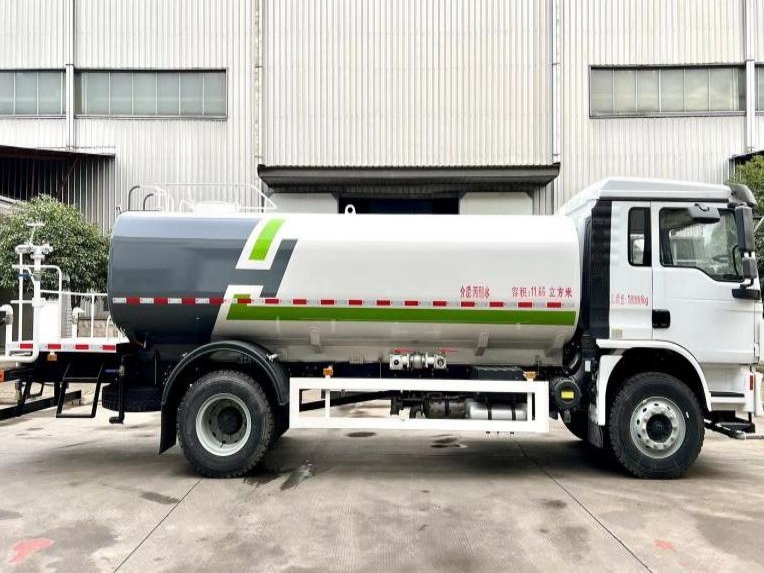

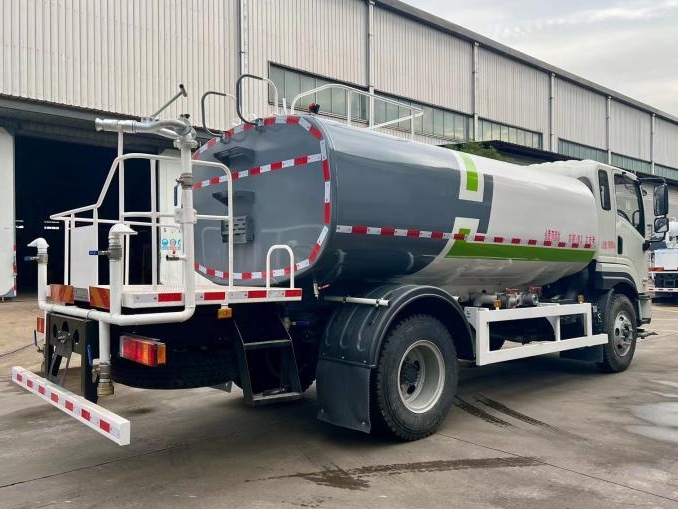

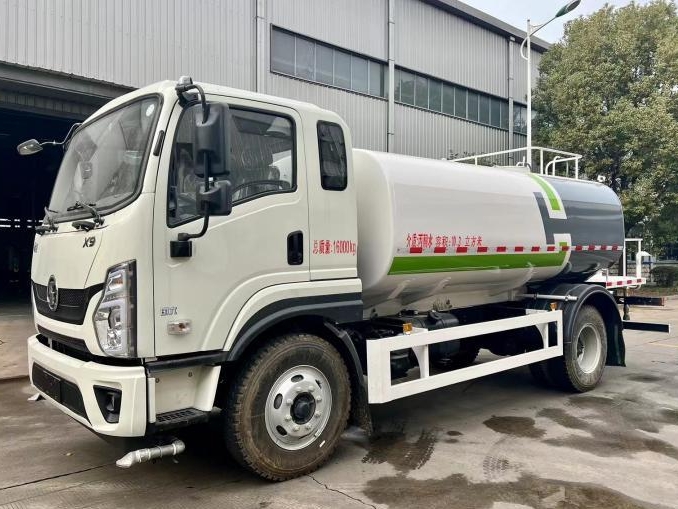

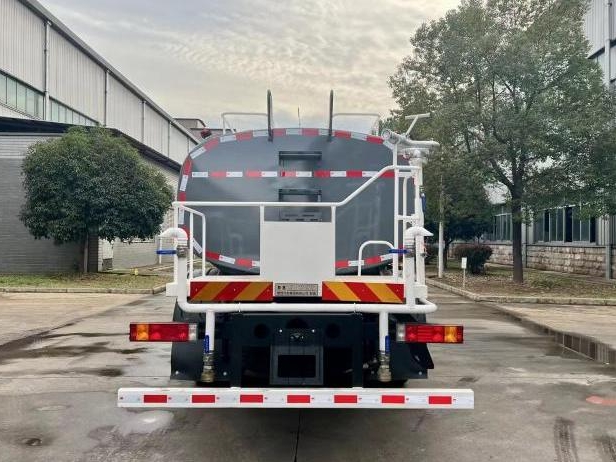

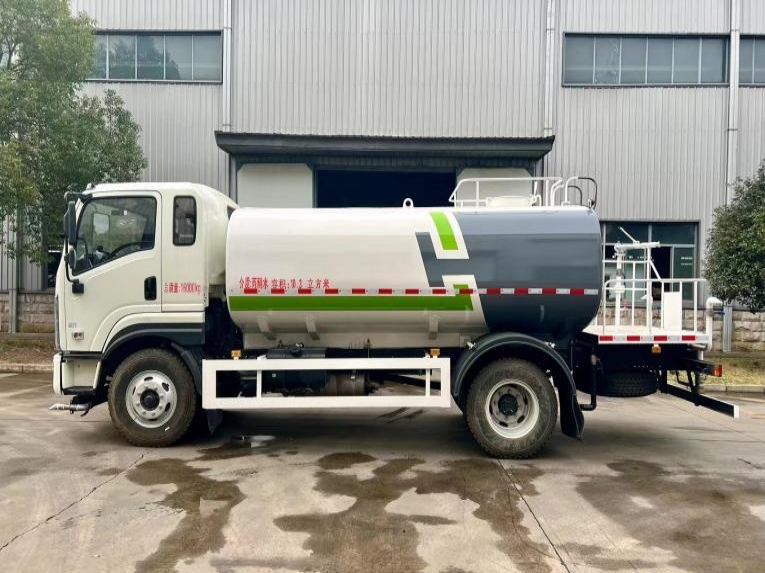

SHACMAN X9 12m³ dust suppression vehicle for railway

SHACMAN X9 12m³ dust suppression vehicle for railway

2024-10-09 15:48:19 Source：chusheng

Chassis configuration:

1.Cab:SHACMAN X9 cab
2. Engine: YCY30170-61,Yuchai 170hp

3.Transmission type: 8 forward gears and 1 reverse gear

4.Tyre: 9.00R20 steel wire tire

5.Wheelbase: 4100mm

6. Other: Air brake, multifunctional steering wheel, original air conditioning, electric doors and windows, central locking system, driving recorder, sunshade.
Upper configuration:

1. The tank is approximately 12 cubic meters
2. The side lights are electrified, and two red clearance lights are standard above the tail of the tank
3. Standard front spray duckbill, standard rear punch, users can adjust the hedge position according to their own needs
4. Large patterned platform (with enhanced load-bearing capacity), customized bolt buckle for the rear cover of the barrel
5. Front spraying, rear flushing, rear spraying, side spraying, and the green anti-aircraft gun switch ball valve all use engineering specific 50 meter valves
Diameter ball valve

Product Name

SHACMAN X9 12m³ dust suppression vehicle for railway

Engine Model

YCY30170-61

Engine horsepower

Yuchai 170hp

Engine displacement

2.97L

Gearbox

8 forward gears and 1 reverse gear

Tire specification

9.00R20 steel wire tire

Wheel base (mm)

4100

Gross vehicle weight(Kg)

16000

Curb weight(Kg)

6480,6300

Rated weight(Kg)

9390,9325,9570,9505

Vehicle dimensions (mm)

7750,7650,7420×2550,2500×3100

Tank volume(cbm)

Fuel type

diesel

Emission standard

Euro 6 (option:Euro3/4/5)

Water pump model

40/50

Tank material

Q235 carbon steel

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

SHACMAN X9 12m³ dust suppression vehicle for railway

Dust suppression vehicle is a special type of vehicle that suppresses dust pollution by spraying dust suppression solidifying agents and other spraying liquids. Mainly serving railways, roads, and other dust prone areas. In terms of structure, the dust suppression vehicle mainly consists of a swing arm spray device, a liquid storage tank, a self-propelled vehicle, and a control system.

Dust suppression vehicles need to install insulation and heating systems on their tanks, spray nozzles, and pump bodies in northern regions during winter in order to operate normally.
