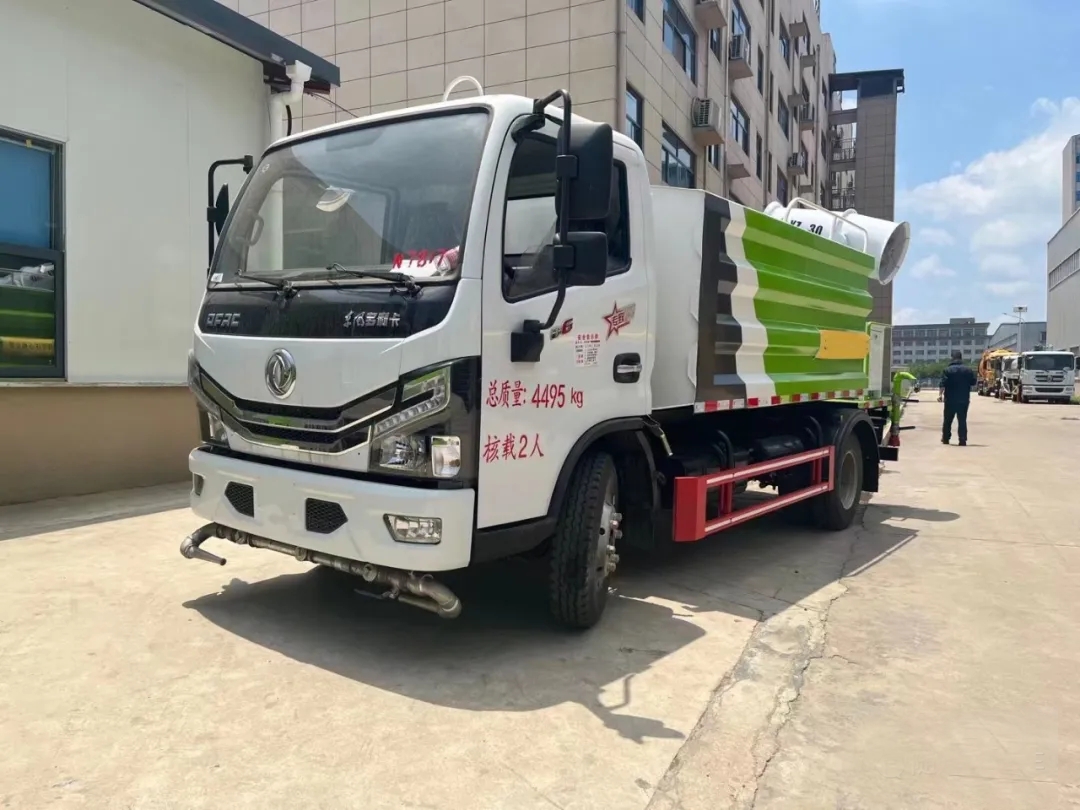

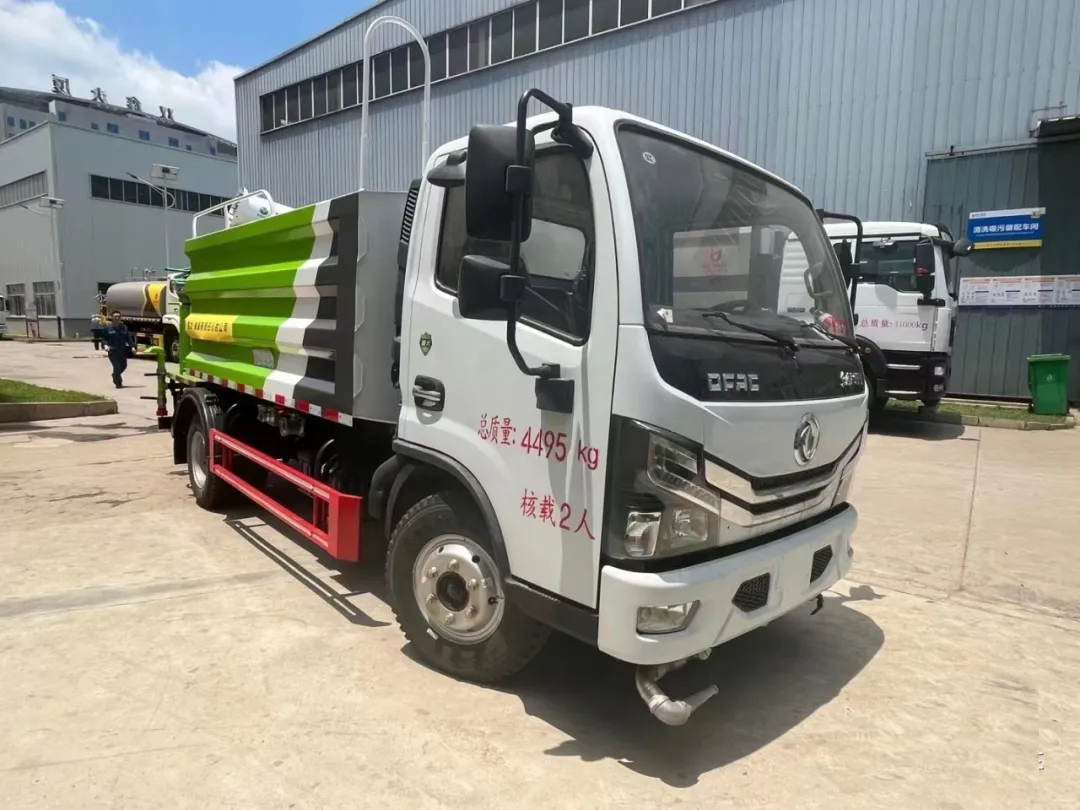

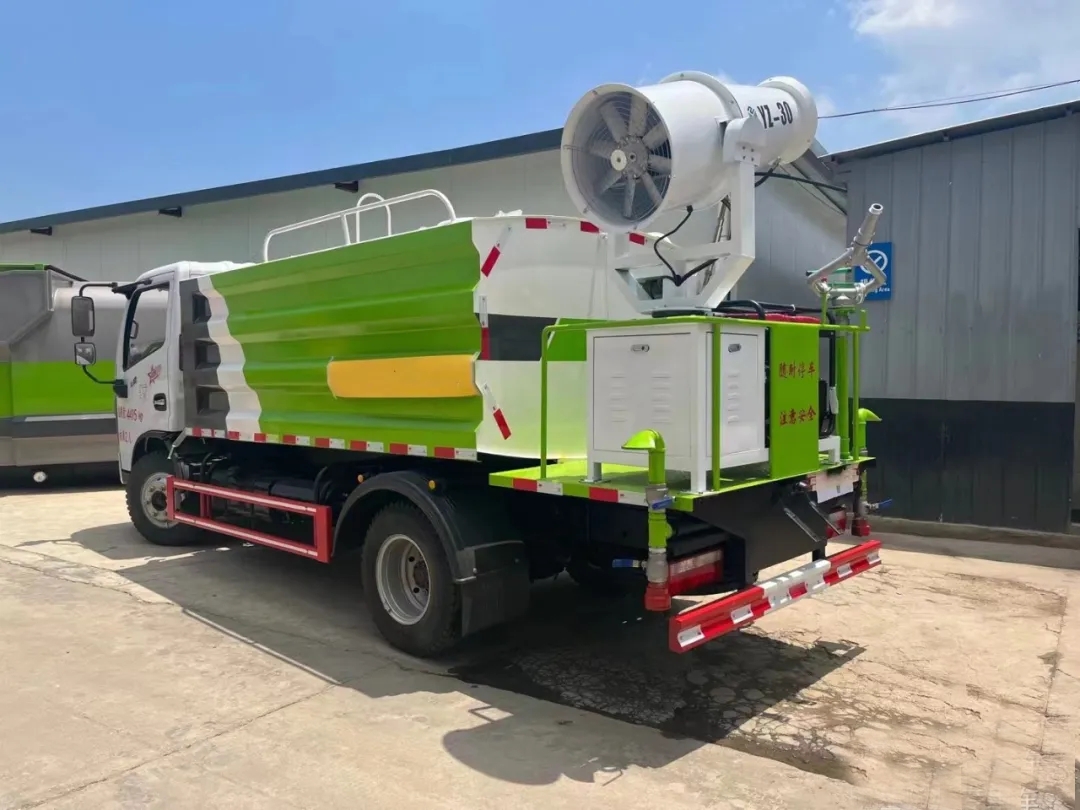

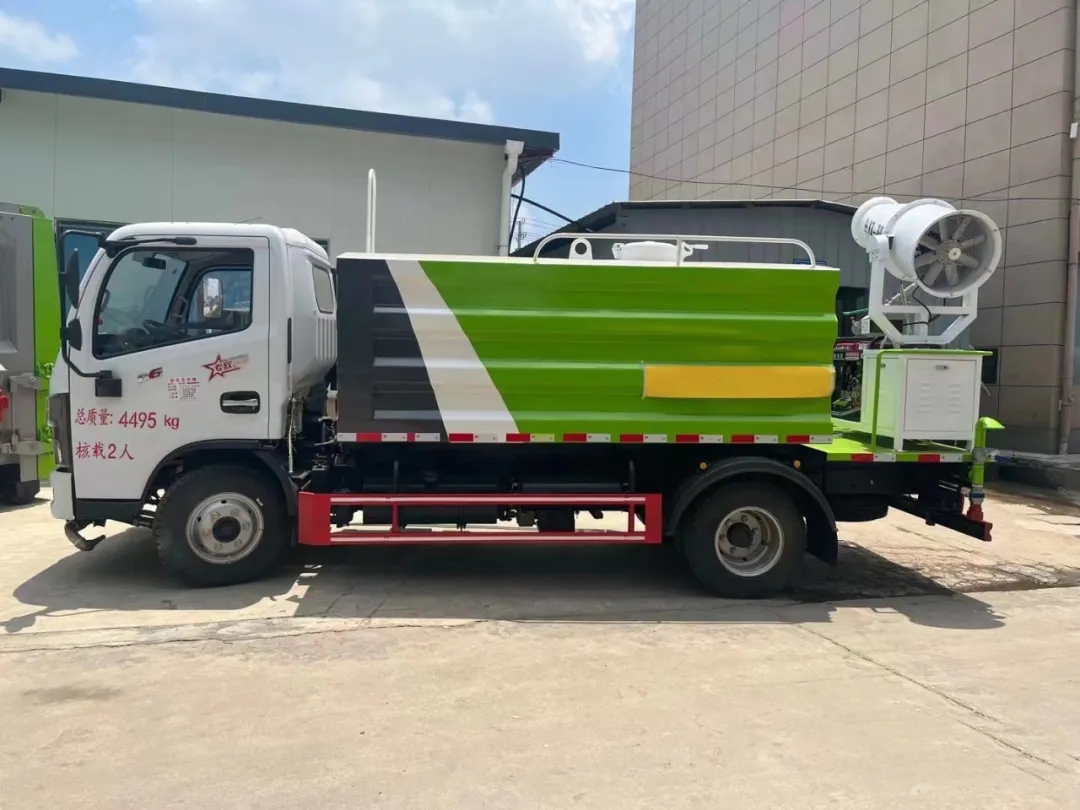

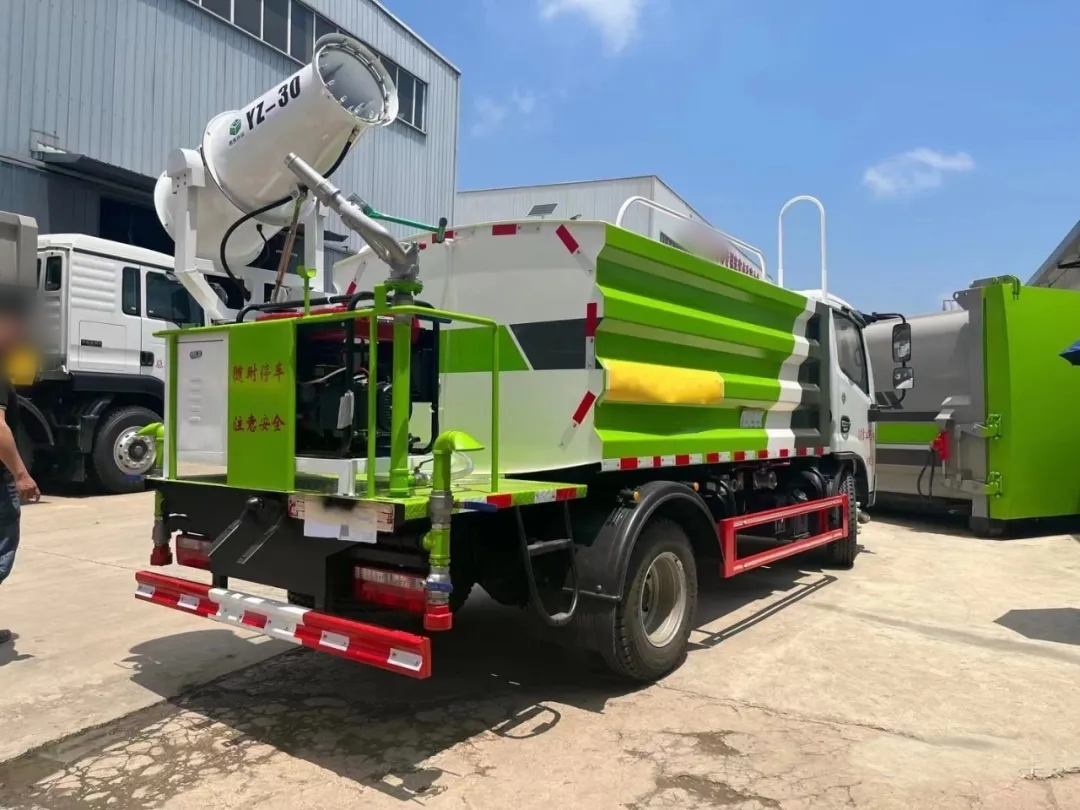

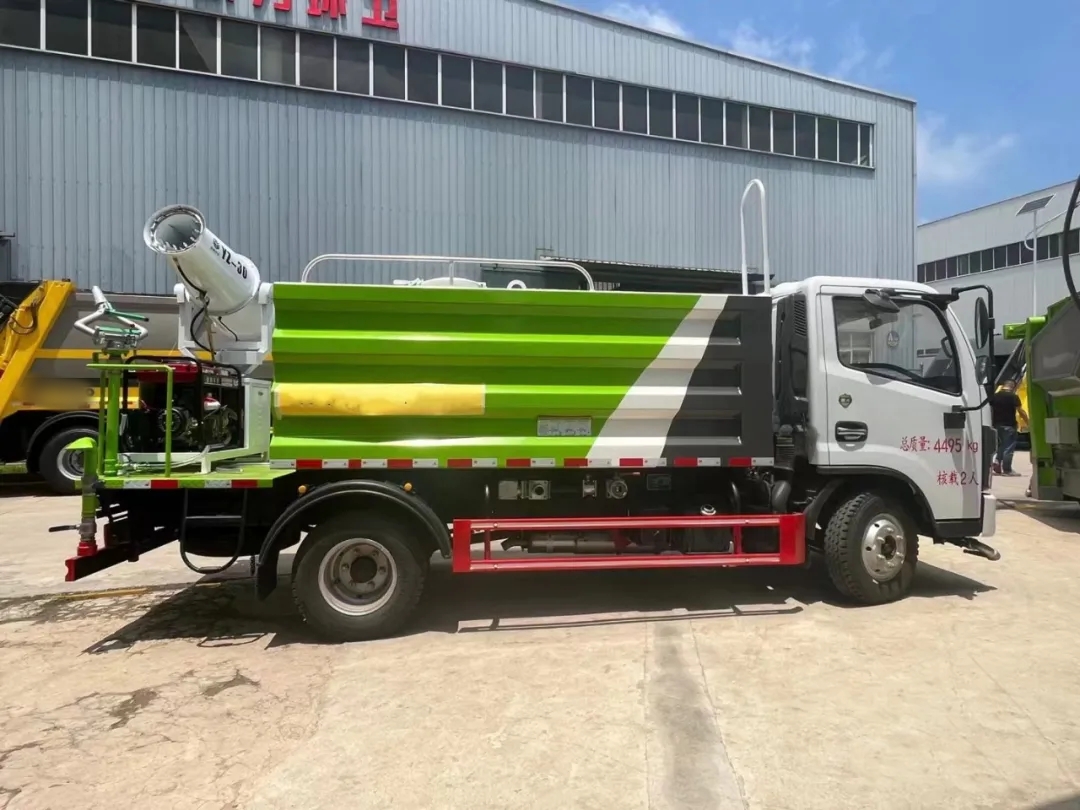

Dongfeng D6 7cbm dust suppression vehicle for construction site

Dongfeng D6 7cbm dust suppression vehicle for construction site

2024-10-09 15:48:19 Source：chusheng

Chassis configuration:

1.Cab: Dongfeng D6 cab
2. Engine: Quanchai 136hp.

3.Transmission type: 6 forward gears and 1 reverse gear

4.Tyre:7.00R16 steel wire tire

5.Wheelbase:3308mm

6. Other: Air brake, original air conditioning, electric doors and windows, central locking.
Upper configuration:

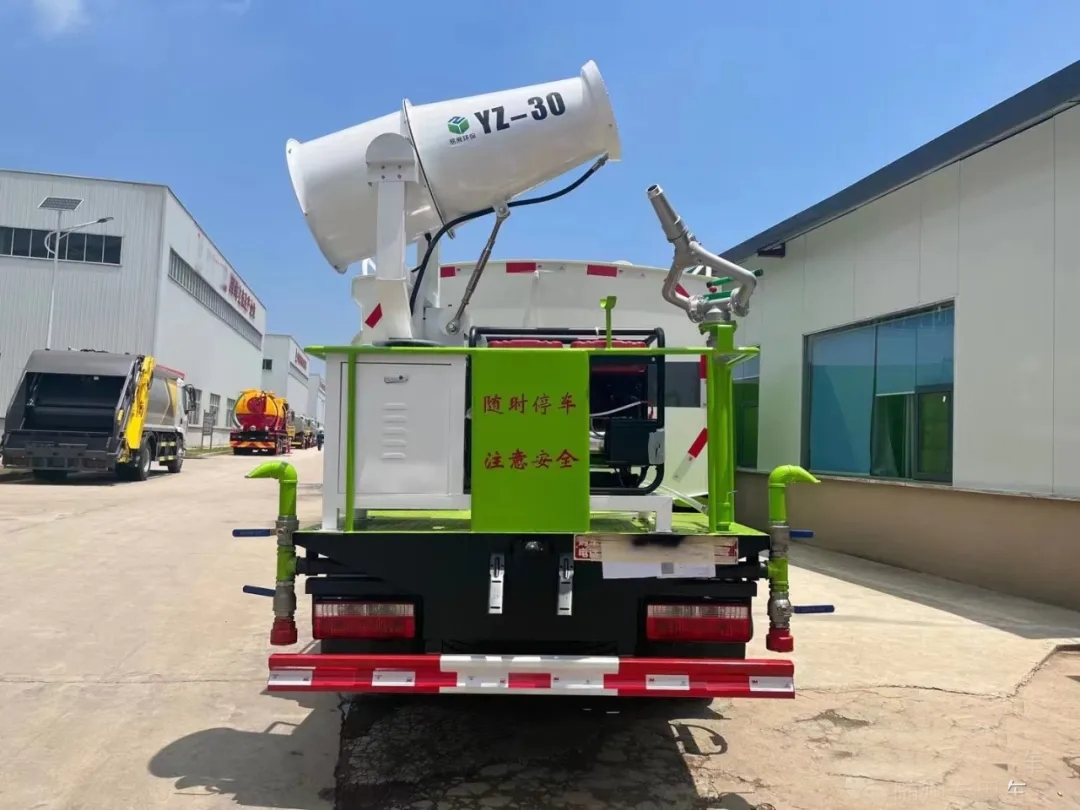

1. The tank is approximately 7 cubic meters
2. The side lights are electrified, and two red clearance lights are standard above the tail of the tank

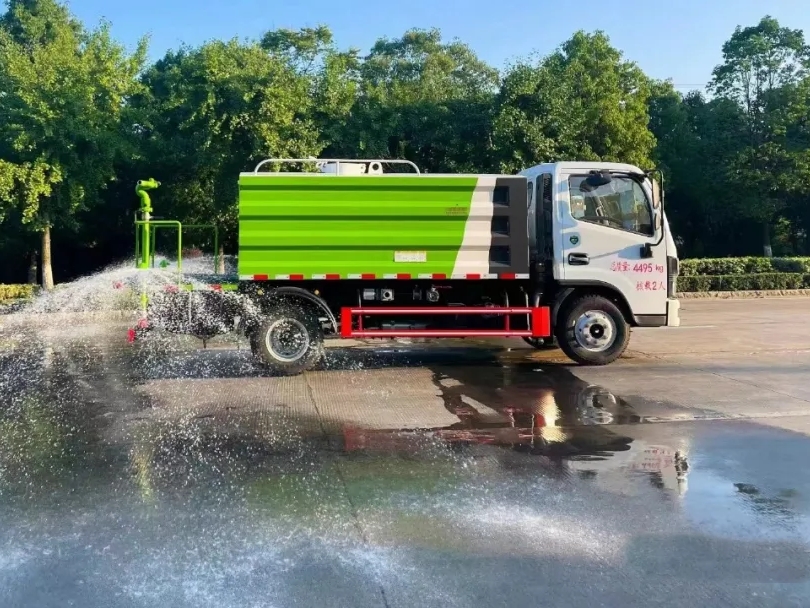

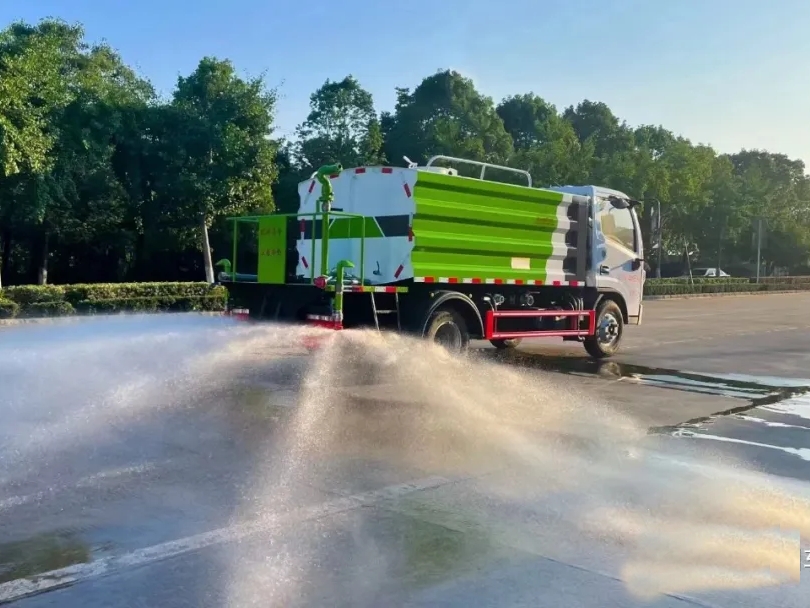

3. Standard front spray duckbill, standard rear punch, users can adjust the hedge position according to their own needs
4. Large patterned platform (with enhanced load-bearing capacity), customized bolt buckle for the rear cover of the barrel
5. Front spraying, rear flushing, rear spraying, side spraying, and the green anti-aircraft gun switch ball valve all use engineering specific 50 meter valves
Diameter ball valve

Product Name

Dongfeng D6 7cbm dust suppression vehicle for construction site

Engine Model

Q23-136E60

Engine horsepower

Quanchai136hp

Engine displacement

2.3L

Gearbox

6 forward gears and 1 reverse gear

Tire specification

7.00R16 steel wire tire

Wheel base (mm)

3308

Gross vehicle weight(Kg)

4495

Curb weight(Kg)

3800,3700,3600

Rated weight(Kg)

500,565,600,665,700,765

Vehicle dimensions (mm)

5998×2000×2600,2800

Tank volume(cbm)

Fuel type

diesel

Emission standard

Euro 6 (option:Euro3/4/5)

Water pump model

40/50

Tank material

Q235 carbon steel

Notice

The above information is for reference only, and vehicles can be customized depending on your requirements.

Dongfeng D6 7cbm dust suppression vehicle for construction site

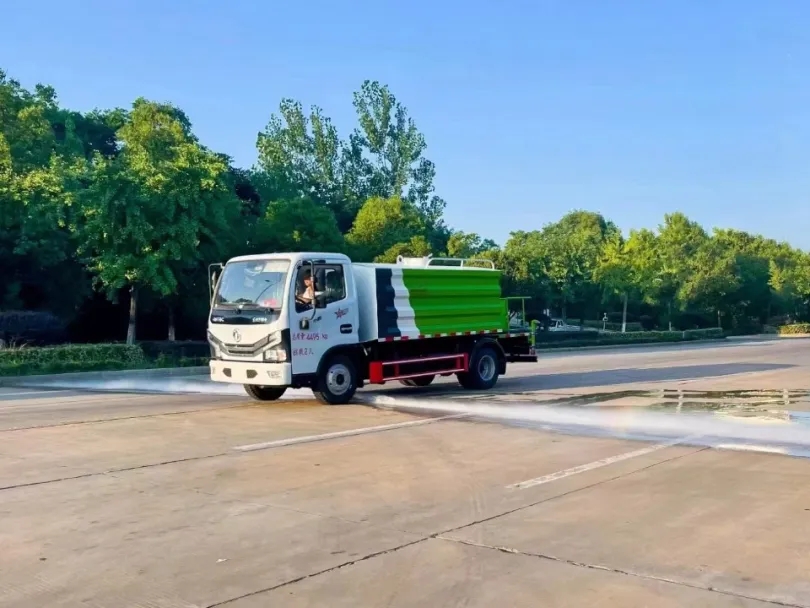

Dust suppression vehicle is a special type of vehicle that suppresses dust pollution by spraying dust suppression solidifying agents and other spraying liquids. Mainly serving railways, roads, and other dust prone areas. In terms of structure, the dust suppression vehicle mainly consists of a swing arm spray device, a liquid storage tank, a self-propelled vehicle, and a control system.

Dust suppression vehicles need to install insulation and heating systems on their tanks, spray nozzles, and pump bodies in northern regions during winter in order to operate normally.
